◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#65798) — 37 parça

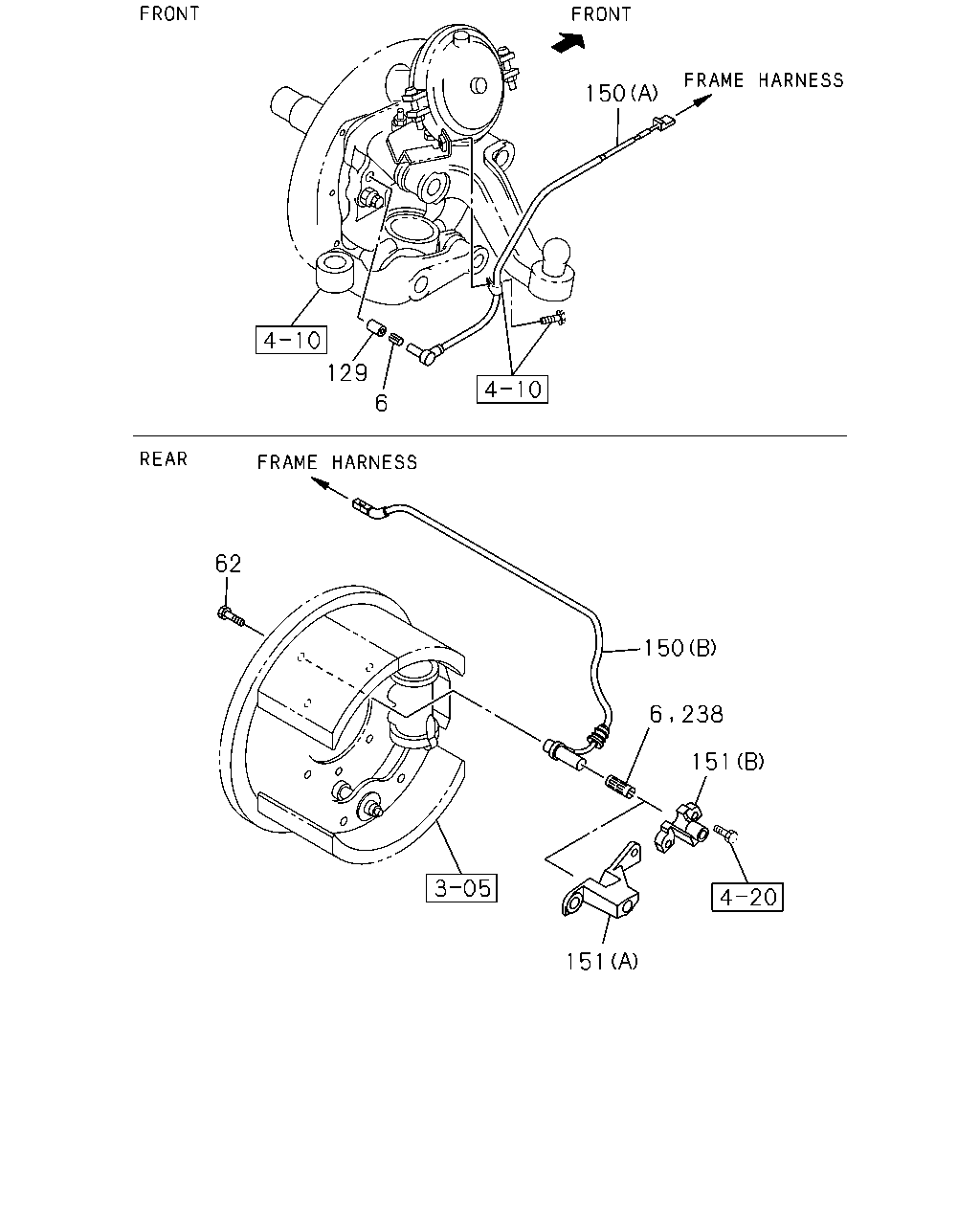

çizim 137750
150 129 6 62 150 151 151 6 238
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-260-1 02 1 0712-1004 ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 0712-1004 ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-260-1 02 1 1005-1105 ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-260-1 02 1 1106- ●
62 BOLT; SENSOR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> M8X16 		9-05820-816-0 02 1 0712-1004 ●
129 COLLAR
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-471-0 02 1 0712-1105 ●
129 COLLAR
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> 		1-83129-471-0 02 1 1106- ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-83227-024-1 02 1 0712-1105 ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> (A) 		1-83227-024-1 02 1 1106- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> (B) 		1-83127-979-0 01 1 0712-1004 ●
150 SENSOR; SPEED,ABS
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> (B) 		1-83127-980-0 01 1 0712-1004 ●
150 SENSOR; SPEED,ABS
(A) 		8-98037-375-0 02 1 0710-0711 ● ●
150 SENSOR; SPEED,ABS
(A) 		8-98037-375-0 02 1 0712- ●
150 SENSOR; SPEED,ABS
HUB LUBRICATION OIL BATH<C5K> (A) 		8-98037-375-0 02 1 0712- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (B) 		8-98076-288-0 01 1 0710-0710 ●
150 SENSOR; SPEED,ABS
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		8-98076-288-1 01 1 0710- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (B) 		8-98076-289-0 01 1 0710-0710 ●
150 SENSOR; SPEED,ABS
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		8-98076-289-1 01 1 0710- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (B) 		8-98049-814-0 01 1 0710-0710 ●
150 SENSOR; SPEED,ABS
(B) 		8-98049-814-0 01 1 0710-0711 ●
150 SENSOR; SPEED,ABS
AUSTRALIA EQUIPMENT(B13) (B) 		8-98049-814-0 01 1 0712- ●
150 SENSOR; SPEED,ABS
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (B) 		8-98049-815-0 01 1 0710-0710 ●
150 SENSOR; SPEED,ABS
(B) 		8-98049-815-0 01 1 0710-0711 ●
150 SENSOR; SPEED,ABS
AUSTRALIA EQUIPMENT(B13) (B) 		8-98049-815-0 01 1 0712- ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-210-0 01 1 0710-0711 ● ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-210-0 01 1 0712-1306 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-42319-210-0 01 1 0712-1306 ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-211-0 01 1 0710-0711 ● ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-211-0 01 1 0712-1306 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-42319-211-0 01 1 0712-1306 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> (B) 		1-83129-406-0 01 1 0712-1004 ●
151 BRACKET; SPD SENSOR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> (B) 		1-83129-405-0 01 1 0712-1004 ●
238 BUSHING; BRKT 1-42319-213-0 02 1 0710-0711 ● ●
238 BUSHING; BRKT 1-42319-213-0 02 1 0712- ●
238 BUSHING; BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-42319-213-0 02 1 0712- ●

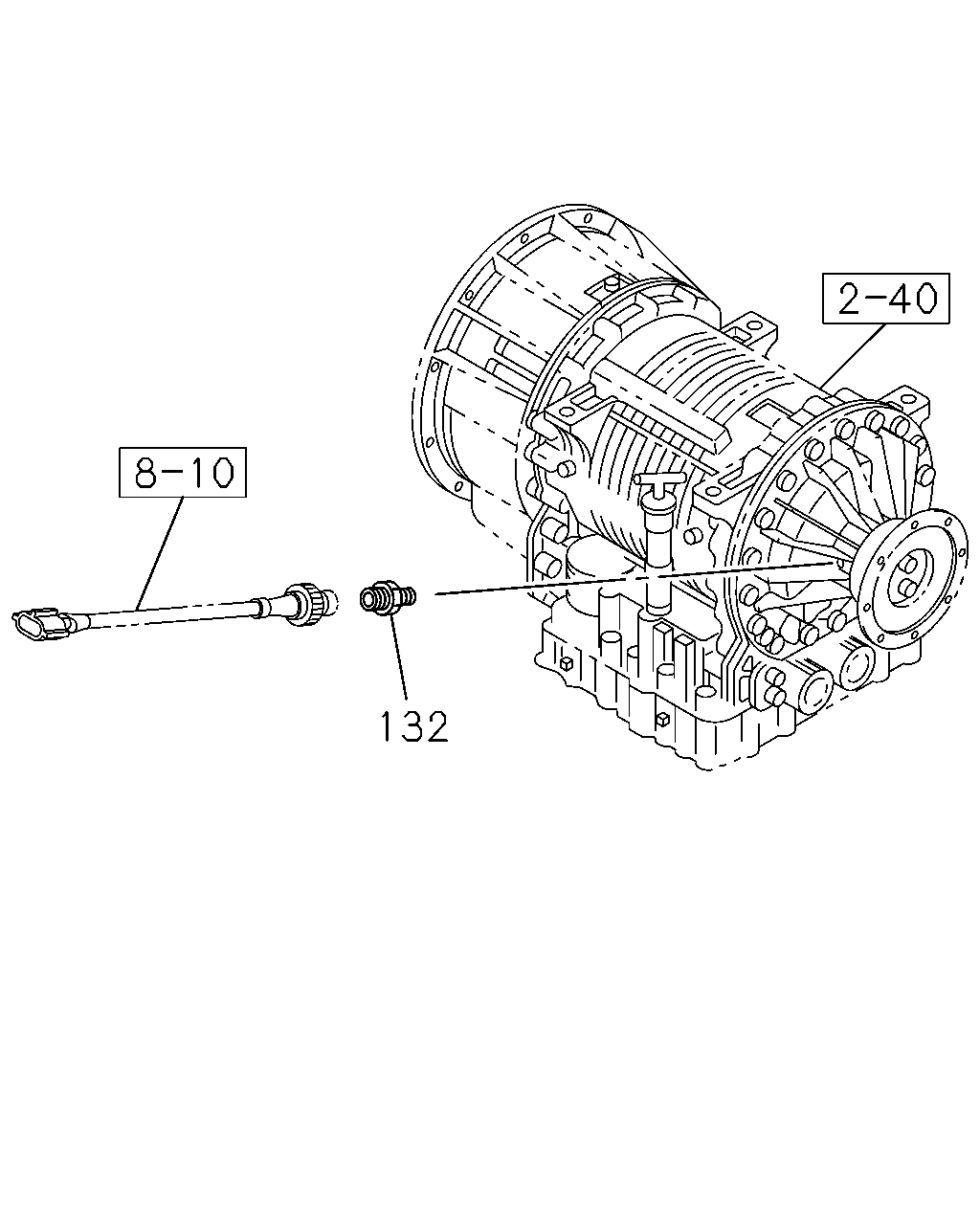

çizim 192418
132
BalonParca AdiParca NoAdetTipApplied Date A B
132 SENSOR; SPD,SPEEDOMETER
ALLISON MD3560P A/T(Y3B) 		1-80240-013-0 01 1 0710-1001 ● ●
132 SENSOR; SPD,SPEEDOMETER
ALLISON MD3560P A/T(Y3B) 		8-98151-663-0 01 1 1002- ● ●
