◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#65797) — 1052 parça

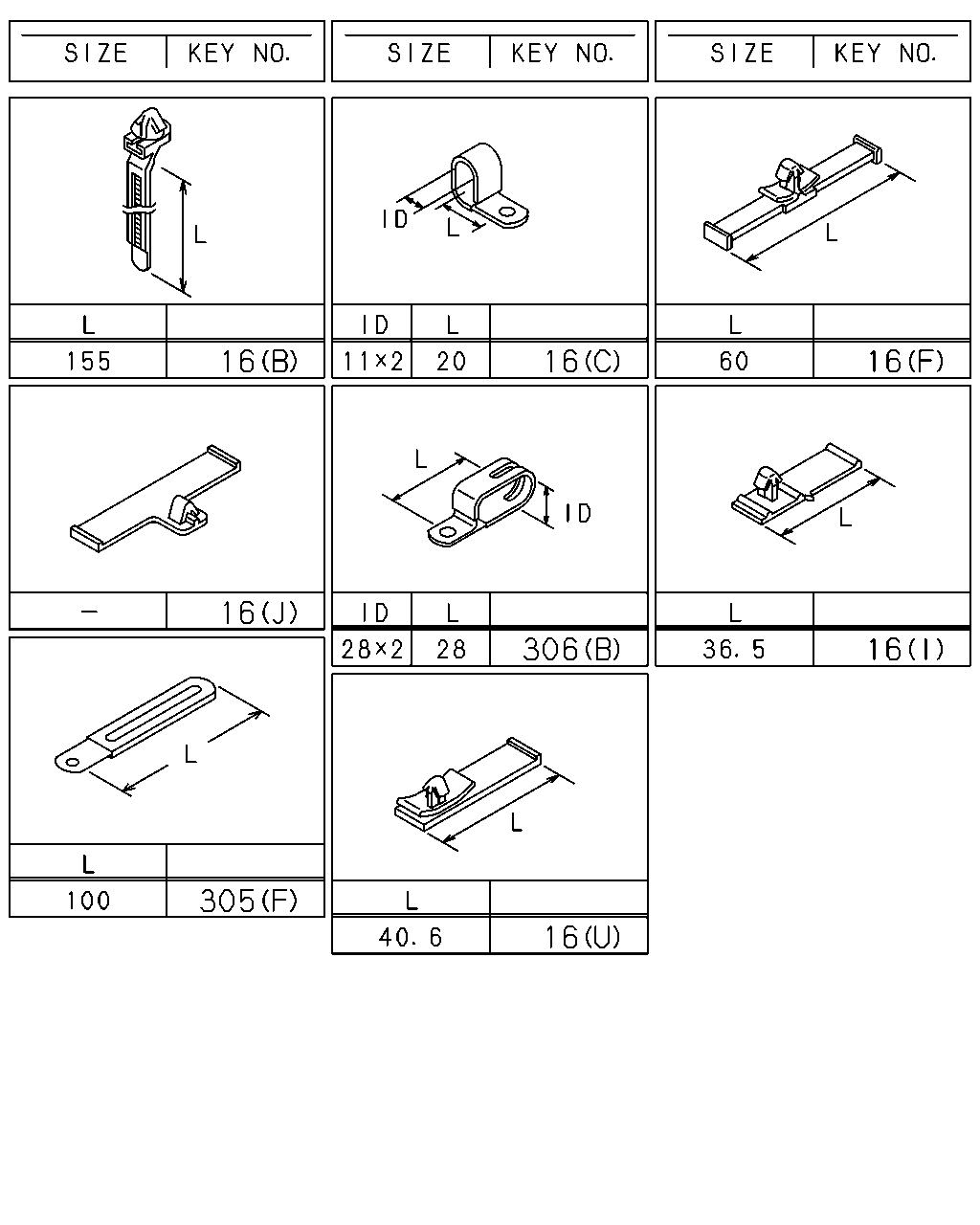

çizim 136668
16 16 16 16 306 16 305 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 0809-1405 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (R) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 01 1 0802-1001 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (Q) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(T) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(K) L=250 		1-09707-126-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(K) L=250 		1-09707-126-0 01 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=250 		1-09707-126-0 01 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(O) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ●
16 CLIP; HARNESS
(V) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ●
16 CLIP; HARNESS
(W) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 05 1 0710-0810 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 04 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=11X2 L=20 		1-09700-871-0 04 1 0712- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710-1310 ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (E) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809-1404 ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809-1404 ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1405- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 1405- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710- ● ●

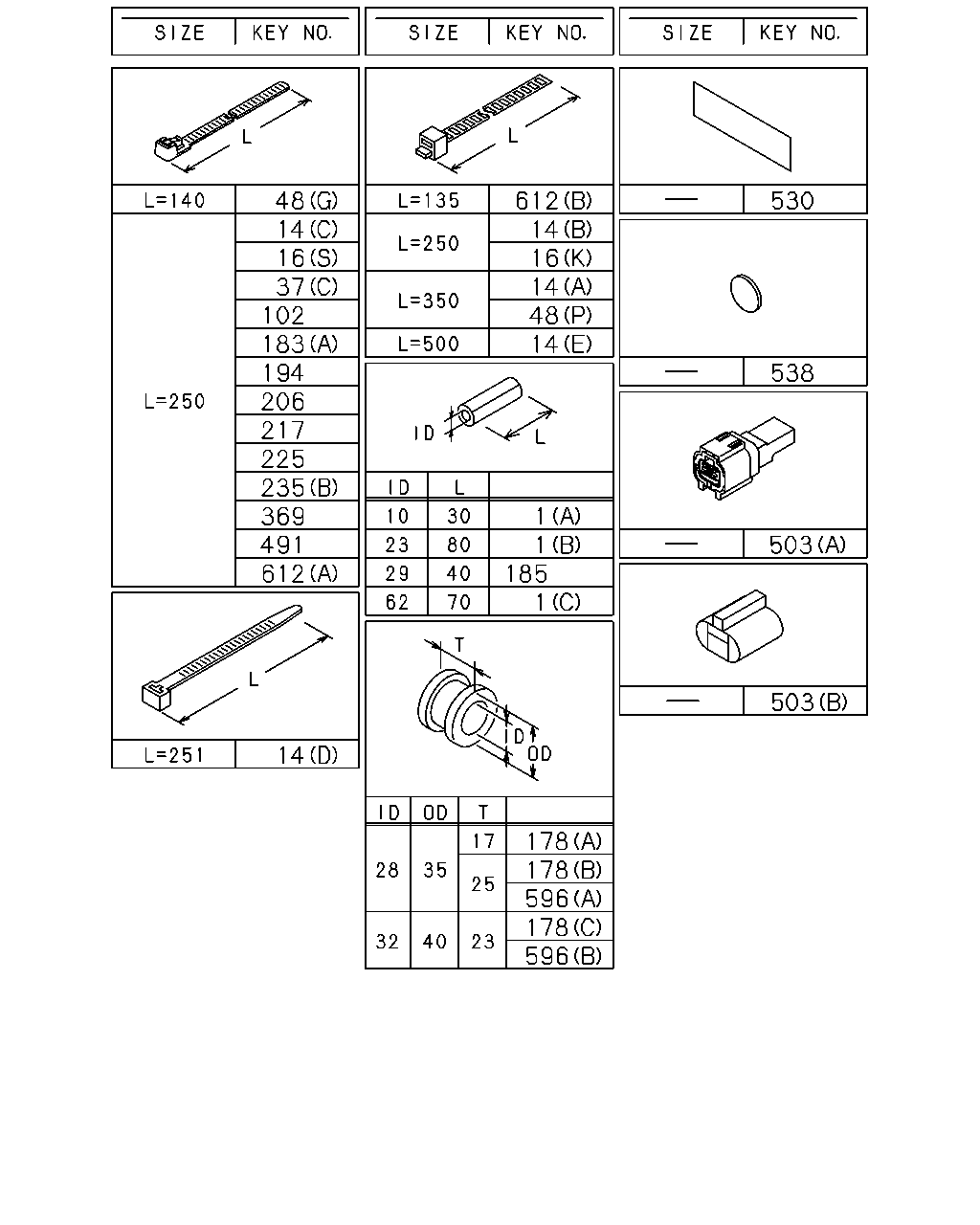

çizim 137095
48 14 16 37 102 183 194 206 217 225 235 369 491 612 14 612 14 16 14 48 14 1 1 185 1 178 178 596 178 596 503 503 538 530
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (C) ID=62 OD=69 L=70 		8-98254-614-0 01 1 1405- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0809- ● ●
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0710-0808 ● ●
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0809- ●
1 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0809- ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710-0808 ● ●
1 SLEEVE; RUBBER
EURO2 SPECIFICATION<NT2> (A) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0809- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (E) L=500 		8-98216-422-0 01 1 1405- ● ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (C) L=250 		8-98216-430-0 01 1 1312- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> ALLISON MD3560P A/T(Y3B) (C) L=250 		5-09707-030-1 09 1 1105-1205 ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> ALLISON MD3560P A/T(Y3B) (C) L=250 		8-98216-430-0 09 1 1206- ●
14 CLIP; BAND,HARNESS
(D) L=251 		8-97619-917-0 01 1 0910- ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (D) L=251 		8-97619-917-0 01 1 0910- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (C) L=250 		5-09707-030-1 08 1 0809-1205 ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> ZF9S1110 M/T(Y5E) (C) L=250 		8-98216-430-0 08 1 1206- ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		5-09707-030-1 14 1 0710-0712 ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		5-09707-030-1 15 1 0801-0805 ● ●
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250 		5-09707-030-1 15 1 0801-0805 ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		5-09707-030-1 15 1 0806-0808 ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		5-09707-030-1 15 1 0809-0909 ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (C) L=250 		5-09707-030-1 15 1 0809-0909 ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		5-09707-030-1 14 1 0910-1205 ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (C) L=250 		5-09707-030-1 14 1 0910-1205 ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		8-98216-430-0 14 1 1206- ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (C) L=250 		8-98216-430-0 14 1 1206- ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (C) L=250 		5-09707-030-1 13 1 0710-0712 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (C) L=250 		5-09707-030-1 14 1 0801-0808 ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		5-09707-030-1 14 1 0809-0909 ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (C) L=250 		5-09707-030-1 14 1 0809-0909 ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		5-09707-030-1 13 1 0910-1205 ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (C) L=250 		5-09707-030-1 13 1 0910-1205 ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (C) L=250 		8-98216-430-0 13 1 1206- ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (C) L=250 		8-98216-430-0 13 1 1206- ●
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=250 		1-09707-126-0 02 1 0712-1105 ●
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) L=250 		1-09707-126-0 02 1 1106- ●
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 0710- ● ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 0809-1405 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (R) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 01 1 0802-1001 ● ●

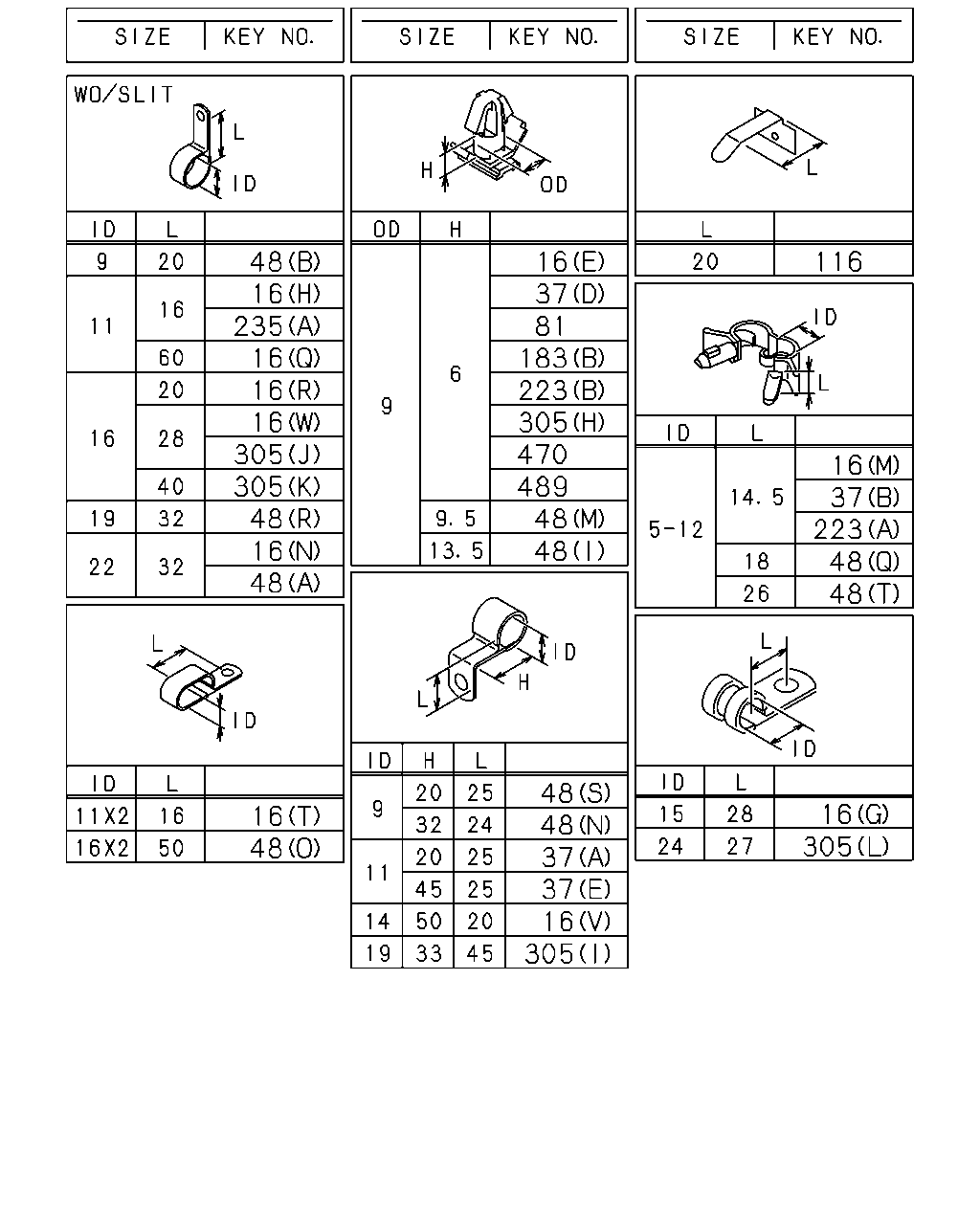

16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (Q) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(T) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(K) L=250 		1-09707-126-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(K) L=250 		1-09707-126-0 01 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=250 		1-09707-126-0 01 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(O) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ●
16 CLIP; HARNESS
(V) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ●
16 CLIP; HARNESS
(W) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 05 1 0710-0810 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 04 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=11X2 L=20 		1-09700-871-0 04 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0711 ● ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ●
37 CLIP; HARNESS,POWER TILT
(E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710-0711 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710-0711 ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (D) OD=9 H=6 		8-97368-793-0 02 1 0712- ●

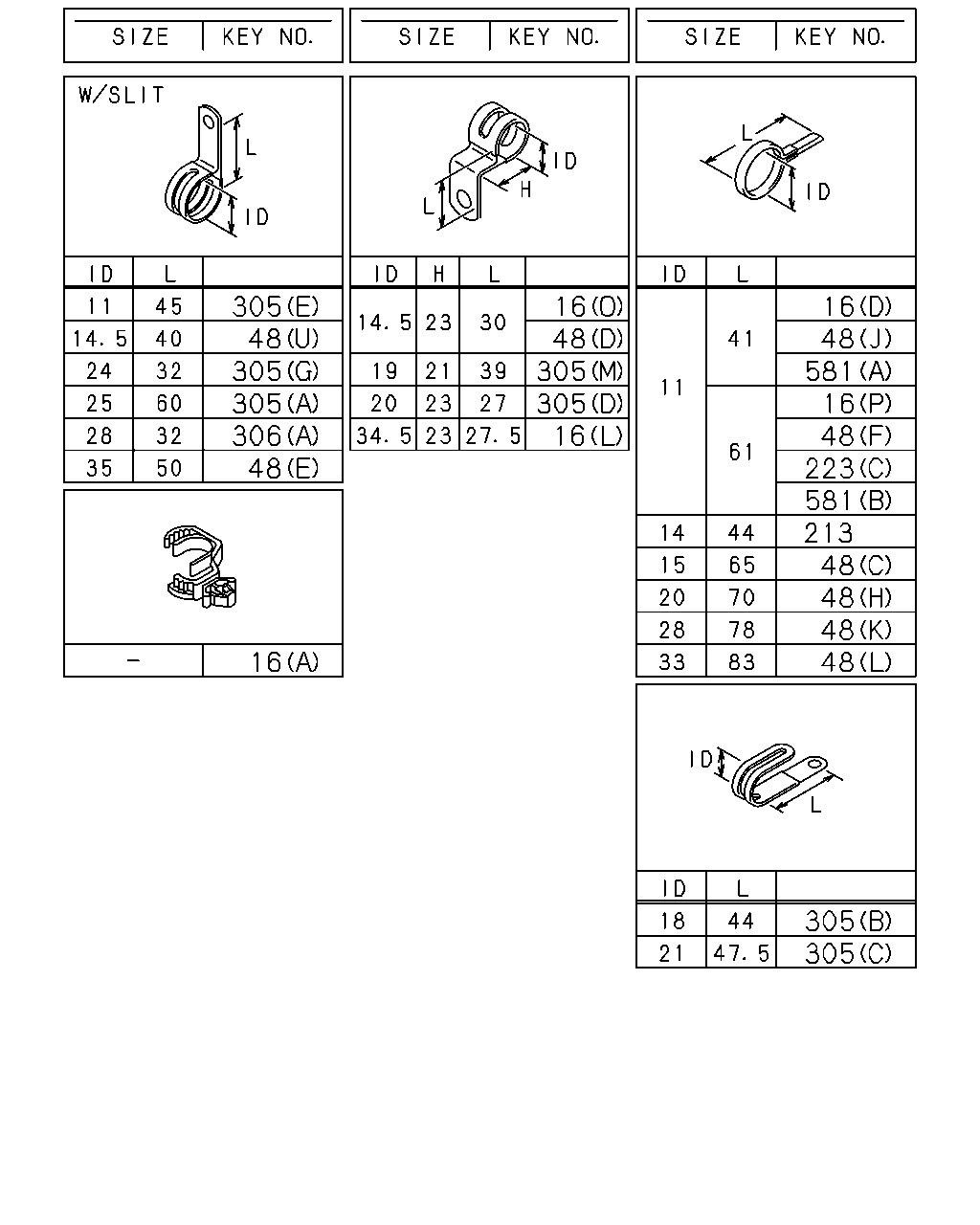

48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 03 1 1012- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (H) ID=20 L=70 		1-09700-485-0 23 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (H) ID=20 L=70 		1-09700-485-0 26 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=15 L=65 		1-09700-466-0 24 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 31 1 0806-1001 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (H) ID=20 L=70 		1-09700-485-0 31 1 1002-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (C) ID=15 L=65 		1-09700-466-0 29 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20 		0-95234-835-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (N) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (S) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 0712-0909 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 0910-1110 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> (P) L=350 		1-09707-183-0 01 1 0910-1110 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 1111- ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (Q) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
(T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
EXC. AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0903- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 0710-1011 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (R) ID=19 L=32 		0-95235-866-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 27 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 29 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 28 1 1008- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (U) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 16 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 19 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 21 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 24 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (C) ID=15 L=65 		1-09700-466-0 22 1 1008- ●
102 CLIP; BAND
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0710-0901 ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712- ●
178 GROMMET; HARNESS
AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712- ●
178 GROMMET; HARNESS
EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710-0711 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0710-0711 ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0712- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0710- ● ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0710-0810 ● ●
185 SLEEVE; RUBBER
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> ID=29 OD=39 L=40 		1-09337-013-0 01 1 0910-1110 ●
194 CLIP; BAND
ALLISON MD3560P A/T(Y3B) L=250 		5-09707-030-1 01 1 0710-0802 ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0710-0711 ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0712- ●
194 CLIP; BAND
AUTO CAB TILT<WV2> L=250 		5-09707-030-1 02 1 0712- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 0710-0711 ● ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 0712- ●
225 CLIP; AIR TANK HARNESS
AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 03 1 0712- ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 0710-1011 ● ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 1012- ● ●
225 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> L=250 		5-09707-030-1 04 1 1012- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0711 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 0712-0909 ●
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0710-0802 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 05 1 0710-0710 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 06 1 0710-0804 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 07 1 0805- ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (B) 		1-82690-666-0 01 1 0809-1405 ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		1-82690-668-0 01 1 0710-0910 ● ●
503 CONNECTOR
EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 0911- ● ●
503 CONNECTOR
EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		1-82690-668-0 01 1 0911- ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0710-0810 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0710-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0710-1305 ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
O/SIDE MIRROR RR VIEW FLAT<YS1> 180X40 		1-72498-019-1 01 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
596 GROMMET
EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0712-0808 ●
596 GROMMET
CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0809- ●
596 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0710-0711 ● ●
596 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0808 ●
596 GROMMET
AUSTRALIA EQUIPMENT(B13) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0808 ●
596 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0809- ●
596 GROMMET
AUSTRALIA EQUIPMENT(B13) CATALYSIS CONTROL WITH DPD<8JM> (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0809- ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 02 1 0710-0711 ● ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
AUSTRALIA EQUIPMENT(B13) (A) L=250 		5-09707-030-1 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0710-0808 ● ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0809- ●
612 CLIP; HARNESS DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) L=135 		1-09987-143-1 02 1 0809- ●
çizim 137270
305 48 305 305 306 48 16 48 305 305 16 16 48 581 16 48 223 581 213 48 48 48 48 16 305 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 0809-1405 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (R) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 01 1 0802-1001 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (Q) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(T) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(K) L=250 		1-09707-126-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(K) L=250 		1-09707-126-0 01 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=250 		1-09707-126-0 01 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(O) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ●
16 CLIP; HARNESS
(V) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ●
16 CLIP; HARNESS
(W) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 05 1 0710-0810 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 04 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=11X2 L=20 		1-09700-871-0 04 1 0712- ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 03 1 1012- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (H) ID=20 L=70 		1-09700-485-0 23 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (H) ID=20 L=70 		1-09700-485-0 26 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=15 L=65 		1-09700-466-0 24 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 31 1 0806-1001 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (H) ID=20 L=70 		1-09700-485-0 31 1 1002-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (C) ID=15 L=65 		1-09700-466-0 29 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20 		0-95234-835-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (N) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (S) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 0712-0909 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 0910-1110 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> (P) L=350 		1-09707-183-0 01 1 0910-1110 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 1111- ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (Q) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
(T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
EXC. AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0903- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 0710-1011 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (R) ID=19 L=32 		0-95235-866-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 27 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 29 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 28 1 1008- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (U) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 16 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 19 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 21 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 24 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (C) ID=15 L=65 		1-09700-466-0 22 1 1008- ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710-1011 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0808 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0902 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710-1310 ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (E) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809-1404 ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809-1404 ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1405- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 1405- ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 02 1 0710-0711 ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 02 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 02 1 0712-0801 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=61 		1-09700-484-0 02 1 0802-0802 ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 02 1 0803- ●
çizim 137733
127 139 184 524 219 294 525 294 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
127 SCREW; FACIA HARNESS CLIP
EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0712- ●

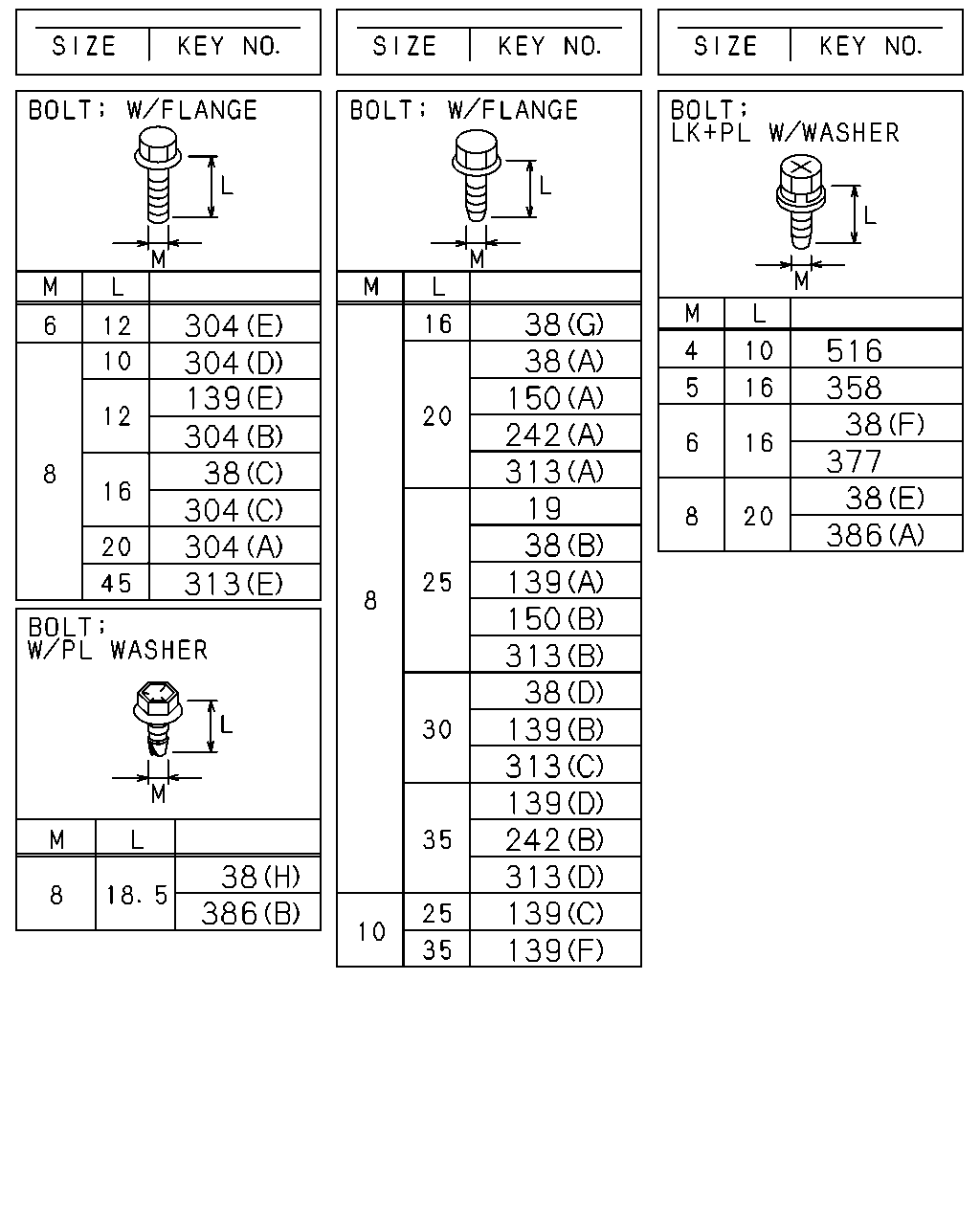

139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0710-0711 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0810- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0810- ●
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0811- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0811- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
184 WASHER; PL,STARTER EARTH
EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 0810- ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806-0809 ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0810-1008 ●
184 WASHER; PL,STARTER EARTH
EURO4 SPECIFICATION<NT4> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0810-1008 ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1009- ●
184 WASHER; PL,STARTER EARTH
EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1009- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803-0811 ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0812- ●
219 NUT
ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 01 1 0812- ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0710-0711 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0712-0802 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 05 1 0712-0802 ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803- ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 04 1 0803- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 03 1 0710-0711 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 03 1 0712-0811 ●
219 NUT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) M8 FLANGE 		0-91180-108-0 03 1 0812- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0809 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0809 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0809 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 06 1 0712-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0810- ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 04 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0808 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0803-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
ALLISON MD3560P A/T(Y3B) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0710-0710 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0712-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
525 NUT; CLIP
AUTO CAB TILT<WV2> T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0710-0808 ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0809- ●
525 NUT; CLIP
EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0809- ●
çizim 137884
7 53 53 53 69 53 53 53 53 59 59 59 137 59 59 59 53 137 137
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0710- ● ●
53 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (H) 		8-98129-543-0 01 1 0809-0809 ● ●
53 BRACKET; HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (H) 		8-98129-543-0 01 1 0809-0809 ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) 		8-98084-590-0 01 1 0801- ● ●
53 BRACKET; HARNESS
EXC. IMMOBILIZER SYSTEM<7KC> (E) 		8-98074-502-0 01 1 0712-0807 ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 0710-0711 ● ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 0712- ●
53 BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (B) 		1-47479-674-0 01 1 0712- ●
53 BRACKET; HARNESS
(A) 		8-97616-959-0 01 1 0710-0711 ● ●
53 BRACKET; HARNESS
(A) 		8-97616-959-0 01 1 0712- ●
53 BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-97616-959-0 01 1 0712- ●
53 BRACKET; HARNESS
(F) 		8-97620-485-0 01 1 0710-0808 ● ●
53 BRACKET; HARNESS
(F) 		8-97620-485-0 01 1 0809- ●
53 BRACKET; HARNESS
CATALYSIS CONTROL WITH DPD<8JM> (F) 		8-97620-485-0 01 1 0809- ●
53 BRACKET; HARNESS
(D) 		8-98052-458-0 01 1 0710- ● ●
53 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=55 		1-47475-304-0 01 1 0710-0711 ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(A) L=62 		1-21464-170-2 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0710-1502 ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-98254-592-0 01 1 1503- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97620-482-1 01 1 0710-0905 ● ●
59 BRACKET; FRAME HARNESS
(F) 		8-98107-611-0 01 1 0906- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97622-657-0 01 1 0710-0710 ● ●
137 BRACKET; HARNESS CLAMP
(G) 		8-97624-013-0 01 1 0711- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0710-0711 ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0712- ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (B) 		8-97609-797-1 02 1 0712- ●
137 BRACKET; HARNESS CLAMP
(A) 		1-47476-200-0 01 1 0710-0802 ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0710- ● ●
137 BRACKET; HARNESS CLAMP
(E) 		1-47475-654-2 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (E) 		1-47475-654-2 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(F) 		1-47479-329-0 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (F) 		1-47479-329-0 01 1 0712- ●
çizim 192537
48 16 235 16 16 16 305 305 48 16 48 16 37 81 183 223 305 470 489 48 48 116 16 37 223 48 48 48 48 37 37 16 305 16 305 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (E) OD=9 H=6 		1-09709-178-0 01 1 0809-1405 ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (R) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 01 1 0802-1001 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (Q) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(H) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (H) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(T) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(K) L=250 		1-09707-126-0 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(K) L=250 		1-09707-126-0 01 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=250 		1-09707-126-0 01 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 0803-0912 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-0912 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 1001-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0710-0711 ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 0712-0912 ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (J) 		8-98052-679-0 02 1 1001-1202 ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (J) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
(O) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ●
16 CLIP; HARNESS
(V) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ●
16 CLIP; HARNESS
(W) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 05 1 0710-0810 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(C) ID=11X2 L=20 		1-09700-871-0 04 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=11X2 L=20 		1-09700-871-0 04 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0711 ● ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ●
37 CLIP; HARNESS,POWER TILT
(E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710-0711 ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710-0711 ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (D) OD=9 H=6 		8-97368-793-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 03 1 1012- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (H) ID=20 L=70 		1-09700-485-0 23 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (H) ID=20 L=70 		1-09700-485-0 26 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6300MM(63W) (C) ID=15 L=65 		1-09700-466-0 24 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 31 1 0806-1001 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (H) ID=20 L=70 		1-09700-485-0 31 1 1002-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (C) ID=15 L=65 		1-09700-466-0 29 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20 		0-95234-835-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (N) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (S) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 0712-0909 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 0910-1110 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> (P) L=350 		1-09707-183-0 01 1 0910-1110 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (P) L=350 		1-09707-183-0 01 1 1111- ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (Q) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
(T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
EXC. AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (J) ID=11 L=41 		1-09700-403-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0903- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 0710-1011 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (H) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (R) ID=19 L=32 		0-95235-866-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 27 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 29 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 28 1 1008- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (U) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 16 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 19 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 21 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 24 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (C) ID=15 L=65 		1-09700-466-0 22 1 1008- ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0712-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0712- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-0711 ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0710- ● ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0710-0810 ● ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710-1011 ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0808 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0902 ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0711 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 0712-0909 ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710-1310 ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) L=100 		8-94443-021-1 01 1 1311- ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (E) ID=11 L=45 		8-94296-897-1 01 1 0809- ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0808 ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809-1404 ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809-1404 ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 1405- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 1405- ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0710-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ● ●
çizim 192542
304 304 139 304 38 304 304 313 38 386 38 38 150 242 313 19 38 139 150 313 38 139 313 139 242 313 139 139 516 358 38 377 38 386
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ● ●
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0801 ●
19 BOLT; PROTECTOR
ANTI LOCK BRAKE<JE5> M8X25 FLANGE 		0-28650-825-0 02 1 0712-0801 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0812- ●
38 BOLT; CLIP,HARNESS
(G) M8X16 FLANGE 		8-98076-109-0 01 1 0710-0710 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (F) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> (D) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0811 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0811 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0812- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0806 ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (H) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0710-0711 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0810- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0810- ●
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0811- ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0811- ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
150 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
242 BOLT; BRKT,HARNESS
ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ● ●
242 BOLT; BRKT,HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
242 BOLT; BRKT,HARNESS
CAB SUSPENSION FULL FLOATING<W16> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
242 BOLT; BRKT,HARNESS
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0808 ● ●
242 BOLT; BRKT,HARNESS
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
242 BOLT; BRKT,HARNESS
CATALYSIS CONTROL WITH DPD<8JM> (B) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE 		0-28050-812-0 06 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (E) M8X16 FLANGE 		0-28050-816-0 05 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 04 1 0809-1404 ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 02 1 1405- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) M8X20 FLANGE 		0-28050-820-0 02 1 1405- ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0710-0808 ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE 		0-28050-812-0 03 1 0809- ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710-0808 ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE 		0-28050-816-0 03 1 0809- ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0710-0808 ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0809-1404 ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28050-820-0 01 1 0809-1404 ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (A) M8X20 FLANGE 		0-28050-820-0 01 1 1405- ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28050-820-0 01 1 1405- ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0808 ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE 		0-28050-612-0 01 1 0809- ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0710-0808 ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0809-1010 ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (D) M8X10 FLANGE 		0-28050-810-0 01 1 0809-1010 ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
313 BOLT; BRKT
AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
313 BOLT; BRKT
(E) M8X45 FLANGE 		0-28050-845-0 01 1 0710- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
313 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0808 ● ●
313 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
313 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (D) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710-0711 ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0710- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0710- ● ●
çizim 460079
137 137 137 137 308 308 308 308 308 308 312 312 312 324 324 335 428 428 600
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(D) 		8-97622-657-0 01 1 0710-0710 ● ●
137 BRACKET; HARNESS CLAMP
(G) 		8-97624-013-0 01 1 0711- ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0710-0711 ● ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0712- ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (B) 		8-97609-797-1 02 1 0712- ●
137 BRACKET; HARNESS CLAMP
(A) 		1-47476-200-0 01 1 0710-0802 ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0710- ● ●
137 BRACKET; HARNESS CLAMP
(E) 		1-47475-654-2 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (E) 		1-47475-654-2 01 1 0712- ●
137 BRACKET; HARNESS CLAMP
(F) 		1-47479-329-0 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (F) 		1-47479-329-0 01 1 0712- ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (A) 		8-97601-310-0 02 1 0809-1010 ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) 		8-98032-178-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) 		8-98075-824-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0710-0808 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0809-1010 ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (A) 		8-97601-310-0 03 1 0809-1010 ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0710-0808 ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) 		8-97614-078-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0710-0808 ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) 		8-98021-291-2 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0710-0711 ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0712- ●
312 BRACKET; CLIP HARNESS
AUTO CAB TILT<WV2> (A) 		8-97620-519-0 01 1 0712- ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0710- ● ●
324 BRACKET; CLIP
(B) 		8-98210-921-1 01 1 1212- ●
324 BRACKET; CLIP
(B) 		8-98210-922-1 01 1 1212- ●
324 BRACKET; CLIP
(A) 		1-47479-430-0 02 1 0710-0711 ● ●
324 BRACKET; CLIP
(A) 		1-47479-430-0 02 1 0712-1211 ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> (A) 		1-47479-430-0 02 1 0712-1211 ●
324 BRACKET; CLIP
(A) 		1-47479-430-0 02 1 1212-1212 ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> (A) 		1-47479-430-0 02 1 1212- ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0710- ● ●
428 BRACKET
EURO2 SPECIFICATION<NT2> (A) 		1-47476-658-0 01 1 0809- ●
428 BRACKET
(B) 		8-97620-514-0 01 1 0710- ● ●
600 PROTECTOR; HEAT 8-98073-436-0 01 1 0710-0711 ● ●
600 PROTECTOR; HEAT 8-98073-436-0 01 1 0712-0801 ●
600 PROTECTOR; HEAT
ANTI LOCK BRAKE<JE5> 		8-98073-436-0 01 1 0712-0801 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
