◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#65789) — 943 parça

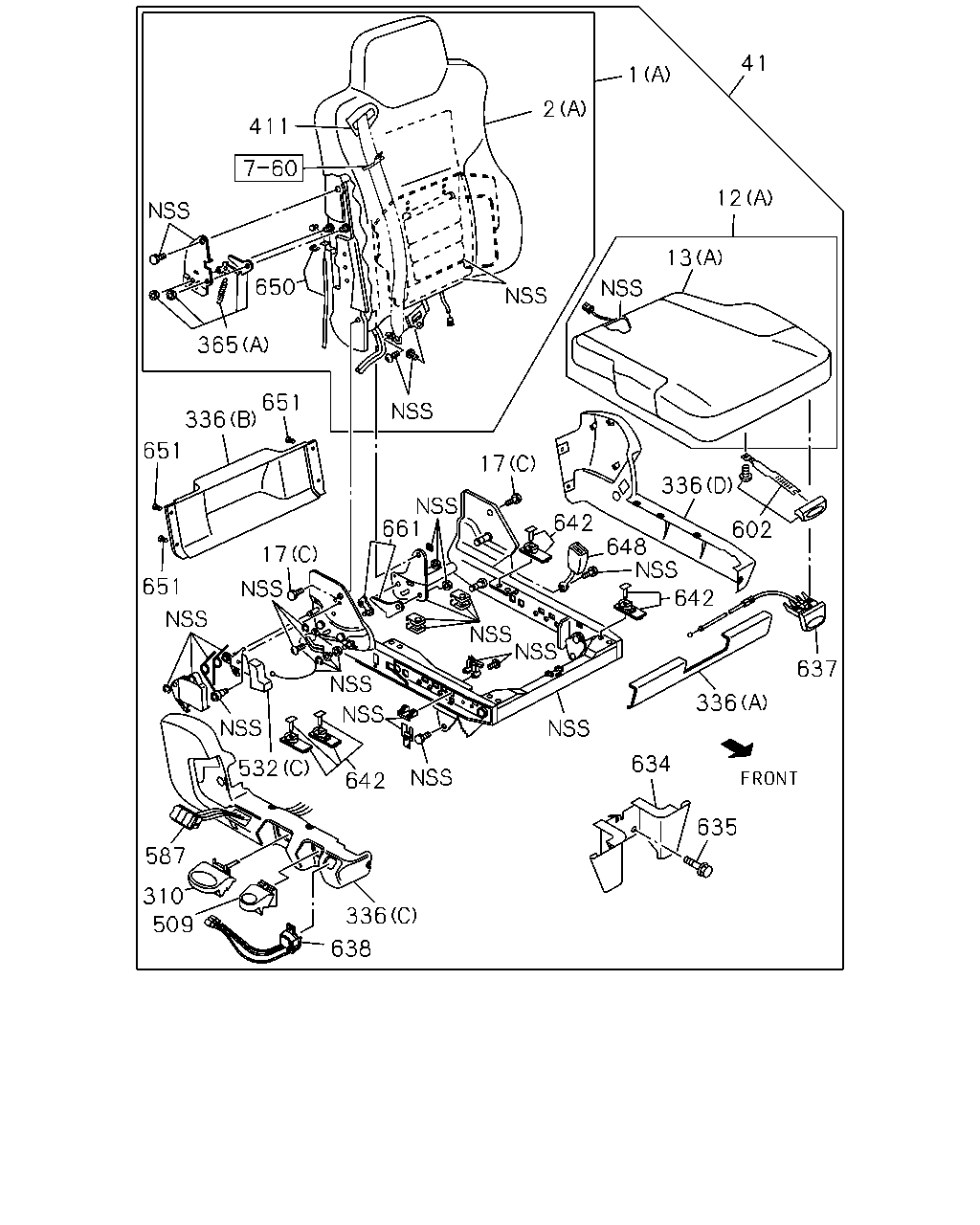

çizim 134242
41 1 2 12 13 411 650 365 651 336 651 17 651 661 17 642 648 642 336 637 336 634 635 642 532 587 310 509 638 602 336
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0711 ● ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0711 ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-112-2 01 1 0712-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-407-1 01 1 1010- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0712- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0711 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-113-1 01 1 0712-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-412-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0712- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0711 ● ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0712- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0712- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0711 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0712- ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0711 ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0712-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 0712-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0710- ● ●

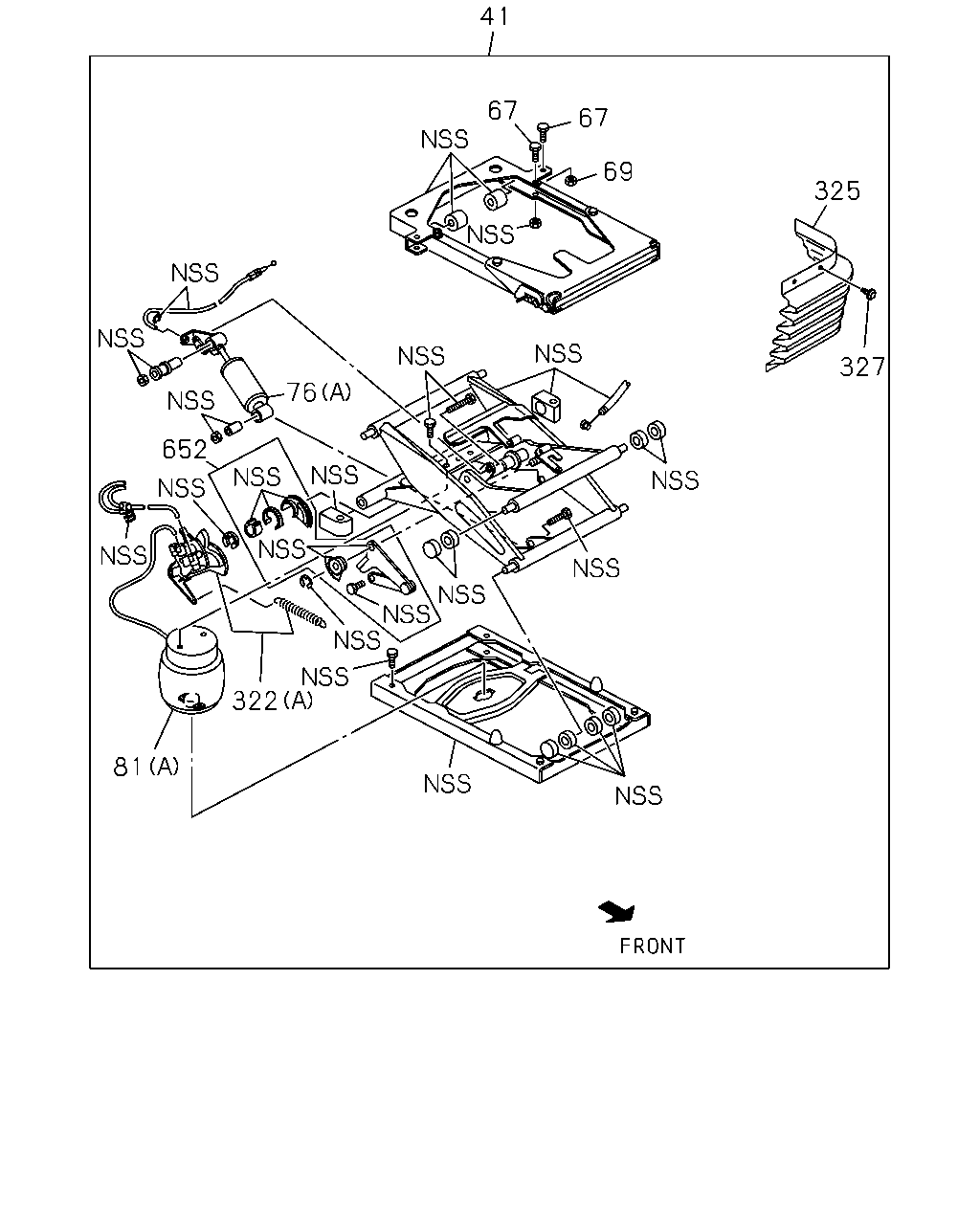

41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0711 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0711 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0710-0711 ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0712-1508 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-992-0 01 1 0712-1508 ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-992-0 01 1 1509- ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-992-0 01 1 1509- ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0710-0711 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D) 		8-98097-978-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98331-313-0 01 1 1509- ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (D) 		8-98331-313-0 01 1 1509- ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0710-0711 ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-984-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-984-0 01 1 1509- ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-984-0 01 1 1509- ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0710-0711 ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-995-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 1509- ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-995-0 01 1 1509- ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0710-0711 ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98097-996-0 01 1 0712-1508 ●
336 COVER; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 1509- ●
336 COVER; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98097-996-0 01 1 1509- ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0710-0711 ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0712-1508 ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-972-0 01 1 0712-1508 ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1509- ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1509- ●
365 LOCK ASM; SEAT

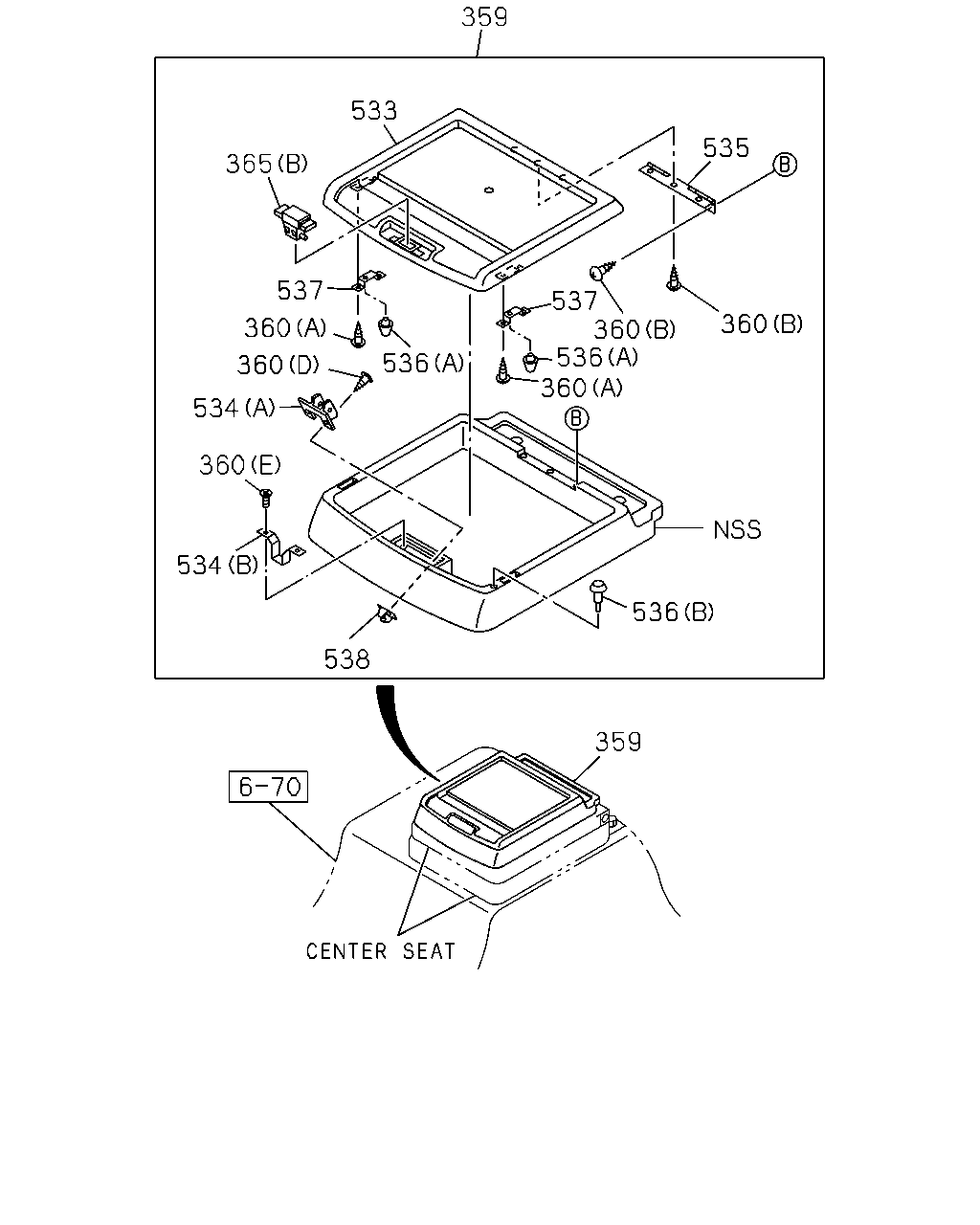

VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 0710-0711 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 0712-1104 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 1105-1109 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1110- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0710-0711 ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0712-1508 ●
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-967-0 01 1 0712-1508 ●
411 GUIDE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 1509- ●
411 GUIDE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-967-0 01 1 1509- ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0710-0711 ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0712-1508 ●
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-988-0 01 1 0712-1508 ●
509 LEVER; DAMPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-988-0 01 1 1509- ●
509 LEVER; DAMPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-988-0 01 1 1509- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-203-0 01 1 0712- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-204-1 01 1 0712- ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0710-0711 ● ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0712-1508 ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-982-0 01 1 0712-1508 ●
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-982-0 01 1 1509- ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-982-0 01 1 1509- ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0710-0711 ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0712-1508 ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-986-0 01 1 0712-1508 ●
587 VALVE; LUMBAR SUPPORT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-986-0 01 1 1509- ●
587 VALVE; LUMBAR SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-986-0 01 1 1509- ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0710-0711 ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0712-1508 ●
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-008-0 01 1 0712-1508 ●
602 KNOB; ADJ,SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 1509- ●
602 KNOB; ADJ,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-008-0 01 1 1509- ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0710-0711 ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0712- ●
634 COVER; CONNECTOR,SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98088-279-0 01 1 0712- ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0710-0711 ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0712- ●
635 BOLT; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 		0-52000-616-0 02 1 0712- ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0710-0711 ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0712-1508 ●
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-989-0 01 1 0712-1508 ●
637 LEVER; SLOPE ADJ
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 1509- ●
637 LEVER; SLOPE ADJ
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-989-0 01 1 1509- ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0710-0711 ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0712-1508 ●
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-994-0 01 1 0712-1508 ●
638 VALVE; LOWERING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-994-0 01 1 1509- ●
638 VALVE; LOWERING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-994-0 01 1 1509- ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0710-0711 ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0712-1508 ●
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98192-932-0 04 1 0712-1508 ●
642 SLIDER; CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 1509- ●
642 SLIDER; CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98192-932-0 04 1 1509- ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0710-0711 ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0712-1508 ●
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-976-0 01 1 0712-1508 ●
648 BUCKLE; SEAT BELT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 1509- ●
648 BUCKLE; SEAT BELT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-976-0 01 1 1509- ●
650 CABLE 8-98097-973-0 01 1 0710-0711 ● ●
650 CABLE 8-98097-973-0 01 1 0712-1212 ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-973-0 01 1 0712-1212 ●
650 CABLE 8-98232-354-0 01 1 1301-1508 ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98232-354-0 01 1 1301-1508 ●
650 CABLE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-354-0 01 1 1509- ●
650 CABLE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98232-354-0 01 1 1509- ●
651 RIVET 8-98194-075-0 04 1 0710-0711 ● ●
651 RIVET 8-98194-075-0 04 1 0712-1508 ●
651 RIVET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98194-075-0 04 1 0712-1508 ●
651 RIVET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 1509- ●
651 RIVET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98194-075-0 04 1 1509- ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0710-0711 ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0712-1508 ●
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98097-980-0 01 1 0712-1508 ●
661 LOCK ASM; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-980-0 01 1 1509- ●
661 LOCK ASM; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98097-980-0 01 1 1509- ●

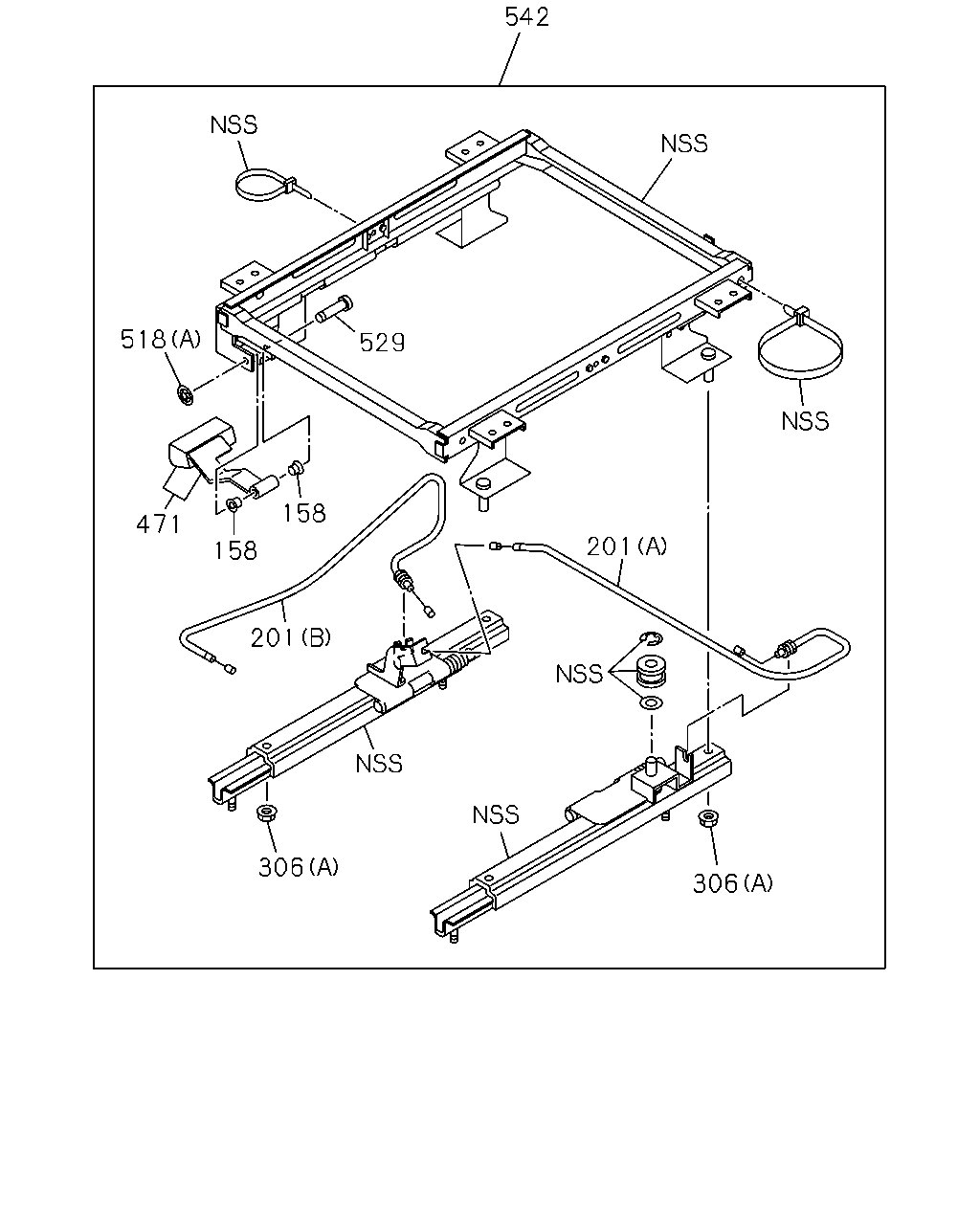

çizim 135015
542 529 518 471 158 158 201 306 201 306
BalonParca AdiParca NoAdetTipApplied Date A B
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 0712-0912 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 0712-0912 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1001- ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 0712-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 0712-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 0712-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 0712-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1001- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 0712- ●
306 NUT; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0712-0912 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1001- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 0712-0912 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 0712-0912 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1001- ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1001- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 0712- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0712- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 0712- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 0712- ●
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 0712-0912 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 0712-0912 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1001- ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1001- ●
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 0712-0912 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 0712-0912 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1001- ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1001- ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 0712-0912 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1001-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503- ●

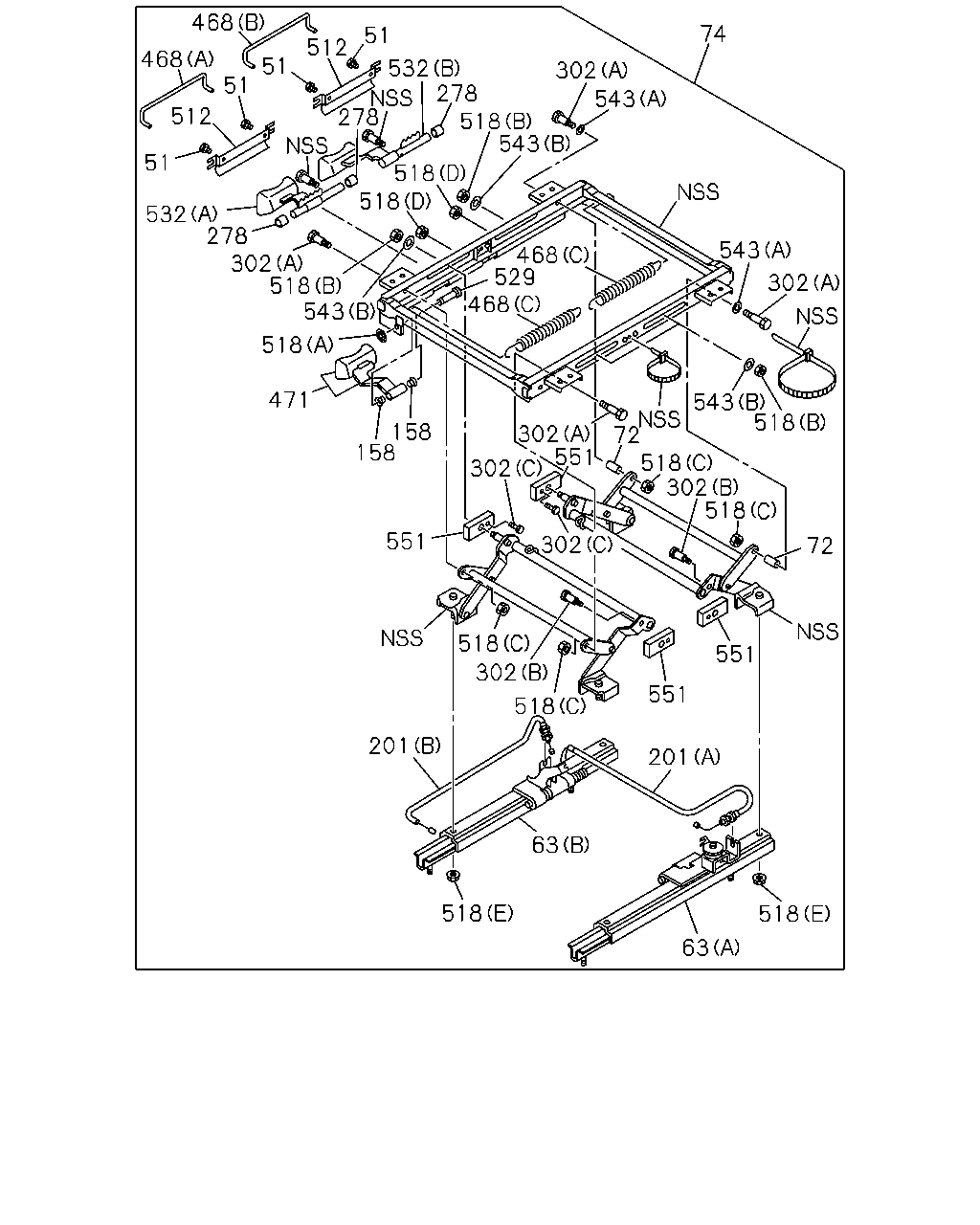

çizim 135025
63 518 201 551 302 518 63 518 201 551 158 158 302 302 551 72 302 302 518 518 72 551 518 471 518 518 302 278 532 512 468 468 51 51 512 51 278 518 278 302 543 518 518 51 532 543 74 468 529 468 543 543 518 302 543
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 0712- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-199-1 01 1 0712- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-323-0 01 1 0712- ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0710-0711 ● ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0712-1508 ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98098-005-0 01 1 0712-1508 ●
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98098-005-0 01 1 1509- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98098-005-0 01 1 1509- ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-334-1 02 1 0712-1502 ●
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1503- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 0712-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503- ●
158 BUSHING; LINK ARM
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 0712-0912 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 0712-0912 ●
158 BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-209-0 02 1 1001- ●
158 BUSHING; LINK ARM
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 0712-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 0712-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) L=667 		1-75518-288-0 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 0712-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 0712-0912 ●
201 CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) L=605 		1-75518-289-1 01 1 1001- ●
201 CABLE; ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1001- ●
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 0712- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 0712- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-270-1 04 1 0712-1502 ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1503- ●
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 0712- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 0712- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 0712- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 0712- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 0712-0905 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 0912- ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 0712-0912 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 0712-0912 ●
471 LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98107-869-0 01 1 1001- ●
471 LEVER; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98107-869-0 01 1 1001- ●
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-243-1 02 1 0712- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 0712- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0712- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 0712- ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 0712- ●
518 NUT; TILT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 0712-0912 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 0712-0912 ●
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-263-0 01 1 1001- ●
518 NUT; TILT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1001- ●
529 PIN; LINK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 0712-0912 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 0712-0912 ●
529 PIN; LINK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-262-0 01 1 1001- ●
529 PIN; LINK
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1001- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-203-0 01 1 0712- ●
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-204-1 01 1 0712- ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0710-0711 ● ●
532 LEVER ASM; TILT
(C) 		8-98097-982-0 01 1 0712-1508 ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-982-0 01 1 0712-1508 ●
532 LEVER ASM; TILT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-982-0 01 1 1509- ●
532 LEVER ASM; TILT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-982-0 01 1 1509- ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-335-0 02 1 0712-1502 ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503- ●
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 0712- ●
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 0712- ●

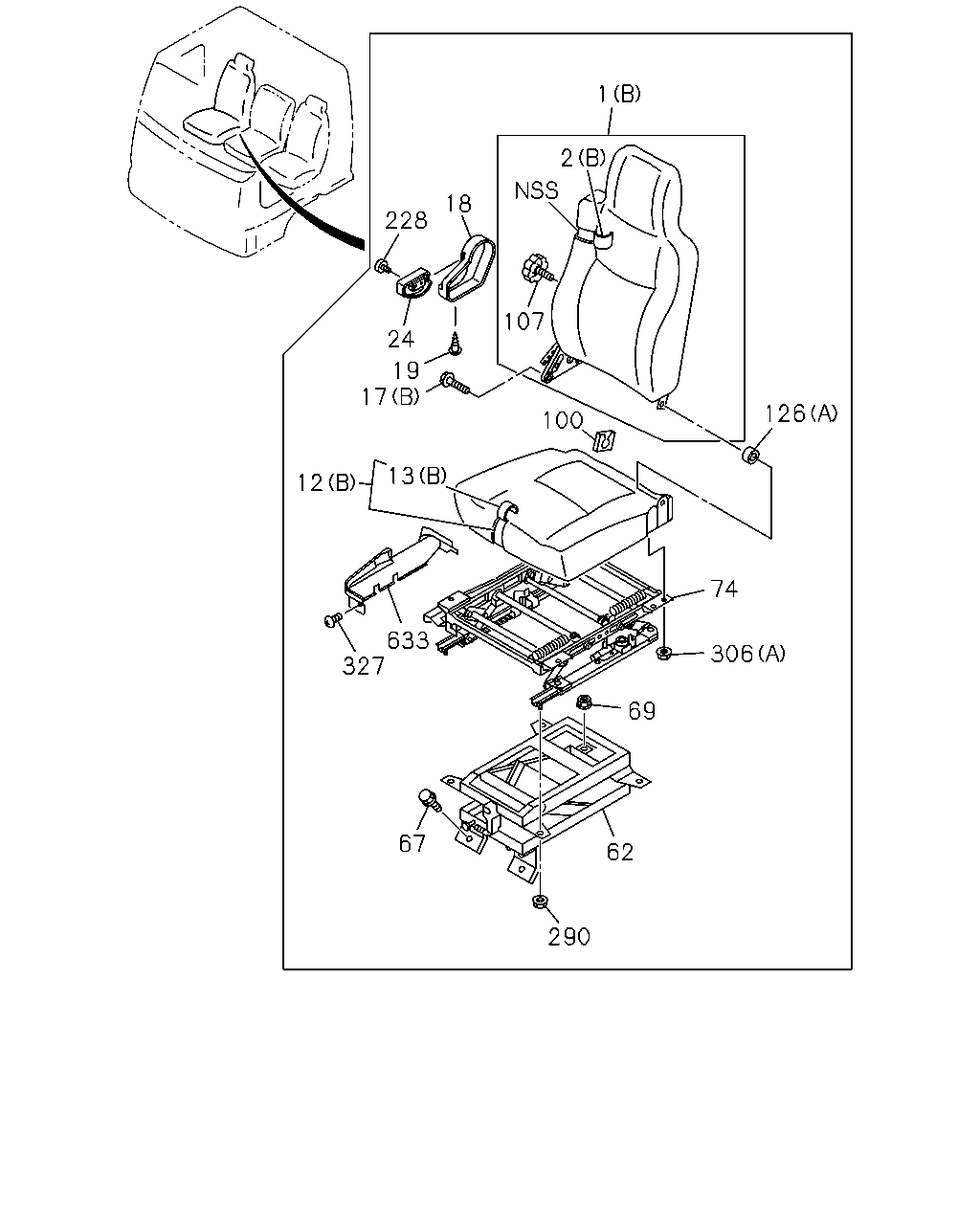

çizim 135038
1 126 74 306 69 62 290 67 327 633 12 13 17 19 24 228 18 2 107 100
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0711 ● ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0711 ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-112-2 01 1 0712-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-407-1 01 1 1010- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0712- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0711 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-113-1 01 1 0712-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-412-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0712- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0711 ● ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0712- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0712- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0711 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0712- ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0711 ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0712-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 0712-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0710- ● ●
18 COVER; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 0712-0912 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 0712-0912 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1001- ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1001- ●
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 0712-0912 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 0712-0912 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1001- ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1001- ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 0712-0912 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 0712-0912 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1001- ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1001- ●

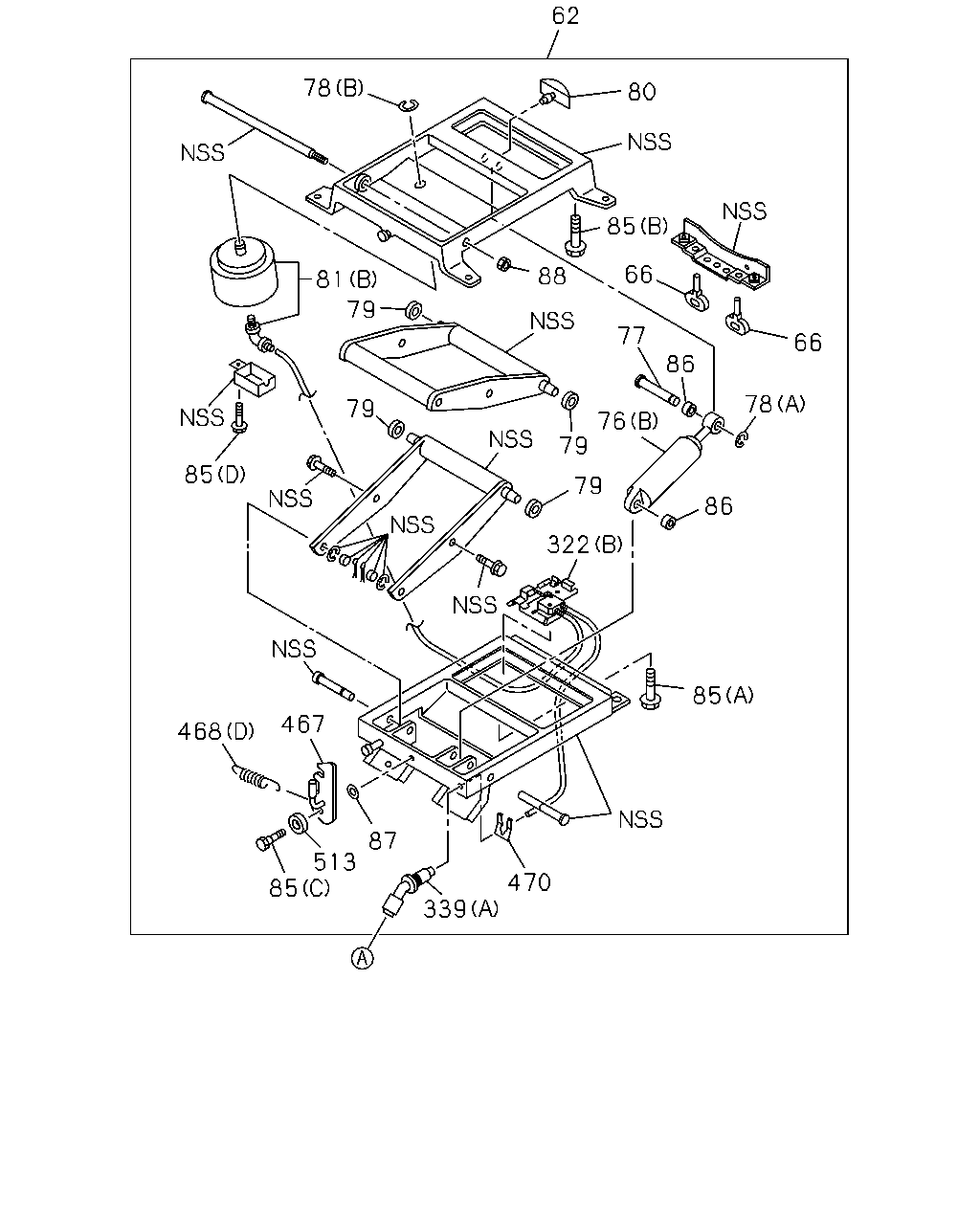

62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-7 01 1 0712-0905 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 0912-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98003-678-0 01 1 0712-1502 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-640-0 01 1 1503- ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1110- ●
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1110- ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 0712- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0712-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 0712-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 0710-0711 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0712-1104 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ● ●
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 0712-0912 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 0712-0912 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1001- ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1001- ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 0712- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 0712- ●
306 NUT; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0712-0912 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1001- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0710-0711 ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0712-1508 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-004-0 01 1 0712-1508 ●
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1509- ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1509- ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DELUXE CAB(W14) 		1-09987-273-0 01 1 0712- ●
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-956-0 01 1 0712- ●
çizim 135081
536 360 535 537 536 360 536 360 537 365 533 359 360 534 360 534 538 359 360
BalonParca AdiParca NoAdetTipApplied Date A B
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-977-1 01 1 0710-0711 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0712-1006 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-0711 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0712-1009 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 0710-0711 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0712-1104 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1110- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0710-0711 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0712-1110 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20 		9-09829-324-1 02 1 0710-0711 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0712-1009 ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0710-0711 ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0712-1508 ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-972-0 01 1 0712-1508 ●
365 LOCK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1509- ●
365 LOCK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-972-0 01 1 1509- ●
365 LOCK ASM; SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1105-1109 ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 0710-0711 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 0712-1104 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-312-0 01 1 1105-1109 ● ●
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-312-0 01 1 1110- ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-979-0 01 1 0710-0711 ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-979-1 01 1 0712-1006 ● ●
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) 		1-72538-181-0 01 1 0710-0711 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 0712-1009 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010-1104 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-190-0 01 1 1105-1109 ● ●
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1110- ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72447-391-1 01 1 0710-0711 ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 0712-1104 ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72447-391-1 01 1 1105-1109 ● ●
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1110- ● ●
535 HINGE; PARCEL BOX
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 1105-1109 ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) 		5-09983-002-1 02 1 0710-0711 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 0712-1009 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010-1104 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		1-72538-187-0 02 1 1105-1109 ● ●
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1110- ● ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-72548-057-1 02 1 0710-0711 ● ●
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 0712-1009 ● ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-09983-165-0 02 1 0710-0711 ● ●
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 0712-1009 ● ●
çizim 135091
639 639 639 639 595 485 78 653 552 78 138 42 654 655 658 368 368 660 656 41 657 63 165 657 658 659 656
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0711 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0711 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0710-0711 ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0712-1508 ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-346-0 01 1 0712-1508 ●
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1509- ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1509- ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-1 01 1 0712-0912 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1001- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-199-1 01 1 0712- ●
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-323-0 01 1 0712- ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0710-0711 ● ●
63 ADJUSTER; SEAT SLIDE
(C) 		8-98098-005-0 01 1 0712-1508 ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98098-005-0 01 1 0712-1508 ●
63 ADJUSTER; SEAT SLIDE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98098-005-0 01 1 1509- ●
63 ADJUSTER; SEAT SLIDE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98098-005-0 01 1 1509- ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0710-0711 ● ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0712-1508 ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98101-900-0 02 1 0712-1508 ●
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98101-900-0 02 1 1509- ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98101-900-0 02 1 1509- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 0712-0905 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 0912- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 0712-0905 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 0912- ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0710-0711 ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0712-1508 ●
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-351-0 01 1 0712-1508 ●
138 PROTECTOR; SEAT STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 1509- ●
138 PROTECTOR; SEAT STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-351-0 01 1 1509- ●
165 WASHER; PL 1-75590-086-0 04 1 0710-0711 ● ●
165 WASHER; PL 1-75590-086-0 04 1 0712-1508 ●
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		1-75590-086-0 04 1 0712-1508 ●
165 WASHER; PL
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 1509- ●
165 WASHER; PL
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-086-0 04 1 1509- ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0710-0711 ● ●
368 BOLT; SEAT
(A) 		8-98106-353-0 03 1 0712-1508 ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-353-0 03 1 0712-1508 ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 1509- ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-353-0 03 1 1509- ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0710-0711 ● ●
368 BOLT; SEAT
(B) 		8-98106-358-0 01 1 0712-1508 ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-358-0 01 1 0712-1508 ●
368 BOLT; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 1509- ●
368 BOLT; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-358-0 01 1 1509- ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0710-0711 ● ●
485 HARNESS; FRT SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0712- ●
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-360-0 01 1 0712- ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0710-0711 ● ●
485 HARNESS; FRT SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0712-1508 ●
485 HARNESS; FRT SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-361-0 01 1 0712-1508 ●
552 CONNECTOR 8-98101-902-0 01 1 0710-0711 ● ●
552 CONNECTOR 8-98101-902-0 01 1 0712-1508 ●
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98101-902-0 01 1 0712-1508 ●
552 CONNECTOR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98308-101-0 01 1 1509- ●
552 CONNECTOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98308-101-0 01 1 1509- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0710-0711 ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0712-1508 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-348-0 01 1 0712-1508 ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1509- ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1509- ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 0710-0711 ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 0712- ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98041-300-0 01 1 0712- ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0710-0711 ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0712-1508 ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-349-0 01 1 0712-1508 ●
639 CLIP; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98308-100-0 02 1 1509- ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98308-100-0 02 1 1509- ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0710-0711 ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0712-1508 ●
639 CLIP; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-350-0 01 1 0712-1508 ●
653 GASKET 8-98101-901-0 01 1 0710-0711 ● ●
653 GASKET 8-98101-901-0 01 1 0712-1508 ●
653 GASKET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98101-901-0 01 1 0712-1508 ●
653 GASKET
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 1509- ●
653 GASKET
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98101-901-0 01 1 1509- ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0710-0711 ● ●
654 HOOK; STOPPER 8-98106-352-0 01 1 0712-1508 ●
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-352-0 01 1 0712-1508 ●
654 HOOK; STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 1509- ●
654 HOOK; STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-352-0 01 1 1509- ●
655 BOLT; HOOK 8-98106-353-0 02 1 0710-0711 ● ●
655 BOLT; HOOK 8-98106-353-0 02 1 0712-1508 ●
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-353-0 02 1 0712-1508 ●
655 BOLT; HOOK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 1509- ●
655 BOLT; HOOK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-353-0 02 1 1509- ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0710-0711 ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0712-1508 ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		1-75590-085-0 04 1 0712-1508 ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 1509- ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		1-75590-085-0 04 1 1509- ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0710-0711 ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0712-1508 ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-354-0 02 1 0712-1508 ●
656 BOLT; SLIDER TO SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 1509- ●
656 BOLT; SLIDER TO SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-354-0 02 1 1509- ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0710-0711 ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0712-1508 ●
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		1-75590-085-0 06 1 0712-1508 ●
657 BOLT; SLIDER TO STAND
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 1509- ●
657 BOLT; SLIDER TO STAND
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		1-75590-085-0 06 1 1509- ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0710-0711 ● ●
658 SPACER; BOLT
(A) 		8-98106-355-0 02 1 0712-1508 ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-355-0 02 1 0712-1508 ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 1509- ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-355-0 02 1 1509- ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0710-0711 ● ●
658 SPACER; BOLT
(B) 		8-98106-359-0 01 1 0712-1508 ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98106-359-0 01 1 0712-1508 ●
658 SPACER; BOLT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 1509- ●
658 SPACER; BOLT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (B) 		8-98106-359-0 01 1 1509- ●
659 STOPPER 8-98106-356-0 02 1 0710-0711 ● ●
659 STOPPER 8-98106-356-0 02 1 0712-1508 ●
659 STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-356-0 02 1 0712-1508 ●
659 STOPPER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 1509- ●
659 STOPPER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-356-0 02 1 1509- ●
660 BELT; TETHER 8-98106-357-0 01 1 0710-0711 ● ●
660 BELT; TETHER 8-98106-357-0 01 1 0712-1508 ●
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-357-0 01 1 0712-1508 ●
660 BELT; TETHER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 1509- ●
660 BELT; TETHER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-357-0 01 1 1509- ●
çizim 135206
327 325 69 67 67 41 81 76 322 652
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0710-0711 ● ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98046-984-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-063-1 01 1 1301- ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0710-0711 ● ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98000-536-2 01 1 0712-1212 ●
41 SEAT ASM; DRIVER
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
41 SEAT ASM; DRIVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98195-062-0 01 1 1301-1508 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0710-0711 ● ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0712-1508 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-999-0 01 1 0712-1508 ●
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-999-0 01 1 1509- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-999-0 01 1 1509- ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-139-0 01 1 0712-0905 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-139-0 01 1 0912- ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0710-0711 ● ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0712-1508 ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-000-0 01 1 0712-1508 ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-000-0 01 1 1509- ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-000-0 01 1 1509- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-151-2 01 1 0712-0905 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-151-2 01 1 0912-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		8-98242-816-0 01 1 1401- ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0710-0711 ● ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0712-1508 ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-001-0 01 1 0712-1508 ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98331-314-0 01 1 1509- ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98331-314-0 01 1 1509- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-186-2 01 1 0712-0905 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-186-3 01 1 0912- ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0710-0711 ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0712-1508 ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-003-0 01 1 0712-1508 ●
325 COVER; SUSPENSION DEVICE
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 1509- ●
325 COVER; SUSPENSION DEVICE
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-003-0 01 1 1509- ●
327 CLIP; COVER 8-98098-004-0 01 1 0710-0711 ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0712-1508 ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-004-0 01 1 0712-1508 ●
327 CLIP; COVER
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1509- ●
327 CLIP; COVER
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-004-0 01 1 1509- ●
327 CLIP; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DELUXE CAB(W14) 		1-09987-273-0 01 1 0712- ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0710-0711 ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0712-1508 ●
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98098-002-0 01 1 0712-1508 ●
652 LOCK ASM; HEIGHT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 1509- ●
652 LOCK ASM; HEIGHT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98098-002-0 01 1 1509- ●
çizim 135241
113 114 99 630 627 116 115 46 627 306 122 17 123
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0711 ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0712-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 0712-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0710- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0710-1009 ● ●
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010- ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97409-969-0 01 1 0710-0902 ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 0903-0912 ● ●
113 BACK ASM; SEAT
DARK GRAY 		8-97416-221-0 01 1 1001-1009 ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-221-0 01 1 1001-1009 ●
113 BACK ASM; SEAT
DARK GRAY 		8-97421-422-0 01 1 1010- ●
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-422-0 01 1 1010- ●
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-966-1 01 1 0712- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97411-916-0 01 1 0712- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97411-914-0 01 1 0710-0902 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 0903-0912 ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97416-223-0 01 1 1001-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97416-223-0 01 1 1001-1009 ●
114 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97421-424-0 01 1 1010- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-424-0 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97409-968-0 01 1 0710-0902 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 0903-0912 ● ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97416-225-0 01 1 1001-1009 ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-225-0 01 1 1001-1009 ●
115 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97421-418-1 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-418-1 01 1 1010- ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97409-965-1 01 1 0712- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97411-915-0 01 1 0712- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97411-913-0 01 1 0710-0902 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 0903-0912 ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97416-227-0 01 1 1001-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97416-227-0 01 1 1001-1009 ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
DARK GRAY 		8-97421-420-0 01 1 1010- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-420-0 01 1 1010- ●
122 COVER; ADJ,RECLINING
SEAT CLOTH<7FL> GRAY 		8-97409-967-0 01 1 0710-0902 ● ●
122 COVER; ADJ,RECLINING
GRAY 		8-97409-967-0 01 1 0903- ● ●
122 COVER; ADJ,RECLINING
VINYL SEAT<A83> GRAY 		8-97409-967-0 01 1 0712-0902 ●
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 0710- ● ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 0712- ●
306 NUT; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0712-0912 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1001- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0710- ● ●
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0710- ● ●
630 NUT; CAP
M8 		8-98063-225-0 01 1 0710- ● ●
çizim 135283
360 506 175 188 16 176 126 359 403 179 182 403 188
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-75418-062-1 01 1 0710-0711 ● ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 0712-1104 ● ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> 		1-75418-062-1 01 1 1105-1109 ● ●
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1110- ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 1105-1109 ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0712-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 0712-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 0710-0711 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0712-1104 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-984-0 01 1 0710-0902 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-233-0 01 1 0903-1009 ● ●
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1010- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-0 01 1 0712-0905 ●
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 0908- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-985-0 01 1 0710-0902 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-234-0 01 1 0903-1009 ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1010- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-0 01 1 0712-0905 ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 0908- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-983-0 01 1 0710-0902 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-237-0 01 1 0903-1009 ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-432-1 01 1 1010- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-0 01 1 0712-0905 ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-974-1 01 1 1007- ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-982-0 01 1 0710-0902 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-235-0 01 1 0903-1009 ● ●
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-430-3 01 1 1010- ● ●
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-973-3 01 1 0712- ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE 		1-75198-053-0 04 1 0710-0711 ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 0712-1104 ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ● ●
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1110- ● ●
188 BOLT; BACK TO CUSHION
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 1105-1109 ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-977-1 01 1 0710-0711 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0712-1006 ● ●
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-0711 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0712-1009 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-1104 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1105-1109 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1110- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 0710-0711 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0712-1104 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16 		0-70040-416-0 06 1 1105-1109 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 1110- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0710-0711 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0712-1110 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111- ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (D) M5X20 		9-09829-324-1 02 1 0710-0711 ● ●
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0712-1009 ● ●
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> GRAY 		8-97409-980-0 04 1 0710-0711 ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 04 1 0712-1006 ● ●
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1007- ● ●
çizim 135286
1 2 126 542 306 69 100 18 228 24 17 19 13 12 67 398 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0710-0711 ● ●
1 BACK ASM; SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-964-0 01 1 0712- ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0710-0711 ● ●
1 BACK ASM; SEAT
EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-963-0 01 1 0712-1508 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-112-2 01 1 0712-0902 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-202-0 01 1 0903-1009 ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-407-1 01 1 1010- ●
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97409-955-5 01 1 0712- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-201-0 01 1 1001-1009 ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-406-1 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0710-0711 ● ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-966-0 01 1 0712-1212 ●
2 COVER; TRIM,FRT SEAT,BACK
(A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98232-353-0 01 1 1301-1508 ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98232-353-0 01 1 1509- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-113-1 01 1 0712-0902 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-207-0 01 1 0903-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-412-0 01 1 1010- ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-910-2 01 1 0712- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-206-0 01 1 1001-1009 ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-411-0 01 1 1010- ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0710-0711 ● ●
12 CUSHION; SEAT,FRT
(A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-006-0 01 1 0712-1508 ●
12 CUSHION; SEAT,FRT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-006-0 01 1 1509- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-120-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-212-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-398-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-958-0 01 1 0712-0902 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 0903-0912 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-211-1 01 1 1001-1009 ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-397-2 01 1 1010- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> DRIVING POSITION WIDE LEG SPACE<PR2> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97414-123-2 01 1 0712- ●
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97409-954-2 01 1 0712- ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0710-0711 ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
(A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-007-0 01 1 0712-1508 ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-007-0 01 1 1509- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97414-121-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97416-216-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> DRIVING POSITION WIDE LEG SPACE<PR2> SEAT CLOTH<7FL> (B) DARK GRAY 		8-97421-402-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97414-111-0 01 1 0712-0902 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 0903-0912 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97416-215-0 01 1 1001-1009 ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> EXC. DRIVING POSITION WIDE LEG SPACE<PR2> (B) DARK GRAY 		8-97421-401-2 01 1 1010- ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY 		8-97411-909-1 01 1 0712- ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0710-0711 ● ●
17 BOLT; RECLINING
(C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98097-974-0 02 1 0712-1508 ●
17 BOLT; RECLINING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98097-974-0 02 1 1509- ●
17 BOLT; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 0712-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 0712-0912 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1001-1203 ●
17 BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (B) M10X20 		8-98062-661-0 02 1 1204- ●
17 BOLT; RECLINING
(A) M8X20 		8-98092-334-0 02 1 0710- ● ●
18 COVER; RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 0712-0912 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 0712-0912 ●
18 COVER; RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1001- ●
18 COVER; RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-332-0 01 1 1001- ●
19 SCREW; COVER
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 0712-0912 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 0712-0912 ●
19 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1001- ●
19 SCREW; COVER
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1001- ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 0712-0912 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 0712-0912 ●
24 KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1001- ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-333-0 01 1 1001- ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0710-0711 ● ●
42 STAND; DRIVER SEAT 8-98106-346-0 01 1 0712-1508 ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98106-346-0 01 1 0712-1508 ●
42 STAND; DRIVER SEAT
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1509- ●
42 STAND; DRIVER SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> 		8-98106-346-0 01 1 1509- ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-1 01 1 0712-0912 ●
42 STAND; DRIVER SEAT
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 1001- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
100 COVER; HINGE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98203-070-0 01 1 1110- ●
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1110- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 0712-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 0712-0912 ●
126 BUSHING; HINGE,RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1001- ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 0710-0711 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0712-1104 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) 		8-97854-900-0 01 1 1105-1109 ● ●
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 1110- ● ●
228 SCREW; KNOB
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 0712-0912 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 0712-0912 ●
228 SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1001- ●
228 SCREW; KNOB
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1001- ●
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 0712- ●
306 NUT; SEAT ADJ
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0712-0912 ●
306 NUT; SEAT ADJ
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 1001- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
398 NUT; STAND
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0712-0912 ●
398 NUT; STAND
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 1001- ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 0712-0912 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98093-310-0 01 1 1001-1502 ●
542 ADJUSTER ASM; SEAT SLIDE
VINYL SEAT<A83>,SEAT CLOTH<7FL> RIGID SEAT WO/ARM REST<TAZ> 		8-98291-653-0 01 1 1503- ●
çizim 192558
85 470 87 513 85 468 467 322 86 79 79 76 77 66 86 66 78 88 85 80 62 78 81 79 85 339 79
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-7 01 1 0712-0905 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-183-8 01 1 0912-1403 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-448-0 01 1 1404- ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 0712-0905 ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 0912- ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0710-0711 ● ●
76 DAMPER; AIR SUSP
(A) 		8-98097-999-0 01 1 0712-1508 ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98097-999-0 01 1 0712-1508 ●
76 DAMPER; AIR SUSP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-999-0 01 1 1509- ●
76 DAMPER; AIR SUSP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98097-999-0 01 1 1509- ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-139-0 01 1 0712-0905 ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-139-0 01 1 0912- ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 0712-0905 ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 0912- ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0710-0711 ● ●
78 RING; SNAP
(C) 		8-98101-900-0 02 1 0712-1508 ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C) 		8-98101-900-0 02 1 0712-1508 ●
78 RING; SNAP
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98101-900-0 02 1 1509- ●
78 RING; SNAP
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (C) 		8-98101-900-0 02 1 1509- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 0712-0905 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 0912- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 0712-0905 ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 0912- ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-159-0 04 1 0712-0905 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-159-0 04 1 0912-1403 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1404- ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 0712-0905 ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 0912- ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0710-0711 ● ●
81 SPRING; AIR
(A) 		8-98098-000-0 01 1 0712-1508 ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-000-0 01 1 0712-1508 ●
81 SPRING; AIR
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-000-0 01 1 1509- ●
81 SPRING; AIR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98098-000-0 01 1 1509- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-151-2 01 1 0712-0905 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-151-2 01 1 0912-1312 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		8-98242-816-0 01 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-0 01 1 0712-0905 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 0912- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-0 02 1 0712-0905 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 0912- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0712-0905 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0912-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0712-0905 ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0912- ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 0712-0905 ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 0912- ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 0712-0905 ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 0912- ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0710-0711 ● ●
322 VALVE; AIR SPRING
(A) 		8-98098-001-0 01 1 0712-1508 ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98098-001-0 01 1 0712-1508 ●
322 VALVE; AIR SPRING
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98331-314-0 01 1 1509- ●
322 VALVE; AIR SPRING
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98331-314-0 01 1 1509- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-186-2 01 1 0712-0905 ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75538-186-3 01 1 0912- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 0712-0905 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 0912- ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0710-0711 ● ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0712- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98014-971-0 01 1 0712- ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 0712-0905 ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 0912- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 0712- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 0712- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 0712- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 0712-0905 ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 0912- ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 0712-0905 ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 0912- ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 0712-0905 ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 0912- ●
çizim 322611
595 339 632 400 641 400 401 581
BalonParca AdiParca NoAdetTipApplied Date A B
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 0712-0905 ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 0912- ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0710-0711 ● ●
339 UNION; DRIVER SEAT
(B) 		8-98014-971-0 01 1 0712- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98014-971-0 01 1 0712- ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0710-0711 ● ●
400 BOLT; SUPPORT
(B) 		8-98098-996-0 02 1 0712- ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B) 		8-98098-996-0 02 1 0712- ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
400 BOLT; SUPPORT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
400 BOLT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0710-0711 ● ●
401 NUT; SUPPORT
M10 FLANGE 		0-91180-110-0 02 1 0712- ●
401 NUT; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE 		0-91180-110-0 02 1 0712- ●
581 PIPE; SEAT 8-97589-693-3 01 1 0710-0711 ● ●
581 PIPE; SEAT 8-97589-693-3 01 1 0712- ●
581 PIPE; SEAT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-97589-693-3 01 1 0712- ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0710-0711 ● ●
595 TUBE; NYLON
(A) 		8-98106-348-0 01 1 0712-1508 ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) 		8-98106-348-0 01 1 0712-1508 ●
595 TUBE; NYLON
DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1509- ●
595 TUBE; NYLON
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A) 		8-98106-348-0 01 1 1509- ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 0710-0711 ● ●
595 TUBE; NYLON
(B) 		8-98041-300-0 01 1 0712- ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEATTYPE 6800<SJA> (B) 		8-98041-300-0 01 1 0712- ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 0712- ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 0710-0711 ● ●
641 WASHER; SUPPORT 8-98099-007-0 02 1 0712- ●
641 WASHER; SUPPORT
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98099-007-0 02 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
