◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

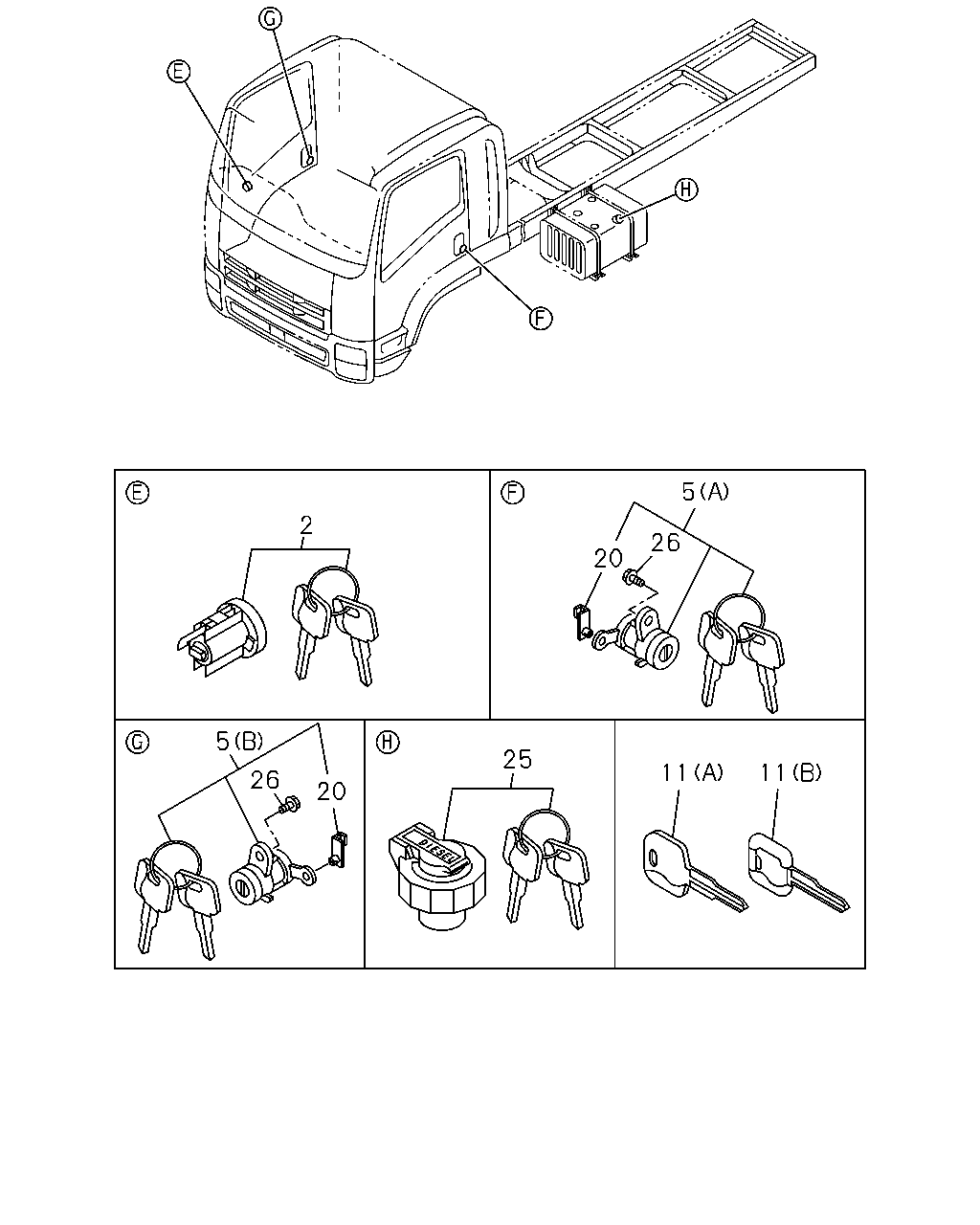

7-30 — LOCK CYLINDER SET (#65784) — 81 parça

1 20 20 1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK (A)	8-98029-406-1	01	1	0710-0710	●	●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98029-406-1	01	1	0710-0711	●	●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98029-406-1	01	1	0712-0804	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> (A)	8-98029-406-1	01	1	0712-0804		●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98088-949-0	01	1	0805-0911	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> (A)	8-98088-949-0	01	1	0805-0911		●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98145-977-0	01	1	0912-1203	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> (A)	8-98145-977-0	01	1	0912-1203		●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20> (A)	8-98201-214-0	01	1	1204-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> (A)	8-98201-214-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK FUEL TANK 400L<SDH> (B)	8-98041-686-1	01	1	0710-0711	●	●
1	CYLINDER SET; CAR LOCK FUEL TANK 400L<SDH> (B)	8-98041-686-1	01	1	0712-1203	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> (B)	8-98041-686-1	01	1	0712-1203		●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-98041-686-1	01	1	0712-1203		●
1	CYLINDER SET; CAR LOCK FUEL TANK 400L<SDH> (B)	8-98201-160-0	01	1	1204-	●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> (B)	8-98201-160-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-98201-160-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC> (B)	8-98056-003-0	01	1	0712-1203		●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05>,IMMOBILIZER SYSTEM<7KC> (B)	8-98056-003-0	01	1	0712-1203		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC> (B)	8-98201-161-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. FUEL TANK CAP KEY LOCK<N05>,IMMOBILIZER SYSTEM<7KC> (B)	8-98201-161-0	01	1	1204-		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98064-874-0	01	1	0712-0804		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98088-954-0	01	1	0805-0911		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98145-979-0	01	1	0912-1203		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98201-216-0	01	1	1204-		●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0710-0711	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	0712-	●
20	SNAP; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-181-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC>	8-98055-181-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-181-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0710-0711	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	0712-	●
20	SNAP; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-182-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC>	8-98055-182-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-182-0	01	1	0712-		●

5 2 26 20 5 25 11 11 26 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	0710-0711	●	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	0712-1203	●
2	BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM<7KC>	8-98055-147-0	01	1	0712-1203		●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1204-	●
2	BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM<7KC>	8-98201-341-0	01	1	1204-		●
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-148-0	01	1	0712-1203	●
2	BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM<7KC>	8-98055-148-0	01	1	0712-1203		●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1204-	●
2	BARREL ASM; W/KEY,STRG LOCK IMMOBILIZER SYSTEM<7KC>	8-98201-342-0	01	1	1204-		●
5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	0710-0711	●	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (B)	8-98055-149-0	01	1	0712-	●
5	CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05> (B)	8-98055-149-0	01	1	0712-		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> (B)	8-98055-149-0	01	1	0712-		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC> (B)	8-98055-149-0	01	1	0712-		●
5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	0710-0711	●	●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (A)	8-98055-150-0	01	1	0712-	●
5	CYLINDER ASM; DOOR LOCK IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05> (A)	8-98055-150-0	01	1	0712-		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> (A)	8-98055-150-0	01	1	0712-		●
5	CYLINDER ASM; DOOR LOCK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98055-150-0	01	1	0712-		●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	0710-0711	●	●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	0712-	●
11	KEY; BLANK IMMOBILIZER SYSTEM<7KC> (B) IMMOBILIZER	8-98055-168-0	AR	1	0712-		●
11	KEY; BLANK (A)	8-98055-170-0	AR	1	0710-0711	●	●
11	KEY; BLANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> (A)	8-98055-170-0	AR	1	0712-	●
11	KEY; BLANK IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05> (A)	8-98055-170-0	AR	1	0712-		●
11	KEY; BLANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC> (A)	8-98055-170-0	AR	1	0712-		●
11	KEY; BLANK FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC> (A)	8-98055-170-0	AR	1	0712-		●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0710-0711	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-181-0	01	1	0712-	●
20	SNAP; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-181-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC>	8-98055-181-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-181-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0710-0711	●	●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH>	8-98055-182-0	01	1	0712-	●
20	SNAP; DOOR LOCK CYL IMMOBILIZER SYSTEM<7KC> EXC. FUEL TANK CAP KEY LOCK<N05>	8-98055-182-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> IMMOBILIZER SYSTEM<7KC>	8-98055-182-0	01	1	0712-		●
20	SNAP; DOOR LOCK CYL FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> EXC. IMMOBILIZER SYSTEM<7KC>	8-98055-182-0	01	1	0712-		●
25	CAP; FUEL TANK,W/KEY	8-98033-157-0	01	1	0710-0710	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK 200L FRAME SIDE<N20>	8-98033-157-0	01	1	0710-0711	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK 200L FRAME SIDE<N20>	8-98033-157-0	01	1	0712-0804	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>	8-98033-157-0	01	1	0712-0804		●
25	CAP; FUEL TANK,W/KEY FUEL TANK 200L FRAME SIDE<N20>	8-98088-982-0	01	1	0805-0911	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>	8-98088-982-0	01	1	0805-0911		●
25	CAP; FUEL TANK,W/KEY FUEL TANK 200L FRAME SIDE<N20>	8-98146-010-0	01	1	0912-	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20>	8-98146-010-0	01	1	0912-		●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
