6-20 — SIDE PANEL AND STEP (#6578) — 62 parça

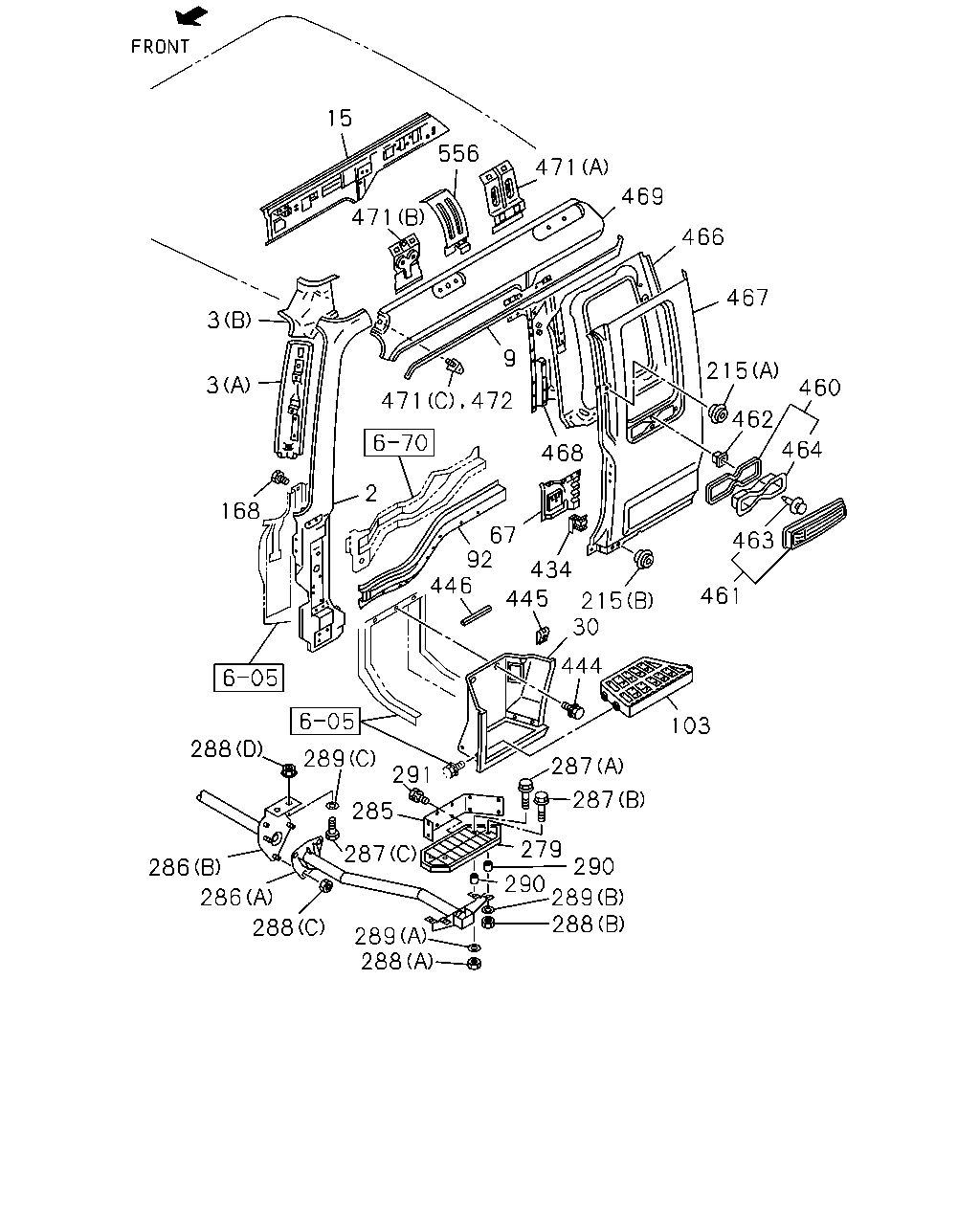

çizim 6445
15 556 471 469 471 466 467 3 9 215 3 460 462 464 468 2 168 67 92 446 463 434 461 445 215 30 444 103 288 289 287 291 287 279 285 287 290 286 290 289 288 286 288 289 288 471 472
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT
THA 		8-97916-928-0 01 1 0101-
2 PILLAR; FRT
THA 		8-97916-927-0 01 1 0101-
3 PANEL; CLOSING,FRT PILLAR
(B) THA 		1-61281-170-5 01 1 0101-
3 PANEL; CLOSING,FRT PILLAR
(A) THA 		1-61281-344-5 01 1 0101-
3 PANEL; CLOSING,FRT PILLAR
(B) THA 		1-61281-169-5 01 1 0101-
3 PANEL; CLOSING,FRT PILLAR
(A) THA 		1-61281-343-5 01 1 0101-
9 MOLDING; DRIP,CAB SIDE
THA 		1-61281-281-4 01 1 0101-
9 MOLDING; DRIP,CAB SIDE
THA 		1-61281-280-4 01 1 0101-
15 PANEL; CANT RAIL SIDE
THA 		8-97910-514-0 01 1 0101-
15 PANEL; CANT RAIL SIDE
THA 		8-97917-977-0 01 1 0101-
30 CLOSING; SIDE STEP 1-71998-878-7 01 1 0101-
30 CLOSING; SIDE STEP 1-71998-877-7 01 1 0101-
67 PANEL; INNER,RR PILLAR LWR
THA 		8-97915-893-0 01 1 0101-
67 PANEL; INNER,RR PILLAR LWR
THA 		8-97915-892-0 01 1 0101-
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 0101-
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 0101-
103 PLATE; STEP
THA 		8-97914-194-0 01 1 0101-
103 PLATE; STEP
THA 		8-97914-193-0 01 1 0101-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0101-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0101-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0101-
279 BOARD; STEP 1ST
THA 		8-97916-118-0 02 1 0101-
285 PLATE; STEP,1ST STEP
THA 		8-97916-155-0 02 1 0101-
286 STEP ASM; 1ST
(B) THA 		8-97916-152-5 01 1 0101-
286 STEP ASM; 1ST
(A) THA 		8-97916-154-1 01 1 0101-
286 STEP ASM; 1ST
(A) THA 		8-97916-153-1 01 1 0101-
287 BOLT; BOARD STEP
(C) M12X35 THA 		8-97916-087-0 04 1 0101-
287 BOLT; BOARD STEP
(B) M8X35 W/LK WASHER THA 		8-97919-789-0 04 1 0101-
287 BOLT; BOARD STEP
(A) M6X35 W/LK WASHER THA 		8-97919-790-0 04 1 0101-
288 NUT; STEP
(D) M12 FLANGE 		0-91150-212-0 04 1 0101-
288 NUT; STEP
(C) M12 THA 		8-97916-080-0 06 1 0101-
288 NUT; STEP
(A) M6 		9-09110-406-0 04 1 0101-
288 NUT; STEP
(B) M8 		9-09110-408-0 04 1 0101-
289 WASHER; PL,STEP
(C) ID=12 THA 		8-97917-376-0 04 1 0101-
289 WASHER; PL,STEP
(A) ID=6.4 OD=14 		9-09160-606-0 04 1 0101-
289 WASHER; PL,STEP
(B) ID=8.4 OD=18 		9-09160-608-0 04 1 0101-
290 SPACER
THA 		8-97916-144-0 08 1 0101-
291 BOLT; STEP PLATE
M6X20 THA 		8-97916-169-0 10 1 0101-
434 PATCH; ASSIST GRIP
THA 		8-97910-525-0 02 1 0101-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0101-
445 NUT; CLOSING
THA 		8-94279-723-0 02 1 0101-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0101-
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 0101-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0101-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0101-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0101-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0101-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0101-
466 PANEL; INNER,BACK CORNER
THA 		8-97915-891-0 01 1 0101-
466 PANEL; INNER,BACK CORNER
THA 		8-97915-890-0 01 1 0101-
467 PANEL; OUTER,BACK CORNER
THA 		8-97916-921-0 01 1 0101-
467 PANEL; OUTER,BACK CORNER
THA 		8-97916-920-0 01 1 0101-
468 REINFORCEMENT; SEAT BELT ANCHOR
THA 		8-97916-933-0 01 1 0101-
468 REINFORCEMENT; SEAT BELT ANCHOR
THA 		8-97916-932-0 01 1 0101-
469 ROOF; SIDE
THA 		8-97915-882-0 01 1 0101-
469 ROOF; SIDE
THA 		8-97915-878-0 01 1 0101-
471 PATCH; AIR DEFLECTOR
(A) THA 		8-97915-881-0 02 1 0101-
471 PATCH; AIR DEFLECTOR
(C) THA 		1-61281-233-4 01 1 0101-
471 PATCH; AIR DEFLECTOR
(B) THA 		8-97915-880-0 01 1 0101-
471 PATCH; AIR DEFLECTOR
(B) THA 		8-97915-879-0 01 1 0101-
472 PATCH; STAY,ROOF
THA 		1-61270-943-1 01 1 0101-
556 PATCH; ROOF SIDE
THA 		8-97913-991-0 01 1 0101-
