◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#65773) — 126 parça

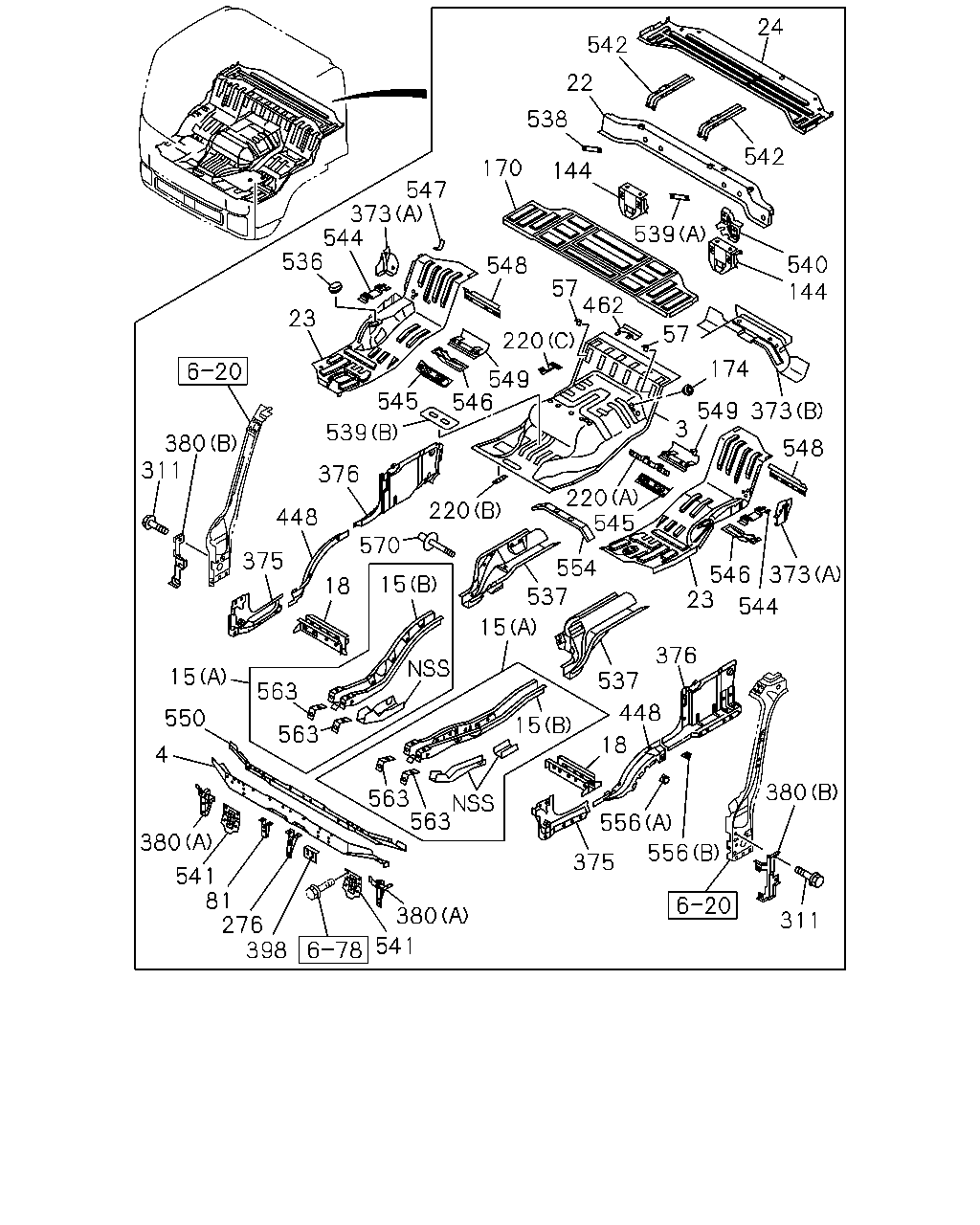

çizim 192531
24 542 22 538 542 170 144 547 373 544 536 539 540 144 548 57 462 23 57 220 174 549 546 549 545 373 3 539 380 311 548 376 220 545 220 448 570 375 554 373 546 23 15 18 537 544 15 376 15 537 563 448 550 563 15 18 4 563 563 380 556 556 380 375 541 81 276 398 380 311 541
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
A/T<X9D> 		8-98081-359-2 01 1 0710-0711 ● ●
3 HOOD ASM; ENG
A/T<X9D> 		8-98081-359-3 01 1 0712-0907 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) A/T<X9D> 		8-98081-359-3 01 1 0712-0907 ●
3 HOOD ASM; ENG
A/T<X9D> 		8-98081-359-4 01 1 0908-1009 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13) A/T<X9D> 		8-98081-359-4 01 1 0908-1009 ●
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-359-4 01 1 1010- ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13) EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-359-4 01 1 1010- ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-2 01 1 0710-0711 ● ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-3 01 1 0712-0907 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-3 01 1 0712-0907 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-4 01 1 0908-1009 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> 		8-98081-360-4 01 1 0908-1009 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-360-4 01 1 1010- ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-360-4 01 1 1010- ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-2 01 1 0710-0711 ● ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-3 01 1 0712-0907 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-3 01 1 0712-0907 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 0908-1009 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 0908-1009 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1010- ●
3 HOOD ASM; ENG
ALLISON MD3560P A/T(Y3B) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1010- ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98081-357-4 01 1 1010- ●
3 HOOD ASM; ENG
ALLISON MD3560P A/T(Y3B) AUSTRALIA EQUIPMENT(B13) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 1010- ●
3 HOOD ASM; ENG
A/T<X9D> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98066-084-5 01 1 0712-0907 ●
3 HOOD ASM; ENG
A/T<X9D> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98066-084-6 01 1 0908-1009 ●
3 HOOD ASM; ENG
EXC. AUSTRALIA EQUIPMENT(B13),TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98066-084-6 01 1 1010- ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98053-677-8 01 1 0712-0907 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AUSTRALIA EQUIPMENT(B13) 		8-98053-677-9 01 1 0908-1009 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98053-677-9 01 1 1010- ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),ASSISTOR SHIFT CONTROL<WX8> 		8-98032-904-9 01 1 0712-0907 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> 		8-98032-904-9 01 1 0908-1004 ●
3 HOOD ASM; ENG
ZF9S1110 M/T(Y5E) EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1005-1009 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13),ASSISTOR SHIFT CONTROL<WX8> 		8-98167-036-0 01 1 1010- ●
3 HOOD ASM; ENG
ALLISON MD3560P A/T(Y3B) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98167-036-0 01 1 1010- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 0710- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0710- ● ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0710- ● ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0710- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0710- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-398-4 01 1 0710- ● ●
18 FRAME; FLOOR,CENTER SIDE 8-97584-421-4 01 1 0710- ● ●
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 0710- ● ●
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 0710- ● ●
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 0710- ● ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0710- ● ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0710- ● ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0710- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0710- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0710- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0710- ● ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0710- ● ●
220 PATCH
(A) 		8-97588-840-4 01 1 0710- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0710- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0710- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0710- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) 		8-97584-345-9 01 1 0712-1009 ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97584-345-9 01 1 1010- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 0710-1009 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) 		8-98081-349-3 01 1 0710-1009 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98081-349-3 01 1 1010-1507 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (B) 		8-98081-349-3 01 1 1010-1507 ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (B) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0710- ● ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0710- ● ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0710- ● ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0710- ● ●
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0710-1403 ● ●
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404- ● ●
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0710- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0710- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0710- ● ●
448 CLOSING; ROCKER 8-97589-551-2 01 1 0710- ● ●
448 CLOSING; ROCKER 8-97589-552-2 01 1 0710- ● ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0710-1002 ● ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97585-688-1 01 1 1003-1009 ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97585-688-1 01 1 1010- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0710- ● ●
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0710- ● ●
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0710- ● ●
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0710- ● ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809- ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0710- ● ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0710- ● ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0710- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0710- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0710- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0710- ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97584-361-1 01 1 0712-1009 ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97584-361-1 01 1 1010- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0710-0711 ● ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712-1009 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-186-0 01 1 0712-1009 ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 1010- ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13) 		8-98050-186-0 01 1 1010- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0710- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 0710- ● ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0710- ● ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 0710- ● ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 0710- ● ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97589-557-4 01 1 0712-1009 ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-557-4 01 1 1010- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0710-0711 ● ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0712-1009 ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-187-1 01 1 0712-1009 ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 1010- ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13) 		8-98050-187-1 01 1 1010- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0710- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0710- ● ●
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0710- ● ●
556 BRACKET; TILT HANDLE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98077-605-1 01 1 0812-1009 ● ●
556 BRACKET; TILT HANDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) 		8-98077-605-1 01 1 1010-1108 ● ●
556 BRACKET; TILT HANDLE
ALLISON MD3560P A/T(Y3B) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-605-1 01 1 1010-1108 ● ●
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2> (A) 		8-98077-605-1 01 1 1109-1404 ● ●
556 BRACKET; TILT HANDLE
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> (A) 		8-98077-605-1 01 1 1405- ●
556 BRACKET; TILT HANDLE
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98077-606-1 01 1 0812-1009 ● ●
556 BRACKET; TILT HANDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (B) 		8-98077-606-1 01 1 1010-1108 ● ●
556 BRACKET; TILT HANDLE
ALLISON MD3560P A/T(Y3B) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98077-606-1 01 1 1010-1108 ● ●
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2> (B) 		8-98077-606-1 01 1 1109-1404 ● ●
556 BRACKET; TILT HANDLE
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> (B) 		8-98077-606-1 01 1 1405- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0710- ● ●
570 FASTENER; POP RIVET 8-97319-308-0 02 1 0710-0711 ● ●
