Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#65770) — 198 parça

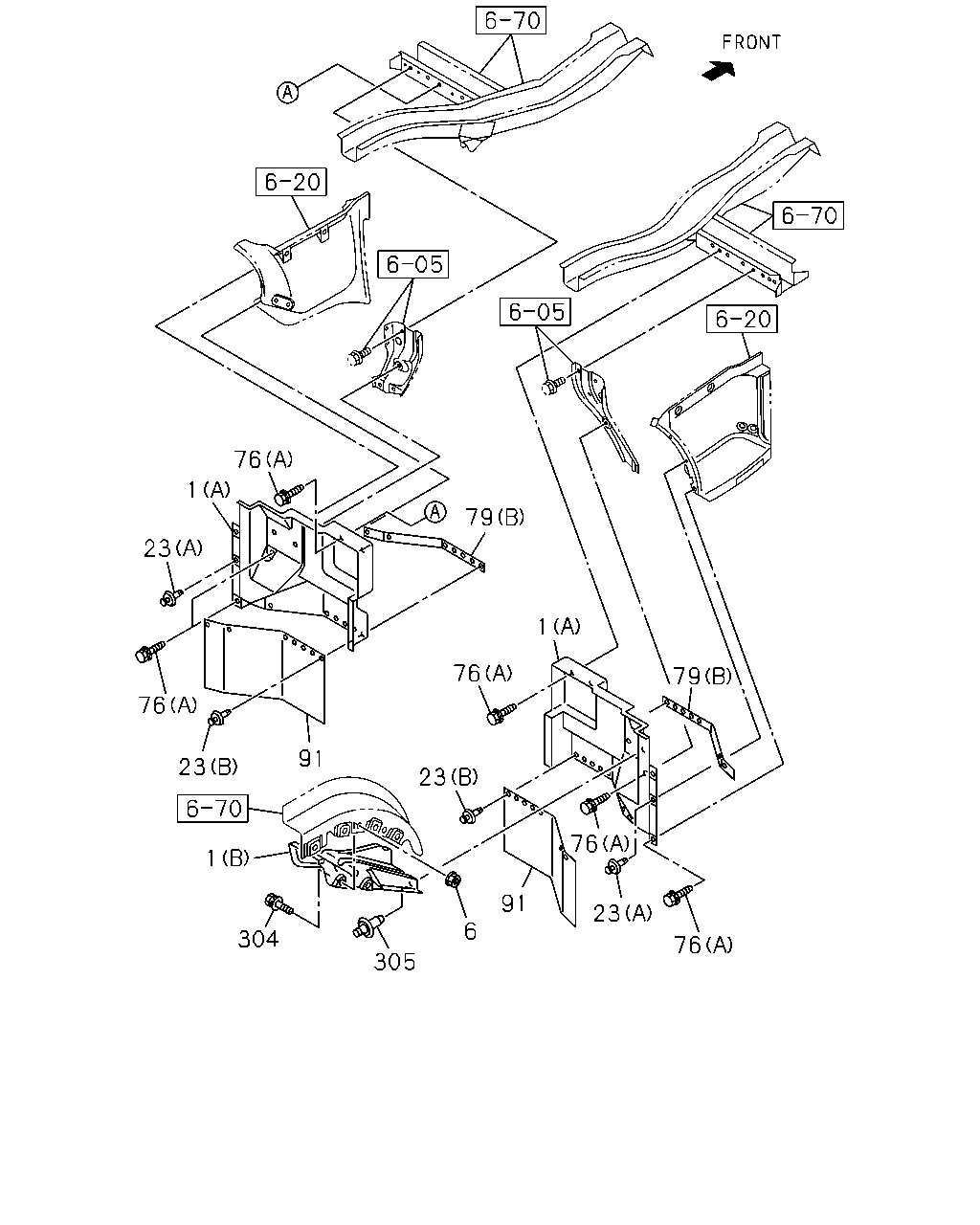

76 1 79 23 1 76 79 76 91 23 23 1 91 23 6 304 76 305 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	0710-	●	●
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	0710-	●	●
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98076-271-0	01	1	0710-	●	●
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0710-	●	●
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	0710-	●	●
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0710-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER (A)	8-98094-500-0	01	1	0710-0710	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0710-	●	●
79	RETAINER; MUD COVER (A)	8-98094-501-0	01	1	0710-0710	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0710-	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0710-	●	●
91	COVER; MUD,FRT	8-98060-067-1	02	1	0710-	●	●
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0710-	●	●
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0710-	●	●

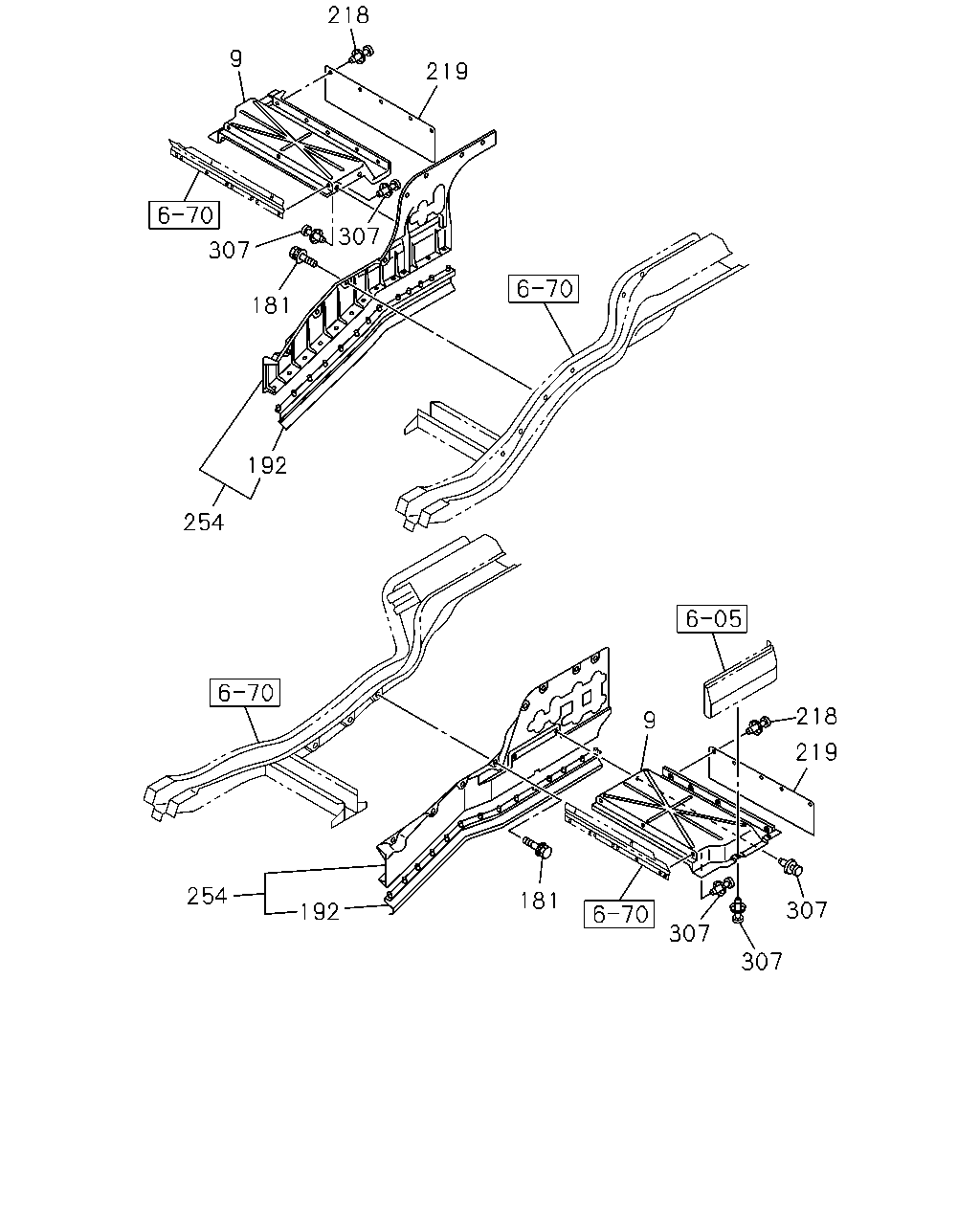

218 9 219 307 307 181 192 254 218 9 219 254 181 307 192 307 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	0710-	●	●
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	0710-	●	●
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0710-	●	●
192	SEAL; MUD COVER EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-158-1	01	1	0712-		●
192	SEAL; MUD COVER EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-159-2	01	1	0712-		●
192	SEAL; MUD COVER	8-98069-361-0	01	1	0710-0711	●	●
192	SEAL; MUD COVER	8-98069-361-0	01	1	0712-	●
192	SEAL; MUD COVER CAB SUSPENSION FULL FLOATING<W16>	8-98069-361-0	01	1	0712-		●
192	SEAL; MUD COVER	8-98069-360-0	01	1	0710-0711	●	●
192	SEAL; MUD COVER	8-98069-360-0	01	1	0712-	●
192	SEAL; MUD COVER CAB SUSPENSION FULL FLOATING<W16>	8-98069-360-0	01	1	0712-		●
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	0710-	●	●
219	FLAP; MUD GUARD EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98041-149-1	02	1	0712-		●
219	FLAP; MUD GUARD	8-98041-151-1	02	1	0710-0711	●	●
219	FLAP; MUD GUARD	8-98041-151-1	02	1	0712-	●
219	FLAP; MUD GUARD CAB SUSPENSION FULL FLOATING<W16>	8-98041-151-1	02	1	0712-		●
254	COVER; MUD,VALANCE EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98039-925-2	01	1	0712-		●
254	COVER; MUD,VALANCE EXC. CAB SUSPENSION FULL FLOATING<W16>	8-98039-926-1	01	1	0712-		●
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	0710-0711	●	●
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	0712-	●
254	COVER; MUD,VALANCE CAB SUSPENSION FULL FLOATING<W16>	8-98039-928-1	01	1	0712-		●
254	COVER; MUD,VALANCE	8-98039-927-2	01	1	0710-0711	●	●
254	COVER; MUD,VALANCE	8-98039-927-3	01	1	0712-	●
254	COVER; MUD,VALANCE CAB SUSPENSION FULL FLOATING<W16>	8-98039-927-3	01	1	0712-		●
307	RETAINER D8X13.5	1-09987-248-1	14	1	0710-	●	●

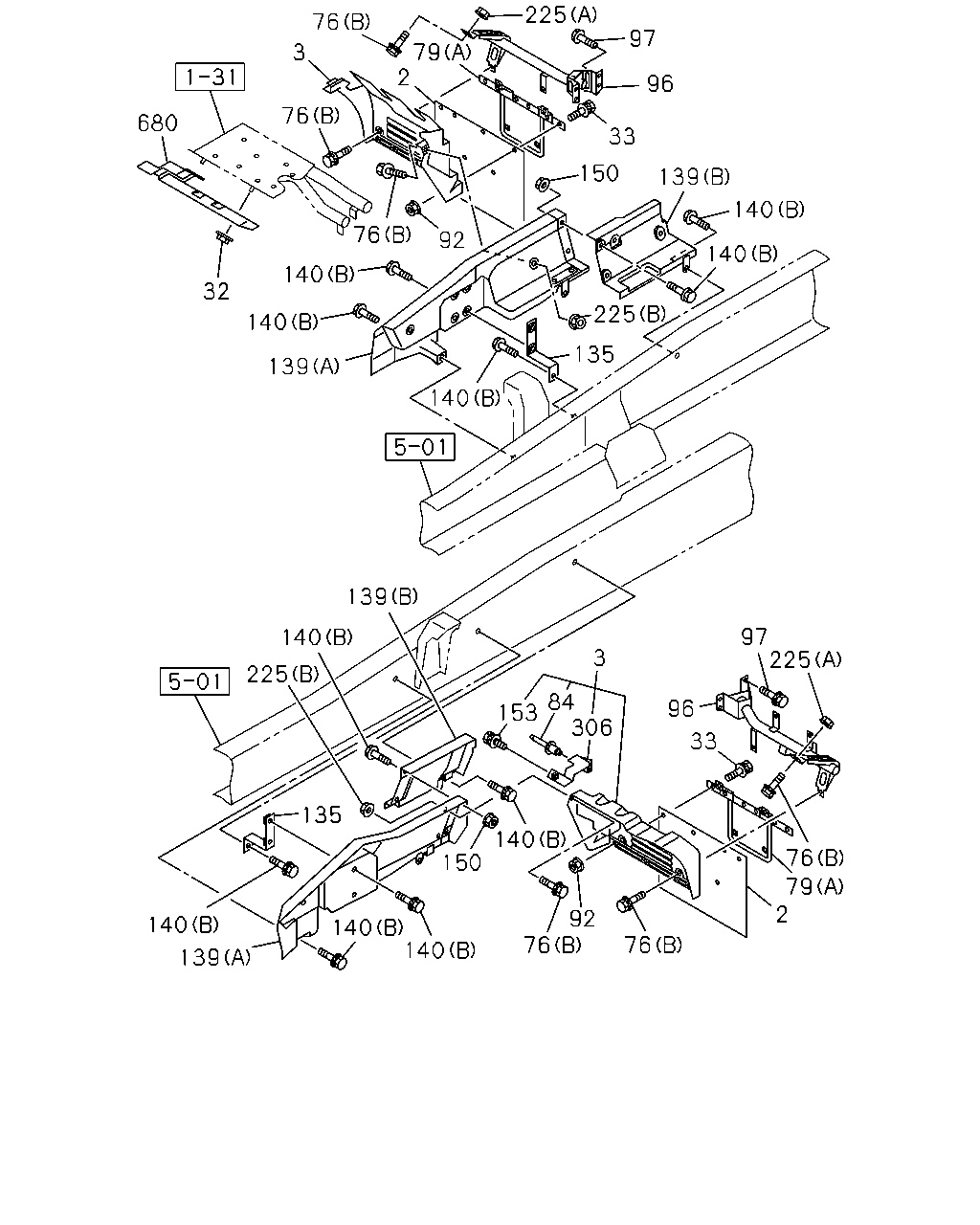

140 140 225 135 140 139 140 140 76 150 33 139 96 97 225 92 76 2 79 76 680 32 139 97 225 96 3 84 153 306 33 76 79 2 76 2 76 140 150 140 140 139 140 135 225 140 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; MUD,TIRE RR	1-79931-512-1	02	1	0710-	●	●
3	GUARD; MUD,RR	1-79931-473-1	01	1	0710-1211	●	●
3	GUARD; MUD,RR	8-98196-109-0	01	1	1212-	●	●
3	GUARD; MUD,RR	8-98076-257-0	01	1	0710-1302	●	●
3	GUARD; MUD,RR	8-98219-767-0	01	1	1303-	●	●
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	0710-0711	●	●
33	BOLT; MUD COVER M6X20 W/LK&PL WASHER	1-09980-495-0	12	1	0712-	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-074-0	08	1	0710-0805	●	●
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0806-1211	●	●
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-	●	●
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0710-0908	●	●
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-	●	●
79	RETAINER; MUD COVER (A)	8-98094-500-0	01	1	0710-0710	●	●
79	RETAINER; MUD COVER (A)	8-98102-105-0	01	1	0710-	●	●
79	RETAINER; MUD COVER (A)	8-98094-501-0	01	1	0710-0710	●	●
79	RETAINER; MUD COVER (A)	8-98102-106-0	01	1	0710-	●	●
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0710-	●	●
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1212-	●	●
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	08	1	0710-	●	●
96	STAY; MUD GUARD	1-79931-519-4	01	1	0710-	●	●
96	STAY; MUD GUARD	1-79931-540-3	01	1	0710-	●	●
97	BOLT; STAY TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	0710-	●	●
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0710-	●	●
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0710-	●	●
139	PANEL; SIDE (A)	1-53194-620-5	01	1	0710-	●	●
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0710-	●	●
139	PANEL; SIDE (A)	1-53194-619-4	01	1	0710-	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0710-0710	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X40 FLANGE	0-28050-840-0	03	1	0710-0711	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X40 FLANGE	0-28050-840-0	03	1	0712-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X40 FLANGE	0-28050-840-0	03	1	0712-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	07	1	0710-0711	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-		●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0710-	●	●
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0710-	●	●
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1212-	●	●
225	NUT; MUD GUARD (A) M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
225	NUT; MUD GUARD (B) M8 W/DISHED WASHER	8-97329-625-0	02	1	0710-	●	●
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1212-	●	●
680	GUARD; MUD,UPPER	1-79931-494-1	01	1	0710-0808	●	●
680	GUARD; MUD,UPPER	8-98123-402-0	01	1	0809-	●	●

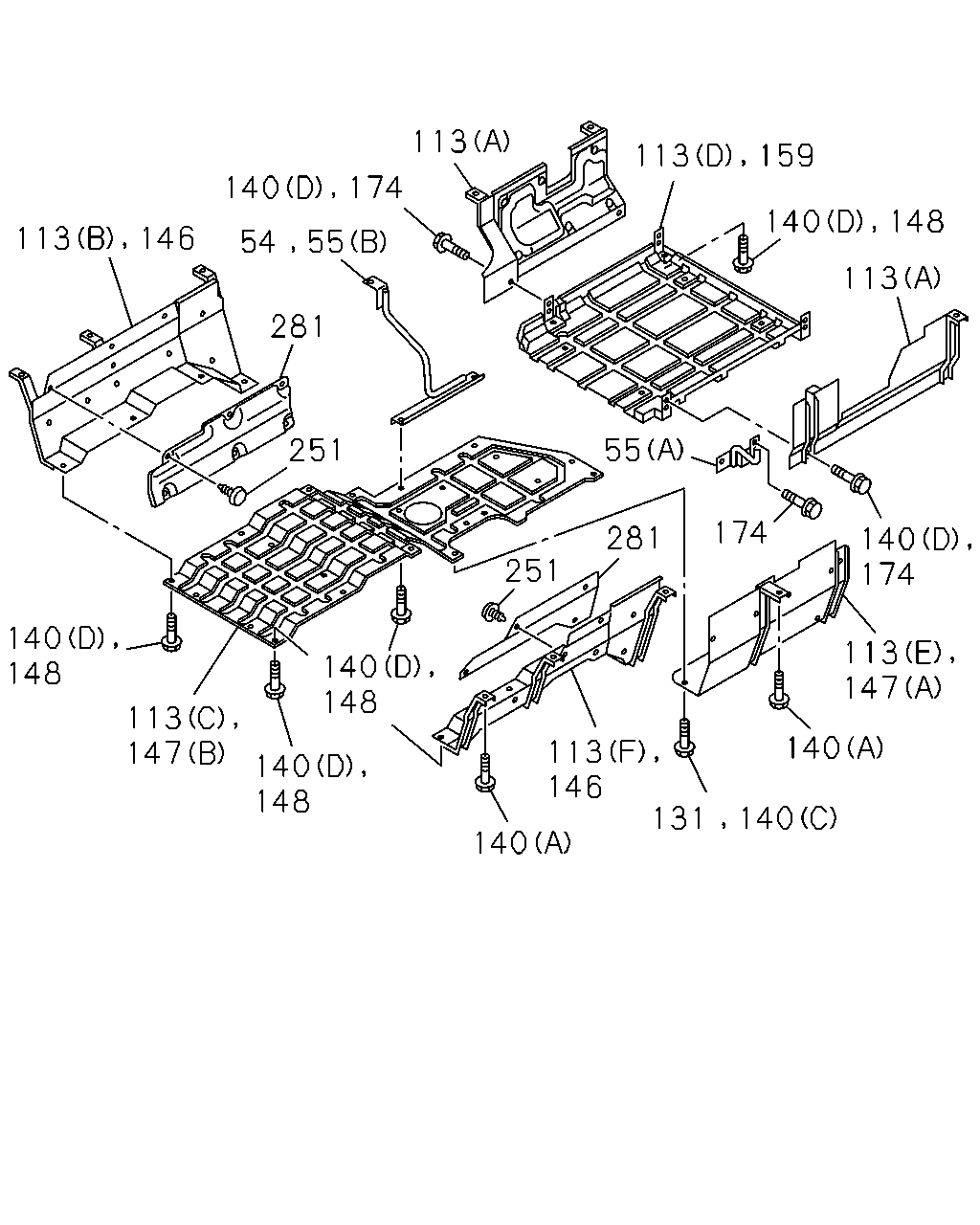

113 113 159 140 174 140 148 146 113 54 55 113 281 251 55 174 281 140 174 251 140 148 113 147 140 148 113 147 140 113 146 140 148 131 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	STAY; UNDER COVER,FRT ZF9S1110 M/T(Y5E)	8-98064-086-2	01	1	0710-0711	●	●
54	STAY; UNDER COVER,FRT ZF9S1110 M/T(Y5E)	8-98064-086-2	01	1	0712-0808	●
54	STAY; UNDER COVER,FRT ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98064-086-2	01	1	0712-0808		●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (B)	8-98064-086-2	01	1	0809-	●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98064-086-2	01	1	0809-		●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (A)	8-98078-177-2	01	1	0710-0711	●	●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) (A)	8-98078-177-2	01	1	0712-	●
55	STAY; UNDER COVER,RR ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-177-2	01	1	0712-		●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (B)	8-98017-756-2	01	1	0809-	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98017-756-2	01	1	0809-		●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (C)	8-98017-762-1	01	1	0809-	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C)	8-98017-762-1	01	1	0809-		●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (D)	8-98017-772-1	01	1	0809-	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D)	8-98017-772-1	01	1	0809-		●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (E)	8-98078-182-0	01	1	0809-	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (E)	8-98078-182-0	01	1	0809-		●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (F)	8-98114-851-0	01	1	0809-	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (F)	8-98114-851-0	01	1	0809-		●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-185-3	01	1	0710-0711	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-185-3	01	1	0712-	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-185-3	01	1	0712-		●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-188-3	01	1	0710-0711	●	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) (A)	8-98078-188-3	01	1	0712-	●
113	PANEL; SIDE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-188-3	01	1	0712-		●
131	BOLT; PANEL ZF9S1110 M/T(Y5E) M8X12 FLANGE	0-28050-812-0	02	1	0710-0711	●	●
131	BOLT; PANEL ZF9S1110 M/T(Y5E) M8X12 FLANGE	0-28050-812-0	02	1	0712-0808	●
131	BOLT; PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X12 FLANGE	0-28050-812-0	02	1	0712-0808		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (C) M8X12 FLANGE	0-28050-812-0	02	1	0809-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	01	1	0809-0906		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	02	1	0907-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X25 FLANGE	0-28050-825-0	04	1	0809-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0809-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0710-0710	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X40 FLANGE	0-28050-840-0	03	1	0710-0711	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X40 FLANGE	0-28050-840-0	03	1	0712-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X40 FLANGE	0-28050-840-0	03	1	0712-		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	07	1	0710-0711	●	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	07	1	0712-0712		●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-	●
140	BOLT; SIDE PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) M8X30 FLANGE	0-28050-830-0	08	1	0712-		●
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0710-	●	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98017-756-2	01	1	0710-0711	●	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98017-756-2	01	1	0712-0808	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98017-756-2	01	1	0712-0808		●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98017-759-4	01	1	0710-0711	●	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98017-759-4	01	1	0712-0802	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98017-759-4	01	1	0712-0802		●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E)	8-98114-851-0	01	1	0803-0808	●
146	PANEL; SIDE,UNDER,FRT ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98114-851-0	01	1	0803-0808		●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) (A)	8-98078-182-0	01	1	0710-0711	●	●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) (A)	8-98078-182-0	01	1	0712-0808	●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	8-98078-182-0	01	1	0712-0808		●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) (B)	8-98017-762-0	01	1	0710-0711	●	●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) (B)	8-98017-762-0	01	1	0712-0808	●
147	PANEL; SIDE,UNDER,RR ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B)	8-98017-762-0	01	1	0712-0808		●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	04	1	0710-0711	●	●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	04	1	0712-0712	●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28050-820-0	04	1	0712-0712		●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28050-825-0	04	1	0712-0808	●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28050-825-0	04	1	0712-0808		●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0710-0711	●	●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0712-0712	●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 W/LK&PL WASHER	1-09030-093-0	10	1	0712-0712		●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0712-0808	●
148	BOLT; PANEL TO PANEL ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0712-0808		●
159	PANEL; SIDE,TRANS,CTR ZF9S1110 M/T(Y5E)	8-98017-772-1	01	1	0710-0711	●	●
159	PANEL; SIDE,TRANS,CTR ZF9S1110 M/T(Y5E)	8-98017-772-1	01	1	0712-0808	●
159	PANEL; SIDE,TRANS,CTR ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98017-772-1	01	1	0712-0808		●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	01	1	0710-0711	●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	01	1	0712-0712	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28050-820-0	01	1	0712-0712		●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28050-825-0	01	1	0712-0808	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28050-825-0	01	1	0712-0808		●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	02	1	0710-0711	●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28050-820-0	02	1	0712-0712	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28050-820-0	02	1	0712-0712		●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	02	1	0710-0711	●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	02	1	0712-0712	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	02	1	0712-0712		●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	01	1	0712-	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X30 FLANGE	0-28050-830-0	01	1	0712-		●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0710-0711	●	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0712-0712	●
174	BOLT; STAY FIX ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0712-0712		●
251	CLIP; NOISE INSULATOR ZF9S1110 M/T(Y5E)	8-94165-394-0	10	1	0710-0711	●	●
251	CLIP; NOISE INSULATOR ZF9S1110 M/T(Y5E)	8-94165-394-0	10	1	0712-0808	●
251	CLIP; NOISE INSULATOR ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-94165-394-0	10	1	0712-0808		●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E)	8-98064-148-0	01	1	0710-0711	●	●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E)	8-98064-148-0	01	1	0712-0808	●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98064-148-0	01	1	0712-0808		●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E)	8-98064-149-1	01	1	0710-0711	●	●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E)	8-98064-149-1	01	1	0712-0808	●
281	INSULATOR; NOISE ZF9S1110 M/T(Y5E) ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	8-98064-149-1	01	1	0712-0808		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
