◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#65760) — 178 parça

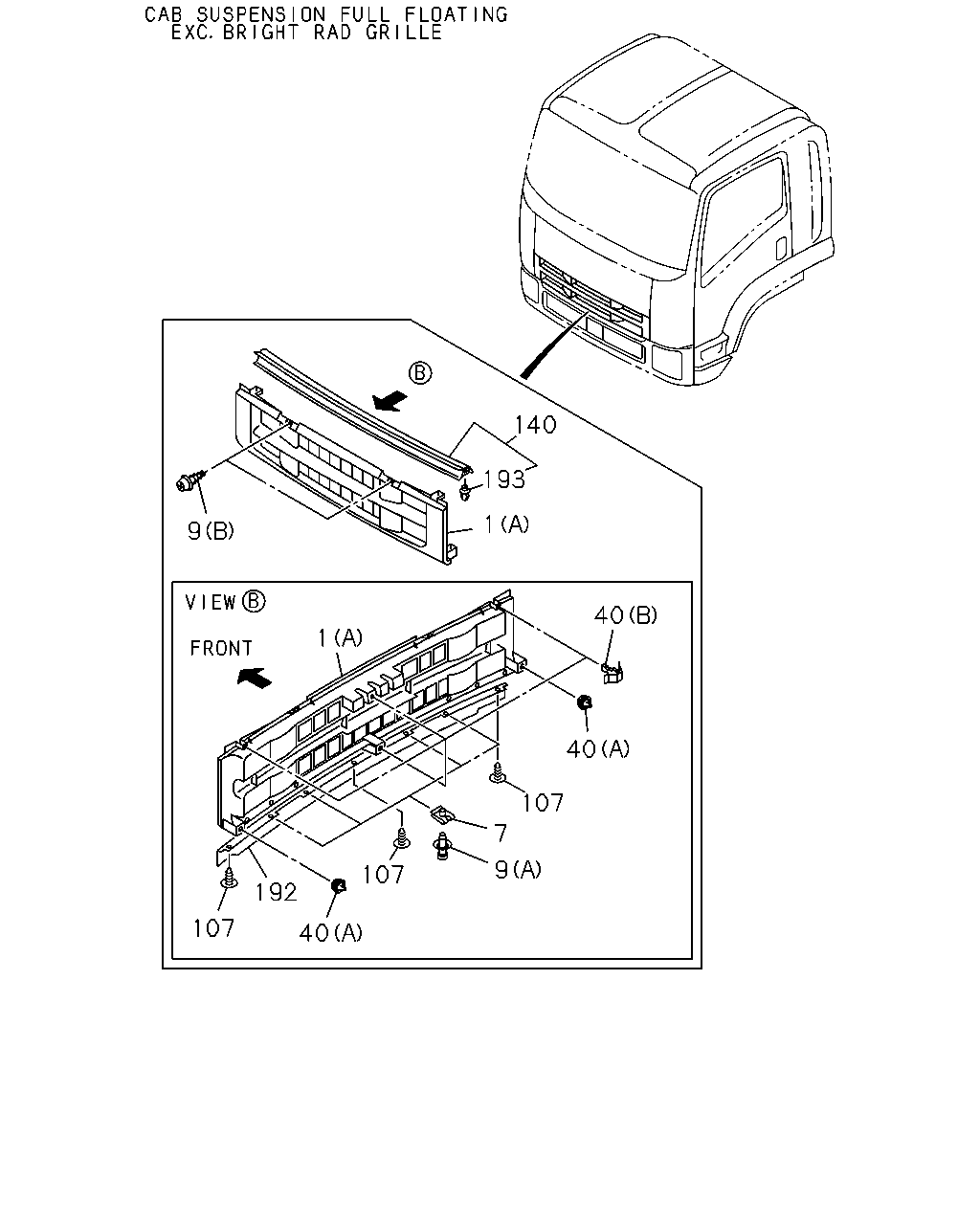

çizim 126329
140 193 1 9 40 1 40 107 7 9 107 192 107 40
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97418-046-6 01 1 0906-0906 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 0906- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 0801- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 0801- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE 		8-98046-507-7 01 1 0801- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE 		8-97407-868-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED 		8-97411-746-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED 		8-97411-749-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97411-840-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW 		8-97411-748-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97411-747-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE 		8-97411-750-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 0801- ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD> (A) DARK GRAY 		8-98040-997-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 0801- ● ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 0710-0711 ● ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 0712- ●
7 NUT; SPIRE,RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> 		8-94279-501-0 04 1 0712- ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 0710-0711 ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 0712- ●
9 SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> (A) 		0-38050-620-0 04 1 0712- ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0710- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0710- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 0710- ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 0710-0711 ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 0712- ●
107 RIVET; ROCKER CVR
CAB SUSPENSION FULL FLOATING<W16> D8X13.5 		1-09987-248-1 03 1 0712- ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 0710- ● ●
192 EXTENSION; RAD GRILLE 8-98075-088-0 01 1 0710-0710 ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 0711-0711 ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 0712- ●
192 EXTENSION; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> 		8-98098-344-0 01 1 0712- ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 0710- ● ●

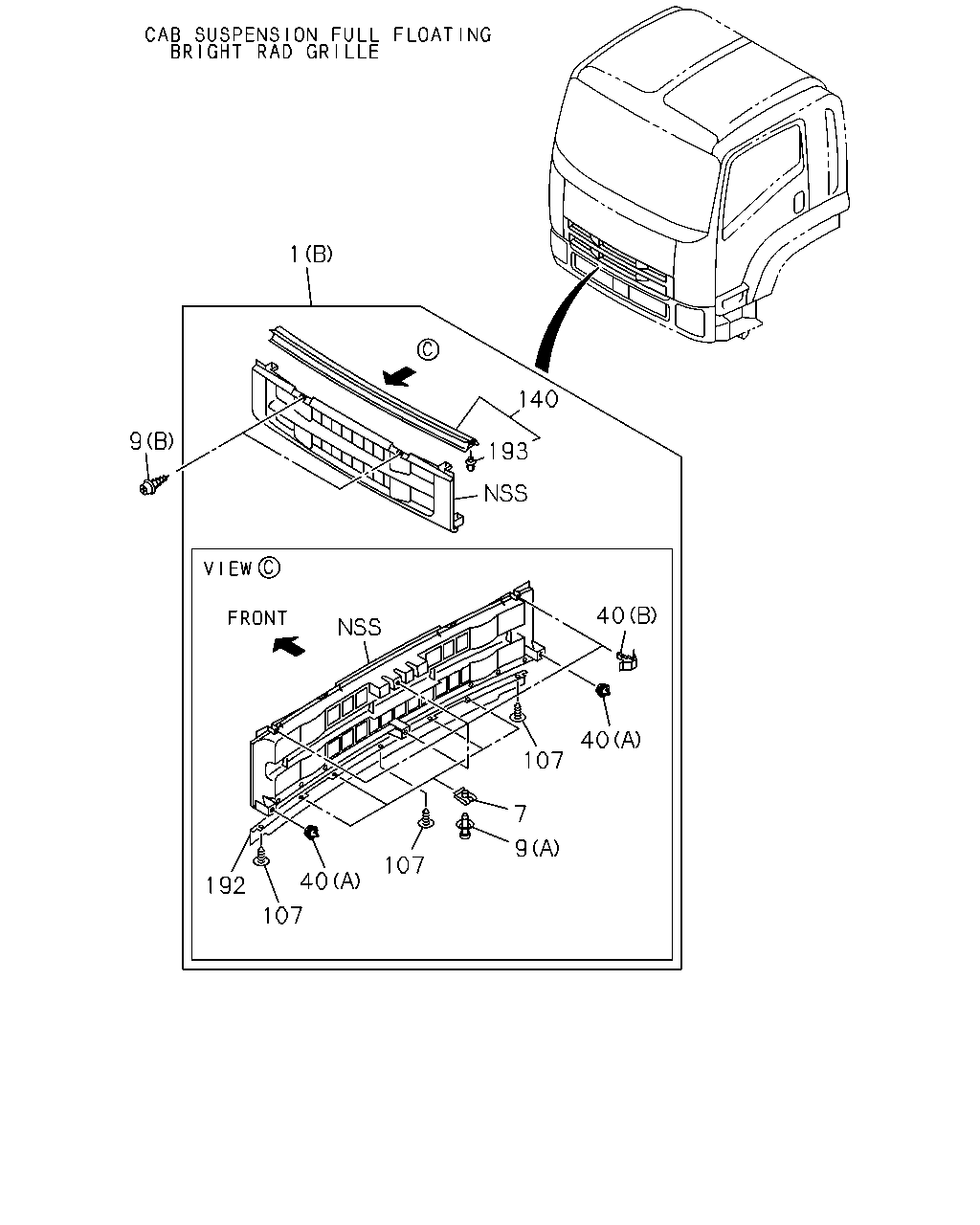

çizim 126566
1 140 9 193 40 40 107 7 9 107 40 192 107
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97418-046-6 01 1 0906-0906 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 0906- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 0801- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 0801- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE 		8-98046-507-7 01 1 0801- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE 		8-97407-868-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED 		8-97411-746-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED 		8-97411-749-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97411-840-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW 		8-97411-748-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97411-747-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE 		8-97411-750-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 0801- ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD> (A) DARK GRAY 		8-98040-997-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 0801- ● ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 0710-0711 ● ●
7 NUT; SPIRE,RAD GRILLE 8-94279-501-0 04 1 0712- ●
7 NUT; SPIRE,RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> 		8-94279-501-0 04 1 0712- ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 0710-0711 ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 0712- ●
9 SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> (A) 		0-38050-620-0 04 1 0712- ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0710- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0710- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 0710- ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 0710-0711 ● ●
107 RIVET; ROCKER CVR
D8X13.5 		1-09987-248-1 03 1 0712- ●
107 RIVET; ROCKER CVR
CAB SUSPENSION FULL FLOATING<W16> D8X13.5 		1-09987-248-1 03 1 0712- ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 0710- ● ●
192 EXTENSION; RAD GRILLE 8-98075-088-0 01 1 0710-0710 ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 0711-0711 ● ●
192 EXTENSION; RAD GRILLE 8-98098-344-0 01 1 0712- ●
192 EXTENSION; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> 		8-98098-344-0 01 1 0712- ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 0710- ● ●

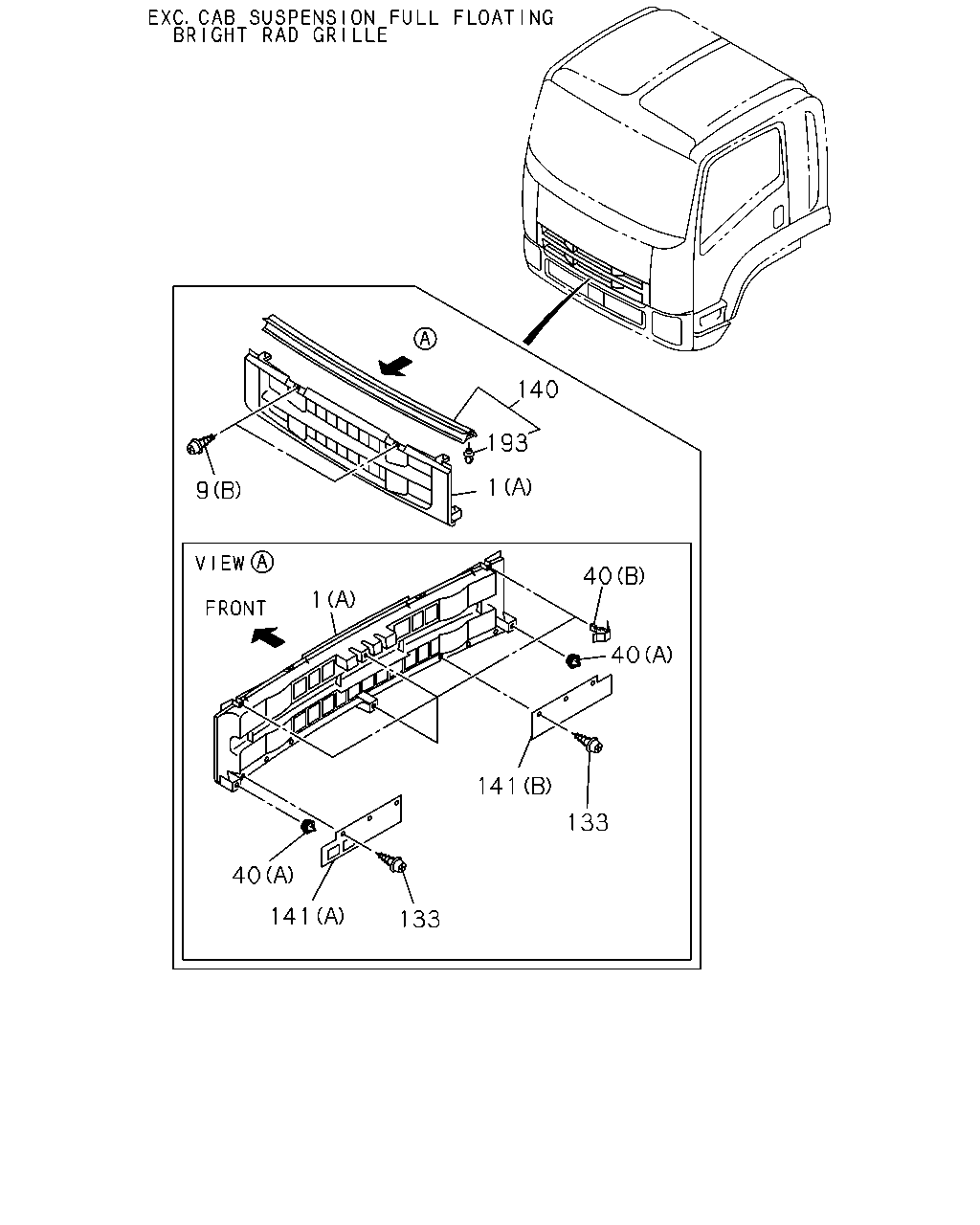

çizim 126695
140 193 1 9 40 1 40 141 133 40 141 133
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97418-046-6 01 1 0906-0906 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 0906- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 0801- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 0801- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE 		8-98046-507-7 01 1 0801- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE 		8-97407-868-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED 		8-97411-746-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED 		8-97411-749-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97411-840-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW 		8-97411-748-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97411-747-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE 		8-97411-750-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 0801- ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD> (A) DARK GRAY 		8-98040-997-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 0801- ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 0710-0711 ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 0712- ●
9 SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> (A) 		0-38050-620-0 04 1 0712- ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0710- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0710- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 0710- ● ●
133 SCREW; COVER
EXC. CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 0712- ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 0710- ● ●
141 COVER; RAD GRILLE
EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98041-013-1 01 1 0712- ●
141 COVER; RAD GRILLE
EXC. CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98060-784-0 01 1 0712- ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 0710- ● ●

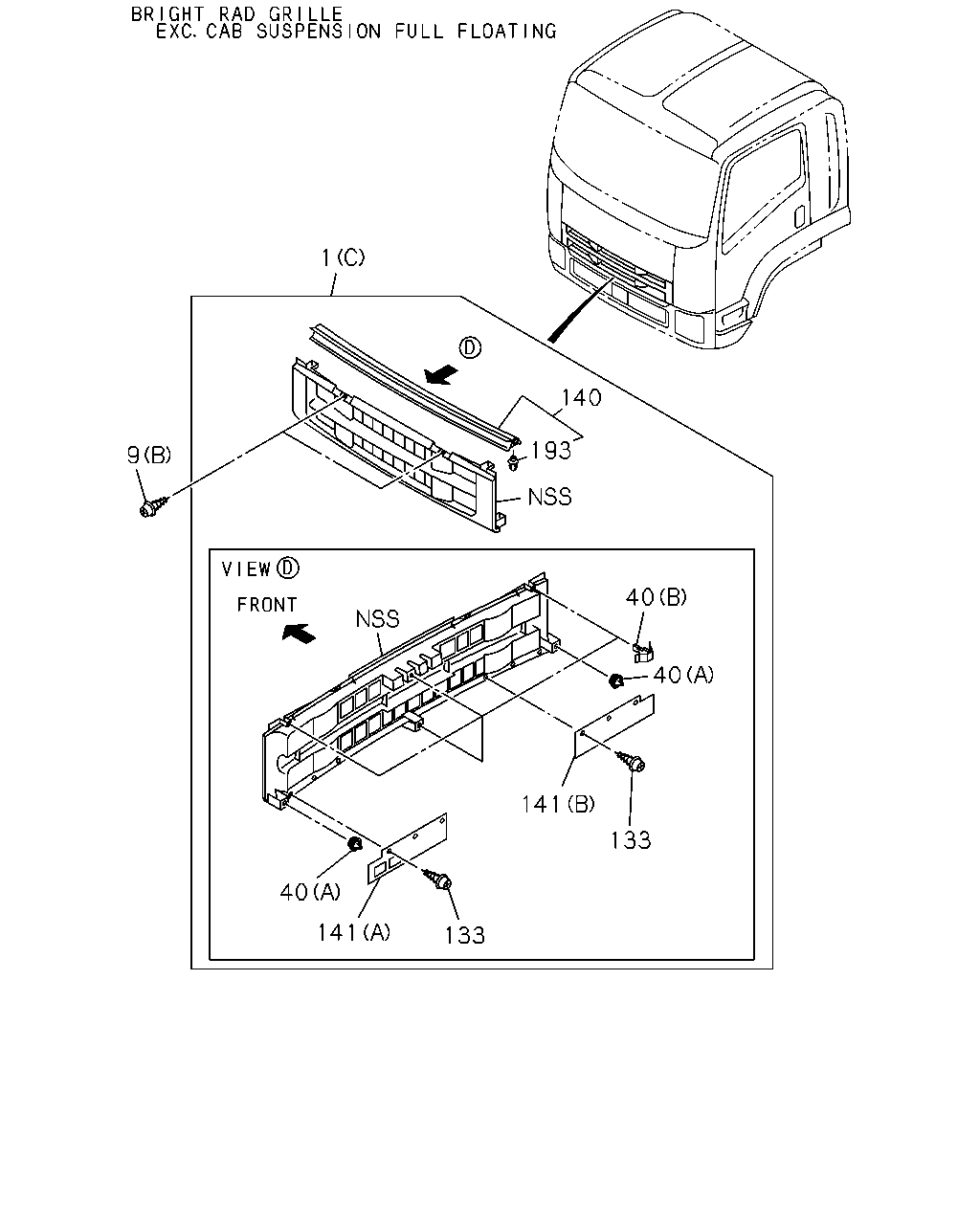

çizim 192556
1 140 193 9 40 40 141 133 40 141 133
BalonParca AdiParca NoAdetTipApplied Date A B
1 GRILLE; RAD
BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97418-046-6 01 1 0906-0906 ● ●
1 GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY 		8-97413-908-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-909-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97413-910-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-911-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN 		8-97413-912-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97413-913-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97413-914-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE 		8-97413-915-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97417-988-6 01 1 0906- ● ●
1 GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN 		8-97413-917-6 01 1 0906- ● ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 0801- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> CAB SUSPENSION FULL FLOATING<W16> (B) CHROMIUM PLATE 		8-98078-847-2 01 1 0801- ●
1 GRILLE; RAD
BRIGHT RAD GRILLE<V22> EXC. CAB SUSPENSION FULL FLOATING<W16> (C) CHROMIUM PLATE 		8-98046-507-7 01 1 0801- ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE 		8-97407-868-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE 		8-97407-868-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED 		8-97411-746-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-746-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED 		8-97411-749-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED 		8-97411-749-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97411-840-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-840-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW 		8-97411-748-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW 		8-97411-748-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE 		8-97411-747-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE 		8-97411-747-6 01 1 0801- ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE 		8-97411-750-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE 		8-97411-750-6 01 1 0801- ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD> (A) DARK GRAY 		8-98040-997-6 01 1 0710-0712 ● ●
1 GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY 		8-98040-997-6 01 1 0801- ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 0710-0711 ● ●
9 SCREW; RAD GRILLE
(A) 		0-38050-620-0 04 1 0712- ●
9 SCREW; RAD GRILLE
CAB SUSPENSION FULL FLOATING<W16> (A) 		0-38050-620-0 04 1 0712- ●
9 SCREW; RAD GRILLE
(B) M5X16 TAPPING W/PL WASHER 		0-74160-516-0 02 1 0710- ● ●
40 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0710- ● ●
40 CLIP; RAD GRILLE
(B) 		8-98025-698-0 04 1 0710- ● ●
133 SCREW; COVER
EXC. CAB SUSPENSION FULL FLOATING<W16> T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 06 1 0712- ●
140 SEAL; RAD GRILLE 8-98060-340-0 01 1 0710- ● ●
141 COVER; RAD GRILLE
EXC. CAB SUSPENSION FULL FLOATING<W16> (B) 		8-98041-013-1 01 1 0712- ●
141 COVER; RAD GRILLE
EXC. CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98060-784-0 01 1 0712- ●
193 CLIP; SEAL
NATURAL 		8-98027-457-0 13 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
