◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10780 - FVM(THAI) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#6576) — 149 parça

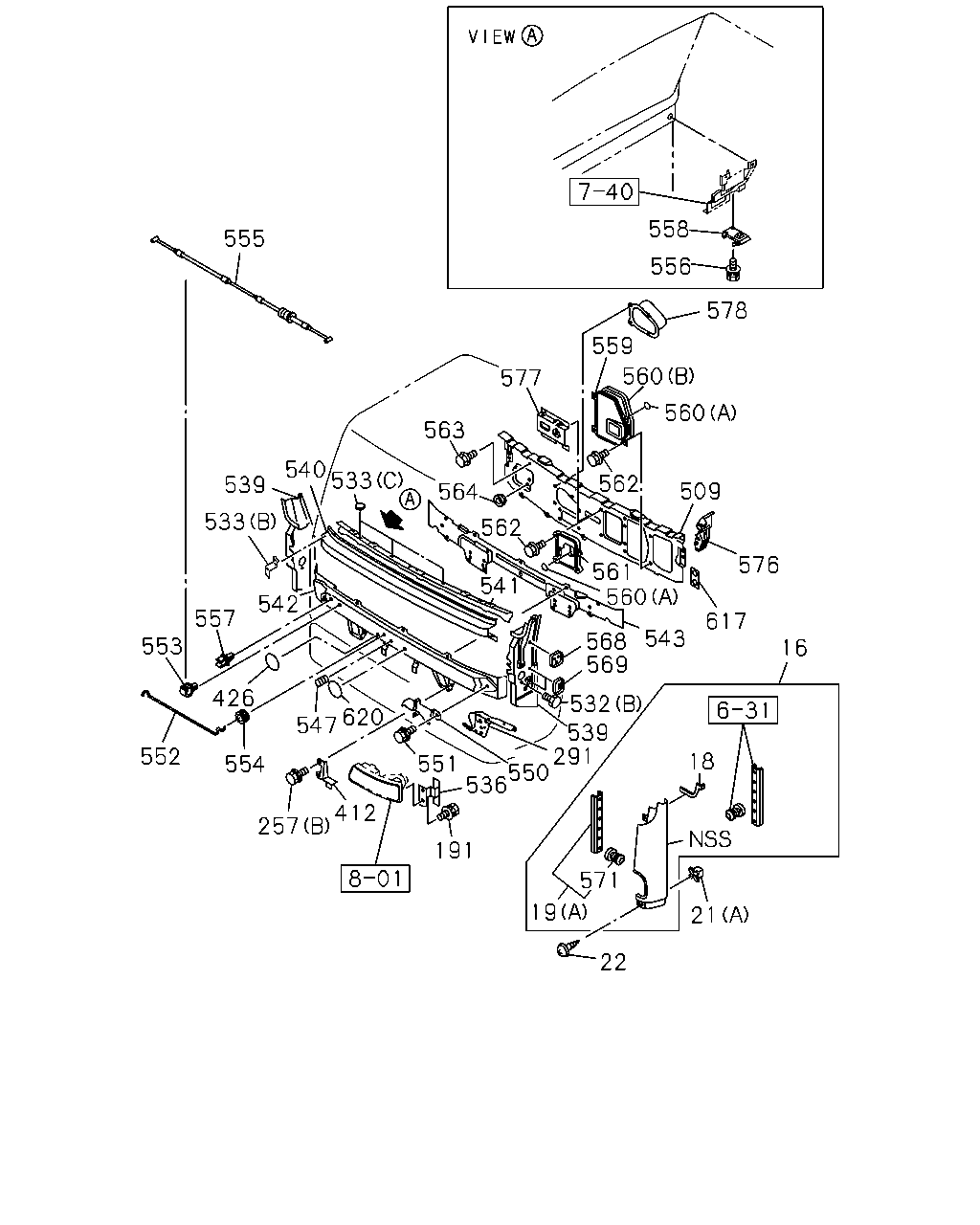

çizim 6333
558 555 556 578 559 560 577 560 563 540 533 562 539 509 564 533 562 561 560 541 576 542 557 617 543 568 569 553 16 426 532 539 291 550 536 620 547 552 18 551 554 412 257 191 571 19 21 22
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE
WHITE 		1-65481-563-3 01 1 0101-
16 PANEL; FRONT,SIDE
WHITE 		1-65481-590-2 01 1 0101-
18 SEAL; A-POST UPR,FRT SIDE PANEL
THA 		1-71998-899-2 01 1 0101-
18 SEAL; A-POST UPR,FRT SIDE PANEL
THA 		1-71998-898-2 01 1 0101-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0101-
19 SEAL; FRT SIDE PANEL
THA 		1-71996-102-1 01 1 0101-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0101-
19 SEAL; FRT SIDE PANEL
THA 		1-71996-101-1 01 1 0101-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0101-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0101-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 THA 		8-94279-078-0 02 1 0101-
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0101-
191 BOLT; HINGE
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 04 1 0101-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0101-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0101-
291 PATCH ASM
THA 		8-97913-988-0 01 1 0101-
291 PATCH ASM
THA 		8-97913-987-0 01 1 0101-
412 BRACKET ASM; HD LAMP UPR 1-86830-044-3 01 1 0101-
412 BRACKET ASM; HD LAMP UPR 1-86830-043-3 01 1 0101-
426 GASKET
OD=25 BLACK THA 		1-76798-019-0 03 1 0101-0109
426 GASKET
OD=25 BLACK THA 		1-76798-019-0 04 1 0110-
509 PANEL; DASH
THA 		8-97917-741-0 01 1 0101-
532 BOLT; FRT PANEL
(A) M8X20 THA 		1-79198-002-0 02 1 0101-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0101-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0101-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK THA 		5-76777-035-0 09 1 0101-
533 SEAL; FRT PANEL
(A) 25X25 THA 		8-94272-533-0 02 1 0101-
536 HINGE 1-86830-004-5 01 1 0101-
536 HINGE 1-86830-003-5 01 1 0101-
539 CLOSING; PILLAR
THA 		8-97916-002-0 01 1 0101-
539 CLOSING; PILLAR
THA 		8-97916-001-0 01 1 0101-
540 PANEL; FRONT,OUTER
THA 		8-97915-985-0 01 1 0101-
541 PANEL; FRONT,INNER
THA 		8-97910-520-0 01 1 0101-
542 RAIL; FRT MOUNTING
THA 		8-97910-518-3 01 1 0101-
543 CLOSING; FRT MTG RAIL
THA 		8-97910-519-0 01 1 0101-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 03 1 0101-
550 LOCK ASM; FRT LID 1-79318-010-1 01 1 0101-
550 LOCK ASM; FRT LID 1-79318-009-3 01 1 0101-
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0101-
552 STAY; FRT LID 1-71998-810-2 01 1 0101-0205
552 STAY; FRT LID 1-71996-310-0 01 1 0206-
553 CLIP; STAY 8-97031-428-0 01 1 0101-
554 GROMMET; STAY
ID=8 OD=20 T=9 		9-09956-038-0 01 1 0101-
555 CABLE; FRT LID
THA 		8-97914-778-1 01 1 0101-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0101-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 02 1 0101-
558 LEVER; FRT LID 1-79338-003-1 01 1 0101-0212
558 LEVER; FRT LID 1-79338-007-0 01 1 0301-
559 COVER; EVAPOLATOR 1-71996-194-0 01 1 0101-
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 0101-
560 SEAL; COVER
(A) OD=36 T=0.05 BLACK THA 		5-76777-035-0 03 1 0101-
561 COVER; HEATER CORE 1-71998-829-1 01 1 0101-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER THA 		8-94279-201-0 08 1 0101-
563 BOLT; DASH PANEL
M8X20 FLANGE 		0-28680-820-0 10 1 0101-0202
563 BOLT; DASH PANEL
M8X20 FLANGE 		0-28680-820-0 12 1 0203-
563 BOLT; DASH PANEL
M8X20 W/LK&PL WASHER 		8-94279-216-0 04 1 0101-0202
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 0101-
568 PATCH; INST REINF
THA 		8-97916-037-0 02 1 0101-
569 PATCH; LWR GRIP
THA 		8-97910-523-0 01 1 0101-
569 PATCH; LWR GRIP
THA 		8-97910-526-0 01 1 0101-
571 CLIP; SEAL
THA 		1-09987-228-0 12 1 0101-
571 CLIP; SEAL
NATURAL THA 		1-09987-257-0 07 1 0101-
571 CLIP; SEAL
NATURAL THA 		1-09987-257-0 07 1 0101-
576 FRAME; INST SIDE
THA 		1-62280-177-7 01 1 0101-
576 FRAME; INST SIDE
THA 		1-62280-176-6 01 1 0101-
577 BRACKET; IDLER
THA 		1-62280-195-0 01 1 0101-
578 COVER; WIPER MOTOR 1-62280-173-4 01 1 0101-
617 SEAL; DASH 1-61281-497-0 02 1 0101-
620 SEAL; FRT MTG
OD=25 BLACK THA 		1-76798-019-0 01 1 0101-0109
620 SEAL; FRT MTG
OD=25 BLACK THA 		1-76798-019-0 02 1 0110-

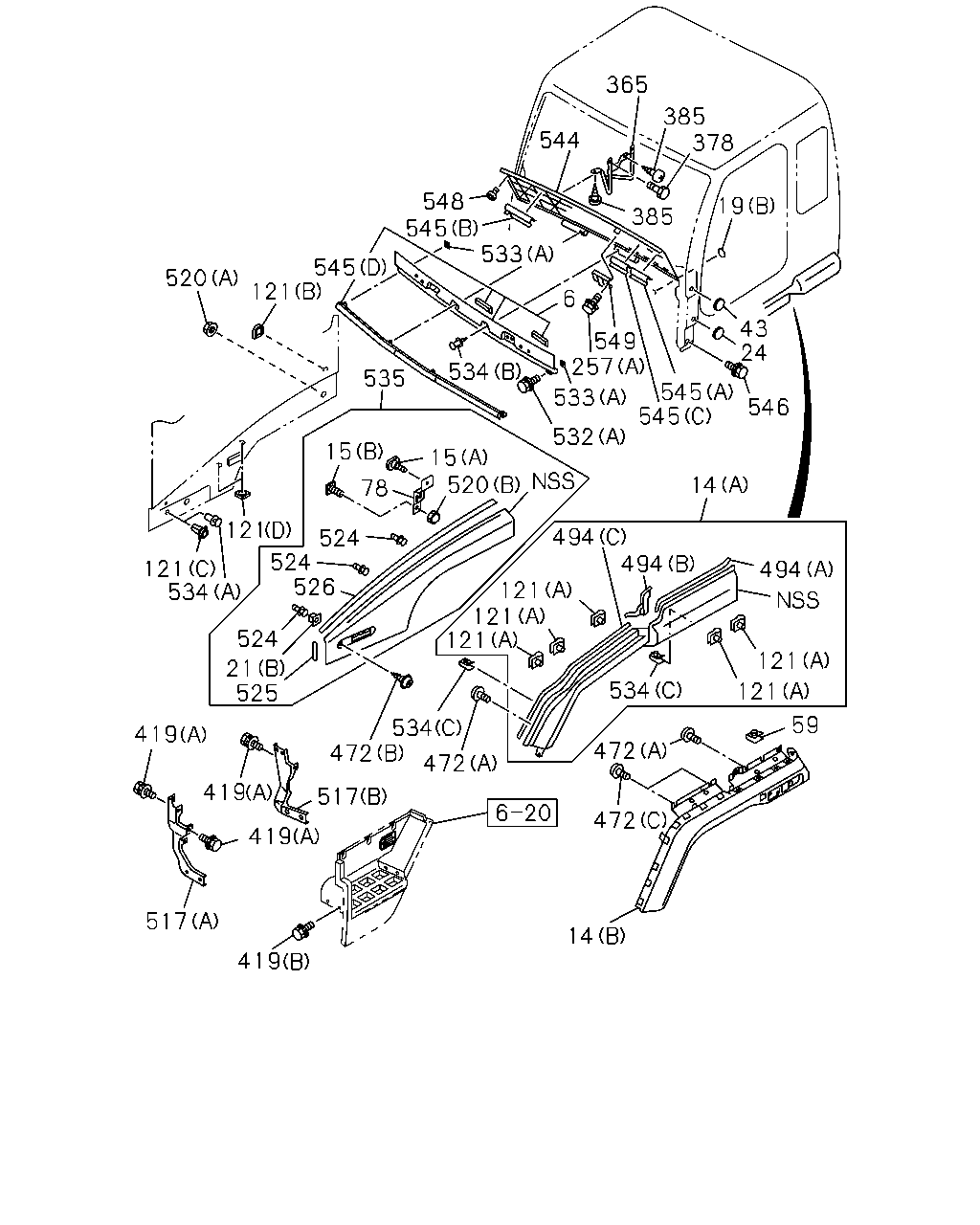

çizim 6443
365 385 378 544 548 545 533 19 385 545 121 520 6 43 24 549 257 534 535 545 545 533 546 532 15 15 520 78 14 121 494 494 524 524 526 121 534 494 121 121 121 524 121 21 525 534 121 59 534 472 472 472 517 472 517 14 419 419 419 419
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65481-744-2 01 1 0101-
14 FENDER; FRT
(A) 		1-65481-853-0 01 1 0101-0209
14 FENDER; FRT
(A) THA 		1-65482-073-0 01 1 0210-
14 FENDER; FRT
(B) 		1-71996-238-1 01 1 0101-
14 FENDER; FRT
(A) 		1-65481-852-0 01 1 0101-0209
14 FENDER; FRT
(A) THA 		1-65482-072-0 01 1 0210-
14 FENDER; FRT
(B) 		1-71996-237-1 01 1 0101-
15 BOLT; FENDER
(A) M6X7 THA 		1-71268-294-0 02 1 0101-
15 BOLT; FENDER
(B) M6X14 SQUARE HEAD THA 		1-71268-300-1 02 1 0101-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 0101-
19 SEAL; FRT SIDE PANEL
THA 		1-71996-102-1 01 1 0101-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-807-4 01 1 0101-
19 SEAL; FRT SIDE PANEL
THA 		1-71996-101-1 01 1 0101-
19 SEAL; FRT SIDE PANEL
(A) 		1-71998-806-4 01 1 0101-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 0101-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=8.6X7.7 L=7.5 THA 		8-94279-078-0 02 1 0101-
24 SEAL; FRT PANEL LWR
OD=25 BLACK THA 		1-76798-019-0 08 1 0101-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 0101-
59 GROMMET; SCREW
THA 		8-94279-723-0 02 1 0101-
78 BRACKET; FENDER
THA 		1-71268-323-0 01 1 0101-
78 BRACKET; FENDER
THA 		1-71268-322-0 01 1 0101-
121 GROMMET; FENDER
(B) 		1-09983-162-0 02 1 0101-
121 GROMMET; FENDER
(C) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0101-0304
121 GROMMET; FENDER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 12 1 0305-
121 GROMMET; FENDER
(A) THA 		8-94279-723-0 16 1 0101-
121 GROMMET; FENDER
(D) THA 		8-97917-717-0 10 1 0101-
257 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0101-
257 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0101-
365 SUPPORT; FENDER 1-71996-147-1 01 1 0101-
378 BOLT; SUPPORT
M6X20 W/LK&PL WASHER 		8-94279-203-0 01 1 0101-
385 SCREW; FENDER LWR
M6X30 		1-65481-387-0 04 1 0101-
419 BOLT; STEP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0101-
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0101-0204
419 BOLT; STEP
(B) M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0205-0206
419 BOLT; STEP
(B) M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 0207-
472 SCREW; FENDER TO CAB
(A) M6X22 		1-65481-386-0 08 1 0101-
472 SCREW; FENDER TO CAB
(A) M6X30 		1-65481-387-0 26 1 0101-
472 SCREW; FENDER TO CAB
(C) M6X25 		1-65481-736-0 04 1 0101-
472 SCREW; FENDER TO CAB
(B) M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 0101-
494 FINISHER; FENDER
(C) THA 		1-71998-900-3 02 1 0101-
494 FINISHER; FENDER
(A) THA 		1-71998-999-0 02 1 0101-
494 FINISHER; FENDER
(B) THA 		1-71907-181-4 01 1 0101-
494 FINISHER; FENDER
(B) THA 		1-71907-180-4 01 1 0101-
517 SUPPORT; STEP PANEL
(B) 		1-71996-083-4 01 1 0101-
517 SUPPORT; STEP PANEL
(A) 		1-71998-780-5 01 1 0101-
517 SUPPORT; STEP PANEL
(B) 		1-71996-082-2 01 1 0101-
517 SUPPORT; STEP PANEL
(A) 		1-71998-779-5 01 1 0101-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0101-
520 NUT; FENDER
(B) M6 THA 		1-09984-189-0 02 1 0101-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 0101-
525 SEAL; FENDER
10X145 THA 		1-71268-281-1 02 1 0101-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
THA 		1-71268-276-1 01 1 0101-0209
526 FINISHER; FENDER
THA 		1-71268-275-1 01 1 0101-0209
526 FINISHER; FENDER
THA 		1-71268-275-1 02 1 0210-
532 BOLT; FRT PANEL
(A) M8X20 THA 		1-79198-002-0 02 1 0101-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0101-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-2 02 1 0101-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK THA 		5-76777-035-0 09 1 0101-
533 SEAL; FRT PANEL
(A) 25X25 THA 		8-94272-533-0 02 1 0101-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0101-
534 FASTENER
(C) 		1-71996-035-1 24 1 0101-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 0101-
535 FENDER; BLISTER
WHITE THA 		1-71268-361-3 01 1 0101-0209
535 FENDER; BLISTER
WHITE THA 		1-71268-429-1 01 1 0210-
535 FENDER; BLISTER
WHITE THA 		1-71268-360-3 01 1 0101-0209
535 FENDER; BLISTER
WHITE THA 		1-71268-428-1 01 1 0210-
544 LID; FRT
MITRAS THA 		1-71108-116-0 01 1 0101-
544 LID; FRT
HITACHI KASEI THA 		1-71108-152-0 01 1 0101-
545 SEAL; FRT LID
(B) 		1-71996-253-1 01 1 0101-
545 SEAL; FRT LID
(C) 		1-71996-255-0 01 1 0101-
545 SEAL; FRT LID
(D) 		1-71998-814-3 02 1 0101-0406
545 SEAL; FRT LID 1-71998-814-4 01 1 0407-
545 SEAL; FRT LID
(A) L=63 		1-71998-963-2 01 1 0101-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 0101-
548 STRIKER; FRT LID PANEL 1-79318-008-0 02 1 0101-
549 BRACKET; STOPPER,FRT LID
THA 		1-71108-033-4 01 1 0101-0301
549 BRACKET; STOPPER,FRT LID 1-71108-358-0 01 1 0302-
