5-15 — CAB MOUNTING; CAB SIDE (#65754) — 153 parça

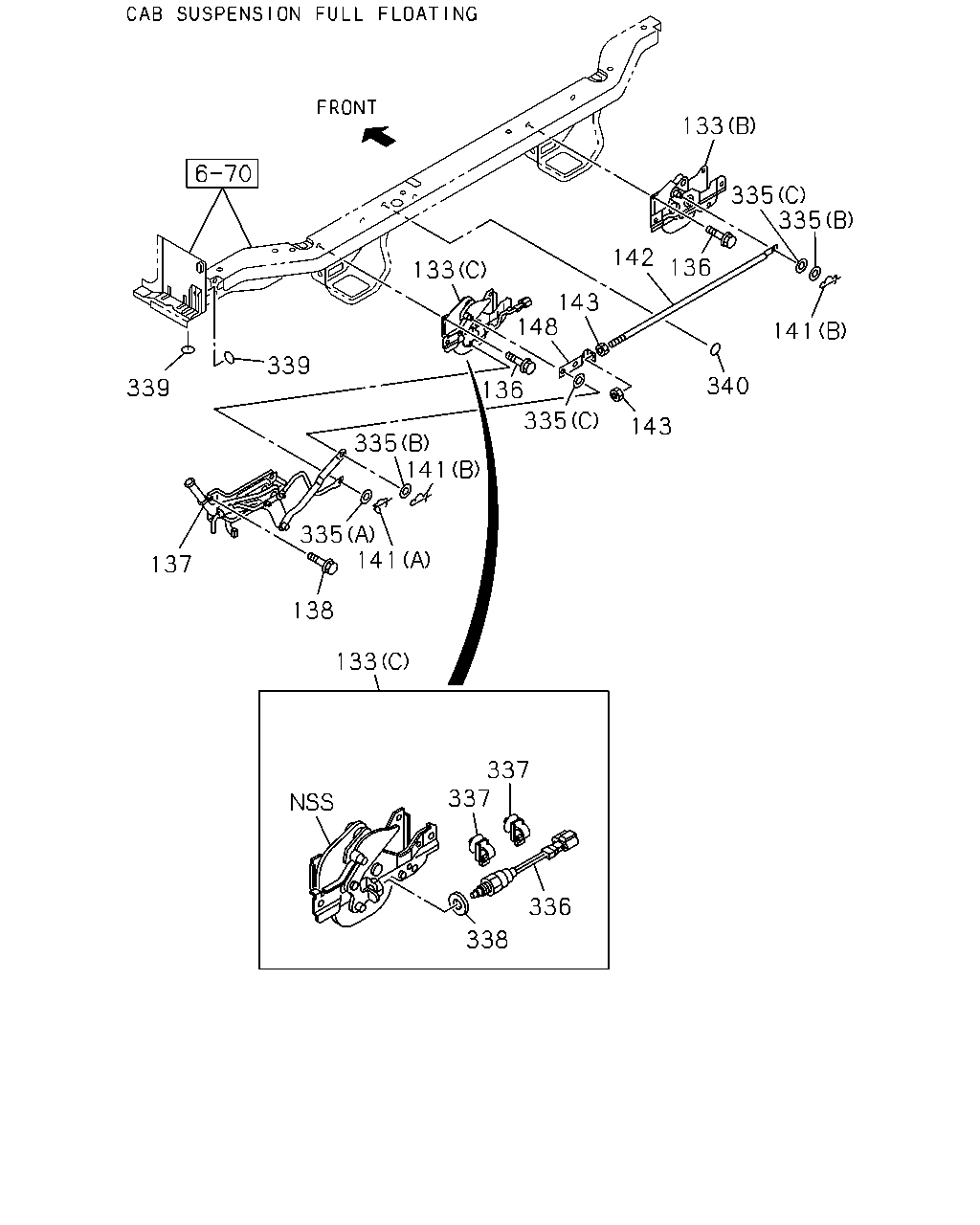

133 335 335 142 136 133 143 148 141 339 340 339 136 335 143 335 141 335 141 137 138 133 337 337 336 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	0710-	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0710-0711	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0712-	●
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (A)	8-97608-198-0	01	1	0712-		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0710-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	0710-	●	●
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	0710-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	0710-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0710-0711	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD EXC. AUTO CAB TILT<WV2> (A) L=25.3	8-98039-045-1	01	1	0712-		●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	0710-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	0710-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0710-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0710-	●	●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	0710-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	0710-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	0710-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	0710-	●	●
337	CLIP; CAB LOCK L=155	8-97173-307-0	02	1	0710-1008	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	0710-	●	●
339	SEAL; TILT HANDLE OD=25 BLACK	1-76798-019-0	04	1	0710-0711	●	●
339	SEAL; TILT HANDLE OD=25 BLACK	1-76798-019-0	04	1	0712-	●
339	SEAL; TILT HANDLE AUTO CAB TILT<WV2> OD=25 BLACK	1-76798-019-0	04	1	0712-		●
340	SEAL; HOLE OD=25 BLACK	1-76798-019-0	02	1	0710-0711	●	●
340	SEAL; HOLE OD=25 BLACK	1-76798-019-0	02	1	0712-	●
340	SEAL; HOLE AUTO CAB TILT<WV2> OD=25 BLACK	1-76798-019-0	02	1	0712-		●

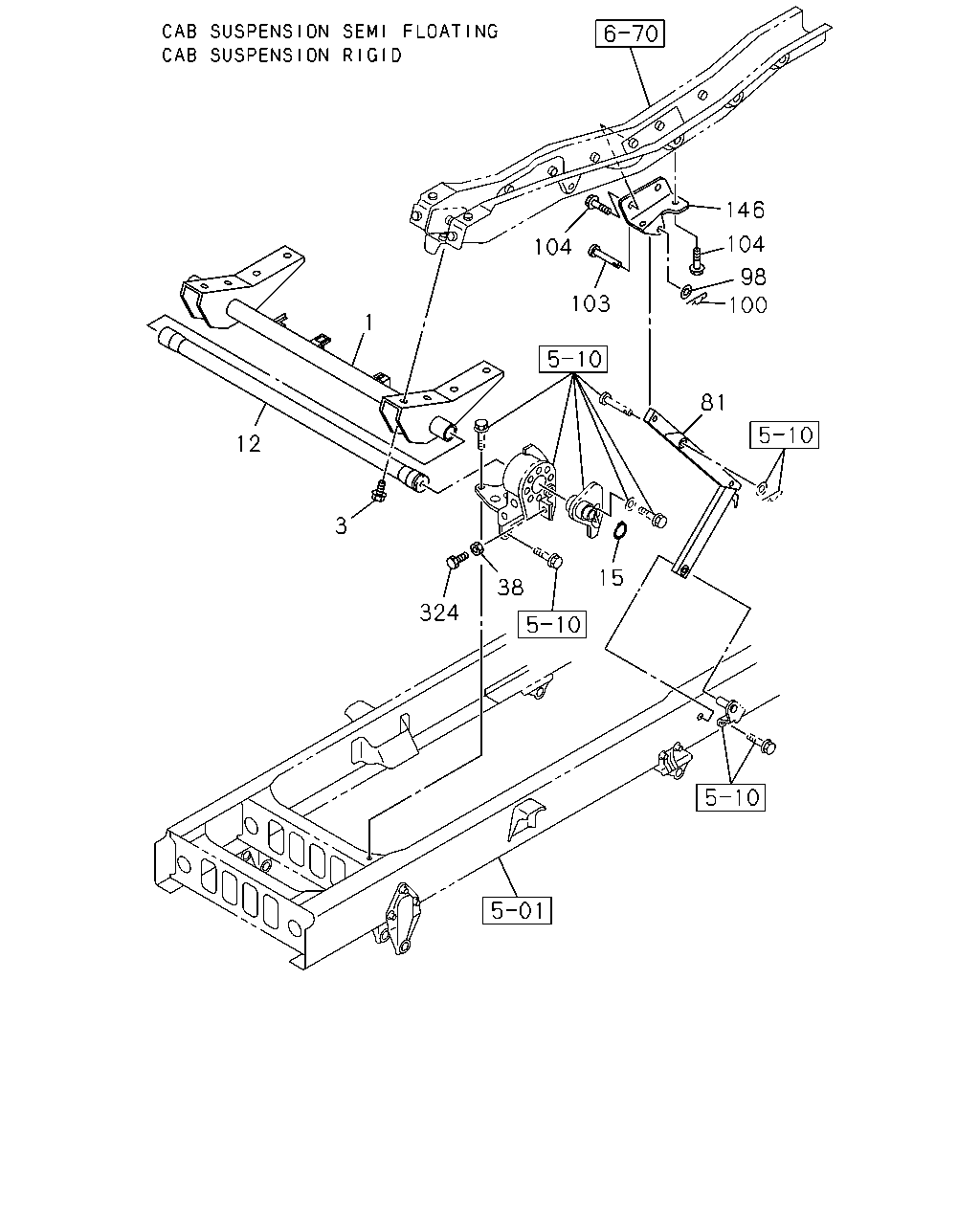

146 104 104 98 103 100 1 81 12 3 15 38 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
1	LEVER; TORSION BAR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98010-752-7	01	1	0712-	●
3	BOLT; LEVER CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M12X42 FLANGE	8-98090-287-1	08	1	0712-	●
12	BAR; TORSION,UPR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98010-947-1	01	1	0712-	●
15	RING; SNAP,TORSION BAR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> T=1.90 BLUE	8-97129-615-0	01	1	0712-	●
38	NUT; LK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14	0-91110-514-0	01	1	0712-	●
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-761-0	01	1	0712-1406	●
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98278-116-0	01	1	1407-	●
98	WASHER; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	0712-	●
100	PIN; SNAP,CAB STAY TO CAB CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=34	8-98039-426-1	01	1	0712-	●
103	PIN; JOINT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-09744-108-1	01	1	0712-	●
104	BOLT; CAB STAY BRKT EXC. AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	04	1	0712-	●
146	BRACKET ASM; CAB STAY UPR EXC. AUTO CAB TILT<WV2>	8-98019-506-0	01	1	0712-	●
324	BOLT; ADJUST CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X55	8-98004-319-1	01	1	0712-	●

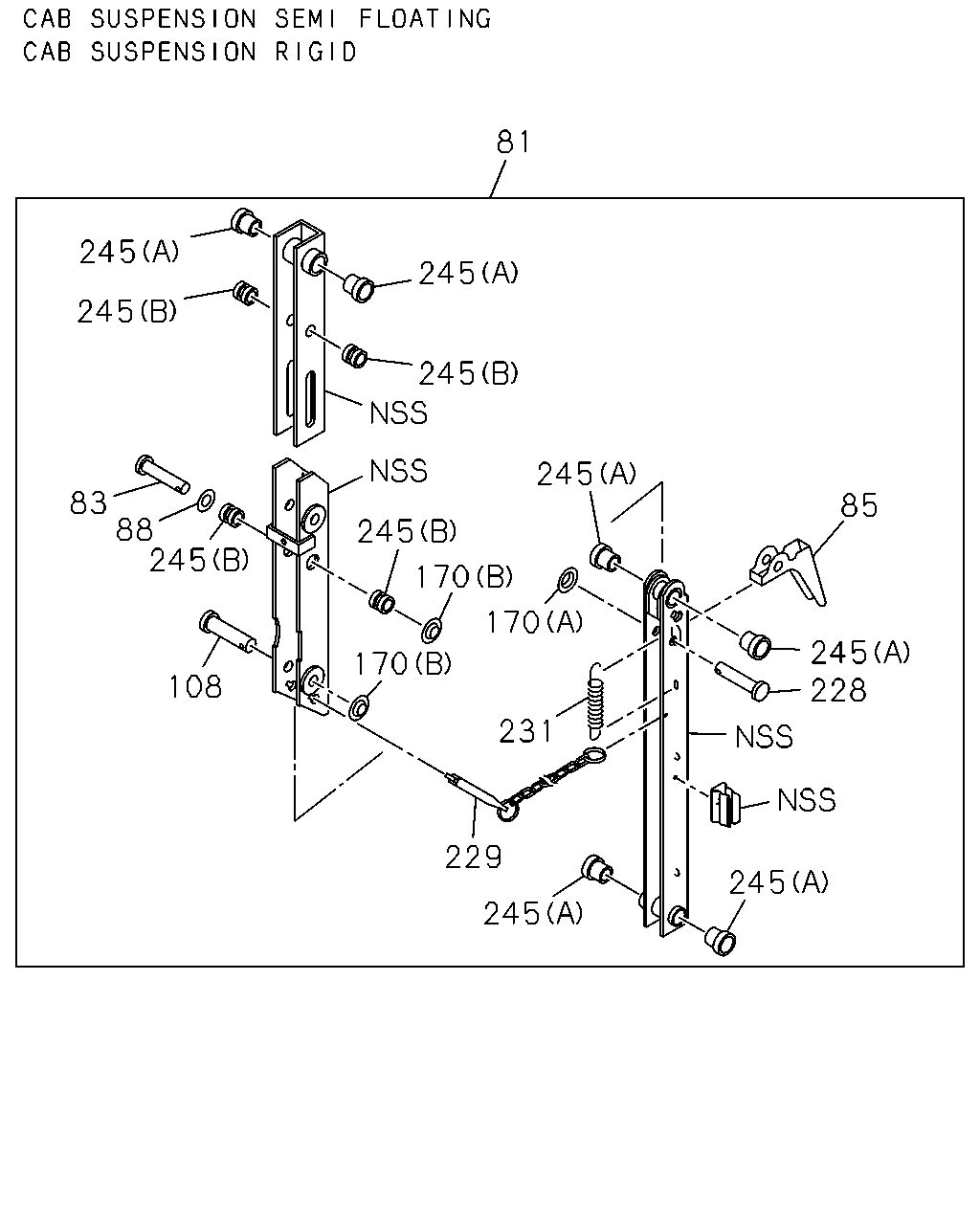

81 245 245 245 245 245 83 88 245 85 245 170 170 245 228 170 108 231 229 245 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-761-0	01	1	0712-1406	●
81	STAY ASM; CAB TILT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98278-116-0	01	1	1407-	●
83	PIN; JOINT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=42	1-09744-106-0	01	1	0712-	●
85	LEVER; LOCK,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-503-0	01	1	0712-	●
88	WASHER; PL,CAB STAY PIN CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	0712-	●
108	PIN; ADJ,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=42	1-09744-106-0	01	1	0712-	●
170	NUT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	0712-	●
170	NUT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	0712-	●
228	PIN; SAFETY LOCK SPRING,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-09744-086-2	01	1	0712-	●
229	PIN ASM; SAFETY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-517-1	01	1	0712-	●
231	SPRING; RETURN,LOCK LEVER,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-09583-244-0	01	1	0712-	●
245	BUSHING; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	1-62500-587-0	06	1	0712-	●
245	BUSHING; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	1-62500-588-0	04	1	0712-	●

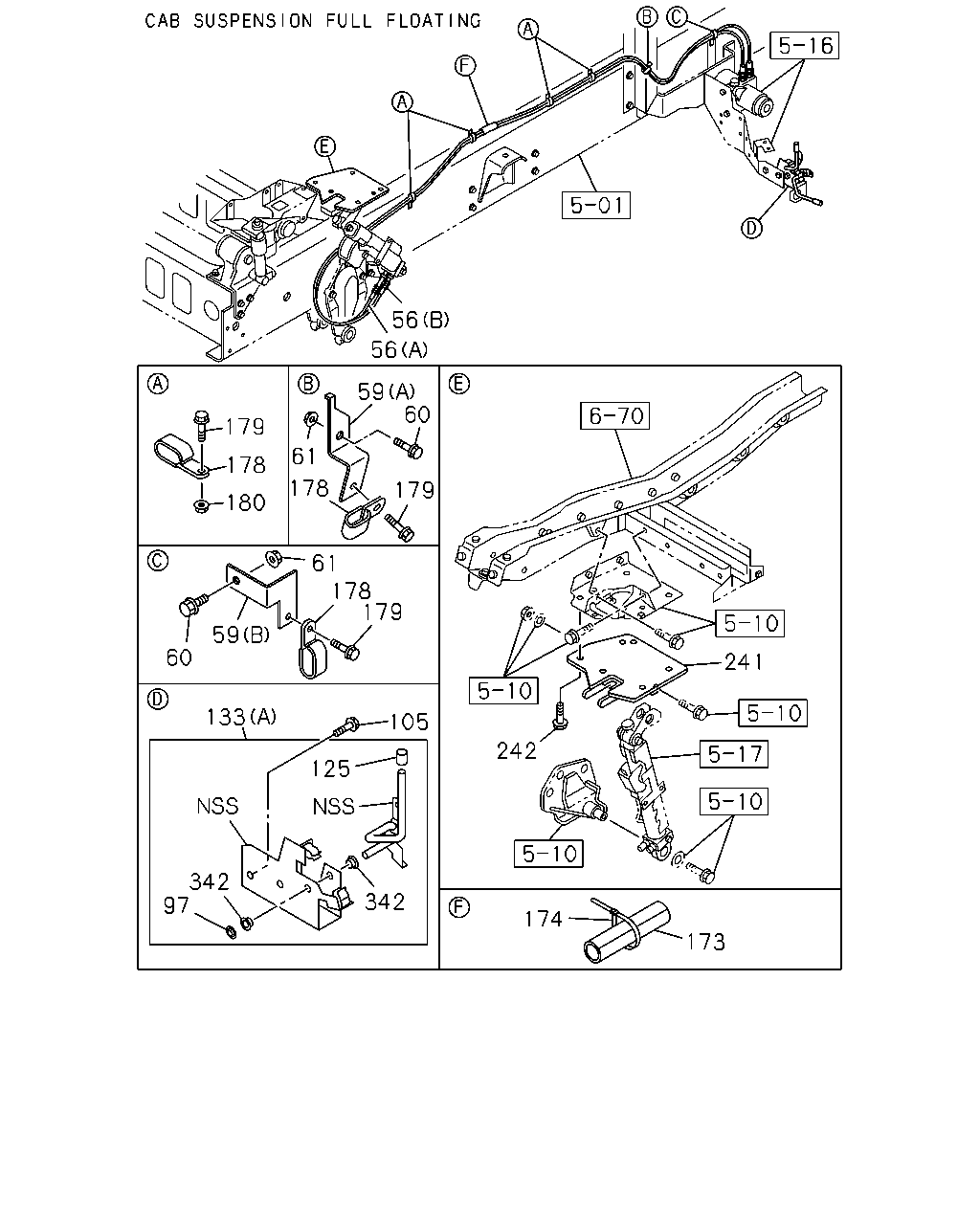

56 56 59 60 179 61 178 178 179 180 61 178 179 59 60 241 133 105 242 125 342 97 342 174 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
56	HOSE; FLEX,OIL PIPE (A)	8-98022-487-2	01	1	0710-0711	●	●
56	HOSE; FLEX,OIL PIPE (A)	8-98022-487-2	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE AUTO CAB TILT<WV2> (A)	8-98022-487-2	01	1	0712-		●
56	HOSE; FLEX,OIL PIPE (B)	8-98087-331-1	01	1	0710-0711	●	●
56	HOSE; FLEX,OIL PIPE (B)	8-98087-331-1	01	1	0712-	●
56	HOSE; FLEX,OIL PIPE AUTO CAB TILT<WV2> (B)	8-98087-331-1	01	1	0712-		●
59	BRACKET; CLIP (A)	8-98083-608-1	01	1	0710-0711	●	●
59	BRACKET; CLIP (A)	8-98083-608-1	01	1	0712-	●
59	BRACKET; CLIP AUTO CAB TILT<WV2> (A)	8-98083-608-1	01	1	0712-		●
59	BRACKET; CLIP (B)	8-98083-609-0	01	1	0710-0711	●	●
59	BRACKET; CLIP (B)	8-98083-609-0	01	1	0712-	●
59	BRACKET; CLIP AUTO CAB TILT<WV2> (B)	8-98083-609-0	01	1	0712-		●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●	●
60	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
60	BOLT; BRKT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
61	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●
61	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0804	●
61	NUT; BRKT AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	0712-0804		●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	0710-0711	●	●
97	NUT; CAB STAY PIN ID=9.9 PUSH NUT	8-97022-566-0	01	1	0712-	●
97	NUT; CAB STAY PIN AUTO CAB TILT<WV2> ID=9.9 PUSH NUT	8-97022-566-0	01	1	0712-		●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	0710-0711	●	●
105	BOLT; CAB STAY M8X16 FLANGE	0-28050-816-0	02	1	0712-	●
105	BOLT; CAB STAY AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	0712-		●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	0710-0711	●	●
125	GRIP; HAND LEVER,CAB LOCK ID=9.0	8-94207-303-0	01	1	0712-	●
125	GRIP; HAND LEVER,CAB LOCK AUTO CAB TILT<WV2> ID=9.0	8-94207-303-0	01	1	0712-		●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	0710-	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0710-0711	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0712-	●
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (A)	8-97608-198-0	01	1	0712-		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0710-	●	●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-0711	●	●
173	SLEEVE; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0712-	●
173	SLEEVE; RUBBER,FLEX HOSE AUTO CAB TILT<WV2> ID=17 OD=21 L=40	1-09337-012-0	01	1	0712-		●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0710-0711	●	●
174	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0712-	●
174	CLIP; BAND,FLEX HOSE AUTO CAB TILT<WV2> L=140	5-09707-031-1	01	1	0712-		●
178	CLIP; FLEX HOSE ID=11X2 L=20	0-95325-035-0	07	1	0710-0711	●	●
178	CLIP; FLEX HOSE ID=11X2 L=20	0-95325-035-0	07	1	0712-	●
178	CLIP; FLEX HOSE AUTO CAB TILT<WV2> ID=11X2 L=20	0-95325-035-0	07	1	0712-		●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	06	1	0710-0711	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	06	1	0712-	●
179	BOLT; CLIP,FLEX HOSE AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	06	1	0712-		●
179	BOLT; CLIP,FLEX HOSE M8X30 FLANGE	0-28650-830-0	03	1	0710-0711	●	●
179	BOLT; CLIP,FLEX HOSE M8X30 FLANGE	0-28650-830-0	03	1	0712-	●
179	BOLT; CLIP,FLEX HOSE AUTO CAB TILT<WV2> M8X30 FLANGE	0-28650-830-0	03	1	0712-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0805-	●
180	NUT; CLIP AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	0805-		●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0710-0711	●	●
180	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0712-	●
180	NUT; CLIP AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	04	1	0712-		●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98022-417-1	01	1	0710-0711	●	●
241	BRACKET; POWER CYL UPR,CAB TILT	8-98022-417-1	01	1	0712-	●
241	BRACKET; POWER CYL UPR,CAB TILT AUTO CAB TILT<WV2>	8-98022-417-1	01	1	0712-		●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28651-030-0	05	1	0710-0710	●	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	05	1	0710-0711	●	●
242	BOLT; POWER CYL BRKT,CAB TILT M10X30 FLANGE	0-28661-030-0	05	1	0712-	●
242	BOLT; POWER CYL BRKT,CAB TILT AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	05	1	0712-		●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	0710-0711	●	●
342	BUSHING; LEVER,CAB LOCK T=6 OD=17.5	9-33659-249-0	02	1	0712-	●
342	BUSHING; LEVER,CAB LOCK AUTO CAB TILT<WV2> T=6 OD=17.5	9-33659-249-0	02	1	0712-		●

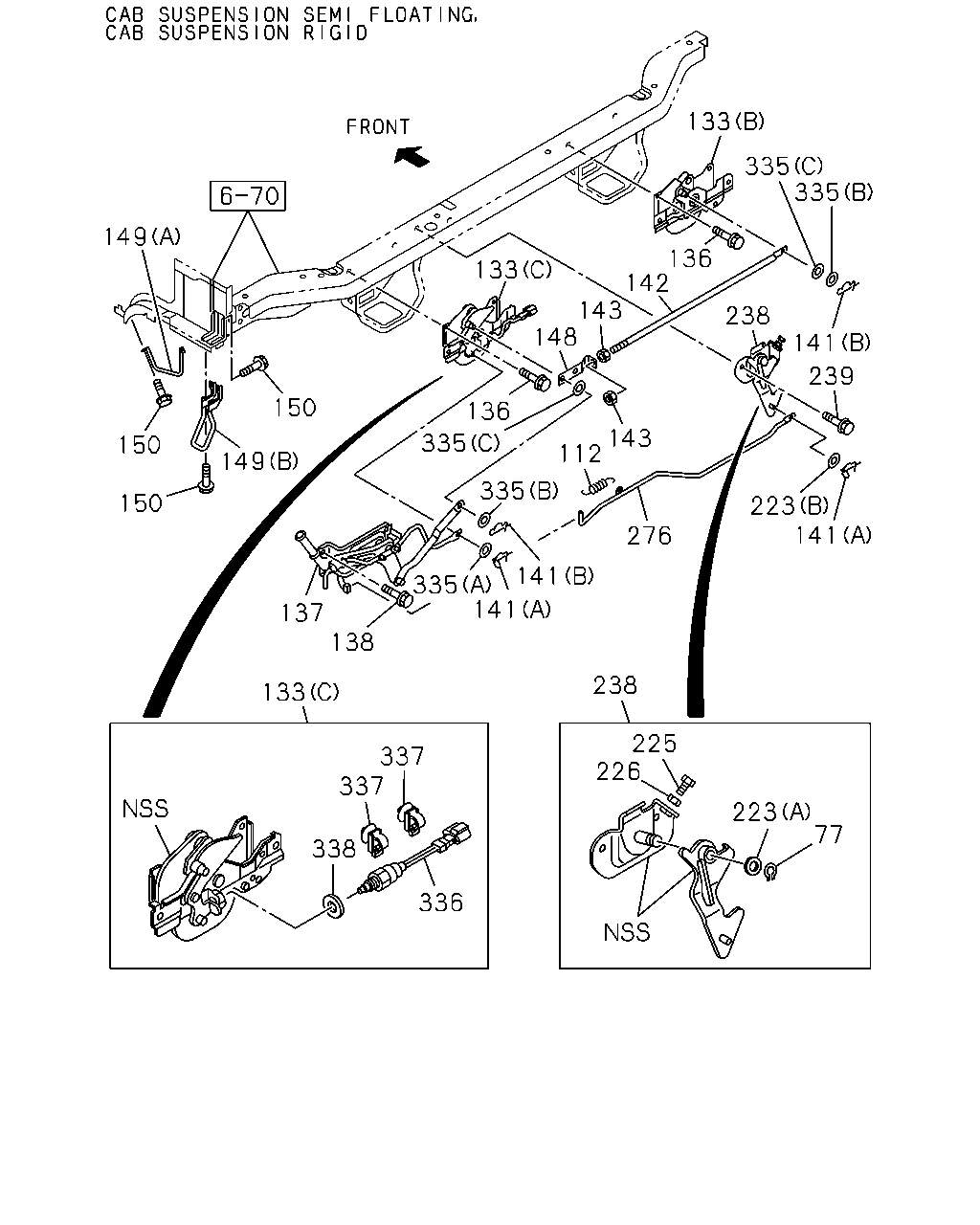

133 335 335 149 136 142 143 148 133 238 141 239 150 136 335 143 112 150 149 335 150 223 141 276 141 335 141 137 138 238 133 225 226 337 337 223 77 338 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
77	RING; SNAP EXC. AUTO CAB TILT<WV2> ID=14.7	0-91800-616-0	01	1	0712-		●
112	SPRING; RETURN,SAFETY ROD EXC. AUTO CAB TILT<WV2>	1-79718-655-0	01	1	0712-		●
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	0710-	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0710-0711	●	●
133	LOCK ASM; CAB (A)	8-97608-198-0	01	1	0712-	●
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (A)	8-97608-198-0	01	1	0712-		●
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	0710-	●	●
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	0710-	●	●
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	0710-	●	●
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	0710-	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0710-0711	●	●
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	0712-	●	●
141	PIN; SNAP,CAB LOCK ROD EXC. AUTO CAB TILT<WV2> (A) L=25.3	8-98039-045-1	01	1	0712-		●
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	0710-	●	●
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	0710-	●	●
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	0710-	●	●
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0710-	●	●
149	HANDLE; TILT EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),AUTO CAB TILT<WV2> (A)	8-97586-206-1	01	1	0810-0907		●
149	HANDLE; TILT EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> (A)	8-97586-206-1	01	1	0908-1205		●
149	HANDLE; TILT EXC. AUTO CAB TILT<WV2> (A)	8-97586-206-1	01	1	1206-		●
149	HANDLE; TILT EXC. AUTO CAB TILT<WV2> (B)	8-98025-707-3	01	1	0712-		●
150	BOLT; TILT HANDLE EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	0810-0907		●
150	BOLT; TILT HANDLE EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	0908-1205		●
150	BOLT; TILT HANDLE EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	0712-1205		●
150	BOLT; TILT HANDLE EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	06	1	1206-		●
223	WASHER; PL,SAFETY LK EXC. AUTO CAB TILT<WV2> (B) ID=8.4 OD=16	0-91610-508-0	01	1	0712-		●
223	WASHER; PL,SAFETY LK EXC. AUTO CAB TILT<WV2> (A) ID=17 OD=30	0-91610-516-0	01	1	0712-		●
225	BOLT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28050-830-0	01	1	0712-		●
226	NUT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8	0-91110-508-0	01	1	0712-		●
238	LOCK ASM; SAFETY,CAB TILT EXC. AUTO CAB TILT<WV2>	8-98048-899-1	01	1	0712-		●
239	BOLT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
276	ROD ASM; CAB LOCK,HOOK TO HOOK EXC. AUTO CAB TILT<WV2>	8-98048-831-1	01	1	0712-		●
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	0710-	●	●
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	0710-	●	●
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	0710-	●	●
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	0710-	●	●
337	CLIP; CAB LOCK L=155	8-97173-307-0	02	1	0710-1008	●	●
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	0710-	●	●
