◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#65744) — 249 parça

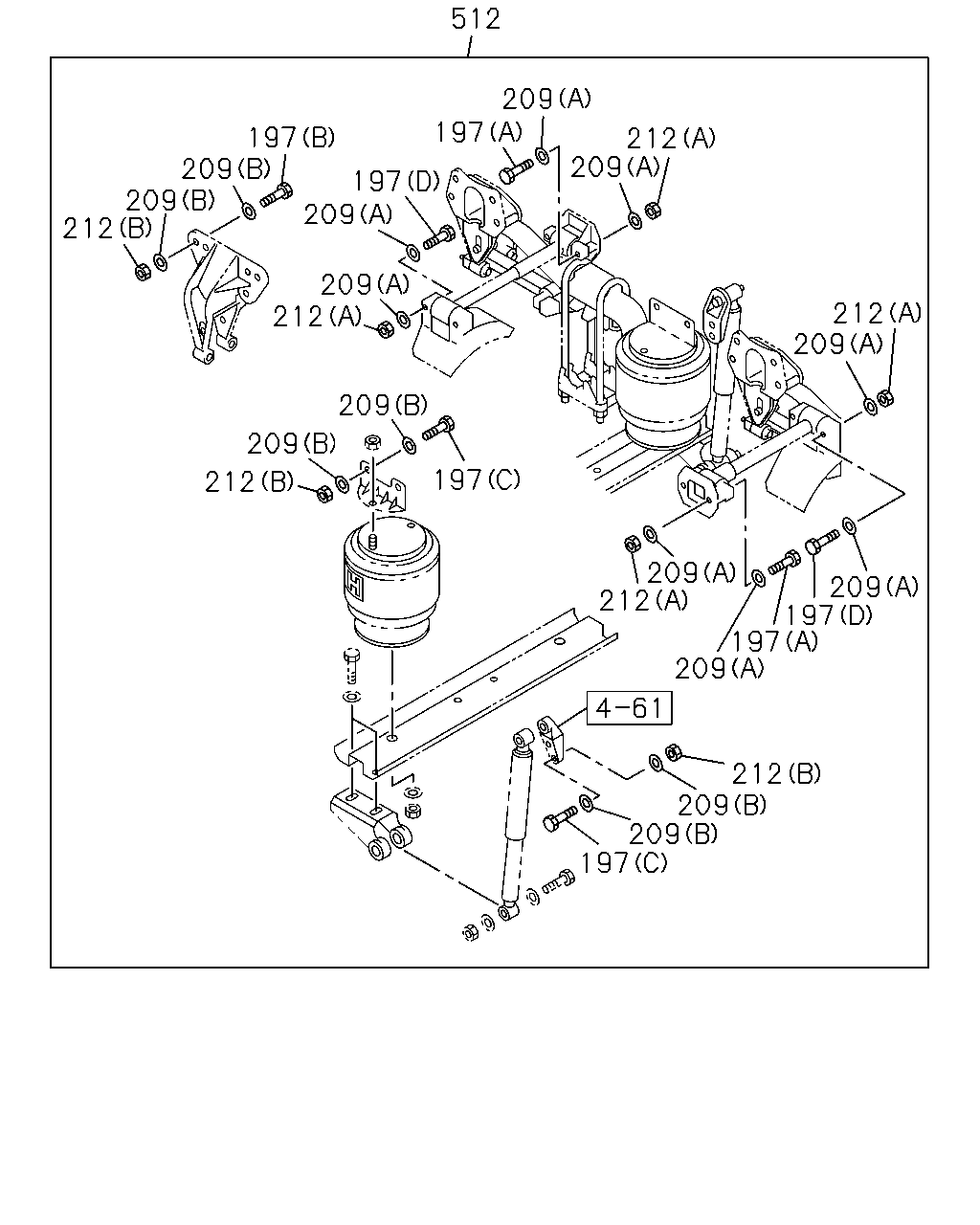

çizim 124706
512 209 197 197 209 209 212 212 209 197 209 209 212 212 209 209 209 197 212 209 212 209 197 197 209 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 0710-1302 ●
197 BOLT
(D) 		1-09000-767-0 04 1 1303- ●
197 BOLT
(A) 		1-09000-768-0 04 1 0710-1302 ●
197 BOLT
(A) 		1-09000-768-0 04 1 1303- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0710-1302 ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1303- ●
197 BOLT
(C) 		1-09000-771-0 16 1 0710-1302 ●
197 BOLT
(C) 		1-09000-771-0 16 1 1303- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0710-1302 ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1303- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0710-1302 ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1303- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0710-1302 ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1303- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0710-1302 ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1303- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 0710-1302 ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 1303- ●

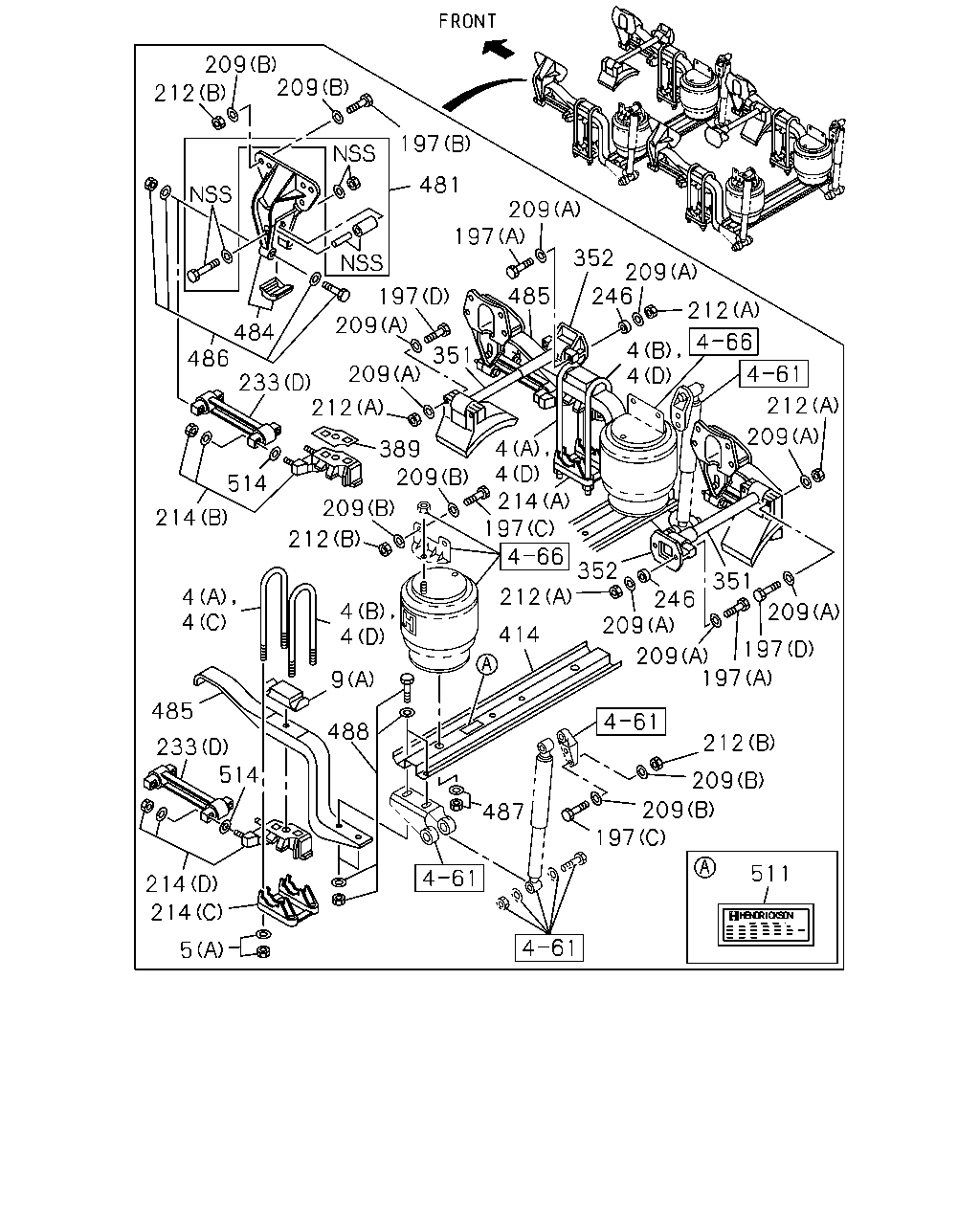

çizim 192510
511 212 209 209 197 209 197 197 209 212 212 209 246 352 351 246 209 209 352 487 414 212 197 214 4 4 485 209 197 481 197 209 209 212 209 389 351 197 209 209 212 233 484 486 514 214 209 212 4 4 9 488 4 4 485 233 514 214 214 5 4 4
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
ZF9S1110 M/T(Y5E) (C) L=356 		1-51371-229-0 02 1 1303- ●
4 U-BOLT; RR SPR
ZF9S1110 M/T(Y5E) (D) L=381 		1-51371-230-0 06 1 1303- ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0710-1302 ●
4 U-BOLT; RR SPR
ALLISON MD3560P A/T(Y3B) (A) L=356 		1-51371-229-0 04 1 1303- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0710-1302 ●
4 U-BOLT; RR SPR
ALLISON MD3560P A/T(Y3B) (B) L=381 		1-51371-230-0 04 1 1303- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 0710-1302 ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1303- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 0710- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 0710-1302 ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1303- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 0710-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
197 BOLT
(D) 		1-09000-767-0 04 1 0710-1302 ●
197 BOLT
(D) 		1-09000-767-0 04 1 1303- ●
197 BOLT
(A) 		1-09000-768-0 04 1 0710-1302 ●
197 BOLT
(A) 		1-09000-768-0 04 1 1303- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0710-1302 ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1303- ●
197 BOLT
(C) 		1-09000-771-0 16 1 0710-1302 ●
197 BOLT
(C) 		1-09000-771-0 16 1 1303- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0710-1302 ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1303- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0710-1302 ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1303- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0710-1302 ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1303- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0710-1302 ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1303- ●
214 SEAT; SPR
ZF9S1110 M/T(Y5E) (B) 		8-98235-545-0 02 1 1303- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0710-1302 ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1303- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0710-1302 ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 1303- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0710-1302 ●
214 SEAT; SPR
ALLISON MD3560P A/T(Y3B) (B) 		1-51385-105-0 02 1 1303- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0710-1302 ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=555 		1-51511-660-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (D) L=525 		1-51511-656-0 01 1 0904-0909 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (E) L=525 		1-51511-656-0 02 1 0910- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (B) L=565 		1-51511-685-0 01 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (B) L=565 		1-51511-685-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. AUSTRALIA EQUIPMENT(B13) (E) L=520 		1-51511-605-0 02 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (E) L=520 		1-51511-605-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. AUSTRALIA EQUIPMENT(B13) (E) L=520 		1-51511-605-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=545 		1-51511-658-0 02 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=545 		1-51511-658-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. AUSTRALIA EQUIPMENT(B13) (B) L=550 		1-51511-659-0 01 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=550 		1-51511-659-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. AUSTRALIA EQUIPMENT(B13) (D) L=540 		1-51511-674-0 01 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (D) L=540 		1-51511-674-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. AUSTRALIA EQUIPMENT(B13) (D) L=540 		1-51511-674-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 0710-1302 ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 02 1 0710-0711 ●
233 ROD ASM; TORQUE,RR SUSP
AUSTRALIA EQUIPMENT(B13) (C) L=550 		1-51511-659-0 02 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (C) L=550 		1-51511-659-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (C) L=550 		1-51511-659-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (C) L=550 		1-51511-659-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=555 		1-51511-660-0 01 1 0710-0711 ●
233 ROD ASM; TORQUE,RR SUSP
AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 0712-0903 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=530 		1-51511-678-0 03 1 0710-0711 ●
233 ROD ASM; TORQUE,RR SUSP
AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 0712-0903 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (E) L=530 		1-51511-678-0 02 1 0904-0909 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (D) L=530 		1-51511-678-0 01 1 0910- ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1101- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0710-1302 ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 1303- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0710-1302 ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 1303- ●
389 PLATE; CASTER
ZF9S1110 M/T(Y5E) 		8-98235-546-0 02 1 1303- ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0710-1302 ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 1303- ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0710-1302 ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 1303- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0710-1302 ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 1303- ●
485 SPRING; LEAF 1-51410-240-0 04 1 0710-1302 ●
485 SPRING; LEAF 1-51410-240-0 04 1 1303- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0710-1302 ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 1303- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0710-1302 ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 1303- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0710-1302 ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 1303- ●
511 LABEL
ZF9S1110 M/T(Y5E) 		1-51399-034-0 01 1 1303- ●
511 LABEL 1-51399-034-0 02 1 0710-1302 ●
511 LABEL
ALLISON MD3560P A/T(Y3B) 		1-51399-034-0 02 1 1303- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 0710-1302 ●
514 SPACER; TORQUE ROD
ALLISON MD3560P A/T(Y3B) 		1-09503-299-0 08 1 1303- ●

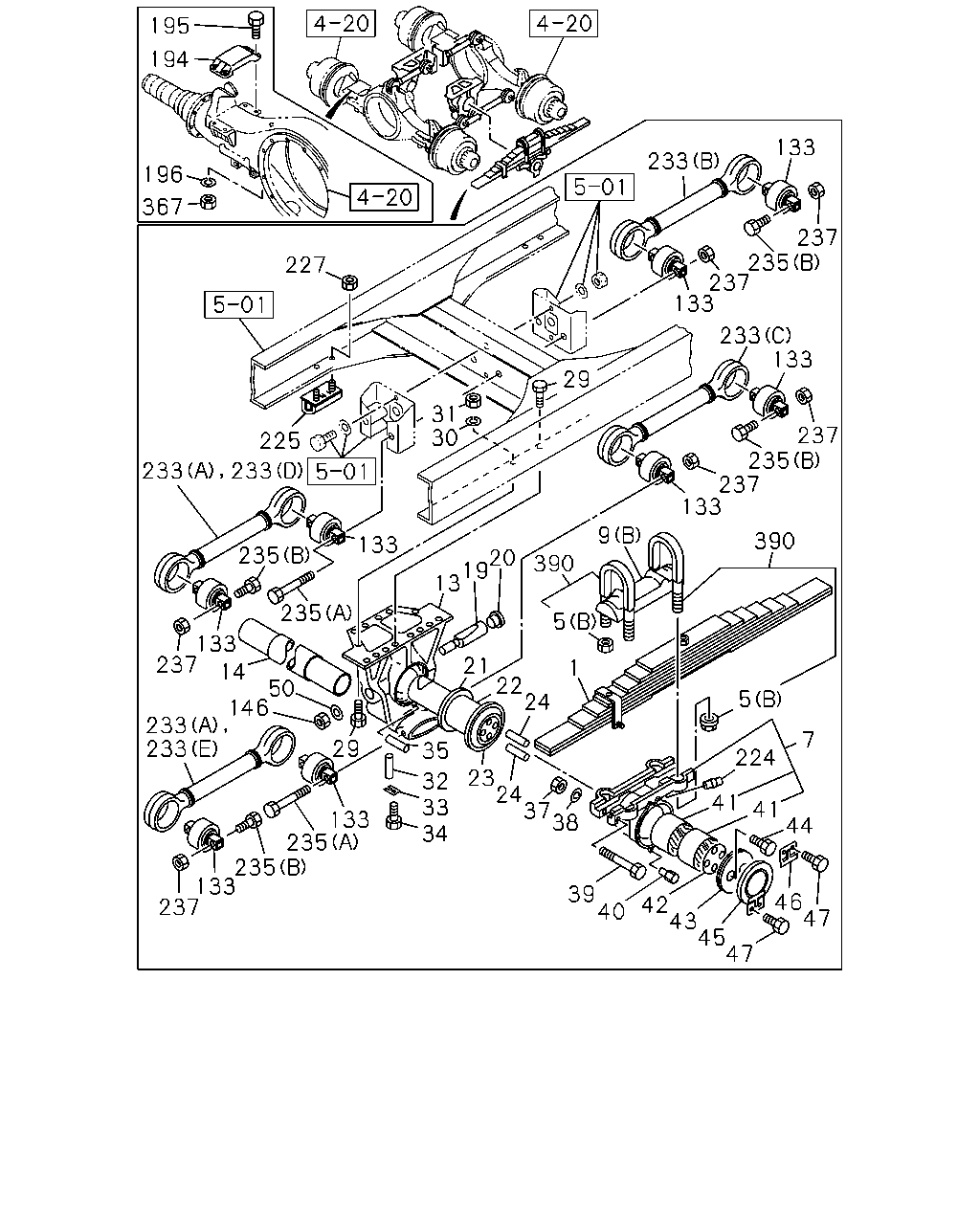

çizim 192518
195 194 133 233 196 367 237 235 237 133 227 233 133 29 31 30 237 235 237 133 225 233 9 390 133 235 20 19 13 390 235 5 133 237 21 1 14 22 24 50 146 5 233 233 7 29 35 224 23 24 37 38 41 32 33 34 41 133 235 235 133 237 44 39 40 46 47 42 43 45 47 233
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 10-LEAF 		8-98017-567-0 02 1 0712-0907 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. AUSTRALIA EQUIPMENT(B13) 10-LEAF 		8-98017-567-1 02 1 0908- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 8-LEAF 		1-51310-880-0 02 1 0710-0711 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 8-LEAF 		1-51310-880-0 02 1 0712-0907 ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. AUSTRALIA EQUIPMENT(B13) 8-LEAF 		1-51310-880-0 02 1 0908- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 0710-1302 ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1303- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 0710- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 0710- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 0710-1302 ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1303- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 0710-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0710- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 0710- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0710- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0710- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0710- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 0710- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0710- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0710- ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 0710- ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 0710- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0710- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 0710- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0710- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0710- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 0710- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0710- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 0710- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 0710- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0710- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0710- ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0710-0902 ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 0903- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0710- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0710- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0710- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0710- ●
46 BRACKET; COVER 1-51387-015-2 02 1 0710- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 0710- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 0710- ●
133 BUSHING; RUBBER,TORQUE ROD
BEST VALUE PARTS 		1-87411-074-2 12 1 0710-0903 ●
133 BUSHING; RUBBER,TORQUE ROD
AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87411-074-2 04 1 0904-1104 ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) BEST VALUE PARTS 		1-87411-074-2 02 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87411-074-2 08 1 0904-1104 ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) BEST VALUE PARTS 		1-87411-074-2 06 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87411-074-2 06 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87411-074-2 06 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
EXC. AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87411-074-2 12 1 0904-1104 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87411-074-2 04 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87411-074-2 08 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) BEST VALUE PARTS 		1-87411-074-2 08 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) OD=105 		1-51519-113-1 08 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) OD=105 		1-51519-113-1 08 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
AUSTRALIA EQUIPMENT(B13) OD=105 		1-51519-113-1 08 1 0904-1104 ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) OD=105 		1-51519-113-1 06 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) OD=105 		1-51519-113-1 06 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) OD=105 		1-51519-113-1 06 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
EXC. AUSTRALIA EQUIPMENT(B13) OD=105 		1-51519-113-1 12 1 0904-1104 ●
133 BUSHING; RUBBER,TORQUE ROD
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) OD=105 		1-51519-113-1 04 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 0710-0903 ●
133 BUSHING; RUBBER,TORQUE ROD
AUSTRALIA EQUIPMENT(B13) OD=105 		1-51519-113-1 04 1 0904-1104 ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) OD=105 		1-51519-113-1 02 1 1105- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 0710- ●
194 PAD; CONTACT 1-42124-101-0 04 1 0710-0711 ●
194 PAD; CONTACT
AUSTRALIA EQUIPMENT(B13) 		1-42124-101-0 04 1 0712- ●
195 BOLT; PAD FIX
M14X45 		9-92061-445-0 16 1 0710-0711 ●
195 BOLT; PAD FIX
AUSTRALIA EQUIPMENT(B13) M14X45 		9-92061-445-0 16 1 0712-0805 ●
195 BOLT; PAD FIX
AUSTRALIA EQUIPMENT(B13) M14X40 		0-20951-440-0 16 1 0806- ●
196 WASHER; LK
ID=14.2 		0-91510-514-0 16 1 0710-0711 ●
196 WASHER; LK
AUSTRALIA EQUIPMENT(B13) ID=14.2 		0-91510-514-0 16 1 0712- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710- ●
225 RUBBER; CUSHION,RR SPR
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD 		1-53366-142-1 01 1 0712- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-072-1 01 1 0710-0711 ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-143-0 01 1 0710-0711 ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-077-3 01 1 0710-0711 ●
225 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) REARWARD 		1-53366-077-3 01 1 0712- ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-100-2 01 1 0710-0711 ●
225 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) REARWARD 		1-53366-100-2 01 1 0712- ●
225 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) FORWARD 		1-53366-143-0 01 1 0712- ●
225 RUBBER; CUSHION,RR SPR
EXC. AUSTRALIA EQUIPMENT(B13) FORWARD 		1-53366-143-0 01 1 0712- ●
225 RUBBER; CUSHION,RR SPR
EXC. AUSTRALIA EQUIPMENT(B13) REARWARD 		1-53366-143-0 01 1 0712- ●
225 RUBBER; CUSHION,RR SPR
AUSTRALIA EQUIPMENT(B13) FORWARD 		1-53366-072-1 01 1 0712- ●
225 RUBBER; CUSHION,RR SPR
EXC. AUSTRALIA EQUIPMENT(B13) REARWARD 		1-53366-072-1 01 1 0712- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=555 		1-51511-660-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (D) L=525 		1-51511-656-0 01 1 0904-0909 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (E) L=525 		1-51511-656-0 02 1 0910- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (B) L=565 		1-51511-685-0 01 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (B) L=565 		1-51511-685-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. AUSTRALIA EQUIPMENT(B13) (E) L=520 		1-51511-605-0 02 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (E) L=520 		1-51511-605-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. AUSTRALIA EQUIPMENT(B13) (E) L=520 		1-51511-605-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. AUSTRALIA EQUIPMENT(B13) (C) L=545 		1-51511-658-0 02 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=545 		1-51511-658-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. AUSTRALIA EQUIPMENT(B13) (B) L=550 		1-51511-659-0 01 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (B) L=550 		1-51511-659-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
EXC. AUSTRALIA EQUIPMENT(B13) (D) L=540 		1-51511-674-0 01 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 6300MM(63W) EXC. AUSTRALIA EQUIPMENT(B13) (D) L=540 		1-51511-674-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 5000MM(50W) EXC. AUSTRALIA EQUIPMENT(B13) (D) L=540 		1-51511-674-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 0710-1302 ●
233 ROD ASM; TORQUE,RR SUSP
(D) L=366 		1-51510-855-0 04 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 02 1 0710-0711 ●
233 ROD ASM; TORQUE,RR SUSP
AUSTRALIA EQUIPMENT(B13) (C) L=550 		1-51511-659-0 02 1 0712-1104 ●
233 ROD ASM; TORQUE,RR SUSP
WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (C) L=550 		1-51511-659-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (C) L=550 		1-51511-659-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (C) L=550 		1-51511-659-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=555 		1-51511-660-0 01 1 0710-0711 ●
233 ROD ASM; TORQUE,RR SUSP
AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 0712-0903 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 0904-1104 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) (B) L=555 		1-51511-660-0 01 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=530 		1-51511-678-0 03 1 0710-0711 ●
233 ROD ASM; TORQUE,RR SUSP
AUSTRALIA EQUIPMENT(B13) (A) L=530 		1-51511-678-0 03 1 0712-0903 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (E) L=530 		1-51511-678-0 02 1 0904-0909 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (D) L=530 		1-51511-678-0 01 1 0910- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 0710- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 0710- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0710- ●
367 NUT
M14 		0-91110-514-0 16 1 0710-0711 ●
367 NUT
AUSTRALIA EQUIPMENT(B13) M14 		0-91110-514-0 16 1 0712- ●
390 U-BOLT SET; RR SPRING
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) L=340 		1-87870-146-1 04 1 0712-0907 ●
390 U-BOLT SET; RR SPRING
EXC. AUSTRALIA EQUIPMENT(B13) L=340 		1-87870-146-1 04 1 0908- ●
390 U-BOLT SET; RR SPRING
L=310 		1-87870-166-3 04 1 0710-0711 ●
390 U-BOLT SET; RR SPRING
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) L=310 		1-87870-166-3 04 1 0712-0907 ●
390 U-BOLT SET; RR SPRING
AUSTRALIA EQUIPMENT(B13) L=310 		1-87870-166-3 04 1 0908- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
