Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11107 - FVZ(RHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

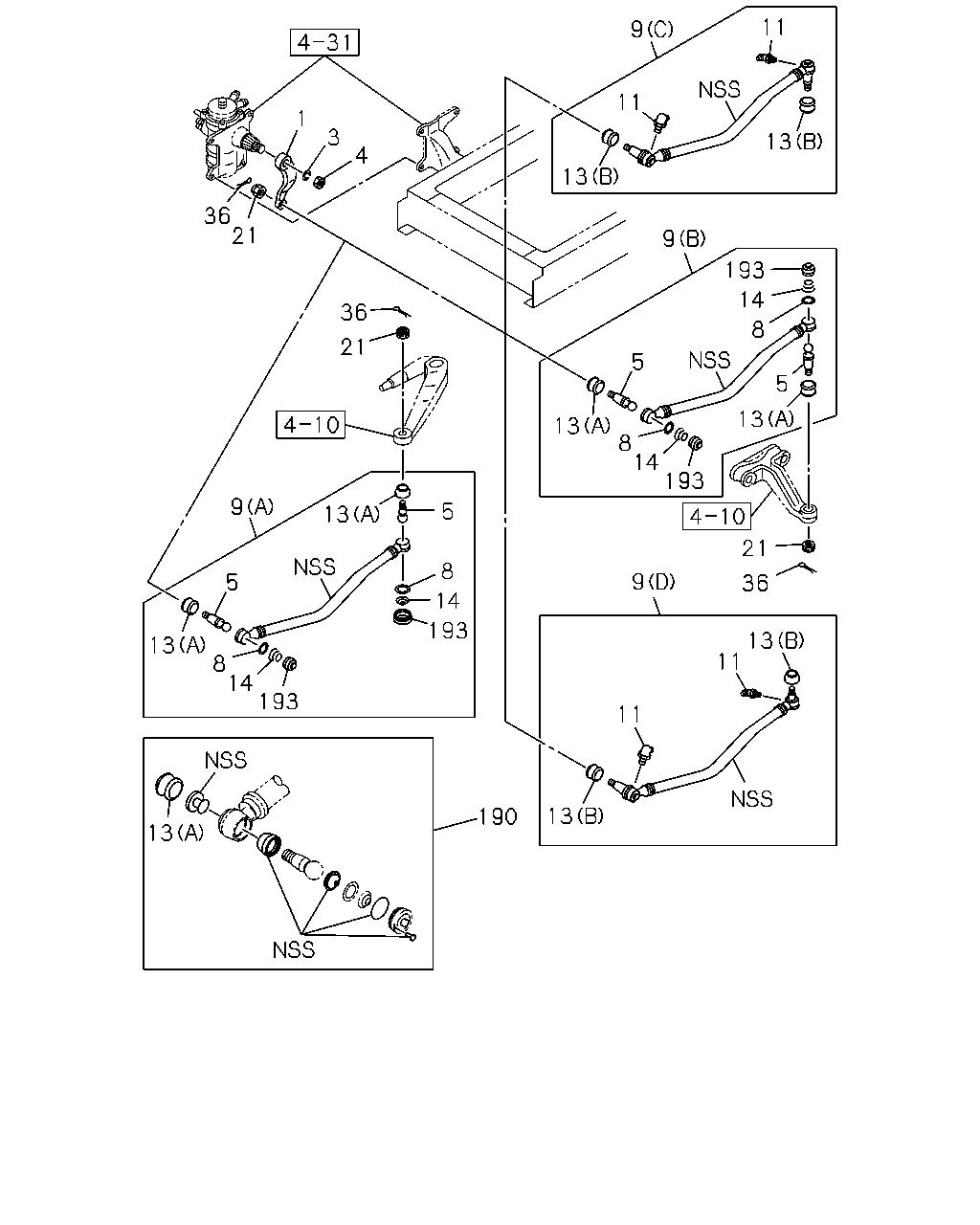

4-33 — STEERING LINKAGE
(#65737) — 37 parça
Tümü
A - FGY5MV
B - FGZ5MV
1
3
4
21
36
36
21
9
13
5
8
14
193
5
13
8
14
193
13
9
11
13
11
13
9
193
14
8
5
13
5
13
8
14
193
21
36
9
190
13
11
11
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ARM; PITMAN,STRG
1-44341-423-1
01
1
0710-
●
●
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-056-0
01
1
0710-
●
●
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0710-
●
●
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
0710-1103
●
●
5
BALL; JOINT,DRAG LINK
1-44361-105-1
02
1
1104-1311
●
5
BALL; JOINT,DRAG LINK
AUSTRALIA EQUIPMENT(B13)
1-44361-105-1
02
1
1104-1311
●
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0710-1103
●
●
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
1104-1311
●
8
SEAT; SPR,ROD END
AUSTRALIA EQUIPMENT(B13)
1-43159-075-0
02
1
1104-1311
●
9
LINK; DRAG
EXC. HUB LUBRICATION OIL BATH<C5K> (B)
1-44380-326-1
01
1
0712-1009
●
9
LINK; DRAG
EXC. AUSTRALIA EQUIPMENT(B13) (B)
1-44380-326-1
01
1
1010-1103
●
9
LINK; DRAG
EXC. AUSTRALIA EQUIPMENT(B13) (C)
8-98181-399-0
01
1
1104-
●
9
LINK; DRAG
(A)
1-44380-306-1
01
1
0710-0711
●
●
9
LINK; DRAG
(A)
1-44380-306-1
01
1
0712-1009
●
9
LINK; DRAG
HUB LUBRICATION OIL BATH<C5K> (A)
1-44380-306-1
01
1
0712-1009
●
9
LINK; DRAG
(A)
1-44380-306-1
01
1
1010-1311
●
9
LINK; DRAG
AUSTRALIA EQUIPMENT(B13) (A)
1-44380-306-1
01
1
1010-1311
●
9
LINK; DRAG
(D)
8-98251-664-0
01
1
1312-
●
9
LINK; DRAG
AUSTRALIA EQUIPMENT(B13) (D)
8-98251-664-0
01
1
1312-
●
11
NIPPLE; GREASE,DRAG LINK
EXC. AUSTRALIA EQUIPMENT(B13)
8-98160-122-0
02
1
1104-1311
●
11
NIPPLE; GREASE,DRAG LINK
8-98160-122-0
02
1
1312-
●
●
13
BOOT; DRAG LINK
EXC. AUSTRALIA EQUIPMENT(B13) (B)
1-43159-131-0
02
1
1104-1311
●
13
BOOT; DRAG LINK
(B)
1-43159-131-0
02
1
1312-
●
●
13
BOOT; DRAG LINK
(A)
1-43159-107-0
02
1
0710-1103
●
●
13
BOOT; DRAG LINK
(A)
1-43159-107-0
02
1
1104-1311
●
13
BOOT; DRAG LINK
AUSTRALIA EQUIPMENT(B13) (A)
1-43159-107-0
02
1
1104-1311
●
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0710-1103
●
●
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
1104-1311
●
14
SPRING; COIL,DRAG LINK
AUSTRALIA EQUIPMENT(B13)
1-43159-074-0
02
1
1104-1311
●
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0710-
●
●
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0710-
●
●
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
0710-1103
●
●
190
REPAIR KIT; DRAG LINK
1-85574-041-0
02
1
1104-1311
●
190
REPAIR KIT; DRAG LINK
AUSTRALIA EQUIPMENT(B13)
1-85574-041-0
02
1
1104-1311
●
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0710-1103
●
●
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
1104-1311
●
193
PLUG; END,DRAG LINK
AUSTRALIA EQUIPMENT(B13)
1-43159-093-0
02
1
1104-1311
●
