◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25A - REAR FINAL DRIVE ▶
4-25A — REAR FINAL DRIVE (#65733) — 262 parça

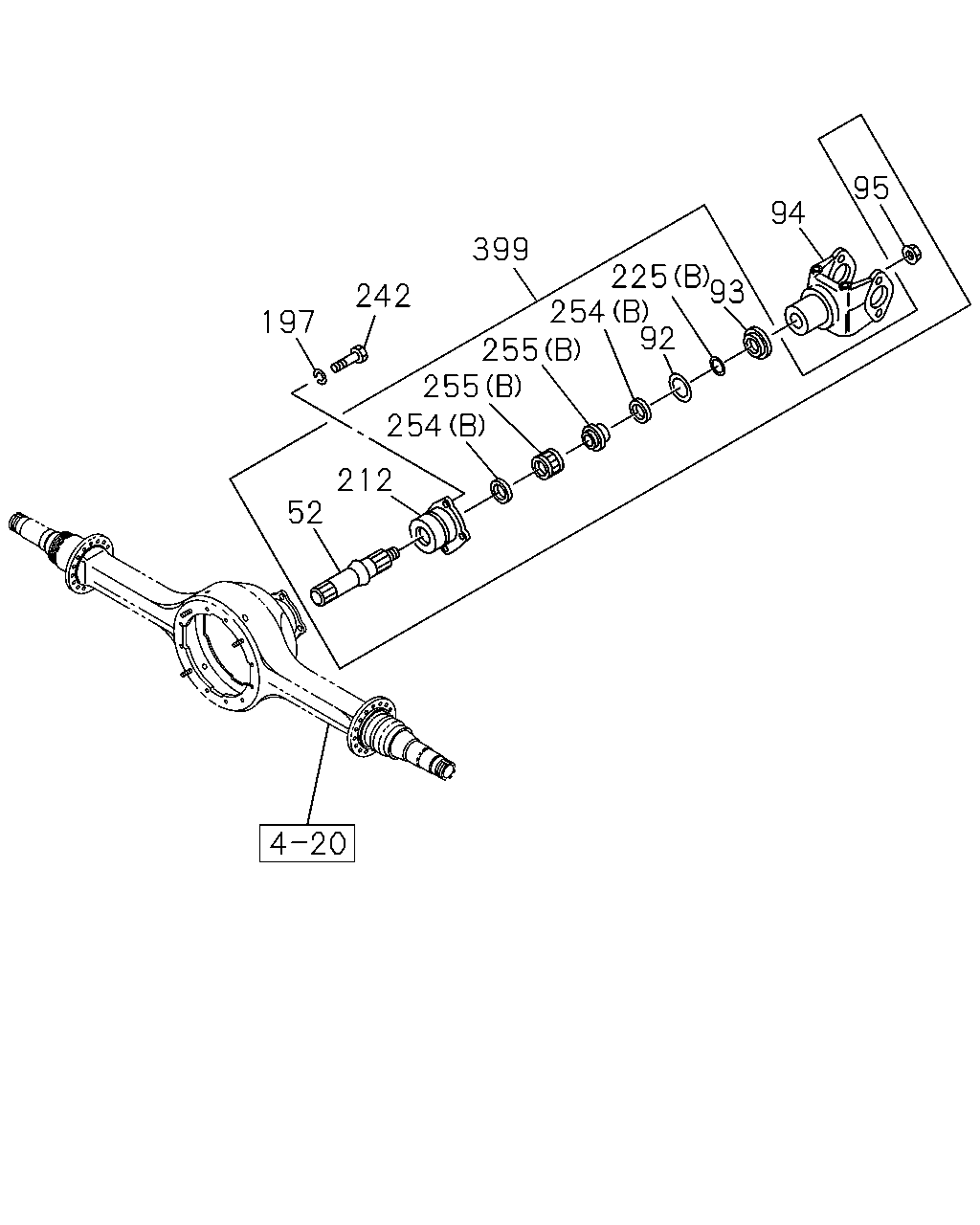

çizim 123055
95 94 399 225 93 254 92 255 255 242 197 254 212 52
BalonParca AdiParca NoAdetTipApplied Date A B C
52 SHAFT; OUTPUT 1-41343-025-0 01 1 0710- ● ● ●
92 RING; SNAP,BRG,OUTPUT SHAFT 1-41349-161-0 01 1 0710- ● ● ●
93 SEAL; OIL,OUTPUT SHAFT 1-41349-191-0 01 1 0710- ● ● ●
94 FLANGE ASM; OUTPUT SHAFT 1-37245-315-0 01 1 0710- ● ● ●
95 NUT; OUTPUT SHAFT 1-41349-164-0 01 1 0710- ● ● ●
197 COVER; HELICAL GEAR CASE 1-41329-037-0 04 1 0710- ● ● ●
212 COVER 1-41519-049-0 01 1 0710- ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 0710- ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 0710- ● ● ●
242 BOLT; COVER 1-42119-226-0 04 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-051-0 02 1 0710- ● ● ●
399 SHAFT ASM; OUTPUT 1-41343-024-0 01 1 0710- ● ● ●

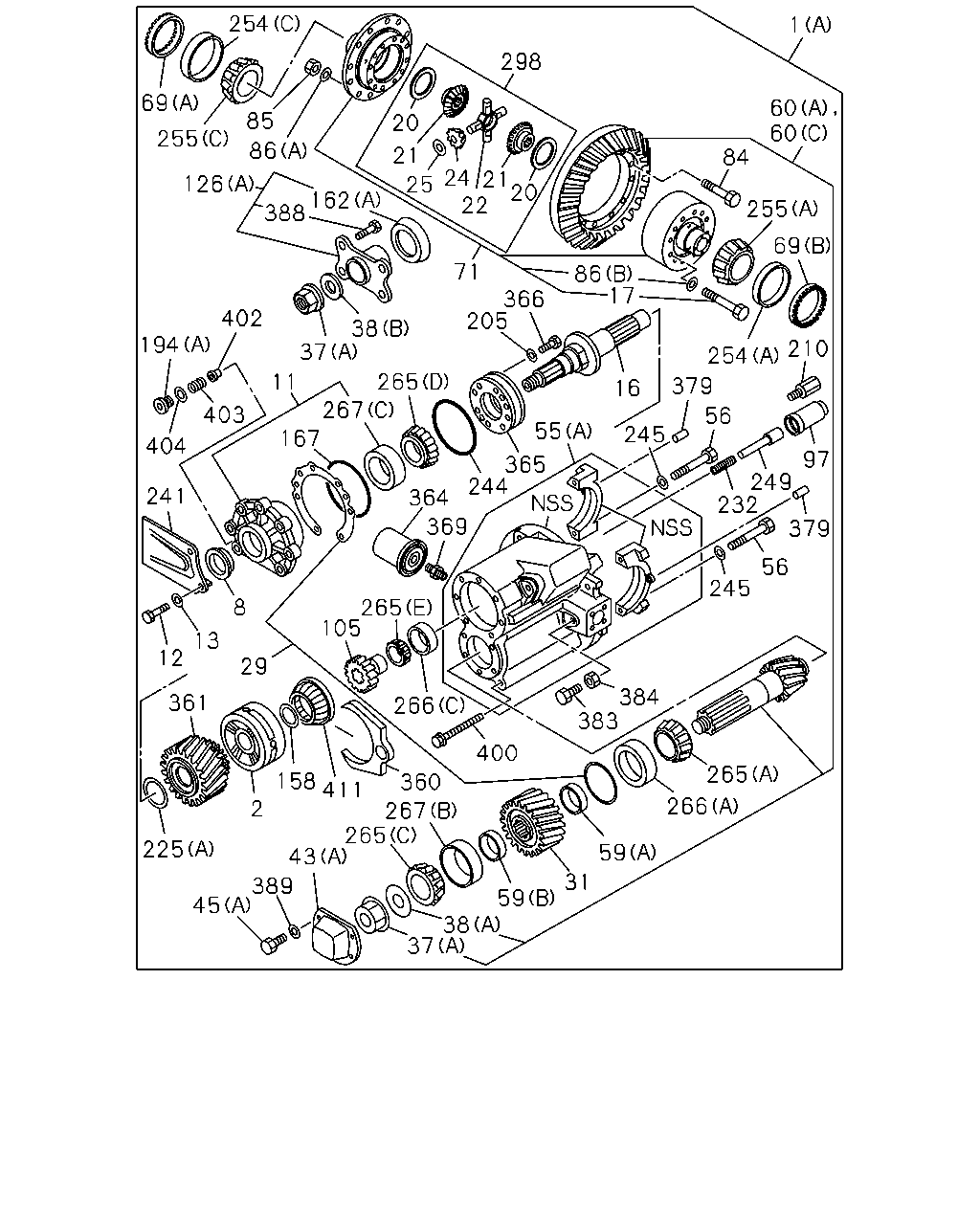

çizim 192500
1 60 60 84 255 69 210 254 379 56 97 249 232 379 56 245 265 266 59 31 59 38 37 45 389 43 265 267 360 400 383 384 266 411 158 2 225 361 29 12 13 8 105 265 369 364 244 365 55 245 16 17 86 71 366 205 265 267 167 241 404 403 11 37 38 402 194 20 22 21 24 25 21 20 298 254 69 85 255 86 126 388 162
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
(A) 43/7 		1-41003-357-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41003-352-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 41/6 		1-41003-353-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 41/6 		1-41003-358-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 45/7 		1-41003-315-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 45/7 		1-41003-316-0 01 1 0710- ●
2 DIFF ASM; INTER,FINAL 1-41510-264-0 01 1 0710- ● ● ●
8 SEAL; OIL,INPUT SHAFT 1-41349-190-0 01 1 0710- ● ● ●
11 COVER; INTER AXLE DIFF 1-41151-090-0 01 1 0710- ● ● ●
12 BOLT; COVER TO CASE 1-41159-008-0 07 1 0710- ● ● ●
13 WASHER; COVER TO CASE 1-41329-084-0 07 1 0710- ● ● ●
16 SHAFT ASM; INPUT 1-41341-032-0 01 1 0710- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 0710- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 0710- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 0710- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 0710- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 0710- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 0710- ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 0710- ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 0710- ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 0710- ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 0710- ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 0710- ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 0710- ● ● ●
29 SHIM; BRG RET 1-41154-091-0 01 1 0710-0803 ● ● ●
29 SHIM; BRG RET 1-41154-091-0 02 1 0804- ● ● ●
31 GEAR; DRIVEN,HELICAL 1-41251-423-0 01 1 0710- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0710- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0710- ● ● ●
38 WASHER; PL,DRIVING PINION
(A) 		1-41219-048-0 01 1 0710- ● ● ●
38 WASHER; PL,DRIVING PINION
(B) 		1-41349-058-0 01 1 0710- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 0710- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0710- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0710- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0710- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0710- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 0710- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 0710- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 0710- ● ● ●
59 SPACER; FINAL PINION
(A) 		1-41219-049-0 01 1 0710- ● ● ●
59 SPACER; FINAL PINION
(B) 		1-41229-296-0 01 1 0710- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-733-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-734-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-592-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-597-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 45/7 		1-41210-717-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 45/7 		1-41210-717-0 01 1 0710- ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 0710- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 0710- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 0710- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0710-0710 ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 0710- ● ● ●
97 SHIFT UNIT; DIFF LOCK 1-41329-067-0 01 1 0710- ● ● ●
105 GEAR; SIDE 1-41561-119-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (A) 		1-37245-301-0 01 1 0710-0710 ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (A) 		1-37245-301-0 01 1 0710- ● ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0710- ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 0710- ● ●
158 RING; SNAP 1-41519-043-0 01 1 0710- ● ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 0710- ● ● ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (A) 		1-37249-161-0 01 1 0710-0710 ● ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (A) 		1-37249-161-0 01 1 0710- ● ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-190-0 01 1 0710- ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 0710- ● ●
167 GASKET; FINAL PINION CAGE 1-41349-155-0 01 1 0710- ● ● ●
194 PLUG
(B) 		1-41119-077-0 01 1 0710-0710 ●
194 PLUG
ALLISON MD3560P A/T(Y3B) (B) 		1-41119-077-0 02 1 0710-0710 ● ●
194 PLUG
(B) 		1-41119-077-0 01 1 0710- ● ● ●
194 PLUG
(B) 		1-41119-077-0 01 1 0710- ● ● ●
194 PLUG
(A) 		1-41329-077-0 01 1 0710- ● ● ●
205 WASHER; PL 1-41329-016-0 06 1 0710- ● ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 0710-0710 ● ●
210 CONNECTOR; SHIFT UNIT 1-41329-083-0 01 1 0710- ● ● ●
225 WASHER; THRUST
(A) 		1-41349-160-0 01 1 0710- ● ● ●
225 WASHER; THRUST
(B) 		1-41349-162-0 01 1 0710- ● ● ●
232 SPRING; PISTON 1-41329-023-0 01 1 0710- ● ● ●
241 COVER; SHIFT HSG 1-41329-080-0 01 1 0710- ● ● ●
244 GASKET; COVER 1-41349-155-0 01 1 0710- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 0710- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 0710- ● ● ●
249 SHAFT; SHIFT FORK 1-41329-066-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-051-0 02 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0710- ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 0710-0710 ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 0710- ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 0710- ● ● ●
360 FORK; SHIFT 1-41519-046-0 01 1 0710- ● ● ●
361 GEAR; DRIVE 1-41251-423-0 01 1 0710- ● ● ●
364 FILTER; OIL PUMP 1-41383-004-0 01 1 0710- ● ● ●
365 PUMP ASM; OIL 1-41381-010-0 01 1 0710- ● ● ●
366 BOLT; PUMP 1-41389-018-0 06 1 0710- ● ● ●
369 PLUG; STRAINER 1-41389-020-0 01 1 0710- ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 0710- ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 0710- ● ● ●
383 BOLT; SET,SHIFT UNIT 1-41329-064-0 01 1 0710- ● ● ●
384 NUT; LK,SHIFT UNIT 1-41329-065-0 01 1 0710- ● ● ●
388 BOLT; COUPLING
ALLISON MD3560P A/T(Y3B) 		1-37249-160-0 04 1 0710-0710 ● ●
388 BOLT; COUPLING
ALLISON MD3560P A/T(Y3B) 		1-37249-160-0 04 1 0710- ● ●
388 BOLT; COUPLING 1-37249-204-0 04 1 0710- ●
388 BOLT; COUPLING
ZF9S1110 M/T(Y5E) 		1-37249-204-0 04 1 0710- ● ●
389 WASHER; FINAL PINION CAGE 1-41329-069-0 05 1 0710- ● ● ●
400 SCREEN; FILTER 1-41383-005-0 01 1 0710- ● ● ●
402 VALVE; RELIEF,OIL 1-41329-074-0 01 1 0710- ● ● ●
403 SPRING; RELIEF VALVE 1-41329-075-0 01 1 0710- ● ● ●
404 WASHER; RELIEF VALVE 1-41329-076-0 01 1 0710- ● ● ●
411 SLEEVE; CLU 1-41519-082-0 01 1 0710- ● ● ●

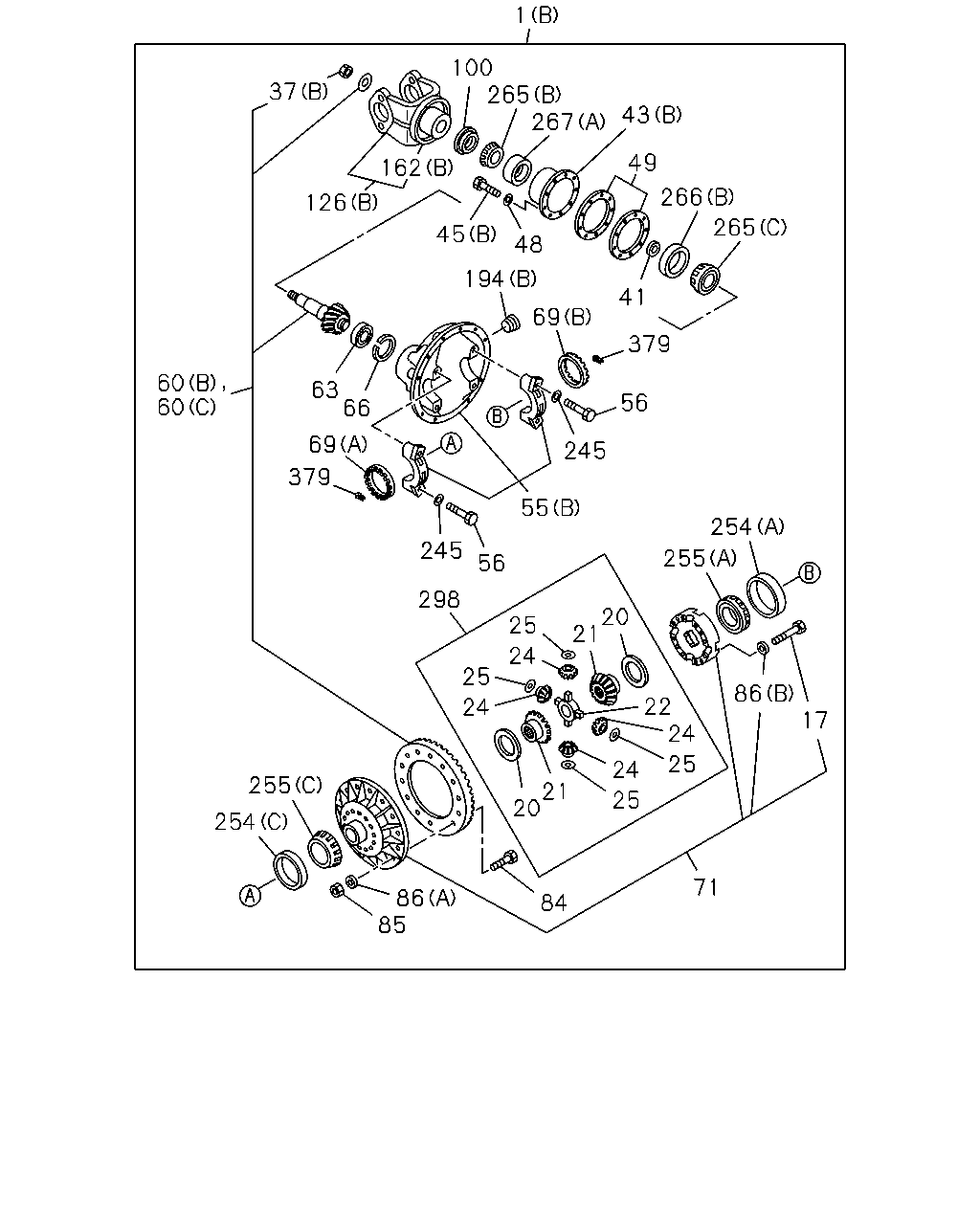

çizim 192501
1 100 265 267 43 49 266 265 41 379 69 194 48 45 126 162 37 63 60 60 66 69 379 56 245 55 56 245 298 254 255 86 17 71 25 24 22 20 21 25 24 24 25 21 20 84 24 25 255 254 86 85
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
(A) 43/7 		1-41003-357-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 43/7 		1-41003-352-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 41/6 		1-41003-353-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 41/6 		1-41003-358-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(A) 45/7 		1-41003-315-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
(B) 45/7 		1-41003-316-0 01 1 0710- ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 0710- ● ● ●
17 BOLT; DIFF CAGE SETTING 1-41519-042-0 16 1 0710- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 0710- ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41559-003-0 02 1 0710- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 0710- ● ● ●
21 GEAR; SIDE,DIFF 1-41561-118-0 02 1 0710- ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 0710- ● ● ●
22 SPIDER; DIFF PINION 1-41521-056-0 01 1 0710- ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 0710- ● ● ●
24 GEAR; PINION,DIFF 1-41551-037-0 04 1 0710- ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 0710- ● ● ●
25 WASHER; THRUST,PINION 1-41552-038-0 04 1 0710- ● ● ●
37 NUT; DRIVING PINION
(B) 		1-41219-040-0 01 1 0710- ● ● ●
37 NUT; DRIVING PINION
(A) 		1-41219-028-0 02 1 0710- ● ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 0710-0710 ● ●
41 SPACER; FINAL DRIVE PINION BRG 1-41229-341-0 01 1 0710- ● ● ●
43 CAGE; FINAL PINION
(B) 		1-41151-077-0 01 1 0710- ● ● ●
43 CAGE; FINAL PINION
(A) 		1-41329-068-0 01 1 0710- ● ● ●
45 BOLT; FINAL PINION CAGE
(B) 		1-41159-008-0 08 1 0710- ● ● ●
45 BOLT; FINAL PINION CAGE
(A) 		1-41329-070-0 05 1 0710- ● ● ●
48 WASHER; LK,FINAL PINION 1-41329-034-0 08 1 0710- ● ● ●
49 SHIM; FINAL PINION CAGE 1-41154-090-0 01 1 0710- ● ● ●
55 CARRIER; DIFF
(B) 		1-41110-123-0 01 1 0710- ● ● ●
55 CARRIER; DIFF
(A) 		1-41310-064-0 01 1 0710- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 0710- ● ● ●
56 BOLT; BRG CAP 1-41119-070-0 04 1 0710- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
(B) 41/6 		1-41210-733-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 41/6 		1-41210-734-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(B) 43/7 		1-41210-592-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(A) 43/7 		1-41210-597-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 45/7 		1-41210-717-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
(C) 45/7 		1-41210-717-0 01 1 0710- ●
63 BEARING; PINION PILOT 1-41219-046-0 01 1 0710- ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-047-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(A) 		1-41121-042-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 0710- ● ● ●
69 NUT; ADJ,DIFF CAGE
(B) 		1-41121-047-0 01 1 0710- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 0710- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-263-0 01 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41219-050-0 12 1 0710- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 32 1 0710-0710 ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(B) 		1-41329-034-0 16 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 0710- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
(A) 		1-41229-168-0 12 1 0710- ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-185-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
(B) 		1-37245-316-0 01 1 0710- ● ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (A) 		1-37245-301-0 01 1 0710-0710 ● ●
126 COUPLING; DRIVING PINION
ALLISON MD3560P A/T(Y3B) (A) 		1-37245-301-0 01 1 0710- ● ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 0710-0710 ●
126 COUPLING; DRIVING PINION
(A) 		1-37245-364-0 01 1 0710- ●
126 COUPLING; DRIVING PINION
ZF9S1110 M/T(Y5E) (A) 		1-37245-364-0 01 1 0710- ● ●
162 COVER; DUST,INPUT FLANGE
(B) 		1-37249-164-0 01 1 0710- ● ● ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (A) 		1-37249-161-0 01 1 0710-0710 ● ●
162 COVER; DUST,INPUT FLANGE
ALLISON MD3560P A/T(Y3B) (A) 		1-37249-161-0 01 1 0710- ● ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 0710-0710 ●
162 COVER; DUST,INPUT FLANGE
(A) 		1-37249-190-0 01 1 0710- ●
162 COVER; DUST,INPUT FLANGE
ZF9S1110 M/T(Y5E) (A) 		1-37249-190-0 01 1 0710- ● ●
194 PLUG
(B) 		1-41119-077-0 01 1 0710-0710 ●
194 PLUG
ALLISON MD3560P A/T(Y3B) (B) 		1-41119-077-0 02 1 0710-0710 ● ●
194 PLUG
(B) 		1-41119-077-0 01 1 0710- ● ● ●
194 PLUG
(B) 		1-41119-077-0 01 1 0710- ● ● ●
194 PLUG
(A) 		1-41329-077-0 01 1 0710- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 0710- ● ● ●
245 WASHER; PL,BRG CAP 1-41119-069-0 04 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(A) 		1-41519-106-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(C) 		1-41519-107-0 01 1 0710- ● ● ●
254 CUP; DIFF BRG
(B) 		1-41519-050-0 02 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(A) 		1-41519-108-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(C) 		1-41519-109-0 01 1 0710- ● ● ●
255 CONE; DIFF BRG
(B) 		1-41519-051-0 02 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-042-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-030-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(C) 		1-41219-044-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(D) 		1-41349-157-0 01 1 0710- ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(E) 		1-41519-047-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(B) 		1-41219-045-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(A) 		1-41219-031-0 01 1 0710- ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER
(C) 		1-41519-048-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(A) 		1-41219-043-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(B) 		1-41219-045-0 01 1 0710- ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER
(C) 		1-41349-156-0 01 1 0710- ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 02 1 0710-0710 ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 0710- ● ● ●
298 GEAR KIT; DIFF,RR AXLE 1-41550-031-0 01 1 0710- ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 0710- ● ● ●
379 PIN; SPLIT 1-41129-021-0 02 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
