1 |
DRUM; BRK,RR
(A)
|
1-42315-419-0 |
04 |
1 |
0710-0710 |
● |
● |
| |
1 |
DRUM; BRK,RR
(A)
|
1-42315-419-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
1 |
DRUM; BRK,RR
(A)
|
1-42315-419-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
1 |
DRUM; BRK,RR
(A)
|
1-42315-419-0 |
02 |
1 |
0712-1204 |
● |
|
| |
1 |
DRUM; BRK,RR
(A)
|
1-42315-419-0 |
02 |
1 |
0712-1204 |
● |
|
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42315-419-0 |
02 |
1 |
0712-1204 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42315-419-0 |
02 |
1 |
0712-1204 |
|
● |
| |
1 |
DRUM; BRK,RR
(C)
|
1-42315-422-0 |
02 |
1 |
1205- |
● |
|
| |
1 |
DRUM; BRK,RR
(C)
|
1-42315-422-0 |
02 |
1 |
1205- |
● |
|
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(C)
|
1-42315-422-0 |
02 |
1 |
1205- |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(C)
|
1-42315-422-0 |
02 |
1 |
1205- |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
|
1-42315-377-2 |
02 |
1 |
0712-1104 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
|
1-42315-377-2 |
02 |
1 |
0712-1104 |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
|
1-42315-377-2 |
02 |
1 |
1105- |
|
● |
| |
1 |
DRUM; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
|
1-42315-377-2 |
02 |
1 |
1105- |
|
● |
| |
8 |
HUB; RR AXLE
(A)
|
1-42311-155-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
8 |
HUB; RR AXLE
(A)
|
1-42311-155-0 |
02 |
1 |
0712-1204 |
● |
|
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42311-155-0 |
02 |
1 |
0712-1204 |
|
● |
| |
8 |
HUB; RR AXLE
(C)
|
1-42311-164-0 |
02 |
1 |
1205- |
● |
|
| |
8 |
HUB; RR AXLE
(C)
|
1-42311-164-0 |
02 |
1 |
1205- |
● |
|
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(C)
|
1-42311-164-0 |
02 |
1 |
1205- |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(C)
|
1-42311-164-0 |
02 |
1 |
1205- |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD
|
1-42311-085-0 |
02 |
1 |
0712- |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
|
1-42311-085-0 |
02 |
1 |
1005-1104 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
|
1-42311-085-0 |
02 |
1 |
1005-1104 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
|
1-42311-085-0 |
02 |
1 |
1105- |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
|
1-42311-085-0 |
02 |
1 |
1105- |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
EXC. ANTI LOCK BRAKE<JE5>
(B) REARWARD
|
1-42311-085-0 |
02 |
1 |
0712-1004 |
|
● |
| |
8 |
HUB; RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ANTI LOCK BRAKE<JE5>
(B) REARWARD
|
1-42311-094-0 |
02 |
1 |
0712-1004 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
M22X93 RH THREAD
|
1-42337-066-2 |
20 |
1 |
0712-1104 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
M22X93 RH THREAD
|
1-42337-066-2 |
20 |
1 |
0712-1104 |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
M22X93 RH THREAD
|
1-42337-066-2 |
20 |
1 |
1105- |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
M22X93 RH THREAD
|
1-42337-066-2 |
20 |
1 |
1105- |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
(A)
|
1-42339-033-0 |
20 |
1 |
0710-0711 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
(A)
|
1-42339-033-0 |
20 |
1 |
0710-0711 |
● |
● |
| |
9 |
PIN; WHEEL,RR AXLE
(A)
|
1-42339-033-0 |
20 |
1 |
0712- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
(A)
|
1-42339-033-0 |
20 |
1 |
0712- |
● |
|
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42339-033-0 |
20 |
1 |
0712- |
|
● |
| |
9 |
PIN; WHEEL,RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42339-033-0 |
20 |
1 |
0712- |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
SKF
|
1-09812-256-0 |
02 |
1 |
1209- |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
SKF
|
1-09812-256-0 |
02 |
1 |
1209- |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
BEST VALUE PARTS
|
1-87610-136-0 |
02 |
1 |
1209- |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
BEST VALUE PARTS
|
1-87610-136-0 |
02 |
1 |
1209- |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
JTEKT
|
1-09812-232-0 |
02 |
1 |
0712-1104 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
JTEKT
|
1-09812-232-0 |
02 |
1 |
0712-1104 |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
JTEKT
|
1-09812-232-0 |
02 |
1 |
1105- |
|
● |
| |
15 |
BEARING; HUB OUTER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
JTEKT
|
1-09812-232-0 |
02 |
1 |
1105- |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
TKK
|
1-09625-444-0 |
02 |
1 |
0712-1104 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
TKK
|
1-09625-444-0 |
02 |
1 |
0712-1104 |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
TKK
|
1-09625-444-0 |
02 |
1 |
1105- |
|
● |
| |
16 |
SEAL; OIL,RR HUB,OUTER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
TKK
|
1-09625-444-0 |
02 |
1 |
1105- |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(C)
M88
|
9-09843-062-2 |
02 |
1 |
0712-1104 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(C)
M88
|
9-09843-062-2 |
02 |
1 |
0712-1104 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(C)
M88
|
9-09843-062-2 |
02 |
1 |
1105-1105 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(C)
M88
|
9-09843-062-2 |
02 |
1 |
1105-1105 |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(C)
M88
|
9-09843-062-2 |
02 |
1 |
1106- |
|
● |
| |
20 |
NUT; BRG,RR HUB
(A)
|
1-42129-065-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
20 |
NUT; BRG,RR HUB
(A)
|
1-42129-065-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
20 |
NUT; BRG,RR HUB
(A)
|
1-42129-065-0 |
02 |
1 |
0712- |
● |
|
| |
20 |
NUT; BRG,RR HUB
(A)
|
1-42129-065-0 |
02 |
1 |
0712- |
● |
|
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42129-065-0 |
02 |
1 |
0712- |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42129-065-0 |
02 |
1 |
0712- |
|
● |
| |
20 |
NUT; BRG,RR HUB
(B)
|
1-42129-067-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
20 |
NUT; BRG,RR HUB
(B)
|
1-42129-067-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
20 |
NUT; BRG,RR HUB
(B)
|
1-42129-067-0 |
02 |
1 |
0712- |
● |
|
| |
20 |
NUT; BRG,RR HUB
(B)
|
1-42129-067-0 |
02 |
1 |
0712- |
● |
|
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(B)
|
1-42129-067-0 |
02 |
1 |
0712- |
|
● |
| |
20 |
NUT; BRG,RR HUB
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(B)
|
1-42129-067-0 |
02 |
1 |
0712- |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=88
|
9-09854-112-0 |
02 |
1 |
0712-1104 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=88
|
9-09854-112-0 |
02 |
1 |
0712-1104 |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=88
|
9-09854-112-0 |
02 |
1 |
1105- |
|
● |
| |
21 |
WASHER; LK,BRG NUT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=88
|
9-09854-112-0 |
02 |
1 |
1105- |
|
● |
| |
24 |
BOLT; LK WASHER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
0712-1104 |
|
● |
| |
24 |
BOLT; LK WASHER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
0712-1104 |
|
● |
| |
24 |
BOLT; LK WASHER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
1105- |
|
● |
| |
24 |
BOLT; LK WASHER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
1105- |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD RH,REARWARD LH
L=976
|
1-42171-356-0 |
01 |
1 |
0712-0910 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD RH,REARWARD LH
L=976
|
1-42171-356-0 |
01 |
1 |
0712-0910 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD RH,REARWARD LH
L=990
|
8-98146-166-0 |
01 |
1 |
0911-1104 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD RH,REARWARD LH
L=990
|
8-98146-166-0 |
01 |
1 |
0911-1104 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B) FORWARD RH,REARWARD LH
L=990
|
8-98146-166-0 |
01 |
1 |
1105- |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B) FORWARD RH,REARWARD LH
L=990
|
8-98146-166-0 |
01 |
1 |
1105- |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD LH,REARWARD RH
L=1106
|
1-42171-357-0 |
01 |
1 |
0712-0910 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD LH,REARWARD RH
L=1106
|
1-42171-357-0 |
01 |
1 |
0712-0910 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD LH,REARWARD RH
L=1110
|
8-98146-167-0 |
01 |
1 |
0911-1104 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B) FORWARD LH,REARWARD RH
L=1110
|
8-98146-167-0 |
01 |
1 |
0911-1104 |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B) FORWARD LH,REARWARD RH
L=1110
|
8-98146-167-0 |
01 |
1 |
1105- |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B) FORWARD LH,REARWARD RH
L=1110
|
8-98146-167-0 |
01 |
1 |
1105- |
|
● |
| |
25 |
SHAFT; AXLE,RR
(A) FORWARD RH,REARWARD LH
|
1-42171-548-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
(A) FORWARD RH,REARWARD LH
|
1-42171-548-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
(A) FORWARD RH,REARWARD LH
|
1-42171-548-0 |
01 |
1 |
0712- |
● |
|
| |
25 |
SHAFT; AXLE,RR
(A) FORWARD RH,REARWARD LH
|
1-42171-548-0 |
01 |
1 |
0712- |
● |
|
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A) FORWARD RH,REARWARD LH
|
1-42171-548-0 |
01 |
1 |
0712- |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A) FORWARD RH,REARWARD LH
|
1-42171-548-0 |
01 |
1 |
0712- |
|
● |
| |
25 |
SHAFT; AXLE,RR
(A) FORWARD LH,REARWARD RH
|
1-42171-585-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
(A) FORWARD LH,REARWARD RH
|
1-42171-585-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
25 |
SHAFT; AXLE,RR
(A) FORWARD LH,REARWARD RH
|
1-42171-585-0 |
01 |
1 |
0712- |
● |
|
| |
25 |
SHAFT; AXLE,RR
(A) FORWARD LH,REARWARD RH
|
1-42171-585-0 |
01 |
1 |
0712- |
● |
|
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A) FORWARD LH,REARWARD RH
|
1-42171-585-0 |
01 |
1 |
0712- |
|
● |
| |
25 |
SHAFT; AXLE,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A) FORWARD LH,REARWARD RH
|
1-42171-585-0 |
01 |
1 |
0712- |
|
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14X58
|
1-09000-582-0 |
20 |
1 |
0712-1104 |
|
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14X58
|
1-09000-582-0 |
20 |
1 |
0712-1104 |
|
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M14X58
|
1-09000-582-0 |
20 |
1 |
1105- |
|
● |
| |
30 |
BOLT; HUB TO AXLE SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M14X58
|
1-09000-582-0 |
20 |
1 |
1105- |
|
● |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
ID=14.2
|
0-91510-814-0 |
20 |
1 |
0712-1104 |
|
● |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
ID=14.2
|
0-91510-814-0 |
20 |
1 |
0712-1104 |
|
● |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
ID=14.2
|
0-91510-814-0 |
20 |
1 |
1105- |
|
● |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
ID=14.2
|
0-91510-814-0 |
20 |
1 |
1105- |
|
● |
| |
33 |
WASHER; AXLE SHAFT
(A)
|
1-42179-003-0 |
16 |
1 |
0710-0711 |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
(A)
|
1-42179-003-0 |
16 |
1 |
0710-0711 |
● |
● |
| |
33 |
WASHER; AXLE SHAFT
(A)
|
1-42179-003-0 |
16 |
1 |
0712- |
● |
|
| |
33 |
WASHER; AXLE SHAFT
(A)
|
1-42179-003-0 |
16 |
1 |
0712- |
● |
|
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42179-003-0 |
16 |
1 |
0712- |
|
● |
| |
33 |
WASHER; AXLE SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42179-003-0 |
16 |
1 |
0712- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
BEST VALUE PARTS
|
1-87610-138-0 |
02 |
1 |
1209- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
BEST VALUE PARTS
|
1-87610-138-0 |
02 |
1 |
1209- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
SKF
|
1-09812-257-0 |
02 |
1 |
1209- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
SKF
|
1-09812-257-0 |
02 |
1 |
1209- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
JTEKT
|
1-09812-233-0 |
02 |
1 |
0712-1104 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
JTEKT
|
1-09812-233-0 |
02 |
1 |
0712-1104 |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
JTEKT
|
1-09812-233-0 |
02 |
1 |
1105- |
|
● |
| |
37 |
BEARING; HUB INNER,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
JTEKT
|
1-09812-233-0 |
02 |
1 |
1105- |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
NOK
|
1-09625-265-0 |
02 |
1 |
0712-1104 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
NOK
|
1-09625-265-0 |
02 |
1 |
0712-1104 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
NOK
|
1-09625-265-0 |
02 |
1 |
1105- |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
NOK
|
1-09625-265-0 |
02 |
1 |
1105- |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
TKK
|
1-09625-350-0 |
02 |
1 |
0712-1104 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
TKK
|
1-09625-350-0 |
02 |
1 |
0712-1104 |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
TKK
|
1-09625-350-0 |
02 |
1 |
1105- |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
TKK
|
1-09625-350-0 |
02 |
1 |
1105- |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
(A)
|
1-42319-172-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
(A)
|
1-42319-172-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
(A)
|
1-42319-172-0 |
02 |
1 |
0712- |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
(A)
|
1-42319-172-0 |
02 |
1 |
0712- |
● |
|
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42319-172-0 |
02 |
1 |
0712- |
|
● |
| |
38 |
SEAL; OIL,RR HUB,INNER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42319-172-0 |
02 |
1 |
0712- |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
OD=179
|
1-09587-057-0 |
02 |
1 |
0712-1104 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
OD=179
|
1-09587-057-0 |
02 |
1 |
0712-1104 |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
OD=179
|
1-09587-057-0 |
02 |
1 |
1105- |
|
● |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
OD=179
|
1-09587-057-0 |
02 |
1 |
1105- |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D)
(A)
|
1-42190-739-0 |
01 |
1 |
0710-0710 |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42190-739-0 |
01 |
1 |
0710-1205 |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42190-750-0 |
01 |
1 |
1206- |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D)
(B)
|
1-42190-740-0 |
01 |
1 |
0710-0710 |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(B)
|
1-42190-740-0 |
01 |
1 |
0710-1306 |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(B)
|
1-42190-751-0 |
01 |
1 |
1307- |
● |
|
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D)
(E)
|
1-42190-737-0 |
01 |
1 |
0710-0710 |
|
● |
| |
49 |
CASE; RR AXLE
(E)
|
1-42190-737-0 |
01 |
1 |
0710-0711 |
|
● |
| |
49 |
CASE; RR AXLE
AUSTRALIA EQUIPMENT(B13)
(E)
|
1-42190-737-0 |
01 |
1 |
0712- |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D)
(F)
|
1-42190-738-0 |
01 |
1 |
0710-0710 |
|
● |
| |
49 |

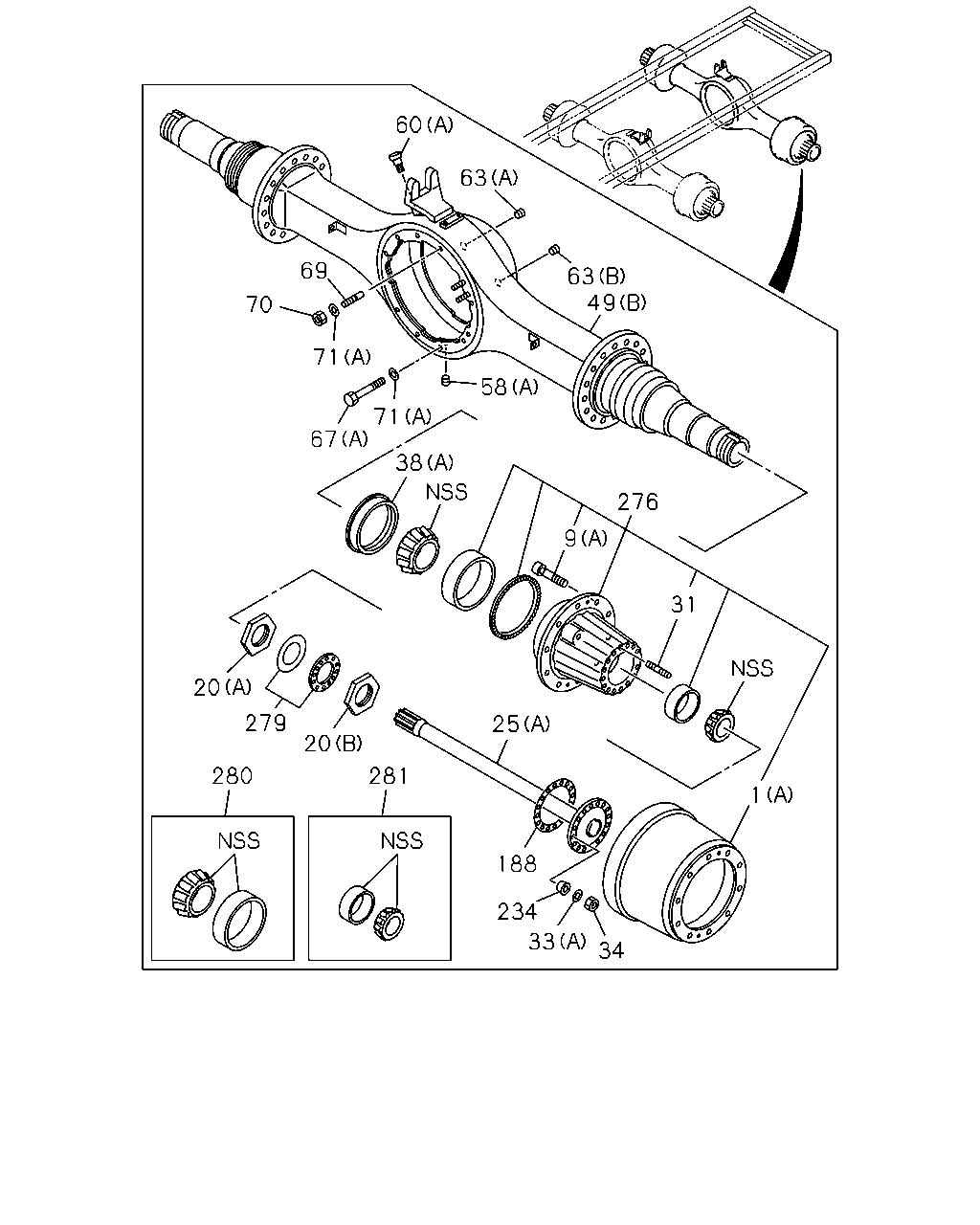

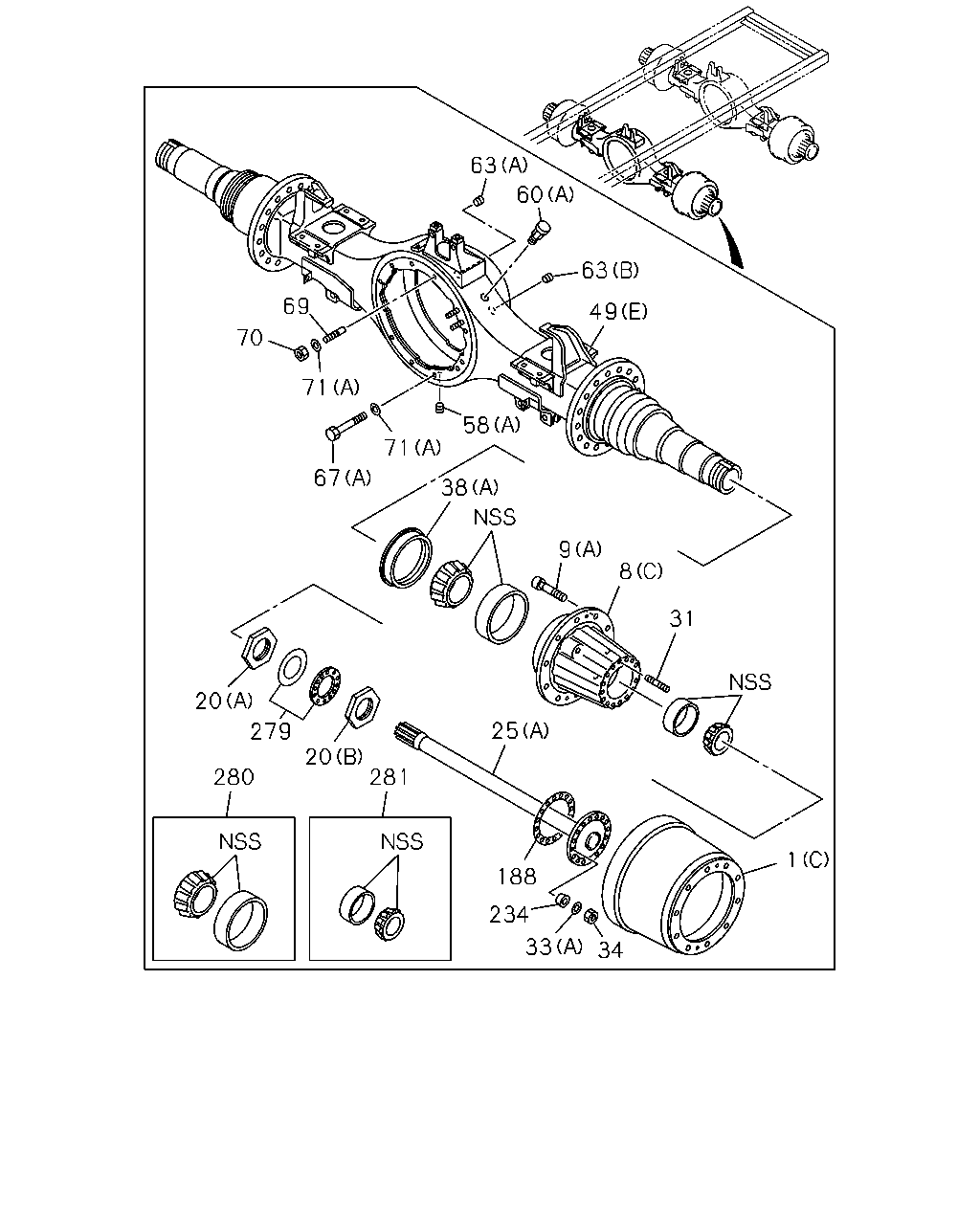

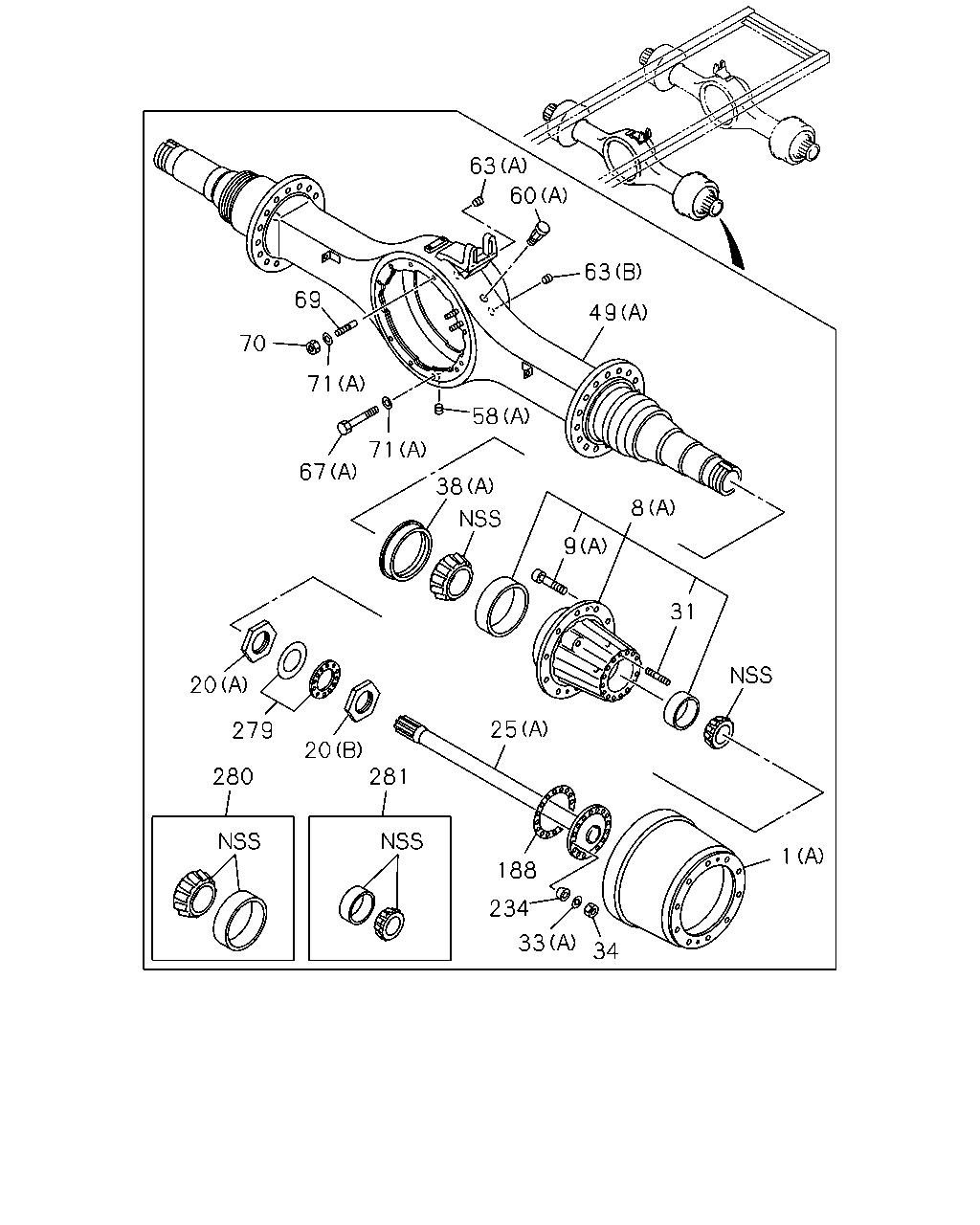

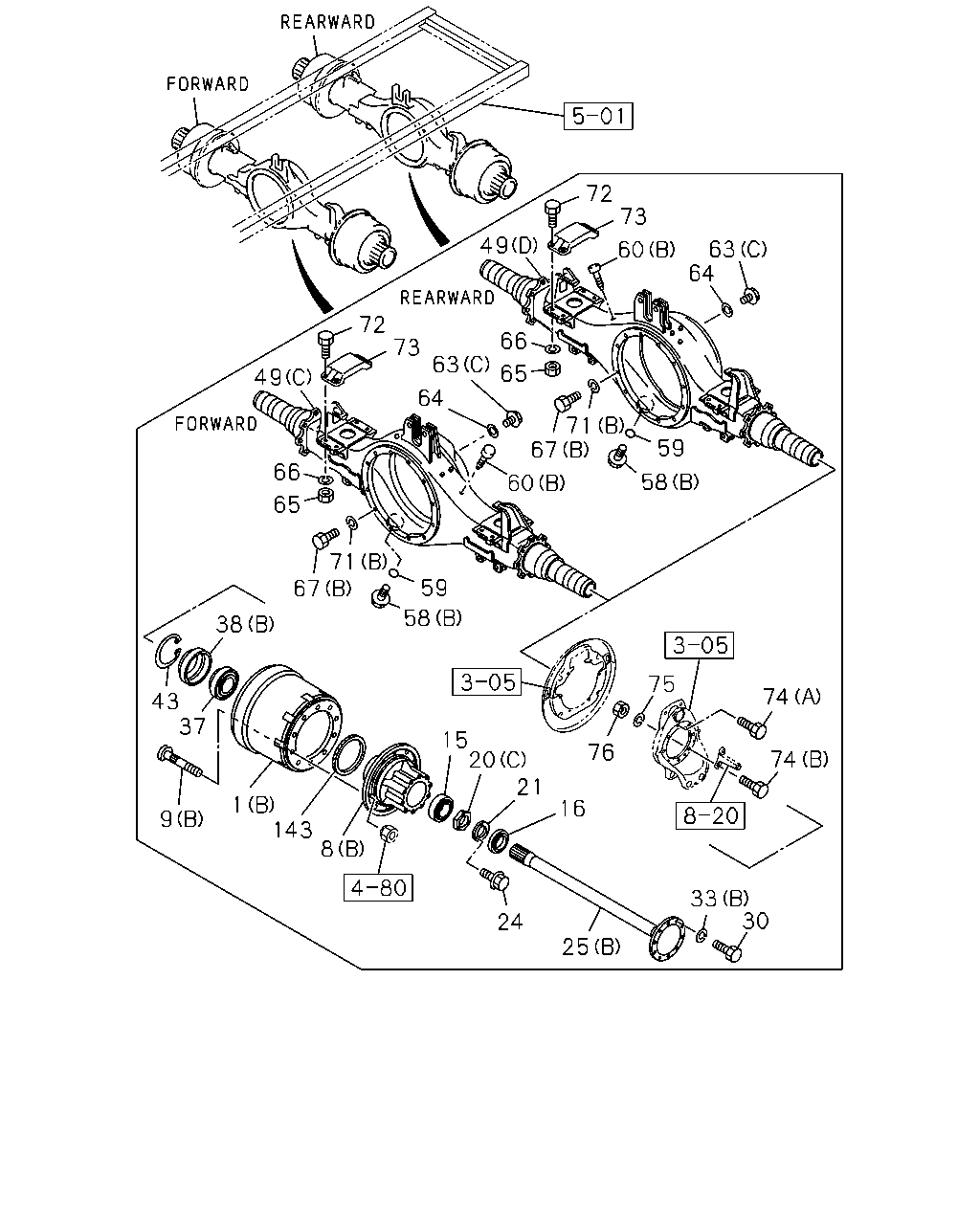

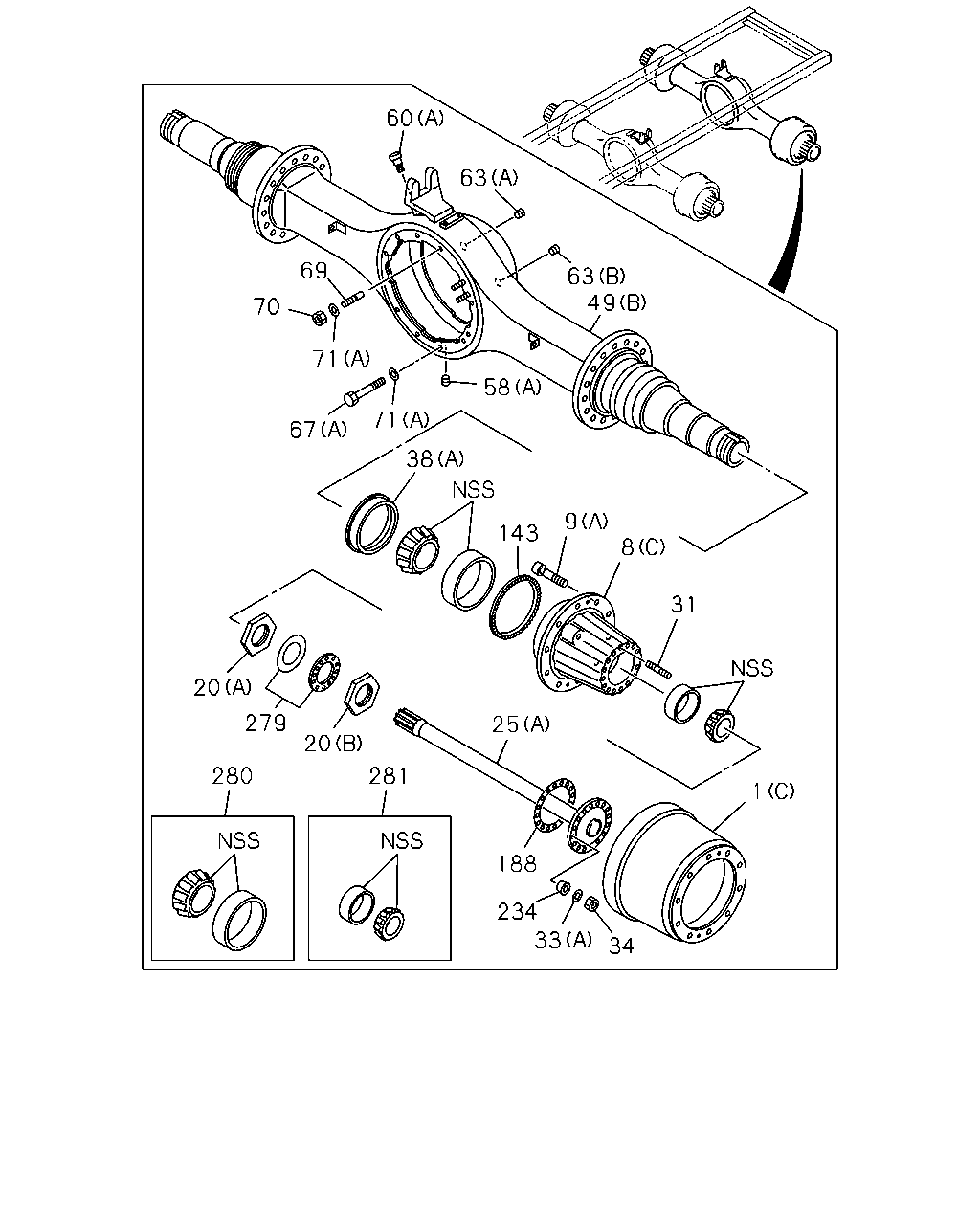

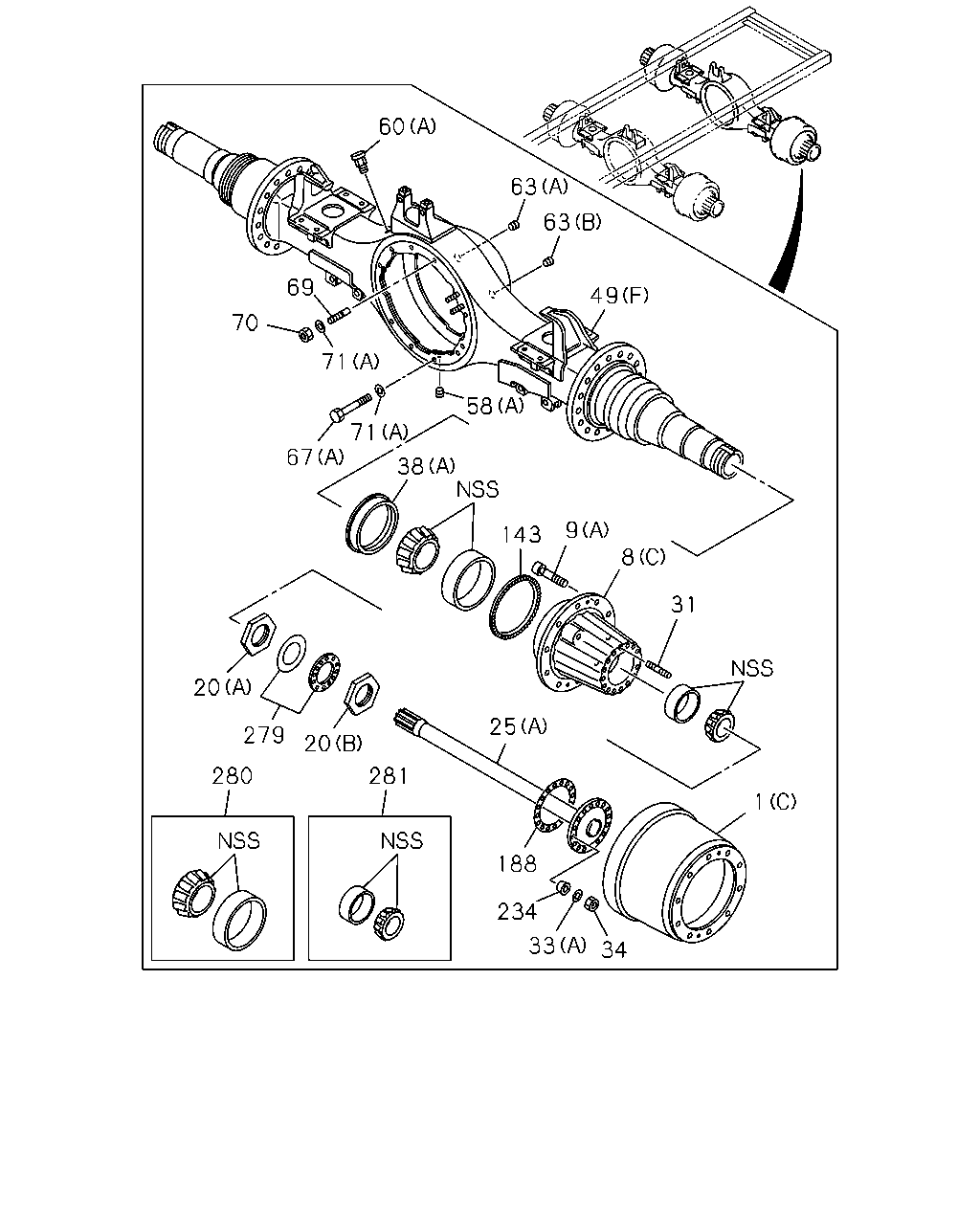

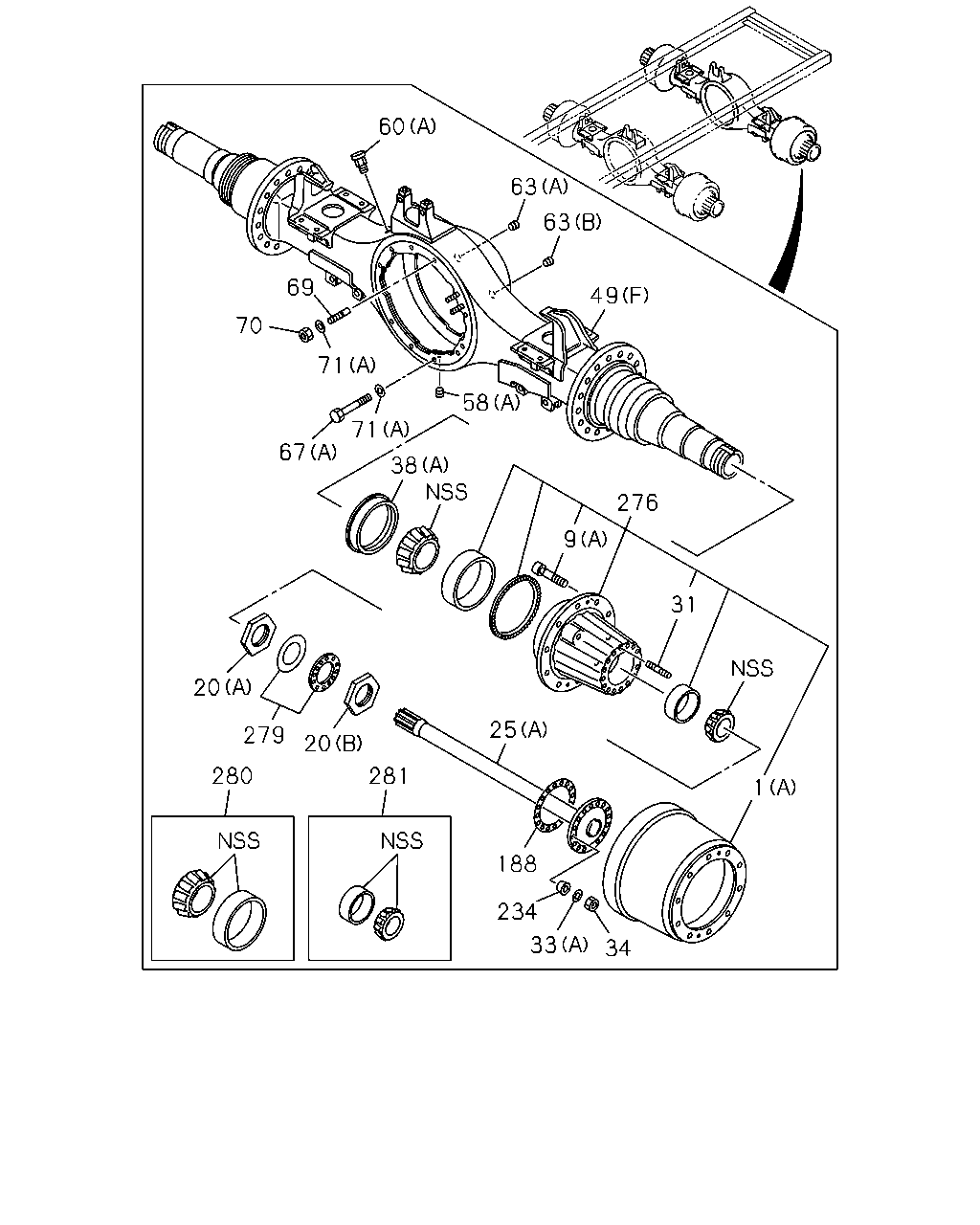

CASE; RR AXLE
(F)
|
1-42190-738-0 |
01 |
1 |
0710-0711 |
|
● |
| |
49 |
CASE; RR AXLE
AUSTRALIA EQUIPMENT(B13)
(F)
|
1-42190-738-0 |
01 |
1 |
0712-1306 |
|
● |
| |
49 |
CASE; RR AXLE
AUSTRALIA EQUIPMENT(B13)
(F)
|
1-42190-745-0 |
01 |
1 |
1307- |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ANTI LOCK BRAKE<JE5>
(D)
|
8-98077-913-0 |
01 |
1 |
0712-1004 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(C)
|
8-98077-912-0 |
01 |
1 |
0712-1104 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(C)
|
8-98077-912-0 |
01 |
1 |
1105-1105 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
EXC. AUSTRALIA EQUIPMENT(B13)
(C)
|
8-98077-912-2 |
01 |
1 |
1106- |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
EXC. ANTI LOCK BRAKE<JE5>
(D)
|
8-98077-914-0 |
01 |
1 |
0712-1104 |
|
● |
| |
49 |
CASE; RR AXLE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
EXC. ANTI LOCK BRAKE<JE5>
(D)
|
8-98077-914-2 |
01 |
1 |
1105- |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0712-1104 |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0712-1104 |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
1105- |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
1105- |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
(A)
|
1-42129-054-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
(A)
|
1-42129-054-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
(A)
|
1-42129-054-0 |
01 |
1 |
0712- |
● |
|
| |
58 |
PLUG; DRAIN,AXLE CASE
(A)
|
1-42129-054-0 |
01 |
1 |
0712- |
● |
|
| |
58 |
PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42129-054-0 |
01 |
1 |
0712- |
|
● |
| |
58 |
PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42129-054-0 |
01 |
1 |
0712- |
|
● |
| |
59 |
GASKET; DRAIN PLUG
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0712-1104 |
|
● |
| |
59 |
GASKET; DRAIN PLUG
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0712-1104 |
|
● |
| |
59 |
GASKET; DRAIN PLUG
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1105- |
|
● |
| |
59 |
GASKET; DRAIN PLUG
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1105- |
|
● |
| |
60 |
BREATHER; RR AXLE CASE
(A)
|
1-09893-028-0 |
01 |
1 |
0712-1312 |
● |
|
| |
60 |
BREATHER; RR AXLE CASE
(A)
|
1-09893-028-0 |
01 |
1 |
0712-1312 |
● |
|
| |
60 |
BREATHER; RR AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-09893-028-0 |
01 |
1 |
0712-1312 |
|
● |
| |
60 |
BREATHER; RR AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-09893-028-0 |
01 |
1 |
0712-1312 |
|
● |
| |
60 |
BREATHER; RR AXLE CASE
(A)
|
1-09893-032-0 |
01 |
1 |
1401- |
● |
|
| |
60 |
BREATHER; RR AXLE CASE
(A)
|
1-09893-032-0 |
01 |
1 |
1401- |
● |
|
| |
60 |
BREATHER; RR AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-09893-032-0 |
01 |
1 |
1401- |
|
● |
| |
60 |
BREATHER; RR AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-09893-032-0 |
01 |
1 |
1401- |
|
● |
| |
60 |
BREATHER; RR AXLE CASE
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
|
1-09893-003-0 |
02 |
1 |
0712- |
|
● |
| |
60 |
BREATHER; RR AXLE CASE
(A)
|
1-09893-028-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
60 |
BREATHER; RR AXLE CASE
(A)
|
1-09893-028-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(C)
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0712-1104 |
|
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(C)
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0712-1104 |
|
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(C)
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
1105- |
|
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(C)
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
1105- |
|
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
(A)
|
1-42119-135-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
(A)
|
1-42119-135-0 |
02 |
1 |
0710-0711 |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
(A)
|
1-42119-135-0 |
02 |
1 |
0712- |
● |
|
| |
63 |
PLUG; OIL FILLER,AXLE CASE
(A)
|
1-42119-135-0 |
02 |
1 |
0712- |
● |
|
| |
63 |
PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42119-135-0 |
02 |
1 |
0712- |
|
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42119-135-0 |
02 |
1 |
0712- |
|
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
(B)
|
1-42129-054-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
(B)
|
1-42129-054-0 |
01 |
1 |
0710-0711 |
● |
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
(B)
|
1-42129-054-0 |
01 |
1 |
0712- |
● |
|
| |
63 |
PLUG; OIL FILLER,AXLE CASE
(B)
|
1-42129-054-0 |
01 |
1 |
0712- |
● |
|
| |
63 |
PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(B)
|
1-42129-054-0 |
01 |
1 |
0712- |
|
● |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(B)
|
1-42129-054-0 |
01 |
1 |
0712- |
|
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0712-1104 |
|
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0712-1104 |
|
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1105- |
|
● |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=26.8
|
9-09920-605-0 |
01 |
1 |
1105- |
|
● |
| |
65 |
NUT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14
|
0-91110-514-0 |
08 |
1 |
0712-1104 |
|
● |
| |
65 |
NUT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14
|
0-91110-514-0 |
08 |
1 |
0712-1104 |
|
● |
| |
65 |
NUT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M14
|
0-91110-514-0 |
08 |
1 |
1105- |
|
● |
| |
65 |
NUT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M14
|
0-91110-514-0 |
08 |
1 |
1105- |
|
● |
| |
66 |
WASHER; LK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=14.2
|
0-91510-814-0 |
08 |
1 |
0712-1104 |
|
● |
| |
66 |
WASHER; LK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=14.2
|
0-91510-814-0 |
08 |
1 |
0712-1104 |
|
● |
| |
66 |
WASHER; LK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=14.2
|
0-91510-814-0 |
08 |
1 |
1105- |
|
● |
| |
66 |
WASHER; LK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=14.2
|
0-91510-814-0 |
08 |
1 |
1105- |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
(A)
|
1-42119-136-0 |
06 |
1 |
0710-0711 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
(A)
|
1-42119-136-0 |
06 |
1 |
0712- |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42119-136-0 |
06 |
1 |
0712- |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
M16X40
|
0-20951-640-0 |
07 |
1 |
0712-1104 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
M16X40
|
0-20951-640-0 |
07 |
1 |
1105-1105 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
EXC. AUSTRALIA EQUIPMENT(B13)
(B)
M16X40
|
0-20951-640-0 |
07 |
1 |
1106- |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
M16X40
|
0-20951-640-0 |
08 |
1 |
0712-1004 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
EXC. ANTI LOCK BRAKE<JE5>
(B)
M16X40
|
0-20951-640-0 |
08 |
1 |
1005-1104 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
EXC. ANTI LOCK BRAKE<JE5>
(B)
M16X40
|
0-20951-640-0 |
08 |
1 |
1105- |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
M16X70
|
0-10956-670-0 |
04 |
1 |
0712-1104 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
M16X70
|
0-10956-670-0 |
04 |
1 |
0712-1104 |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
M16X70
|
0-10956-670-0 |
04 |
1 |
1105- |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
M16X70
|
0-10956-670-0 |
04 |
1 |
1105- |
|
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
(A)
|
1-42119-136-0 |
14 |
1 |
0710-0710 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
(A)
|
1-42119-136-0 |
08 |
1 |
0710-0711 |
● |
● |
| |
67 |
BOLT; FINAL DRIVE SETTING
(A)
|
1-42119-136-0 |
08 |
1 |
0712- |
● |
|
| |
67 |
BOLT; FINAL DRIVE SETTING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-42119-136-0 |
08 |
1 |
0712- |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
ID=16.2
|
0-91510-816-0 |
12 |
1 |
0712-1104 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(B)
ID=16.2
|
0-91510-816-0 |
12 |
1 |
0712-1104 |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
ID=16.2
|
0-91510-816-0 |
12 |
1 |
1105- |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(B)
ID=16.2
|
0-91510-816-0 |
12 |
1 |
1105- |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
(A)
|
1-41229-168-0 |
24 |
1 |
0710-0710 |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
(A)
|
1-41229-168-0 |
12 |
1 |
0710-0711 |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
(A)
|
1-41229-168-0 |
12 |
1 |
0710-0711 |
● |
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
(A)
|
1-41229-168-0 |
12 |
1 |
0712- |
● |
|
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
(A)
|
1-41229-168-0 |
12 |
1 |
0712- |
● |
|
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-41229-168-0 |
12 |
1 |
0712- |
|
● |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
(A)
|
1-41229-168-0 |
12 |
1 |
0712- |
|
● |
| |
72 |
BOLT; PAD FIX
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14X45
|
9-92061-445-0 |
08 |
1 |
0712-0805 |
|
● |
| |
72 |
BOLT; PAD FIX
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14X45
|
9-92061-445-0 |
08 |
1 |
0712-0805 |
|
● |
| |
72 |
BOLT; PAD FIX
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14X40
|
0-20951-440-0 |
08 |
1 |
0806-1104 |
|
● |
| |
72 |
BOLT; PAD FIX
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14X40
|
0-20951-440-0 |
08 |
1 |
0806-1104 |
|
● |
| |
72 |
BOLT; PAD FIX
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M14X40
|
0-20951-440-0 |
08 |
1 |
1105- |
|
● |
| |
72 |
BOLT; PAD FIX
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M14X40
|
0-20951-440-0 |
08 |
1 |
1105- |
|
● |
| |
73 |
PAD; RR SPR CONTACT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
|
1-42124-101-0 |
02 |
1 |
0712-1104 |
|
● |
| |
73 |
PAD; RR SPR CONTACT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
|
1-42124-101-0 |
02 |
1 |
0712-1104 |
|
● |
| |
73 |
PAD; RR SPR CONTACT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
|
1-42124-101-0 |
02 |
1 |
1105- |
|
● |
| |
73 |
PAD; RR SPR CONTACT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
|
1-42124-101-0 |
02 |
1 |
1105- |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ANTI LOCK BRAKE<JE5>
(A)
M14X50
|
1-09040-066-0 |
12 |
1 |
0712-1004 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ANTI LOCK BRAKE<JE5>
(B)
M14X80
|
9-92621-480-0 |
04 |
1 |
0712-1004 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(A)
M14X50
|
1-09040-066-0 |
16 |
1 |
0712-1004 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
EXC. ANTI LOCK BRAKE<JE5>
(A)
M14X50
|
1-09040-066-0 |
16 |
1 |
0712-1004 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(A)
M14X50
|
1-09040-066-0 |
16 |
1 |
1005-1104 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
(A)
M14X50
|
1-09040-066-0 |
16 |
1 |
1005-1104 |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(A)
M14X50
|
1-09040-066-0 |
16 |
1 |
1105- |
|
● |
| |
74 |
BOLT; RR BRK ASM SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
(A)
M14X50
|
1-09040-066-0 |
16 |
1 |
1105- |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0712-1104 |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0712-1104 |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=14.2
|
0-91510-814-0 |
16 |
1 |
1105- |
|
● |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
ID=14.2
|
0-91510-814-0 |
16 |
1 |
1105- |
|
● |
| |
76 |
NUT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14
|
0-91110-514-0 |
16 |
1 |
0712-1104 |
|
● |
| |
76 |
NUT; RR BRK ASM SETTING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
M14
|
0-91110-514-0 |
16 |
1 |
0712-1104 |
|
● |
| |
76 |
NUT; RR BRK ASM SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M14
|
0-91110-514-0 |
16 |
1 |
1105- |
|
● |
| |
76 |
NUT; RR BRK ASM SETTING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7
17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)
M14
|
0-91110-514-0 |
16 |
1 |
1105- |
|
● |
| |
143 |
RING; EXCITER
|
1-42319-224-0 |
02 |
1 |
1205- |
● |
|
| |
143 |
RING; EXCITER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7
15" ROCKWELL(W8D),FINAL GEAR 41/6 15"
ROCKWELL(W8L)
|
1-42319-224-0 |
02 |
1 |
1205- |
|
● |
| |
143 |
RING; EXCITER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7
17.5"(W3Z)
ANTI LOCK BRAKE<JE5>
|
1-42319-173-0 |
02 |
1 |
0712-1004 |
|
● |
