Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#65730) — 491 parça

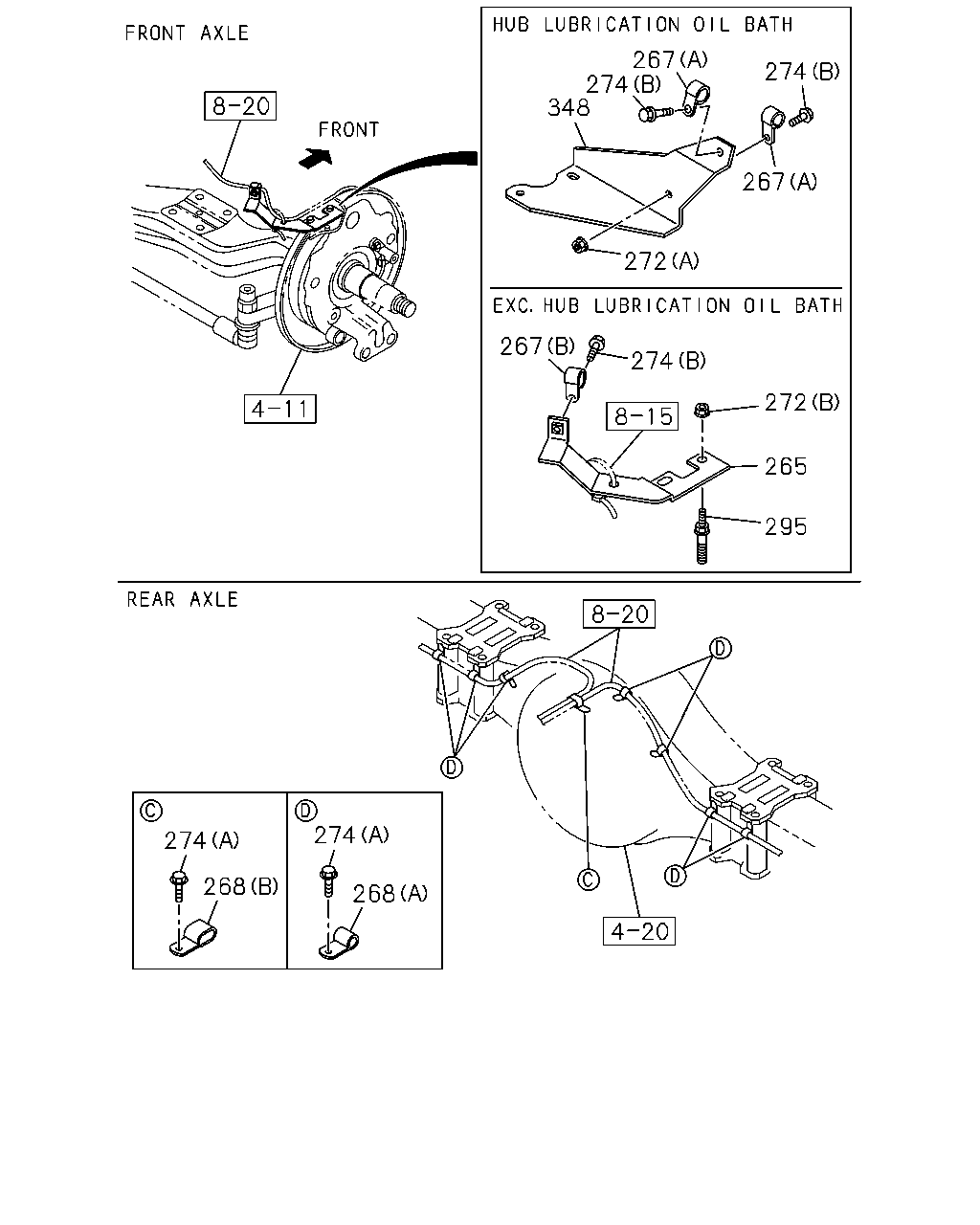

267 274 348 274 267 272 267 274 272 265 295 274 274 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K>	8-98073-525-0	01	1	0712-1105	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98073-525-0	01	1	1106-	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K>	8-98073-526-0	01	1	0712-1105	●
265	BRACKET; CLIP I BEAM ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K>	8-98073-526-0	01	1	1106-	●
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=11 L=20	0-95235-035-0	02	1	0712-1105	●
267	CLIP; HARNESS ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) ID=11 L=20	0-95235-035-0	02	1	1106-	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	06	1	0710-0711	●	●
267	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	06	1	0712-		●
267	CLIP; HARNESS HUB LUBRICATION OIL BATH<C5K> (A) ID=11 L=16	0-95235-025-0	06	1	0712-	●
268	CLIP; HARNESS FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (A) ID=11 L=20	0-95235-035-0	07	1	0710-0710		●
268	CLIP; HARNESS FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) ID=11 L=20	0-95235-035-0	07	1	0710-		●
268	CLIP; HARNESS FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (B) ID=11X2 L=16	0-95325-025-0	02	1	0710-0710		●
268	CLIP; HARNESS FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) ID=11X2 L=16	0-95325-025-0	02	1	0710-		●
268	CLIP; HARNESS FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (A) ID=11 L=20	0-95235-035-0	08	1	0710-0710	●
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	08	1	0710-0711	●
268	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=11 L=20	0-95235-035-0	08	1	0712-1004	●
268	CLIP; HARNESS AUSTRALIA EQUIPMENT(B13) (A) ID=11 L=20	0-95235-035-0	08	1	1005-	●
272	NUT; CLIP ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10 FLANGE	0-91180-110-0	04	1	0712-1105	●
272	NUT; CLIP ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10 FLANGE	0-91180-110-0	04	1	1106-	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●
272	NUT; CLIP (A) M8 FLANGE	0-91180-108-0	02	1	0712-		●
272	NUT; CLIP HUB LUBRICATION OIL BATH<C5K> (A) M8 FLANGE	0-91180-108-0	02	1	0712-	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X16 FLANGE	0-28050-816-0	02	1	0712-1105	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> (B) M8X16 FLANGE	0-28050-816-0	02	1	1106-	●
274	BOLT; CLIP FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (A) M8X10 FLANGE	0-28050-810-0	09	1	0710-0710		●
274	BOLT; CLIP FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) M8X10 FLANGE	0-28050-810-0	09	1	0710-		●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	0710-0711	●	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	04	1	0712-		●
274	BOLT; CLIP HUB LUBRICATION OIL BATH<C5K> (B) M8X16 FLANGE	0-28050-816-0	04	1	0712-	●
274	BOLT; CLIP FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) (A) M8X10 FLANGE	0-28050-810-0	08	1	0710-0710	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	0710-0711	●
274	BOLT; CLIP ANTI LOCK BRAKE<JE5> (A) M8X10 FLANGE	0-28050-810-0	08	1	0712-1004	●
274	BOLT; CLIP AUSTRALIA EQUIPMENT(B13) (A) M8X10 FLANGE	0-28050-810-0	08	1	1005-	●
295	STUD; COVER,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
348	BRACKET; CLIP	8-98034-794-0	01	1	0710-0711	●	●
348	BRACKET; CLIP	8-98034-794-0	01	1	0712-		●
348	BRACKET; CLIP HUB LUBRICATION OIL BATH<C5K>	8-98034-794-0	01	1	0712-	●
348	BRACKET; CLIP	8-98034-793-0	01	1	0710-0711	●	●
348	BRACKET; CLIP	8-98034-793-0	01	1	0712-		●
348	BRACKET; CLIP HUB LUBRICATION OIL BATH<C5K>	8-98034-793-0	01	1	0712-	●

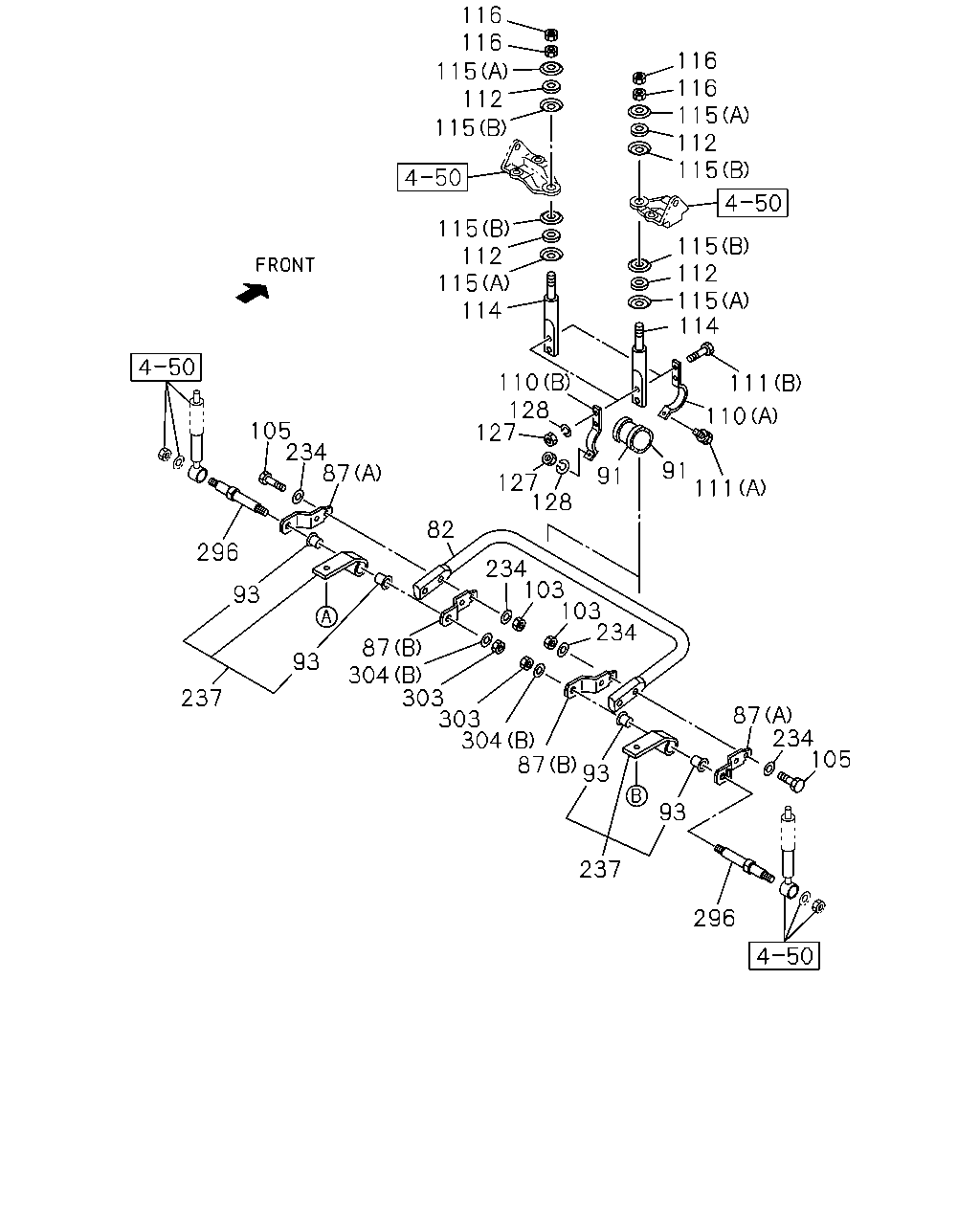

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 110 128 127 111 110 105 234 87 91 91 127 128 111 82 296 234 103 103 234 93 87 304 303 303 304 87 93 93 237 87 234 105 93 237 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	0710-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	0710-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	0710-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	0710-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0710-	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0710-	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0710-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0710-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0710-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0710-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0710-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0710-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	0710-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	0710-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	0710-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0710-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0710-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	0710-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0710-	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0710-	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0710-	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0710-	●	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●

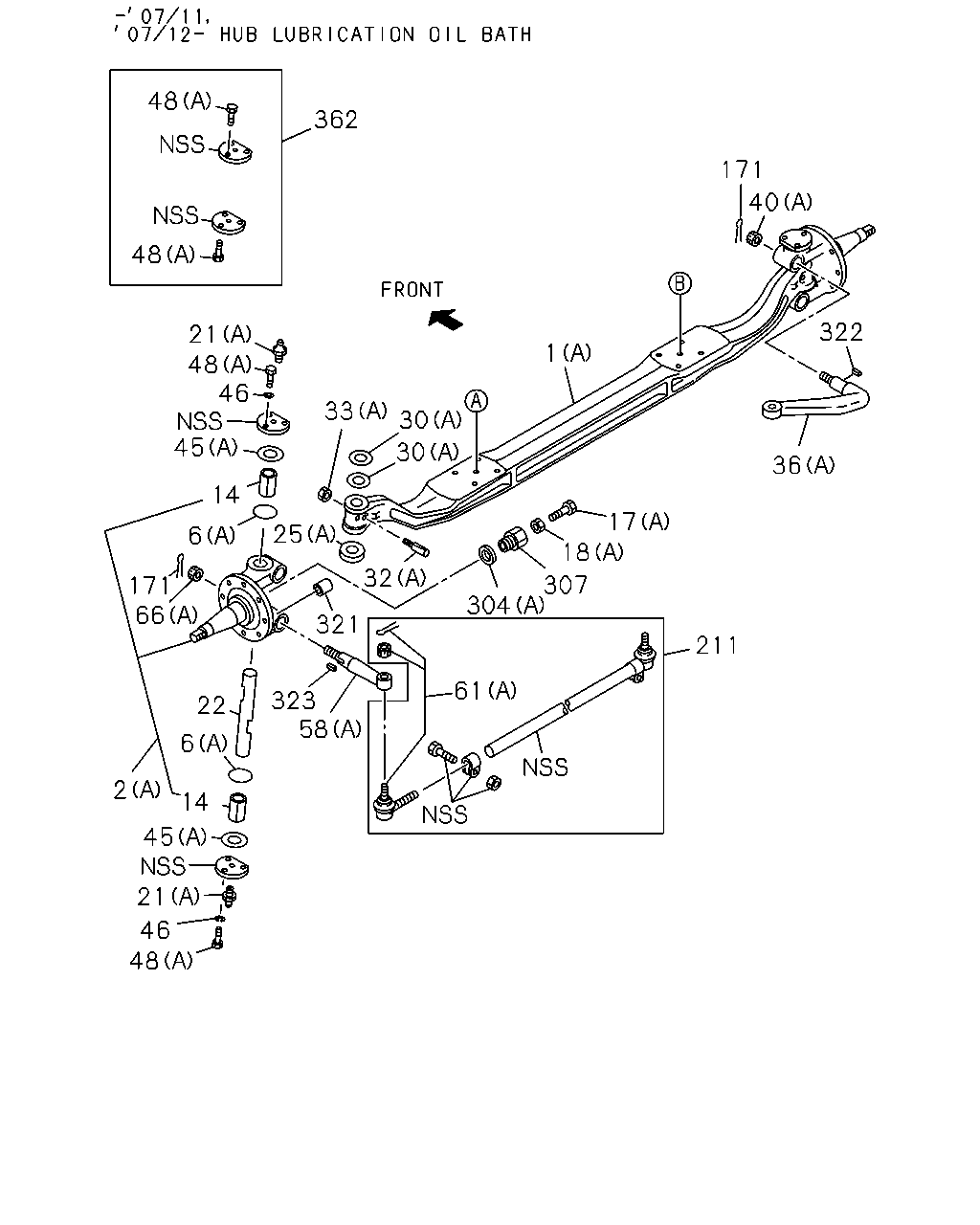

48 362 171 40 322 48 21 48 46 45 1 33 30 30 36 14 17 25 6 18 32 307 171 66 304 321 211 61 323 58 22 6 2 14 45 21 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

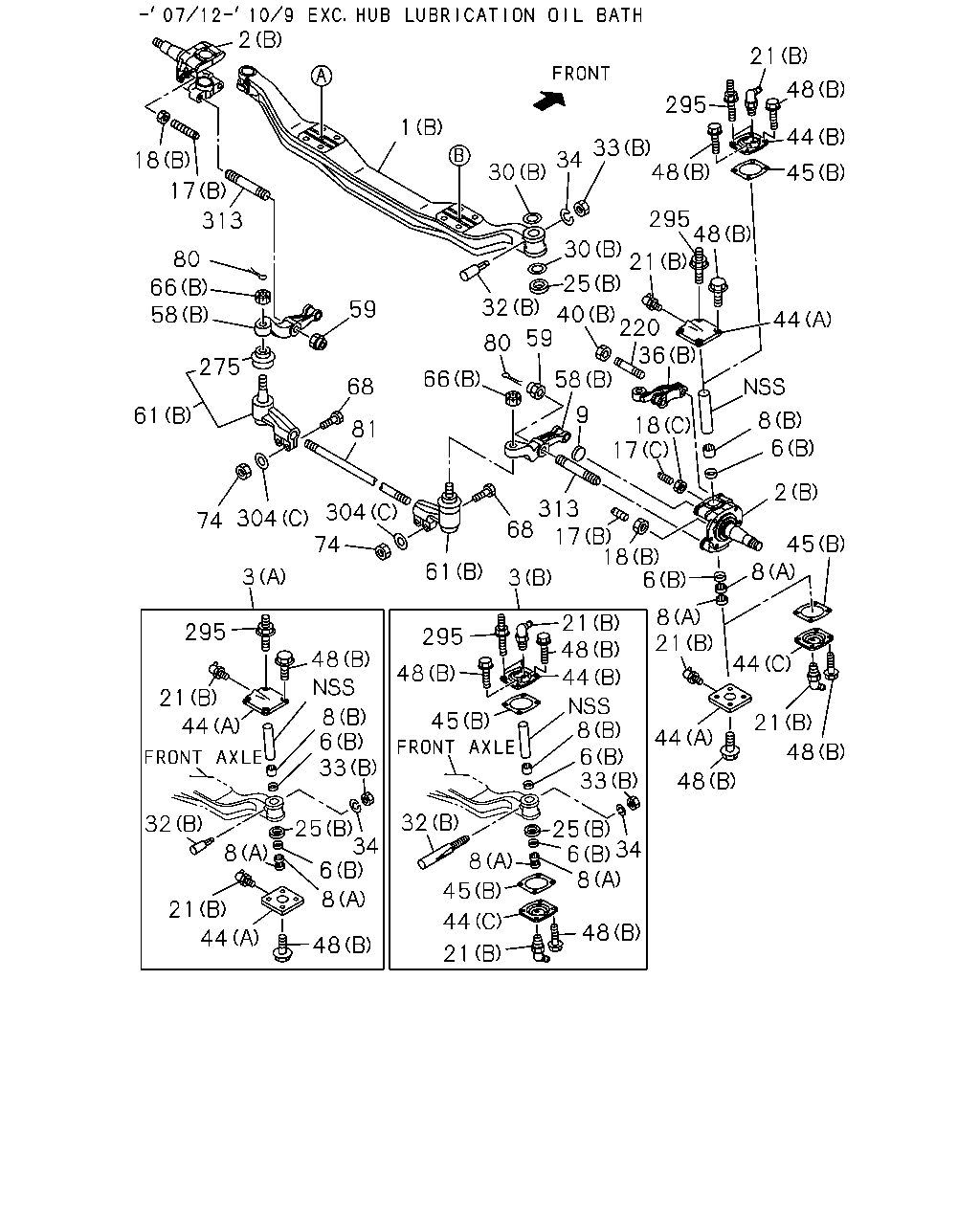

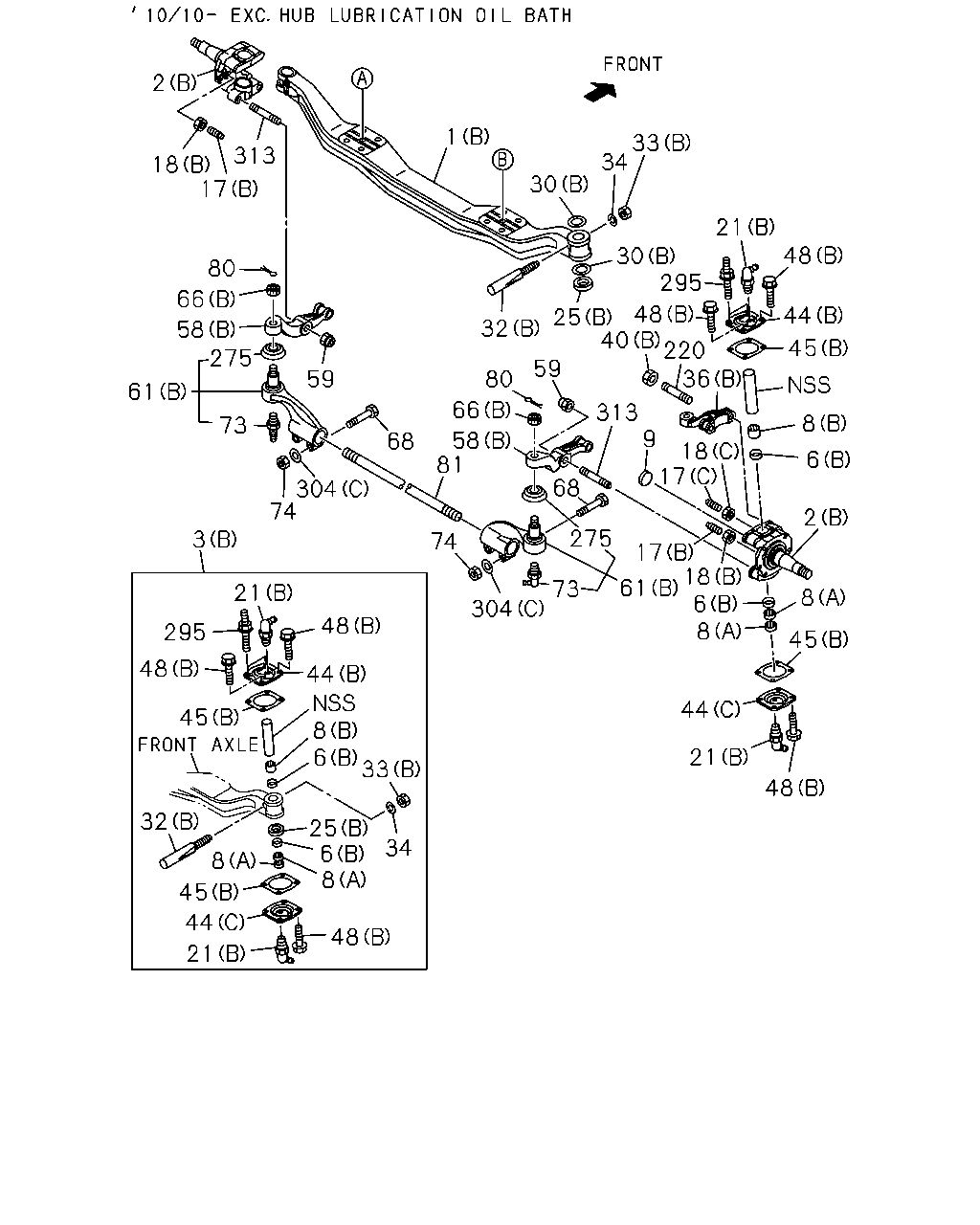

1	AXLE; FRT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR 2011<VZB> (B)	8-98061-842-2	01	1	1012-1105	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-0711	●	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0712-		●
1	AXLE; FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-43111-161-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43131-108-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43132-107-0	01	1	0712-	●
6	SEAL; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	9-09926-024-0	04	1	0712-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-0711	●	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0712-		●
6	SEAL; KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-634-0	04	1	0712-	●
14	BUSHING; KING PIN	1-43149-015-0	04	1	0710-0711	●	●
14	BUSHING; KING PIN	1-43149-015-0	04	1	0712-		●
14	BUSHING; KING PIN HUB LUBRICATION OIL BATH<C5K>	1-43149-015-0	04	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X43	1-09009-190-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-0711	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0712-		●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-014-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18	0-91110-518-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (C) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-0711	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-013-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-0711	●	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0712-		●
21	NIPPLE; GREASE,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-48259-253-0	04	1	0712-	●
22	PIN; KING,FRT AXLE	1-43161-016-0	02	1	0710-0711	●	●
22	PIN; KING,FRT AXLE	1-43161-016-0	02	1	0712-		●
22	PIN; KING,FRT AXLE HUB LUBRICATION OIL BATH<C5K>	1-43161-016-0	02	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NSK	1-09829-043-2	02	1	0712-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-0711	●	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0712-		●
25	BEARING; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-43173-004-0	02	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.015"	1-43171-338-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.010"	1-43171-339-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.005"	1-43171-340-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=98.4	1-43116-014-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43116-002-2	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=3.25"	1-43116-006-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-0711	●	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0712-		●
33	NUT; KEY BOLT HUB LUBRICATION OIL BATH<C5K> (A)	1-43119-002-0	04	1	0712-	●
36	ARM; KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-0711	●	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0712-		●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43133-087-0	01	1	0712-	●
40	NUT; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22	1-09449-084-0	02	1	0712-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-0711	●	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0712-		●
40	NUT; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-059-0	01	1	0712-	●
45	GASKET; KING PIN COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-0711	●	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0712-		●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-044-0	04	1	0712-	●
46	WASHER; LK,COVER	1-41519-055-0	12	1	0710-0711	●	●
46	WASHER; LK,COVER	1-41519-055-0	12	1	0712-		●
46	WASHER; LK,COVER HUB LUBRICATION OIL BATH<C5K>	1-41519-055-0	12	1	0712-	●
48	BOLT; COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-0711	●	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0712-		●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-045-0	12	1	0712-	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0712-		●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43134-061-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0712-		●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43135-066-0	01	1	0712-	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0712-		●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43155-058-0	01	1	0712-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0712-		●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43156-058-0	01	1	0712-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-0711	●	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0712-		●
66	NUT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-052-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24	1-09442-032-0	02	1	0806-	●
171	PIN; SPLIT,STRG ARM	1-43139-048-0	03	1	0710-0711	●	●
171	PIN; SPLIT,STRG ARM	1-43139-048-0	03	1	0712-		●
171	PIN; SPLIT,STRG ARM HUB LUBRICATION OIL BATH<C5K>	1-43139-048-0	03	1	0712-	●
211	ROD ASM; STEERING TIE ROD	1-43150-861-0	01	1	0710-0711	●	●
211	ROD ASM; STEERING TIE ROD	1-43150-861-0	01	1	0712-		●
211	ROD ASM; STEERING TIE ROD HUB LUBRICATION OIL BATH<C5K>	1-43150-861-0	01	1	0712-	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●
307	STOPPER; STEERING,RR	1-43149-012-0	02	1	0710-0711	●	●
307	STOPPER; STEERING,RR	1-43149-012-0	02	1	0712-		●
307	STOPPER; STEERING,RR HUB LUBRICATION OIL BATH<C5K>	1-43149-012-0	02	1	0712-	●
321	BUSHING; KNUCKLE	1-42319-213-0	02	1	0710-0711	●	●
321	BUSHING; KNUCKLE	1-42319-213-0	02	1	0712-		●
321	BUSHING; KNUCKLE HUB LUBRICATION OIL BATH<C5K>	1-42319-213-0	02	1	0712-	●
322	KEY; KNUCKLE ARM	1-43139-046-0	01	1	0710-0711	●	●
322	KEY; KNUCKLE ARM	1-43139-046-0	01	1	0712-		●
322	KEY; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K>	1-43139-046-0	01	1	0712-	●
323	KEY; TIE ROD ARM	1-43139-046-0	02	1	0710-0711	●	●
323	KEY; TIE ROD ARM	1-43139-046-0	02	1	0712-		●
323	KEY; TIE ROD ARM HUB LUBRICATION OIL BATH<C5K>	1-43139-046-0	02	1	0712-	●
362	COVER SET; KING PIN	1-43175-027-0	02	1	0710-0711	●	●
362	COVER SET; KING PIN	1-43175-027-0	02	1	0712-		●
362	COVER SET; KING PIN HUB LUBRICATION OIL BATH<C5K>	1-43175-027-0	02	1	0712-	●

21 48 295 1 44 33 48 34 18 30 45 17 295 48 30 21 25 313 80 32 66 58 59 40 220 59 36 44 80 275 66 58 68 18 17 9 61 8 6 81 313 68 17 18 6 304 304 74 74 45 61 8 3 3 8 21 21 48 44 295 295 48 44 48 21 8 6 33 8 6 33 45 21 44 44 48 48 32 32 25 34 6 25 34 6 8 8 8 45 8 21 44 48 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR 2011<VZB> (B)	8-98061-842-2	01	1	1012-1105	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-0711	●	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0712-		●
1	AXLE; FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-43111-161-0	01	1	0712-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-410-2	02	1	1012-	●
3	KING PIN SET EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-1	02	1	1012-1105	●
6	SEAL; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	9-09926-024-0	04	1	0712-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-0711	●	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0712-		●
6	SEAL; KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-634-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (A) NTN	9-00096-242-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NTN	9-00096-243-0	02	1	0712-	●
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0712-1105	●
9	PLUG; KNUCKLE VIN MODEL YEAR 2011<VZB> EXC. AUSTRALIA EQUIPMENT(B13) OD=22	1-09600-011-2	02	1	1106-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X43	1-09009-190-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-0711	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0712-		●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-014-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18	0-91110-518-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (C) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-0711	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-013-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-0711	●	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0712-		●
21	NIPPLE; GREASE,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-48259-253-0	04	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NSK	1-09829-043-2	02	1	0712-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-0711	●	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0712-		●
25	BEARING; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-43173-004-0	02	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.015"	1-43171-338-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.010"	1-43171-339-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.005"	1-43171-340-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=98.4	1-43116-014-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43116-002-2	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=3.25"	1-43116-006-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-0711	●	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0712-		●
33	NUT; KEY BOLT HUB LUBRICATION OIL BATH<C5K> (A)	1-43119-002-0	04	1	0712-	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	1303-	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	0712-1011	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1105	●
36	ARM; KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43133-073-3	01	1	0712-	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0710-0711	●	●
36	ARM; KNUCKLE (A)	1-43133-087-0	01	1	0712-		●
36	ARM; KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43133-087-0	01	1	0712-	●
40	NUT; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22	1-09449-084-0	02	1	0712-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-0711	●	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0712-		●
40	NUT; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-059-0	01	1	0712-	●
44	COVER; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-654-0	02	1	0802-	●
45	GASKET; KING PIN COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-0711	●	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0712-		●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-044-0	04	1	0712-	●
48	BOLT; COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-0711	●	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0712-		●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-045-0	12	1	0712-	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0712-		●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43134-061-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0712-		●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43135-066-0	01	1	0712-	●
59	NUT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09449-084-0	04	1	0712-	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0712-		●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43155-058-0	01	1	0712-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0712-		●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43156-058-0	01	1	0712-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-0711	●	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0712-		●
66	NUT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-052-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	0712-	●
74	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12	0-91110-512-0	04	1	0712-	●
80	PIN; SPLIT,ROD END EXC. HUB LUBRICATION OIL BATH<C5K> OD=4.6 L=35	0-81125-035-0	02	1	0712-	●
81	ROD; TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE EXC. HUB LUBRICATION OIL BATH<C5K>	8-98171-947-0	01	1	1010-	●
220	STUD; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22X145	1-09300-127-1	02	1	0712-	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-107-0	02	1	0712-1009	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	8-98229-116-0	02	1	1307-	●
295	STUD; COVER,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●
313	STUD; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22X145	1-09300-127-1	04	1	0712-	●

2 313 18 17 80 66 58 275 73 61 59 68 304 74 3 21 48 44 8 6 33 34 25 6 8 48 21 44 45 8 32 45 48 295 1 30 34 33 30 25 32 80 66 58 81 74 304 73 275 68 313 59 40 48 295 21 48 44 45 8 6 2 8 45 48 21 44 8 6 18 61 17 17 18 16 220 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98170-180-2	01	1	1012-	●
1	AXLE; FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98061-842-2	01	1	0712-1011	●
1	AXLE; FRT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR 2011<VZB> (B)	8-98061-842-2	01	1	1012-1105	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0710-0711	●	●
1	AXLE; FRT (A)	1-43111-161-0	01	1	0712-		●
1	AXLE; FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-43111-161-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43131-118-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43132-101-1	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE (A)	1-43131-108-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43131-108-0	01	1	0712-	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0710-0711	●	●
2	KNUCKLE; FRT AXLE (A)	1-43132-107-0	01	1	0712-		●
2	KNUCKLE; FRT AXLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43132-107-0	01	1	0712-	●
3	KING PIN SET VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-410-2	02	1	1012-	●
3	KING PIN SET EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-87831-301-1	02	1	0712-0801	●
3	KING PIN SET EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-87831-349-1	02	1	0802-1011	●
3	KING PIN SET EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR 2011<VZB> (B)	1-87831-349-1	02	1	1012-1105	●
6	SEAL; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	9-09926-024-0	04	1	0712-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0710-0711	●	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0712-		●
6	SEAL; KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-09625-634-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (A) NTN	9-00096-242-0	04	1	0712-	●
8	BEARING; NEEDLE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NTN	9-00096-243-0	02	1	0712-	●
9	PLUG; KNUCKLE EXC. ANTI LOCK BRAKE<JE5> OD=22	1-09600-011-2	02	1	0712-1105	●
9	PLUG; KNUCKLE VIN MODEL YEAR 2011<VZB> EXC. AUSTRALIA EQUIPMENT(B13) OD=22	1-09600-011-2	02	1	1106-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (C) M18X53	1-09009-066-0	01	1	0712-	●
17	BOLT; STOPPER KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18X43	1-09009-190-0	02	1	0712-	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0710-0711	●	●
17	BOLT; STOPPER KNUCKLE (A)	1-43149-014-0	02	1	0712-		●
17	BOLT; STOPPER KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-014-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (B) M18	0-91110-518-0	02	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE EXC. HUB LUBRICATION OIL BATH<C5K> (C) OCTAGON M18	1-09469-011-1	01	1	0712-	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0710-0711	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A)	1-43149-013-0	02	1	0712-		●
18	NUT; STOPPER BOLT,KNUCKLE HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-013-0	02	1	0712-	●
21	NIPPLE; GREASE,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0712-	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0710-0711	●	●
21	NIPPLE; GREASE,KING PIN (A)	1-48259-253-0	04	1	0712-		●
21	NIPPLE; GREASE,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-48259-253-0	04	1	0712-	●
25	BEARING; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) NSK	1-09829-043-2	02	1	0712-	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0710-0711	●	●
25	BEARING; THRUST,KING PIN (A)	1-43173-004-0	02	1	0712-		●
25	BEARING; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A)	1-43173-004-0	02	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.875 -4.900	1-43171-185-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.900 -4.925	1-43171-186-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.925 -4.950	1-43171-187-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.950 -4.975	1-43171-188-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=4.975 -5.000	1-43171-189-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.000 -5.025	1-43171-190-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.025 -5.050	1-43171-191-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.050 -5.075	1-43171-192-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.075 -5.100	1-43171-193-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.100 -5.125	1-43171-194-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.125 -5.150	1-43171-195-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.150 -5.175	1-43171-196-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.175 -5.200	1-43171-197-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.200 -5.225	1-43171-198-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B) T=5.225 -5.250	1-43171-199-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.015"	1-43171-338-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.015"	1-43171-338-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.010"	1-43171-339-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.010"	1-43171-339-0	AR	1	0712-	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0710-0711	●	●
30	WASHER; THRUST,KING PIN (A) T=0.005"	1-43171-340-0	AR	1	0712-		●
30	WASHER; THRUST,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) T=0.005"	1-43171-340-0	AR	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=98.4	1-43116-014-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=98.4	1-43116-014-0	02	1	0712-	●
32	BOLT; KEY,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43116-002-2	02	1	0712-	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0710-0711	●	●
32	BOLT; KEY,KING PIN (A) L=3.25"	1-43116-006-0	02	1	0712-		●
32	BOLT; KEY,KING PIN HUB LUBRICATION OIL BATH<C5K> (A) L=3.25"	1-43116-006-0	02	1	0712-	●
33	NUT; KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10	0-91110-510-0	02	1	0712-	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0710-0711	●	●
33	NUT; KEY BOLT (A)	1-43119-002-0	04	1	0712-		●
33	NUT; KEY BOLT HUB LUBRICATION OIL BATH<C5K> (A)	1-43119-002-0	04	1	0712-	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-810-0	02	1	1012-1302	●
34	WASHER; LK,KEY BOLT VIN MODEL YEAR 2011<VZB> EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	1303-	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K> ID=10.2	0-91510-510-0	02	1	0712-1011	●
34	WASHER; LK,KEY BOLT EXC. HUB LUBRICATION OIL BATH<C5K>,VIN MODEL YEAR 2011<VZB> ID=10.2	0-91510-510-0	02	1	1012-1105	●
40	NUT; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> (B) M22	1-09449-084-0	02	1	0712-	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0710-0711	●	●
40	NUT; KNUCKLE ARM (A)	1-43139-059-0	01	1	0712-		●
40	NUT; KNUCKLE ARM HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-059-0	01	1	0712-	●
44	COVER; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98100-655-0	02	1	0802-	●
44	COVER; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-43175-025-0	04	1	0712-0801	●
44	COVER; KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-654-0	02	1	0802-	●
45	GASKET; KING PIN COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98100-656-1	04	1	0802-	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0710-0711	●	●
45	GASKET; KING PIN COVER (A)	1-43139-044-0	04	1	0712-		●
45	GASKET; KING PIN COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-044-0	04	1	0712-	●
48	BOLT; COVER EXC. HUB LUBRICATION OIL BATH<C5K> (B) M10X25 FLANGE	0-28751-025-0	12	1	0712-	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0710-0711	●	●
48	BOLT; COVER (A)	1-43139-045-0	12	1	0712-		●
48	BOLT; COVER HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-045-0	12	1	0712-	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43134-049-4	01	1	0712-	●
58	ARM; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-43135-049-4	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43134-061-0	01	1	0712-		●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43134-061-0	01	1	0712-	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0710-0711	●	●
58	ARM; TIE ROD (A)	1-43135-066-0	01	1	0712-		●
58	ARM; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43135-066-0	01	1	0712-	●
59	NUT; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22	1-09449-084-0	04	1	0712-	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98054-851-0	01	1	0712-1009	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98096-753-0	01	1	1010-1306	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98228-106-0	01	1	1307-	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98054-853-0	01	1	0712-1009	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98096-754-0	01	1	1010-1306	●
61	ROD END; TIE ROD EXC. HUB LUBRICATION OIL BATH<C5K> (B)	8-98228-107-0	01	1	1307-	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A)	1-43155-058-0	01	1	0712-		●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43155-058-0	01	1	0712-	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0710-0711	●	●
61	ROD END; TIE ROD (A)	1-43156-058-0	01	1	0712-		●
61	ROD END; TIE ROD HUB LUBRICATION OIL BATH<C5K> (A)	1-43156-058-0	01	1	0712-	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0710-0711	●	●
66	NUT; TIE ROD END (A)	1-43139-052-0	02	1	0712-		●
66	NUT; TIE ROD END HUB LUBRICATION OIL BATH<C5K> (A)	1-43139-052-0	02	1	0712-	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24 SLOTTED	1-09442-020-0	02	1	0712-0805	●
66	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> (B) M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12X65	8-98053-922-0	04	1	0712-	●
73	NIPPLE; GREASE,TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-133-0	02	1	1010-	●
74	NUT; TIE ROD END EXC. HUB LUBRICATION OIL BATH<C5K> M12	0-91110-512-0	04	1	0712-	●
80	PIN; SPLIT,ROD END EXC. HUB LUBRICATION OIL BATH<C5K> OD=4.6 L=35	0-81125-035-0	02	1	0712-	●
81	ROD; TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43151-157-0	01	1	0712-1009	●
81	ROD; TIE EXC. HUB LUBRICATION OIL BATH<C5K>	8-98171-947-0	01	1	1010-	●
220	STUD; KNUCKLE ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22X145	1-09300-127-1	02	1	0712-	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-107-0	02	1	0712-1009	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE EXC. HUB LUBRICATION OIL BATH<C5K>	8-98229-116-0	02	1	1307-	●
295	STUD; COVER,KING PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X20,M10X26 L=56	8-98010-334-0	04	1	0712-	●
304	WASHER; PL EXC. HUB LUBRICATION OIL BATH<C5K> (C) ID=12.5	0-91614-512-0	04	1	0712-	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0710-	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0710-0711	●	●
304	WASHER; PL (A)	1-43149-011-0	02	1	0712-		●
304	WASHER; PL HUB LUBRICATION OIL BATH<C5K> (A)	1-43149-011-0	02	1	0712-	●
313	STUD; TIE ROD ARM EXC. HUB LUBRICATION OIL BATH<C5K> M22X145	1-09300-127-1	04	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
