◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#65729) — 1438 parça

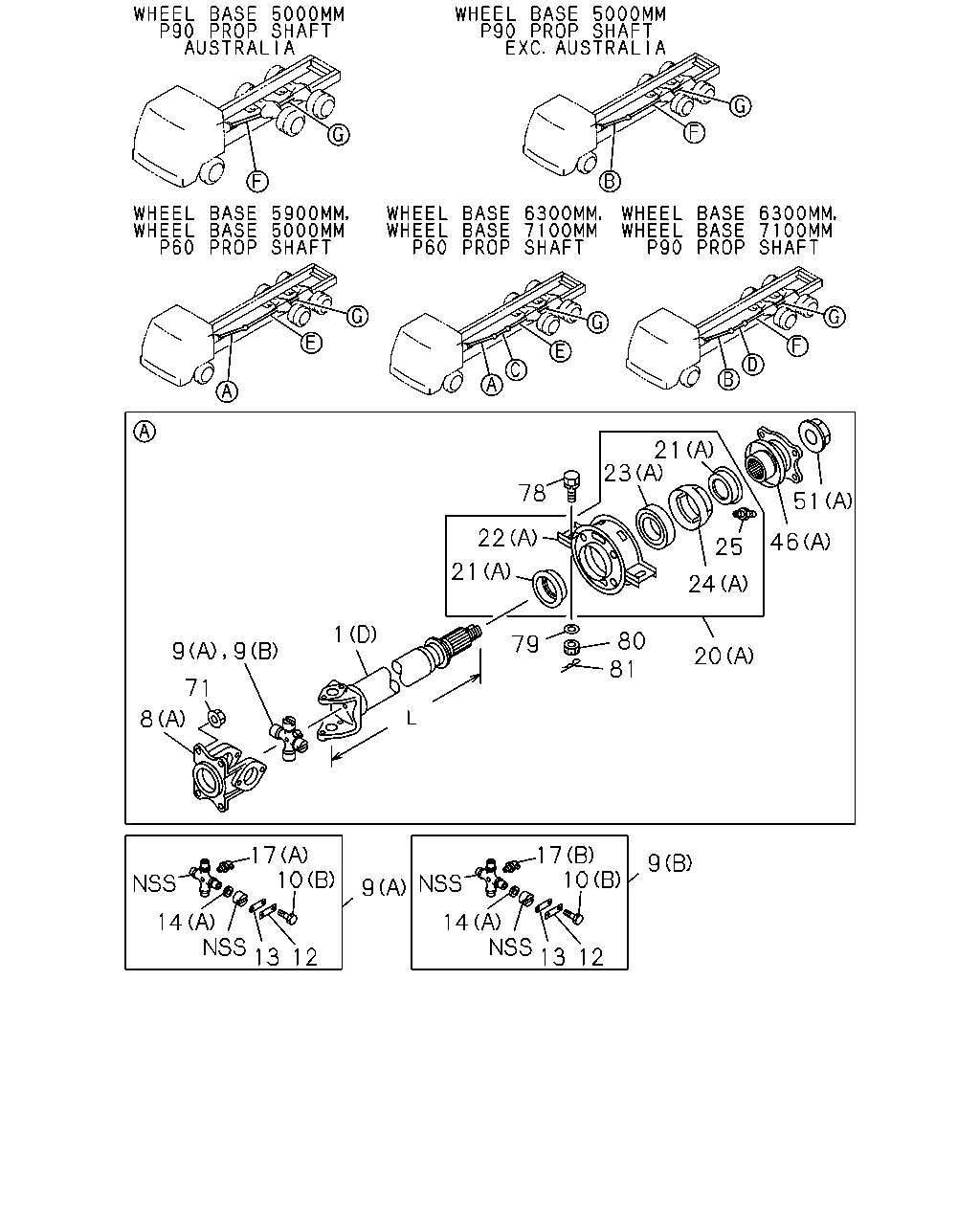

çizim 122453
21 23 51 78 22 46 25 21 24 1 80 81 79 9 9 20 71 8 17 10 17 10 9 9 14 13 14 13 12 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=796 		1-37152-520-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=734 		8-98091-268-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 0904- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 0904- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=585 		8-98091-463-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) L=614 		1-37124-960-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=915 		8-98091-469-1 01 1 0712- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 0710- ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 0712- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 0710- ●
1 SHAFT; PROP
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (G) L=441 		1-37124-191-0 01 1 0710- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0904-1104 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 0904-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1105- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0710-0711 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37211-079-1 01 1 1002- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 0710-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 0710-0711 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 0712-1104 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 0712-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1105- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0904- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 0904- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 0712-1104 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 1105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 2ND 		1-37300-111-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
(D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (E) 		1-37300-090-0 02 1 0710- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0712-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1105-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ●
10 BOLT; UJT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		9-91066-245-0 04 1 0712-0805 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		8-98036-382-0 04 1 0806-1104 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		8-98036-382-0 04 1 1105- ● ● ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0904-1104 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0904-1104 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1105- ● ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1105- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 0710-1104 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 1105- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 16 1 0904- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0904- ●
10 BOLT; UJT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-09087-046-0 08 1 0710- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0904-1104 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0904-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0904-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0710-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0904-1104 ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0904-1104 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0904-1104 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0710-1104 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 0712-1104 ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 1105- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0904-1104 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0904-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1105- ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1105- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 1002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1002- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0710-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0710- ●

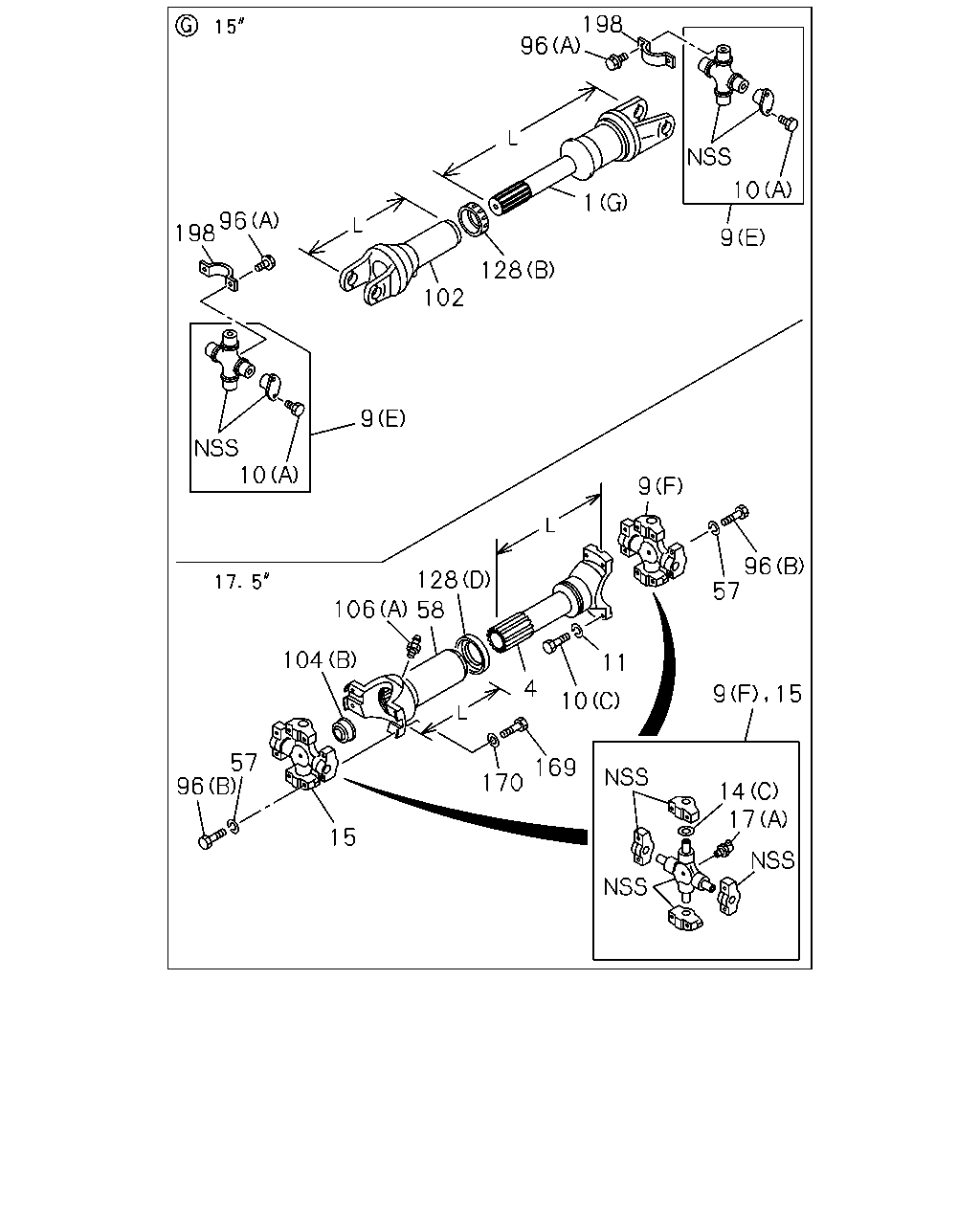

17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0903 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●

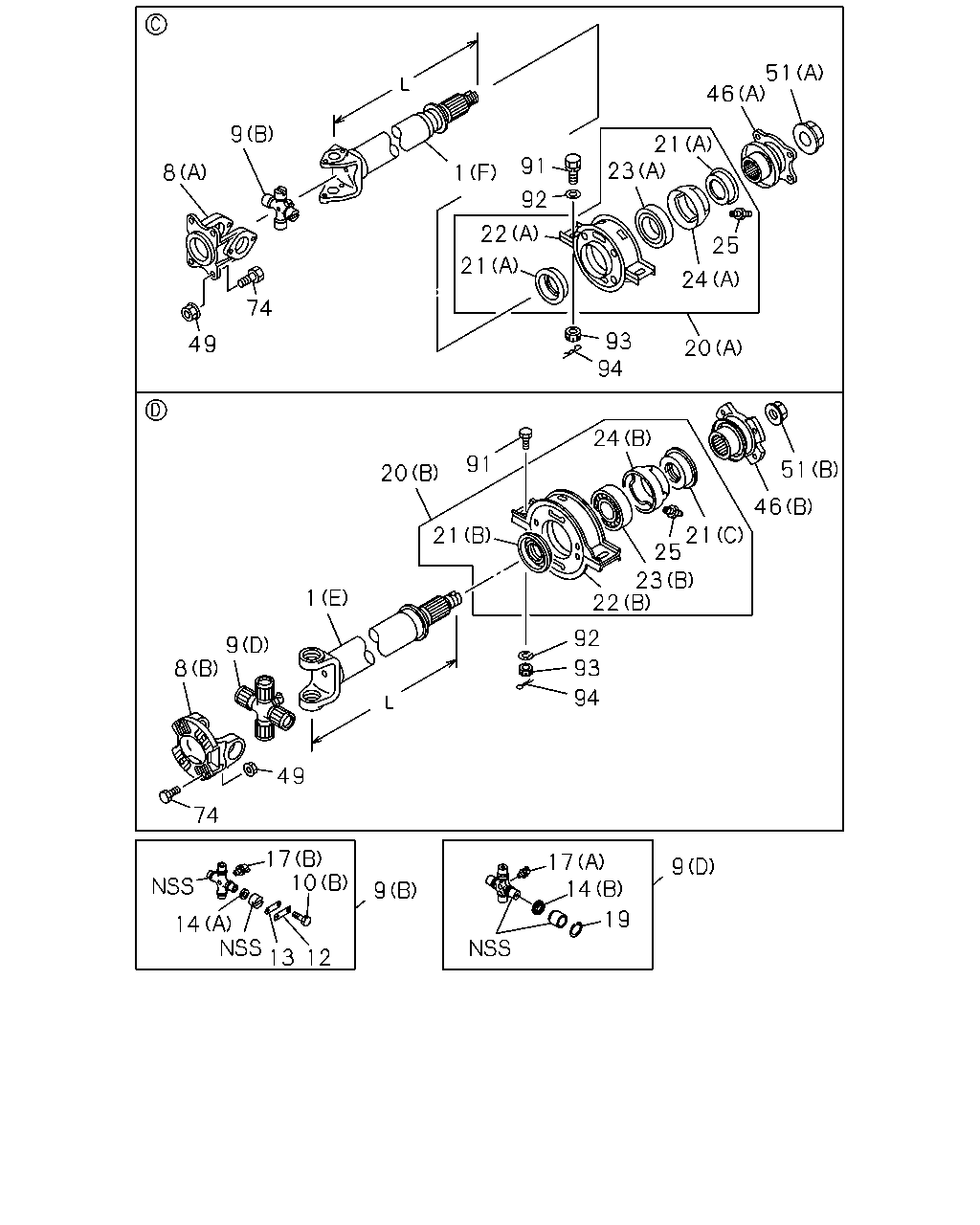

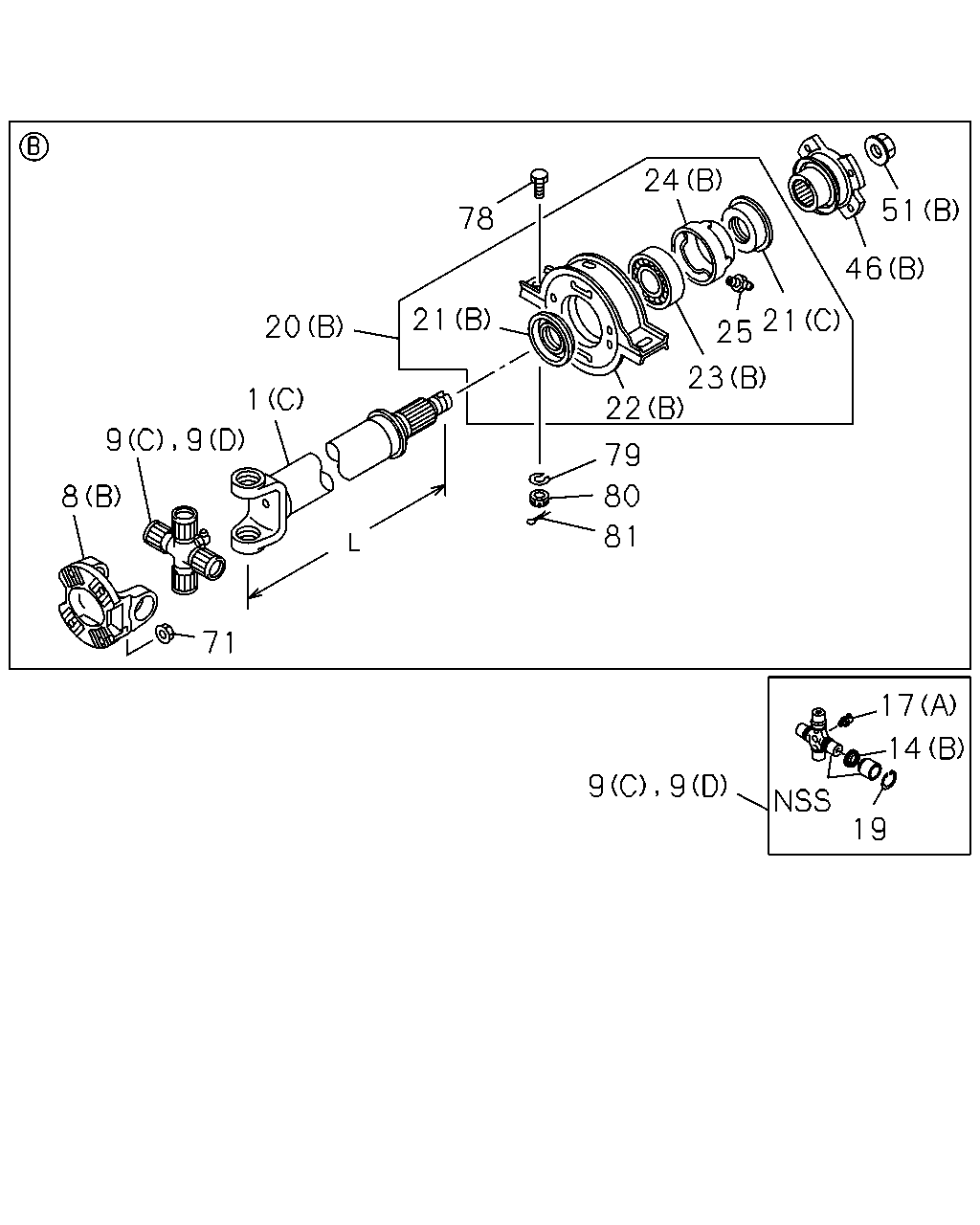

20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0904-1104 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 0904-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0904-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1105- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1105- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0710-0711 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0710-0711 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=60 		1-37510-115-0 01 1 1105- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0904-1104 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 0904-1104 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0904-1104 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1105- ● ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1105- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) D=120 		1-09625-127-0 01 1 1105- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09625-621-0 01 1 1105- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0904-1104 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 0904-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0904-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1105- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1105- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0710-0711 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0710-0711 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37516-048-2 01 1 1105- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0904-1104 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 0904-1104 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0904-1104 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1105- ● ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1105- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0710-0711 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0710-0711 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		9-00090-256-0 01 1 1105- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0904-1104 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 0904-1104 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0904-1104 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1105- ● ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1105- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0710-0711 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0710-0711 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37529-109-0 01 1 1105- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1105- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0904-1104 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 0904-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0904-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1105- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1105- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0710-0711 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0710-0711 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37245-348-0 01 1 1105- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1105- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1105- ● ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1105- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1105- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0710-0711 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0710-0711 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
(B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
(B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ● ●
71 NUT; YOKE
ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0710- ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 0806-1103 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 1104- ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0710-0711 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0712- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0710-0711 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0712- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0710-0711 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0712-1204 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710-0711 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0712- ● ● ● ●
çizim 122464
198 96 10 1 96 198 9 128 102 9 10 9 96 57 128 106 58 104 11 4 9 15 10 57 96 169 170 14 17 15

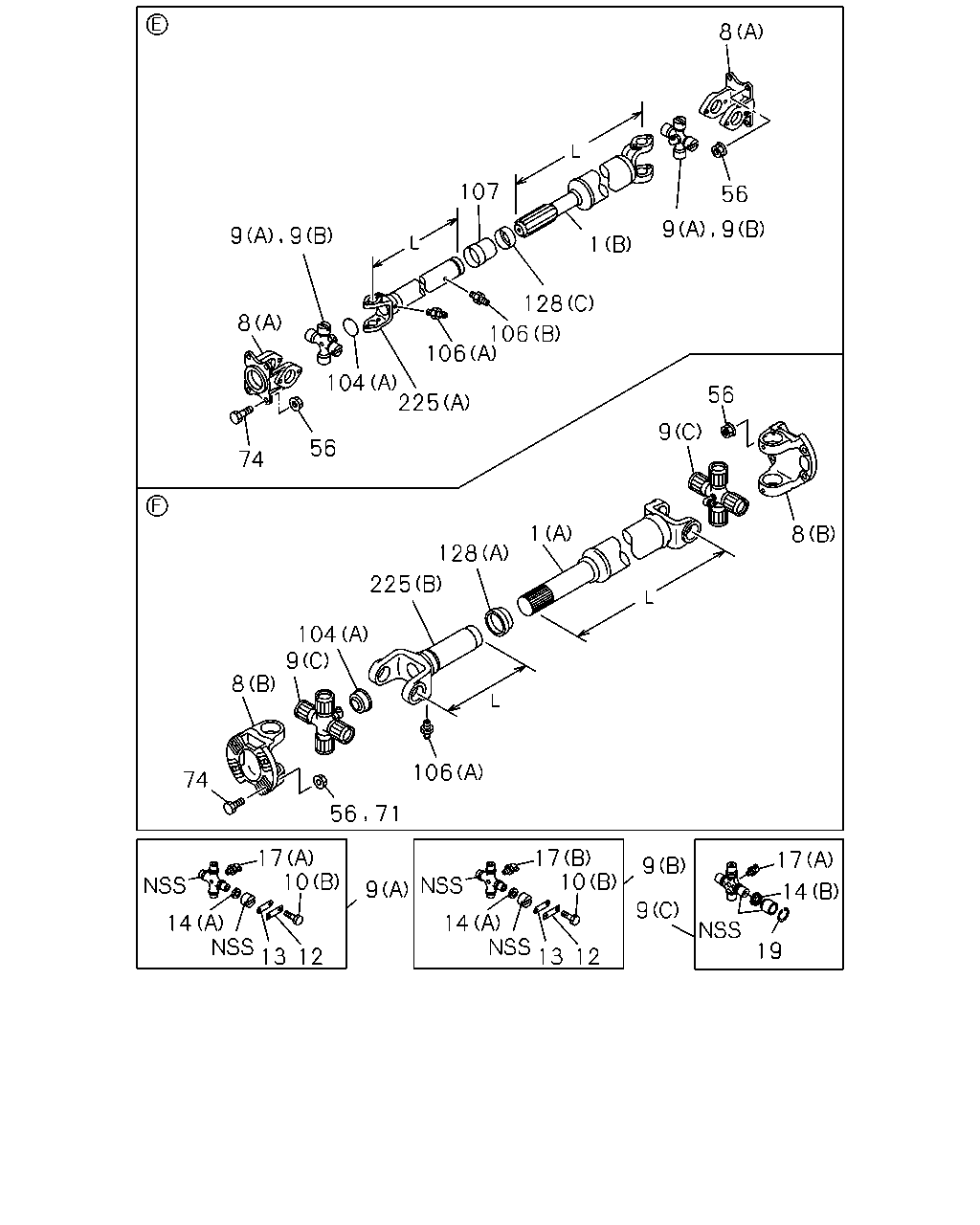

BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=796 		1-37152-520-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=734 		8-98091-268-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 0904- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 0904- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=585 		8-98091-463-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) L=614 		1-37124-960-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=915 		8-98091-469-1 01 1 0712- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 0710- ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 0712- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 0710- ●
1 SHAFT; PROP
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (G) L=441 		1-37124-191-0 01 1 0710- ● ● ● ●
4 SHAFT; PROP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=348 		1-37171-127-2 01 1 0712-1104 ● ● ● ●
4 SHAFT; PROP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=348 		1-37171-127-2 01 1 1105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 0712-1104 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 1105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 2ND 		1-37300-111-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
(D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (E) 		1-37300-090-0 02 1 0710- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0712-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1105-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ●
10 BOLT; UJT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		9-91066-245-0 04 1 0712-0805 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		8-98036-382-0 04 1 0806-1104 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		8-98036-382-0 04 1 1105- ● ● ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0904-1104 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0904-1104 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1105- ● ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1105- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 0710-1104 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 1105- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 16 1 0904- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0904- ●
10 BOLT; UJT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-09087-046-0 08 1 0710- ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=12.2 		0-91510-612-0 04 1 0712-1104 ● ● ● ●
11 WASHER; LK,UNIVERSAL,PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=12.2 		0-91510-612-0 04 1 1105- ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 0712-1104 ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 1105- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0904-1104 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0904-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1105- ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1105- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 1002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1002- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0710-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0710- ●
15 UNIVERSAL CENTER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-37300-100-1 01 1 0712-1104 ● ● ● ●
15 UNIVERSAL CENTER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-37300-100-1 01 1 1105- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0903 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
57 WASHER; LK,YOKE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=12.2 		0-91510-612-0 08 1 0712-1104 ● ● ● ●
57 WASHER; LK,YOKE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=12.2 		0-91510-612-0 08 1 1105- ● ● ● ●
58 FLANGE; SPLINED
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=265 		1-37245-317-0 01 1 0712-1104 ● ● ● ●
58 FLANGE; SPLINED
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=265 		1-37245-317-0 01 1 1105- ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M12X45 		8-98036-382-0 08 1 0712-1104 ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) M12X45 		8-98036-382-0 08 1 1105- ● ● ● ●
96 BOLT; PROP SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-09088-006-0 08 1 0710- ● ● ● ●
102 YOKE; TRANSFER TO AXLE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) L=303.3 		1-37241-094-0 01 1 0710- ● ● ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-09600-049-0 01 1 0712-1104 ● ● ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-09600-049-0 01 1 1105- ● ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0710-0711 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0712- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0903 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0903 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0904-1104 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0904-1104 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1105- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 1105- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710-0711 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-1104 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-1104 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1105- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1105- ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) 		8-97603-618-0 01 1 0712-1104 ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) 		8-97603-618-0 01 1 1105- ● ● ● ●
128 SEAL; SLEEVE
(C) 		1-37247-021-0 01 1 0710-0903 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 0710-0903 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 0904-1104 ● ●
128 SEAL; SLEEVE
(C) 		1-37247-021-0 01 1 0904-1104 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 1105- ● ● ●
128 SEAL; SLEEVE
(C) 		1-37247-021-0 01 1 1105- ●
128 SEAL; SLEEVE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-37247-017-0 01 1 0710- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0710-0711 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0710-0711 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0712-1104 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0712-1104 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1105- ● ● ●
169 BOLT; YOKE,SLEEVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M12X45 		9-91066-245-0 04 1 0712-0805 ● ● ● ●
169 BOLT; YOKE,SLEEVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M12X45 		8-98036-382-0 04 1 0806-1104 ● ● ● ●
169 BOLT; YOKE,SLEEVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M12X45 		8-98036-382-0 04 1 1105- ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=12.2 		0-91510-612-0 04 1 0712-1104 ● ● ● ●
170 WASHER; LK,YOKE,SLEEVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=12.2 		0-91510-612-0 04 1 1105- ● ● ● ●
198 PLATE; PROP SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-37319-009-0 04 1 0710- ● ● ● ●
çizim 122632
24 51 78 46 21 21 25 20 23 22 1 79 80 8 81 71 17 14 19 9 9 9 9
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=796 		1-37152-520-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=734 		8-98091-268-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 0904- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 0904- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=585 		8-98091-463-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) L=614 		1-37124-960-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=915 		8-98091-469-1 01 1 0712- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 0710- ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 0712- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 0710- ●
1 SHAFT; PROP
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (G) L=441 		1-37124-191-0 01 1 0710- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0904-1104 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 0904-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1105- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0710-0711 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37211-079-1 01 1 1002- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 0710-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 0710-0711 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 0712-1104 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 0712-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1105- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0904- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 0904- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 0712-1104 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 1105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 2ND 		1-37300-111-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
(D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (E) 		1-37300-090-0 02 1 0710- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0712-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1105-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 0712-1104 ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 1105- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0904-1104 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0904-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1105- ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1105- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 1002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1002- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0710-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0903 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0710-0711 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) T=2.2 		1-09587-102-1 04 1 1002- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1002- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 0710-0711 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 0712-1104 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 0712-1104 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1105- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0904-1104 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 0904-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0904-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1105- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1105- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0710-0711 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0710-0711 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=60 		1-37510-115-0 01 1 1105- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0904-1104 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 0904-1104 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0904-1104 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1105- ● ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1105- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) D=120 		1-09625-127-0 01 1 1105- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09625-621-0 01 1 1105- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0904-1104 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 0904-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0904-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1105- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1105- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0710-0711 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0710-0711 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37516-048-2 01 1 1105- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0904-1104 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 0904-1104 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0904-1104 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1105- ● ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1105- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0710-0711 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0710-0711 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		9-00090-256-0 01 1 1105- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0904-1104 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 0904-1104 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0904-1104 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1105- ● ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1105- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0710-0711 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0710-0711 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37529-109-0 01 1 1105- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1105- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0904-1104 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 0904-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0904-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1105- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1105- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0710-0711 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0710-0711 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37245-348-0 01 1 1105- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1105- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1105- ● ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1105- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1105- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0710-0711 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0710-0711 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
(B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
(B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ● ●
71 NUT; YOKE
ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0710- ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 0806-1103 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 1104- ● ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0710-0711 ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0712- ● ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0710-0711 ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0712- ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0710-0711 ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0712-1204 ● ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710-0711 ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0712- ● ● ● ●
çizim 192489
8 107 56 9 9 9 9 1 128 8 106 106 104 225 56 9 56 74 1 8 128 225 104 9 8 106 74 17 10 17 10 17 9 9 14 9 14 13 14 13 19 12 12 56 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=796 		1-37152-520-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=734 		8-98091-268-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 0904- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 0904- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=585 		8-98091-463-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) L=614 		1-37124-960-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=915 		8-98091-469-1 01 1 0712- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 0710- ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 0712- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 0710- ●
1 SHAFT; PROP
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (G) L=441 		1-37124-191-0 01 1 0710- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0904-1104 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 0904-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1105- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0710-0711 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37211-079-1 01 1 1002- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 0710-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 0710-0711 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 0712-1104 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 0712-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1105- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0904- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 0904- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 0712-1104 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 1105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 2ND 		1-37300-111-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
(D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (E) 		1-37300-090-0 02 1 0710- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0712-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1105-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ●
10 BOLT; UJT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		9-91066-245-0 04 1 0712-0805 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		8-98036-382-0 04 1 0806-1104 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		8-98036-382-0 04 1 1105- ● ● ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0904-1104 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0904-1104 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1105- ● ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1105- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 0710-1104 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 1105- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 16 1 0904- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0904- ●
10 BOLT; UJT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-09087-046-0 08 1 0710- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0904-1104 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0904-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0904-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0710-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0904-1104 ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0904-1104 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0904-1104 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0710-1104 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 0712-1104 ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 1105- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0904-1104 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0904-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1105- ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1105- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 1002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1002- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0710-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0903 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0710-0711 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) T=2.2 		1-09587-102-1 04 1 1002- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1002- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 0710-0711 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 0712-1104 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 0712-1104 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1105- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0710- ●
56 NUT; YOKE
ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 08 1 0710- ● ● ● ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 08 1 0710-0710 ● ● ● ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		1-09440-048-0 08 1 0710-0805 ● ● ● ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 08 1 0806-1103 ● ● ● ●
56 NUT; YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 08 1 1104- ● ● ● ●
71 NUT; YOKE
ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0710- ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		1-09440-048-0 04 1 0710-0805 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 0806-1103 ● ● ● ●
71 NUT; YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 1104- ● ● ● ●
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 0710-0810 ● ● ● ●
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0811- ● ● ● ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0811- ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 08 1 0710-0810 ● ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0811-1103 ● ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0811-1103 ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0811-1103 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) M14X50 		1-09000-645-0 04 1 1104- ● ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) M14X50 		1-09000-645-0 04 1 1104- ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0712-0810 ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 08 1 0811-1104 ● ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 08 1 1105- ● ● ● ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0712-0810 ● ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 0811-1104 ● ● ● ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 1105- ● ● ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-09600-049-0 01 1 0712-1104 ● ● ● ●
104 PLUG; SLEEVE YOKE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-09600-049-0 01 1 1105- ● ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0710-0711 ● ● ●
104 PLUG; SLEEVE YOKE
(A) 		1-09600-067-0 01 1 0712- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0903 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0903 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 0904-1104 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0904-1104 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1105- ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 1105- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710-0711 ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-1104 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0712-1104 ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1105- ● ● ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1105- ● ● ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0710-0903 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0710-0903 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 0904-1104 ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0904-1104 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1105- ● ● ●
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 1105- ●
128 SEAL; SLEEVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) 		8-97603-618-0 01 1 0712-1104 ● ● ● ●
128 SEAL; SLEEVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (D) 		8-97603-618-0 01 1 1105- ● ● ● ●
128 SEAL; SLEEVE
(C) 		1-37247-021-0 01 1 0710-0903 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 0710-0903 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 0904-1104 ● ●
128 SEAL; SLEEVE
(C) 		1-37247-021-0 01 1 0904-1104 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (C) 		1-37247-021-0 01 1 1105- ● ● ●
128 SEAL; SLEEVE
(C) 		1-37247-021-0 01 1 1105- ●
128 SEAL; SLEEVE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-37247-017-0 01 1 0710- ● ● ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0710-0711 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0710-0711 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 0712-1104 ● ●
128 SEAL; SLEEVE
(A) 		1-37247-019-0 01 1 0712-1104 ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (A) 		1-37247-019-0 01 1 1105- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=332 		1-37241-109-1 01 1 0710-0903 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 0710-0903 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 0904-1104 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=332 		1-37241-109-1 01 1 0904-1104 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) L=332 		1-37241-109-1 01 1 1105- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
(A) L=332 		1-37241-109-1 01 1 1105- ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=330 		1-37241-124-0 01 1 0710-0711 ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 0710-0711 ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 0712-1104 ● ●
225 YOKE; SLEEVE,PROP SHAFT
(B) L=330 		1-37241-124-0 01 1 0712-1104 ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) L=330 		1-37241-124-0 01 1 1105- ● ● ●
çizim 192496
51 46 9 21 23 91 8 1 92 22 25 21 24 74 93 94 49 20 24 91 51 20 46 21 25 21 23 22 1 92 9 8 93 94 49 74 17 10 17 14 9 9 19 14 13 12
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=796 		1-37152-520-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=734 		8-98091-268-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=919 		8-98190-427-0 01 1 1105- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=644 		8-98144-464-0 01 1 0904- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=649 		1-37124-842-0 01 1 0904- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) L=585 		8-98091-463-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=725 		8-98091-479-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) L=614 		1-37124-960-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=764 		1-37125-412-1 01 1 0712- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=915 		8-98091-469-1 01 1 0712- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1149 		8-98091-300-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (C) L=1090 		8-98092-523-1 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1214 		8-98091-296-0 01 1 0710- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (B) L=919 		8-98091-321-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (E) L=1210 		8-98092-403-1 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=944 		8-98092-526-1 01 1 0710- ●
1 SHAFT; PROP
(D) L=1019 		8-98091-293-0 01 1 0710- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-0 01 1 0710-0711 ●
1 SHAFT; PROP
AUSTRALIA EQUIPMENT(B13) P90 PROP SHAFT(C5T) (A) L=1354 		8-98092-531-1 01 1 0712- ●
1 SHAFT; PROP
(B) L=1164 		8-98091-322-0 01 1 0710- ●
1 SHAFT; PROP
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (G) L=441 		1-37124-191-0 01 1 0710- ● ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 0904-1104 ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 0904-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 01 1 1105- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 01 1 1105- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0710-0711 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 01 1 0712-1001 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37211-079-1 01 1 1002- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 01 1 1002- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 0710-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 03 1 1105- ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 0710-0711 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 0712-1104 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-079-1 03 1 0712-1104 ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 03 1 1105- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 0710-0903 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37211-072-1 02 1 0904- ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-072-1 02 1 0904- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		1-37211-079-1 02 1 0710- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 0712-1104 ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (F) 		1-37300-100-1 01 1 1105- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,7100MM 1ST 		1-37300-094-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (A) END,6300,7100MM 1ST 		1-37300-094-1 AR 1 1105- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
(C) 1ST 		1-37300-110-0 01 1 0712-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) 		1-37300-110-0 01 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0710-0903 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(B) 5000,5900MM 1ST,7100MM 2ND 		1-37300-095-1 AR 1 0904-1104 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ● ● ●
9 JOURNAL ASM; PROP SHAFT
(B) -5900MM 1ST,6300MM- 2ND 		1-37300-095-1 AR 1 1105- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 2ND 		1-37300-111-0 01 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
(D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (D) 5000MM 1ST,6300,7100MM 2ND 		1-37300-111-0 01 1 1105-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506- ●
9 JOURNAL ASM; PROP SHAFT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (E) 		1-37300-090-0 02 1 0710- ● ● ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0710-0711 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 0712-1104 ● ●
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-110-0 02 1 0712-1104 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		1-37300-110-0 02 1 1105-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ●
10 BOLT; UJT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		9-91066-245-0 04 1 0712-0805 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		8-98036-382-0 04 1 0806-1104 ● ● ● ●
10 BOLT; UJT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) M12X45 		8-98036-382-0 04 1 1105- ● ● ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 0904-1104 ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 0904-1104 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 08 1 1105- ● ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 08 1 1105- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 0710-1104 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 24 1 1105- ● ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0710-0903 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) (B) M10X20 		0-20951-020-0 16 1 0904- ●
10 BOLT; UJT
(B) M10X20 		0-20951-020-0 16 1 0904- ●
10 BOLT; UJT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-09087-046-0 08 1 0710- ● ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0710-0903 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0904-1104 ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0904-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0904-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 1105- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 0710-1104 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 AR 1 1105- ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0710-0903 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0904-1104 ● ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0904-1104 ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0904-1104 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 1105- ●
13 COVER; FRT UJT,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 0710-1104 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 AR 1 1105- ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 0712-1104 ● ● ● ●
14 COVER; DUST,SPIDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-37319-004-0 08 1 1105- ● ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 0904-1104 ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 0904-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 04 1 1105- ● ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 04 1 1105- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 04 1 0712-1001 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37249-131-0 04 1 1002- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 04 1 1002- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 0710-1104 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0710-0711 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
(B) 		1-37249-131-0 12 1 0712-1104 ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 12 1 1105- ● ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0710-0903 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
(A) 		9-37352-023-0 08 1 0904- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (B) 		1-37249-131-0 08 1 0710- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1105-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
AIR SUS(FGY***) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
LEAF SUS(FGZ***) P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0712-0903 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
(B) 90 PT1/8 ELBOW 		0-90301-610-0 01 1 0904-1505 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-0711 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0712-1104 ●
17 NIPPLE; GREASE,PROP SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) (A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1105- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0710-0711 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 04 1 0712-1001 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) T=2.2 		1-09587-102-1 04 1 1002- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 04 1 1002- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 0710-0711 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 0712-1104 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-102-1 12 1 0712-1104 ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 12 1 1105- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) T=2.2 		1-09587-102-1 08 1 0710- ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0710-0903 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0904-1104 ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 0904-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 0904-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1105- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
(A) 		1-37510-093-3 01 1 1105- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		1-37510-093-3 01 1 1105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0710-0711 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0710-0711 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
(B) ID=60 		1-37510-115-0 01 1 0712-1104 ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=60 		1-37510-115-0 01 1 1105- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1105- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (B) ID=60 		1-37510-115-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0710-0903 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0904-1104 ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 0904-1104 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 0904-1104 ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1105- ● ● ●
21 SEAL; OIL,CENTER BRG
(A) D=120 		1-09625-126-0 02 1 1105- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (A) D=120 		1-09625-126-0 02 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(B) D=120 		1-09625-127-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) D=120 		1-09625-127-0 01 1 1105- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (B) D=120 		1-09625-127-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0710-0711 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
(C) 		1-09625-621-0 01 1 0712-1104 ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (C) 		1-09625-621-0 01 1 1105- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1105- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) 		1-09625-621-0 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0710-0903 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0904-1104 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 0904-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 0904-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1105- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(A) 		1-37516-047-2 01 1 1105- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37516-047-2 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0710-0711 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0710-0711 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
(B) 		1-37516-048-2 01 1 0712-1104 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37516-048-2 01 1 1105- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1105- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37516-048-2 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0710-0903 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0904-1104 ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 0904-1104 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 0904-1104 ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1105- ● ● ●
23 BEARING; CENTER,PROP SHAFT
(A) 		9-00090-292-0 01 1 1105- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (A) 		9-00090-292-0 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0710-0711 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0710-0711 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
(B) 		9-00090-256-0 01 1 0712-1104 ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		9-00090-256-0 01 1 1105- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1105- ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (B) 		9-00090-256-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0710-0903 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0904-1104 ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 0904-1104 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 0904-1104 ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1105- ● ● ●
24 RETAINER; CENTER BRG,1ST
(A) 		1-37529-039-0 01 1 1105- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (A) 		1-37529-039-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0710-0711 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0710-0711 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
(B) 		1-37529-109-0 01 1 0712-1104 ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37529-109-0 01 1 1105- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1105- ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (B) 		1-37529-109-0 01 1 1105- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-0711 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0712-0903 ● ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M) MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0904- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0710-0903 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0904-1104 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 0904-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 0904-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1105- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(A) 		1-37245-283-1 01 1 1105- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (A) 		1-37245-283-1 01 1 1105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0710-0711 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0710-0711 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
(B) 		1-37245-348-0 01 1 0712-1104 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-37245-348-0 01 1 1105- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1105- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) 		1-37245-348-0 01 1 1105- ● ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 0710-0710 ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) M14 FLANGE 		1-09440-048-0 04 1 0710-0711 ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		1-09440-048-0 04 1 0712-0805 ● ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 0806-1103 ● ●
49 NUT; YOKE
ZF9S1110 M/T(Y5E) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M14 FLANGE 		8-97365-444-0 04 1 1104- ● ●
49 NUT; YOKE
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0710-0711 ●
49 NUT; YOKE
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 0712- ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0710-0903 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 0904-1104 ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1105- ● ● ●
51 NUT; FLANGE,SPLINED
(A) M33 FLANGE 		1-09449-051-0 01 1 1105- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (A) M33 FLANGE 		1-09449-051-0 01 1 1105- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0710-0711 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0710-0711 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
(B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
(B) M39 FLANGE 		1-09440-046-0 01 1 0712-1104 ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) EXC. AUSTRALIA EQUIPMENT(B13) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (B) M39 FLANGE 		1-09440-046-0 01 1 1105- ● ●
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 0710-0810 ● ● ● ●
74 BOLT; YOKE,TRANS
ALLISON MD3560P A/T(Y3B) FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0811- ● ● ● ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0811- ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 08 1 0710-0810 ● ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0811-1103 ● ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0811-1103 ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0811-1103 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) M14X50 		1-09000-645-0 04 1 1104- ● ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) M14X50 		1-09000-645-0 04 1 1104- ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 04 1 0712-0810 ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 08 1 0811-1104 ● ● ● ●
74 BOLT; YOKE,TRANS
ZF9S1110 M/T(Y5E) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P90 PROP SHAFT(C5T) M14X50 		1-09000-645-0 08 1 1105- ● ● ● ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0710-0711 ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 0712-0810 ● ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 0811-1104 ● ● ● ●
74 BOLT; YOKE,TRANS
LEAF SUS(FGZ***) ALLISON MD3560P A/T(Y3B) FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 08 1 1105- ● ● ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0710-0711 ● ●
91 BOLT; HOLDER SET,CTR BRG
M16X45 		1-09042-030-0 02 1 0712- ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0710-0711 ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
ID=17 		1-09503-241-1 02 1 0712- ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0710-0711 ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		0-91116-516-0 02 1 0712-1204 ● ● ●
93 NUT; HOLDER SET,CTR BRG
M16 SLOTTED 		8-98049-689-0 02 1 1205- ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710-0711 ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0712- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
