Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#65728) — 375 parça

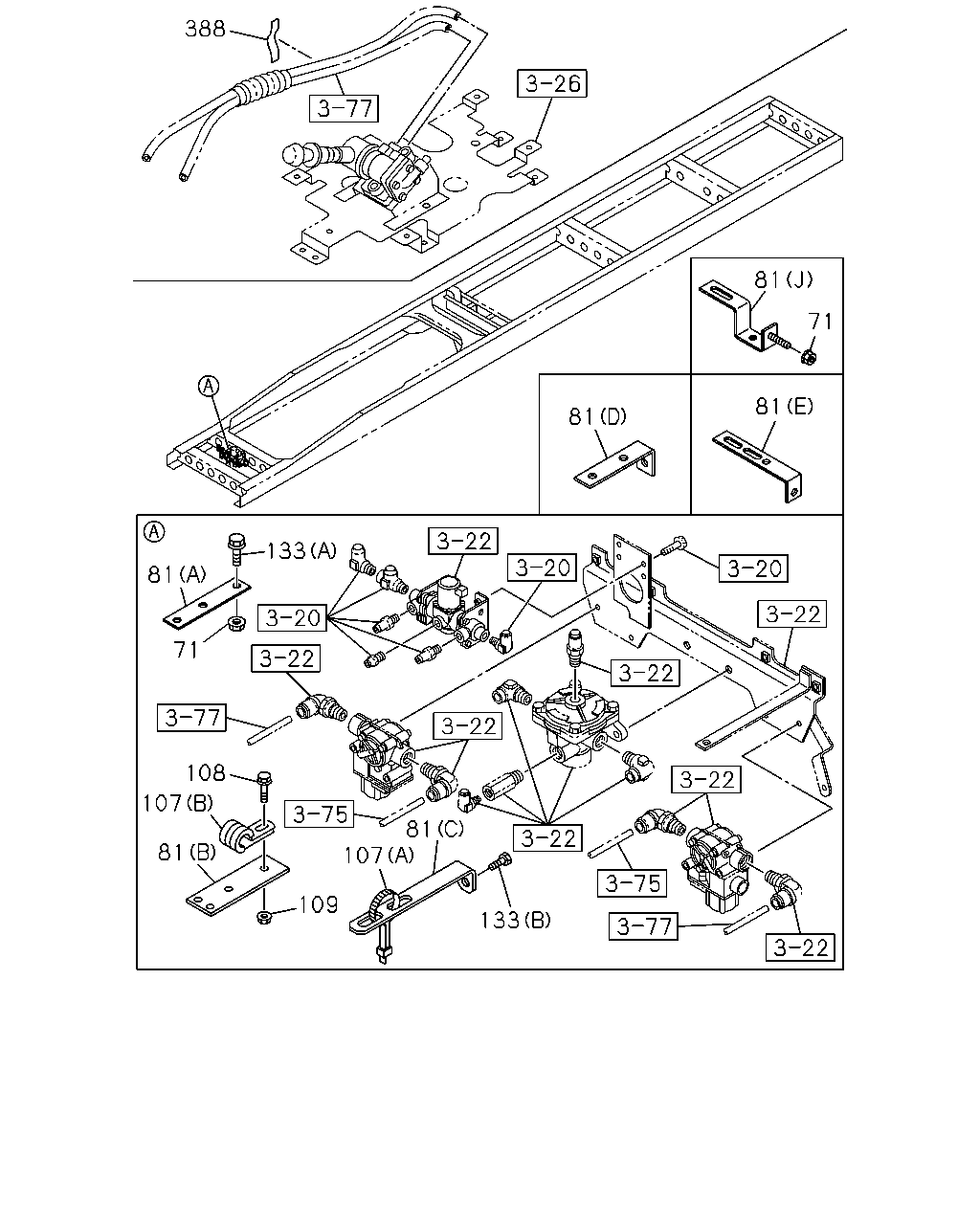

388 81 71 81 81 133 81 71 108 107 81 81 107 109 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0812-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0907	●	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0907	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0710	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	13	1	0710-0907	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0908-		●
81	BRACKET; CLIP (L)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP (I)	1-82699-527-1	01	1	0710-0711	●
81	BRACKET; CLIP (G)	1-47479-693-0	02	1	0712-	●
81	BRACKET; CLIP (H) L=65	1-47477-713-0	01	1	0710-0902	●	●
81	BRACKET; CLIP (H) L=65 B=25	8-98135-584-0	01	1	0903-	●	●
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	0710-	●	●
81	BRACKET; CLIP (G)	1-47479-693-0	01	1	0710-0907	●	●
81	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	04	1	0710-0812	●	●
81	BRACKET; CLIP (J)	8-98129-212-0	04	1	0901-1012	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	04	1	1101-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0710-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0710-	●	●
81	BRACKET; CLIP (F)	8-98047-730-0	02	1	0710-0710	●	●
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	0710-		●
107	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	45	1	0804-0907		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0801-0907	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	50	1	0908-	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0710-0801	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	0802-0811	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	20	1	0710-0802	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	25	1	0803-0907	●	●
107	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	45	1	0908-		●
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=350	1-09707-183-0	21	1	0710-0907		●
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=350	1-09707-183-0	42	1	0908-		●
107	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	23	1	0710-0907		●
107	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	49	1	0908-		●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	0710-	●	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	0710-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
133	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0907	●
133	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0907		●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0712	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0907	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0710-0802	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0803-0811	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0812-0907	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0710-0907	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0908-		●
133	BOLT; BRKT WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> EXC. COUNTRY NEW ZEALAND(CX6) (B) M8X30 FLANGE	0-28650-830-0	01	1	0908-		●
388	SEAL 100X40	1-72498-022-1	03	1	0710-	●	●

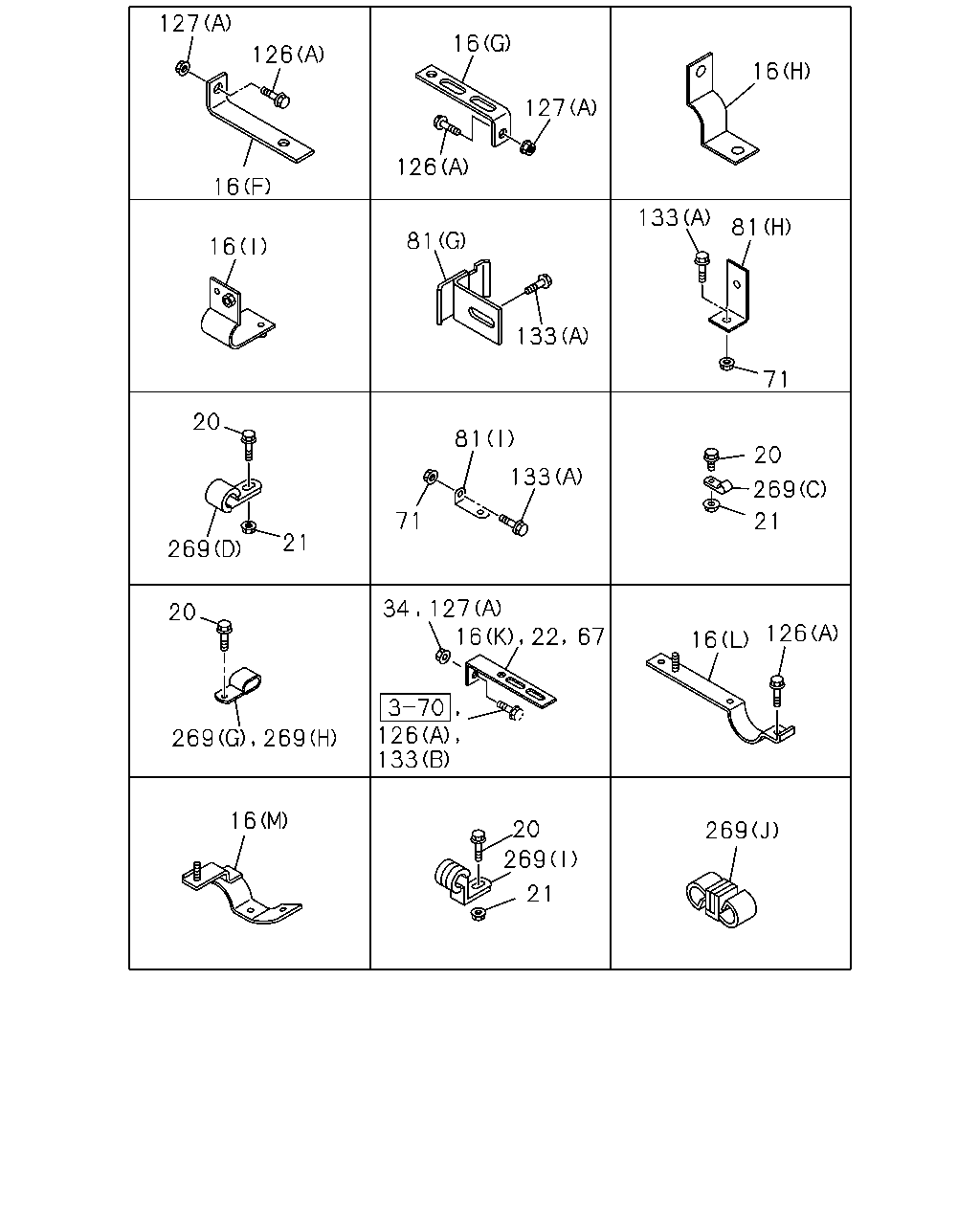

127 16 126 16 127 126 16 133 81 81 16 133 71 20 81 20 133 269 71 21 21 269 34 127 20 126 67 16 126 133 269 16 20 269 269 21 269 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (M)	8-98137-090-0	01	1	0812-		●
16	BRACKET; PIPE CLIP EXC. ANTI LOCK BRAKE<JE5> (K) L=150 H=30	1-47477-629-2	01	1	0809-0903		●
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (L)	1-47479-856-0	02	1	0811-		●
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (M)	1-47479-857-0	02	1	0811-0811		●
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (M)	1-47479-857-0	01	1	0812-		●
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (J)	1-47479-898-0	02	1	0809-		●
16	BRACKET; PIPE CLIP (F)	1-34656-009-0	02	1	0710-	●
16	BRACKET; PIPE CLIP (G)	1-47479-598-0	01	1	0710-0712	●
16	BRACKET; PIPE CLIP (G)	1-47479-598-0	03	1	0801-	●
16	BRACKET; PIPE CLIP (H)	1-47478-588-0	01	1	0710-	●
16	BRACKET; PIPE CLIP (H)	1-47478-588-0	01	1	0710-	●
16	BRACKET; PIPE CLIP (I)	1-47479-249-0	01	1	0710-	●
16	BRACKET; PIPE CLIP (I)	1-47479-249-0	01	1	0710-	●
16	BRACKET; PIPE CLIP (A)	1-47475-868-0	01	1	0710-		●
16	BRACKET; PIPE CLIP (B)	1-47479-546-0	02	1	0710-0810		●
16	BRACKET; PIPE CLIP EURO4 SPECIFICATION<NT4> (B)	1-47479-546-0	02	1	0811-		●
16	BRACKET; PIPE CLIP (C)	1-47479-720-0	02	1	0710-0810		●
16	BRACKET; PIPE CLIP EURO4 SPECIFICATION<NT4> (C)	1-47479-720-0	02	1	0811-		●
16	BRACKET; PIPE CLIP (D)	1-47479-815-0	01	1	0710-		●
16	BRACKET; PIPE CLIP (E)	1-47479-901-0	02	1	0710-0712		●
16	BRACKET; PIPE CLIP (E)	1-47479-901-0	01	1	0801-0808		●
16	BRACKET; PIPE CLIP (E)	1-47479-901-0	01	1	0801-0808		●
16	BRACKET; PIPE CLIP EURO4 SPECIFICATION<NT4> (E)	1-47479-901-0	01	1	0809-		●
16	BRACKET; PIPE CLIP EURO4 SPECIFICATION<NT4> (E)	1-47479-901-0	01	1	0809-		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0710-	●
20	BOLT; CLIP EXC. AUSTRALIA EQUIPMENT(B13) M8X10 FLANGE	0-28050-810-0	02	1	0712-		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-0907		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-0907		●
21	NUT; CLIP M8	0-91110-508-0	01	1	0908-	●
21	NUT; CLIP M8	0-91110-508-0	01	1	0908-	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-0710		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-0907	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-0710		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0710-0907	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0908-	●	●
22	BRACKET; CLIP WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> L=150 H=30	1-47477-629-2	01	1	0809-0903		●
22	BRACKET; CLIP WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> L=225	1-47477-646-3	01	1	0809-		●
22	BRACKET; CLIP L=100 H=30	1-47477-645-2	01	1	0710-0910	●
22	BRACKET; CLIP WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) L=100 H=30	1-47477-645-2	01	1	0710-0910		●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
34	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0710-0803		●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0804-0808	●	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0809-0903	●	●
34	NUT; BRKT WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	0809-0903		●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0904-0907	●	●
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0908-0908	●
34	NUT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W), WHEEL BASE 7100MM(71W) M8 FLANGE	0-91180-108-0	01	1	0908-0908		●
34	NUT; BRKT WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	0908-0908		●
34	NUT; BRKT WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	01	1	0908-0908		●
34	NUT; BRKT WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	01	1	0909-		●
34	NUT; BRKT WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> EXC. COUNTRY NEW ZEALAND(CX6) M8 FLANGE	0-91180-108-0	01	1	0909-		●
67	BRACKET; CLIP WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> EXC. COUNTRY NEW ZEALAND(CX6) L=100 H=30	1-47477-645-2	01	1	0908-		●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0812-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0907	●	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0907	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0710	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	13	1	0710-0907	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0908-		●
81	BRACKET; CLIP (L)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP (I)	1-82699-527-1	01	1	0710-0711	●
81	BRACKET; CLIP (G)	1-47479-693-0	02	1	0712-	●
81	BRACKET; CLIP (H) L=65	1-47477-713-0	01	1	0710-0902	●	●
81	BRACKET; CLIP (H) L=65 B=25	8-98135-584-0	01	1	0903-	●	●
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	0710-	●	●
81	BRACKET; CLIP (G)	1-47479-693-0	01	1	0710-0907	●	●
81	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	04	1	0710-0812	●	●
81	BRACKET; CLIP (J)	8-98129-212-0	04	1	0901-1012	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	04	1	1101-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0710-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0710-	●	●
81	BRACKET; CLIP (F)	8-98047-730-0	02	1	0710-0710	●	●
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	0710-		●
126	BOLT; CLIP BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-0903		●
126	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0907	●
126	BOLT; CLIP BRKT (A) M8X35 FLANGE	0-28650-835-0	03	1	0908-	●
126	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	03	1	0710-0907	●
126	BOLT; CLIP BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0908-	●
126	BOLT; CLIP BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0908-	●
126	BOLT; CLIP BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0710-	●
126	BOLT; CLIP BRKT (A) M8X10 FLANGE	0-28050-810-0	04	1	0710-0712		●
126	BOLT; CLIP BRKT (A) M8X10 FLANGE	0-28050-810-0	02	1	0801-		●
126	BOLT; CLIP BRKT (A) M8X10 FLANGE	0-28050-810-0	02	1	0801-		●
126	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-		●
126	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-0808		●
126	BOLT; CLIP BRKT ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE	0-28650-830-0	01	1	0809-0903		●
126	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0904-		●
126	BOLT; CLIP BRKT (B) M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0808	●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0809-0903	●
127	NUT; CLIP BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	0809-0903		●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0904-	●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0710-	●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0710-0808		●
127	NUT; CLIP BRKT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	01	1	0809-0903		●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0904-		●
127	NUT; CLIP BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0710-		●
133	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	02	1	0812-	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0907	●
133	BOLT; BRKT WHEEL BASE 5000MM(50W) (B) M8X30 FLANGE	0-28650-830-0	01	1	0710-0907		●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-0712	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0801-0907	●	●
133	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	06	1	0710-0802	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0803-0811	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0812-0907	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0710-0907	●	●
133	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0908-		●
133	BOLT; BRKT WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> EXC. COUNTRY NEW ZEALAND(CX6) (B) M8X30 FLANGE	0-28650-830-0	01	1	0908-		●
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (J) ID=12 & 15	1-09709-281-1	01	1	1012-		●
269	CLIP; BAND,NYLON TUBE TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (J) ID=15 & 15	1-09709-282-1	01	1	1012-		●
269	CLIP; BAND,NYLON TUBE EURO2 SPECIFICATION<NT2> (I) ID=39 H=40 L=32	1-09701-267-0	02	1	0811-		●
269	CLIP; BAND,NYLON TUBE EURO4 SPECIFICATION<NT4> (C) ID=39 L=33	8-98009-359-0	06	1	0811-		●
269	CLIP; BAND,NYLON TUBE (D) ID=13 L=50	0-95235-286-0	01	1	0710-	●
269	CLIP; BAND,NYLON TUBE (E) ID=31 L=35	1-09700-329-1	03	1	0710-0802	●
269	CLIP; BAND,NYLON TUBE (F) ID=28 L=40	1-09701-261-0	03	1	0710-0802	●
269	CLIP; BAND,NYLON TUBE (F) ID=28 L=40	1-09701-261-0	06	1	0803-	●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	01	1	0710-0712		●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	0801-0907		●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	0908-	●	●
269	CLIP; BAND,NYLON TUBE EXC. AUSTRALIA EQUIPMENT(B13) (G) ID=11X2 L=20	0-95325-035-0	01	1	0712-		●
269	CLIP; BAND,NYLON TUBE EXC. AUSTRALIA EQUIPMENT(B13) (H) ID=11X2 H=35 L=20	1-09700-847-0	01	1	0712-		●
269	CLIP; BAND,NYLON TUBE (B) ID=35 L=33	1-09700-945-0	06	1	0710-0710		●
269	CLIP; BAND,NYLON TUBE (C) ID=39 L=33	8-98009-359-0	06	1	0710-0810		●
269	CLIP; BAND,NYLON TUBE EURO2 SPECIFICATION<NT2> (C) ID=39 L=33	8-98009-359-0	04	1	0811-		●

126 16 16 372 16 242 127 16 127 16 16 20 126 21 107 128 320 375 71 107 318 81 71 81 322 265 21 297 81 71 269 269 269 376 74 76 74 287 286 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (M)	8-98137-090-0	01	1	0812-		●
16	BRACKET; PIPE CLIP EXC. ANTI LOCK BRAKE<JE5> (K) L=150 H=30	1-47477-629-2	01	1	0809-0903		●
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (L)	1-47479-856-0	02	1	0811-		●
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (M)	1-47479-857-0	02	1	0811-0811		●
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (M)	1-47479-857-0	01	1	0812-		●
16	BRACKET; PIPE CLIP EURO2 SPECIFICATION<NT2> (J)	1-47479-898-0	02	1	0809-		●
16	BRACKET; PIPE CLIP (F)	1-34656-009-0	02	1	0710-	●
16	BRACKET; PIPE CLIP (G)	1-47479-598-0	01	1	0710-0712	●
16	BRACKET; PIPE CLIP (G)	1-47479-598-0	03	1	0801-	●
16	BRACKET; PIPE CLIP (H)	1-47478-588-0	01	1	0710-	●
16	BRACKET; PIPE CLIP (H)	1-47478-588-0	01	1	0710-	●
16	BRACKET; PIPE CLIP (I)	1-47479-249-0	01	1	0710-	●
16	BRACKET; PIPE CLIP (I)	1-47479-249-0	01	1	0710-	●
16	BRACKET; PIPE CLIP (A)	1-47475-868-0	01	1	0710-		●
16	BRACKET; PIPE CLIP (B)	1-47479-546-0	02	1	0710-0810		●
16	BRACKET; PIPE CLIP EURO4 SPECIFICATION<NT4> (B)	1-47479-546-0	02	1	0811-		●
16	BRACKET; PIPE CLIP (C)	1-47479-720-0	02	1	0710-0810		●
16	BRACKET; PIPE CLIP EURO4 SPECIFICATION<NT4> (C)	1-47479-720-0	02	1	0811-		●
16	BRACKET; PIPE CLIP (D)	1-47479-815-0	01	1	0710-		●
16	BRACKET; PIPE CLIP (E)	1-47479-901-0	02	1	0710-0712		●
16	BRACKET; PIPE CLIP (E)	1-47479-901-0	01	1	0801-0808		●
16	BRACKET; PIPE CLIP (E)	1-47479-901-0	01	1	0801-0808		●
16	BRACKET; PIPE CLIP EURO4 SPECIFICATION<NT4> (E)	1-47479-901-0	01	1	0809-		●
16	BRACKET; PIPE CLIP EURO4 SPECIFICATION<NT4> (E)	1-47479-901-0	01	1	0809-		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0710-	●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	0710-	●
20	BOLT; CLIP EXC. AUSTRALIA EQUIPMENT(B13) M8X10 FLANGE	0-28050-810-0	02	1	0712-		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-0907		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-0907		●
21	NUT; CLIP M8	0-91110-508-0	01	1	0908-	●
21	NUT; CLIP M8	0-91110-508-0	01	1	0908-	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-0710		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-0907	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0908-	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-0710		●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0710-0907	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0908-	●	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0812-	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0801-0907	●	●
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0710-0907	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0710-0710	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	13	1	0710-0907	●	●
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0908-		●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) EXC. COUNTRY NEW ZEALAND(CX6) (A) L=350	1-09707-183-0	04	1	0908-		●
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	04	1	0908-		●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) EURO4 SPECIFICATION<NT4> (A) L=350	1-09707-183-0	10	1	0908-		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	0812-0907	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	0908-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) COUNTRY NEW ZEALAND(CX6) (A) L=350	1-09707-183-0	03	1	0908-		●
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> (A) L=350	1-09707-183-0	10	1	0809-0907		●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> (A) L=350	1-09707-183-0	07	1	0908-		●
74	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	01	1	0712-0712	●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	01	1	0712-0712		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0801-0809	●	●
74	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	01	1	0801-0809	●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	01	1	0801-0809		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0810-0811	●	●
74	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	01	1	0810-0811	●
74	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	01	1	0810-0811	●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	01	1	0810-0811		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0812-0907	●	●
74	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	01	1	0812-0907	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0812-0907	●
74	CLIP; NYLON TUBE BRAKE REGULATION ADR(TDU) (A) L=350	1-09707-183-0	01	1	0812-0907		●
74	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	11	1	0908-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	02	1	0801-0805		●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	02	1	0806-0907		●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) BRAKE REGULATION ADR(TDU) (A) L=350	1-09707-183-0	02	1	0806-0907		●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (A) L=350	1-09707-183-0	02	1	0908-		●
74	CLIP; NYLON TUBE EURO2 SPECIFICATION<NT2> (A) L=350	1-09707-183-0	02	1	0908-		●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	07	1	0710-0907	●	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0908-0911	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0912-	●
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0912-	●
74	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (A) L=350	1-09707-183-0	01	1	0912-		●
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	0710-0903	●	●
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	0904-1008	●
74	CLIP; NYLON TUBE EXC. EURO2 SPECIFICATION<NT2> (B) ID=12 & 15	1-09709-281-1	01	1	0904-1008		●
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	1009-	●
74	CLIP; NYLON TUBE EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=12 & 15	1-09709-281-1	01	1	1009-		●
76	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> EXC. ANTI LOCK BRAKE<JE5>,RIGID SEAT WO/ARM REST<TAZ> L=350	1-09707-183-0	01	1	0812-		●
81	BRACKET; CLIP (L)	8-98186-380-0	01	1	1106-	●	●
81	BRACKET; CLIP (I)	1-82699-527-1	01	1	0710-0711	●
81	BRACKET; CLIP (G)	1-47479-693-0	02	1	0712-	●
81	BRACKET; CLIP (H) L=65	1-47477-713-0	01	1	0710-0902	●	●
81	BRACKET; CLIP (H) L=65 B=25	8-98135-584-0	01	1	0903-	●	●
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	0710-	●	●
81	BRACKET; CLIP (G)	1-47479-693-0	01	1	0710-0907	●	●
81	BRACKET; CLIP (E) L=100 H=30	1-47477-645-2	04	1	0710-0812	●	●
81	BRACKET; CLIP (J)	8-98129-212-0	04	1	0901-1012	●	●
81	BRACKET; CLIP (K)	8-98177-873-0	04	1	1101-	●	●
81	BRACKET; CLIP (A) L=170	1-47479-380-0	01	1	0710-	●	●
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	0710-	●	●
81	BRACKET; CLIP (F)	8-98047-730-0	02	1	0710-0710	●	●
81	BRACKET; CLIP (C) L=150 H=30	1-47477-629-2	01	1	0710-		●
107	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	45	1	0804-0907		●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	0801-0907	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	50	1	0908-	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	02	1	0710-0801	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	0802-0811	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	20	1	0710-0802	●	●
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	25	1	0803-0907	●	●
107	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	45	1	0908-		●
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=350	1-09707-183-0	21	1	0710-0907		●
107	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (A) L=350	1-09707-183-0	42	1	0908-		●
107	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) (A) L=350	1-09707-183-0	23	1	0710-0907		●
107	CLIP; NYLON TUBE WHEEL BASE 7100MM(71W) (A) L=350	1-09707-183-0	49	1	0908-		●
107	CLIP; NYLON TUBE H.S.A SYSTEM<6EP> (B) ID=35 L=33	1-09700-945-0	01	1	0710-	●	●
107	CLIP; NYLON TUBE EXC. H.S.A SYSTEM<6EP> (B) ID=39 L=33	8-98009-359-0	01	1	0710-	●	●
126	BOLT; CLIP BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-0903		●
126	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0907	●
126	BOLT; CLIP BRKT (A) M8X35 FLANGE	0-28650-835-0	03	1	0908-	●
126	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	03	1	0710-0907	●
126	BOLT; CLIP BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0908-	●
126	BOLT; CLIP BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0908-	●
126	BOLT; CLIP BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	0710-	●
126	BOLT; CLIP BRKT (A) M8X10 FLANGE	0-28050-810-0	04	1	0710-0712		●
126	BOLT; CLIP BRKT (A) M8X10 FLANGE	0-28050-810-0	02	1	0801-		●
126	BOLT; CLIP BRKT (A) M8X10 FLANGE	0-28050-810-0	02	1	0801-		●
126	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-		●
126	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0710-0808		●
126	BOLT; CLIP BRKT ANTI LOCK BRAKE<JE5> (A) M8X30 FLANGE	0-28650-830-0	01	1	0809-0903		●
126	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0904-		●
126	BOLT; CLIP BRKT (B) M10X35 FLANGE	0-28651-035-0	01	1	0710-		●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0808	●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0809-0903	●
127	NUT; CLIP BRKT EXC. ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	0809-0903		●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0904-	●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0710-	●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0710-0808		●
127	NUT; CLIP BRKT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	01	1	0809-0903		●
127	NUT; CLIP BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0904-		●
127	NUT; CLIP BRKT (B) M10 FLANGE	0-91180-210-0	01	1	0710-		●
128	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	0810-	●
242	BRACKET; PIPE CLIP CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98106-046-0	01	1	0712-		●
242	BRACKET; PIPE CLIP	8-98074-610-0	01	1	0710-0711	●	●
242	BRACKET; PIPE CLIP	8-98074-610-0	01	1	0712-	●
242	BRACKET; PIPE CLIP CAB SUSPENSION FULL FLOATING<W16>	8-98074-610-0	01	1	0712-		●
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	0710-	●	●
269	CLIP; BAND,NYLON TUBE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (J) ID=12 & 15	1-09709-281-1	01	1	1012-		●
269	CLIP; BAND,NYLON TUBE TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (J) ID=15 & 15	1-09709-282-1	01	1	1012-		●
269	CLIP; BAND,NYLON TUBE EURO2 SPECIFICATION<NT2> (I) ID=39 H=40 L=32	1-09701-267-0	02	1	0811-		●
269	CLIP; BAND,NYLON TUBE EURO4 SPECIFICATION<NT4> (C) ID=39 L=33	8-98009-359-0	06	1	0811-		●
269	CLIP; BAND,NYLON TUBE (D) ID=13 L=50	0-95235-286-0	01	1	0710-	●
269	CLIP; BAND,NYLON TUBE (E) ID=31 L=35	1-09700-329-1	03	1	0710-0802	●
269	CLIP; BAND,NYLON TUBE (F) ID=28 L=40	1-09701-261-0	03	1	0710-0802	●
269	CLIP; BAND,NYLON TUBE (F) ID=28 L=40	1-09701-261-0	06	1	0803-	●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	01	1	0710-0712		●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	0801-0907		●
269	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	02	1	0908-	●	●
269	CLIP; BAND,NYLON TUBE EXC. AUSTRALIA EQUIPMENT(B13) (G) ID=11X2 L=20	0-95325-035-0	01	1	0712-		●
269	CLIP; BAND,NYLON TUBE EXC. AUSTRALIA EQUIPMENT(B13) (H) ID=11X2 H=35 L=20	1-09700-847-0	01	1	0712-		●
269	CLIP; BAND,NYLON TUBE (B) ID=35 L=33	1-09700-945-0	06	1	0710-0710		●
269	CLIP; BAND,NYLON TUBE (C) ID=39 L=33	8-98009-359-0	06	1	0710-0810		●
269	CLIP; BAND,NYLON TUBE EURO2 SPECIFICATION<NT2> (C) ID=39 L=33	8-98009-359-0	04	1	0811-		●
286	CLIP; NYLON TUBE EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1012-		●
287	CLIP; AIR PIPE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=6.35 & 12	1-09709-275-1	01	1	1012-1012		●
287	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> ID=6.35 & 6.35	1-09709-273-1	01	1	1012-1012		●
287	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	01	1	1012-1012		●
297	NUT; BRKT ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	02	1	0710-0807	●	●
297	NUT; BRKT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	0-91180-108-0	02	1	0808-	●	●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	0906-1008		●
318	CLIP; AIR PIPE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	02	1	1009-		●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> ID=6.35 & 15	1-09709-276-1	03	1	0809-0905		●
318	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> ID=6.35 & 15	1-09709-276-1	03	1	0906-1008		●
318	CLIP; AIR PIPE AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> ID=6.35 & 15	1-09709-276-1	03	1	1009-		●
320	CLIP; BAND,FLEX FIX EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0809-1008		●
320	CLIP; BAND,FLEX FIX TURBO - CONVENTIONAL<Q5T> L=250	5-09707-030-1	01	1	1009-		●
322	BRACKET; CLIP ZF9S1110 M/T(Y5E)	1-47479-598-0	02	1	0710-0807	●	●
322	BRACKET; CLIP ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-47479-598-0	02	1	0808-	●	●
372	BOLT; CLIP BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0712	●	●
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0801-	●	●
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0712-0811	●
375	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(B13) L=350	1-09707-183-0	01	1	0712-0811		●
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) L=350	1-09707-183-0	02	1	0710-0811	●	●
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	01	1	0812-0906	●	●
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	01	1	0907-1008	●	●
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	0907-1008	●	●
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	01	1	1009-1011	●	●
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1009-1011	●
375	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=350	1-09707-183-0	01	1	1009-1011		●
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> L=350	1-09707-183-0	01	1	1012-	●	●
375	CLIP; AIR PIPE L=350	1-09707-183-0	01	1	1012-	●
375	CLIP; AIR PIPE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. BRAKE REGULATION ADR(TDU) L=350	1-09707-183-0	01	1	1012-		●
375	CLIP; AIR PIPE EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> L=350	1-09707-183-0	01	1	1012-		●
375	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> L=350	1-09707-183-0	01	1	1012-		●
376	BOLT; BRKT ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	02	1	0710-0807	●	●
376	BOLT; BRKT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X30 FLANGE	0-28650-830-0	02	1	0808-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
