◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 3 - Brakes, Brake System ▶ 3-75 - BRAKE PIPING; AIR,FRONT ▶
3-75 — BRAKE PIPING; AIR,FRONT (#65726) — 94 parça

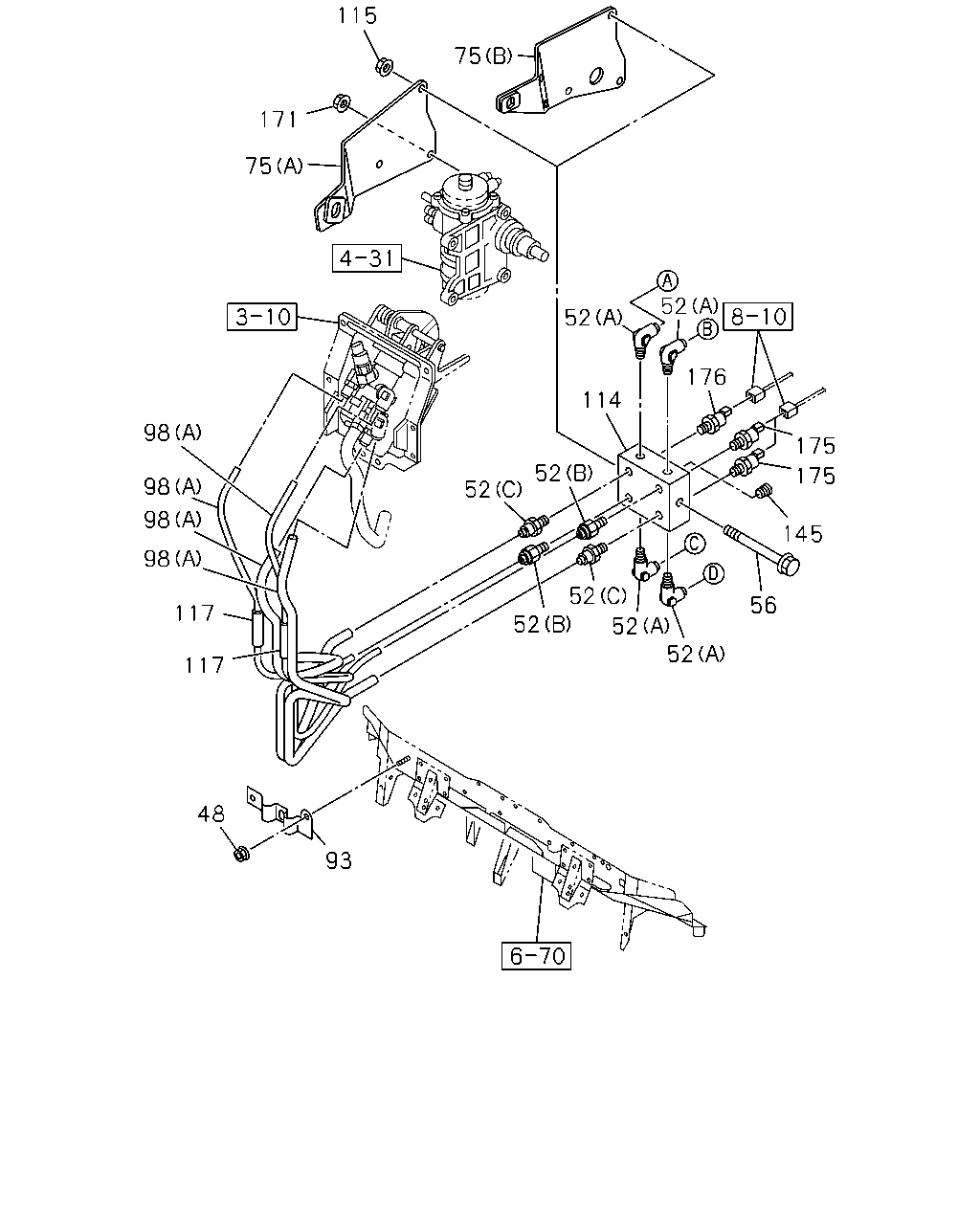

çizim 122230
115 75 171 75 52 52 176 114 98 175 52 175 98 52 98 145 98 52 52 56 117 52 52 117 48 93
BalonParca AdiParca NoAdetTipApplied Date A B
48 NUT; UNION BRKT
M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
52 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 04 1 0710- ● ●
52 CONNECTOR; NYLON TUBE
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0710- ● ●
52 CONNECTOR; NYLON TUBE
(C) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 02 1 0710- ● ●
56 BOLT; UNION BRKT
M8X100 FLANGE 		0-28050-800-0 01 1 0710- ● ●
75 BRACKET; UNION
(A) 		8-98075-871-1 01 1 0710-0803 ● ●
75 BRACKET; UNION
(B) 		8-98099-485-1 01 1 0804- ● ●
93 BRACKET; UNION,TUBE 8-98044-013-0 01 1 0710- ● ●
98 TUBE; NYLON
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) 		8-98091-308-0 01 1 0712- ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0710-0711 ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0712- ●
98 TUBE; NYLON
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98091-307-0 01 1 0712- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1105- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
114 UNION; NYLON TUBE 8-98057-394-1 01 1 0710- ● ●
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 02 1 1111- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1111- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1111- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 01 1 1111- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0807- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0807- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0710- ● ●
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=28 		1-87411-034-0 AR 1 0710- ● ●
145 PLUG
PT1/4 		9-99204-513-0 01 1 0710- ● ●
171 NUT; BRACKET
M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
175 SENSOR; AIR PRESS
THREAD R1/4 		1-80220-023-1 02 1 0710- ● ●
176 SWITCH; AIR PRESS
STAMP 0.3 		8-98010-857-0 01 1 0710- ● ●

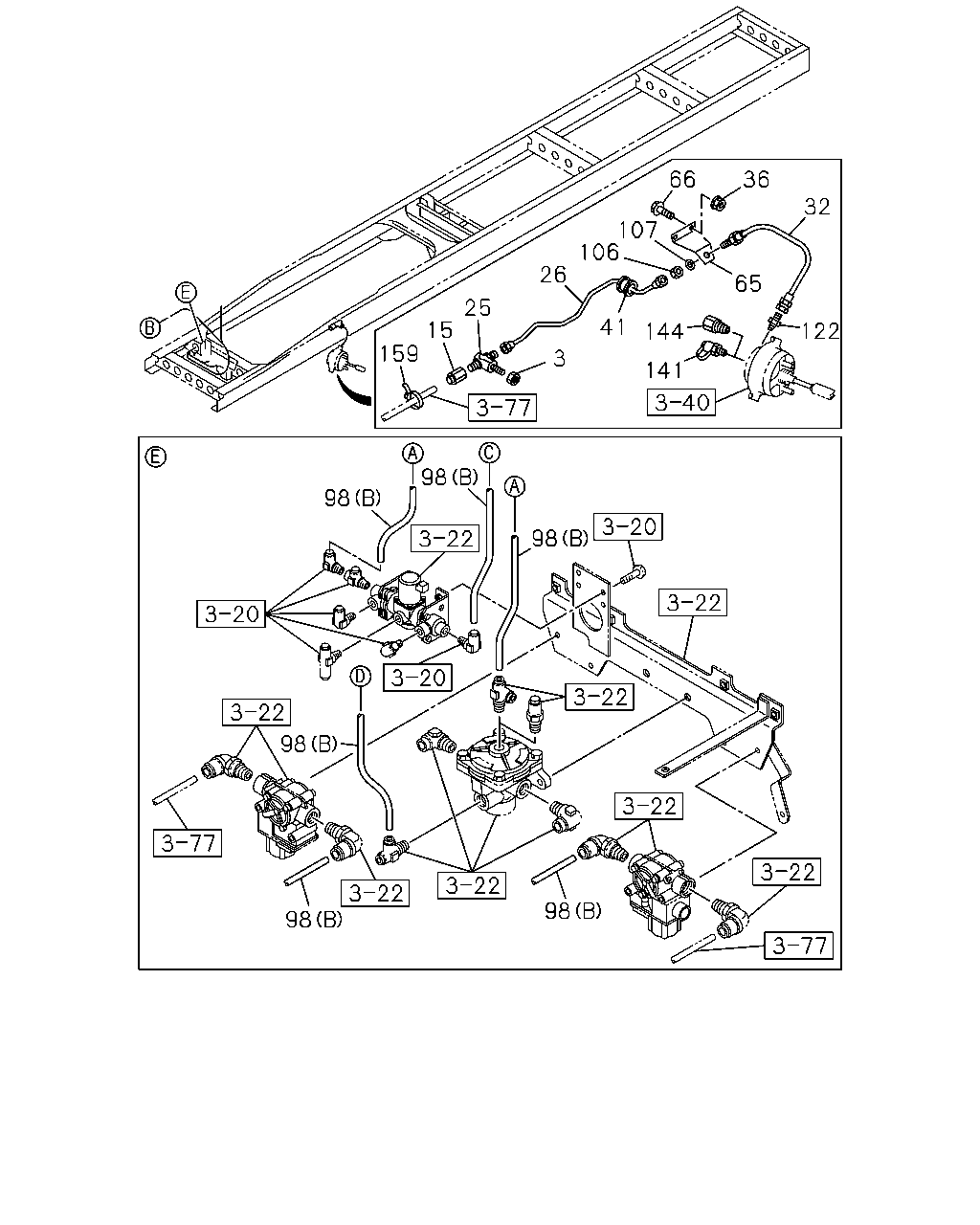

çizim 122383
66 36 32 107 106 26 65 25 41 15 122 144 159 3 141 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
3 NUT; PIPE UNION
M12 		0-91111-512-0 02 1 0710- ● ●
15 CONNECTOR; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0710- ● ●
25 UNION; AIR PIPE
M16 		1-09654-148-1 02 1 0710- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=659 		8-98091-273-0 01 1 0710-0806 ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=657 		8-98126-150-1 01 1 0807- ● ●
26 PIPE; AIR,UNION TO FLEX HOSE
L=500 		8-98091-274-1 01 1 0710- ● ●
32 HOSE; FLEX,FRT 8-98090-844-0 02 1 0710- ● ●
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0710- ● ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 0710- ● ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 0710- ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
98 TUBE; NYLON
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) 		8-98091-308-0 01 1 0712- ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0710-0711 ● ●
98 TUBE; NYLON
(A) 		8-98091-307-0 01 1 0712- ●
98 TUBE; NYLON
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-98091-307-0 01 1 0712- ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1105- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0710- ● ●
106 NUT; FLEX HOSE
M16 		0-91111-516-0 02 1 0710- ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-516-0 02 1 0710-1009 ● ●
107 WASHER; LK,FLEX HOSE
ID=16.2 		0-91510-816-0 02 1 1010- ● ●
122 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> EXC. HUB LUBRICATION OIL BATH<C5K> M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 0712-1105 ●
122 CONNECTOR; FLEX HOSE
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> M16 & PT3/8 STRAIGHT 		1-09656-643-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
EXC. HUB LUBRICATION OIL BATH<C5K>,BRAKE REGULATION ADR(TDU) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 0712-1105 ● ●
122 CONNECTOR; FLEX HOSE
VIN MODEL YEAR 2011<VZB> EXC. AUSTRALIA EQUIPMENT(B13) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1106- ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0710-0711 ● ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
122 CONNECTOR; FLEX HOSE
HUB LUBRICATION OIL BATH<C5K> M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 0712- ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW 		1-09656-724-0 01 1 0710-0711 ● ●
122 CONNECTOR; FLEX HOSE
M16 & PT3/8 ELBOW 		1-09656-724-0 01 1 0712- ●
122 CONNECTOR; FLEX HOSE
HUB LUBRICATION OIL BATH<C5K> M16 & PT3/8 ELBOW 		1-09656-724-0 01 1 0712- ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-0 01 1 0710-0711 ● ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0712-1007 ●
141 CONNECTOR; TEST
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0712-1007 ●
141 CONNECTOR; TEST
HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 0712-1007 ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008-1105 ●
141 CONNECTOR; TEST
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) EXC. AUSTRALIA EQUIPMENT(B13),HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008-1105 ●
141 CONNECTOR; TEST
HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008-1105 ●
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1106- ●
141 CONNECTOR; TEST
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ADR(TDU) VIN MODEL YEAR 2011<VZB> EXC. AUSTRALIA EQUIPMENT(B13) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1106- ●
141 CONNECTOR; TEST
HUB LUBRICATION OIL BATH<C5K> R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1106- ●
144 ADAPTER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0710-0711 ● ●
144 ADAPTER
NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0712- ●
144 ADAPTER
HUB LUBRICATION OIL BATH<C5K> NPTF3/8 & RC3/8 		1-09660-548-0 02 1 0712- ●
159 CLIP; NYLON TUBE
EXC. ANTI LOCK BRAKE<JE5> L=350 		1-09707-183-0 01 1 0812- ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 01 1 0710-0811 ● ●
159 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 0812- ●
159 CLIP; NYLON TUBE
ANTI LOCK BRAKE<JE5> L=350 		1-09707-183-0 02 1 0812- ●
