Sayfa 3-70 - Isuzu EPC

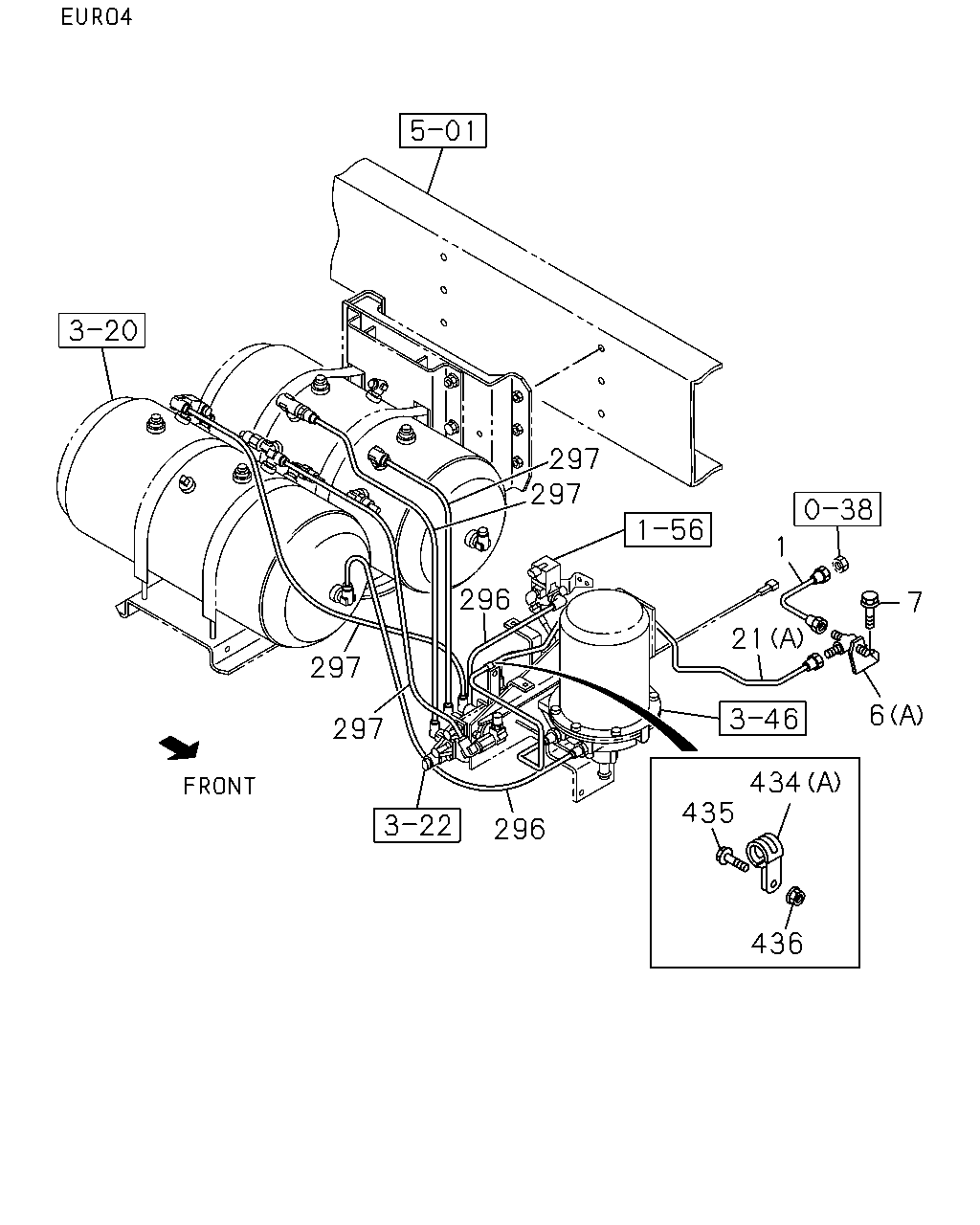

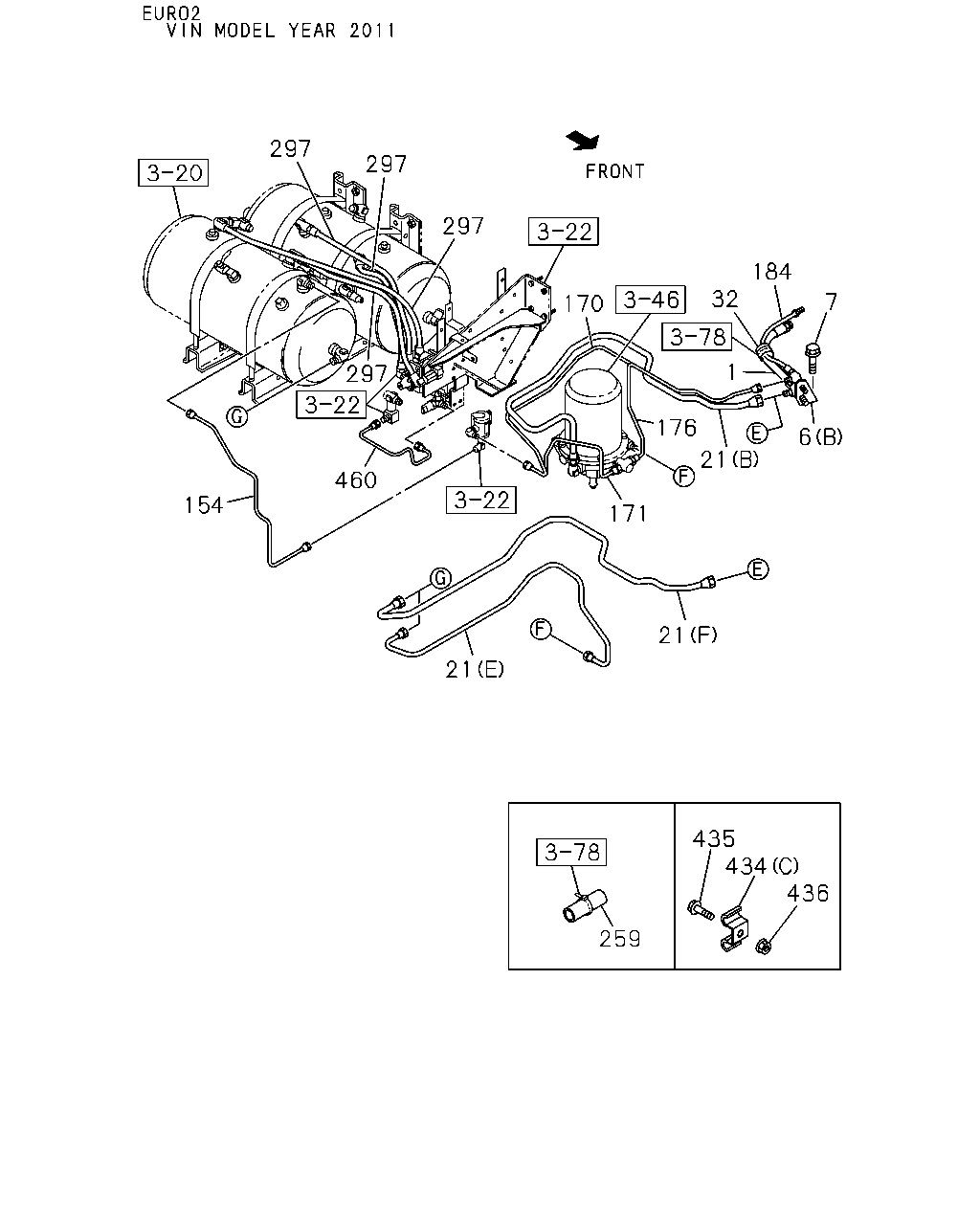

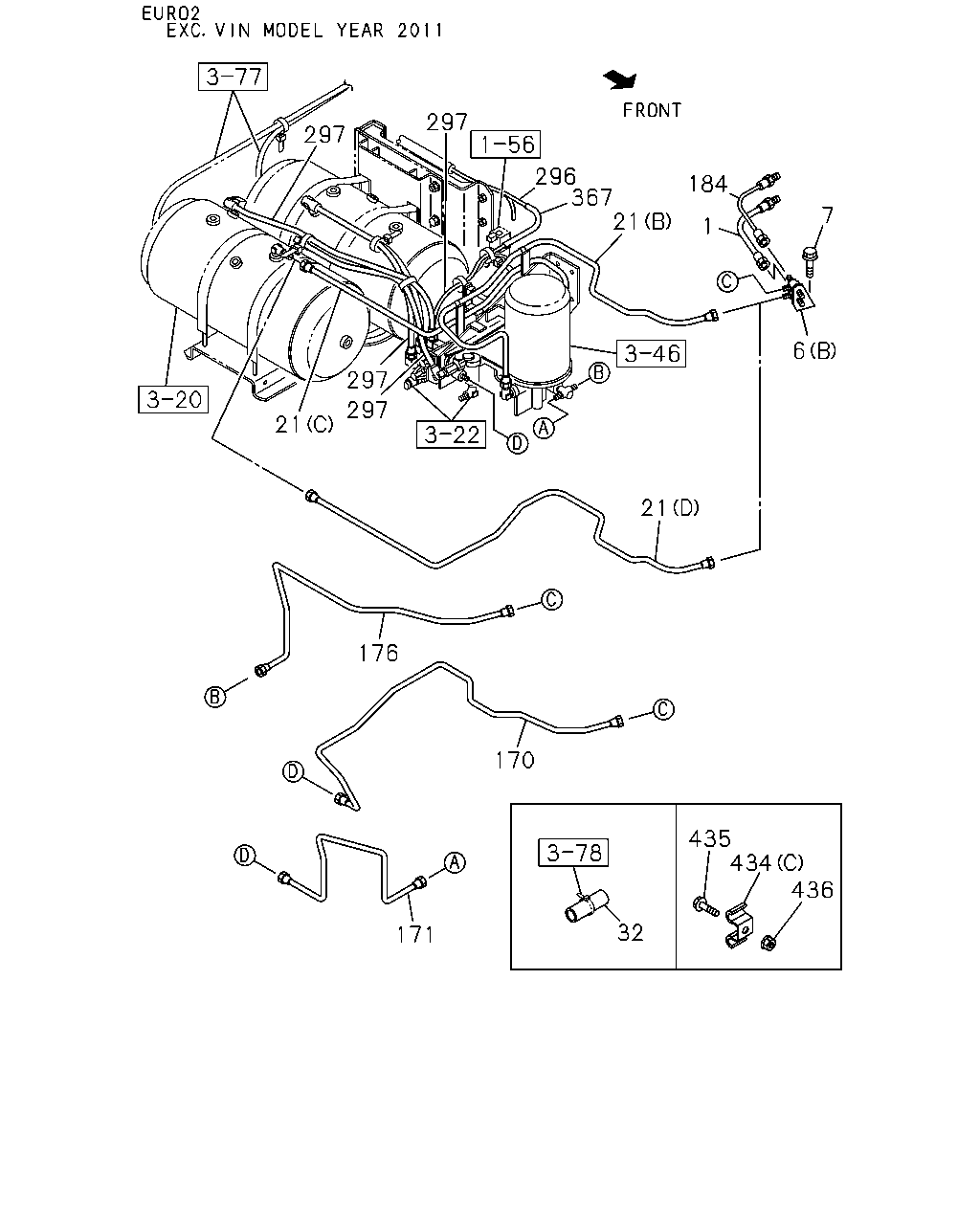

3-70 — BRAKE PIPING; AIR,AIR MASTER (#65725) — 346 parça

297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 21 21 435 434 436 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0710-0808	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0809-1008		●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4> L=320	8-98067-411-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1009-		●
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98117-117-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0710-0808	●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0809-1008		●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	1009-		●
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1009-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E)	8-98173-546-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E)	8-98184-503-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (F) L=1523	8-98173-570-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (F) L=1526	8-98184-504-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C)	8-98117-819-0	01	1	0809-0904	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C)	8-98147-087-0	01	1	0905-1008	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	8-98147-087-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98147-087-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0710-0711	●	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0712-0712		●
21	PIPE; AIR,UNION TO AIR DRYER AUSTRALIA EQUIPMENT(B13) (A) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1730	8-98105-723-0	01	1	0712-0801		●
21	PIPE; AIR,UNION TO AIR DRYER AUSTRALIA EQUIPMENT(B13) (A) L=1730	8-98105-723-0	01	1	0712-0801	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0802-0808	●	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0809-1008		●
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> (A) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	1009-		●
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1715	8-98095-083-0	01	1	1009-	●
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1008	●
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-	●
154	PIPE; AIR,AIR TANK TO AIR GOV TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1008	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1009-	●
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1008	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1009-	●
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1008	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1009-	●
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=350	1-09363-624-0	01	1	0809-1008	●
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1009-	●
259	SLEEVE; RUBBER,NYLON TUBE EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
434	CLIP EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0801		●
434	CLIP AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-		●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0712-	●
460	PIPE; AIR,PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98173-460-0	01	1	1012-1012	●
460	PIPE; AIR,PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1012-	●

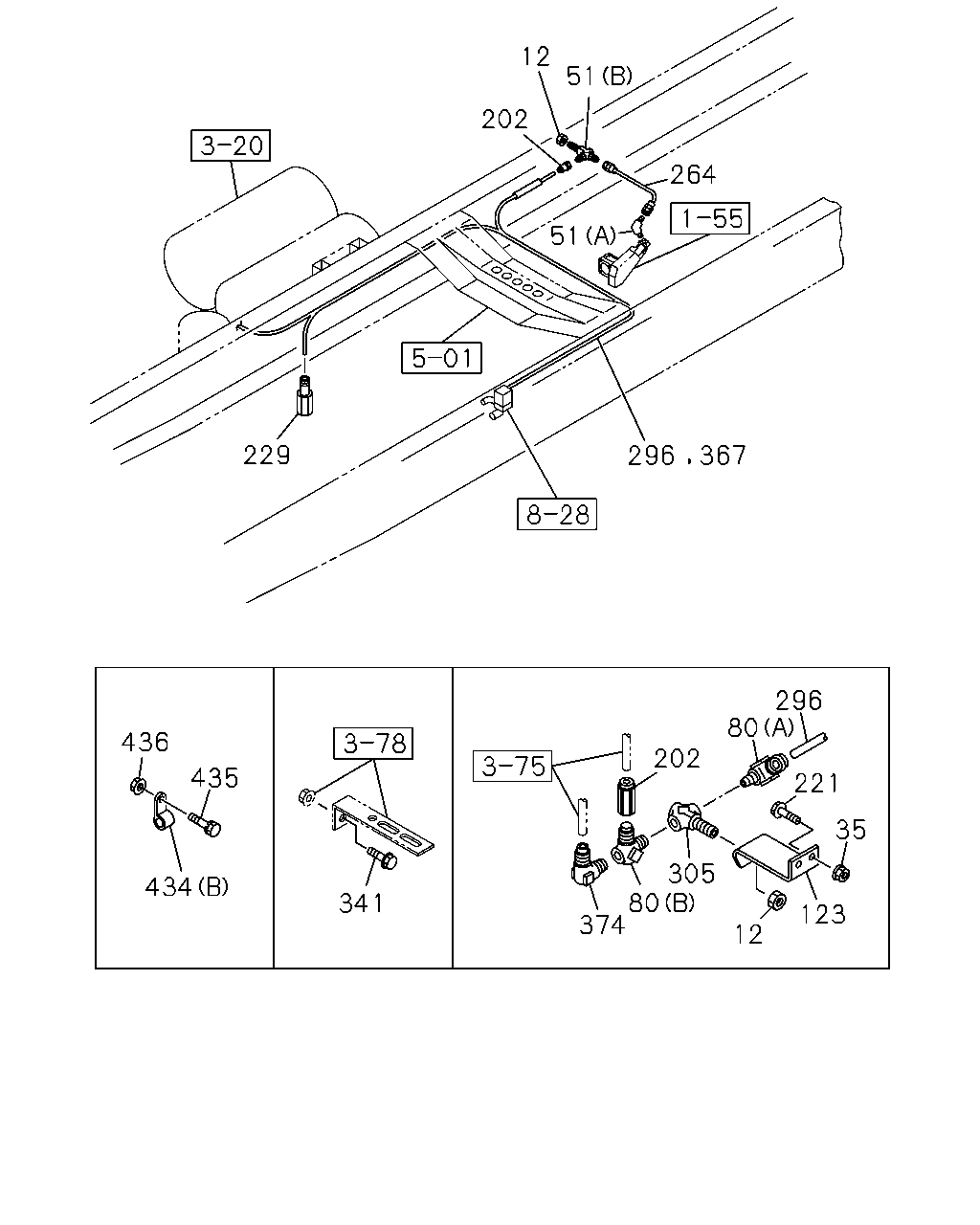

12 51 202 264 51 229 296 367 296 80 436 202 435 221 35 305 80 374 434 341 123 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NUT; UNION M12	0-91111-512-0	01	1	0710-0808	●	●
12	NUT; UNION M12	0-91111-512-0	01	1	0809-1105		●
12	NUT; UNION EURO4 SPECIFICATION<NT4> M12	0-91111-512-0	01	1	0809-1105	●
12	NUT; UNION EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	0809-1105	●
12	NUT; UNION M12	0-91111-512-0	01	1	1106-		●
12	NUT; UNION EURO4 SPECIFICATION<NT4> M12	0-91111-512-0	01	1	1106-	●
12	NUT; UNION ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	1106-	●
35	NUT; BRKT EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0809-1104	●
35	NUT; BRKT EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	1105-	●
51	UNION WHEEL BASE 5900MM(59W) (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0801-0808	●
51	UNION WHEEL BASE 5900MM(59W) EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	0809-1503	●
51	UNION WHEEL BASE 5900MM(59W) EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0712	●	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0801-0808		●
51	UNION WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W), WHEEL BASE 7100MM(71W) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0801-0808	●
51	UNION (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-		●
51	UNION WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W), WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-	●
51	UNION (B) M12 2WAY	1-09654-059-2	01	1	0710-0808	●	●
51	UNION (B) M12 2WAY	1-09654-059-2	01	1	0809-		●
51	UNION EURO4 SPECIFICATION<NT4> (B) M12 2WAY	1-09654-059-2	01	1	0809-	●
80	UNION; 3 WAY EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0809-1105	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (A) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	1106-	●
80	UNION; 3 WAY H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-1105	●
80	UNION; 3 WAY EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-1105	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1106-	●
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> (B) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1106-	●
123	BRACKET; UNION EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	0809-1105	●
123	BRACKET; UNION ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	1106-	●
202	ADAPTER H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-1105	●
202	ADAPTER EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0809-1105	●
202	ADAPTER ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1106-	●
202	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1106-	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-0808	●	●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-		●
202	ADAPTER EURO4 SPECIFICATION<NT4> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-	●
221	BOLT; BRKT EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809	●
221	BOLT; BRKT EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0810-1104	●
221	BOLT; BRKT EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	1105-	●
229	ADAPTER; NYLON TUBE ZF9S1110 M/T(Y5E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0710-0803	●	●
264	HOSE; FLEX WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) L=370	1-09363-771-0	01	1	0801-0808	●
264	HOSE; FLEX WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> L=370	1-09363-771-0	01	1	0809-	●
264	HOSE; FLEX WHEEL BASE 7100MM(71W) L=340	1-09363-617-0	01	1	0710-0805	●	●
264	HOSE; FLEX WHEEL BASE 7100MM(71W) L=340	1-09363-617-0	01	1	0806-0808		●
264	HOSE; FLEX WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) L=340	1-09363-617-0	01	1	0806-0808	●
264	HOSE; FLEX WHEEL BASE 7100MM(71W) L=340	1-09363-617-0	01	1	0809-		●
264	HOSE; FLEX WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> L=340	1-09363-617-0	01	1	0809-	●
264	HOSE; FLEX L=280	1-09363-672-0	01	1	0710-0710	●	●
264	HOSE; FLEX WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) L=300	1-09363-611-0	01	1	0710-0711	●
264	HOSE; FLEX WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) AUSTRALIA EQUIPMENT(B13) L=300	1-09363-611-0	01	1	0712-0712	●
264	HOSE; FLEX WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) L=300	1-09363-611-0	01	1	0801-0805	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0710-	●	●
305	UNION ASM; NYLON TUBE EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>	8-98120-049-0	01	1	0809-1105	●
305	UNION ASM; NYLON TUBE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6>	8-98120-049-0	01	1	1106-	●
341	BOLT; BRKT WHEEL BASE 6300MM(63W) EURO2 SPECIFICATION<NT2> M8X25 FLANGE	0-28650-825-0	01	1	0908-	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-0803		●
341	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28650-830-0	01	1	0710-0803	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0804-0808		●
341	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W), WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28650-830-0	01	1	0804-0808	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0809-0903		●
341	BOLT; BRKT WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> M8X30 FLANGE	0-28650-830-0	01	1	0809-0903	●
341	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W), WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28650-830-0	01	1	0809-0903	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0904-0908		●
341	BOLT; BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W), WHEEL BASE 7100MM(71W) M8X30 FLANGE	0-28650-830-0	01	1	0904-0908	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0806-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0710-	●	●
374	CONNECTOR EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1105	●
374	CONNECTOR ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. PTO CONTROL<SV6> M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1106-	●
434	CLIP EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0801		●
434	CLIP AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-		●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0712-	●

297 297 1 296 7 21 297 6 297 434 435 296 436

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0710-0808	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0809-1008		●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4> L=320	8-98067-411-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1009-		●
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98117-117-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0710-0808	●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0809-1008		●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	1009-		●
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1009-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E)	8-98173-546-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E)	8-98184-503-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (F) L=1523	8-98173-570-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (F) L=1526	8-98184-504-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C)	8-98117-819-0	01	1	0809-0904	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C)	8-98147-087-0	01	1	0905-1008	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	8-98147-087-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98147-087-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0710-0711	●	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0712-0712		●
21	PIPE; AIR,UNION TO AIR DRYER AUSTRALIA EQUIPMENT(B13) (A) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1730	8-98105-723-0	01	1	0712-0801		●
21	PIPE; AIR,UNION TO AIR DRYER AUSTRALIA EQUIPMENT(B13) (A) L=1730	8-98105-723-0	01	1	0712-0801	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0802-0808	●	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0809-1008		●
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> (A) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	1009-		●
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1715	8-98095-083-0	01	1	1009-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0710-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
434	CLIP EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0801		●
434	CLIP AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-		●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0712-	●

297 297 296 367 21 184 7 1 6 297 297 21 21 176 170 435 434 436 32 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0710-0808	●	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	0809-1008		●
1	HOSE; FLEX,AIR TANK EURO4 SPECIFICATION<NT4> L=320	8-98067-411-0	01	1	0809-1008	●
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1009-		●
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (B)	8-98117-117-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (B)	8-98117-117-0	01	1	1009-	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0710-0808	●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	0809-1008		●
6	BRACKET; FLEX HOSE,AIR TANK EURO4 SPECIFICATION<NT4> (A)	8-98076-344-0	01	1	0809-1008	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98076-344-0	01	1	1009-		●
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98076-344-0	01	1	1009-	●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E)	8-98173-546-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E)	8-98184-503-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (F) L=1523	8-98173-570-0	01	1	1012-1012	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (F) L=1526	8-98184-504-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C)	8-98117-819-0	01	1	0809-0904	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C)	8-98147-087-0	01	1	0905-1008	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C)	8-98147-087-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (C)	8-98147-087-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011	●
21	PIPE; AIR,UNION TO AIR DRYER TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0710-0711	●	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0712-0712		●
21	PIPE; AIR,UNION TO AIR DRYER AUSTRALIA EQUIPMENT(B13) (A) L=1715	8-98095-083-0	01	1	0712-0712	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1730	8-98105-723-0	01	1	0712-0801		●
21	PIPE; AIR,UNION TO AIR DRYER AUSTRALIA EQUIPMENT(B13) (A) L=1730	8-98105-723-0	01	1	0712-0801	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0802-0808	●	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	0809-1008		●
21	PIPE; AIR,UNION TO AIR DRYER EURO4 SPECIFICATION<NT4> (A) L=1715	8-98095-083-0	01	1	0809-1008	●
21	PIPE; AIR,UNION TO AIR DRYER (A) L=1715	8-98095-083-0	01	1	1009-		●
21	PIPE; AIR,UNION TO AIR DRYER EXC. TURBO - CONVENTIONAL<Q5T> (A) L=1715	8-98095-083-0	01	1	1009-	●
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-1008	●
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0907	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1008	●
170	PIPE; AIR,AIR GOV TO FLEX HOSE TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1009-	●
171	PIPE; AIR,GOV TO AIR DRYER EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-1008	●
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1009-	●
176	PIPE; AIR,AIR DRYER TO UNION EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-1008	●
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1009-	●
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=350	1-09363-624-0	01	1	0809-1008	●
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1009-	●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0710-	●	●
296	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0710-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0710-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0710-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0806-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0710-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	0710-	●	●
434	CLIP EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-1008	●
434	CLIP AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-	●
434	CLIP EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-1008	●
434	CLIP TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (C) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0710-0711	●	●
434	CLIP (B) ID=7 L=20	0-95234-635-0	01	1	0712-		●
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0712-	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0710-0711	●	●
434	CLIP (A) ID=16 L=28	0-95235-556-0	02	1	0712-0801		●
434	CLIP AUSTRALIA EQUIPMENT(B13) (A) ID=16 L=28	0-95235-556-0	02	1	0712-0801	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0802-0808	●	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008		●
434	CLIP EURO4 SPECIFICATION<NT4> (A) ID=16 L=20	0-95235-536-0	02	1	0809-1008	●
434	CLIP (A) ID=16 L=20	0-95235-536-0	02	1	1009-		●
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=16 L=20	0-95235-536-0	02	1	1009-	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0712-		●
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0712-	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0710-0711	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0712-		●
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
