Sayfa 3-41 - Isuzu EPC

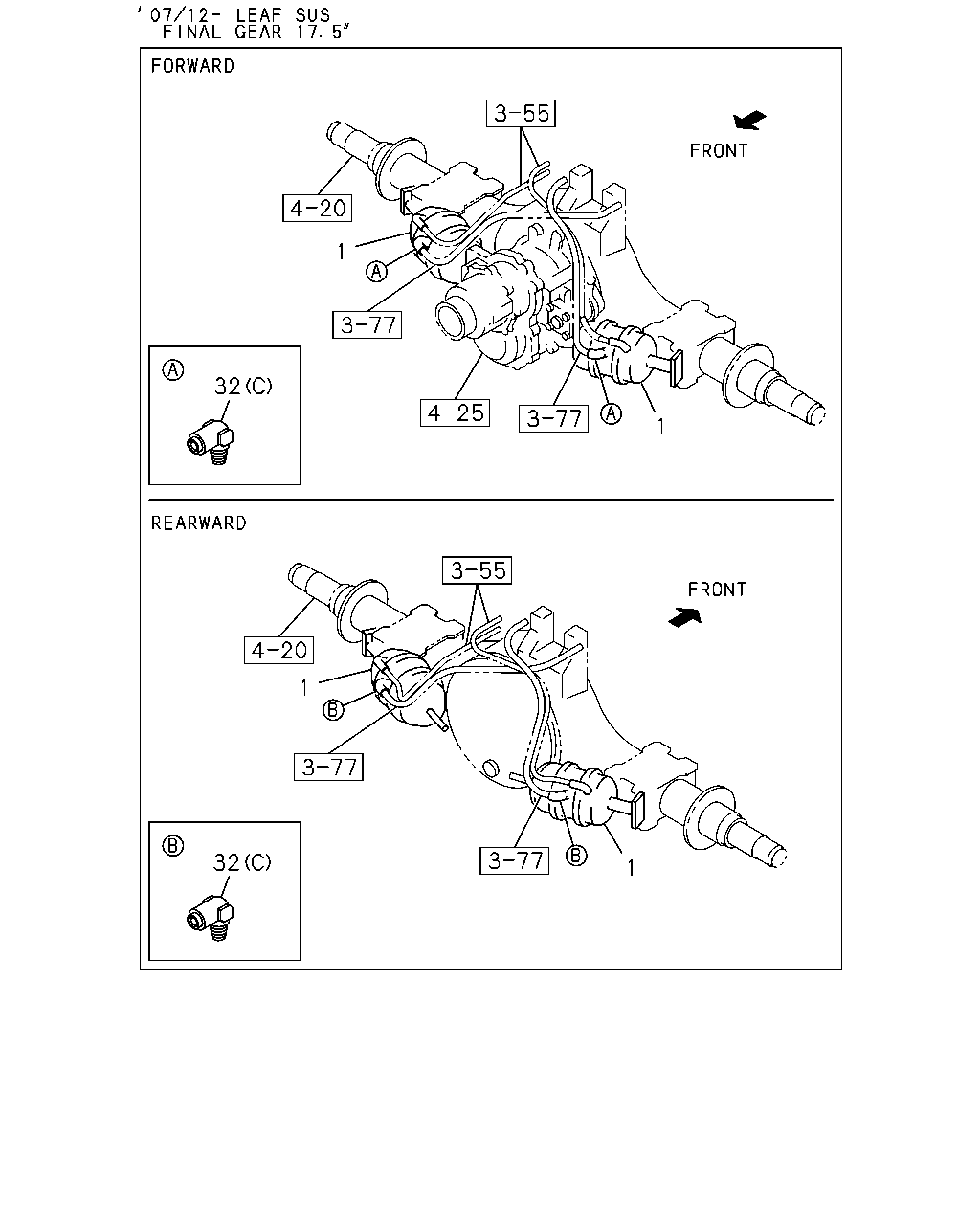

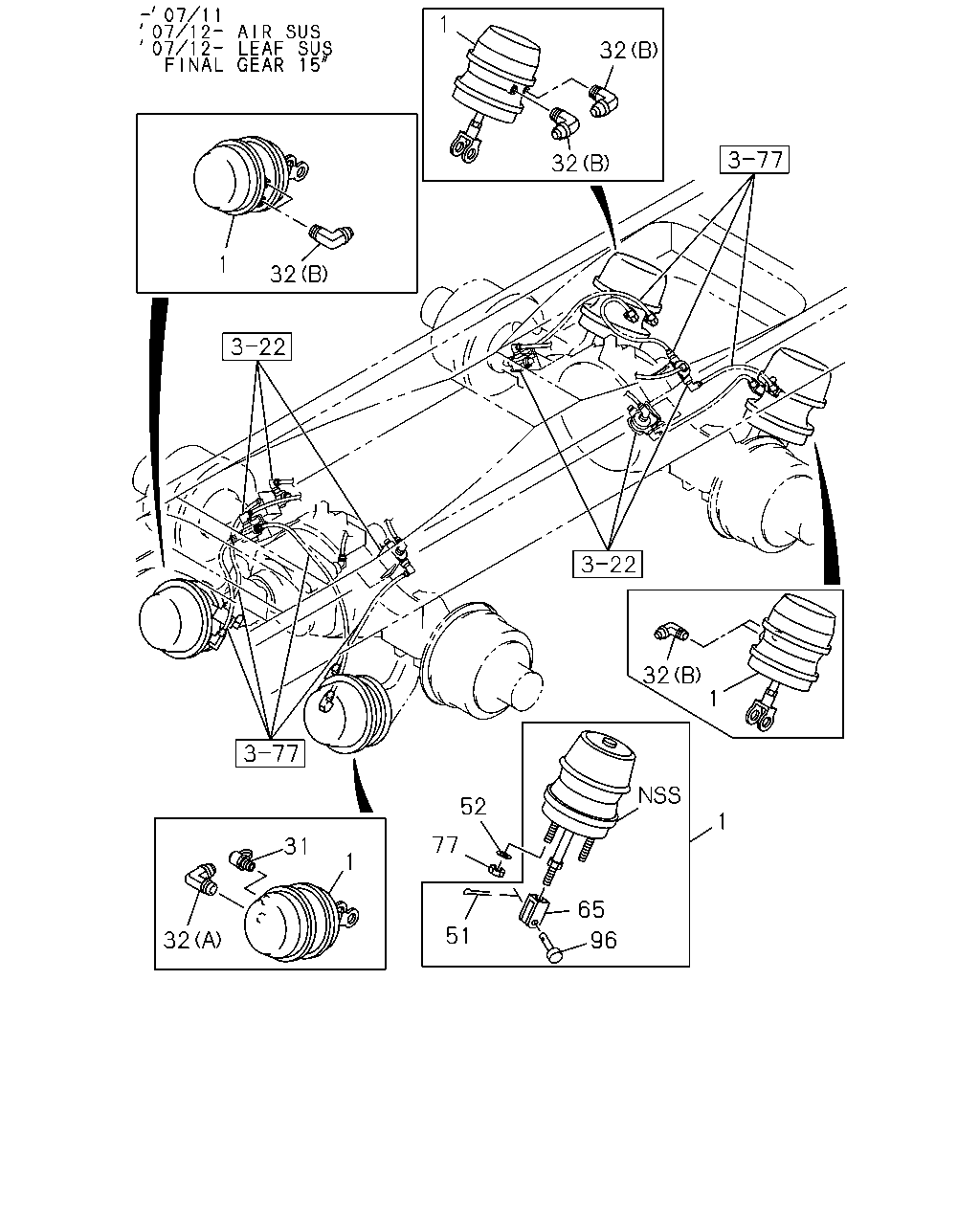

3-41 — REAR BRAKE POWER CHAMBER (#65721) — 421 parça

1 32 32 1 32 32 1 52 1 77 31 1 65 51 32 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
31	CONNECTOR R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0710-0711	●	●
31	CONNECTOR R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-		●
31	CONNECTOR AUSTRALIA EQUIPMENT(B13) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	0712-	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0712-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE REGULATION ADR(TDU) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0712-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0712-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1005-1104	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1005-1104	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1105-	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1105-	●
32	CONNECTOR; SPR CHAMBER (A)	1-09660-804-0	01	1	0710-0711	●	●
32	CONNECTOR; SPR CHAMBER (A)	1-09660-804-0	01	1	0712-		●
32	CONNECTOR; SPR CHAMBER AUSTRALIA EQUIPMENT(B13) (A)	1-09660-804-0	01	1	0712-	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	07	1	0710-0711	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	07	1	0712-		●
32	CONNECTOR; SPR CHAMBER AUSTRALIA EQUIPMENT(B13) (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	07	1	0712-	●
51	PIN; SPLIT	1-48259-275-0	02	1	0710-0711	●	●
51	PIN; SPLIT	1-48259-275-0	02	1	0710-0711	●	●
51	PIN; SPLIT	1-48259-275-0	02	1	0712-		●
51	PIN; SPLIT	1-48259-275-0	02	1	0712-		●
51	PIN; SPLIT FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48259-275-0	02	1	0712-	●
51	PIN; SPLIT FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48259-275-0	02	1	0712-	●
52	WASHER; PL	1-41519-038-0	04	1	0710-0711	●	●
52	WASHER; PL	1-41519-038-0	04	1	0710-0711	●	●
52	WASHER; PL	1-41519-038-0	04	1	0712-		●
52	WASHER; PL	1-41519-038-0	04	1	0712-		●
52	WASHER; PL FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-41519-038-0	04	1	0712-	●
52	WASHER; PL FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-41519-038-0	04	1	0712-	●
65	JOINT; JAW	1-48259-321-0	02	1	0710-0711	●	●
65	JOINT; JAW	1-48259-321-0	02	1	0710-0711	●	●
65	JOINT; JAW	1-48259-321-0	02	1	0712-		●
65	JOINT; JAW	1-48259-321-0	02	1	0712-		●
65	JOINT; JAW FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48259-321-0	02	1	0712-	●
65	JOINT; JAW FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48259-321-0	02	1	0712-	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0710-0711	●	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0710-0711	●	●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0712-		●
77	NUT; SPR CHAMBER BRK	1-87050-052-0	04	1	0712-		●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-87050-052-0	04	1	0712-	●
77	NUT; SPR CHAMBER BRK FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-87050-052-0	04	1	0712-	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0710-0711	●	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0710-0711	●	●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0712-		●
96	PIN; JAW JOINT	1-48259-273-0	02	1	0712-		●
96	PIN; JAW JOINT FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48259-273-0	02	1	0712-	●
96	PIN; JAW JOINT FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48259-273-0	02	1	0712-	●

1 1 10 11 35 13 113 8 10 117 116 108 40 11 13 116

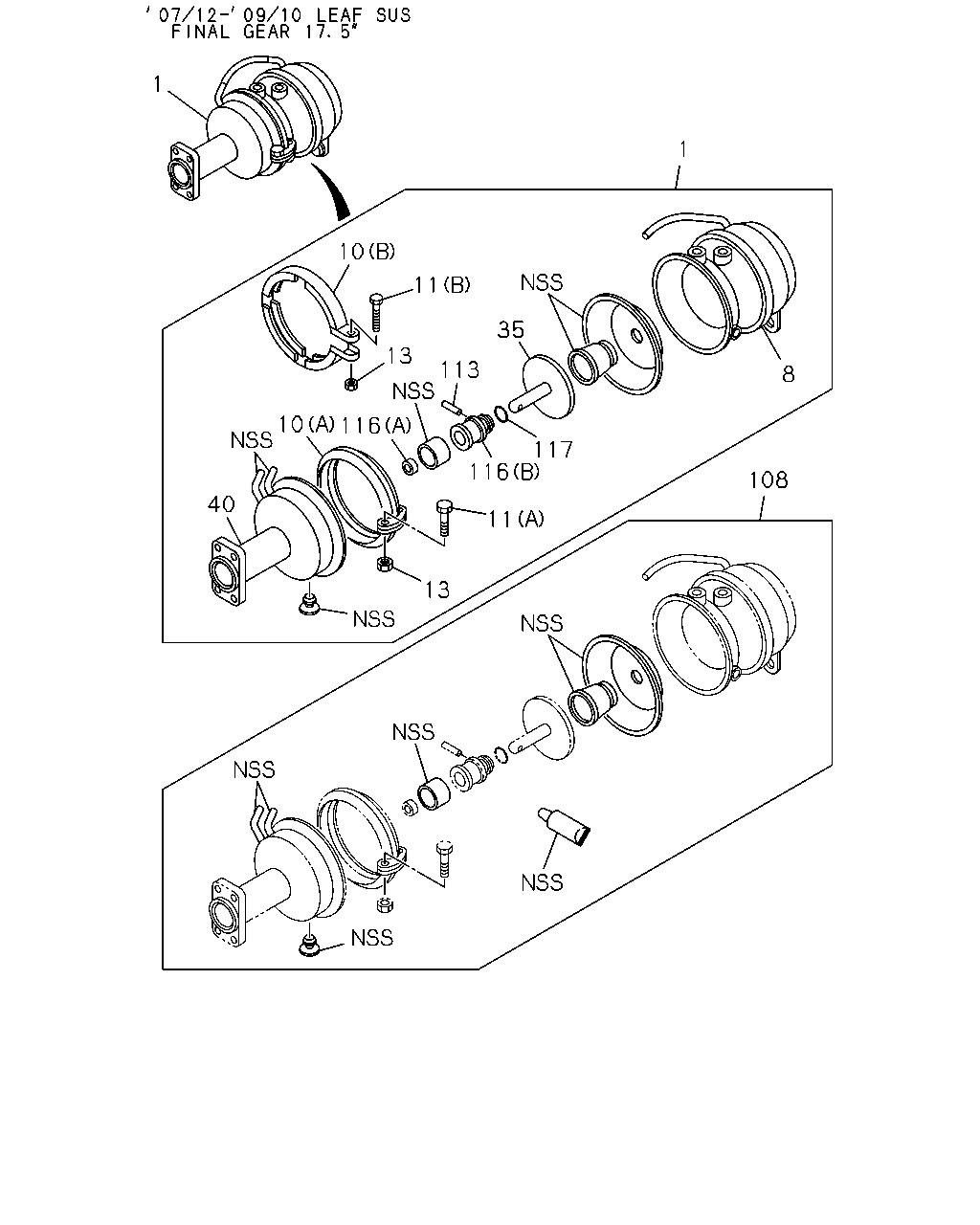

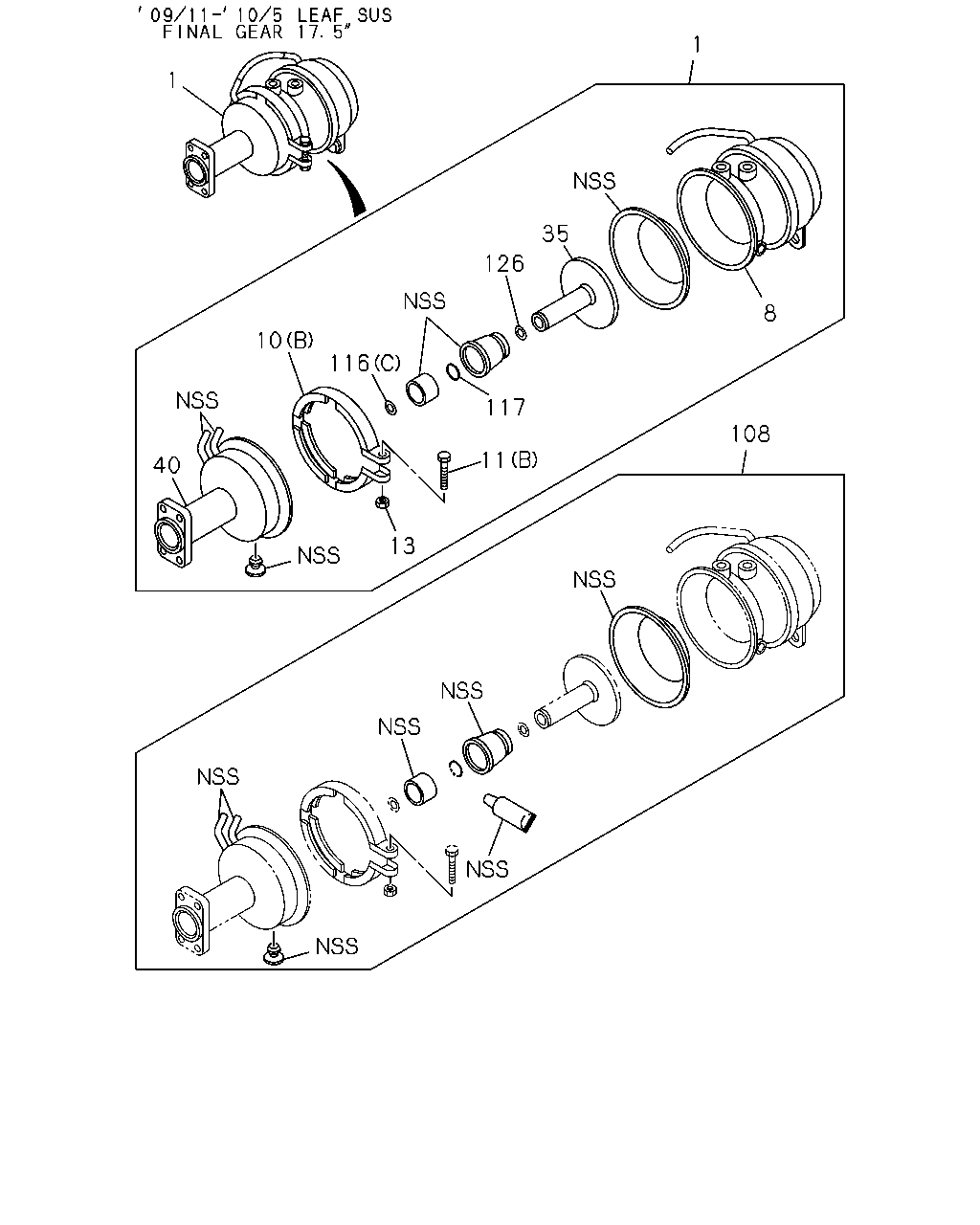

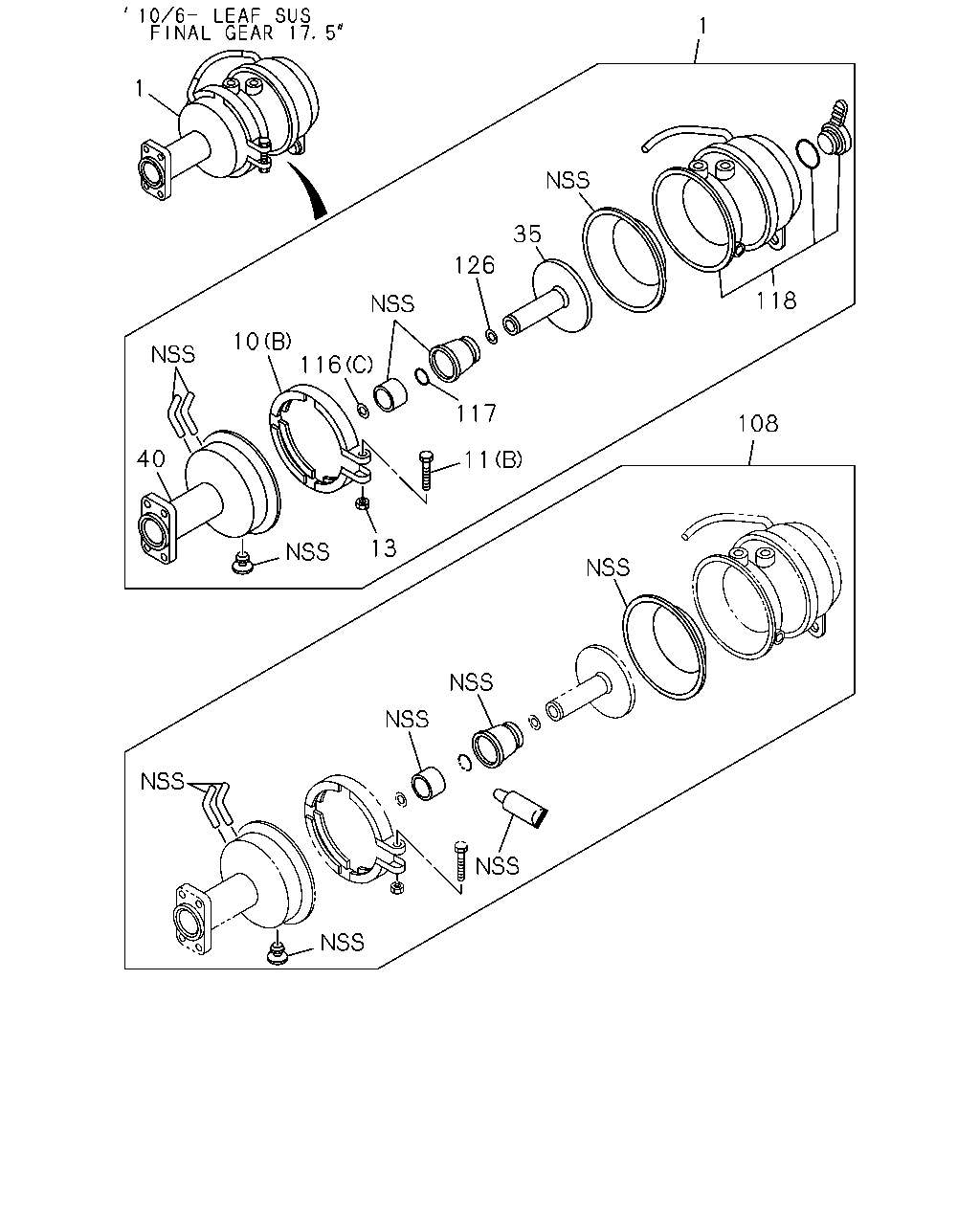

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0712-1005	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0712-1005	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0712-1005	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0712-1005	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-149-0	02	1	0712-0901	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-149-0	02	1	0712-0901	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	0902-1104	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	0902-1104	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	1105-	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	1105-	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-146-0	04	1	0712-0901	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-146-0	04	1	0712-0901	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	0902-1104	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	0902-1104	●
11	BOLT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	1105-	●
11	BOLT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	1105-	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	04	1	0712-0901	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	04	1	0712-0901	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	0902-1104	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	0902-1104	●
13	NUT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	1105-	●
13	NUT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	1105-	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48263-022-0	02	1	0712-0910	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48263-022-0	02	1	0712-0910	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	0911-1104	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	0911-1104	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	1105-	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1105-	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-85576-320-0	02	1	0712-0910	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-85576-320-0	02	1	0712-0910	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	0911-1104	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	0911-1104	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	1105-	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	1105-	●
113	PIN; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-153-0	02	1	0712-0910	●
113	PIN; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-153-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-152-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-152-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	0911-1104	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	0911-1104	●
116	GUIDE; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	1105-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	1105-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-154-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-154-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-155-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-155-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	0911-1104	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	0911-1104	●
117	RING; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	1105-	●
117	RING; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	1105-	●

1 1 35 126 8 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0712-1005	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-095-2	01	1	0712-1005	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0712-1005	●
8	SHELL; CYL,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-097-2	01	1	0712-1005	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-149-0	02	1	0712-0901	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-149-0	02	1	0712-0901	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	0902-1104	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	0902-1104	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	1105-	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	1105-	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-146-0	04	1	0712-0901	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-146-0	04	1	0712-0901	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	0902-1104	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	0902-1104	●
11	BOLT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	1105-	●
11	BOLT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	1105-	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	04	1	0712-0901	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	04	1	0712-0901	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	0902-1104	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	0902-1104	●
13	NUT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	1105-	●
13	NUT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	1105-	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48263-022-0	02	1	0712-0910	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48263-022-0	02	1	0712-0910	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	0911-1104	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	0911-1104	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	1105-	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1105-	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-85576-320-0	02	1	0712-0910	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-85576-320-0	02	1	0712-0910	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	0911-1104	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	0911-1104	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	1105-	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	1105-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-152-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-152-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	0911-1104	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	0911-1104	●
116	GUIDE; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	1105-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	1105-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-154-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-154-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-155-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-155-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	0911-1104	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	0911-1104	●
117	RING; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	1105-	●
117	RING; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	1105-	●
126	SHIM FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-965-0	AR	1	0911-1104	●
126	SHIM FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-965-0	AR	1	0911-1104	●
126	SHIM FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-965-0	AR	1	1105-	●
126	SHIM FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-965-0	AR	1	1105-	●

1 1 35 126 118 10 116 117 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-149-0	02	1	0712-0901	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-149-0	02	1	0712-0901	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	0902-1104	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	0902-1104	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	1105-	●
10	RING; CLAMP,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-256-0	02	1	1105-	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-146-0	04	1	0712-0901	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-146-0	04	1	0712-0901	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	0902-1104	●
11	BOLT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	0902-1104	●
11	BOLT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	1105-	●
11	BOLT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-257-0	02	1	1105-	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	04	1	0712-0901	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	04	1	0712-0901	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	0902-1104	●
13	NUT; CLAMP RING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	0902-1104	●
13	NUT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	1105-	●
13	NUT; CLAMP RING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-147-0	02	1	1105-	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48263-022-0	02	1	0712-0910	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48263-022-0	02	1	0712-0910	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	0911-1104	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	0911-1104	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	1105-	●
35	PLATE; ROD END,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-974-0	02	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	0712-1104	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1105-	●
40	COVER ASM; LWR,SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1105-	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-85576-320-0	02	1	0712-0910	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-85576-320-0	02	1	0712-0910	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	0911-1104	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	0911-1104	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	1105-	●
108	REPAIR KIT; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-982-0	02	1	1105-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-152-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A)	1-48269-152-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	0911-1104	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	0911-1104	●
116	GUIDE; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	1105-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C)	8-98146-963-0	02	1	1105-	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-154-0	02	1	0712-0910	●
116	GUIDE; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B)	1-48269-154-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-155-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	1-48269-155-0	02	1	0712-0910	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	0911-1104	●
117	RING; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	0911-1104	●
117	RING; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	1105-	●
117	RING; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-966-0	02	1	1105-	●
118	CHAMBER; PIGGY BACK FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1006-1104	●
118	CHAMBER; PIGGY BACK FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1006-1104	●
118	CHAMBER; PIGGY BACK FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1105-	●
118	CHAMBER; PIGGY BACK FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1105-	●
118	CHAMBER; PIGGY BACK FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1006-1104	●
118	CHAMBER; PIGGY BACK FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1006-1104	●
118	CHAMBER; PIGGY BACK FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1105-	●
118	CHAMBER; PIGGY BACK FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1105-	●
126	SHIM FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-965-0	AR	1	0911-1104	●
126	SHIM FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-965-0	AR	1	0911-1104	●
126	SHIM FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-965-0	AR	1	1105-	●
126	SHIM FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z)	8-98146-965-0	AR	1	1105-	●

1 32 1 1 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-48250-868-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	8-98145-698-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-48250-869-3	01	1	0712-0910	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	8-98145-699-0	01	1	0911-1005	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1104	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1105-	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-943-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-943-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-957-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-957-0	01	1	1206-	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0710-0711	●	●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING	1-48250-944-0	01	1	0712-1205		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-944-0	01	1	0712-1205	●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING	1-48250-958-0	01	1	1206-		●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
1	CHAMBER ASM; SPRING FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L)	1-48250-958-0	01	1	1206-	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0712-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BRAKE REGULATION ADR(TDU) (C) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	0712-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. BRAKE REGULATION ADR(TDU) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0712-1004	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1005-1104	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1005-1104	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1105-	●
32	CONNECTOR; SPR CHAMBER FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1105-	●
32	CONNECTOR; SPR CHAMBER (A)	1-09660-804-0	01	1	0710-0711	●	●
32	CONNECTOR; SPR CHAMBER (A)	1-09660-804-0	01	1	0712-		●
32	CONNECTOR; SPR CHAMBER AUSTRALIA EQUIPMENT(B13) (A)	1-09660-804-0	01	1	0712-	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	07	1	0710-0711	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	07	1	0712-		●
32	CONNECTOR; SPR CHAMBER AUSTRALIA EQUIPMENT(B13) (B) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	07	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
