Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#65717) — 621 parça

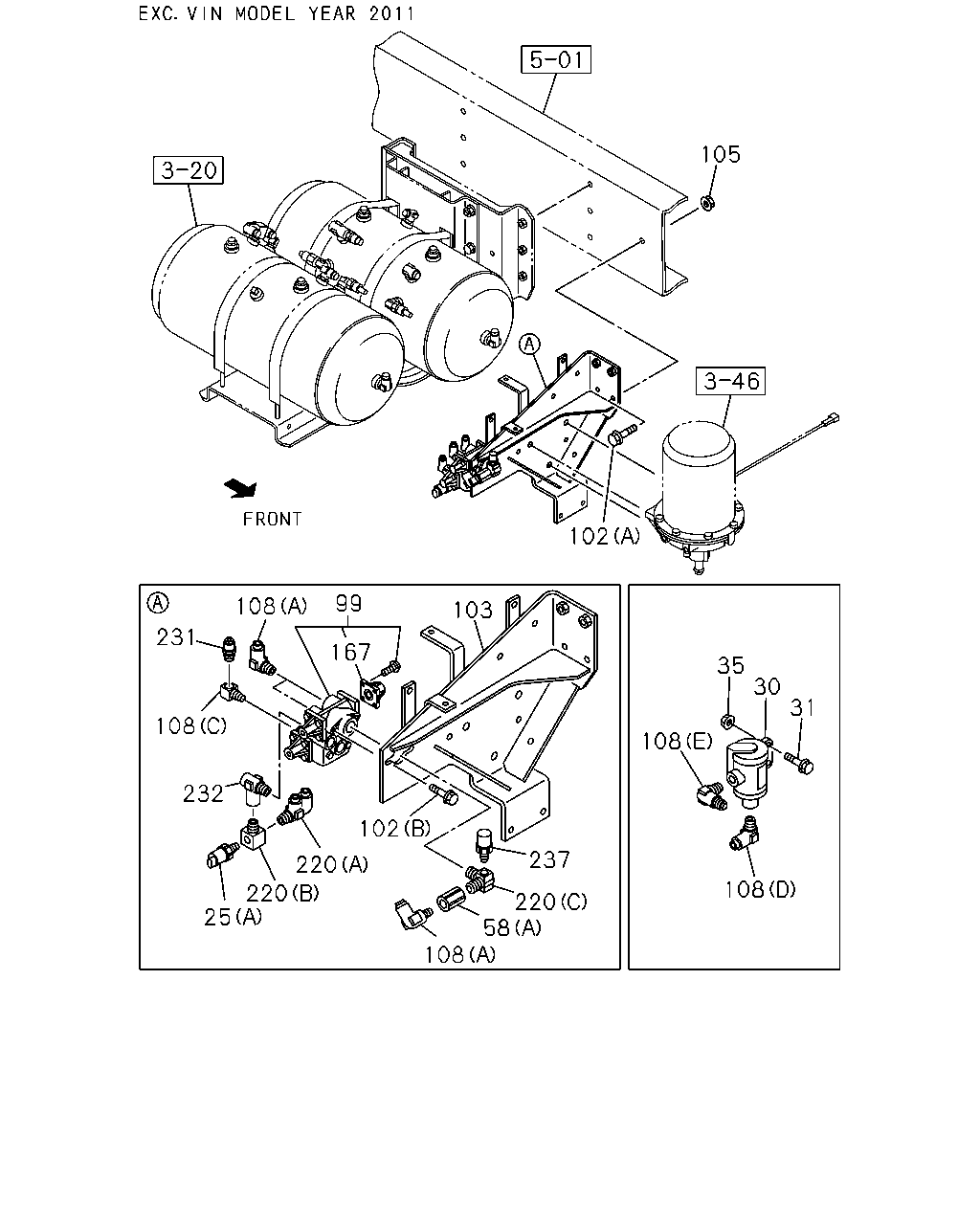

105 102 103 99 108 231 108 232 220 220 25 102 237 220 58 108 108 108 35 30 31 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0710-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0710-	●	●
30	GOVERNOR; AIR CONT EURO2 SPECIFICATION<NT2>	1-48350-093-2	01	1	0809-1008		●
30	GOVERNOR; AIR CONT TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1009-		●
31	BOLT; GOV TO FRAME EURO2 SPECIFICATION<NT2> M8X30 FLANGE	0-28650-830-0	02	1	0809-1008		●
31	BOLT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1009-		●
35	NUT; GOV TO FRAME EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-1008		●
35	NUT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1009-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (G)	8-98031-238-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H)	8-98148-475-0	01	1	1012-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-	●	●
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0710-	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	0710-0712	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	0801-0907	●
58	ADAPTER ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (C)	1-48219-154-0	01	1	0801-0907		●
58	ADAPTER (C)	1-48219-154-0	01	1	0908-	●
58	ADAPTER ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (C)	1-48219-154-0	01	1	0908-		●
58	ADAPTER (C)	1-48219-154-0	02	1	0710-0808	●	●
58	ADAPTER (C)	1-48219-154-0	02	1	0809-	●
58	ADAPTER EURO4 SPECIFICATION<NT4> (C)	1-48219-154-0	02	1	0809-		●
99	VALVE; PROTECTION EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-0	01	1	0712-0808		●
99	VALVE; PROTECTION EURO2 SPECIFICATION<NT2>	1-48110-288-0	01	1	0809-1011		●
99	VALVE; PROTECTION EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-0	01	1	0809-1011		●
99	VALVE; PROTECTION EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	1-48110-288-3	01	1	1012-		●
99	VALVE; PROTECTION EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-3	01	1	1012-		●
99	VALVE; PROTECTION ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	1-48110-288-3	01	1	1012-		●
99	VALVE; PROTECTION	1-48110-294-0	01	1	0710-0711	●	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	0712-	●
99	VALVE; PROTECTION BRAKE REGULATION ADR(TDU)	1-48110-294-3	01	1	0712-		●
102	BOLT; PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
102	BOLT; PROTECTION VALVE (A) M10X40 FLANGE	0-28051-040-0	02	1	0710-0711	●	●
102	BOLT; PROTECTION VALVE (A) M10X40 FLANGE	0-28051-040-0	02	1	0712-0712	●
102	BOLT; PROTECTION VALVE AUSTRALIA EQUIPMENT(B13) (A) M10X40 FLANGE	0-28051-040-0	02	1	0712-0712		●
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE	0-28651-035-0	02	1	0712-0808	●
102	BOLT; PROTECTION VALVE AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE	0-28651-035-0	02	1	0712-0808		●
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
102	BOLT; PROTECTION VALVE AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
102	BOLT; PROTECTION VALVE EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	8-98177-510-0	01	1	1111-		●
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1012-1110		●
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1111-		●
103	BRACKET; PROTECTION VALVE EURO2 SPECIFICATION<NT2>	8-98116-826-0	01	1	0809-1011		●
103	BRACKET; PROTECTION VALVE EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	8-98116-826-0	01	1	1012-		●
103	BRACKET; PROTECTION VALVE	8-98073-219-1	01	1	0710-0710	●	●
103	BRACKET; PROTECTION VALVE	8-98100-094-0	01	1	0711-0801	●	●
103	BRACKET; PROTECTION VALVE	8-98073-219-1	01	1	0802-0805	●	●
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	0806-0808	●	●
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	0809-	●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR(TDU)	8-98119-704-0	01	1	0809-		●
103	BRACKET; PROTECTION VALVE EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU)	8-98119-704-0	01	1	0809-		●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0710-0711	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0712-0808	●
105	NUT; BRKT,VALVE AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	02	1	0712-0808		●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0809-	●
105	NUT; BRKT,VALVE AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	02	1	0809-		●
105	NUT; BRKT,VALVE EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	02	1	0809-		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1012-1012		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1012-1503		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-		●
108	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1008		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-1011		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-		●
108	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1008		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1011		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-	●	●
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0710-0712	●	●
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0801-	●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0801-		●
167	COVER; VALVE	1-48119-625-0	04	1	0710-1506	●	●
167	COVER; VALVE	1-48119-625-0	04	1	1507-	●
167	COVER; VALVE BRAKE REGULATION ADR(TDU)	1-48119-625-0	04	1	1507-		●
167	COVER; VALVE	1-48219-070-0	01	1	0710-	●	●
167	COVER; VALVE	1-48219-070-0	02	1	0710-	●	●
220	CONNECTOR; 3WAY EXC. BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0712-0808		●
220	CONNECTOR; 3WAY EURO2 SPECIFICATION<NT2> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0809-1011		●
220	CONNECTOR; 3WAY EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0809-1011		●
220	CONNECTOR; 3WAY EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1012-		●
220	CONNECTOR; 3WAY EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1012-		●
220	CONNECTOR; 3WAY (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0710-0711	●	●
220	CONNECTOR; 3WAY (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0712-	●
220	CONNECTOR; 3WAY BRAKE REGULATION ADR(TDU) (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0712-		●
220	CONNECTOR; 3WAY (B)	1-09656-708-0	01	1	0710-1101	●	●
220	CONNECTOR; 3WAY (B)	8-98166-127-0	01	1	1102-	●	●
220	CONNECTOR; 3WAY (C)	8-98031-238-0	01	1	0710-	●	●
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0710-	●	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0710-	●	●
237	VALVE; SAFETY	1-48320-012-2	01	1	0710-	●	●

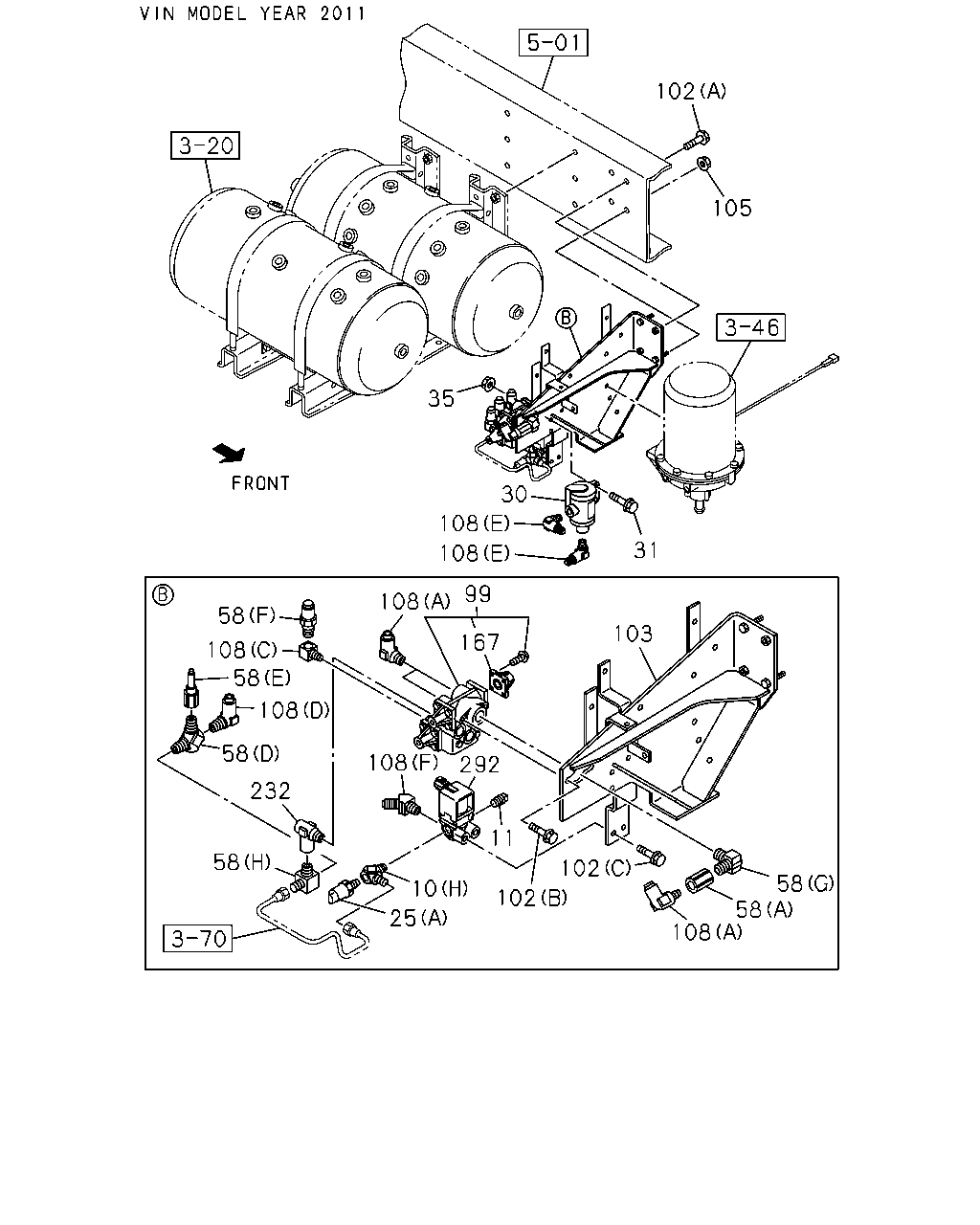

102 105 35 30 31 108 108 108 99 167 103 108 292 11 10 25 102 102 108 58 58 58 232 58 108 58 108 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

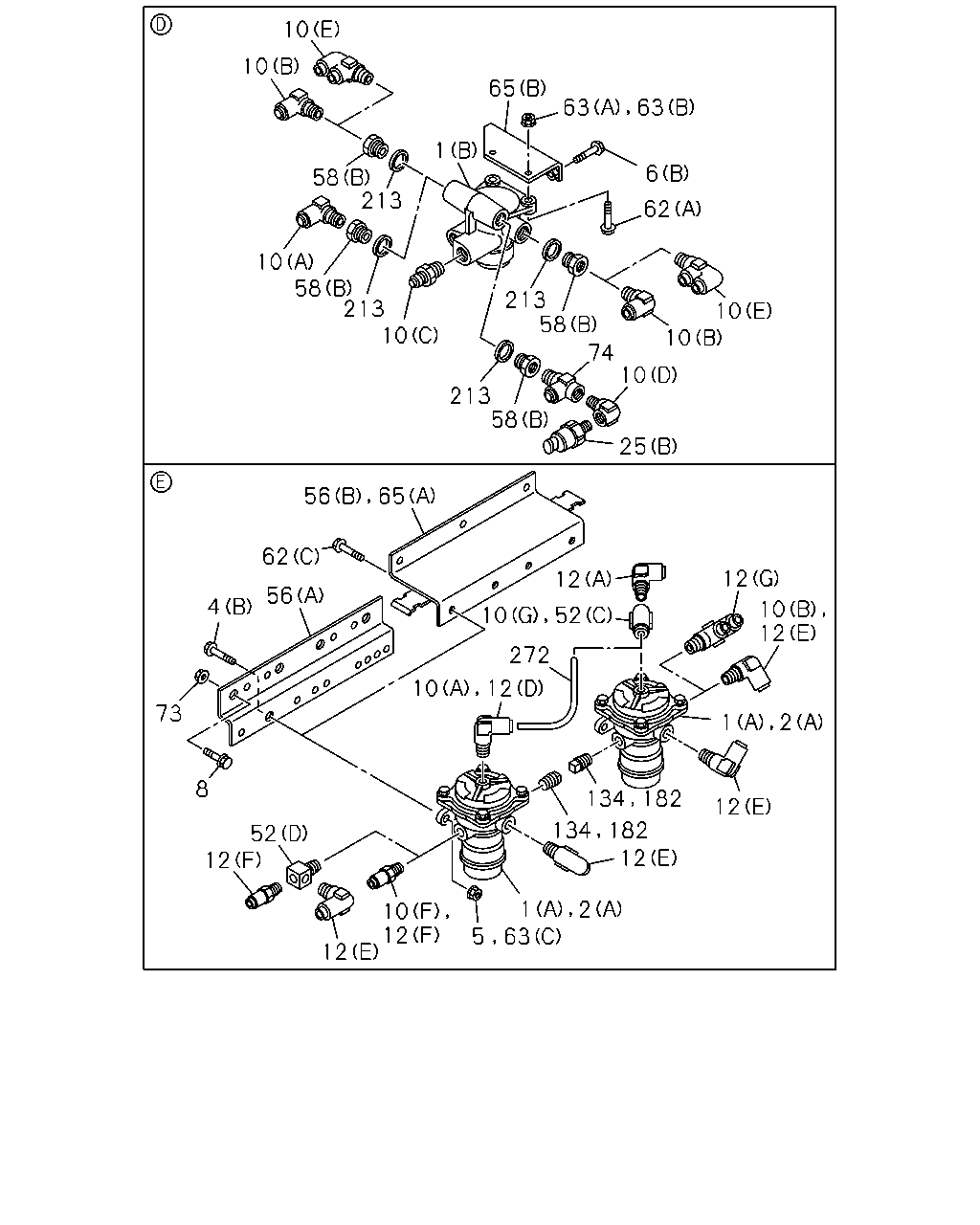

10	CONNECTOR ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1010-	●
10	CONNECTOR (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1010-	●
10	CONNECTOR (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1010-	●
10	CONNECTOR EURO2 SPECIFICATION<NT2> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0809-		●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-1009	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1010-	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1010-	●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0710-	●	●
10	CONNECTOR (D) PT1/4 2WAY	1-09660-693-0	01	1	0710-	●	●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-0808	●	●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-	●
10	CONNECTOR EURO4 SPECIFICATION<NT4> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-		●
11	PLUG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> PT1/4	9-99204-513-0	01	1	1012-		●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0710-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0710-	●	●
30	GOVERNOR; AIR CONT EURO2 SPECIFICATION<NT2>	1-48350-093-2	01	1	0809-1008		●
30	GOVERNOR; AIR CONT TURBO - CONVENTIONAL<Q5T>	1-48350-093-2	01	1	1009-		●
31	BOLT; GOV TO FRAME EURO2 SPECIFICATION<NT2> M8X30 FLANGE	0-28650-830-0	02	1	0809-1008		●
31	BOLT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8X30 FLANGE	0-28650-830-0	02	1	1009-		●
35	NUT; GOV TO FRAME EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-1008		●
35	NUT; GOV TO FRAME TURBO - CONVENTIONAL<Q5T> M8 FLANGE	0-91180-108-0	02	1	1009-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (G)	8-98031-238-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H)	8-98148-475-0	01	1	1012-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-	●	●
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0710-	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	0710-0712	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	0801-0907	●
58	ADAPTER ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (C)	1-48219-154-0	01	1	0801-0907		●
58	ADAPTER (C)	1-48219-154-0	01	1	0908-	●
58	ADAPTER ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (C)	1-48219-154-0	01	1	0908-		●
58	ADAPTER (C)	1-48219-154-0	02	1	0710-0808	●	●
58	ADAPTER (C)	1-48219-154-0	02	1	0809-	●
58	ADAPTER EURO4 SPECIFICATION<NT4> (C)	1-48219-154-0	02	1	0809-		●
99	VALVE; PROTECTION EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-0	01	1	0712-0808		●
99	VALVE; PROTECTION EURO2 SPECIFICATION<NT2>	1-48110-288-0	01	1	0809-1011		●
99	VALVE; PROTECTION EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-0	01	1	0809-1011		●
99	VALVE; PROTECTION EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	1-48110-288-3	01	1	1012-		●
99	VALVE; PROTECTION EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU)	1-48110-288-3	01	1	1012-		●
99	VALVE; PROTECTION ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	1-48110-288-3	01	1	1012-		●
99	VALVE; PROTECTION	1-48110-294-0	01	1	0710-0711	●	●
99	VALVE; PROTECTION	1-48110-294-3	01	1	0712-	●
99	VALVE; PROTECTION BRAKE REGULATION ADR(TDU)	1-48110-294-3	01	1	0712-		●
102	BOLT; PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28650-820-0	02	1	1012-		●
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
102	BOLT; PROTECTION VALVE (A) M10X40 FLANGE	0-28051-040-0	02	1	0710-0711	●	●
102	BOLT; PROTECTION VALVE (A) M10X40 FLANGE	0-28051-040-0	02	1	0712-0712	●
102	BOLT; PROTECTION VALVE AUSTRALIA EQUIPMENT(B13) (A) M10X40 FLANGE	0-28051-040-0	02	1	0712-0712		●
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE	0-28651-035-0	02	1	0712-0808	●
102	BOLT; PROTECTION VALVE AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE	0-28651-035-0	02	1	0712-0808		●
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
102	BOLT; PROTECTION VALVE AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
102	BOLT; PROTECTION VALVE EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) (A) M10X35 FLANGE	0-28651-035-0	02	1	0809-		●
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T>	8-98177-510-0	01	1	1111-		●
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1012-1110		●
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-454-0	01	1	1111-		●
103	BRACKET; PROTECTION VALVE EURO2 SPECIFICATION<NT2>	8-98116-826-0	01	1	0809-1011		●
103	BRACKET; PROTECTION VALVE EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB>	8-98116-826-0	01	1	1012-		●
103	BRACKET; PROTECTION VALVE	8-98073-219-1	01	1	0710-0710	●	●
103	BRACKET; PROTECTION VALVE	8-98100-094-0	01	1	0711-0801	●	●
103	BRACKET; PROTECTION VALVE	8-98073-219-1	01	1	0802-0805	●	●
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	0806-0808	●	●
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	0809-	●
103	BRACKET; PROTECTION VALVE BRAKE REGULATION ADR(TDU)	8-98119-704-0	01	1	0809-		●
103	BRACKET; PROTECTION VALVE EURO4 SPECIFICATION<NT4> EXC. BRAKE REGULATION ADR(TDU)	8-98119-704-0	01	1	0809-		●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0710-0711	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0712-0808	●
105	NUT; BRKT,VALVE AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	02	1	0712-0808		●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	0809-	●
105	NUT; BRKT,VALVE AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	02	1	0809-		●
105	NUT; BRKT,VALVE EURO2 SPECIFICATION<NT2> EXC. AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	02	1	0809-		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1012-1012		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1012-1503		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-		●
108	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1008		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-1011		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-		●
108	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1008		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1011		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-	●	●
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0710-0712	●	●
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0801-	●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0801-		●
167	COVER; VALVE	1-48119-625-0	04	1	0710-1506	●	●
167	COVER; VALVE	1-48119-625-0	04	1	1507-	●
167	COVER; VALVE BRAKE REGULATION ADR(TDU)	1-48119-625-0	04	1	1507-		●
167	COVER; VALVE	1-48219-070-0	01	1	0710-	●	●
167	COVER; VALVE	1-48219-070-0	02	1	0710-	●	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	0710-	●	●
292	VALVE ASM; MAGNETIC ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB>	1-82563-871-2	01	1	1012-		●

155 2 170 167 164 166 157 158 161 58 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

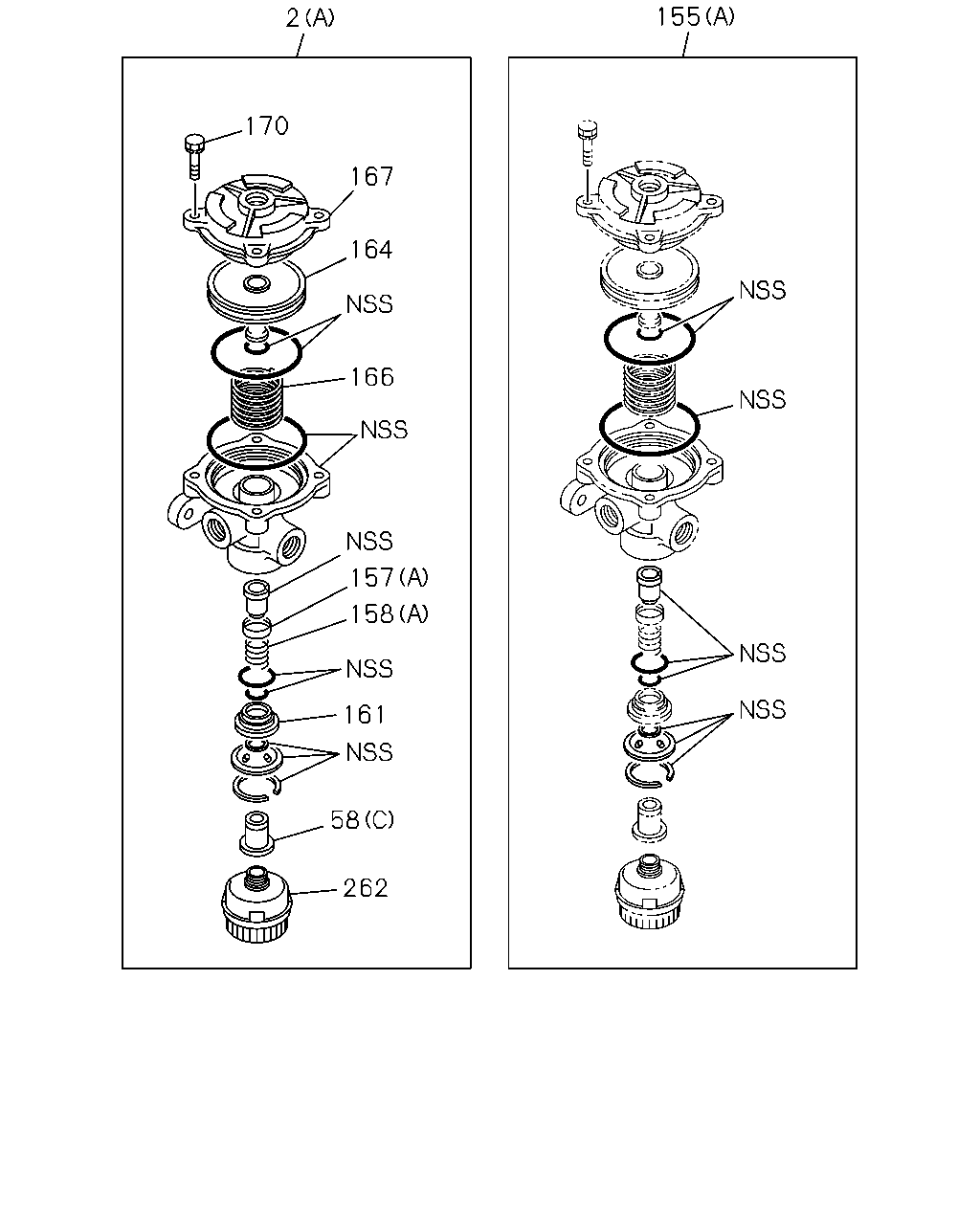

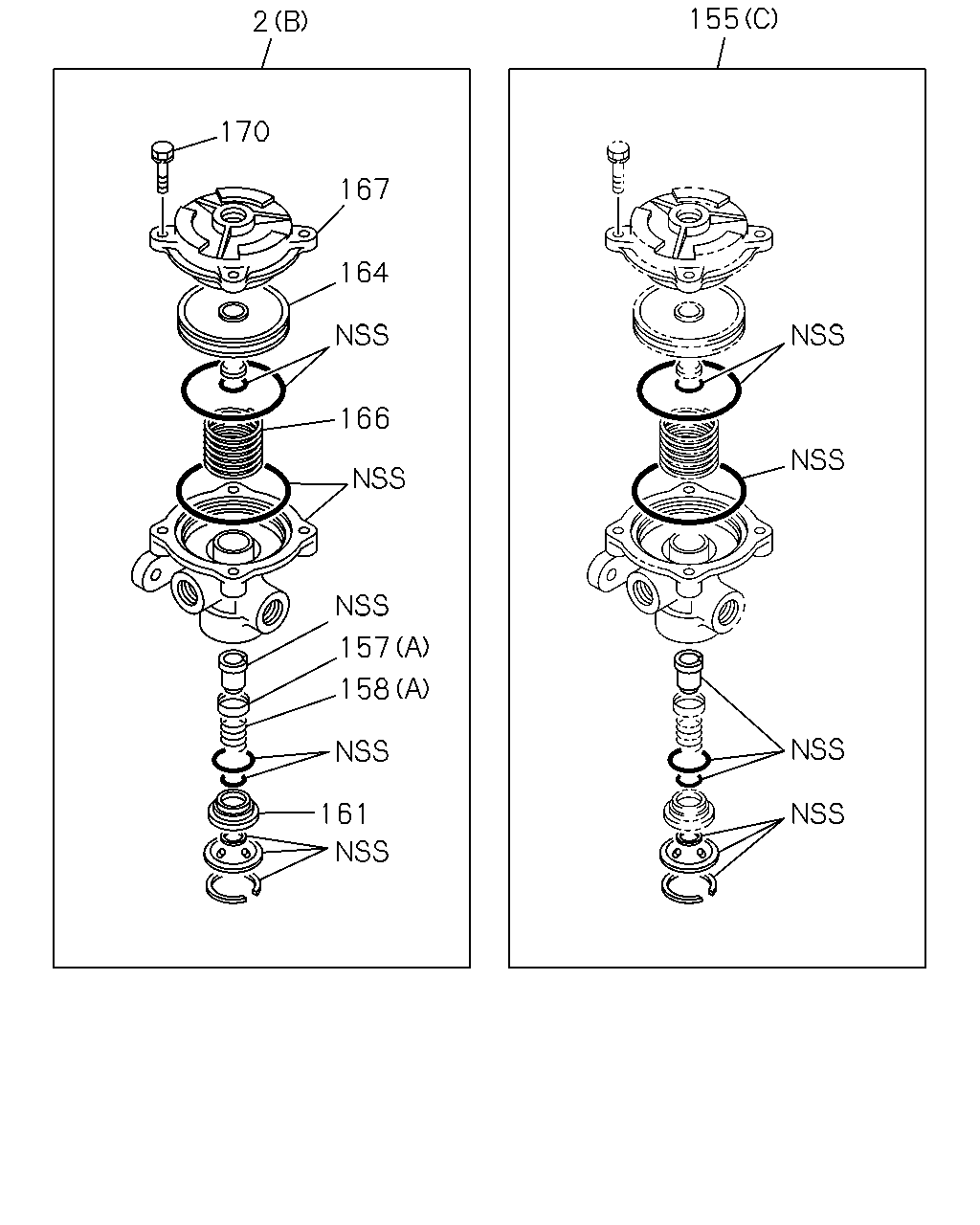

2	VALVE; RELAY EURO2 SPECIFICATION<NT2> (B)	1-48210-875-0	02	1	0809-		●
2	VALVE; RELAY EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B)	1-48210-875-0	01	1	0801-0907		●
2	VALVE; RELAY EXC. AUSTRALIA EQUIPMENT(B13) (B)	1-48210-875-0	01	1	0908-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0710-0712	●	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0801-0907	●
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (A)	1-48210-997-0	01	1	0801-0907		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0908-	●
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A)	1-48210-997-0	01	1	0908-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	0710-0808	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	0809-1009	●
2	VALVE; RELAY EURO4 SPECIFICATION<NT4> (A)	1-48210-997-0	02	1	0809-1009		●
2	VALVE; RELAY EURO4 SPECIFICATION<NT4> (A)	1-48210-997-0	02	1	1010-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (G)	8-98031-238-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H)	8-98148-475-0	01	1	1012-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-	●	●
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0710-	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	0710-0712	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	0801-0907	●
58	ADAPTER ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (C)	1-48219-154-0	01	1	0801-0907		●
58	ADAPTER (C)	1-48219-154-0	01	1	0908-	●
58	ADAPTER ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (C)	1-48219-154-0	01	1	0908-		●
58	ADAPTER (C)	1-48219-154-0	02	1	0710-0808	●	●
58	ADAPTER (C)	1-48219-154-0	02	1	0809-	●
58	ADAPTER EURO4 SPECIFICATION<NT4> (C)	1-48219-154-0	02	1	0809-		●

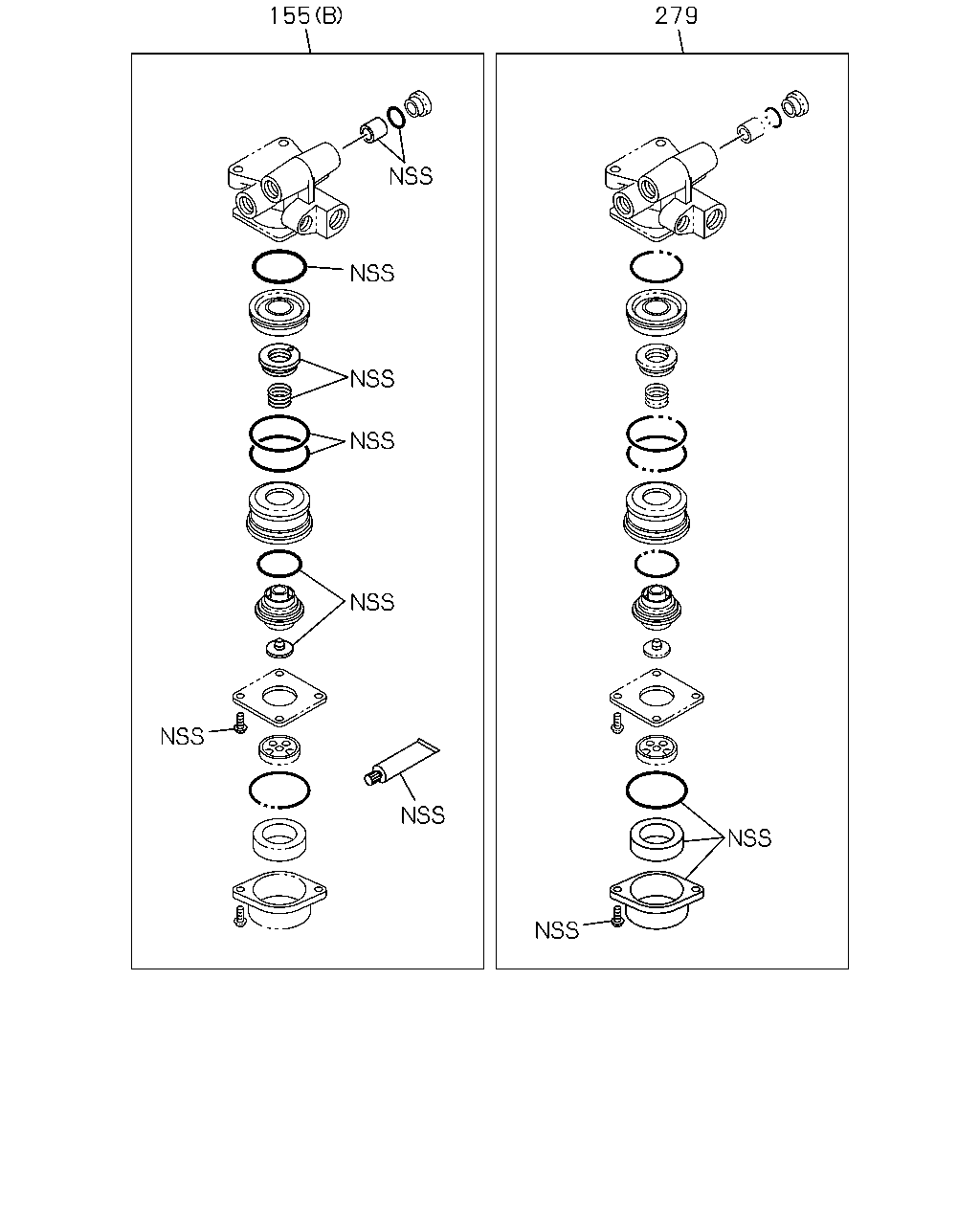

155	REPAIR KIT; RELAY VALVE EURO2 SPECIFICATION<NT2> (C)	1-85576-033-0	02	1	0809-		●
155	REPAIR KIT; RELAY VALVE EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (C)	1-85576-033-0	01	1	0801-0907		●
155	REPAIR KIT; RELAY VALVE EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-85576-033-0	01	1	0908-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0710-0712	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0801-0907	●
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (A)	1-85576-294-0	01	1	0801-0907		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0908-	●
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A)	1-85576-294-0	01	1	0908-		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0710-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	0710-0808	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	0809-	●
155	REPAIR KIT; RELAY VALVE EURO4 SPECIFICATION<NT4> (A)	1-85576-294-0	02	1	0809-		●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0710-0711	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0712-1008	●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(B13) (B)	1-48419-036-0	02	1	0712-1008		●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1009-	●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(B13) (B)	1-48419-020-0	02	1	1009-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0710-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0710-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0710-0711	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0712-	●
158	SPRING; VALVE AUSTRALIA EQUIPMENT(B13) (B)	9-48419-003-0	02	1	0712-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0710-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0710-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0710-	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	0710-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0710-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0710-	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0710-	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	0710-	●	●
167	COVER; VALVE	1-48119-625-0	04	1	0710-1506	●	●
167	COVER; VALVE	1-48119-625-0	04	1	1507-	●
167	COVER; VALVE BRAKE REGULATION ADR(TDU)	1-48119-625-0	04	1	1507-		●
167	COVER; VALVE	1-48219-070-0	01	1	0710-	●	●
167	COVER; VALVE	1-48219-070-0	02	1	0710-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0710-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0710-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0710-0711	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0710-0711	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0712-0808	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0712-0808	●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(B13)	1-48219-149-0	02	1	0712-0808		●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0809-	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0809-	●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(B13)	1-48219-149-0	02	1	0809-		●
262	SILENCER; RELAY VALVE EURO4 SPECIFICATION<NT4>	1-48219-149-0	02	1	0809-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0710-0712	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-0801	●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13)	1-48219-149-0	01	1	0801-0801		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-0907	●
262	SILENCER; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13)	1-48219-149-0	01	1	0801-0907		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0908-	●
262	SILENCER; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13)	1-48219-149-0	01	1	0908-		●

278 106 4 70 71 96 278 52 52 108 286 12 2 12 108 286 5 12 108 287 287 2 6 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

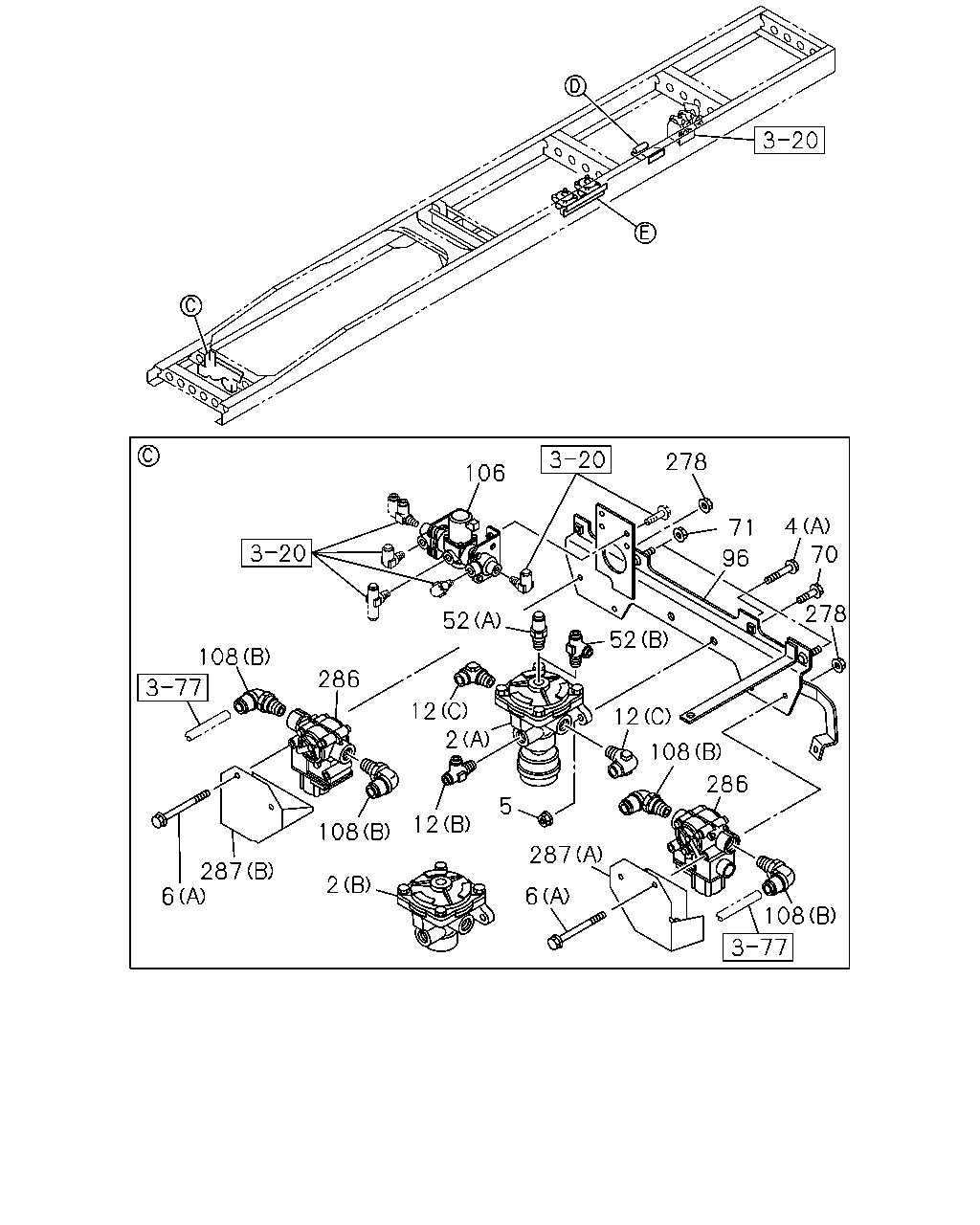

2	VALVE; RELAY EURO2 SPECIFICATION<NT2> (B)	1-48210-875-0	02	1	0809-		●
2	VALVE; RELAY EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B)	1-48210-875-0	01	1	0801-0907		●
2	VALVE; RELAY EXC. AUSTRALIA EQUIPMENT(B13) (B)	1-48210-875-0	01	1	0908-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0710-0712	●	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0801-0907	●
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (A)	1-48210-997-0	01	1	0801-0907		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0908-	●
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A)	1-48210-997-0	01	1	0908-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	0710-0808	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	0809-1009	●
2	VALVE; RELAY EURO4 SPECIFICATION<NT4> (A)	1-48210-997-0	02	1	0809-1009		●
2	VALVE; RELAY EURO4 SPECIFICATION<NT4> (A)	1-48210-997-0	02	1	1010-		●
4	BOLT; RELAY VLV TO BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-0710		●
4	BOLT; RELAY VLV TO BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-0805	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0806-1009	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1010-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	0710-1009	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1010-		●
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●
6	BOLT; VLV (A) M8X80 FLANGE	0-28050-880-0	04	1	0710-0712	●	●
6	BOLT; VLV (A) M8X80 FLANGE	0-28050-880-0	04	1	0801-1410	●
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (A) M8X80 FLANGE	0-28050-880-0	04	1	0801-1410		●
6	BOLT; VLV (A) M8X85	1-09044-074-0	04	1	1411-	●
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (A) M8X85	1-09044-074-0	04	1	1411-		●
12	CONNECTOR; RELAY VLV EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (G) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-	●	●
12	CONNECTOR; RELAY VLV (B)	1-09661-207-0	01	1	0710-	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0809	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0810-		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-1009	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1010-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-1009	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1010-		●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0710-1009	●	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1010-		●
52	CONNECTOR; RELAY VLV (C) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0810-1009	●
52	CONNECTOR; RELAY VLV EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (D) PT3/8 3WAY	1-09661-300-0	01	1	0809-1111		●
52	CONNECTOR; RELAY VLV EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (D) DIN9 & RC3/8 ELBOW	8-98203-578-0	01	1	1112-		●
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0710-	●	●
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0710-	●	●
52	CONNECTOR; RELAY VLV (C)	1-09661-537-0	01	1	0710-0809	●	●
52	CONNECTOR; RELAY VLV (C)	1-09661-537-0	01	1	0810-0811		●
52	CONNECTOR; RELAY VLV (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	0812-		●
70	BOLT; AIR VLV M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
71	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
96	BRACKET	8-98273-496-0	01	1	1411-	●
96	BRACKET ANTI LOCK BRAKE<JE5>	8-98273-496-0	01	1	1411-		●
96	BRACKET	8-98074-613-3	01	1	0710-1410	●	●
96	BRACKET EXC. AUSTRALIA EQUIPMENT(B13),ANTI LOCK BRAKE<JE5>	8-98074-613-3	01	1	1411-		●

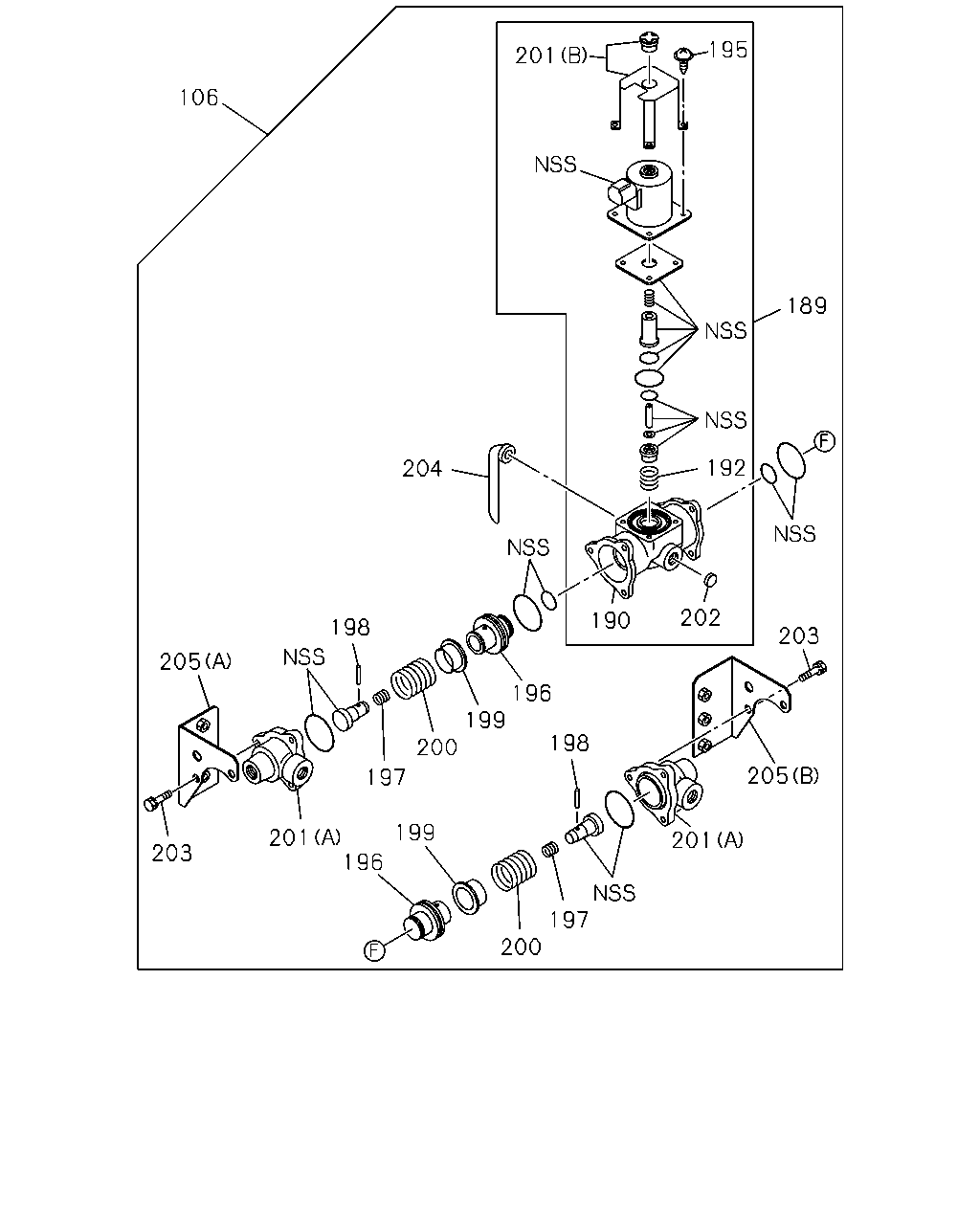

106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	0710-	●	●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	1012-1012		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1012-1503		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-		●
108	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1008		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1009-1011		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1012-		●
108	CONNECTOR; ELBOW EURO2 SPECIFICATION<NT2> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-1008		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1009-1011		●
108	CONNECTOR; ELBOW TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1012-1012		●
108	CONNECTOR; ELBOW (C) PT3/8 ELBOW	1-09660-696-0	01	1	0710-	●	●
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0710-0712	●	●
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0801-	●
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0801-		●
278	NUT; MODULATOR M8 FLANGE	0-91180-108-0	04	1	0710-0712	●	●
286	MODULATOR; FRT	1-48240-115-0	02	1	0710-0712	●	●
286	MODULATOR; FRT	1-48240-115-0	02	1	0801-1410	●
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5>	1-48240-115-0	02	1	0801-1410		●
286	MODULATOR; FRT	8-98215-454-0	02	1	1411-	●
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5>	8-98215-454-0	02	1	1411-		●
287	COVER; MODULATOR (A)	1-47479-611-1	01	1	0710-0712	●	●
287	COVER; MODULATOR (A)	1-47479-611-1	01	1	0801-1410	●
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (A)	1-47479-611-1	01	1	0801-1410		●
287	COVER; MODULATOR (B)	8-98273-493-0	01	1	1411-	●
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-98273-493-0	01	1	1411-		●
287	COVER; MODULATOR (B)	8-98073-401-0	01	1	0710-0712	●	●
287	COVER; MODULATOR (B)	8-98073-401-0	01	1	0801-1410	●
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (B)	8-98073-401-0	01	1	0801-1410		●
287	COVER; MODULATOR (A)	8-98273-494-0	01	1	1411-	●
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (A)	8-98273-494-0	01	1	1411-		●

195 201 106 189 192 204 202 190 198 203 205 196 199 200 198 205 197 201 199 201 196 203 197 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	0710-	●	●
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	0710-	●	●
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	0710-	●	●
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	0710-	●	●
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	0710-	●	●
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	0710-	●	●
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	0710-	●	●
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	0710-	●	●
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	0710-	●	●
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	0710-	●	●
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	0710-	●	●
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	0710-	●	●
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	0710-	●	●
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	0710-	●	●
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	0710-	●	●
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	0710-	●	●
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	0710-	●	●

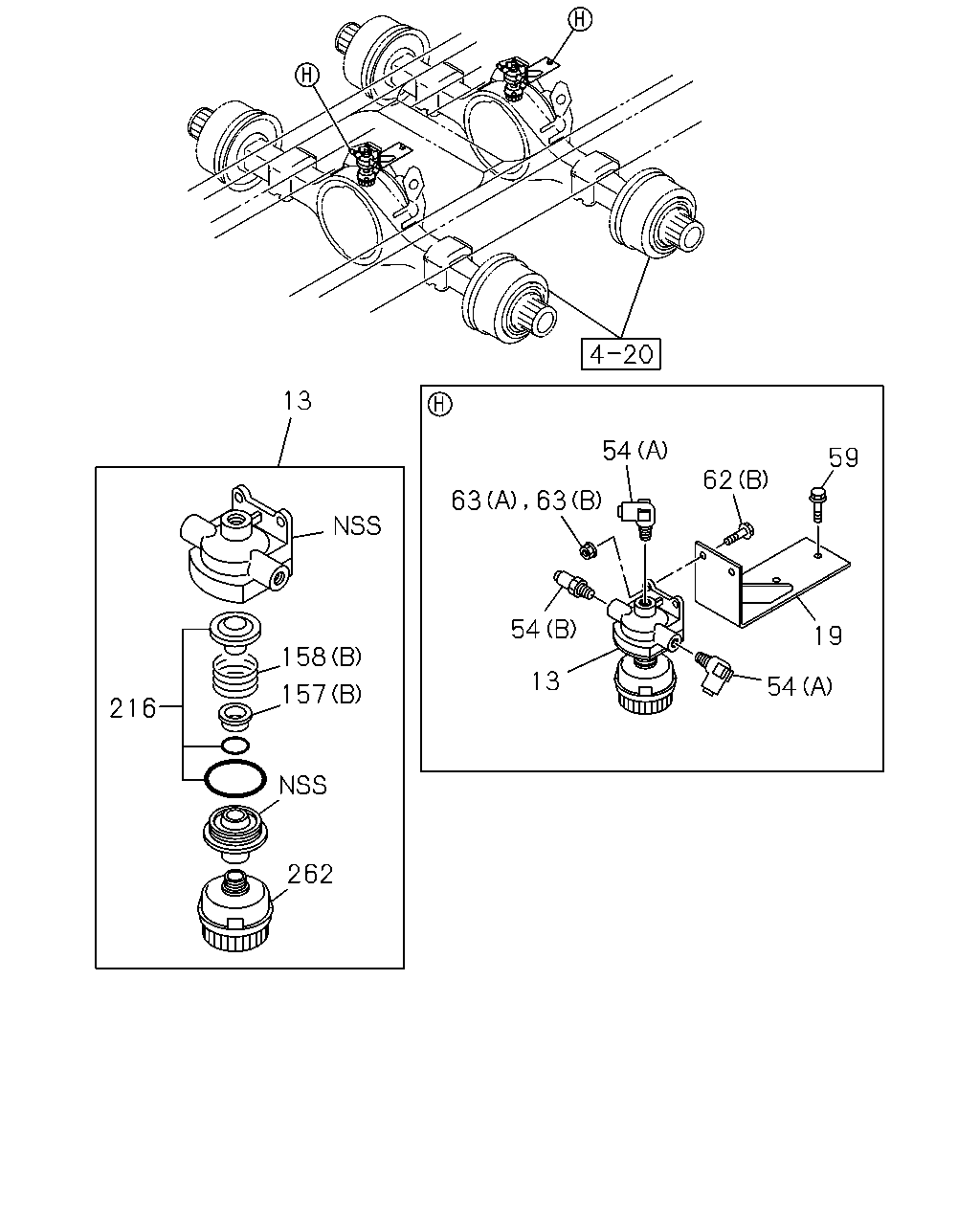

13 54 59 62 63 63 54 19 158 13 54 157 216 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	VALVE ASM; QUICK RELEASE	1-48410-733-0	02	1	0710-0711	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-733-0	02	1	0712-1008	●
13	VALVE ASM; QUICK RELEASE AUSTRALIA EQUIPMENT(B13)	1-48410-733-0	02	1	0712-1008		●
13	VALVE ASM; QUICK RELEASE	8-98170-207-0	02	1	1009-	●
13	VALVE ASM; QUICK RELEASE AUSTRALIA EQUIPMENT(B13)	8-98170-207-0	02	1	1009-		●
19	BRACKET; QUICK RELEASE VLV REARWARD	8-98033-795-0	01	1	0710-	●
19	BRACKET; QUICK RELEASE VLV FORWARD	8-98069-343-0	01	1	0710-	●
19	BRACKET; QUICK RELEASE VLV	8-98033-795-0	02	1	0710-0711		●
19	BRACKET; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(B13)	8-98033-795-0	02	1	0712-		●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0710-0711	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0712-	●
54	CONNECTOR; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(B13) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0712-		●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0710-0711	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0712-	●
54	CONNECTOR; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(B13) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0712-		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0710-0711	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0712-	●
59	BOLT; RELEASE VALVE FIX AUSTRALIA EQUIPMENT(B13) M8X16 FLANGE	0-28050-816-0	04	1	0712-		●
62	BOLT; BRKT FIX (C) M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
62	BOLT; BRKT FIX (B) REARWARD M8X20 FLANGE	0-28050-820-0	02	1	0710-0711	●
62	BOLT; BRKT FIX (B) FORWARD M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
62	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0712-	●
62	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(B13) (B) M8X25 FLANGE	0-28650-825-0	04	1	0712-		●
62	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
62	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28050-820-0	04	1	0710-0711		●
63	NUT; BRKT FIX (C) M10 FLANGE	0-91180-210-0	04	1	1010-	●
63	NUT; BRKT FIX (B) M8	0-91110-508-0	02	1	0710-0711	●
63	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	02	1	0712-0808	●	●
63	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	0712-	●
63	NUT; BRKT FIX AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE	0-91180-108-0	04	1	0712-		●
63	NUT; BRKT FIX (B) M8	0-91110-508-0	04	1	0710-0711		●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0710-0711	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0712-1008	●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(B13) (B)	1-48419-036-0	02	1	0712-1008		●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1009-	●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(B13) (B)	1-48419-020-0	02	1	1009-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0710-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0710-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0710-0711	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0712-	●
158	SPRING; VALVE AUSTRALIA EQUIPMENT(B13) (B)	9-48419-003-0	02	1	0712-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0710-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0710-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85579-062-0	02	1	0710-0711	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85579-062-0	02	1	0712-1008	●
216	REPAIR KIT; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(B13)	1-85579-062-0	02	1	0712-1008		●
216	REPAIR KIT; QUICK RELEASE VLV	8-98171-596-0	02	1	1009-	●
216	REPAIR KIT; QUICK RELEASE VLV AUSTRALIA EQUIPMENT(B13)	8-98171-596-0	02	1	1009-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0710-0711	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0710-0711	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0712-0808	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0712-0808	●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(B13)	1-48219-149-0	02	1	0712-0808		●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0809-	●
262	SILENCER; RELAY VALVE	1-48219-149-0	02	1	0809-	●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(B13)	1-48219-149-0	02	1	0809-		●
262	SILENCER; RELAY VALVE EURO4 SPECIFICATION<NT4>	1-48219-149-0	02	1	0809-		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0710-0712	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-0801	●
262	SILENCER; RELAY VALVE AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13)	1-48219-149-0	01	1	0801-0801		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0801-0907	●
262	SILENCER; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13)	1-48219-149-0	01	1	0801-0907		●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0908-	●
262	SILENCER; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13)	1-48219-149-0	01	1	0908-		●

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY EURO2 SPECIFICATION<NT2> (B)	1-48210-875-0	02	1	0809-		●
2	VALVE; RELAY EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B)	1-48210-875-0	01	1	0801-0907		●
2	VALVE; RELAY EXC. AUSTRALIA EQUIPMENT(B13) (B)	1-48210-875-0	01	1	0908-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0710-0712	●	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0801-0907	●
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (A)	1-48210-997-0	01	1	0801-0907		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0908-	●
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A)	1-48210-997-0	01	1	0908-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	0710-0808	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	0809-1009	●
2	VALVE; RELAY EURO4 SPECIFICATION<NT4> (A)	1-48210-997-0	02	1	0809-1009		●
2	VALVE; RELAY EURO4 SPECIFICATION<NT4> (A)	1-48210-997-0	02	1	1010-		●
155	REPAIR KIT; RELAY VALVE EURO2 SPECIFICATION<NT2> (C)	1-85576-033-0	02	1	0809-		●
155	REPAIR KIT; RELAY VALVE EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (C)	1-85576-033-0	01	1	0801-0907		●
155	REPAIR KIT; RELAY VALVE EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-85576-033-0	01	1	0908-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0710-0712	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0801-0907	●
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (A)	1-85576-294-0	01	1	0801-0907		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0908-	●
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A)	1-85576-294-0	01	1	0908-		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0710-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	0710-0808	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	0809-	●
155	REPAIR KIT; RELAY VALVE EURO4 SPECIFICATION<NT4> (A)	1-85576-294-0	02	1	0809-		●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0710-0711	●	●
157	RETAINER; VALVE (B)	1-48419-036-0	02	1	0712-1008	●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(B13) (B)	1-48419-036-0	02	1	0712-1008		●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	1009-	●
157	RETAINER; VALVE AUSTRALIA EQUIPMENT(B13) (B)	1-48419-020-0	02	1	1009-		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0710-	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0710-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0710-0711	●	●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0712-	●
158	SPRING; VALVE AUSTRALIA EQUIPMENT(B13) (B)	9-48419-003-0	02	1	0712-		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0710-	●	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0710-	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0710-	●	●
161	GUIDE; VALVE	1-48129-014-0	02	1	0710-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0710-	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0710-	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0710-	●	●
166	SPRING; PISTON	1-47819-090-0	02	1	0710-	●	●
167	COVER; VALVE	1-48119-625-0	04	1	0710-1506	●	●
167	COVER; VALVE	1-48119-625-0	04	1	1507-	●
167	COVER; VALVE BRAKE REGULATION ADR(TDU)	1-48119-625-0	04	1	1507-		●
167	COVER; VALVE	1-48219-070-0	01	1	0710-	●	●
167	COVER; VALVE	1-48219-070-0	02	1	0710-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0710-	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0710-	●	●

10 10 65 63 63 1 6 58 213 62 10 58 213 10 213 58 10 10 74 10 213 58 25 62 12 12 56 4 10 12 10 52 272 10 12 73 2 1 8 134 182 12 134 182 12 52 12 10 12 12 56 65 2 1 63 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR (A)	1-48210-997-0	02	1	1010-	●
1	VALVE; RELAY RWD RR (B)	1-48240-354-1	01	1	0710-	●	●
2	VALVE; RELAY EURO2 SPECIFICATION<NT2> (B)	1-48210-875-0	02	1	0809-		●
2	VALVE; RELAY EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B)	1-48210-875-0	01	1	0801-0907		●
2	VALVE; RELAY EXC. AUSTRALIA EQUIPMENT(B13) (B)	1-48210-875-0	01	1	0908-		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0710-0712	●	●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0801-0907	●
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (A)	1-48210-997-0	01	1	0801-0907		●
2	VALVE; RELAY (A)	1-48210-997-0	01	1	0908-	●
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A)	1-48210-997-0	01	1	0908-		●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	0710-0808	●	●
2	VALVE; RELAY (A)	1-48210-997-0	02	1	0809-1009	●
2	VALVE; RELAY EURO4 SPECIFICATION<NT4> (A)	1-48210-997-0	02	1	0809-1009		●
2	VALVE; RELAY EURO4 SPECIFICATION<NT4> (A)	1-48210-997-0	02	1	1010-		●
4	BOLT; RELAY VLV TO BRKT (A) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-0710		●
4	BOLT; RELAY VLV TO BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0710-0805	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	0806-1009	●	●
4	BOLT; RELAY VLV TO BRKT (B) M10X35 FLANGE	0-28651-035-0	04	1	1010-		●
5	NUT M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	0710-1009	●	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1010-		●
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●
6	BOLT; VLV (A) M8X80 FLANGE	0-28050-880-0	04	1	0710-0712	●	●
6	BOLT; VLV (A) M8X80 FLANGE	0-28050-880-0	04	1	0801-1410	●
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (A) M8X80 FLANGE	0-28050-880-0	04	1	0801-1410		●
6	BOLT; VLV (A) M8X85	1-09044-074-0	04	1	1411-	●
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (A) M8X85	1-09044-074-0	04	1	1411-		●
8	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	03	1	0710-	●	●
10	CONNECTOR ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-		●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1010-	●
10	CONNECTOR (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1010-	●
10	CONNECTOR (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1010-	●
10	CONNECTOR EURO2 SPECIFICATION<NT2> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	0809-		●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-1009	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1010-	●	●
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1010-	●
10	CONNECTOR (C) DIN12 & M22 STRAIGHT	1-09661-050-0	01	1	0710-	●	●
10	CONNECTOR (D) PT1/4 2WAY	1-09660-693-0	01	1	0710-	●	●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-0808	●	●
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-	●
10	CONNECTOR EURO4 SPECIFICATION<NT4> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0809-		●
12	CONNECTOR; RELAY VLV EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (G) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0809-		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0710-	●	●
12	CONNECTOR; RELAY VLV (B)	1-09661-207-0	01	1	0710-	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0809	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0810-		●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0710-1009	●	●
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1010-		●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0710-1009	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1010-		●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0710-1009	●	●
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1010-		●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	0710-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	0710-	●	●
52	CONNECTOR; RELAY VLV (C) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0810-1009	●
52	CONNECTOR; RELAY VLV EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (D) PT3/8 3WAY	1-09661-300-0	01	1	0809-1111		●
52	CONNECTOR; RELAY VLV EURO2 SPECIFICATION<NT2> EXC. ANTI LOCK BRAKE<JE5> (D) DIN9 & RC3/8 ELBOW	8-98203-578-0	01	1	1112-		●
52	CONNECTOR; RELAY VLV H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0710-	●	●
52	CONNECTOR; RELAY VLV EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0710-	●	●
52	CONNECTOR; RELAY VLV (C)	1-09661-537-0	01	1	0710-0809	●	●
52	CONNECTOR; RELAY VLV (C)	1-09661-537-0	01	1	0810-0811		●
52	CONNECTOR; RELAY VLV (C) DIN8 & RC1/4 & R3/8 3WAY	8-97620-116-0	01	1	0812-		●
56	BRACKET; RELAY VLV (B)	8-98131-580-0	01	1	0810-1009	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	0710-0809	●	●
56	BRACKET; RELAY VLV (A)	1-47479-937-0	01	1	0810-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (E) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (F) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (G)	8-98031-238-0	01	1	1012-		●
58	ADAPTER ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (H)	8-98148-475-0	01	1	1012-		●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0710-	●	●
58	ADAPTER (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0710-	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	0710-0712	●	●
58	ADAPTER (C)	1-48219-154-0	01	1	0801-0907	●
58	ADAPTER ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (C)	1-48219-154-0	01	1	0801-0907		●
58	ADAPTER (C)	1-48219-154-0	01	1	0908-	●
58	ADAPTER ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (C)	1-48219-154-0	01	1	0908-		●
58	ADAPTER (C)	1-48219-154-0	02	1	0710-0808	●	●
58	ADAPTER (C)	1-48219-154-0	02	1	0809-	●
58	ADAPTER EURO4 SPECIFICATION<NT4> (C)	1-48219-154-0	02	1	0809-		●
62	BOLT; BRKT FIX (C) M10X35 FLANGE	0-28651-035-0	04	1	1010-	●
62	BOLT; BRKT FIX (B) REARWARD M8X20 FLANGE	0-28050-820-0	02	1	0710-0711	●
62	BOLT; BRKT FIX (B) FORWARD M8X25 FLANGE	0-28650-825-0	02	1	0710-0711	●
62	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28650-825-0	04	1	0712-	●
62	BOLT; BRKT FIX AUSTRALIA EQUIPMENT(B13) (B) M8X25 FLANGE	0-28650-825-0	04	1	0712-		●
62	BOLT; BRKT FIX (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
62	BOLT; BRKT FIX (B) M8X20 FLANGE	0-28050-820-0	04	1	0710-0711		●
63	NUT; BRKT FIX (C) M10 FLANGE	0-91180-210-0	04	1	1010-	●
63	NUT; BRKT FIX (B) M8	0-91110-508-0	02	1	0710-0711	●
63	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	02	1	0712-0808	●	●
63	NUT; BRKT FIX (B) M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
63	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	0712-	●
63	NUT; BRKT FIX AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE	0-91180-108-0	04	1	0712-		●
63	NUT; BRKT FIX (B) M8	0-91110-508-0	04	1	0710-0711		●
65	BRACKET; RELAY VLV RR (A)	8-98131-580-0	01	1	1010-	●
65	BRACKET; RELAY VLV RR (B)	1-47471-032-0	01	1	0710-	●	●
73	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
74	CONNECTOR; 3WAY DIN8 & RC1/4 & R3/8 3WAY	1-09661-536-0	01	1	0710-	●	●
134	PLUG; RELAY VALVE PT3/8	9-09204-517-0	02	1	1010-	●
182	PLUG; RELAY VLV PT3/8	9-09204-517-0	02	1	0710-1009	●	●
182	PLUG; RELAY VLV PT3/8	9-09204-517-0	02	1	1010-		●
213	GASKET ID=22.5	9-09571-422-0	04	1	0710-	●	●
272	TUBE ASM; NYLON,UNION TO UNION SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1010-	●

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE EURO2 SPECIFICATION<NT2> (C)	1-85576-033-0	02	1	0809-		●
155	REPAIR KIT; RELAY VALVE EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (C)	1-85576-033-0	01	1	0801-0907		●
155	REPAIR KIT; RELAY VALVE EXC. AUSTRALIA EQUIPMENT(B13) (C)	1-85576-033-0	01	1	0908-		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0710-0712	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0801-0907	●
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (A)	1-85576-294-0	01	1	0801-0907		●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0908-	●
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A)	1-85576-294-0	01	1	0908-		●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0710-	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	0710-0808	●	●
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	02	1	0809-	●
155	REPAIR KIT; RELAY VALVE EURO4 SPECIFICATION<NT4> (A)	1-85576-294-0	02	1	0809-		●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	0710-	●	●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	240	REPAIR KIT; AIR CONT GOV EURO2 SPECIFICATION<NT2>	1-85576-467-0	01	1	0809-1008		●
	240	REPAIR KIT; AIR CONT GOV TURBO - CONVENTIONAL<Q5T>	1-85576-467-0	01	1	1009-		●

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	0710-	●	●
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	0710-	●	●

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	REPAIR KIT; PROTECTION VALVE	1-85576-451-1	01	1	0710-1506	●	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	1507-	●
241	REPAIR KIT; PROTECTION VALVE BRAKE REGULATION ADR(TDU)	1-85576-451-2	01	1	1507-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
