◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#65712) — 573 parça
çizim 114854
346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301
BalonParca AdiParca NoAdetTipApplied Date A B
297 RING; SNAP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47649-031-0 02 1 0712-1104 ●
297 RING; SNAP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47649-031-0 02 1 0712-1104 ●
297 RING; SNAP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47649-031-0 02 1 1105- ●
297 RING; SNAP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47649-031-0 02 1 1105- ●
297 RING; SNAP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-47649-034-1 02 1 0712-1104 ●
297 RING; SNAP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-47649-034-1 02 1 0712-1104 ●
297 RING; SNAP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-47649-034-1 02 1 1105- ●
297 RING; SNAP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-47649-034-1 02 1 1105- ●
301 CLIP; ANTI LOTATION
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47621-017-0 04 1 0712-1104 ●
301 CLIP; ANTI LOTATION
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47621-017-0 04 1 0712-1104 ●
301 CLIP; ANTI LOTATION
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47621-017-0 04 1 1105- ●
301 CLIP; ANTI LOTATION
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47621-017-0 04 1 1105- ●
311 BOOT; WEDGE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-042-0 02 1 0712-1104 ●
311 BOOT; WEDGE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-042-0 02 1 0712-1104 ●
311 BOOT; WEDGE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-042-0 02 1 1105- ●
311 BOOT; WEDGE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-042-0 02 1 1105- ●
319 RING; DRIVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-200-0 04 1 0712-1104 ●
319 RING; DRIVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-200-0 04 1 0712-1104 ●
319 RING; DRIVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-200-0 04 1 1105- ●
319 RING; DRIVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-200-0 04 1 1105- ●
327 SPRING; ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-196-0 04 1 0712-1104 ●
327 SPRING; ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-196-0 04 1 0712-1104 ●
327 SPRING; ADJ
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-196-0 04 1 1105- ●
327 SPRING; ADJ
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-196-0 04 1 1105- ●
328 CAGE; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-192-0 04 1 0712-1104 ●
328 CAGE; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-192-0 04 1 0712-1104 ●
328 CAGE; SPRING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-192-0 04 1 1105- ●
328 CAGE; SPRING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-192-0 04 1 1105- ●
329 SCREW; LOCATING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47619-149-1 04 1 0712-1104 ●
329 SCREW; LOCATING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47619-149-1 04 1 0712-1104 ●
329 SCREW; LOCATING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47619-149-1 04 1 1105- ●
329 SCREW; LOCATING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47619-149-1 04 1 1105- ●
334 SPRING; ROD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-041-0 02 1 0712-1104 ●
334 SPRING; ROD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-041-0 02 1 0712-1104 ●
334 SPRING; ROD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-041-0 02 1 1105- ●
334 SPRING; ROD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-041-0 02 1 1105- ●
335 RETAINER; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-020-0 02 1 0712-1104 ●
335 RETAINER; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-020-0 02 1 0712-1104 ●
335 RETAINER; SPRING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-020-0 02 1 1105- ●
335 RETAINER; SPRING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-020-0 02 1 1105- ●
346 REPAIR KIT; EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-85576-403-0 02 1 0712-1104 ●
346 REPAIR KIT; EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-85576-403-0 02 1 0712-1104 ●
346 REPAIR KIT; EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-85576-403-0 02 1 1105- ●
346 REPAIR KIT; EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-85576-403-0 02 1 1105- ●
347 REPAIR KIT; BOOT,EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-85576-404-0 02 1 0712-1104 ●
347 REPAIR KIT; BOOT,EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-85576-404-0 02 1 0712-1104 ●
347 REPAIR KIT; BOOT,EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-85576-404-0 02 1 1105- ●
347 REPAIR KIT; BOOT,EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-85576-404-0 02 1 1105- ●
348 CAP; EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-044-0 02 1 0712-1104 ●
348 CAP; EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-044-0 02 1 0712-1104 ●
348 CAP; EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-044-0 02 1 1105- ●
348 CAP; EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-044-0 02 1 1105- ●

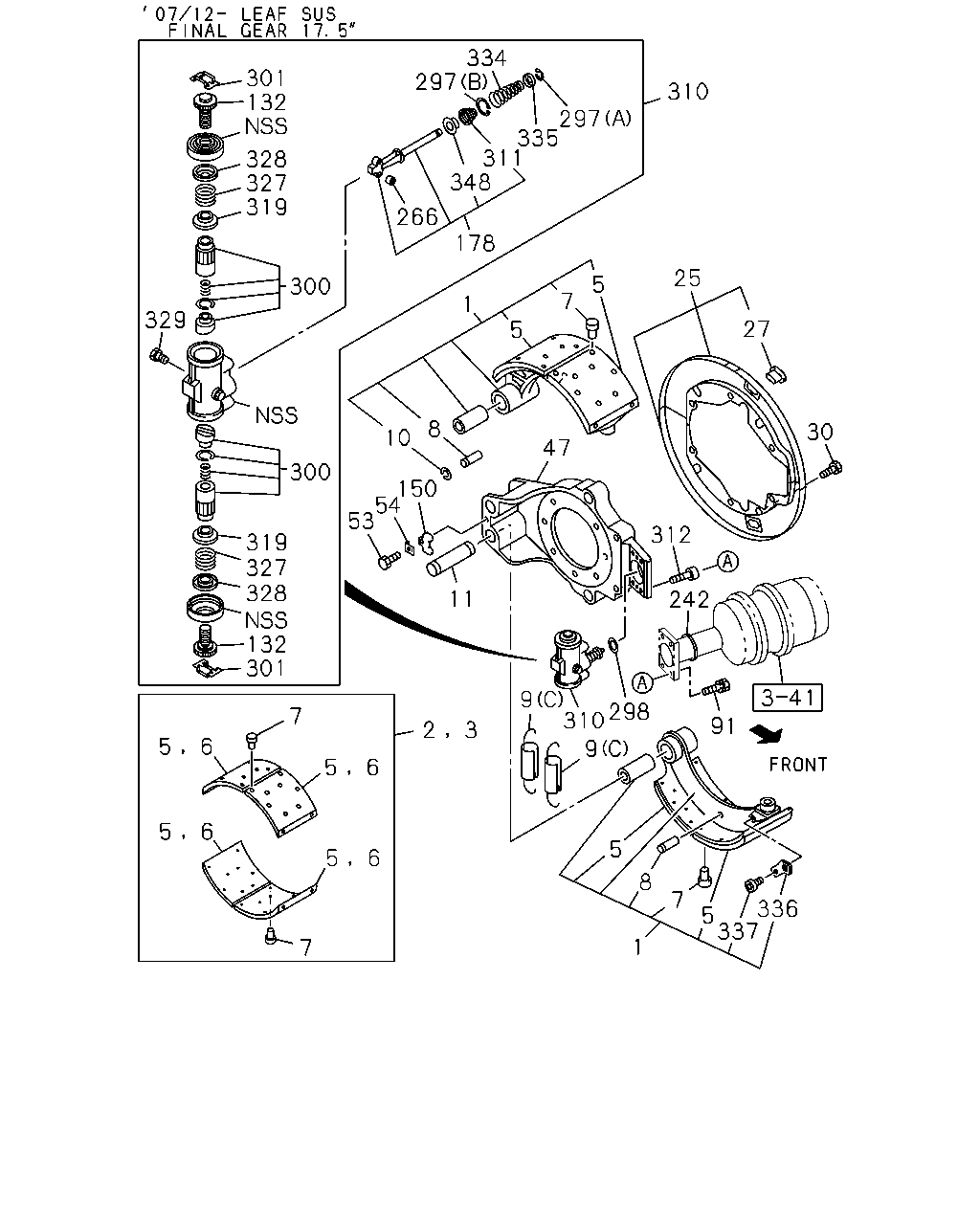

çizim 192428
334 297 132 310 297 335 311 348 328 327 319 266 178 25 5 300 7 1 329 27 5 8 30 10 47 300 150 54 53 312 319 327 328 132 301 11 242 9 298 310 9 7 91 2 3 5 6 5 6 5 6 5 5 6 8 336 5 337 7 1 7 301
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-324-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-324-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-324-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-324-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-325-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-325-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-325-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-325-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-326-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-326-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-326-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-326-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-327-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-327-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-327-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-327-0 01 1 1105- ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0710-0711 ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0710-0711 ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0712- ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0712- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47120-734-0 04 1 0712- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47120-734-0 04 1 0712- ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BEST VALUE PARTS 		1-87610-132-0 01 1 0712-1104 ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BEST VALUE PARTS 		1-87610-132-0 01 1 0712-1104 ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BEST VALUE PARTS 		1-87610-132-0 01 1 1105- ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) BEST VALUE PARTS 		1-87610-132-0 01 1 1105- ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-88310-775-1 02 1 0712-1104 ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-88310-775-1 02 1 0712-1104 ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-88310-775-1 02 1 1105- ●
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-88310-775-1 02 1 1105- ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-88310-776-1 02 1 0712-1104 ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-88310-776-1 02 1 0712-1104 ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-88310-776-1 02 1 1105- ●
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-88310-776-1 02 1 1105- ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47126-093-0 08 1 0712-1104 ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47126-093-0 08 1 0712-1104 ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47126-093-0 08 1 1105- ●
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47126-093-0 08 1 1105- ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47126-094-0 08 1 0712-1104 ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47126-094-0 08 1 0712-1104 ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47126-094-0 08 1 1105- ●
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47126-094-0 08 1 1105- ●
7 RIVET; LINING,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=15.5 		1-09732-053-0 AR 1 0712-1104 ●
7 RIVET; LINING,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=15.5 		1-09732-053-0 AR 1 0712-1104 ●
7 RIVET; LINING,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=15.5 		1-09732-053-0 AR 1 1105- ●
7 RIVET; LINING,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=15.5 		1-09732-053-0 AR 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47119-136-0 02 1 0712-1104 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47119-136-0 02 1 0712-1104 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47119-136-0 02 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47119-136-0 02 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47119-172-0 02 1 0712-1104 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47119-172-0 02 1 0712-1104 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47119-172-0 02 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47119-172-0 02 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710-0711 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710-0711 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0712- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0712- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47119-116-0 04 1 0712- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47119-116-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-09583-365-1 02 1 0712-1104 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-09583-365-1 02 1 0712-1104 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-09583-365-1 02 1 1105- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-09583-365-1 02 1 1105- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0712- ●

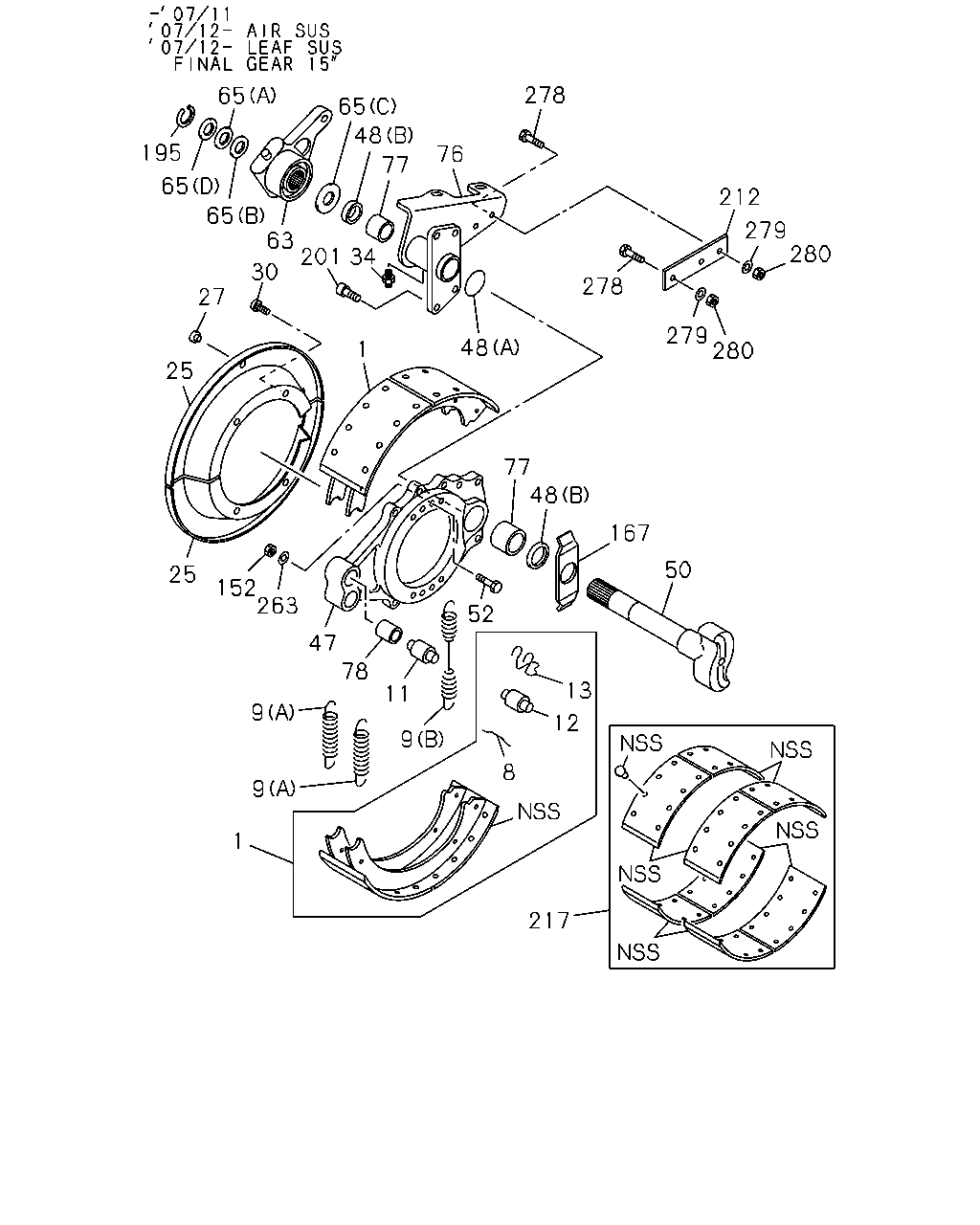

9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-47119-114-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-47119-114-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0712- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-47119-115-0 02 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-47119-115-0 02 1 0712- ●
10 RING; SNAP,SPR PIN
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=10 		0-91805-510-0 02 1 0712-1104 ●
10 RING; SNAP,SPR PIN
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=10 		0-91805-510-0 02 1 0712-1104 ●
10 RING; SNAP,SPR PIN
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=10 		0-91805-510-0 02 1 1105- ●
10 RING; SNAP,SPR PIN
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ID=10 		0-91805-510-0 02 1 1105- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=138.5 		1-47131-045-0 04 1 0712-1104 ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=138.5 		1-47131-045-0 04 1 0712-1104 ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=138.5 		1-47131-045-0 04 1 1105- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=138.5 		1-47131-045-0 04 1 1105- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710-0711 ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710-0711 ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0712- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0712- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47131-040-0 04 1 0712- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47131-040-0 04 1 0712- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 04 1 0710-0710 ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710-0711 ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710-0711 ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0712- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0712- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47151-774-0 02 1 0712- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47151-774-0 02 1 0712- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0712-1104 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0712-1104 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1105-1309 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1105-1309 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47151-878-0 02 1 1310- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47151-878-0 02 1 1310- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0712-1104 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0712-1104 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1105-1309 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1105-1309 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 0712-1104 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 0712-1104 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 1105- ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 1105- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710-0711 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710-0711 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0712- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0712- ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-87050-011-0 04 1 0712- ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-87050-011-0 04 1 0712- ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 0712-1104 ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 0712-1104 ●
30 BOLT; DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 1105- ●
30 BOLT; DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 1105- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710-0711 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710-0711 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0712- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0712- ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47159-176-0 12 1 0712- ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47159-176-0 12 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> REARWARD 		1-47137-549-0 01 1 0712-1004 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> REARWARD 		1-47137-550-0 01 1 0712-1004 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. ANTI LOCK BRAKE<JE5> FORWARD 		1-47137-472-0 02 1 0712-1004 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-472-0 02 1 1005-1104 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-472-0 02 1 1005-1104 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-472-0 02 1 1105-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-472-0 02 1 1105-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		8-98091-253-1 02 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		8-98091-253-1 02 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710-0711 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710-0711 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47137-374-0 02 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47137-374-0 02 1 0712- ●
53 BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16 		0-20851-016-0 02 1 0712-0910 ●
53 BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16 		0-20851-016-0 02 1 0712-0910 ●
53 BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16 		1-47139-173-0 02 1 0911-1104 ●
53 BOLT; LOCK PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16 		1-47139-173-0 02 1 0911-1104 ●
53 BOLT; LOCK PLATE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16 		1-47139-173-0 02 1 1105- ●
53 BOLT; LOCK PLATE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X16 		1-47139-173-0 02 1 1105- ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-011-0 02 1 0712-1104 ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-011-0 02 1 0712-1104 ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-011-0 02 1 1105- ●
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-011-0 02 1 1105- ●
91 BOLT; CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X53 		1-47139-148-0 08 1 0712-1104 ●
91 BOLT; CHAMBER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X53 		1-47139-148-0 08 1 0712-1104 ●
91 BOLT; CHAMBER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X53 		1-47139-148-0 08 1 1105- ●
91 BOLT; CHAMBER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X53 		1-47139-148-0 08 1 1105- ●
132 SCREW; ADJ,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47623-035-2 04 1 0712-1104 ●
132 SCREW; ADJ,RR BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47623-035-2 04 1 0712-1104 ●
132 SCREW; ADJ,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47623-035-2 04 1 1105- ●
132 SCREW; ADJ,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47623-035-2 04 1 1105- ●
150 PLATE; LK,ANCHOR PIN
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-010-0 02 1 0712-1104 ●
150 PLATE; LK,ANCHOR PIN
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-010-0 02 1 0712-1104 ●
150 PLATE; LK,ANCHOR PIN
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-010-0 02 1 1105- ●
150 PLATE; LK,ANCHOR PIN
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-010-0 02 1 1105- ●
178 WEDGE; RR WHEEL CYL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47640-012-0 02 1 0712-1104 ●
178 WEDGE; RR WHEEL CYL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47640-012-0 02 1 0712-1104 ●
178 WEDGE; RR WHEEL CYL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47640-012-0 02 1 1105- ●
178 WEDGE; RR WHEEL CYL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47640-012-0 02 1 1105- ●
242 SEAL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47159-186-0 04 1 0712-1104 ●
242 SEAL
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47159-186-0 04 1 0712-1104 ●
242 SEAL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47159-186-0 04 1 1105- ●
242 SEAL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47159-186-0 04 1 1105- ●
266 ROLLER; WEDGE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47643-007-0 04 1 0712-1104 ●
266 ROLLER; WEDGE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47643-007-0 04 1 0712-1104 ●
266 ROLLER; WEDGE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47643-007-0 04 1 1105- ●
266 ROLLER; WEDGE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47643-007-0 04 1 1105- ●
297 RING; SNAP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47649-031-0 02 1 0712-1104 ●
297 RING; SNAP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47649-031-0 02 1 0712-1104 ●
297 RING; SNAP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47649-031-0 02 1 1105- ●
297 RING; SNAP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47649-031-0 02 1 1105- ●
297 RING; SNAP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-47649-034-1 02 1 0712-1104 ●
297 RING; SNAP
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-47649-034-1 02 1 0712-1104 ●
297 RING; SNAP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-47649-034-1 02 1 1105- ●
297 RING; SNAP
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-47649-034-1 02 1 1105- ●
298 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-231-0 02 1 0712-1104 ●
298 GASKET
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-231-0 02 1 0712-1104 ●
298 GASKET
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-231-0 02 1 1105- ●
298 GASKET
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-231-0 02 1 1105- ●
300 SLEEVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-247-1 04 1 0712-1104 ●
300 SLEEVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-247-1 04 1 0712-1104 ●
300 SLEEVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-247-1 04 1 1105- ●
300 SLEEVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-247-1 04 1 1105- ●
301 CLIP; ANTI LOTATION
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47621-017-0 04 1 0712-1104 ●
301 CLIP; ANTI LOTATION
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47621-017-0 04 1 0712-1104 ●
301 CLIP; ANTI LOTATION
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47621-017-0 04 1 1105- ●
301 CLIP; ANTI LOTATION
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47621-017-0 04 1 1105- ●
310 EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47601-087-0 02 1 0712-1104 ●
310 EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47601-087-0 02 1 0712-1104 ●
310 EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47601-087-0 02 1 1105- ●
310 EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47601-087-0 02 1 1105- ●
311 BOOT; WEDGE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-042-0 02 1 0712-1104 ●
311 BOOT; WEDGE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-042-0 02 1 0712-1104 ●
311 BOOT; WEDGE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-042-0 02 1 1105- ●
311 BOOT; WEDGE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-042-0 02 1 1105- ●
312 BOLT; EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0712-1104 ●
312 BOLT; EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 0712-1104 ●
312 BOLT; EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1105- ●
312 BOLT; EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M8X16 HEXALOBULAR SOCKET 		1-47634-008-0 04 1 1105- ●
319 RING; DRIVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-200-0 04 1 0712-1104 ●
319 RING; DRIVE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-200-0 04 1 0712-1104 ●
319 RING; DRIVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-200-0 04 1 1105- ●
319 RING; DRIVE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-200-0 04 1 1105- ●
327 SPRING; ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-196-0 04 1 0712-1104 ●
327 SPRING; ADJ
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-196-0 04 1 0712-1104 ●
327 SPRING; ADJ
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-196-0 04 1 1105- ●
327 SPRING; ADJ
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-196-0 04 1 1105- ●
328 CAGE; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-192-0 04 1 0712-1104 ●
328 CAGE; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-192-0 04 1 0712-1104 ●
328 CAGE; SPRING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-192-0 04 1 1105- ●
328 CAGE; SPRING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47629-192-0 04 1 1105- ●
329 SCREW; LOCATING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47619-149-1 04 1 0712-1104 ●
329 SCREW; LOCATING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47619-149-1 04 1 0712-1104 ●
329 SCREW; LOCATING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47619-149-1 04 1 1105- ●
329 SCREW; LOCATING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47619-149-1 04 1 1105- ●
334 SPRING; ROD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-041-0 02 1 0712-1104 ●
334 SPRING; ROD
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-041-0 02 1 0712-1104 ●
334 SPRING; ROD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-041-0 02 1 1105- ●
334 SPRING; ROD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-041-0 02 1 1105- ●
335 RETAINER; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-020-0 02 1 0712-1104 ●
335 RETAINER; SPRING
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-020-0 02 1 0712-1104 ●
335 RETAINER; SPRING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-020-0 02 1 1105- ●
335 RETAINER; SPRING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-020-0 02 1 1105- ●
336 PLATE; PIVOT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47119-152-0 04 1 0712-1104 ●
336 PLATE; PIVOT
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47119-152-0 04 1 0712-1104 ●
336 PLATE; PIVOT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47119-152-0 04 1 1105- ●
336 PLATE; PIVOT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47119-152-0 04 1 1105- ●
337 BOLT; PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47119-153-0 04 1 0712-1104 ●
337 BOLT; PLATE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47119-153-0 04 1 0712-1104 ●
337 BOLT; PLATE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47119-153-0 04 1 1105- ●
337 BOLT; PLATE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47119-153-0 04 1 1105- ●
348 CAP; EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-044-0 02 1 0712-1104 ●
348 CAP; EXPANDER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-044-0 02 1 0712-1104 ●
348 CAP; EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-044-0 02 1 1105- ●
348 CAP; EXPANDER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47649-044-0 02 1 1105- ●
çizim 192486
65 65 48 77 76 278 212 279 280 280 279 278 48 34 201 63 65 65 195 30 27 25 1 77 48 167 50 13 52 12 8 217 1 9 9 9 11 78 47 263 152 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-324-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-324-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-324-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-324-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-325-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-325-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-325-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-325-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-326-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-326-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-326-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-326-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-327-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-327-0 01 1 0712-1104 ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-327-0 01 1 1105- ●
1 SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47170-327-0 01 1 1105- ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0710-0711 ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0710-0711 ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0712- ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0712- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47120-734-0 04 1 0712- ●
1 SHOE; BRK,RR
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47120-734-0 04 1 0712- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47119-136-0 02 1 0712-1104 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47119-136-0 02 1 0712-1104 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47119-136-0 02 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47119-136-0 02 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47119-172-0 02 1 0712-1104 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47119-172-0 02 1 0712-1104 ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47119-172-0 02 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47119-172-0 02 1 1105- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710-0711 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0710-0711 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0712- ●
8 PIN; RETURN SPRING,RR BRK SHOE 1-47119-116-0 04 1 0712- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47119-116-0 04 1 0712- ●
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47119-116-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-09583-365-1 02 1 0712-1104 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-09583-365-1 02 1 0712-1104 ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-09583-365-1 02 1 1105- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) (C) 		1-09583-365-1 02 1 1105- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-47119-114-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-47119-114-0 04 1 0712- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0710-0711 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0712- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-47119-115-0 02 1 0712- ●
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-47119-115-0 02 1 0712- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=138.5 		1-47131-045-0 04 1 0712-1104 ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=138.5 		1-47131-045-0 04 1 0712-1104 ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=138.5 		1-47131-045-0 04 1 1105- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) L=138.5 		1-47131-045-0 04 1 1105- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710-0711 ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0710-0711 ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0712- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0712- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47131-040-0 04 1 0712- ●
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47131-040-0 04 1 0712- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0710-0711 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0710-0711 ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0712- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0712- ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47119-141-0 04 1 0712- ●
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47119-141-0 04 1 0712- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0710-0711 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0710-0711 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0712- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0712- ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47119-118-0 04 1 0712- ●
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47119-118-0 04 1 0712- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 04 1 0710-0710 ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710-0711 ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0710-0711 ● ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0712- ●
25 COVER SET; RR BRK DRUM 1-47151-774-0 02 1 0712- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47151-774-0 02 1 0712- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47151-774-0 02 1 0712- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0712-1104 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 0712-1104 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1105-1309 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD RH,REARWARD LH 		1-47151-808-0 01 1 1105-1309 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47151-878-0 02 1 1310- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47151-878-0 02 1 1310- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0712-1104 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 0712-1104 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1105-1309 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) FORWARD LH,REARWARD RH 		1-47151-809-0 01 1 1105-1309 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 0712-1104 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 0712-1104 ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 1105- ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 1105- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710-0711 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0710-0711 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0712- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0712- ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-87050-011-0 04 1 0712- ●
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-87050-011-0 04 1 0712- ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 0712-1104 ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 0712-1104 ●
30 BOLT; DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 1105- ●
30 BOLT; DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 1105- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710-0711 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0710-0711 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0712- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0712- ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47159-176-0 12 1 0712- ●
30 BOLT; DRUM COVER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47159-176-0 12 1 0712- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0710-0711 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0710-0711 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0712- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0712- ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-48259-253-0 02 1 0712- ●
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-48259-253-0 02 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> REARWARD 		1-47137-549-0 01 1 0712-1004 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) ANTI LOCK BRAKE<JE5> REARWARD 		1-47137-550-0 01 1 0712-1004 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) EXC. ANTI LOCK BRAKE<JE5> FORWARD 		1-47137-472-0 02 1 0712-1004 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-472-0 02 1 1005-1104 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-472-0 02 1 1005-1104 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-472-0 02 1 1105-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-472-0 02 1 1105-1306 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		8-98091-253-1 02 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y),FINAL GEAR 39/7 17.5"(W3Z) 		8-98091-253-1 02 1 1307- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710-0711 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0710-0711 ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47137-374-0 02 1 0712- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47137-374-0 02 1 0712- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0710-0711 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0710-0711 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0712- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0712- ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-47149-056-0 02 1 0712- ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) 		1-47149-056-0 02 1 0712- ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 08 1 0710-0710 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0710-0711 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0710-0711 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0712- ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0712- ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-47149-057-0 04 1 0712- ●
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-47149-057-0 04 1 0712- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) FORWARD RH,REARWARD LH 		1-47141-139-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) FORWARD RH,REARWARD LH 		1-47141-139-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) FORWARD LH,REARWARD RH 		1-47149-102-0 01 1 0710- ●
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) FORWARD LH,REARWARD RH 		1-47149-102-0 01 1 0710- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0710-0711 ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0710-0711 ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0712- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0712- ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47139-122-0 16 1 0712- ●
52 BOLT; ANCHOR BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47139-122-0 16 1 0712- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0710-0711 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0710-0711 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0712- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-106-0 02 1 0712- ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-48270-106-0 02 1 0712- ●
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-48270-106-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0710-0711 ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0710-0711 ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) T=0.06" 		1-47139-121-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (A) T=0.06" 		1-47139-121-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0710-0711 ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0710-0711 ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-47149-059-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (B) 		1-47149-059-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0710-0711 ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0710-0711 ● ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
(D) T=0.03" 		1-47149-060-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (D) T=0.03" 		1-47149-060-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (D) T=0.03" 		1-47149-060-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0710-0711 ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0710-0711 ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (C) 		1-47149-065-0 02 1 0712- ●
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) (C) 		1-47149-065-0 02 1 0712- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-020-0 01 1 0710-0711 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
AUSTRALIA EQUIPMENT(B13) FORWARD 		1-47145-020-0 01 1 0712- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-033-0 01 1 0710-0711 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
AUSTRALIA EQUIPMENT(B13) REARWARD 		1-47145-033-0 01 1 0712- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-034-0 01 1 0710-0711 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
AUSTRALIA EQUIPMENT(B13) REARWARD 		1-47145-034-0 01 1 0712- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) REARWARD 		1-47145-024-0 01 1 0710-0710 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) REARWARD 		1-47145-024-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) REARWARD 		1-47145-025-0 01 1 0710-0710 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) REARWARD 		1-47145-025-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) FORWARD 		1-47145-022-0 01 1 0710-0710 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) FORWARD 		1-47145-022-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D) FORWARD 		1-47145-023-0 01 1 0710-0710 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) FORWARD 		1-47145-023-0 01 1 0710- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-021-0 01 1 0710-0711 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
AUSTRALIA EQUIPMENT(B13) FORWARD 		1-47145-021-0 01 1 0712- ●
77 BUSHING 1-47146-012-0 04 1 0710-0711 ● ●
77 BUSHING 1-47146-012-0 04 1 0710-0711 ● ●
77 BUSHING 1-47146-012-0 04 1 0712- ●
77 BUSHING 1-47146-012-0 04 1 0712- ●
77 BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47146-012-0 04 1 0712- ●
77 BUSHING
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47146-012-0 04 1 0712- ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0710-0711 ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0710-0711 ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0712- ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0712- ●
78 BUSHING; BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47139-117-0 04 1 0712- ●
78 BUSHING; BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47139-117-0 04 1 0712- ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0710-0711 ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0710-0711 ● ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0712- ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0712- ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-41229-169-0 16 1 0712- ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-41229-169-0 16 1 0712- ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0710-0711 ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0710-0711 ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0712- ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0712- ●
167 WASHER; ADJ CAM
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47149-077-0 02 1 0712- ●
167 WASHER; ADJ CAM
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47149-077-0 02 1 0712- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0710-0711 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0710-0711 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0712- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0712- ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-87050-005-0 02 1 0712- ●
195 RING; SNAP,CM/SHF
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-87050-005-0 02 1 0712- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0710-0711 ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0710-0711 ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0712- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0712- ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47139-119-0 08 1 0712- ●
201 BOLT; BRKT,POWER CHAMBER
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47139-119-0 08 1 0712- ●
212 STAY 1-47149-081-0 02 1 0710-0711 ● ●
212 STAY 1-47149-081-0 02 1 0710-0711 ● ●
212 STAY 1-47149-081-0 02 1 0712- ●
212 STAY 1-47149-081-0 02 1 0712- ●
212 STAY
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47149-081-0 02 1 0712- ●
212 STAY
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47149-081-0 02 1 0712- ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0710-0711 ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0710-0711 ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0712- ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0712- ●
217 LINING KIT; RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-87050-157-0 01 1 0712- ●
217 LINING KIT; RR BRK
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-87050-157-0 01 1 0712- ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0710-0711 ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0710-0711 ● ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0712- ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0712- ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-41519-038-0 16 1 0712- ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-41519-038-0 16 1 0712- ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 0710-0711 ● ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 0710-0711 ● ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 0712- ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 0712- ●
278 BOLT; SUPPORT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-41329-038-0 03 1 0712- ●
278 BOLT; SUPPORT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-41329-038-0 03 1 0712- ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 0710-0711 ● ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 0710-0711 ● ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 0712- ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 0712- ●
279 WASHER; SUPPORT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47149-083-0 03 1 0712- ●
279 WASHER; SUPPORT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47149-083-0 03 1 0712- ●
280 NUT; SUPPORT 1-47149-082-0 03 1 0710-0711 ● ●
280 NUT; SUPPORT 1-47149-082-0 03 1 0710-0711 ● ●
280 NUT; SUPPORT 1-47149-082-0 03 1 0712- ●
280 NUT; SUPPORT 1-47149-082-0 03 1 0712- ●
280 NUT; SUPPORT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47149-082-0 03 1 0712- ●
280 NUT; SUPPORT
FINAL GEAR 43/7 15" ROCKWELL(W6S),FINAL GEAR 45/7 15" ROCKWELL(W8D),FINAL GEAR 41/6 15" ROCKWELL(W8L) 		1-47149-082-0 03 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
