Sayfa 3-01 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶

3-01 — FRONT WHEEL BRAKE (#65711) — 181 parça

304 278 294 306 23 282 275 29 121 271 264 279 282 271 23 279 305 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	SPRING; COIL EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-196-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	02	1	0712-1007	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	04	1	1008-	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0710-0711	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0712-	●
121	SCREW; LK SPR FRT WHEEL CYL EXC. HUB LUBRICATION OIL BATH<C5K>	1-47619-149-1	04	1	0712-	●
264	RING; SNAP,SPR PIN EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-034-1	02	1	0712-	●
271	CLIP; ADJ EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-017-0	04	1	0712-	●
275	RING; RETAINER EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-031-0	02	1	0712-	●
278	RETAINER; SPRING EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-020-0	02	1	0712-	●
279	CAGE; SPRING EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-192-0	04	1	0712-	●
282	RING; DRIVE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-200-0	04	1	0712-	●
294	BOOT; WEDGE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-042-0	02	1	0712-	●
304	REPAIR KIT; EXPANDER EXC. HUB LUBRICATION OIL BATH<C5K>	1-85576-403-0	02	1	0712-	●
305	REPAIR KIT; BOOT,EXPANDER EXC. HUB LUBRICATION OIL BATH<C5K>	1-85576-404-0	02	1	0712-	●
306	CAP; EXPANDER EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-044-0	02	1	0712-	●

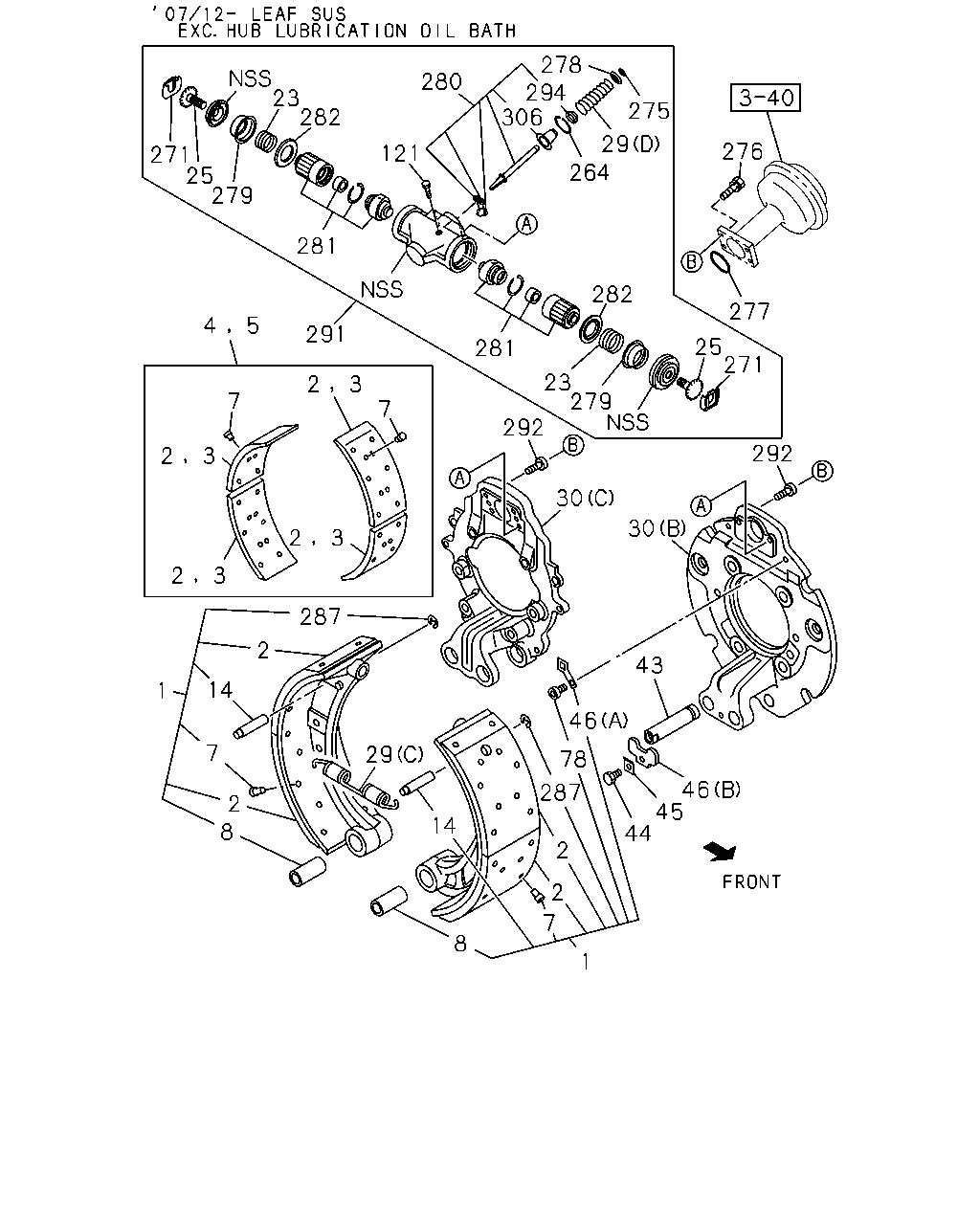

278 294 306 23 282 280 275 29 276 121 271 25 279 264 281 282 277 5 4 291 25 271 281 23 279 2 3 7 7 292 292 3 2 30 30 2 3 3 2 287 2 43 14 1 46 7 29 78 46 45 44 287 2 8 14 2 2 7 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT	1-47120-832-0	04	1	0710-0711	●	●
1	SHOE; BRK,FRT	1-47120-832-0	04	1	0712-		●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-47120-832-0	04	1	0712-	●
2	LINING; FRT BRK SHOE,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-698-0	08	1	0712-	●
3	LINING; FRT BRK SHOE,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47126-699-0	08	1	0712-	●
4	LINING SET; FRT BRK,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K> BEST VALUE PARTS	1-87610-128-0	01	1	0712-	●
4	LINING SET; FRT BRK,STANDARD EXC. HUB LUBRICATION OIL BATH<C5K>	1-88311-314-0	02	1	0712-	●
5	LINING SET; FRT BRK,OVER SIZE EXC. HUB LUBRICATION OIL BATH<C5K>	1-88311-315-0	02	1	0712-	●
7	RIVET; LINING,FRT BRK EXC. HUB LUBRICATION OIL BATH<C5K> L=15.5	1-09732-053-0	80	1	0712-	●
8	BUSHING; BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47112-020-0	04	1	0712-	●
14	PIN; SHOE RETURN SPR EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-177-1	04	1	0712-	●
23	SPRING; COIL EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-196-0	04	1	0712-	●
25	SCREW; ADJ,FRT WHEEL CYL EXC. HUB LUBRICATION OIL BATH<C5K>	1-47623-035-2	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	02	1	0712-1007	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	04	1	1008-	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0710-0711	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0712-	●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0710-0711	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0712-		●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-450-0	01	1	0712-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0710-0711	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0712-		●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-451-0	01	1	0712-	●
43	PIN; ANCHOR EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0710-0711	●	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0712-		●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-040-0	04	1	0712-	●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	0-20851-016-0	02	1	0712-0910	●
44	BOLT; LOCK,ANCHOR PIN EXC. HUB LUBRICATION OIL BATH<C5K> M10X16	1-47139-173-0	02	1	0911-	●
45	WASHER; LK EXC. HUB LUBRICATION OIL BATH<C5K>	1-47133-011-0	02	1	0712-	●
46	PLATE; LOCK EXC. HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-152-0	04	1	0712-	●
46	PLATE; LOCK EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47133-010-0	02	1	0712-	●
78	BOLT; LK,PLATE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47119-153-0	04	1	0712-	●
121	SCREW; LK SPR FRT WHEEL CYL EXC. HUB LUBRICATION OIL BATH<C5K>	1-47619-149-1	04	1	0712-	●
264	RING; SNAP,SPR PIN EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-034-1	02	1	0712-	●
271	CLIP; ADJ EXC. HUB LUBRICATION OIL BATH<C5K>	1-47621-017-0	04	1	0712-	●
275	RING; RETAINER EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-031-0	02	1	0712-	●
276	BOLT; CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K> M10X42.5	1-47139-163-0	08	1	0712-	●
277	RING; CHAMBER EXC. HUB LUBRICATION OIL BATH<C5K>	1-48259-231-0	02	1	0712-	●
278	RETAINER; SPRING EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-020-0	02	1	0712-	●
279	CAGE; SPRING EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-192-0	04	1	0712-	●
280	WEDGE; FRT WHEEL CYL EXC. HUB LUBRICATION OIL BATH<C5K>	1-47640-012-0	02	1	0712-	●
281	SLEEVE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-247-1	04	1	0712-	●
282	RING; DRIVE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47629-200-0	04	1	0712-	●
287	RING; SNAP EXC. HUB LUBRICATION OIL BATH<C5K> ID=10	0-91805-510-0	08	1	0712-	●
291	EXPANDER EXC. HUB LUBRICATION OIL BATH<C5K>	1-47601-087-0	02	1	0712-	●
292	BOLT; EXPANDER EXC. HUB LUBRICATION OIL BATH<C5K> M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0712-	●
294	BOOT; WEDGE EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-042-0	02	1	0712-	●
306	CAP; EXPANDER EXC. HUB LUBRICATION OIL BATH<C5K>	1-47649-044-0	02	1	0712-	●

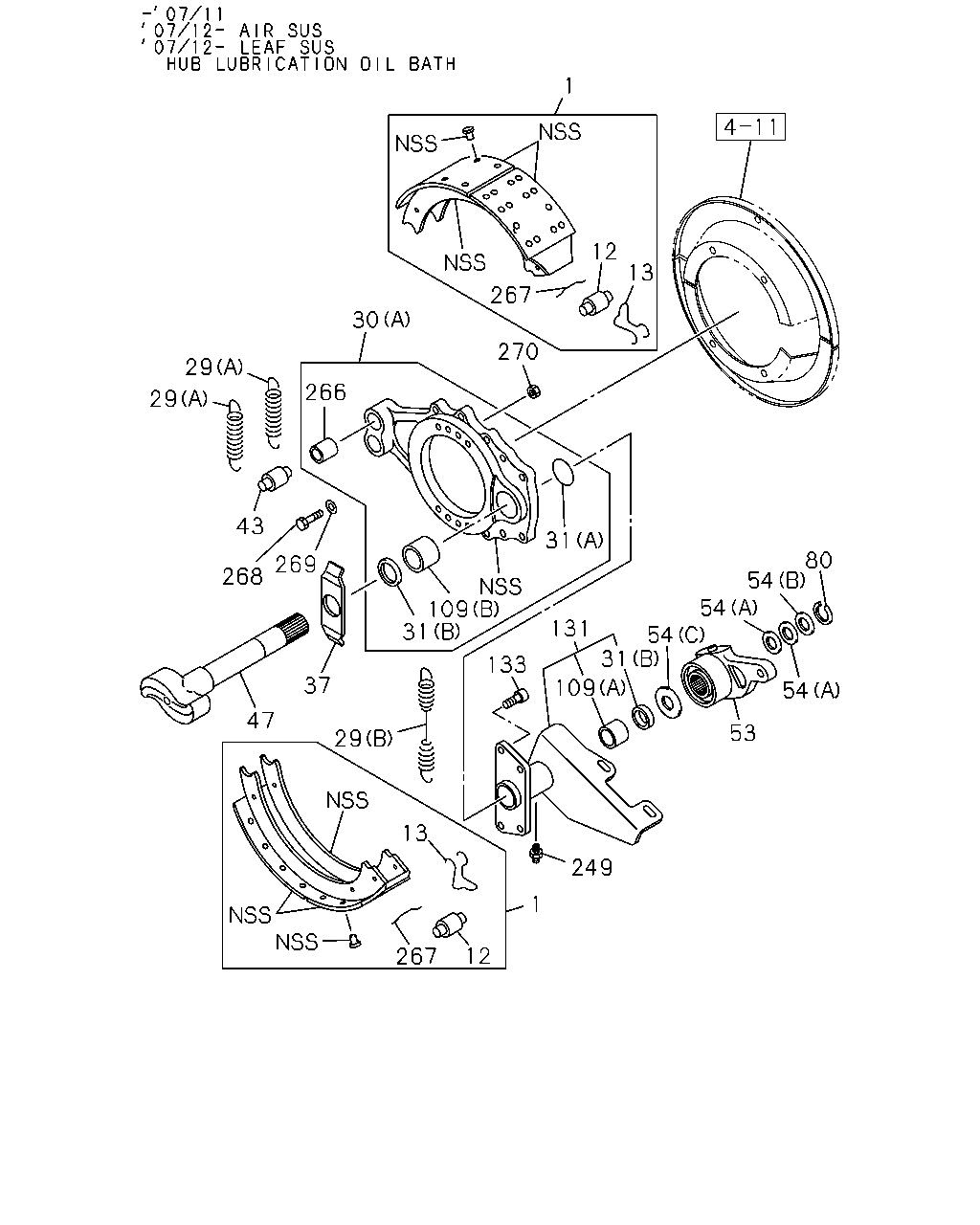

1 12 13 267 270 30 266 29 29 43 269 268 31 109 31 80 54 54 54 31 131 133 109 54 53 249 1 12 267 13 29 37 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47170-316-0	01	1	0712-	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47170-317-0	01	1	0712-	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> LEADING	1-47170-318-0	01	1	0712-	●
1	SHOE; BRK,FRT EXC. HUB LUBRICATION OIL BATH<C5K> TRAILING	1-47170-319-0	01	1	0712-	●
1	SHOE; BRK,FRT	1-47120-832-0	04	1	0710-0711	●	●
1	SHOE; BRK,FRT	1-47120-832-0	04	1	0712-		●
1	SHOE; BRK,FRT HUB LUBRICATION OIL BATH<C5K>	1-47120-832-0	04	1	0712-	●
12	ROLLER; CAM,BRK SHOE	1-47119-141-0	02	1	0710-0711	●	●
12	ROLLER; CAM,BRK SHOE	1-47119-141-0	02	1	0712-		●
12	ROLLER; CAM,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-141-0	02	1	0712-	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	02	1	0710-0711	●	●
13	CLIP; ROLLER PIN,BRK SHOE	1-47119-118-0	02	1	0712-		●
13	CLIP; ROLLER PIN,BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-118-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	02	1	0712-1007	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (C)	1-09583-365-1	04	1	1008-	●
29	SPRING; RETURN,FRT BRK SHOE EXC. HUB LUBRICATION OIL BATH<C5K> (D)	1-47649-041-0	02	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0710-0711	●	●
29	SPRING; RETURN,FRT BRK SHOE (A)	1-47119-114-0	04	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (A)	1-47119-114-0	04	1	0712-	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0710-0711	●	●
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47119-119-0	02	1	0712-		●
29	SPRING; RETURN,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K> (B)	1-47119-119-0	02	1	0712-	●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (B)	1-47137-512-0	02	1	0712-1005	●
30	BRACKET; ANCHOR,FRT EXC. HUB LUBRICATION OIL BATH<C5K> (C)	8-98091-252-0	02	1	1006-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0710-0711	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-450-0	01	1	0712-		●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-450-0	01	1	0712-	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0710-0711	●	●
30	BRACKET; ANCHOR,FRT (A)	1-47137-451-0	01	1	0712-		●
30	BRACKET; ANCHOR,FRT HUB LUBRICATION OIL BATH<C5K> (A)	1-47137-451-0	01	1	0712-	●
31	SEAL; OIL,CM/SHF (A)	1-47149-056-0	02	1	0710-0711	●	●
31	SEAL; OIL,CM/SHF (A)	1-47149-056-0	02	1	0712-		●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (A)	1-47149-056-0	02	1	0712-	●
31	SEAL; OIL,CM/SHF (B)	1-47149-057-0	02	1	0710-0711	●	●
31	SEAL; OIL,CM/SHF (B)	1-47149-057-0	02	1	0712-		●
31	SEAL; OIL,CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-057-0	02	1	0712-	●
37	WASHER; ADJ CAM	1-47149-087-0	02	1	0710-0711	●	●
37	WASHER; ADJ CAM	1-47149-087-0	02	1	0712-		●
37	WASHER; ADJ CAM HUB LUBRICATION OIL BATH<C5K>	1-47149-087-0	02	1	0712-	●
43	PIN; ANCHOR EXC. HUB LUBRICATION OIL BATH<C5K> L=115.5	1-47131-044-0	04	1	0712-	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0710-0711	●	●
43	PIN; ANCHOR	1-47131-040-0	04	1	0712-		●
43	PIN; ANCHOR HUB LUBRICATION OIL BATH<C5K>	1-47131-040-0	04	1	0712-	●
47	CAMSHAFT; FRT BRK	1-47141-126-0	01	1	0710-0711	●	●
47	CAMSHAFT; FRT BRK	1-47141-126-0	01	1	0712-		●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-126-0	01	1	0712-	●
47	CAMSHAFT; FRT BRK	1-47141-127-0	01	1	0710-0711	●	●
47	CAMSHAFT; FRT BRK	1-47141-127-0	01	1	0712-		●
47	CAMSHAFT; FRT BRK HUB LUBRICATION OIL BATH<C5K>	1-47141-127-0	01	1	0712-	●
53	ADJUSTER ASM; SLACK	1-48270-107-0	02	1	0710-0711	●	●
53	ADJUSTER ASM; SLACK	1-48270-107-0	02	1	0712-		●
53	ADJUSTER ASM; SLACK HUB LUBRICATION OIL BATH<C5K>	1-48270-107-0	02	1	0712-	●
54	SPACER; CM/SHF (A) T=0.06"	1-47139-121-0	02	1	0710-0711	●	●
54	SPACER; CM/SHF (A) T=0.06"	1-47139-121-0	02	1	0712-		●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (A) T=0.06"	1-47139-121-0	02	1	0712-	●
54	SPACER; CM/SHF (B)	1-47149-059-0	02	1	0710-0711	●	●
54	SPACER; CM/SHF (B)	1-47149-059-0	02	1	0712-		●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (B)	1-47149-059-0	02	1	0712-	●
54	SPACER; CM/SHF (A) T=0.03"	1-47149-060-0	02	1	0710-0711	●	●
54	SPACER; CM/SHF (A) T=0.03"	1-47149-060-0	02	1	0712-		●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (A) T=0.03"	1-47149-060-0	02	1	0712-	●
54	SPACER; CM/SHF (C)	1-47149-065-0	02	1	0710-0711	●	●
54	SPACER; CM/SHF (C)	1-47149-065-0	02	1	0712-		●
54	SPACER; CM/SHF HUB LUBRICATION OIL BATH<C5K> (C)	1-47149-065-0	02	1	0712-	●
80	RING; SNAP,CM/SHF	1-87050-005-0	02	1	0710-0711	●	●
80	RING; SNAP,CM/SHF	1-87050-005-0	02	1	0712-		●
80	RING; SNAP,CM/SHF HUB LUBRICATION OIL BATH<C5K>	1-87050-005-0	02	1	0712-	●
109	BUSHING; CM/SHF,FRT BRK (A)	1-47146-012-0	02	1	0710-0711	●	●
109	BUSHING; CM/SHF,FRT BRK (A)	1-47146-012-0	02	1	0712-		●
109	BUSHING; CM/SHF,FRT BRK HUB LUBRICATION OIL BATH<C5K> (A)	1-47146-012-0	02	1	0712-	●
109	BUSHING; CM/SHF,FRT BRK (B)	1-47146-017-0	02	1	0710-0711	●	●
109	BUSHING; CM/SHF,FRT BRK (B)	1-47146-017-0	02	1	0712-		●
109	BUSHING; CM/SHF,FRT BRK HUB LUBRICATION OIL BATH<C5K> (B)	1-47146-017-0	02	1	0712-	●
131	BRACKET; POWER CHAMBER	1-48258-194-0	01	1	0710-0711	●	●
131	BRACKET; POWER CHAMBER	1-48258-194-0	01	1	0712-		●
131	BRACKET; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48258-194-0	01	1	0712-	●
131	BRACKET; POWER CHAMBER	1-48258-195-0	01	1	0710-0711	●	●
131	BRACKET; POWER CHAMBER	1-48258-195-0	01	1	0712-		●
131	BRACKET; POWER CHAMBER HUB LUBRICATION OIL BATH<C5K>	1-48258-195-0	01	1	0712-	●
133	BOLT; BRKT	1-47139-116-0	08	1	0710-0711	●	●
133	BOLT; BRKT	1-47139-116-0	08	1	0712-		●
133	BOLT; BRKT HUB LUBRICATION OIL BATH<C5K>	1-47139-116-0	08	1	0712-	●
249	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	0710-0711	●	●
249	NIPPLE; GREASE,CHAMBER BRKT	1-48259-253-0	02	1	0712-		●
249	NIPPLE; GREASE,CHAMBER BRKT HUB LUBRICATION OIL BATH<C5K>	1-48259-253-0	02	1	0712-	●
266	BUSHING; BRKT	1-47139-117-0	04	1	0710-0711	●	●
266	BUSHING; BRKT	1-47139-117-0	04	1	0712-		●
266	BUSHING; BRKT HUB LUBRICATION OIL BATH<C5K>	1-47139-117-0	04	1	0712-	●
267	PIN; RETURN SPRING,FRT BRK SHOE	1-47119-116-0	02	1	0710-0711	●	●
267	PIN; RETURN SPRING,FRT BRK SHOE	1-47119-116-0	02	1	0712-		●
267	PIN; RETURN SPRING,FRT BRK SHOE HUB LUBRICATION OIL BATH<C5K>	1-47119-116-0	02	1	0712-	●
268	BOLT; ANCHOR BRKT	1-47139-122-0	12	1	0710-0711	●	●
268	BOLT; ANCHOR BRKT	1-47139-122-0	12	1	0712-		●
268	BOLT; ANCHOR BRKT HUB LUBRICATION OIL BATH<C5K>	1-47139-122-0	12	1	0712-	●
269	WASHER; ANCHOR BRKT	1-41519-102-0	28	1	0710-0711	●	●
269	WASHER; ANCHOR BRKT	1-41519-102-0	28	1	0712-		●
269	WASHER; ANCHOR BRKT HUB LUBRICATION OIL BATH<C5K>	1-41519-102-0	28	1	0712-	●
270	NUT; ANCHOR BRKT	1-41229-169-0	14	1	0710-0711	●	●
270	NUT; ANCHOR BRKT	1-41229-169-0	14	1	0712-		●
270	NUT; ANCHOR BRKT HUB LUBRICATION OIL BATH<C5K>	1-41229-169-0	14	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
