◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#65710) — 87 parça

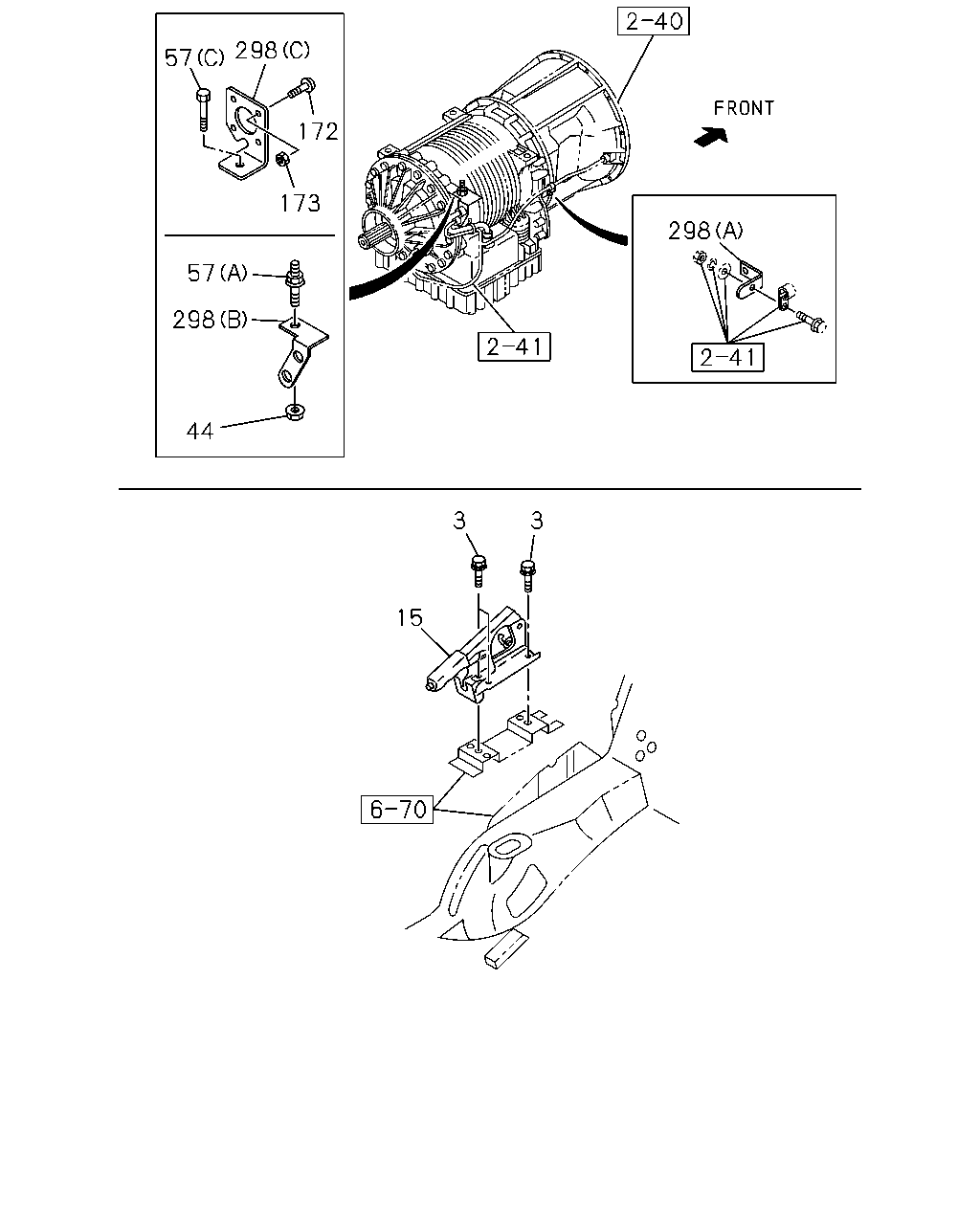

çizim 114414
298 57 172 173 298 57 298 44 3 3 15
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0710- ● ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 0710- ● ●
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) 		1-34119-135-0 01 1 0906-0910 ●
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) 		1-34119-135-0 01 1 0911- ● ●
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) M14 FLANGE 		0-91180-114-0 01 1 0710-0905 ● ●
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) M14 FLANGE 		0-91180-114-0 01 1 0906-0910 ●
44 NUT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) M14 FLANGE 		0-91180-114-0 01 1 0906-0910 ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (C) 		1-34119-134-0 01 1 0906-0910 ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (C) 		1-34119-134-0 01 1 0911- ● ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0802- ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) M10X22,M14X55 L=88 		1-09029-071-0 01 1 0710-0905 ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A) M10X22,M14X55 L=88 		1-09029-071-0 01 1 0906-0910 ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X22,M14X55 L=88 		1-09029-071-0 01 1 0906-0910 ●
172 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) M4X16 		9-03494-416-0 04 1 0906-0910 ●
172 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M4X16 		9-03494-416-0 04 1 0911- ● ●
173 NUT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) M4 FLANGE 		8-97368-853-0 04 1 0906-0910 ●
173 NUT; BRKT
ALLISON MD3560P A/T(Y3B) M4 FLANGE 		8-97368-853-0 04 1 0911- ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (C) 		1-34119-133-0 01 1 0906-0910 ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (C) 		1-34119-133-0 01 1 0911- ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (A) 		1-34119-088-0 01 1 0710- ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (B) 		1-34119-113-0 01 1 0710-0905 ● ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (B) 		1-34119-113-0 01 1 0906-0910 ●
298 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (B) 		1-34119-113-0 01 1 0906-0910 ●

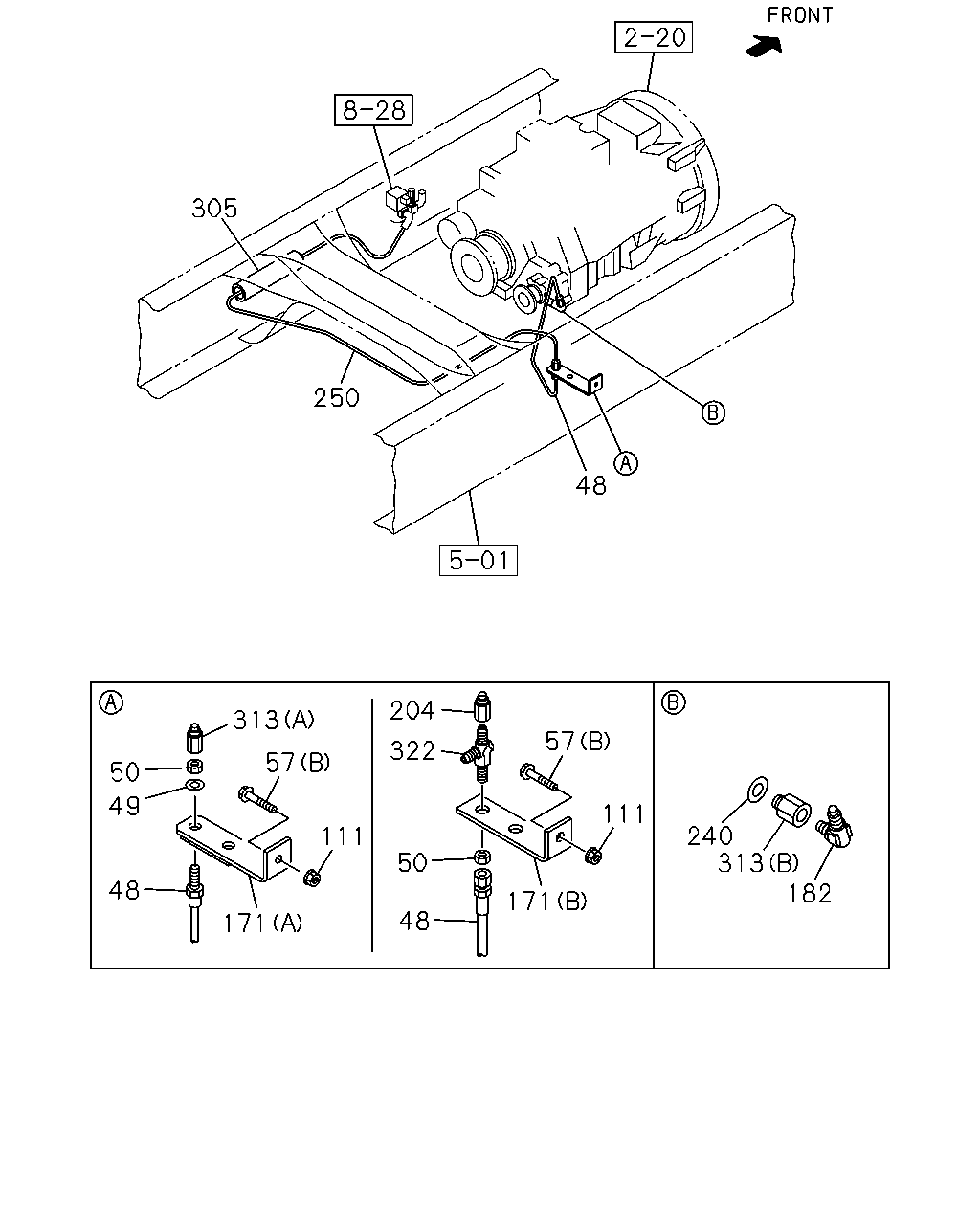

çizim 114574
305 250 48 204 313 57 322 57 50 49 111 240 313 182 111 50 48 171 48 171
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> L=320 		1-09363-625-0 01 1 1012- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 0802-1008 ● ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 1009-1011 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=230 		1-09363-666-0 01 1 1009-1011 ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) L=230 		1-09363-666-0 01 1 1012- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> L=230 		1-09363-666-0 01 1 1012- ●
48 HOSE; FLEX,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> L=230 		1-09363-666-0 01 1 1012- ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		9-09150-512-0 01 1 0802-1008 ● ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		9-09150-512-0 01 1 1009-1011 ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=12.2 		9-09150-512-0 01 1 1009-1011 ●
50 NUT; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> M12 		0-91111-512-0 01 1 1012- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 0802-1008 ● ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1009-1011 ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M12 		9-09840-280-0 01 1 1009-1011 ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1012- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> M12 		9-09840-280-0 01 1 1012- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> M12 		9-09840-280-0 01 1 1012- ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (C) 		1-34119-134-0 01 1 0906-0910 ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (C) 		1-34119-134-0 01 1 0911- ● ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0802- ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) (A) M10X22,M14X55 L=88 		1-09029-071-0 01 1 0710-0905 ● ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) (A) M10X22,M14X55 L=88 		1-09029-071-0 01 1 0906-0910 ●
57 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) M10X22,M14X55 L=88 		1-09029-071-0 01 1 0906-0910 ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 01 1 0802- ● ●
171 BRACKET; FLEX HOSE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (B) 		8-98172-810-0 01 1 1012- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A) 		8-98100-228-0 01 1 0802-1008 ● ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A) 		8-98100-228-0 01 1 1009-1011 ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) 		8-98100-228-0 01 1 1009-1011 ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (A) 		8-98100-228-0 01 1 1012- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98100-228-0 01 1 1012- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> (A) 		8-98100-228-0 01 1 1012- ●
182 CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-1103 ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1104-1305 ● ●
182 CONNECTOR; FLARE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1306- ● ●
204 CONNECTOR; NYLON TUBE
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=12.2 		1-09630-084-0 01 1 0710-1103 ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 1104-1305 ● ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 1306-1312 ● ●
240 GASKET; CONNECTOR,PTO
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0802-0803 ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0804-0808 ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) BRAKE REGULATION ADR(TDU) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0804-0808 ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0809- ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0809- ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0809- ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0912- ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0802-0803 ● ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0804-0808 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) BRAKE REGULATION ADR(TDU) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0804-0808 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0809-0911 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0809-0911 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0809-0911 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0912- ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> BRAKE REGULATION ADR(TDU) SERVICED BY L=2000 ID=10 		1-87411-019-0 02 1 0912- ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0802-1008 ● ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1011 ●
313 ADAPTER
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1011 ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
313 ADAPTER
PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
313 ADAPTER
PTO ZF TRANS RR(BDM) EURO4 SPECIFICATION<NT4> (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1012- ●
313 ADAPTER
ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B) PT1/4 		1-09654-396-0 01 1 0710-1103 ●
313 ADAPTER
PTO ZF TRANS RR(BDM) (B) PT1/4 		1-09654-396-0 01 1 1104-1305 ● ●
313 ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) (B) PT1/4 		1-09654-396-0 01 1 1306- ● ●
322 UNION
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> M12 2WAY 		1-09654-059-2 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
