Sayfa 2-42 - Isuzu EPC

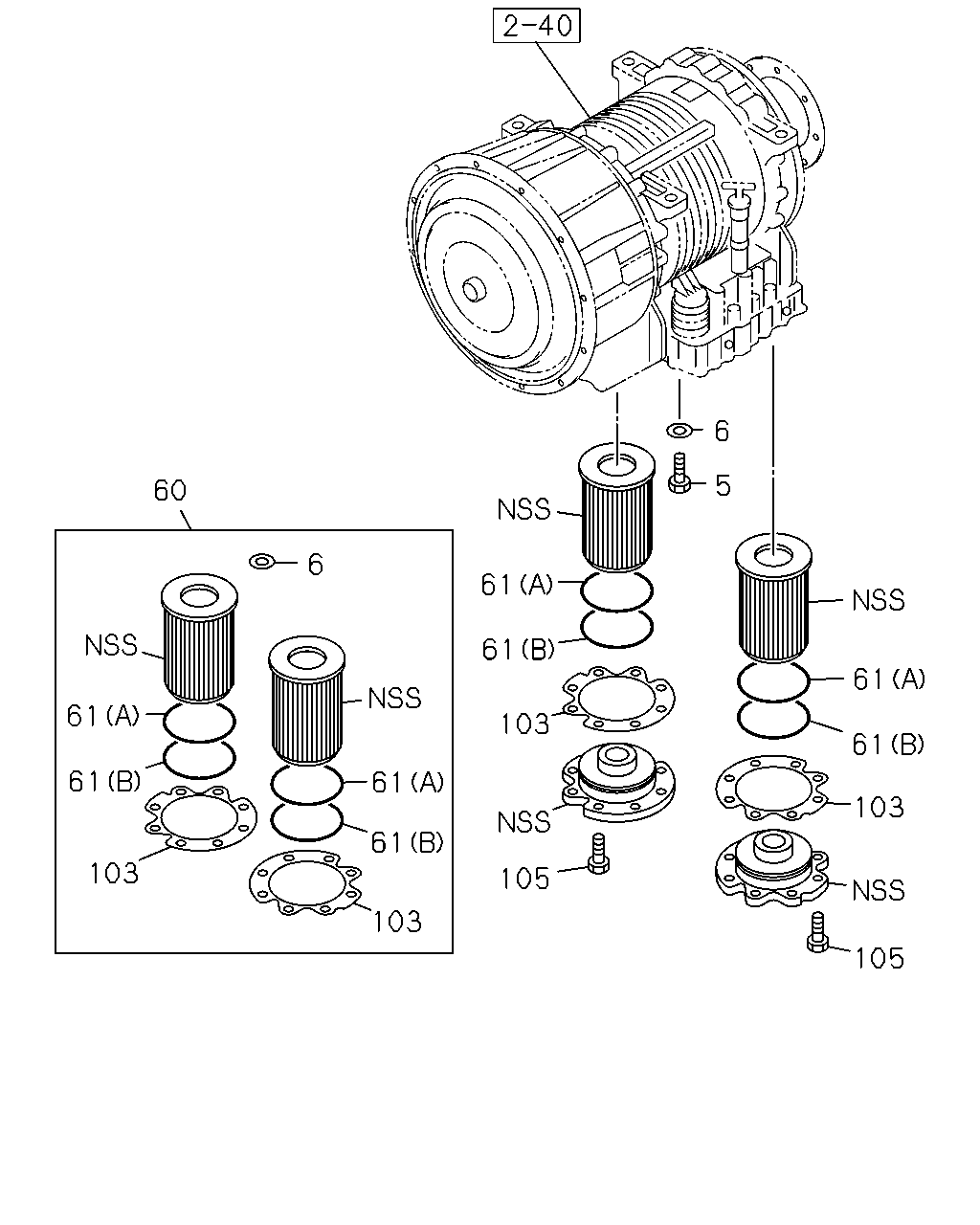

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#65706) — 7 parça

6 5 60 6 61 61 61 61 103 61 61 61 103 61 103 105 103 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PLUG; OIL PAN	1-34139-039-0	01	1	0710-
6	GASKET; OIL PAN TO PLUG ID=16.4	1-34139-040-0	01	1	0710-
60	REPAIR KIT; OIL FILTER,A/T	1-34139-041-0	01	1	0710-
61	SEAL; OIL FILTER (A) ID=75.9	1-34139-042-0	02	1	0710-
61	SEAL; OIL FILTER (B)	1-34139-043-0	02	1	0710-
103	GASKET; COVER	1-34139-044-0	02	1	0710-
105	BOLT; COVER	1-34139-045-0	12	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
