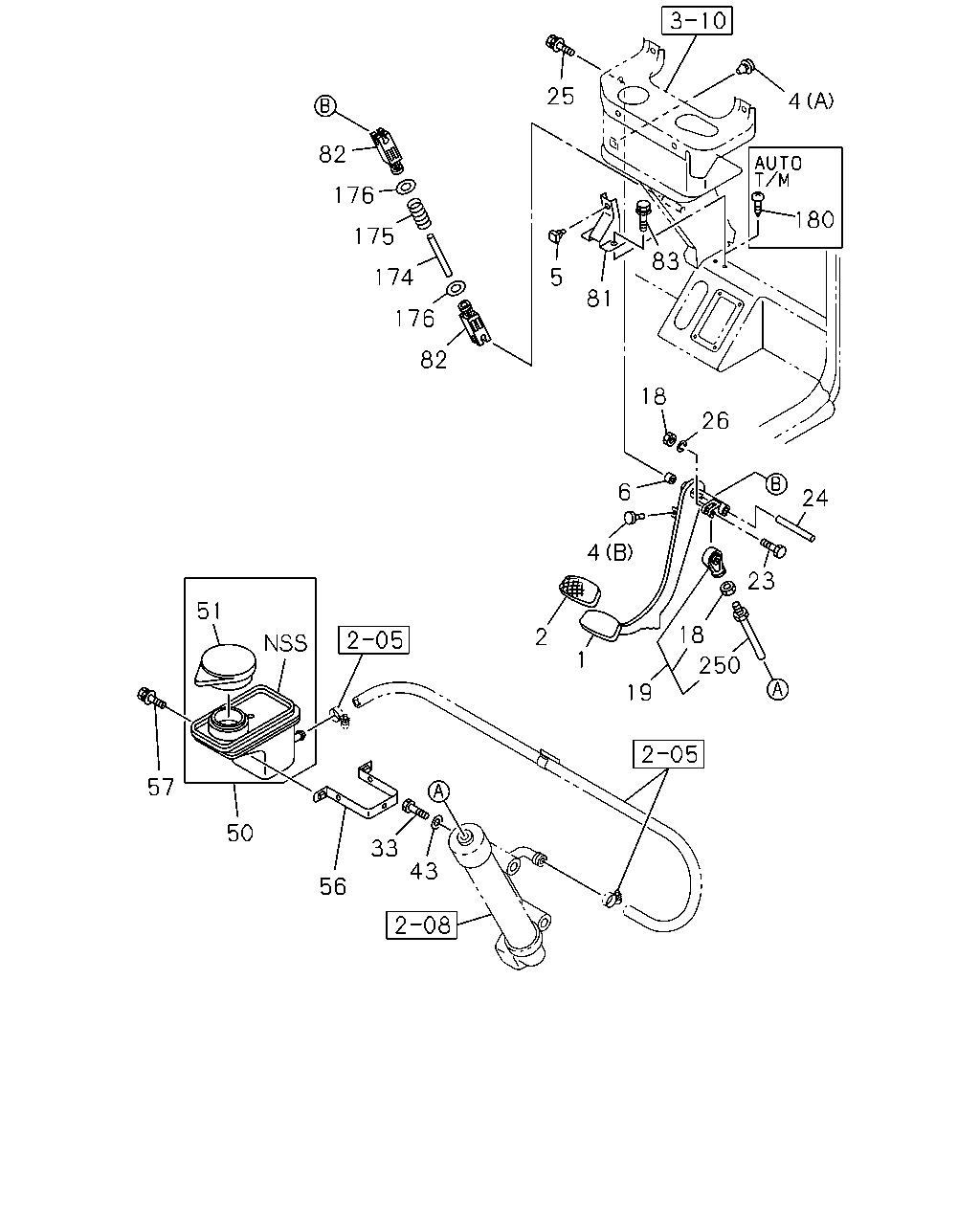

2-03 — CLUTCH PEDAL AND CONTROL (#657) — 28 parça

25 4 82 176 180 175 83 5 174 81 176 82 18 26 6 24 4 23 51 18 2 1 250 19 57 50 33 43 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU ISUZU M/T<X9A>	1-73998-475-1	01	1	9202-	●	●
2	COVER; CLU PEDAL ISUZU M/T<X9A>	8-94204-810-0	01	1	9202-	●	●
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (A)	1-47319-014-1	02	1	9202-	●	●
4	STOPPER; CLU PEDAL ISUZU M/T<X9A> (B)	5-31419-003-0	01	1	9202-	●	●
5	STOPPER; PEDAL SHAFT ISUZU M/T<X9A>	1-09983-074-0	01	1	9202-	●	●
6	BUSHING; CLU PEDAL ISUZU M/T<X9A>	1-09330-045-0	02	1	9202-	●	●
18	NUT; PUSH ROD ISUZU M/T<X9A> M8	9-09110-508-0	02	1	9202-	●	●
19	ROD ASM; PUSH,CLU ISUZU M/T<X9A>	1-31422-009-2	01	1	9202-	●	●
23	BOLT; PUSH ROD ISUZU M/T<X9A> M8X35	9-01060-835-0	01	1	9202-	●	●
24	SHAFT; CLU PEDAL ISUZU M/T<X9A>	1-31415-007-0	01	1	9202-	●	●
25	BOLT; PEDAL ISUZU M/T<X9A> M10X25 W/LK WASHER	9-01931-025-0	02	1	9202-9309	●	●
25	BOLT; PEDAL ISUZU M/T<X9A> M10X25 W/LK WASHER	0-50051-025-0	02	1	9310-	●	●
26	WASHER; LK,PUSH ROD ISUZU M/T<X9A> ID=8.2	9-09150-608-0	01	1	9202-	●	●
33	BOLT; CLU M/CYL TO BRKT ISUZU M/T<X9A> M10X65	9-01046-065-0	02	1	9202-9204	●	●
33	BOLT; CLU M/CYL TO BRKT ISUZU M/T<X9A> M10X65	0-10806-065-0	02	1	9205-	●	●
43	WASHER; LK,CLU M/CYL ISUZU M/T<X9A> ID=10.2	9-09150-510-0	02	1	9202-	●	●
50	TANK; OIL,CLU ISUZU M/T<X9A>	1-47530-140-1	01	1	9202-	●	●
51	CAP; OIL TANK,CLU ISUZU M/T<X9A>	1-47525-023-0	01	1	9202-	●	●
56	BRACKET; OIL TANK,CLU CONT ISUZU M/T<X9A>	1-73997-915-0	01	1	9202-	●	●
57	BOLT; OIL TANK BRKT,CLU ISUZU M/T<X9A> M5X16 W/LK&PL WASHER	9-03920-516-0	02	1	9202-	●	●
81	BRACKET; STOPPER,CLU PEDAL ISUZU M/T<X9A>	1-73997-635-2	01	1	9202-	●	●
82	CLEVIS; HELPER,CLU PEDAL ISUZU M/T<X9A>	1-73998-472-1	02	1	9202-	●	●
83	BOLT; STOPPER BRKT,CLU PEDAL ISUZU M/T<X9A> M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9202-	●	●
174	PIN; STRAIGHT,CLU PEDAL ISUZU M/T<X9A>	1-73998-474-0	01	1	9202-	●	●
175	SPRING; HELPER ISUZU M/T<X9A>	1-09985-192-0	01	1	9202-	●	●
176	SEAT; SPRING ISUZU M/T<X9A>	1-09503-114-0	02	1	9202-	●	●
180	PLUG; STOPPER BRKT A/T<X9D> D4.7X11	1-76378-154-0	02	1	9202-	●
250	ROD; PUSH,CLU ISUZU M/T<X9A> M8X31 L=128	1-31422-010-2	01	1	9202-	●	●
