Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#65692) — 150 parça

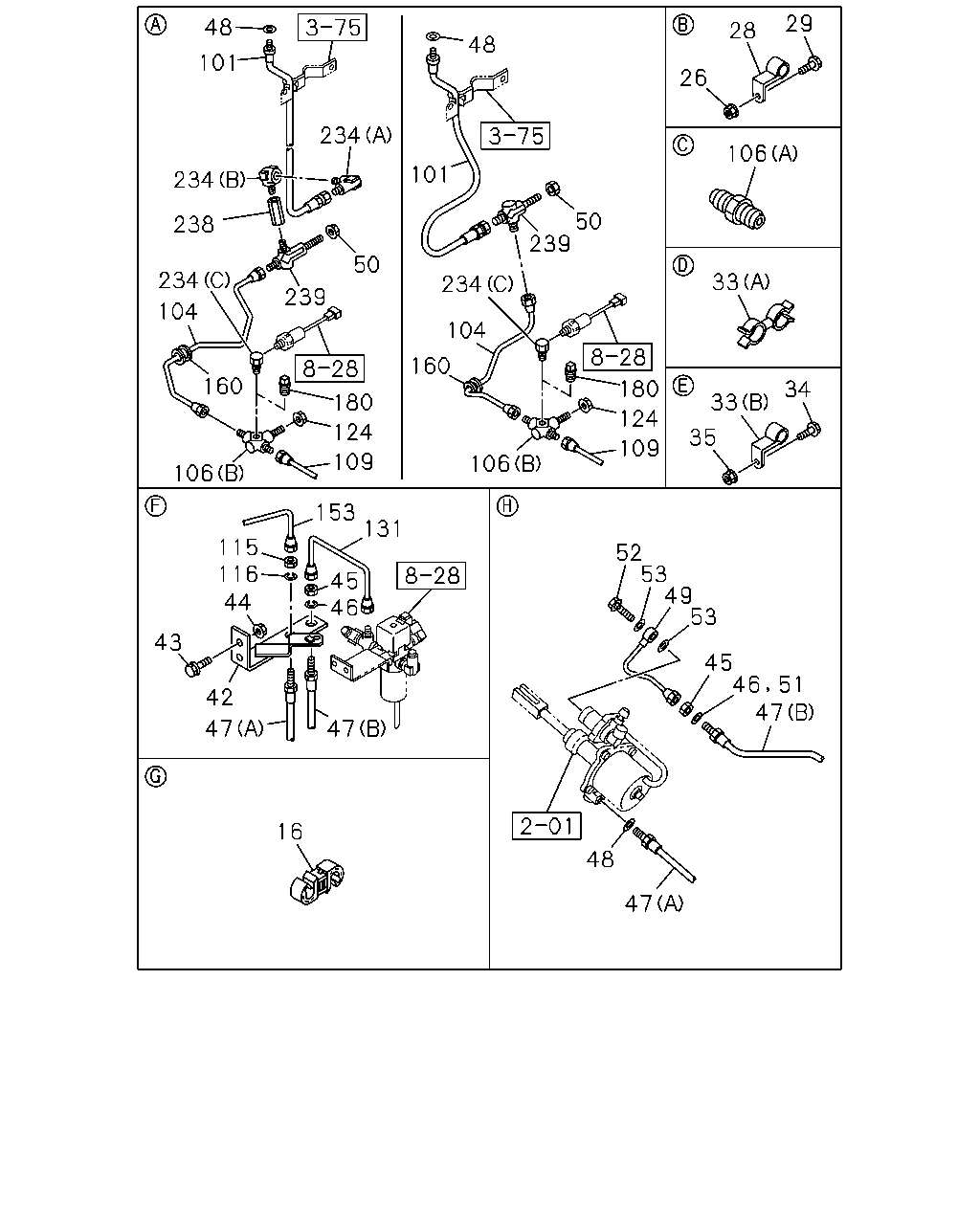

29 48 28 48 101 26 234 106 101 234 50 239 238 50 234 33 234 239 104 104 160 160 180 34 33 180 124 124 35 109 109 106 106 153 131 115 116 44 52 53 49 53 45 46 43 45 47 42 47 47 16 48 47 46 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE MANUAL TRANSMISSION<X9C> ID=10 & 12	1-09709-278-1	01	1	0710-	●	●
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	0812-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	03	1	0710-0811	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	0812-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	0710-	●	●
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	0710-	●	●
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	0710-	●	●
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98077-571-0	01	1	0710-0710	●	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	0711-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MANUAL TRANSMISSION<X9C> M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
45	NUT; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> M12	9-09840-280-0	01	1	0710-0802	●	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M12	9-09840-280-0	02	1	0803-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=12.2	0-91510-512-0	01	1	0710-0802	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-512-0	02	1	0803-1009	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	02	1	1010-1011	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0710-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0710-	●	●
48	GASKET; FLEX HOSE,CLU CONT MANUAL TRANSMISSION<X9C> ID=10.2 OD=16.0	9-09571-410-0	02	1	0710-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15" CLUTCH(RE9) L=232	1-49124-795-0	01	1	0710-	●	●
50	NUT; UNION EXC. A/T<X9D> M12	0-91111-512-0	01	1	0710-	●	●
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1012-	●	●
52	BOLT; EYE,AIR PIPE 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	0710-	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	0710-1312	●	●
53	GASKET; JOINT BOLT 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=480	8-98072-349-0	01	1	0712-0802		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> MANUAL TRANSMISSION<X9C> L=440	8-98072-346-0	01	1	0803-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=510	8-98059-811-0	01	1	0710-0711	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=510	8-98059-811-0	01	1	0712-0802	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=510	8-98059-811-0	01	1	0712-0802		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MANUAL TRANSMISSION<X9C> L=500	8-98072-350-0	01	1	0803-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> L=500	8-98072-350-0	01	1	0803-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=381	8-98079-771-0	01	1	0710-0803	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	0804-	●	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	0710-	●	●
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	0710-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1408 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0710	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0711-0711	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1405 SERVICED BY L=1550	1-47428-766-0	01	1	0712-0802	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0803-	●	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) M14	0-91111-514-0	01	1	0710-	●	●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ID=14.2	0-91510-814-0	01	1	0710-1011	●	●
124	NUT; PIPE UNION MANUAL TRANSMISSION<X9C> M12	0-91111-512-0	01	1	0710-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0802-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0802-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0710-0801	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> L=203	8-98100-103-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-0808	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) L=244	8-98092-621-0	01	1	0710-0710	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0710-0801	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-0808	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0805-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> L=244	8-98092-621-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2142 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0710	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E)	8-98100-292-0	01	1	0710-0710	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2127 SERVICED BY L=2150	1-47428-770-0	01	1	0711-0711	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2129 SERVICED BY L=2150	1-47428-770-0	01	1	0712-0712	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0802	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-	●	●
160	GROMMET; OIL PIPE MANUAL TRANSMISSION<X9C> ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
180	PLUG; PIPE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0710-	●	●
234	CONNECTOR; ELBOW MANUAL TRANSMISSION<X9C> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0711-0711	●	●
234	CONNECTOR; ELBOW MANUAL TRANSMISSION<X9C> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802	●
234	CONNECTOR; ELBOW CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0712-0802		●
234	CONNECTOR; ELBOW MANUAL TRANSMISSION<X9C> (B) PT1/4 2WAY	1-09660-693-0	01	1	0711-0711	●	●
234	CONNECTOR; ELBOW MANUAL TRANSMISSION<X9C> (B) PT1/4 2WAY	1-09660-693-0	01	1	0712-0802	●
234	CONNECTOR; ELBOW CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> (B) PT1/4 2WAY	1-09660-693-0	01	1	0712-0802		●
234	CONNECTOR; ELBOW ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> (C)	1-09660-012-0	01	1	0710-	●	●
238	ADAPTER; UNION MANUAL TRANSMISSION<X9C> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0711-0711	●	●
238	ADAPTER; UNION MANUAL TRANSMISSION<X9C> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0712-0802	●
238	ADAPTER; UNION CAB SUSPENSION FULL FLOATING<W16> MANUAL TRANSMISSION<X9C> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	0712-0802		●
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E) M12 & M14 2WAY	1-09654-141-2	01	1	0710-0803	●	●
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	0804-	●	●

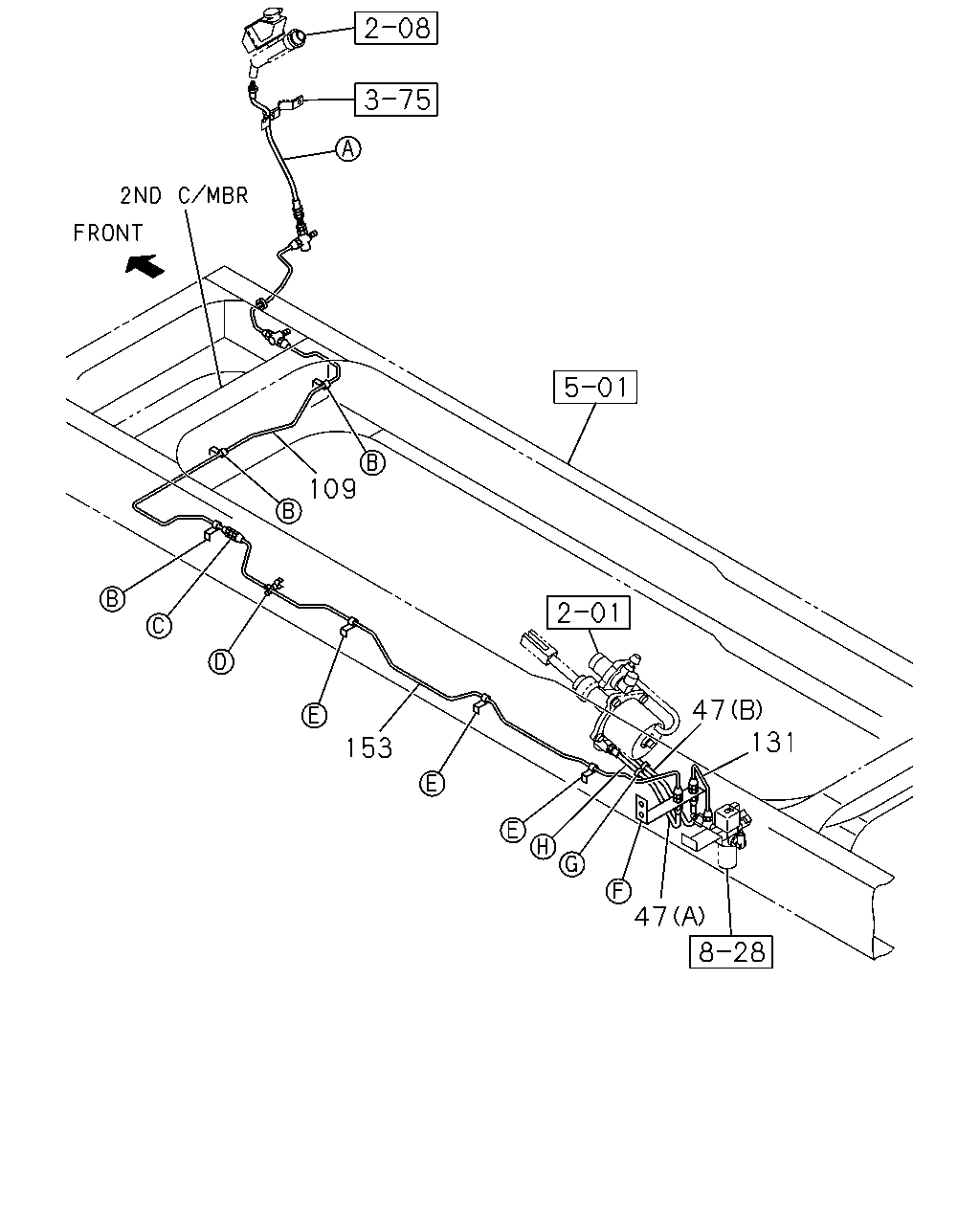

47 131 153 47 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (B) L=500	1-09363-720-0	01	1	0710-	●	●
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (A) L=500	1-09364-329-0	01	1	0710-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1408 SERVICED BY L=1550	1-47428-766-0	01	1	0710-0710	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1412 SERVICED BY L=1550	1-47428-766-0	01	1	0711-0711	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1405 SERVICED BY L=1550	1-47428-766-0	01	1	0712-0802	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	0803-	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0802-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=218	8-98108-924-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0802-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> RIGID SEAT WO/ARM REST<TAZ> EXC. H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0710-0801	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> L=203	8-98100-103-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-0808	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0803-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=203	8-98100-103-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) L=244	8-98092-621-0	01	1	0710-0710	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0710-0801	●	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0802-0802		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0803-0803		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0804-0804		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-0808	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0805-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0805-0808		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-	●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO2 SPECIFICATION<NT2> L=244	8-98092-621-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6> L=244	8-98092-621-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> EXC. RIGID SEAT WO/ARM REST<TAZ>,H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-		●
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ>, H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	0809-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2142 SERVICED BY L=2150	1-47428-770-0	01	1	0710-0710	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E)	8-98100-292-0	01	1	0710-0710	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2127 SERVICED BY L=2150	1-47428-770-0	01	1	0711-0711	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2129 SERVICED BY L=2150	1-47428-770-0	01	1	0712-0712	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0801-0802	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	0803-	●	●
