◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶

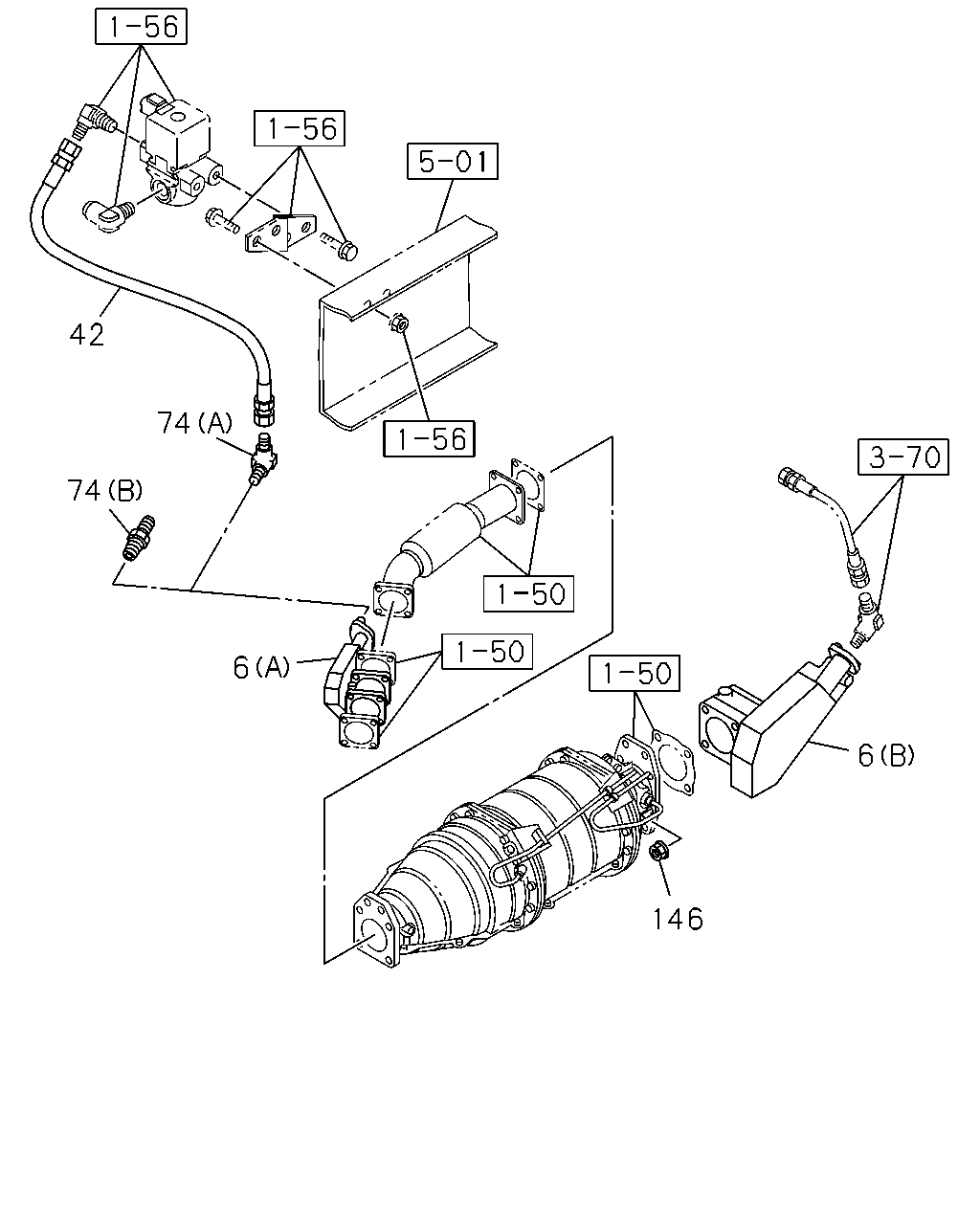

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#65688) — 31 parça
çizim 192465
42 74 74 6 6 146
BalonParca AdiParca NoAdetTipApplied Date
6 VALVE; EXH BRAKE
(A) 		8-98054-173-6 01 1 0710-1302
6 VALVE; EXH BRAKE
(A) 		8-98233-801-0 01 1 1303-
6 VALVE; EXH BRAKE
(B) 		8-98054-186-2 01 1 0710-0806
6 VALVE; EXH BRAKE
(B) 		8-98116-162-0 01 1 0807-0808
6 VALVE; EXH BRAKE
AIR SUS(FGY***) (B) 		8-98116-162-4 01 1 0809-
6 VALVE; EXH BRAKE
LEAF SUS(FGZ***) CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-98116-162-4 01 1 0809-
42 HOSE; FLEX,EXH BRK
LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> L=310 		1-09363-713-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> L=410 		1-09363-895-0 01 1 0809-0903
42 HOSE; FLEX,EXH BRK
L=340 		1-09363-617-0 01 1 0710-0710
42 HOSE; FLEX,EXH BRK
L=370 		1-09363-771-0 01 1 0710-0808
42 HOSE; FLEX,EXH BRK
AIR SUS(FGY***) L=370 		1-09363-771-0 01 1 0809-0903
42 HOSE; FLEX,EXH BRK
LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> L=370 		1-09363-771-0 01 1 0809-0903
42 HOSE; FLEX,EXH BRK
L=370 		1-09363-771-0 01 1 0904-1008
42 HOSE; FLEX,EXH BRK
AIR SUS(FGY***) L=370 		1-09363-771-0 01 1 1009-1011
42 HOSE; FLEX,EXH BRK
LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> L=370 		1-09363-771-0 01 1 1009-1011
42 HOSE; FLEX,EXH BRK
AIR SUS(FGY***) L=370 		1-09363-771-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> L=370 		1-09363-771-0 01 1 1012-
42 HOSE; FLEX,EXH BRK
LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> L=370 		1-09363-771-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1012-
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0905
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0905
74 CONNECTOR; EXH BRK VLV
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0906-1008
74 CONNECTOR; EXH BRK VLV
AIR SUS(FGY***) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009-1011
74 CONNECTOR; EXH BRK VLV
LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009-1011
74 CONNECTOR; EXH BRK VLV
AIR SUS(FGY***) (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
74 CONNECTOR; EXH BRK VLV
LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> (A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1012-
146 NUT; EXH BRK VLV
M10 		0-91110-510-0 04 1 0710-0712
146 NUT; EXH BRK VLV
M10 FLANGE 		0-91180-210-0 04 1 0801-0808
146 NUT; EXH BRK VLV
AIR SUS(FGY***) M10 FLANGE 		0-91180-210-0 04 1 0809-
146 NUT; EXH BRK VLV
LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> M10 FLANGE 		0-91180-210-0 04 1 0809-
