Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#65685) — 346 parça

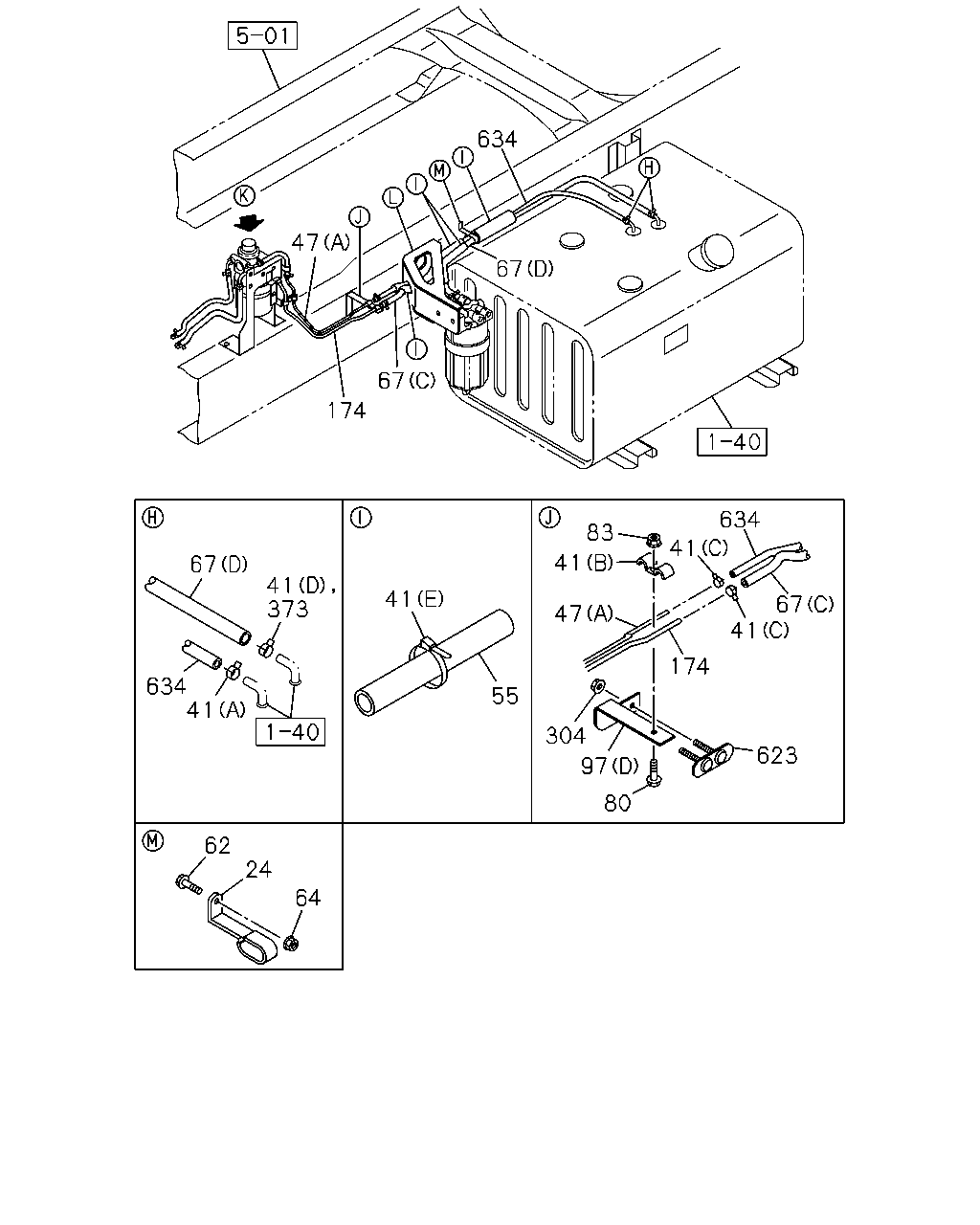

47 634 67 67 174 67 41 373 634 41 62 24 64 41 55 83 41 47 304 97 80 41 634 67 41 174 623

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0906-	●
24	CLIP; FUEL HOSE FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0801-0808	●	●
24	CLIP; FUEL HOSE FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0809-0809		●
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0809-0809	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (A) L=539	8-98117-709-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-0808	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (B)	8-98127-647-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-0808	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0711-0803	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-0808	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-		●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710	●	●
62	BOLT; CLIP FIX EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	01	1	0906-	●
64	NUT; CLIP EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	0906-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98128-785-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98157-880-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
80	BOLT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-	●
97	BRACKET; CLIP ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-0809	●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0810-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	0804-	●	●
623	PLATE; STUD BOLT ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2>	8-98126-633-0	01	1	0809-0809	●
623	PLATE; STUD BOLT EURO2 SPECIFICATION<NT2>	8-98126-633-0	01	1	0810-	●
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2> L=1050	8-98128-212-0	01	1	0809-	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809		●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-		●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●

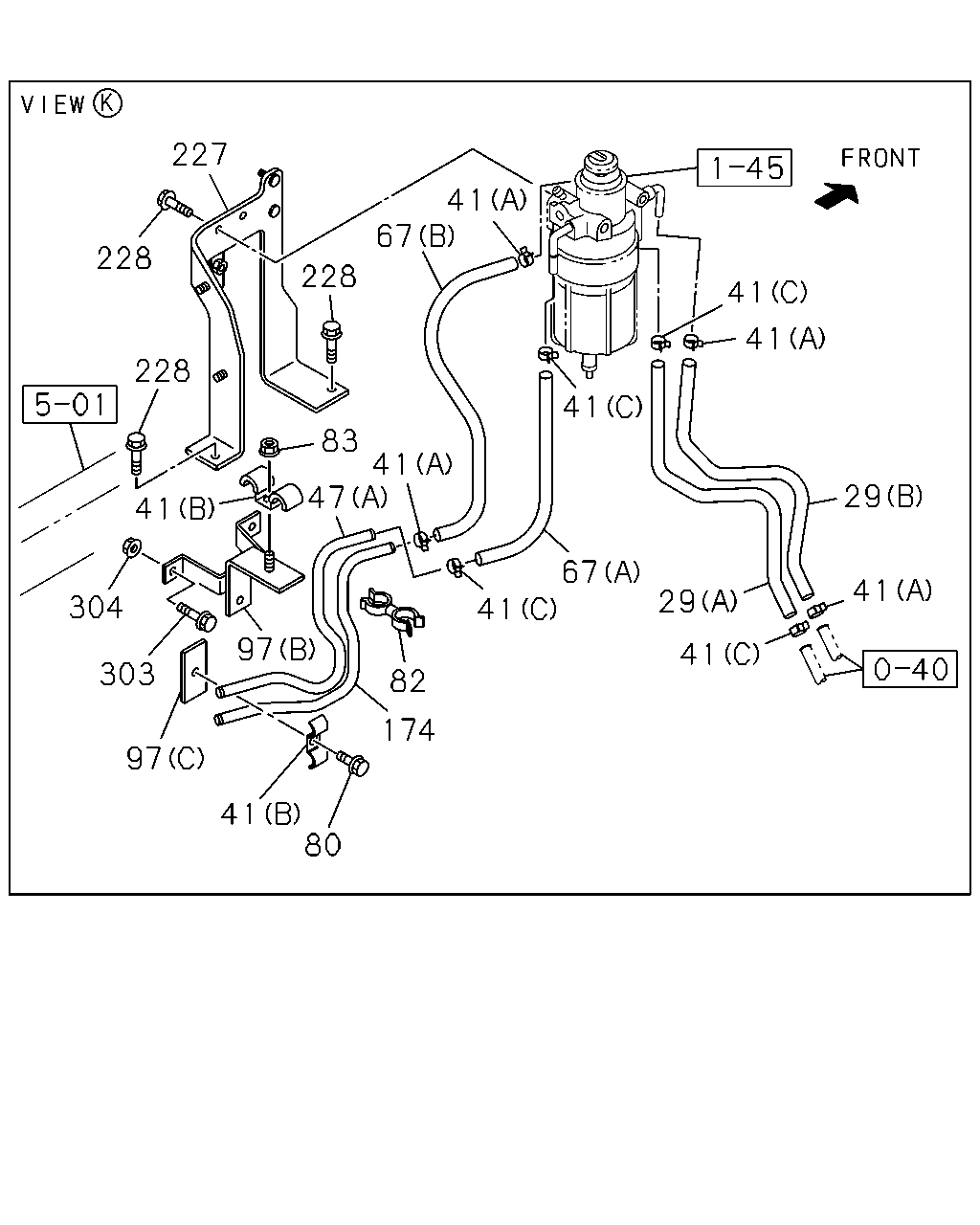

227 228 228 228 41 304 303 97 97 47 83 41 80 174 82 41 67 41 41 41 67 29 41 41 29 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (A) L=539	8-98117-709-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-0808	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (B)	8-98127-647-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-	●
67	HOSE; FUEL,DELIVERY (A) L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY (B) L=210 SERVICED BY L=3000	0-01558-300-0	01	1	0710-	●	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98128-210-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> (C) L=300	8-98157-878-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98128-785-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> (D) L=960	8-98157-880-0	01	1	0911-	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98128-211-0	01	1	0809-0910	●
67	HOSE; FUEL,DELIVERY FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2> (D) L=900	8-98157-879-0	01	1	0911-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
80	BOLT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
82	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> ID=13 & 16.5	8-94169-028-0	01	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-	●
97	BRACKET; CLIP ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-0809	●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0810-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> M10X50 FLANGE	0-28051-050-0	02	1	0809-	●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-1008		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0809-1008	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●

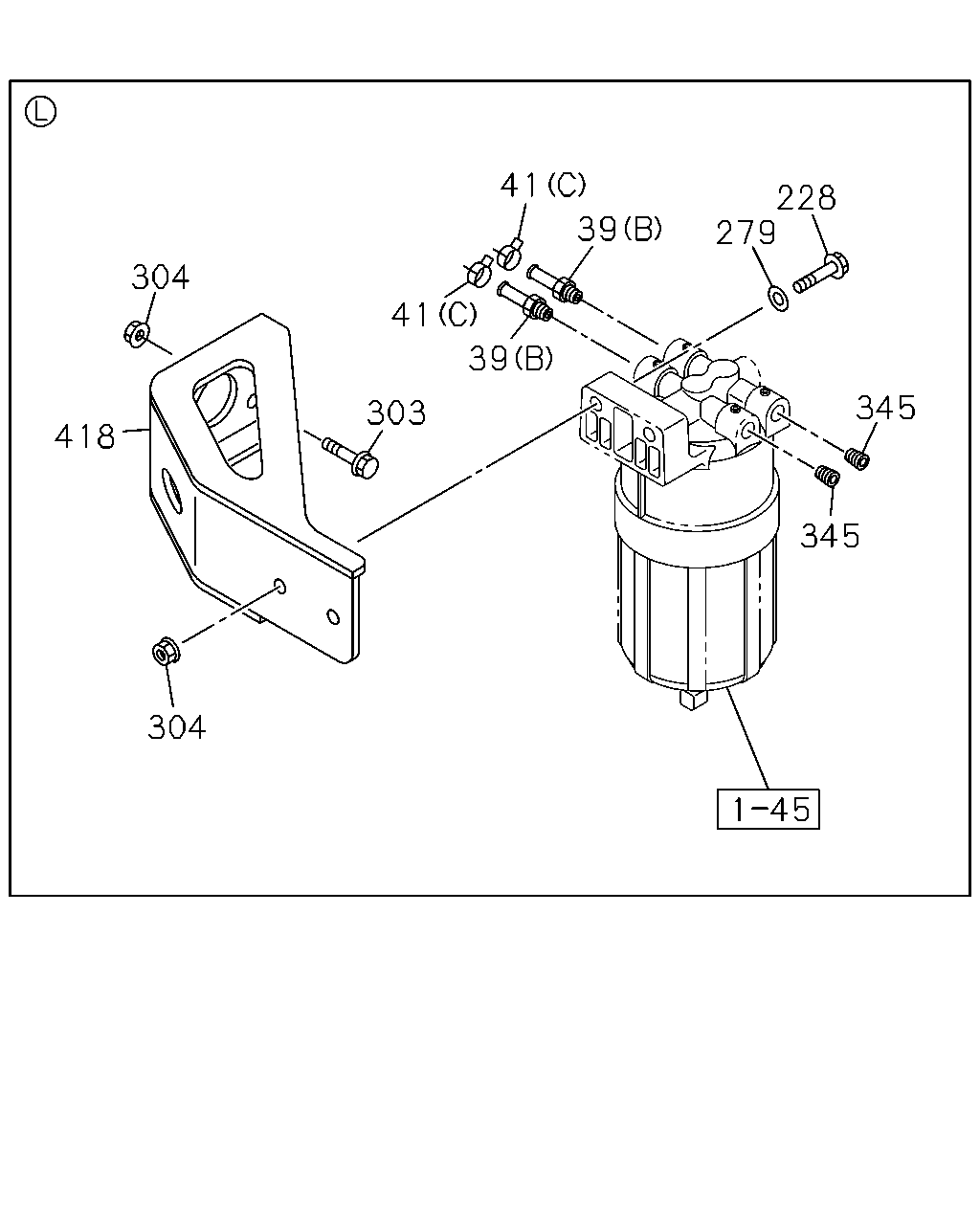

41 228 279 39 304 41 39 345 303 418 345 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-97358-699-0	02	1	0809-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-	●
228	BOLT; BRKT,SEDIMENTER EURO2 SPECIFICATION<NT2> M10X50 FLANGE	0-28051-050-0	02	1	0809-	●
228	BOLT; BRKT,SEDIMENTER M8X25 FLANGE	0-28050-825-0	02	1	0710-	●	●
228	BOLT; BRKT,SEDIMENTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
279	WASHER EURO2 SPECIFICATION<NT2> ID=10.5 OD=26	0-91614-710-0	02	1	0809-	●
303	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	02	1	0809-	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-0710	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0711-0808	●	●
303	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0809-1008		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0809-1008	●
303	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1009-		●
303	BOLT; BRKT EURO4 SPECIFICATION<NT4> M8X35 FLANGE	0-28650-835-0	02	1	1009-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	1010-	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	03	1	0809-1009	●
304	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	01	1	1010-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-	●	●
345	PLUG EURO2 SPECIFICATION<NT2> NPTF3/8-18	8-97329-623-0	02	1	0809-	●
418	BRACKET; PRE FUEL FILTER EURO2 SPECIFICATION<NT2>	8-98128-254-0	01	1	0809-	●

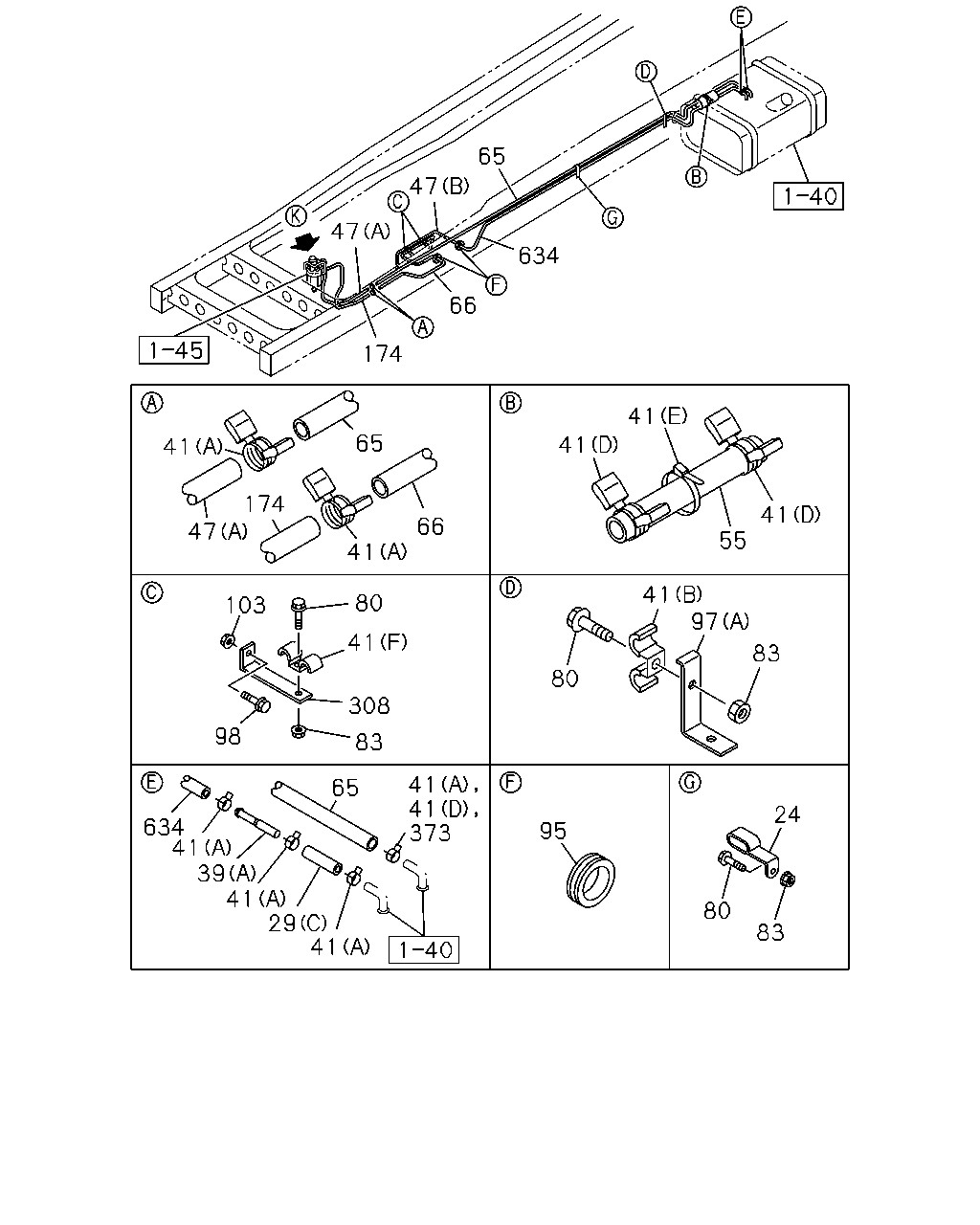

65 47 47 634 66 174 41 65 41 41 174 41 66 47 55 41 41 97 80 103 41 83 80 308 98 83 41 41 373 65 24 634 41 39 41 29 41 95 80 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE EURO2 SPECIFICATION<NT2> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0906-	●
24	CLIP; FUEL HOSE FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0801-0808	●	●
24	CLIP; FUEL HOSE FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0809-0809		●
24	CLIP; FUEL HOSE EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> ID=20 L=70	1-09701-033-0	01	1	0809-0809	●
29	HOSE; FUEL FUEL TANK 400L<SDH> (C) L=60 SERVICED BY L=3000	0-01259-300-0	01	1	0710-	●	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0710-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0710-	●	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B)	8-97358-699-0	02	1	0809-0903	●
39	PIPE; FUEL EURO2 SPECIFICATION<NT2> (B) NPTF3/8-18 OD=10	8-98122-953-0	02	1	0904-	●
39	PIPE; FUEL FUEL TANK 400L<SDH> (A)	8-98009-438-1	01	1	0710-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	01	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (C) ID=14	1-09704-102-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> (A) ID=13	8-94238-571-0	06	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (A) ID=13	8-94238-571-0	01	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (E) L=250	5-09707-030-1	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (F) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=14	1-09704-102-0	04	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (C) ID=14	1-09704-102-0	04	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) L=250	5-09707-030-1	02	1	0711-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0804-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> (E) L=250	5-09707-030-1	03	1	0809-	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0710	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L<SDH> (D) ID=16	8-94238-568-0	02	1	0710-0803	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=16	8-94238-568-0	02	1	0804-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0710-0808	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	08	1	0809-		●
41	CLIP; FUEL PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> (A) ID=13	8-94238-571-0	08	1	0809-	●
47	PIPE; FUEL,RETURN EURO2 SPECIFICATION<NT2> (A) L=539	8-98117-709-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (B)	8-98097-500-0	01	1	0710-0807	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0808-0808	●	●
47	PIPE; FUEL,RETURN (B)	8-98127-647-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (B)	8-98127-647-0	01	1	0809-	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0710-0808	●	●
47	PIPE; FUEL,RETURN (A) L=717	8-98086-241-0	01	1	0809-		●
47	PIPE; FUEL,RETURN EURO4 SPECIFICATION<NT4> (A) L=717	8-98086-241-0	01	1	0809-	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0804-0808	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-		●
55	COVER; PIPE,FUEL TANK EURO2 SPECIFICATION<NT2> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0809-	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0710-0710	●	●
55	COVER; PIPE,FUEL TANK L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0711-0803	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0804-0808	●	●
55	COVER; PIPE,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-		●
55	COVER; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0809-	●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0710-0710	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 400L<SDH> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0710-0808	●	●
65	HOSE; FUEL,DELIVERY PIPE FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-		●
65	HOSE; FUEL,DELIVERY PIPE EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20> L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0809-	●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
66	HOSE; FUEL,RETURN PIPE L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0809-		●
66	HOSE; FUEL,RETURN PIPE EURO4 SPECIFICATION<NT4> L=150 SERVICED BY L=3000	0-01558-300-0	01	1	0809-	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
80	BOLT; CLIP,FUEL TANK M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
80	BOLT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0710-0808	●	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	0809-		●
83	NUT; CLIP,FUEL TANK EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	03	1	0809-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-0808	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-		●
95	BUSHING; PIPE,FUEL TANK EURO4 SPECIFICATION<NT4> ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-	●
97	BRACKET; CLIP ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0809-0809	●
97	BRACKET; CLIP EURO2 SPECIFICATION<NT2> (D)	8-98126-612-0	01	1	0810-	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0710-0808	●	●
97	BRACKET; CLIP (C) L=50	1-47475-299-2	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (C) L=50	1-47475-299-2	01	1	0809-	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0710-	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0710-0808	●	●
97	BRACKET; CLIP (B)	8-98076-024-0	01	1	0809-		●
97	BRACKET; CLIP EURO4 SPECIFICATION<NT4> (B)	8-98076-024-0	01	1	0809-	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●	●
98	BOLT; BRKT,FUEL PIPE M8X30 FLANGE	0-28650-830-0	02	1	0809-		●
98	BOLT; BRKT,FUEL PIPE EURO4 SPECIFICATION<NT4> M8X30 FLANGE	0-28650-830-0	02	1	0809-	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
103	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0809-		●
103	NUT; BRKT EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-	●
174	PIPE; FUEL,FEED,FRT EURO2 SPECIFICATION<NT2> L=548	8-98117-708-0	01	1	0809-	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0710-0808	●	●
174	PIPE; FUEL,FEED,FRT L=724	8-98086-240-0	01	1	0809-		●
174	PIPE; FUEL,FEED,FRT EURO4 SPECIFICATION<NT4> L=724	8-98086-240-0	01	1	0809-	●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0710-0808	●	●
308	BRACKET; FUEL PIPE L=75	1-47478-323-0	02	1	0809-		●
308	BRACKET; FUEL PIPE EURO4 SPECIFICATION<NT4> L=75	1-47478-323-0	02	1	0809-	●
373	CLAMP; HOSE,FUEL FUEL TANK 400L<SDH> ID=16	8-94238-568-0	02	1	0804-	●	●
634	HOSE; RUBBER RETURN EURO2 SPECIFICATION<NT2> L=1050	8-98128-212-0	01	1	0809-	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0710-0808	●	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809		●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0809-0809	●
634	HOSE; RUBBER RETURN FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-		●
634	HOSE; RUBBER RETURN EURO4 SPECIFICATION<NT4> FUEL TANK 200L FRAME SIDE<N20>,FUEL TANK 400L<SDH> L=900 SERVICED BY L=3000	0-01558-300-0	01	1	0810-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
