1-31 — AIR DUCT (#65682) — 78 parça

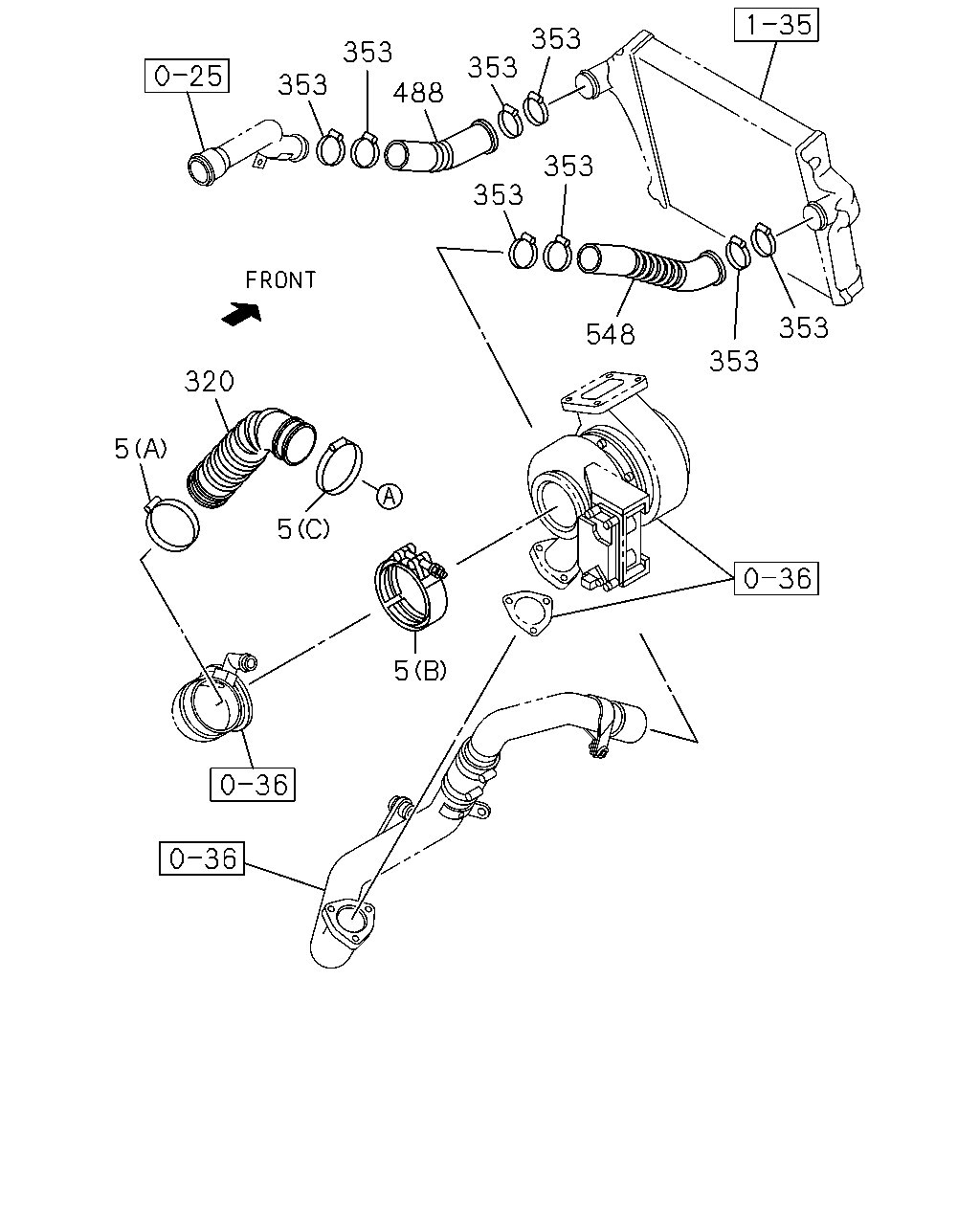

353 353 353 353 488 353 353 353 548 353 320 5 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT AIR SUS(FGY***) (A) ID=104-142	1-09707-139-0	01	1	1002-1006
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1002-1006
5	CLIP; AIR DUCT AIR SUS(FGY***) (A) ID=104-142	1-09707-139-0	01	1	1007-
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> (A) ID=104-142	1-09707-139-0	01	1	1007-
5	CLIP; AIR DUCT AIR SUS(FGY***) (A) ID=130-169	8-98155-950-0	01	1	1002-
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EXC. KD PREPARATORY PACK<6HF> (A) ID=130-169	8-98155-950-0	01	1	1002-
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (C) ID=87-116	1-09707-138-0	01	1	1002-1006
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> (C) ID=87-116	1-09707-138-0	01	1	1007-
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=87-113	1-09707-199-0	01	1	0809-0811
5	CLIP; AIR DUCT EURO2 SPECIFICATION<NT2> (A) ID=90-110	8-98133-365-0	01	1	0812-1001
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1002-1006
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> (A) ID=90-110	8-98133-365-0	01	1	1007-
5	CLIP; AIR DUCT (C) ID=130-165	1-09707-201-0	01	1	0710-0810
5	CLIP; AIR DUCT (C) ID=130-150	8-98133-360-0	01	1	0811-1001
5	CLIP; AIR DUCT LEAF SUS(FGZ***) KD PREPARATORY PACK<6HF> (C) ID=130-150	8-98133-360-0	01	1	1002-
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0710-0808
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (B) ID=114	8-15178-030-0	01	1	0809-
5	CLIP; AIR DUCT (A) ID=104-139	1-09707-200-0	01	1	0710-0808
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=104-139	1-09707-200-0	01	1	0809-0812
5	CLIP; AIR DUCT EURO4 SPECIFICATION<NT4> (A) ID=100-120	8-98133-366-0	01	1	0901-1001
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> (A) ID=100-120	8-98133-366-0	01	1	1002-1006
5	CLIP; AIR DUCT LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=100-120	8-98133-366-0	01	1	1007-
320	HOSE; CONN,ACL LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2>	8-98073-259-0	01	1	0809-
320	HOSE; CONN,ACL	8-98021-990-2	01	1	0710-0808
320	HOSE; CONN,ACL AIR SUS(FGY***)	8-98021-990-2	01	1	0809-1006
320	HOSE; CONN,ACL LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4>	8-98021-990-2	01	1	0809-1006
320	HOSE; CONN,ACL AIR SUS(FGY***)	8-98021-990-2	01	1	1007-
320	HOSE; CONN,ACL LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T>	8-98021-990-2	01	1	1007-
353	CLIP; RUBBER HOSE AIR SUS(FGY***) ID=58-79	1-09707-136-0	08	1	1002-
353	CLIP; RUBBER HOSE LEAF SUS(FGZ***) EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	08	1	1002-
353	CLIP; RUBBER HOSE ID=58-76	1-09707-203-0	08	1	0710-0811
353	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	08	1	0812-1001
353	CLIP; RUBBER HOSE LEAF SUS(FGZ***) KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	08	1	1002-
488	HOSE; RUBBER,PIPE	8-98012-936-1	01	1	0710-
548	HOSE; RUBBER,TURBO TO INL PIPE EURO2 SPECIFICATION<NT2>	8-98181-974-1	01	1	1102-
548	HOSE; RUBBER,TURBO TO INL PIPE	8-98065-044-0	01	1	0710-1101
548	HOSE; RUBBER,TURBO TO INL PIPE EXC. EURO2 SPECIFICATION<NT2>	8-98065-044-0	01	1	1102-

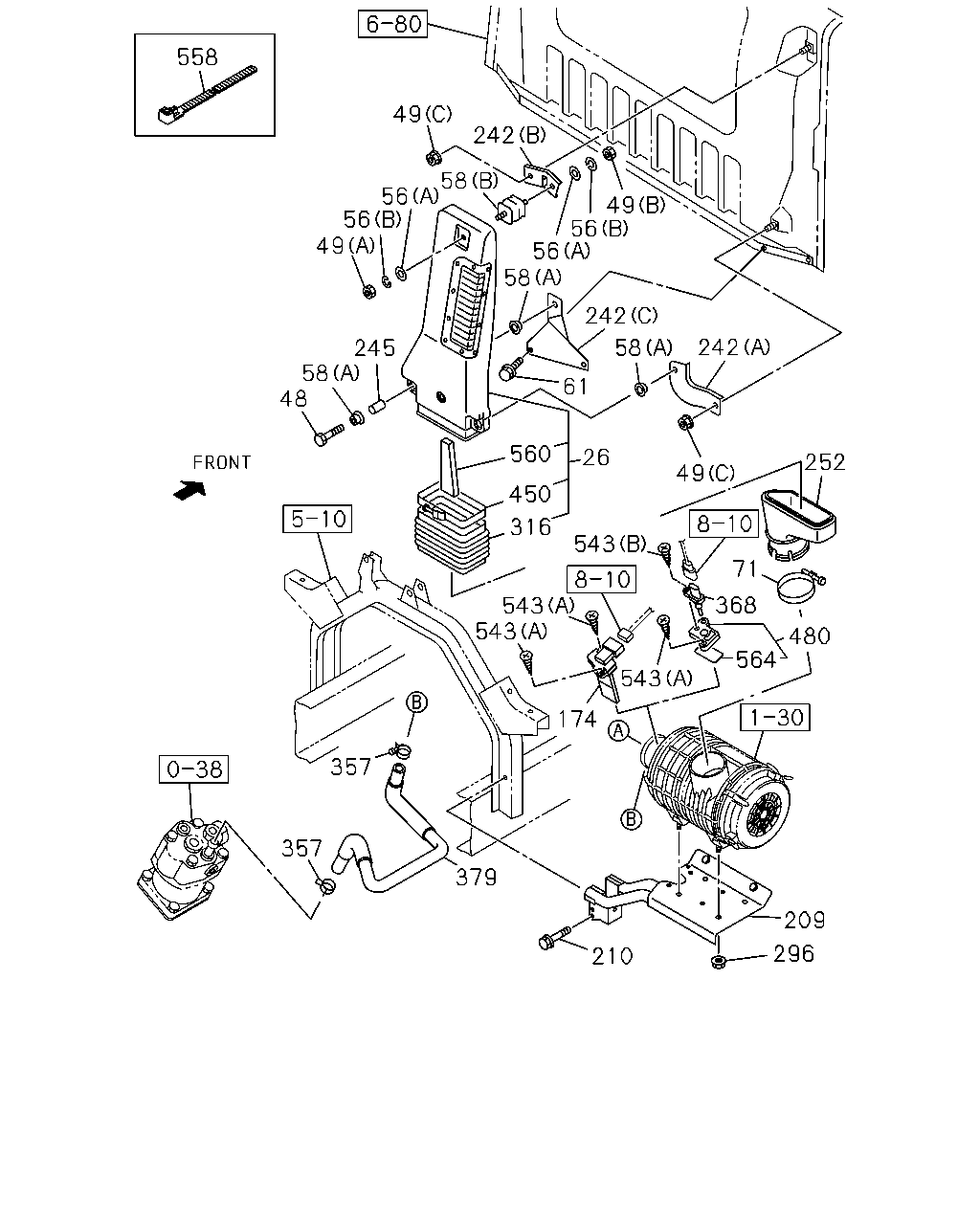

558 49 242 58 56 56 49 49 56 56 58 242 242 58 245 61 58 48 560 26 252 49 450 316 543 71 368 543 543 480 564 543 174 357 357 379 209 296 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	0710-
48	BOLT; AIR DUCT M10X60	1-09030-044-1	02	1	0710-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0710-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0710-
49	NUT; AIR DUCT (C) M8 FLANGE	8-94279-517-0	02	1	0710-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0710-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0710-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0710-
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0710-0810
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0710-0807
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-
71	CLIP; AIR DUCT ID=130-165	1-09707-201-0	01	1	0710-0810
71	CLIP; AIR DUCT ID=140-160	8-98133-368-0	01	1	0811-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0710-0808
174	SENSOR; AIR FLOW CONT AIR SUS(FGY***)	8-97601-967-0	01	1	0809-
174	SENSOR; AIR FLOW CONT LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4>	8-97601-967-0	01	1	0809-
209	BRACKET; ACL	8-98021-995-1	01	1	0710-
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0710-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0710-
242	BRACKET; AIR DUCT (C)	8-98019-302-1	01	1	0710-
242	BRACKET; AIR DUCT (A)	8-98019-304-1	01	1	0710-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0710-
252	DUCT; AIR INT	8-98021-989-1	01	1	0710-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0710-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-
357	CLIP; RUBBER HOSE ID=26	1-09707-091-0	02	1	0710-
368	SENSOR; TEMP LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2>	8-98065-377-0	01	1	0809-
379	HOSE; RUBBER	8-98077-470-0	01	1	0710-
450	CLAMP; HOSE	9-09915-504-1	01	1	0710-
480	ADAPTER LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2>	8-98086-417-0	01	1	0809-
543	SCREW; SENSOR LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER	0-36220-514-0	01	1	0809-
543	SCREW; SENSOR LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER	0-36230-412-0	02	1	0809-
543	SCREW; SENSOR (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0710-0808
543	SCREW; SENSOR AIR SUS(FGY***) (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-
543	SCREW; SENSOR LEAF SUS(FGZ***) EURO4 SPECIFICATION<NT4> (A) M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0809-
558	CLIP; AIR FLOW SENSOR L=250	5-09707-030-1	02	1	0712-
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	03	1	0710-0711
558	CLIP; AIR FLOW SENSOR L=600	1-09707-107-1	01	1	0712-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0710-
564	GASKET; ADAPTER LEAF SUS(FGZ***) EURO2 SPECIFICATION<NT2>	8-98071-416-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
