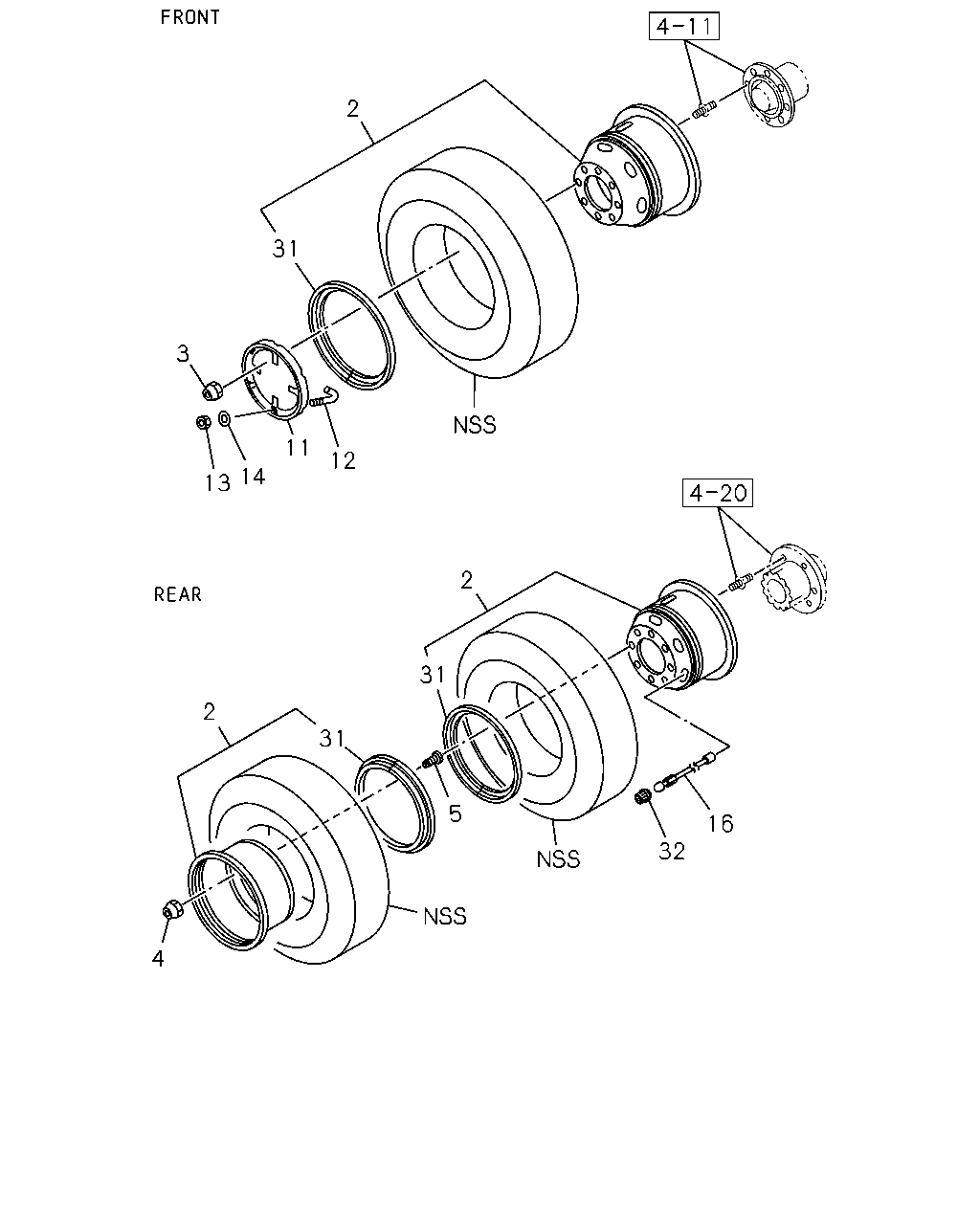

4-80 — ROAD WHEEL (#6568) — 31 parça

2 31 3 11 12 13 14 2 31 2 31 5 16 32 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE	1-42350-268-2	01	1	0101-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42350-268-2	01	1	0101-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE	1-42350-478-0	01	1	0101-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42350-478-0	01	1	0101-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> FRONT	1-42350-268-2	02	1	0101-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> REAR	1-42350-268-2	08	1	0101-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42350-478-0	10	1	0101-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	0101-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	0101-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0101-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0101-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0101-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0101-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0101-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0101-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0101-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0101-
11	STEP; DISC WHEEL SIDE THA	8-97916-040-0	02	1	0101-
12	U-BOLT; STEP DISC L=44 THA	9-43139-023-1	06	1	0101-
13	NUT; STEP DISC M10	9-09110-510-0	06	1	0101-
14	WASHER; LK,STEP DISC ID=10.2	9-09150-510-0	06	1	0101-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	0101-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	03	1	0101-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-003-1	03	1	0101-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54>	1-42355-003-1	30	1	0101-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11<Q50>	1-42355-012-1	01	1	0101-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42355-012-1	01	1	0101-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50>	1-42355-012-1	02	1	0101-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50>	1-42355-012-1	08	1	0101-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	07	1	0101-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	06	1	0101-
