Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#65674) — 137 parça

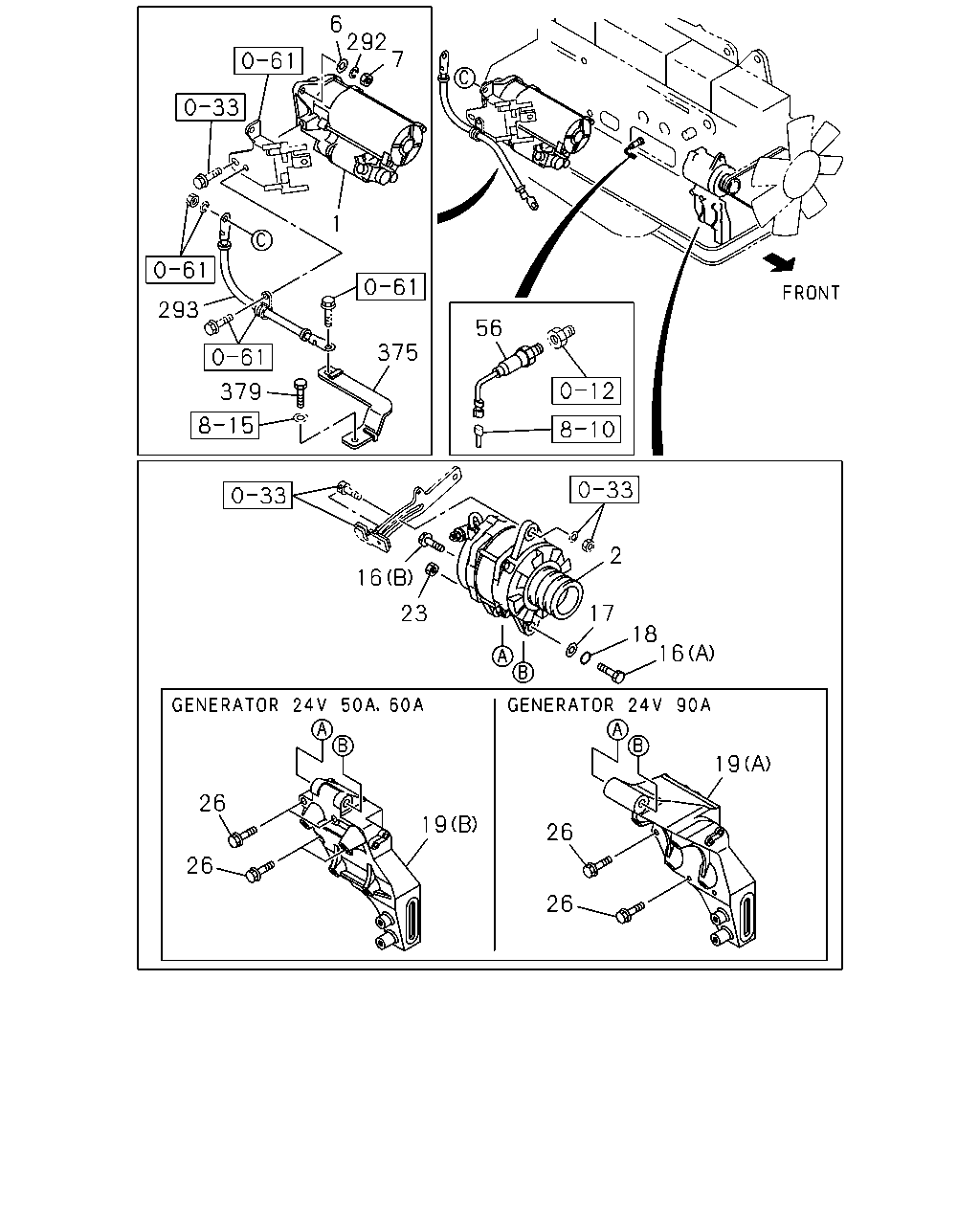

6 292 7 1 375 379 16 23 2 17 18 16 56 19 26 26 19 26 26 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0710-0909	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	0910-1409	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO	8-98013-461-5	01	1	0710-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO	8-98013-462-5	01	1	0710-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98013-463-3	01	1	0710-1508	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO	8-98330-087-0	01	1	1509-	●	●
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	0710-	●	●
7	NUT; STARTER M14	0-91110-514-0	02	1	0710-	●	●
16	BOLT; GEN EURO2 SPECIFICATION<NT2> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	03	1	0910-	●	●
16	BOLT; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	01	1	0710-0808	●	●
16	BOLT; GEN EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	0809-0907	●
16	BOLT; GEN EURO2 SPECIFICATION<NT2> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	01	1	0809-0907		●
16	BOLT; GEN EURO4 SPECIFICATION<NT4> EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	01	1	0809-0907		●
16	BOLT; GEN EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	0908-0910	●	●
16	BOLT; GEN EURO2 SPECIFICATION<NT2> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	01	1	0908-0910		●
16	BOLT; GEN EURO4 SPECIFICATION<NT4> HEATER & DEFROSTER(C41) (B) M6X10 FLANGE	0-28050-610-0	01	1	0911-	●	●
16	BOLT; GEN EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	01	1	0911-		●
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	0710-	●	●
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	0710-0808	●	●
16	BOLT; GEN EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M6X10 FLANGE	0-28050-610-0	02	1	0809-		●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0710-	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0710-	●	●
19	BRACKET; GEN EXC. GENERATOR 24V90A(K44) (B)	8-97609-149-0	01	1	0710-0711	●	●
19	BRACKET; GEN EXC. GENERATOR 24V90A(K44) (B)	8-97609-149-0	01	1	0711-0803	●	●
19	BRACKET; GEN EXC. GENERATOR 24V90A(K44) (B)	8-98082-615-1	01	1	0804-0808	●	●
19	BRACKET; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO4 SPECIFICATION<NT4> (B)	8-98082-615-1	01	1	0809-	●	●
19	BRACKET; GEN EURO2 SPECIFICATION<NT2> (B)	8-98082-615-1	01	1	0809-		●
19	BRACKET; GEN GENERATOR 24V90A(K44) (A)	8-98082-617-0	01	1	0710-	●	●
23	NUT; GEN M14	0-91110-514-0	01	1	0710-	●	●
26	BOLT; GEN BRKT EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) M10X40 FLANGE	0-28151-040-0	03	1	1405-	●	●
26	BOLT; GEN BRKT EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) M10X90 FLANGE	0-28151-090-0	03	1	1405-	●	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	02	1	0710-	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0710-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X25 FLANGE	0-28151-025-0	01	1	0710-	●	●
26	BOLT; GEN BRKT GENERATOR 24V90A(K44) M10X135	8-94397-139-1	01	1	0710-	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0710-	●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	0710-	●	●
293	CABLE; STARTER EARTH EURO2 SPECIFICATION<NT2> L=420	8-98131-856-0	01	1	0810-		●
293	CABLE; STARTER EARTH L=430	8-97621-357-0	01	1	0710-0809	●	●
293	CABLE; STARTER EARTH L=430	8-97621-357-0	01	1	0810-	●
293	CABLE; STARTER EARTH EURO4 SPECIFICATION<NT4> L=430	8-97621-357-0	01	1	0810-		●
375	BRACKET EURO2 SPECIFICATION<NT2>	8-98131-726-0	01	1	0810-		●
379	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0810-		●
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0710-0906	●	●

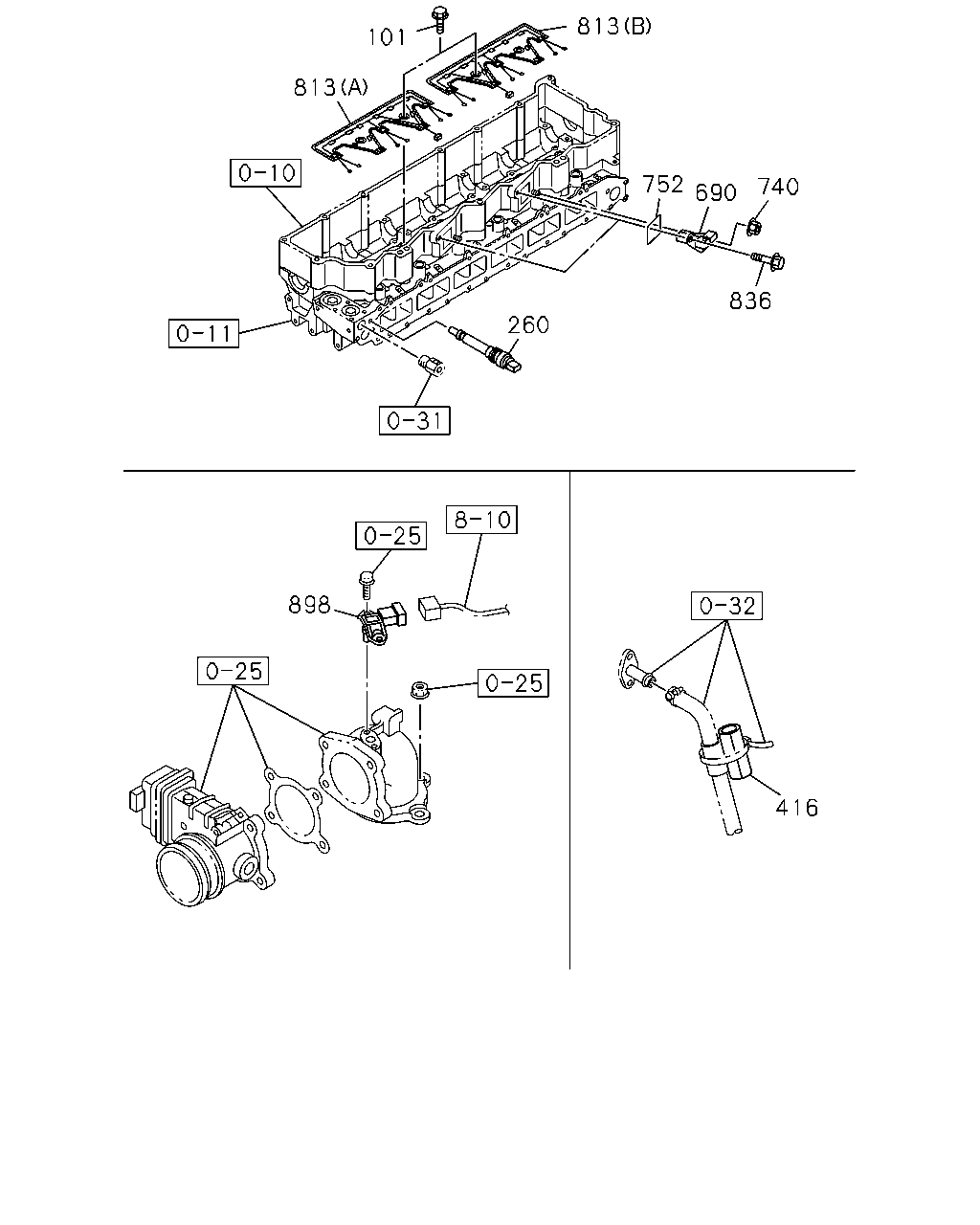

752 740 690 813 836 101 813 260 898 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0710-	●	●
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	0710-1503	●	●
260	SENSOR; WATER TEMP NISHIDA	8-98260-257-0	01	1	1504-	●	●
416	SLEEVE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 OD=21 L=40	1-09337-012-0	01	1	0712-0808		●
416	SLEEVE; RUBBER EURO4 SPECIFICATION<NT4> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=17 OD=21 L=40	1-09337-012-0	01	1	0809-0907		●
690	CONNECTOR	8-94390-858-1	02	1	0710-	●	●
740	NUT M8 FLANGE	0-91180-108-0	04	1	0710-1011	●	●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0710-	●	●
813	HARNESS; INJECTOR (A) FRONT	8-97602-748-2	01	1	0710-1008	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1009-1112	●	●
813	HARNESS; INJECTOR (A) FRONT	8-98204-717-0	01	1	1201-	●	●
813	HARNESS; INJECTOR (B) REAR	8-97602-749-2	01	1	0710-1008	●	●
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1009-1112	●	●
813	HARNESS; INJECTOR (B) REAR	8-98204-718-0	01	1	1201-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-	●	●
898	SENSOR; BOOST	8-98009-418-0	01	1	0710-	●	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0710-0906	●	●

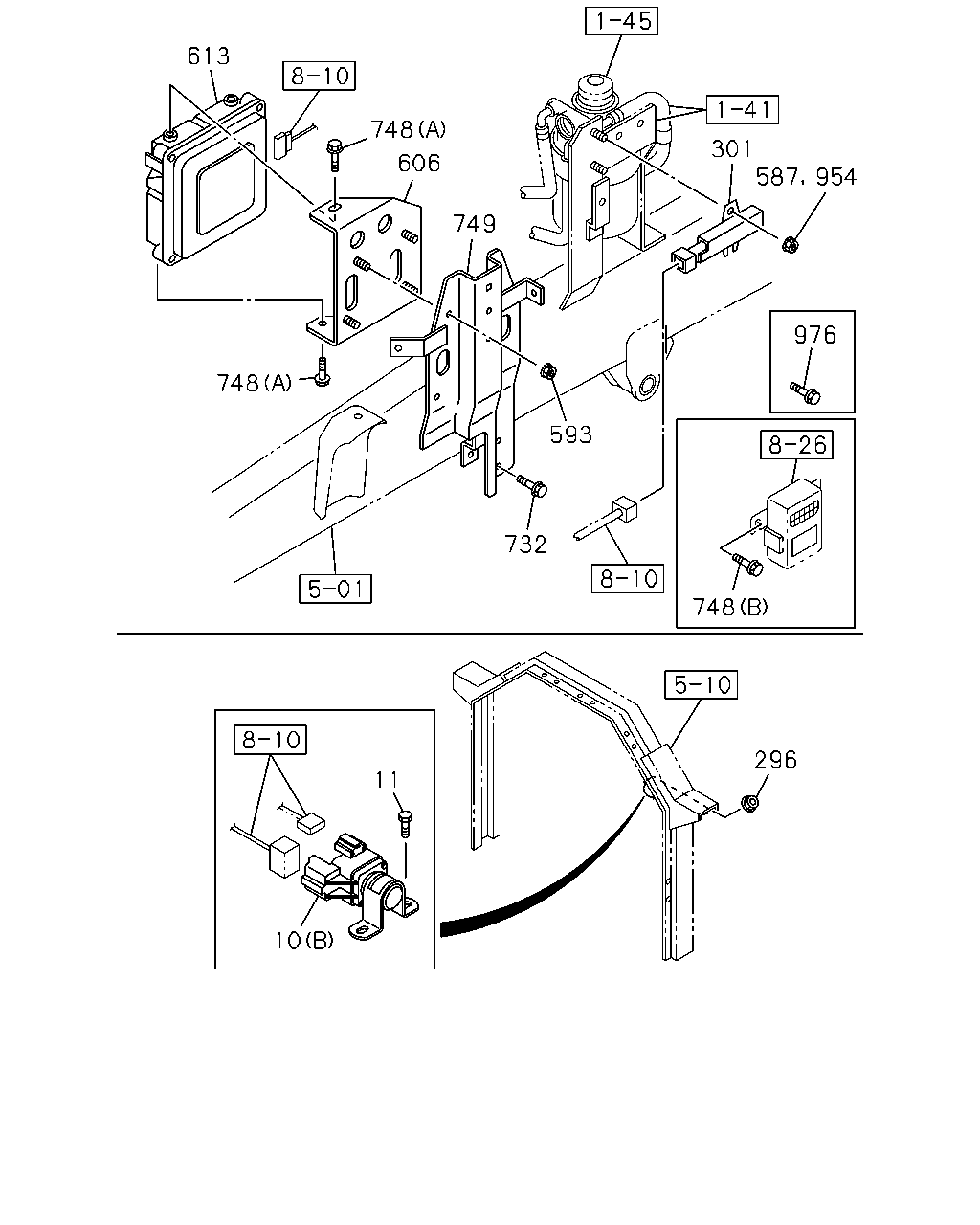

613 748 606 749 748 593 732 301 587 954 979 748 296 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1005	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-	●	●
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	0710-	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0710-0808	●	●
301	RESISTOR; DROPPING	8-97357-613-0	01	1	0809-	●
301	RESISTOR; DROPPING EURO4 SPECIFICATION<NT4>	8-97357-613-0	01	1	0809-		●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0710-0808	●	●
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	0809-	●
587	NUT; RESISTOR & RELAY EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	02	1	0809-		●
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	0710-	●	●
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	0710-	●	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),HIGHLAND ZONE PACKAGE<W02>,IM MOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK>	8-98216-174-0	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>	8-98257-212-0	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,IMMOBILIZER SYSTEM<7KC>	8-98257-213-0	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,IMMOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK>	8-98216-173-0	01	1	1312-		●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),HIGHLAND ZONE PACKAGE<W02>,TR ANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98190-129-0	01	1	1105-1311		●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),HIGHLAND ZONE PACKAGE<W02>,GL OW SYSTEM DELETE<7RK>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98190-129-0	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),HIGHLAND ZONE PACKAGE<W02>	8-98074-910-4	01	1	0911-1311		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),HIGHLAND ZONE PACKAGE<W02>,GL OW SYSTEM DELETE<7RK>	8-98074-910-4	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>	8-98154-244-0	01	1	0911-1006		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>	8-98170-975-1	01	1	1007-1311		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK>	8-98170-975-1	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) KENYA EQUIPMENT(CL1) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>	8-98074-912-3	01	1	0809-0910		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,IMMOBILIZER SYSTEM<7KC>	8-98074-912-4	01	1	0911-1311		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,IMMOBILIZER SYSTEM<7KC>	8-98257-210-0	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) ,SPEED LIMITER 80KM(EDW),NEW ZEALAND EQUIPMENT(E13),AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU),IMMOBI LIZER SYSTEM<7KC>	8-98074-911-3	01	1	0809-0907		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) ,SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC>	8-98074-911-3	01	1	0908-0910		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),HIGHLAND ZONE PACKAGE<W02>,IM MOBILIZER SYSTEM<7KC>	8-98074-911-4	01	1	0911-1311		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) SPEED LIMITER 80KM(EDW) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,IMMOBILIZER SYSTEM<7KC>,GLOW SYSTEM DELETE<7RK>	8-98216-172-0	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) ,SPEED LIMITER 80KM(EDW),NEW ZEALAND EQUIPMENT(E13),AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),IMMOBILIZER SYSTEM<7KC>	8-98092-686-3	01	1	0809-0907		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13),KENYA EQUIPMENT(CL1) ,SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A), IMMOBILIZER SYSTEM<7KC>	8-98092-686-3	01	1	0908-0910		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),INJ PUMP Q SET SPECIAL +5%Q(T1A),HIGHLAND ZONE PACKAGE<W02>,IMMOBILIZER SYSTEM<7KC>	8-98092-686-4	01	1	0911-1311		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO2 SPECIFICATION<NT2> INJ PUMP Q SET SPECIAL +5%Q(T1A) GLOW SYSTEM DELETE<7RK> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),HIGHLAND ZONE PACKAGE<W02>,IM MOBILIZER SYSTEM<7KC>	8-98257-211-0	01	1	1312-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) NEW ZEALAND EQUIPMENT(E13) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC>	8-98074-906-1	01	1	0712-0804		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) NEW ZEALAND EQUIPMENT(E13) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,SPEED LIMITER 100KM(NMU), IMMOBILIZER SYSTEM<7KC>	8-98105-583-0	01	1	0805-0808		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) NEW ZEALAND EQUIPMENT(E13) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC>	8-98105-583-0	01	1	0809-0905		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 80KM(EDW),AUTO CRUISE<K30>, SPEED LIMITER 100KM(NMU),IMMOBILIZER SYSTEM<7KC>	8-98105-582-3	01	1	0906-		●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) AUTO CRUISE<K30> EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-905-1	01	1	0710-0710	●	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-904-2	01	1	0710-0711	●	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-904-2	01	1	0712-0804	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-904-2	01	1	0712-0804		●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-587-0	01	1	0805-0808	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-587-0	01	1	0805-0808		●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-587-3	01	1	0809-	●
613	CONTROL UNIT; ENG ALLISON MD3560P A/T(Y3B) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> EXC. AUTO CRUISE<K30>,TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-587-3	01	1	0809-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98080-872-2	01	1	0710-0711	●	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98080-872-2	01	1	0712-0804	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98080-872-2	01	1	0712-0804		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-586-0	01	1	0805-0808	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-586-0	01	1	0805-0808		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUTO CRUISE<K30> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-586-3	01	1	0809-	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) AUTO CRUISE<K30> SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-586-3	01	1	0809-		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98080-871-2	01	1	0710-0711	●	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98080-871-2	01	1	0712-0804	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98080-871-2	01	1	0712-0804		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-585-0	01	1	0805-0808	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-585-0	01	1	0805-0808		●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-585-3	01	1	0809-	●
613	CONTROL UNIT; ENG ZF9S1110 M/T(Y5E) AUSTRALIA EQUIPMENT(B13) SPEED LIMITER 100KM(NMU) EURO4 SPECIFICATION<NT4> INJ PUMP Q SET SPECIAL +5%Q(T1A) IMMOBILIZER SYSTEM<7KC> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>	8-98105-585-3	01	1	0809-		●
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	0710-	●	●
748	BOLT; CONT UNIT EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE	0-28650-616-0	02	1	0712-		●
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	0710-	●	●
749	STAY; CONT UNIT	1-53194-595-3	01	1	0710-	●	●
954	NUT; RESISTOR M6 FLANGE	0-91180-106-0	02	1	0710-0906	●	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0710-0906	●	●

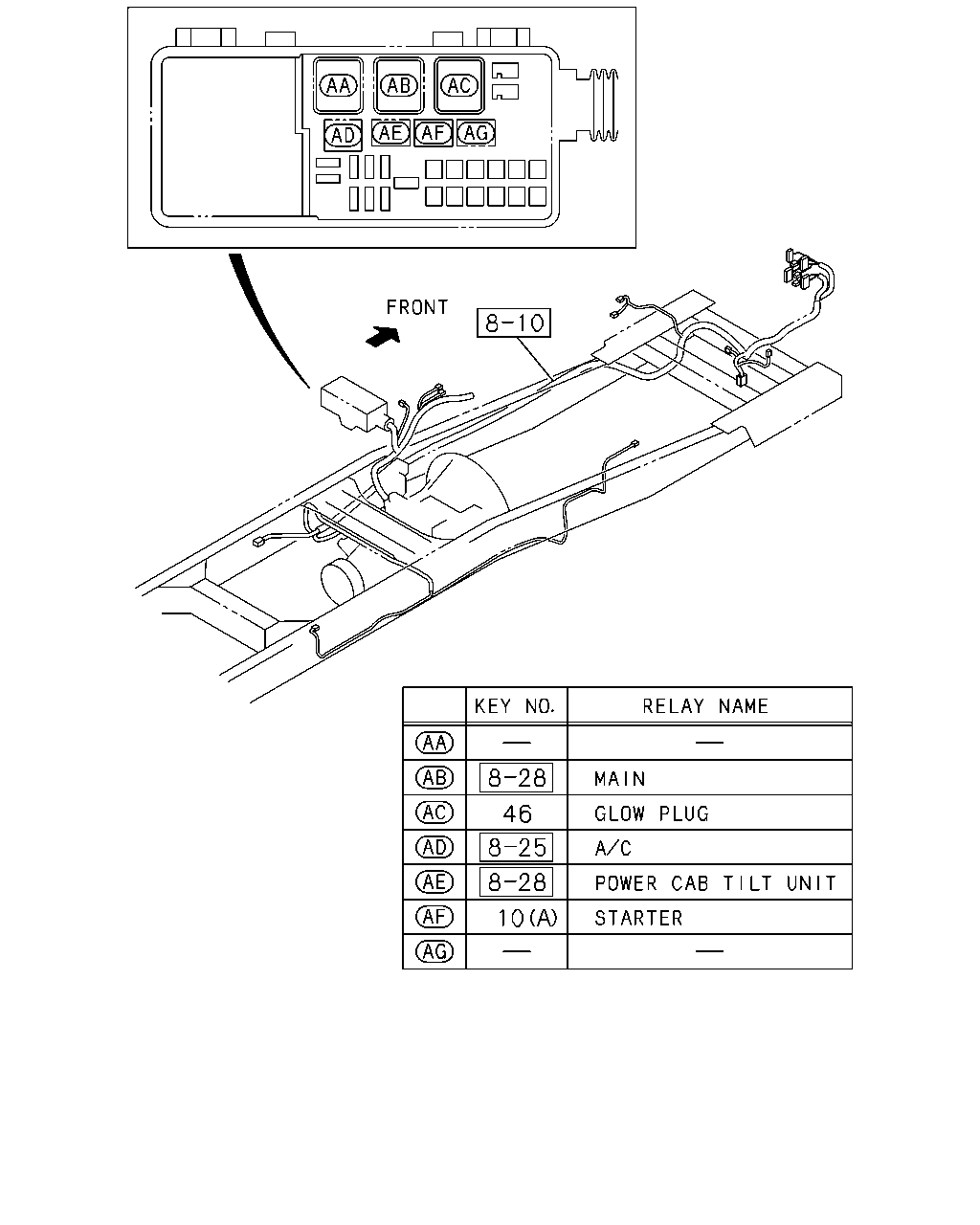

46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-97173-035-1	01	1	0710-1005	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1006-	●	●
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	0710-	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	0710-1311	●	●
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1312-	●
46	RELAY; GLOW PLUG EXC. GLOW SYSTEM DELETE<7RK> 24V 50A	8-97173-947-0	01	1	1312-		●
976	BOLT; RESISTOR M6X20 FLANGE	0-28050-620-0	02	1	0710-0906	●	●
