◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11107 - FVZ(RHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-36 - TURBOCHARGER SYSTEM ▶
0-36 — TURBOCHARGER SYSTEM (#65664) — 210 parça

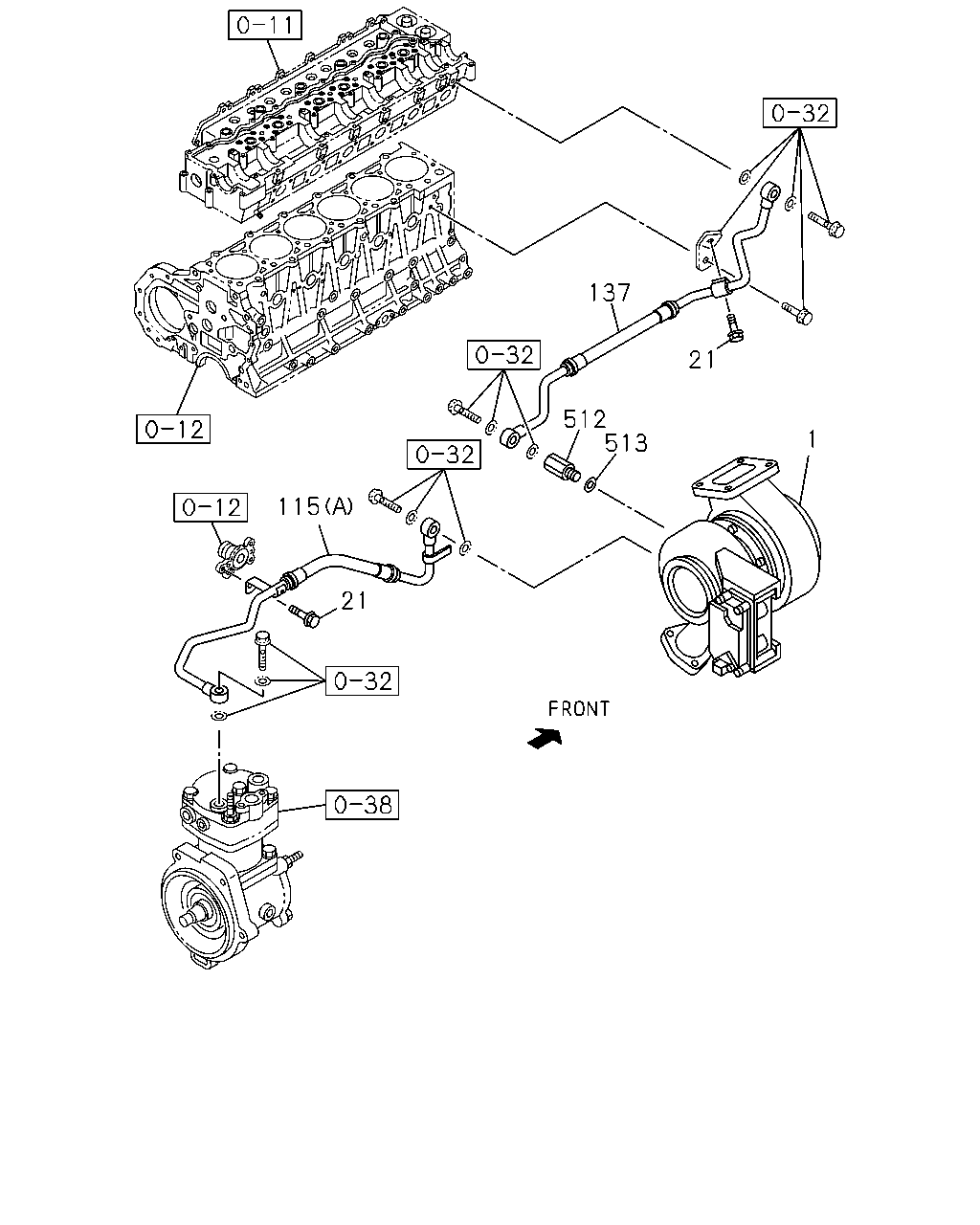

çizim 192449
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911-
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 0710-0808
21 BOLT; PIPE
EURO4 SPECIFICATION<NT4> M8X16 FLANGE 		0-28050-816-0 02 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-1 01 1 0710-0808
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97610-087-2 01 1 0809-
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 0710-0808
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-98046-783-0 01 1 0809-
512 CONNECTOR; TURBO 8-98031-856-0 01 1 0710-0808
512 CONNECTOR; TURBO
EURO4 SPECIFICATION<NT4> 		8-98031-856-0 01 1 0809-
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 0710-0808
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		1-09630-085-0 01 1 0809-1312
513 GASKET; CONNECTOR
EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-

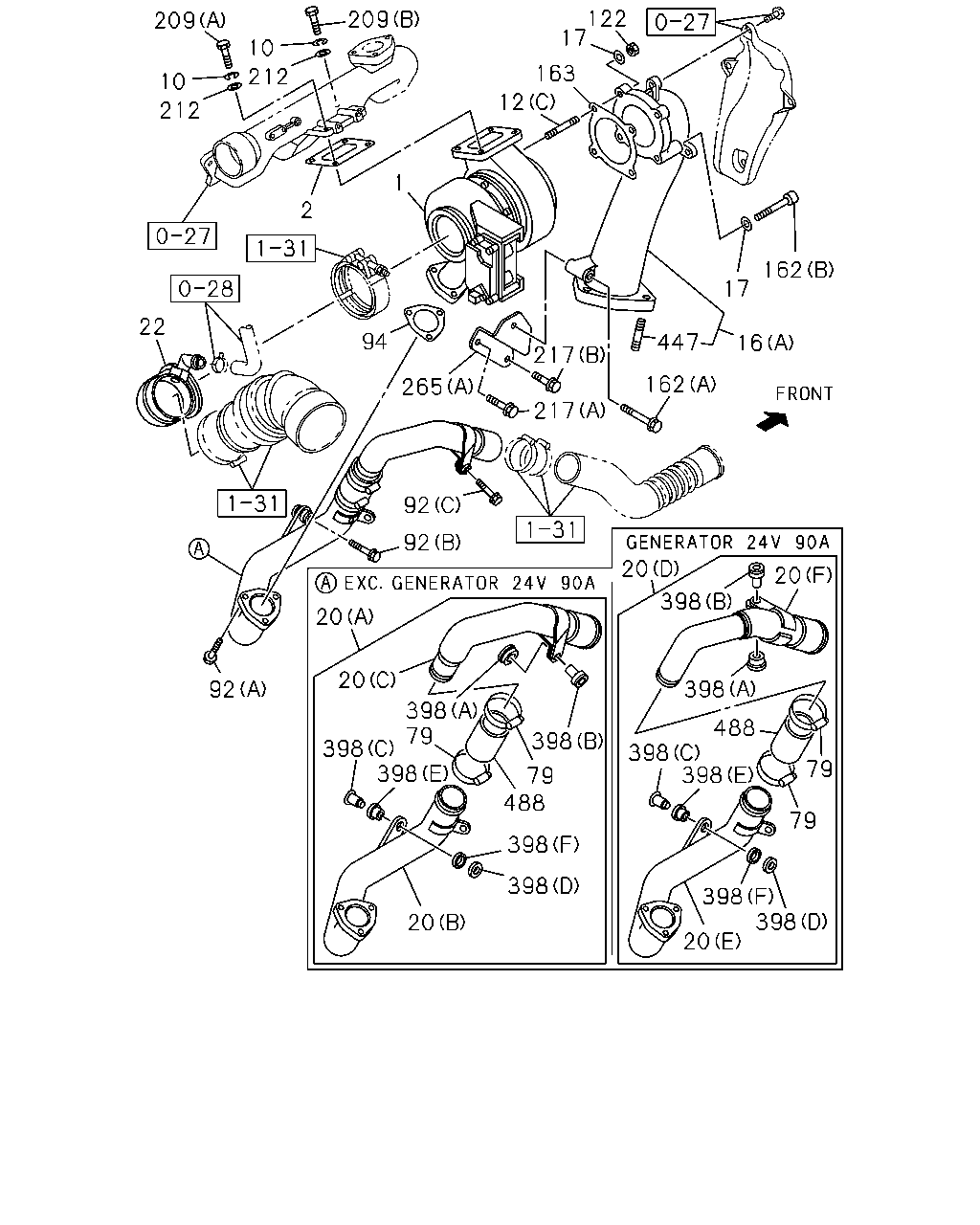

çizim 192451
398 398 398 398 398 398 398 398 398 398 398 398 20 20 20 20 20 20 92 92 92 217 217 447 16 17 162 162 12 163 122 17 1 265 94 22 2 212 10 209 212 209 10 79 488 79 79 79 488
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911-
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0809-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710-0808
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809-
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710-0808
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809-
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809-
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809-
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0808
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809-
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809-
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0808
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809-
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710-0808
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (J) 		8-98230-568-0 01 1 1405-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809-1311
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-97606-675-1 01 1 1312-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1311
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-97618-726-2 01 1 1312-1408
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98251-577-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809-1311
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-97618-734-0 01 1 1312-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-3 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> EXC. GENERATOR 24V90A(K44) (A) 		8-98046-167-4 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> EXC. GENERATOR 24V90A(K44) (A) 		8-98251-581-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> EXC. GENERATOR 24V90A(K44) (B) 		8-98046-168-1 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> EXC. GENERATOR 24V90A(K44) (C) 		8-98046-169-2 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (D) 		8-97617-214-2 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (D) 		8-98251-580-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (E) 		8-97617-215-0 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (F) 		8-97617-216-0 01 1 0809-
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-0 01 1 0710-0808
22 DUCT; INL,ACL TO TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-164-1 01 1 0809-
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0811
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903-
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0808
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809-
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710-
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710-
94 GASKET; INL PIPE 8-98053-830-0 01 1 0710-0808
94 GASKET; INL PIPE
EURO4 SPECIFICATION<NT4> 		8-98053-830-0 01 1 0809-
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809-
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710-0808
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809-
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0809-
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0808
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0808
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911-
163 GASKET; ADAPTER TO EXH PIPE 8-94392-553-0 01 1 0710-0808
163 GASKET; ADAPTER TO EXH PIPE
EURO4 SPECIFICATION<NT4> 		8-94392-553-2 01 1 0809-
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 0710-0808
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M10X80 		8-98049-825-0 02 1 0809-
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-0 02 1 0710-0808
209 BOLT; BRACE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10X40 		9-09604-007-1 02 1 0809-
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710-
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809-
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710-0808
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809-
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0710-0808
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809-
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809-
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0710-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0710-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0710-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0710-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0710-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710-
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 0710-0808
447 STUD; ADAPTER
EURO4 SPECIFICATION<NT4> M12X30 L=48 		0-44011-230-0 03 1 0809-
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1311
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=62 L=70 		1-09360-797-1 01 1 1312-1408
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=62 L=70 		8-98245-240-0 01 1 1409-
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-0808
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409-

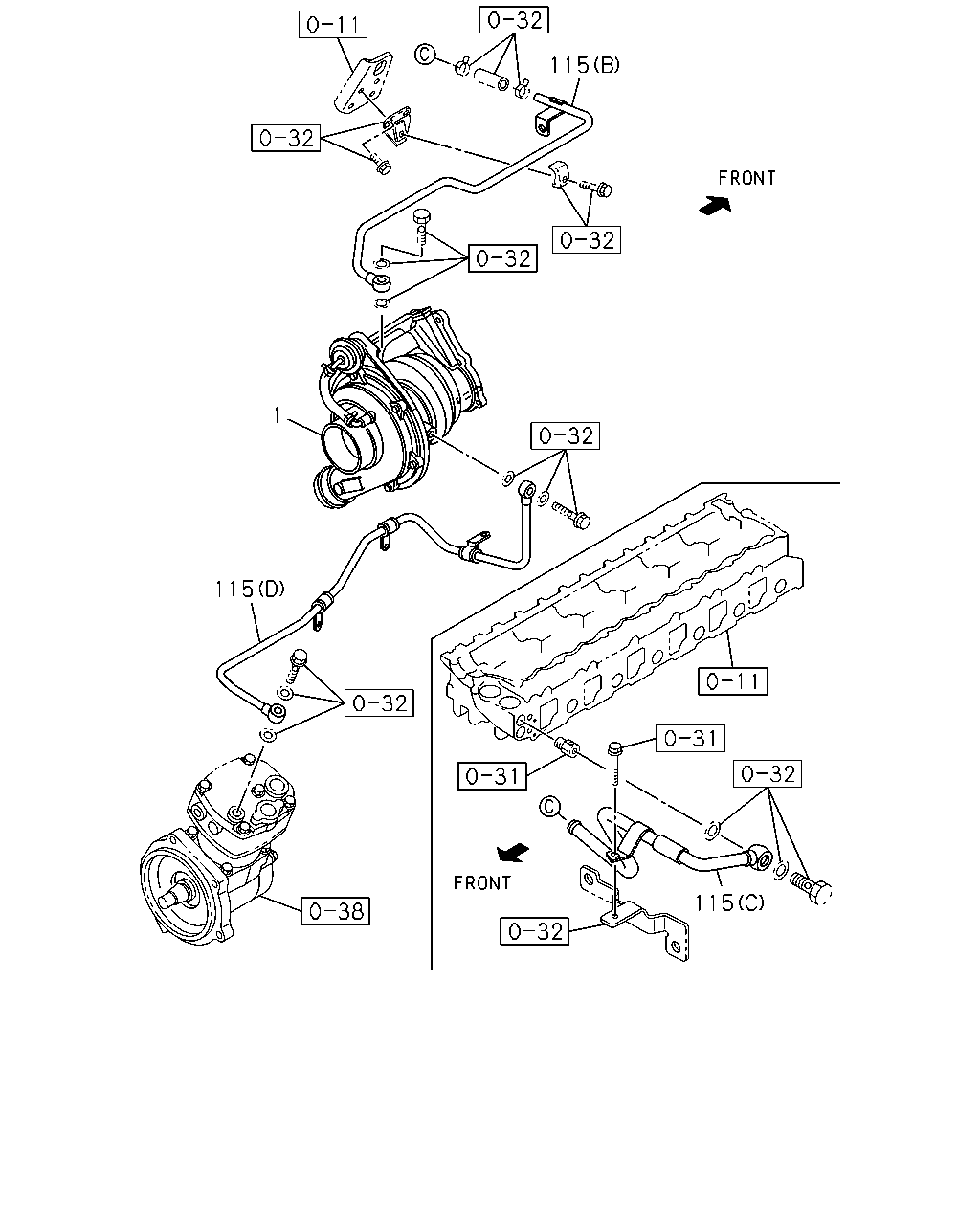

çizim 192553
115 1 115 115
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911-
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (B) 		8-94392-950-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (C) 		8-94395-454-4 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (D) 		8-97618-807-0 01 1 0809-
115 PIPE; WATER,TURBOCHARGER OUT
(A) 		8-97610-087-1 01 1 0710-0808
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> (A) 		8-97610-087-2 01 1 0809-

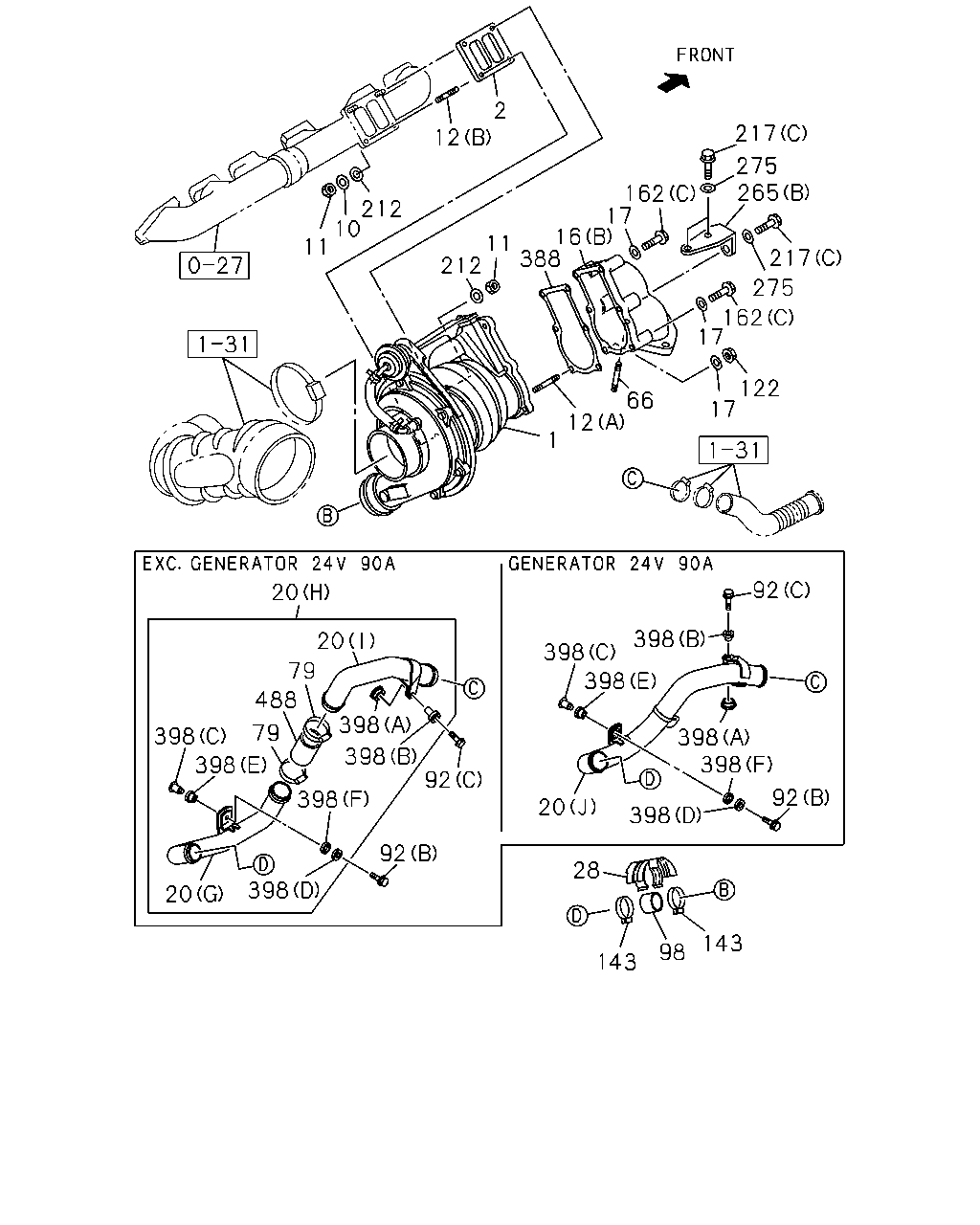

çizim 192560
143 98 143 28 398 20 92 398 398 92 398 398 398 92 92 398 20 398 398 79 488 79 20 398 398 398 20 17 122 162 275 217 265 275 217 162 17 16 388 66 12 1 11 212 2 12 212 10 11 17
BalonParca AdiParca NoAdetTipApplied Date
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02> 		8-98153-480-0 01 1 0911-
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0809-0910
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98078-779-1 01 1 0911-
1 TURBOCHARGER ASM 8-97604-975-5 01 1 0710-0808
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-97604-975-9 01 1 0809-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94390-044-0 01 1 0809-
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 0710-0808
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> 		8-97024-124-0 01 1 0809-
10 WASHER; LK,TURBOCHARGER
EURO2 SPECIFICATION<NT2> T=2.2 		1-09556-015-0 02 1 0809-
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 0710-0808
10 WASHER; LK,TURBOCHARGER
EURO4 SPECIFICATION<NT4> T=2.2 		1-09556-015-0 04 1 0809-
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10 		1-09420-005-0 04 1 0809-
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (A) M8X25 		9-04130-825-0 01 1 0809-
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (B) M10X80 		9-04731-080-0 02 1 0809-
12 STUD; TURBOCHARGER
(C) M8X25 L=36 		8-94476-282-0 02 1 0710-0808
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (C) M8X25 L=36 		8-94476-282-0 02 1 0809-
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-98069-083-0 01 1 0809-
16 ADAPTER; EXH PIPE
(A) 		8-98018-241-1 01 1 0710-0808
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98018-241-1 01 1 0809-
17 WASHER; PL,ADAPTER
EURO2 SPECIFICATION<NT2> T=1.9 		5-09500-012-0 06 1 0809-
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 0710-0808
17 WASHER; PL,ADAPTER
EURO4 SPECIFICATION<NT4> T=1.9 		5-09500-012-0 04 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V90A(K44) (J) 		8-98230-568-0 01 1 1405-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (G) 		8-97606-675-1 01 1 0809-1311
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G) 		8-97606-675-1 01 1 1312-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (H) 		8-97618-726-2 01 1 0809-1311
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-97618-726-2 01 1 1312-1408
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H) 		8-98251-577-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> (I) 		8-97618-734-0 01 1 0809-1311
20 PIPE; INL,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I) 		8-97618-734-0 01 1 1312-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-3 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> EXC. GENERATOR 24V90A(K44) (A) 		8-98046-167-4 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> EXC. GENERATOR 24V90A(K44) (A) 		8-98251-581-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> EXC. GENERATOR 24V90A(K44) (B) 		8-98046-168-1 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-1 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> EXC. GENERATOR 24V90A(K44) (C) 		8-98046-169-2 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (D) 		8-97617-214-2 01 1 0809-1408
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (D) 		8-98251-580-0 01 1 1409-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (E) 		8-97617-215-0 01 1 0809-
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 0710-0808
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) EURO4 SPECIFICATION<NT4> (F) 		8-97617-216-0 01 1 0809-
28 PROTECTOR; HEAT,HOSE,AIR DUCT
EURO2 SPECIFICATION<NT2> 		8-94393-182-0 01 1 0809-
66 STUD; EXH PIPE
EURO2 SPECIFICATION<NT2> M12X30 L=48 		8-98059-951-0 03 1 0809-
79 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 02 1 0710-0811
79 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 02 1 0812-0902
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 0903-
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 0710-0808
92 BOLT; INL PIPE
EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE 		0-28650-830-0 03 1 0809-
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710-
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 0710-
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1408
98 HOSE; RUBBER,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=62 L=70 		8-98245-240-0 01 1 1409-
122 NUT; ADAPTER
EURO2 SPECIFICATION<NT2> M8 		1-09400-118-1 01 1 0809-
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 0710-0808
122 NUT; ADAPTER
EURO4 SPECIFICATION<NT4> M8 		1-09400-118-1 02 1 0809-
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-76 		1-09707-203-0 02 1 0809-0902
143 CLIP; HOSE,TURBOCHARGER OUTLET
EURO2 SPECIFICATION<NT2> ID=58-79 		8-94126-771-0 02 1 0903-
162 BOLT; ADAPTER
EURO2 SPECIFICATION<NT2> (C) M8X57 		5-09000-275-0 05 1 0809-
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 0710-0808
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (A) M10X60 FLANGE 		0-28051-060-0 01 1 0809-
162 BOLT; ADAPTER
(B) M8X60 		1-09000-464-0 02 1 0710-0808
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		1-09000-464-0 02 1 0809-0910
162 BOLT; ADAPTER
EURO4 SPECIFICATION<NT4> (B) M8X60 		8-98158-604-0 02 1 0911-
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710-
217 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (C) M12X30 		8-94394-324-0 03 1 0809-
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0808
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 0710-0808
217 BOLT; BRKT
EURO4 SPECIFICATION<NT4> (B) M10X25 FLANGE 		0-28751-025-0 01 1 0809-
265 BRACKET; EXH PIPE
(A) 		8-98260-415-0 01 1 0710-0808
265 BRACKET; EXH PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98260-415-0 01 1 0809-
265 BRACKET; EXH PIPE
EURO2 SPECIFICATION<NT2> (B) 		8-94395-764-2 01 1 0809-
275 WASHER; PL
EURO2 SPECIFICATION<NT2> ID=12.2 		1-09503-008-0 03 1 0809-
388 GASKET; EXH PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> 		8-94394-248-2 01 1 0809-
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 0710-
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 0710-
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 0710-
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 0710-
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 0710-
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 0710-
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> ID=62 L=70 		1-09360-797-1 01 1 0809-1311
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=62 L=70 		1-09360-797-1 01 1 1312-1408
488 HOSE; RUBBER
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=62 L=70 		8-98245-240-0 01 1 1409-
488 HOSE; RUBBER 8-98046-356-0 01 1 0710-0808
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> 		8-98046-356-0 01 1 0809-1408
488 HOSE; RUBBER
EURO4 SPECIFICATION<NT4> ID=52.5 L=70 		8-98245-242-0 01 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
