0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#65654) — 88 parça

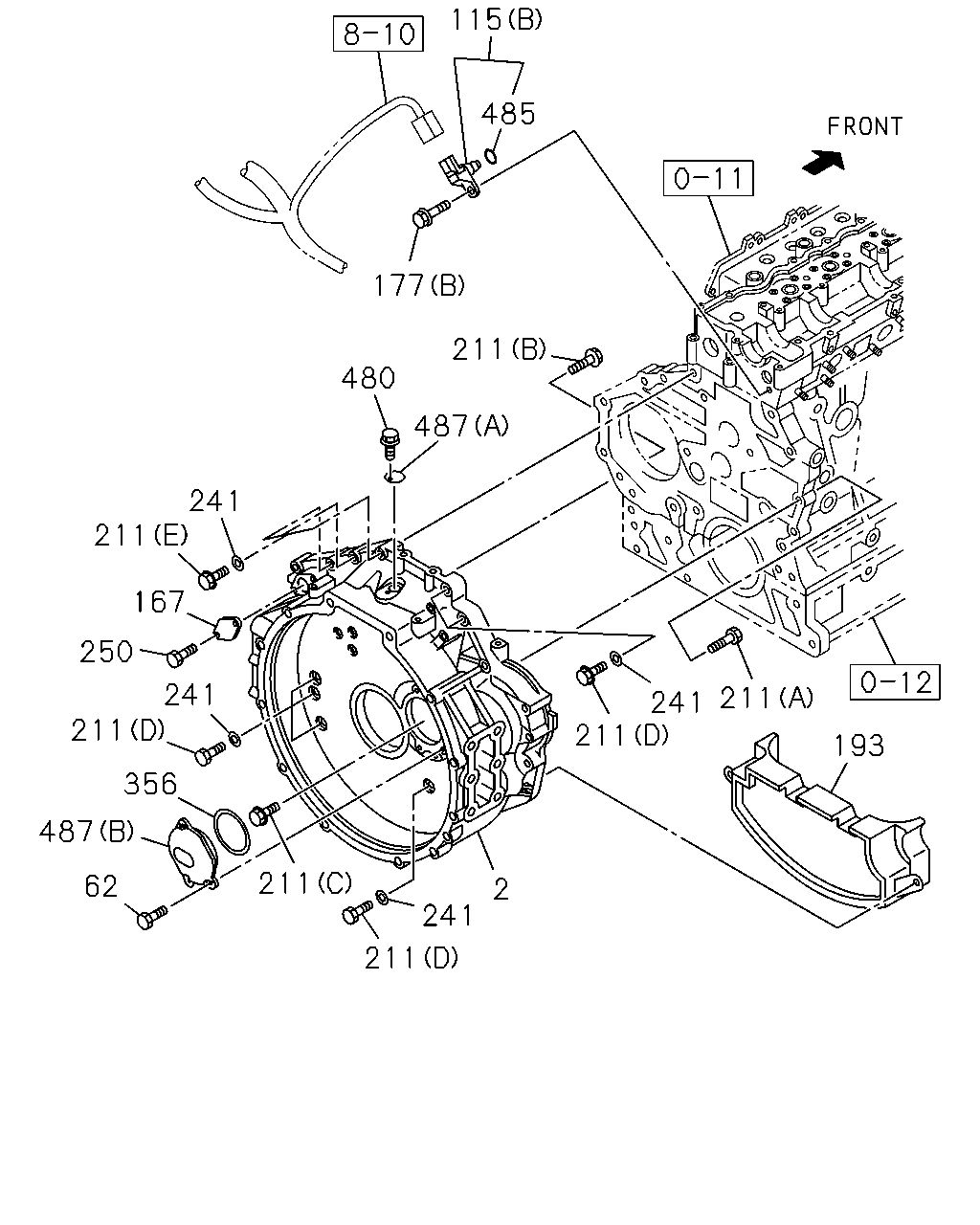

241 211 211 193 241 211 2 211 356 241 250 211 487 62 167 211 241 480 211 487 177 115 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL ALLISON MD3560P A/T(Y3B)	8-98019-443-0	01	1	0710-0808
2	HOUSING; FLYWHEEL ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4>	8-98019-443-0	01	1	0809-1104
2	HOUSING; FLYWHEEL ALLISON MD3560P A/T(Y3B)	8-98019-443-1	01	1	1105-
2	HOUSING; FLYWHEEL ZF9S1110 M/T(Y5E)	8-97609-996-3	01	1	0710-0808
2	HOUSING; FLYWHEEL ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>	8-97609-996-6	01	1	0809-1104
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2>	8-97609-996-6	01	1	0809-1104
2	HOUSING; FLYWHEEL ZF9S1110 M/T(Y5E)	8-97609-996-9	01	1	1105-
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	0710-
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97606-943-0	01	1	0710-
115	SENSOR; REVOLUTION,ENG SPD (B)	8-98019-024-0	01	1	0710-
167	COVER; OIL	1-11219-163-0	01	1	0710-
177	BOLT; SENSOR (B) M6X12 FLANGE	0-28050-612-0	01	1	0710-
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-
193	SPACER; STAY TO OIL,PAN	8-98019-738-0	01	1	0710-0808
193	SPACER; STAY TO OIL,PAN EURO4 SPECIFICATION<NT4>	8-98019-738-1	01	1	0809-
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0710-
211	BOLT; HSG (D) M12X70	0-16956-270-0	08	1	0710-
211	BOLT; HSG (E) M12X90	0-16956-290-0	03	1	0710-
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0710-
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0710-
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0710-
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0710-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0710-
480	BOLT; COVER ZF9S1110 M/T(Y5E) M6X12 FLANGE	0-28050-612-0	01	1	0710-0805
485	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	02	1	0710-
487	COVER; HOLE (B)	8-94394-513-1	01	1	0710-0805
487	COVER; HOLE (B)	8-98023-824-1	01	1	0806-
487	COVER; HOLE ZF9S1110 M/T(Y5E) (A)	8-97600-831-0	01	1	0710-0805

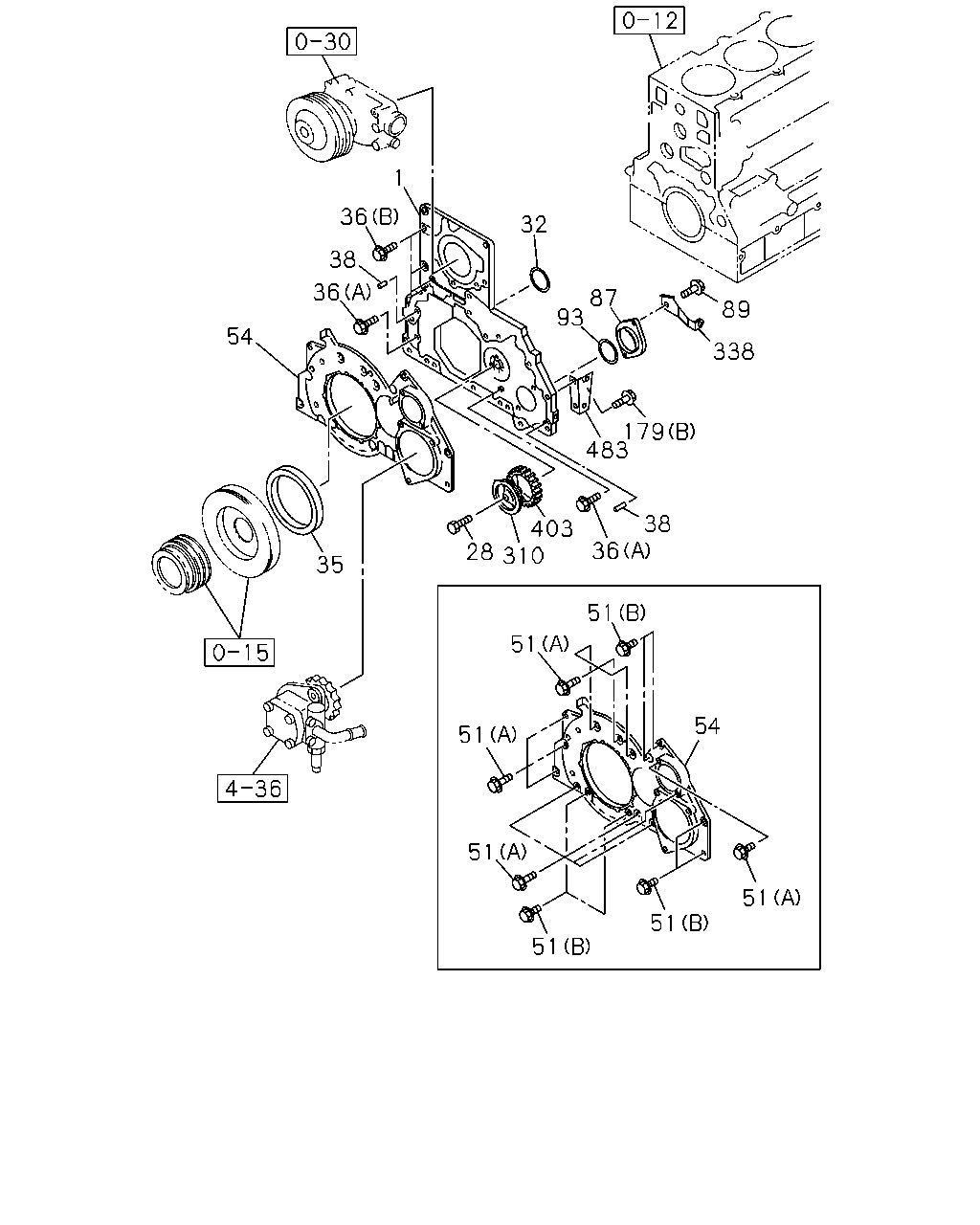

1 36 38 36 54 35 32 87 93 89 338 179 483 38 36 403 310 28 51 51 51 51 51 51 51 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE; TIMING GEAR	8-94396-434-6	01	1	0710-
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0710-
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0710-
35	SEAL; OIL,CRANKSHAFT FRT ID=104 OD=137	8-97602-378-3	01	1	0710-
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0710-
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0710-
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0710-
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0710-
54	COVER; GEAR CASE	8-94393-304-1	01	1	0710-
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0710-
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0710-
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7	1-09623-465-0	01	1	0710-
179	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0710-
179	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0710-
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0710-
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0710-
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0710-
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0710-

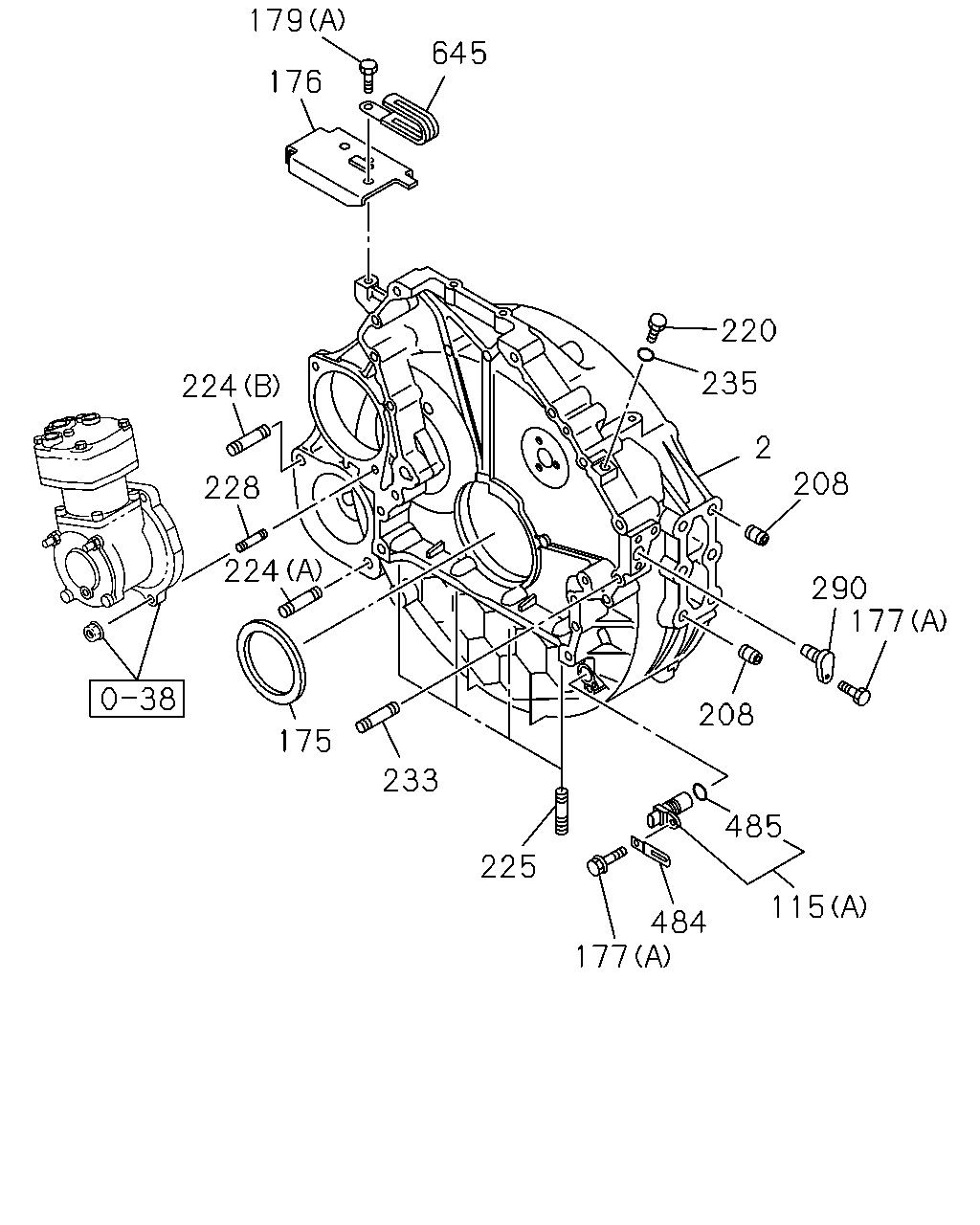

179 176 645 224 228 224 175 233 225 177 484 115 485 208 290 177 208 2 235 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL ALLISON MD3560P A/T(Y3B)	8-98019-443-0	01	1	0710-0808
2	HOUSING; FLYWHEEL ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4>	8-98019-443-0	01	1	0809-1104
2	HOUSING; FLYWHEEL ALLISON MD3560P A/T(Y3B)	8-98019-443-1	01	1	1105-
2	HOUSING; FLYWHEEL ZF9S1110 M/T(Y5E)	8-97609-996-3	01	1	0710-0808
2	HOUSING; FLYWHEEL ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>	8-97609-996-6	01	1	0809-1104
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2>	8-97609-996-6	01	1	0809-1104
2	HOUSING; FLYWHEEL ZF9S1110 M/T(Y5E)	8-97609-996-9	01	1	1105-
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97606-943-0	01	1	0710-
115	SENSOR; REVOLUTION,ENG SPD (B)	8-98019-024-0	01	1	0710-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0710-
176	BRACKET; HARNESS	8-98076-212-0	01	1	0710-
177	BOLT; SENSOR (B) M6X12 FLANGE	0-28050-612-0	01	1	0710-
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28050-616-0	02	1	0710-
179	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0710-
179	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0710-
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0710-
220	PLUG; GEAR CHECK HOLE ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> M12X9	9-99202-312-0	01	1	0912-1104
220	PLUG; GEAR CHECK HOLE ALLISON MD3560P A/T(Y3B) M12X9	9-99202-312-0	01	1	1105-1304
220	PLUG; GEAR CHECK HOLE ALLISON MD3560P A/T(Y3B) M12X9	0-92002-412-0	01	1	1305-
220	PLUG; GEAR CHECK HOLE M12X10	1-09605-125-0	01	1	0710-0911
220	PLUG; GEAR CHECK HOLE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> M12X10	1-09605-125-0	01	1	0912-1008
220	PLUG; GEAR CHECK HOLE EURO2 SPECIFICATION<NT2> M12X10	1-09605-125-0	01	1	0912-1008
220	PLUG; GEAR CHECK HOLE ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> M12X10	5-13265-001-0	01	1	1009-1404
220	PLUG; GEAR CHECK HOLE EURO2 SPECIFICATION<NT2> M12X10	5-13265-001-0	01	1	1009-1404
220	PLUG; GEAR CHECK HOLE ZF9S1110 M/T(Y5E) M12X10	5-13265-001-0	01	1	1405-
224	STUD; STARTER (A) M14X35 L=56	0-44011-435-0	01	1	0710-
224	STUD; STARTER (B) M14X45 L=66	0-44011-445-0	01	1	0710-
225	STUD; OIL PAN M8X28 L=38	8-94396-512-0	04	1	0710-
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0710-
233	STUD; BRKT M12X67 L=82	1-09302-112-0	01	1	0710-
235	GASKET; PLUG GEAR CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0710-1312
235	GASKET; PLUG GEAR CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
290	PLUG; SENSOR HOLE	8-97101-974-0	01	1	0710-
484	CLIP; BAND L=80	5-09700-307-1	01	1	0710-
485	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	02	1	0710-
645	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	0710-0801
645	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-0808
645	CLIP; HARNESS EURO4 SPECIFICATION<NT4> ID=18 L=44	8-97367-985-1	01	1	0809-1308
645	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	1309-

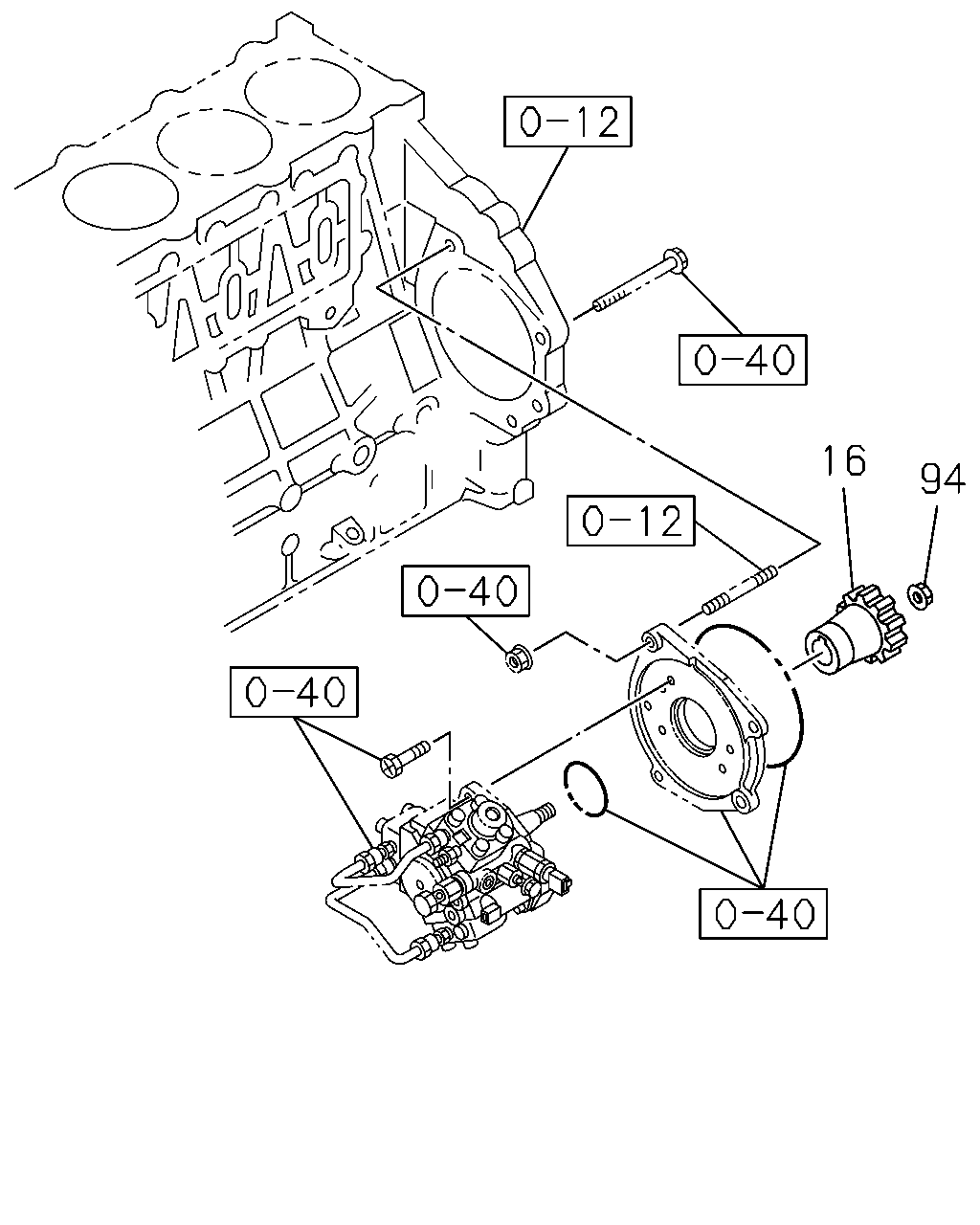

16 94

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	16	GEAR; INJ PUMP DRIVE Z=35	8-97601-153-1	01	1	0710-
	94	NUT; GEAR M14 FLANGE	0-91180-214-0	01	1	0710-
