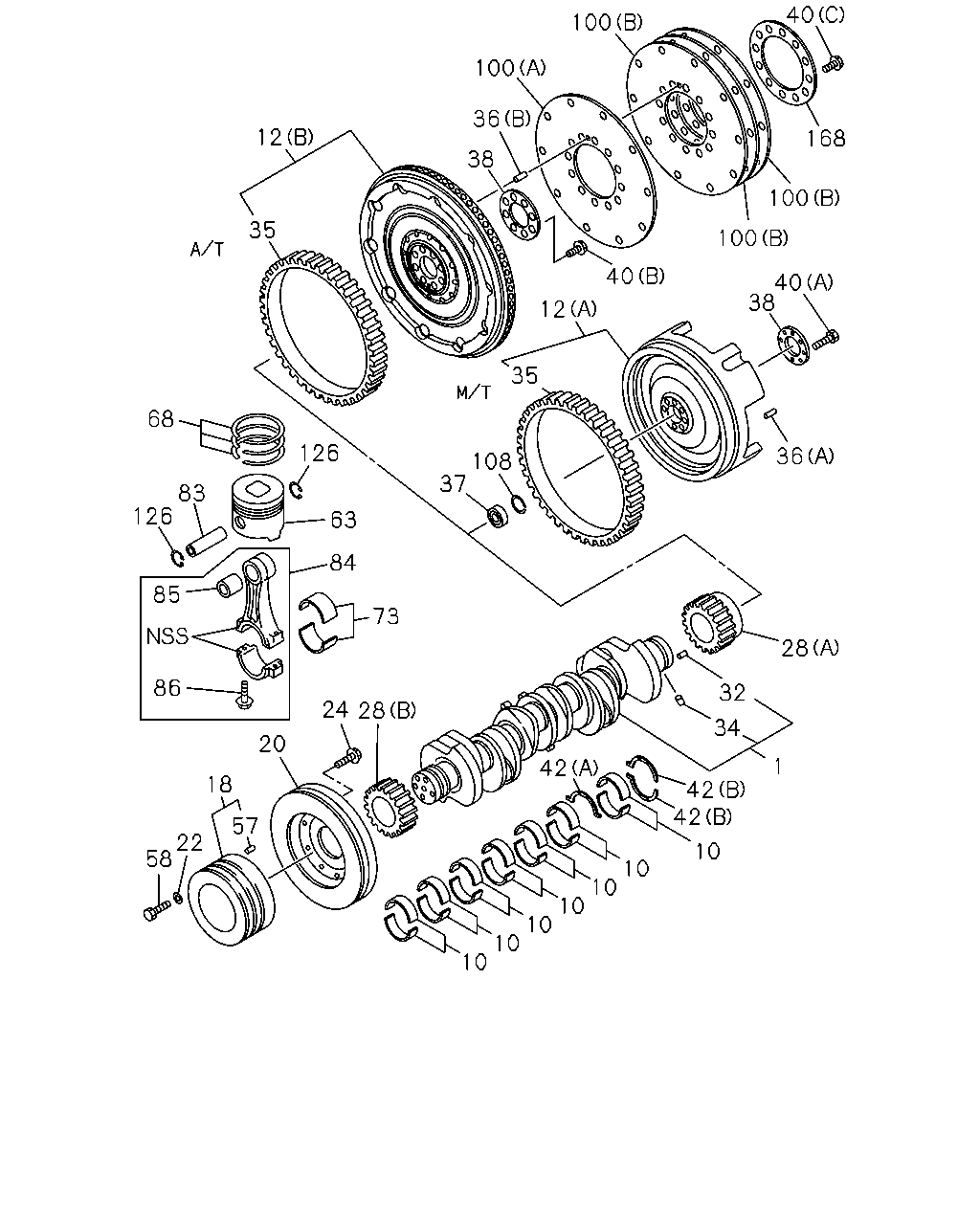

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#65653) — 73 parça

40 168 100 100 38 40 36 40 12 38 36 100 100 12 35 35 108 37 126 63 84 73 68 83 126 85 86 24 28 20 18 57 22 58 28 32 34 1 42 42 42 10 10 10 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CRANKSHAFT	8-97603-004-0	01	1	0710-
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	0710-
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	0710-
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	0710-
12	FLYWHEEL ALLISON MD3560P A/T(Y3B) (B)	8-97610-682-1	01	1	0710-0808
12	FLYWHEEL ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (B)	8-97610-682-1	01	1	0809-1104
12	FLYWHEEL ALLISON MD3560P A/T(Y3B) (B)	8-97610-682-1	01	1	1105-
12	FLYWHEEL ZF9S1110 M/T(Y5E) (A)	8-97602-463-0	01	1	0710-0808
12	FLYWHEEL ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (A)	8-97602-463-2	01	1	0809-1104
12	FLYWHEEL EURO2 SPECIFICATION<NT2> (A)	8-97602-463-2	01	1	0809-1104
12	FLYWHEEL ZF9S1110 M/T(Y5E) (A)	8-97602-463-2	01	1	1105-
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	0710-
20	DAMPER; CR/SHF	8-97613-696-1	01	1	0710-
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	0710-
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	0710-
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	0710-
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	0710-
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	0710-
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0710-
35	GEAR; RING Z=140	8-94396-784-1	01	1	0710-
36	PIN; FLYWHEEL ZF9S1110 M/T(Y5E) (A) OD=10 L=22	9-08151-022-0	02	1	0710-0808
36	PIN; FLYWHEEL ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (A) OD=10 L=22	9-08151-022-0	02	1	0809-1404
36	PIN; FLYWHEEL EURO2 SPECIFICATION<NT2> (A) OD=10 L=22	9-08151-022-0	02	1	0809-1404
36	PIN; FLYWHEEL ZF9S1110 M/T(Y5E) (A) OD=10 L=22	9-08151-022-0	02	1	1405-
36	PIN; FLYWHEEL ALLISON MD3560P A/T(Y3B) (B) OD=6 L=16	9-08160-616-0	01	1	0710-0808
36	PIN; FLYWHEEL ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (B) OD=6 L=16	9-08160-616-0	01	1	0809-1104
36	PIN; FLYWHEEL ALLISON MD3560P A/T(Y3B) (B) OD=6 L=16	9-08160-616-0	01	1	1105-
37	BEARING; PILOT,TOP GEAR SHAFT ZF9S1110 M/T(Y5E)	8-94392-288-0	01	1	0710-0808
37	BEARING; PILOT,TOP GEAR SHAFT ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4>	8-94392-288-0	01	1	0809-1404
37	BEARING; PILOT,TOP GEAR SHAFT EURO2 SPECIFICATION<NT2>	8-94392-288-0	01	1	0809-1404
37	BEARING; PILOT,TOP GEAR SHAFT ZF9S1110 M/T(Y5E)	8-94392-288-0	01	1	1405-
37	BEARING; PILOT,TOP GEAR SHAFT ZF9S1110 M/T(Y5E) BEST VALUE PARTS	1-87610-157-0	01	1	0710-0808
37	BEARING; PILOT,TOP GEAR SHAFT ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> BEST VALUE PARTS	1-87610-157-0	01	1	0809-1404
37	BEARING; PILOT,TOP GEAR SHAFT EURO2 SPECIFICATION<NT2> BEST VALUE PARTS	1-87610-157-0	01	1	0809-1404
37	BEARING; PILOT,TOP GEAR SHAFT ZF9S1110 M/T(Y5E) BEST VALUE PARTS	1-87610-157-0	01	1	1405-
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0710-
40	BOLT; FLYWHEEL ALLISON MD3560P A/T(Y3B) (C) M12X30	8-11505-501-0	12	1	0710-0808
40	BOLT; FLYWHEEL ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (C) M12X30	8-11505-501-0	12	1	0809-1104
40	BOLT; FLYWHEEL ALLISON MD3560P A/T(Y3B) (C) M12X30	8-11505-501-0	12	1	1105-
40	BOLT; FLYWHEEL ALLISON MD3560P A/T(Y3B) (B) M16X79	8-97606-638-0	08	1	0710-0808
40	BOLT; FLYWHEEL ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (B) M16X79	8-97606-638-0	08	1	0809-1104
40	BOLT; FLYWHEEL ALLISON MD3560P A/T(Y3B) (B) M16X79	8-97606-638-0	08	1	1105-
40	BOLT; FLYWHEEL ZF9S1110 M/T(Y5E) (A) M16X62	8-94393-070-2	08	1	0710-0808
40	BOLT; FLYWHEEL ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> (A) M16X62	8-94393-070-2	08	1	0809-1311
40	BOLT; FLYWHEEL EURO2 SPECIFICATION<NT2> (A) M16X62	8-94393-070-2	08	1	0809-1311
40	BOLT; FLYWHEEL ZF9S1110 M/T(Y5E) (A) M16X62	8-94393-070-2	08	1	1312-
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0710-
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0710-
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	0710-
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	0710-
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	0710-
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	0710-
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	0710-
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	0710-
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	0710-
84	ROD ASM; CONN	8-98018-425-3	06	1	0710-
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	0710-
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	12	1	0710-1004
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1005-
100	PLATE; FLEX ALLISON MD3560P A/T(Y3B) (A)	8-29538-154-0	01	1	0710-0808
100	PLATE; FLEX ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (A)	8-29538-154-0	01	1	0809-1104
100	PLATE; FLEX ALLISON MD3560P A/T(Y3B) (A)	8-29538-154-0	01	1	1105-
100	PLATE; FLEX ALLISON MD3560P A/T(Y3B) (B)	8-29538-155-0	03	1	0710-0808
100	PLATE; FLEX ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> (B)	8-29538-155-0	03	1	0809-1104
100	PLATE; FLEX ALLISON MD3560P A/T(Y3B) (B)	8-29538-155-0	03	1	1105-
108	RING; SNAP,BRG SET ZF9S1110 M/T(Y5E) OD=59.2	9-09180-155-0	01	1	0710-0808
108	RING; SNAP,BRG SET ZF9S1110 M/T(Y5E) EURO4 SPECIFICATION<NT4> OD=59.2	9-09180-155-0	01	1	0809-1404
108	RING; SNAP,BRG SET EURO2 SPECIFICATION<NT2> OD=59.2	9-09180-155-0	01	1	0809-1404
108	RING; SNAP,BRG SET ZF9S1110 M/T(Y5E) OD=59.2	9-09180-155-0	01	1	1405-
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	0710-
168	PLATE; WEAR ALLISON MD3560P A/T(Y3B) ID=119 OD=177	8-29538-157-0	01	1	0710-0808
168	PLATE; WEAR ALLISON MD3560P A/T(Y3B) EURO4 SPECIFICATION<NT4> ID=119 OD=177	8-29538-157-0	01	1	0809-1104
168	PLATE; WEAR ALLISON MD3560P A/T(Y3B) ID=119 OD=177	8-29538-157-0	01	1	1105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
