Isuzu WW
▶
TRUCKS
▶
FVM
▶
10780 - FVM(THAI)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-50 - FRONT SUSPENSION
▶

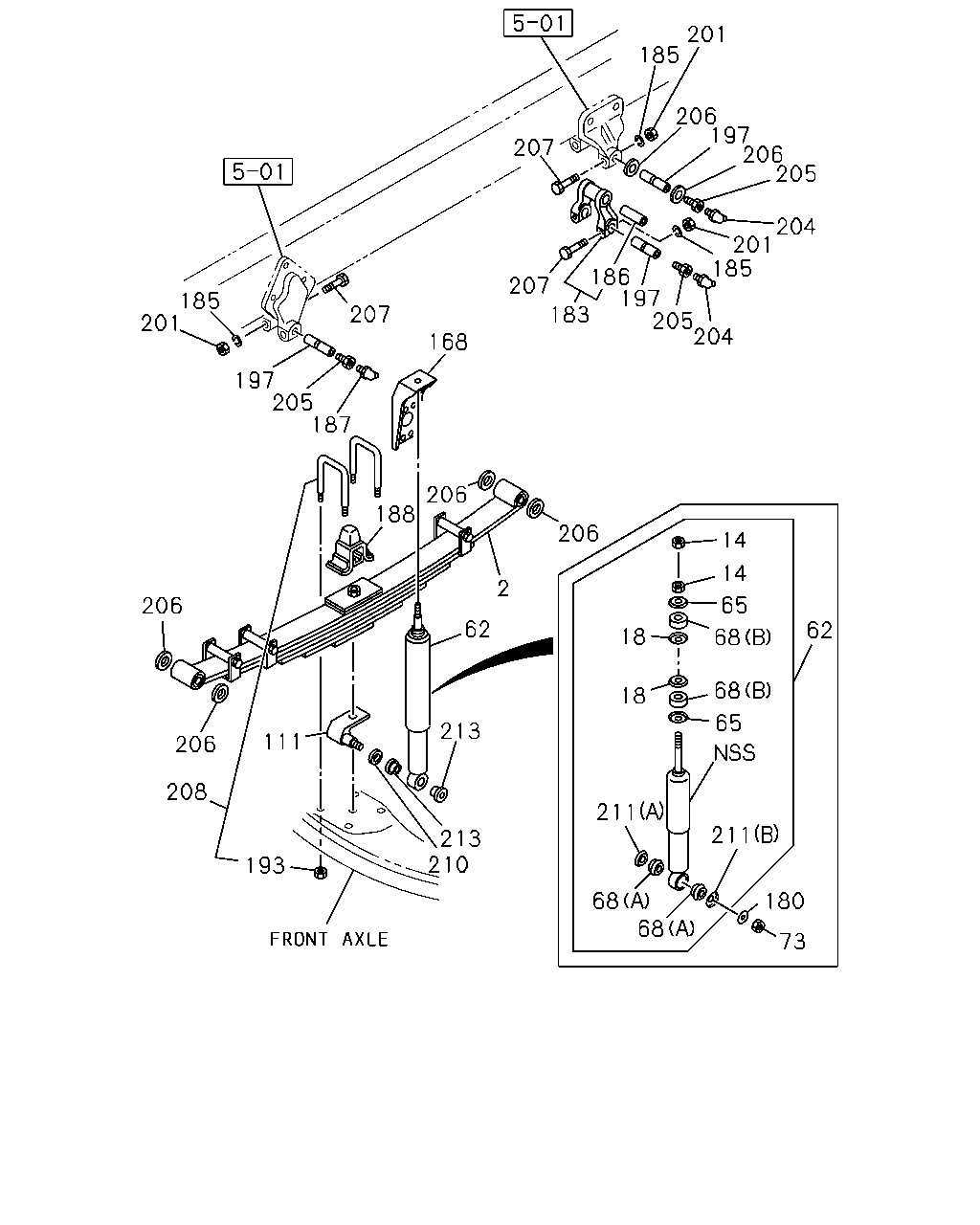

4-50 — FRONT SUSPENSION
(#6564) — 32 parça
201
185
206
197
206
205
207
204
201
185
186
197
205
204
207
183
185
201
207
168
197
205
187
206
188
206
14
14
65
68
2
206
62
62
18
68
65
18
213
111
206
208
211
211
213
210
193
68
68
180
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-97913-795-0
04
1
0101-0312
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-97913-795-0
03
1
0401-
2
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. THA
8-97922-658-0
01
1
0401-
14
NUT; S/ABS,UPR
THA
8-97914-922-0
04
1
0101-
18
WASHER; CENTERING,S/ABS
THA
8-97914-919-0
04
1
0101-
62
ABSORBER ASM; SHOCK,FRT
THA
8-97914-854-0
02
1
0101-
65
WASHER; S/ABS
THA
8-97914-918-0
04
1
0101-
68
BUSHING; S/ABS
(A) THA
8-97914-915-0
04
1
0101-
68
BUSHING; S/ABS
(B) THA
8-97914-917-0
04
1
0101-
73
NUT; BRKT,SHOCK
M16
9-99110-416-0
02
1
0101-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-721-1
01
1
0101-
111
SUPPORTER; S/ABS,FRT SUSP
1-51681-720-1
01
1
0101-
168
BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5200MM<52W>,WHEEL BASE 5400MM<54W>, WHEELBASE 5800MM<58W>
1-51681-306-0
02
1
0101-
168
BRACKET; S/ABS,FRT SUSP
WHEEL BASE 5400MM<54W>,WHEEL BASE 6300MM<63W>
1-51681-306-0
02
1
0101-
180
WASHER; PL,PIN
ID=17
9-09160-516-0
02
1
0101-
183
SHACKLE; FRT SUSP
1-51162-029-4
02
1
0101-
185
WASHER; LK,PIN
ID=12.2
9-09150-612-0
12
1
0101-
186
BUSHING; SHACKLE
OD=38 THA
1-51351-009-0
02
1
0101-
187
NIPPLE; GREASE,FRT
PT1/8 ELBOW
9-09031-210-0
02
1
0101-
188
RUBBER; CLAMP,U-BOLT,FRT SPR
THA
8-97916-007-0
02
1
0101-
193
NUT; U BOLT
M22
9-09112-822-0
08
1
0101-
197
PIN; FRT SPR,FRT
1-51161-031-0
06
1
0101-
201
NUT; PIN LK
M12
9-99110-512-0
12
1
0101-
204
NIPPLE; GREASE,RR
PT1/8 ELBOW
9-09031-210-0
04
1
0101-
205
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
06
1
0101-
206
WASHER; LK,SPRING PIN
ID=32.4
1-51169-018-0
12
1
0101-
207
BOLT; SPR TO SHACKLE
M12X80
0-10806-280-0
12
1
0101-
208
U-BOLT SET; FRT SPRING
L=210
1-87870-380-0
04
1
0101-
210
WASHER; S/ABS,OUTER
ID=17 THA
1-51631-020-0
02
1
0101-
211
WASHER; BRKT,SHOCK
(A) THA
8-97915-706-0
02
1
0101-
211
WASHER; BRKT,SHOCK
(B) THA
8-97915-707-0
02
1
0101-
213
BUSHING; RUBBER,LWR
THA
1-51631-009-1
04
1
0101-
