◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#65631) — 226 parça

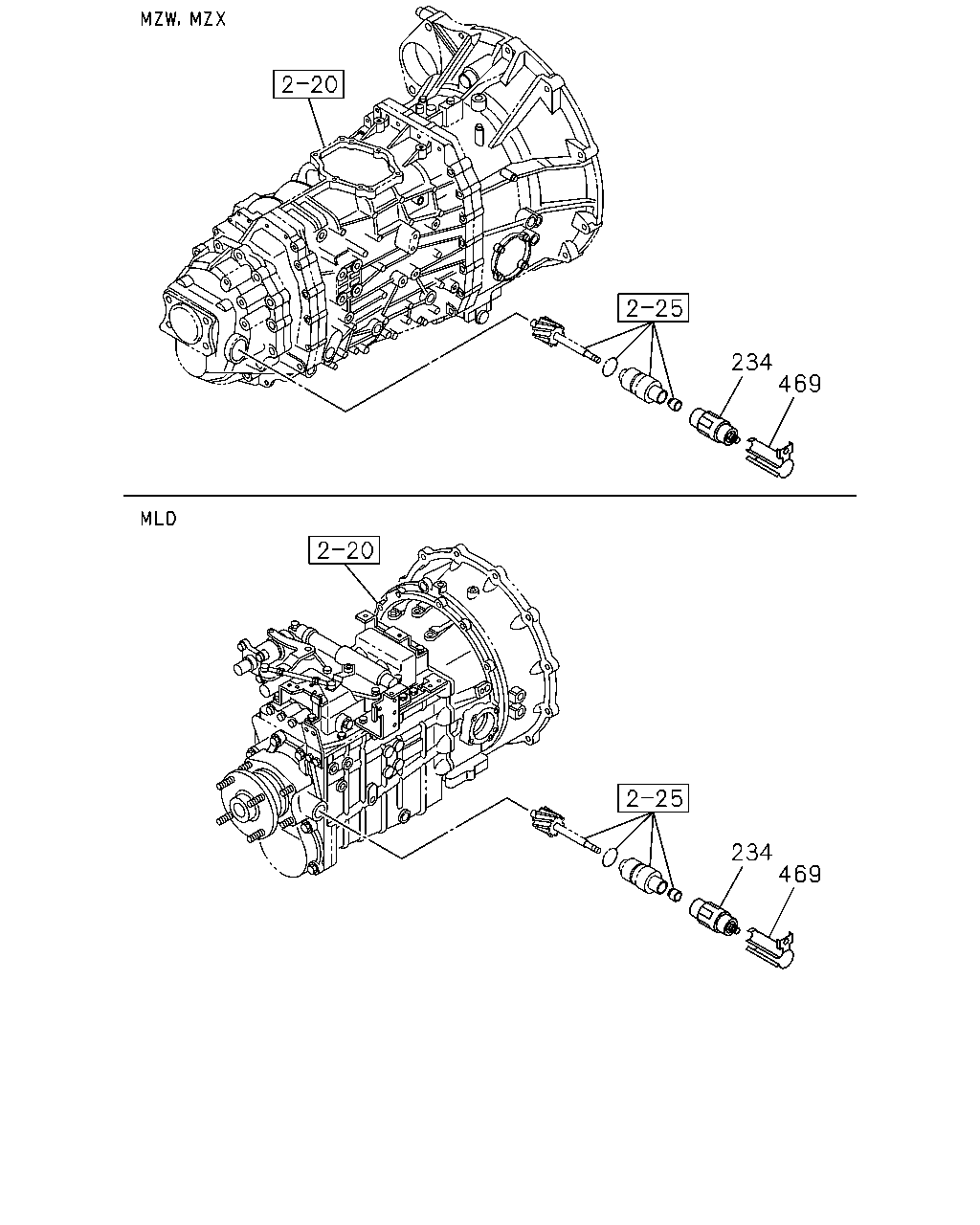

çizim 138077
234 469 234 469
BalonParca AdiParca NoAdetTipApplied Date A B
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-0 01 1 0710-0711 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0712- ● ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0710-0711 ●
469 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0712-0808 ● ●
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0809- ● ●

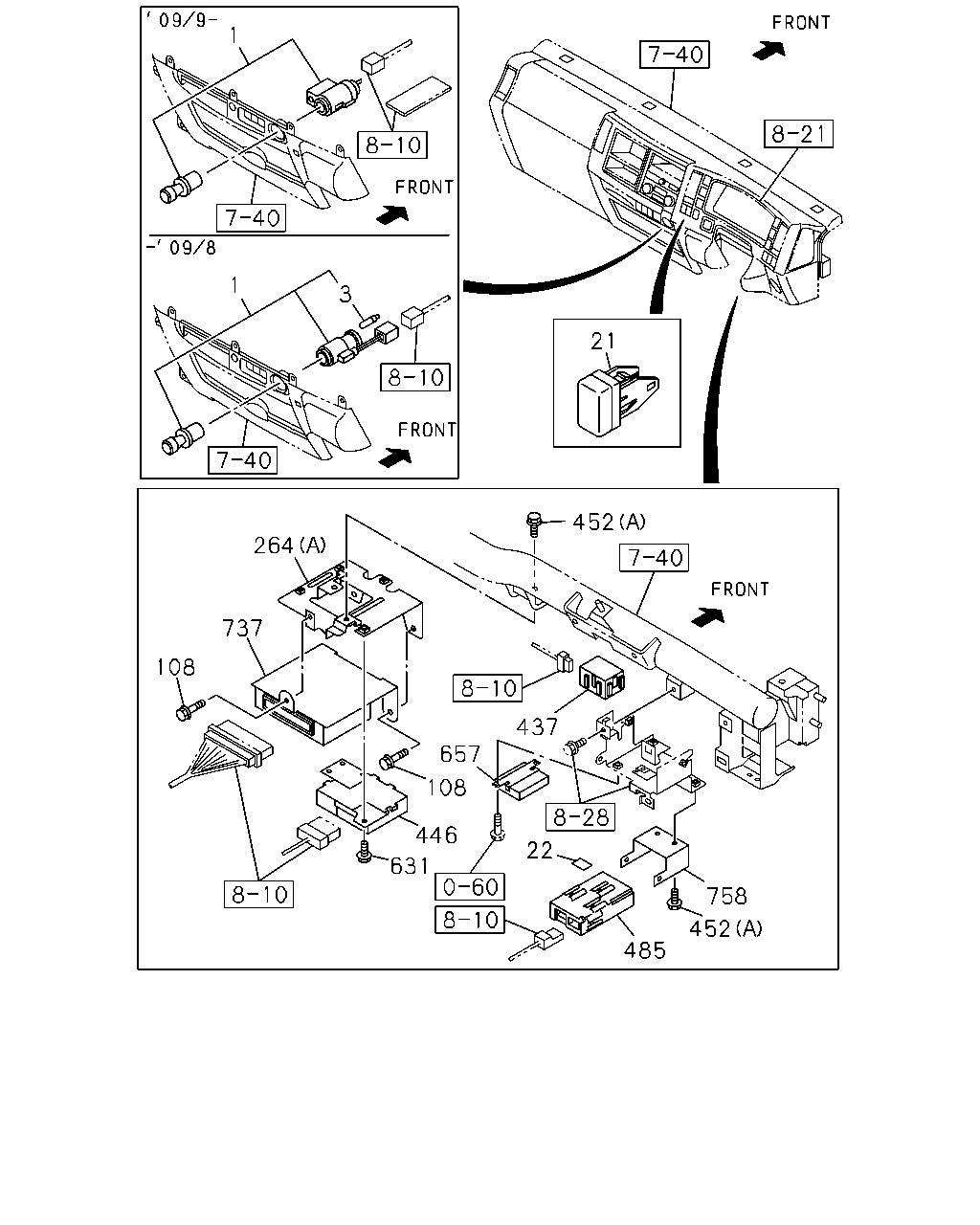

çizim 138220
1 1 3 21 264 737 108 657 108 446 631 22 437 452 758 452 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0710-0711 ●
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0712-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0711 ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0712-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0710-0711 ●
21 COVER; HOLE
EXC. O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-98025-954-1 01 1 0712- ●
21 COVER; HOLE 8-98025-954-1 01 1 0712- ●
22 SEAL; TAPE 1-80199-006-0 01 1 0710-0711 ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU) 		1-80199-006-0 01 1 0712-1212 ●
22 SEAL; TAPE 1-80199-006-0 01 1 0712-1212 ●
22 SEAL; TAPE
SPEED LIMITER 100KM(NMU) 		8-98166-639-0 01 1 1301- ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301- ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0710-0711 ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0712-0901 ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0902-0906 ● ●
108 BOLT; TRANS CONT MODULE
TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 03 1 0907- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0712- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0710-0711 ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0712- ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-1 01 1 0710-0711 ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-80111-116-1 01 1 0712-0812 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98136-318-1 01 1 0901- ● ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0804- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
MZX6P M/T(RSW) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ● ●
452 BOLT; BRKT
MZX6P M/T(RSW) SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
MZX6P M/T(RSW) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ● ●
452 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
452 BOLT; BRKT
SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0710-0711 ●
485 CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 0712-1008 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0712-1008 ●
485 CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 100KM(NMU) 		8-98140-862-0 01 1 1009-1109 ●
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109 ●
485 CONTROL UNIT; SPEED SENSOR
SPEED LIMITER 100KM(NMU) 		1-80190-059-1 01 1 1110- ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110- ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0812 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
657 CONTROL UNIT; MIMAMORI
FINAL GEAR 41/7 15.5"(W3S) 		8-98013-144-6 01 1 0710-0711 ● ●
657 CONTROL UNIT; MIMAMORI
FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/7 15.5"(W3S) LIMITED SLIP DIFF VAR2(G86) 		8-98013-144-8 01 1 0712-1401 ● ●
657 CONTROL UNIT; MIMAMORI
FINAL GEAR 39/7 15.5"(W3K),FINAL GEAR 41/7 15.5"(W3S) LIMITED SLIP DIFF VAR2(G86) 		8-98260-912-1 01 1 1402- ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-824-0 01 1 0710-0711 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-824-0 01 1 0712-0904 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-015-0 01 1 0905-0906 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-015-0 01 1 0907-1008 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-519-0 01 1 1009-1212 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-117-0 01 1 1301-1404 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-476-0 01 1 1405-1411 ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCC ENG(81L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-017-0 01 1 1412- ● ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98096-825-0 01 1 0712-0904 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-016-0 01 1 0905-0906 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-016-0 01 1 0907-1008 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1009-1107 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98164-520-0 01 1 1108-1212 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98230-118-0 01 1 1301-1404 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98269-477-0 01 1 1405-1411 ●
737 CONTROL UNIT; TRANSMISSION
6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) EURO4 SPECIFICATION<NT4> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98288-018-0 01 1 1412- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0710-0711 ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
SPEED LIMITER 100KM(NMU) 		8-98048-743-1 01 1 0712- ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0712- ●

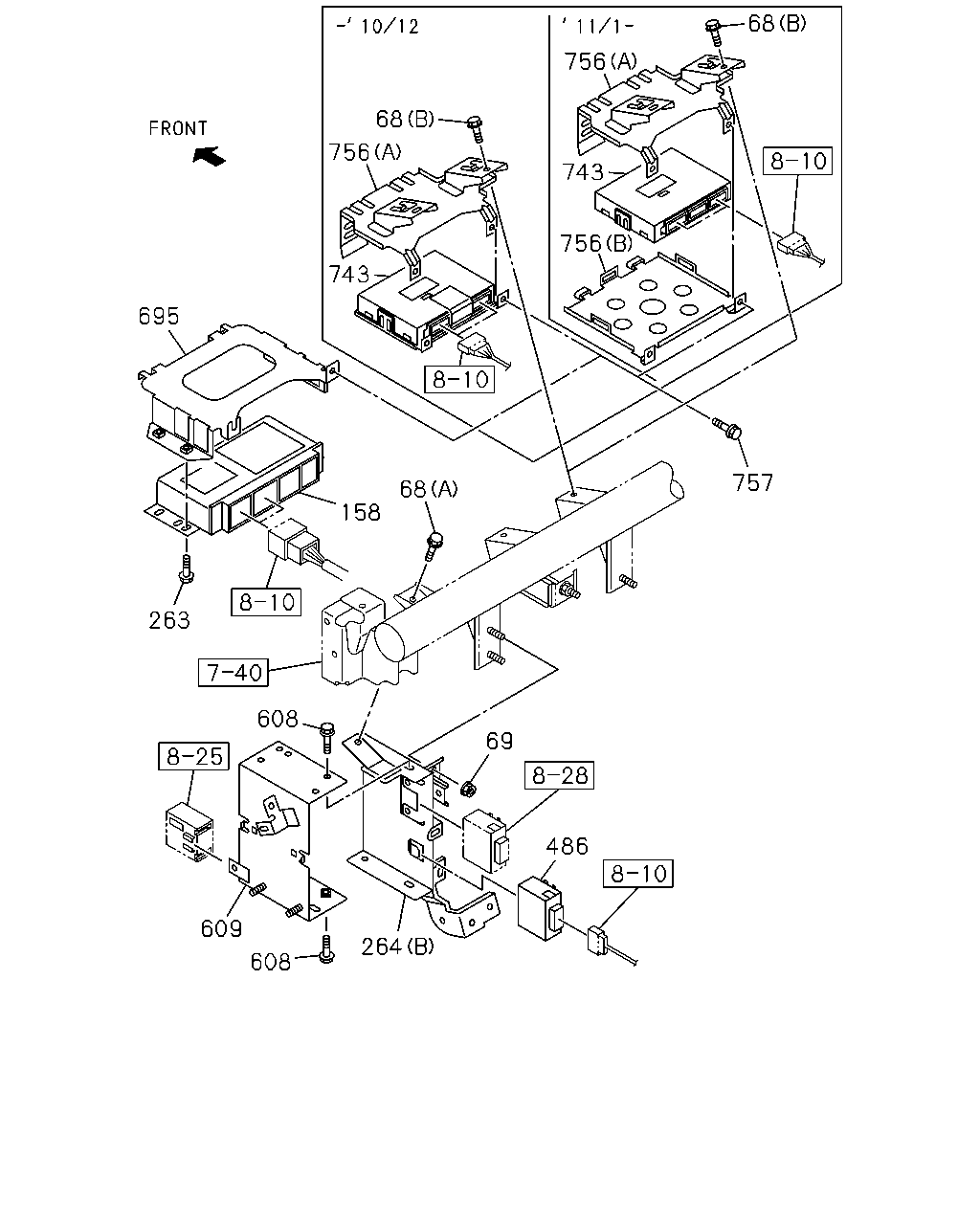

çizim 138478
68 756 68 756 743 756 743 695 757 68 158 263 608 69 486 609 264 608
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710-0711 ●
68 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ●
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0712- ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 9.00R-20-14 RIB(25R),TIRE 10R22.5-14 RIB(35N) ,TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 9.00R-20-14 EXP LUG(5L7),TIRE 10.00R-20-16EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) KD PREPARATORY PACK<6HF> 		1-80119-261-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) KD PREPARATORY PACK<6HF> 		1-80119-229-2 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 9.00-20-14 RIB(10T),TIRE FRT 9.00-20-14 RIB RR 9.00-20-14 LUG(10X),TIRE FRT 10.00-20-14 RIB RR10.00-20-14 LUG(11X),TIRE 9.00-20-14 LUG(21R),TIRE 9.00R-20-14 RIB(25R),TIRE 10.00-20-14 RIB(30T),TI RE 10R22.5-14 RIB(35N),TIRE 10.00-20-16 RIB(40T), TIRE 10.00-20-14 LUG(41R),TIRE 11R22.5-14 RIB(45N), TIRE 10.00R20-14 RIB(45R),TIRE 10.00-20-16 LUG(51R),TIRE 11.00R-22.5-16 RIB(55N) 		1-80119-261-0 01 1 0712-0812 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 9.00R-20-14 RIB(25R),TIRE 10R22.5-14 RIB(35N) ,TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 11.00R-22.5-16 RIB(55N) 		1-80119-261-0 01 1 0901-0901 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 9.00R-20-14 RIB(25R),TIRE 10R22.5-14 RIB(35N) ,TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 9.00R-20-14 EXP LUG(5L7),TIRE 10.00R-20-16EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) 		1-80119-261-0 01 1 0901-1005 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 9.00R-20-14 RIB(25R),TIRE 10R22.5-14 RIB(35N) ,TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 9.00R-20-14 EXP LUG(5L7),TIRE 10.00R-20-16EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) 		8-98170-648-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 9.00R-20-14 RIB(25R),TIRE 10R22.5-14 RIB(35N) ,TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 9.00R-20-14 EXP LUG(5L7),TIRE 10.00R-20-16EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) EXC. KD PREPARATORY PACK<6HF> 		8-98170-648-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 9.00R-20-14 RIB(25R),TIRE 10R22.5-14 RIB(35N) ,TIRE 11R22.5-14 RIB(45N),TIRE 10.00R20-14 RIB(45R),TIRE 9.00R-20-14 EXP LUG(5L7),TIRE 10.00R-20-16EXP LUG(5L8),TIRE 11.00R-22.5-16 RIB(55N),TIRE 10.00R20-16 RIB(55R) 		8-98170-648-0 01 1 1202- ●
158 CONTROLLER; ABS 1-80119-229-2 01 1 0710-0711 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		1-80119-229-2 01 1 0712-1005 ●
158 CONTROLLER; ABS 1-80119-229-2 01 1 0712-1005 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98170-647-0 01 1 1006-1007 ●
158 CONTROLLER; ABS 8-98170-647-0 01 1 1006-1007 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) EXC. KD PREPARATORY PACK<6HF> 		8-98170-647-0 01 1 1008-1201 ●
158 CONTROLLER; ABS 8-98170-647-0 01 1 1008-1201 ●
158 CONTROLLER; ABS
ANTI LOCK BRAKE<JE5> TIRE 275/70R22.5 SPECIAL(45P) 		8-98170-647-0 01 1 1202- ●
158 CONTROLLER; ABS 8-98170-647-0 01 1 1202- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ●
263 BOLT; CONT UNIT
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 04 1 0712- ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0712- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0710-0711 ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
264 BRACKET; CONT UNIT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98064-901-0 01 1 0712- ● ●
486 CONTROL UNIT; MIRROR
O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97610-202-1 01 1 0712- ●
608 BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> M6X16 FLANGE 		0-28650-616-0 05 1 0712- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98095-337-0 01 1 0712-1308 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98169-737-1 01 1 1309- ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0710-0711 ●
695 BRACKET; CONT UNIT,ABS
ANTI LOCK BRAKE<JE5> 		8-98045-016-1 01 1 0712- ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0712- ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0710-0711 ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98089-297-0 01 1 0712-0802 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98102-484-0 01 1 0803-0901 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101- ● ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0710-0711 ●
756 BRACKET; ECU,BCM
ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0712- ●
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> (A) 		8-98056-411-3 01 1 0712- ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0712- ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0710-0711 ●
757 BOLT; BRKT,BCM
ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 0712- ●
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTI LOCK BRAKE<JE5> M6X16 FLANGE 		0-28650-616-0 02 1 0712- ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0712- ●

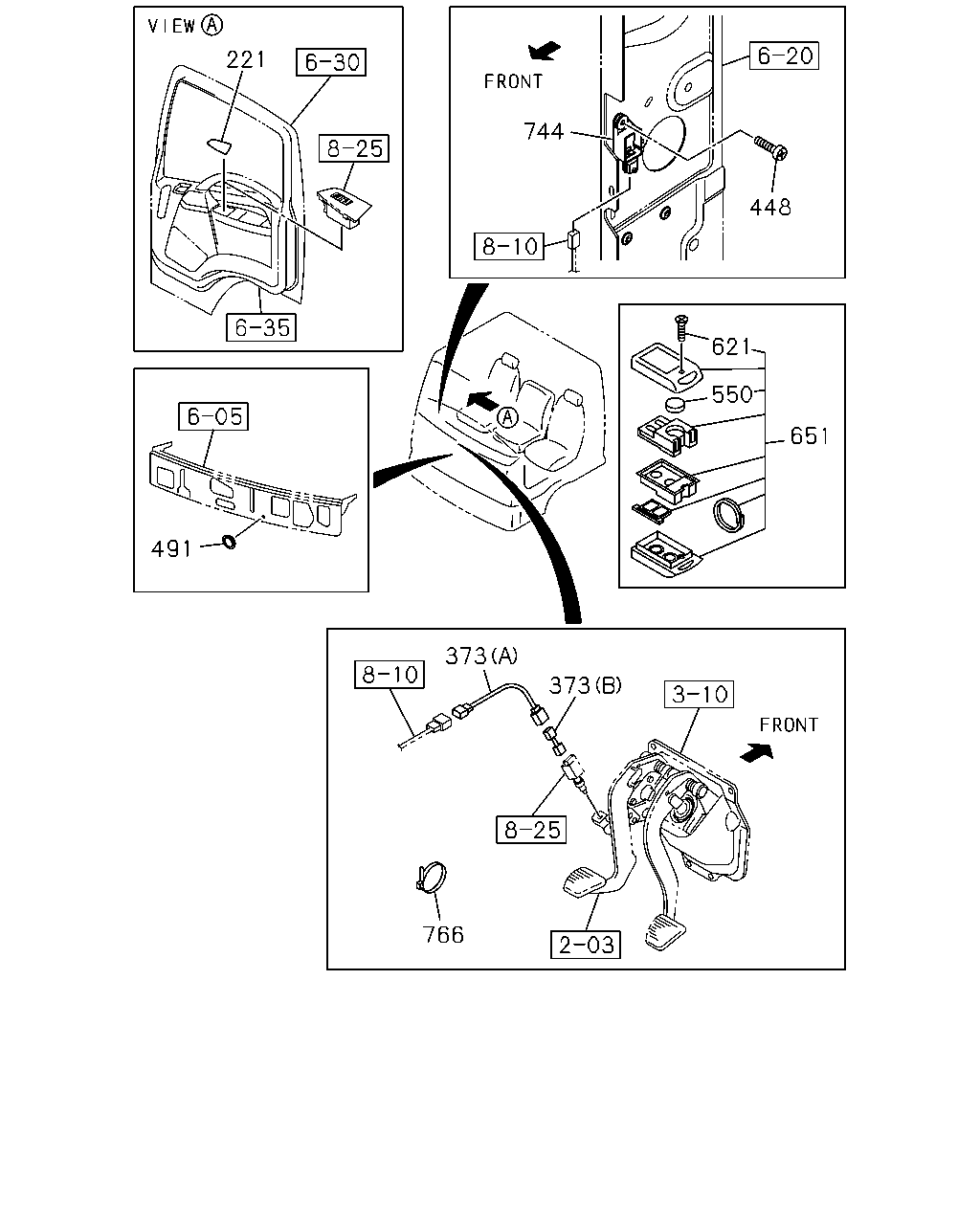

çizim 138488
221 744 448 651 550 621 491 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0712- ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0712- ●
373 HARNESS; CLU SWITCH
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98105-661-0 01 1 0712-0809 ● ●
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-1 01 1 0710-0805 ●
373 HARNESS; CLU SWITCH
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98059-419-2 01 1 0806- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710-0711 ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0712- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0710-0711 ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 0712- ● ●
550 BATTERY; TRANSMITTER
HONG KONG EQUIPMENT(B14) 		8-98078-061-0 02 1 1206-1308 ● ●
621 SCREW
HONG KONG EQUIPMENT(B14) M2X5 		8-98218-239-0 02 1 1206-1308 ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
HONG KONG EQUIPMENT(B14) 		8-98218-235-0 02 1 1206-1308 ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-1 01 1 0710-0711 ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0712- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711-0711 ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0712- ● ●

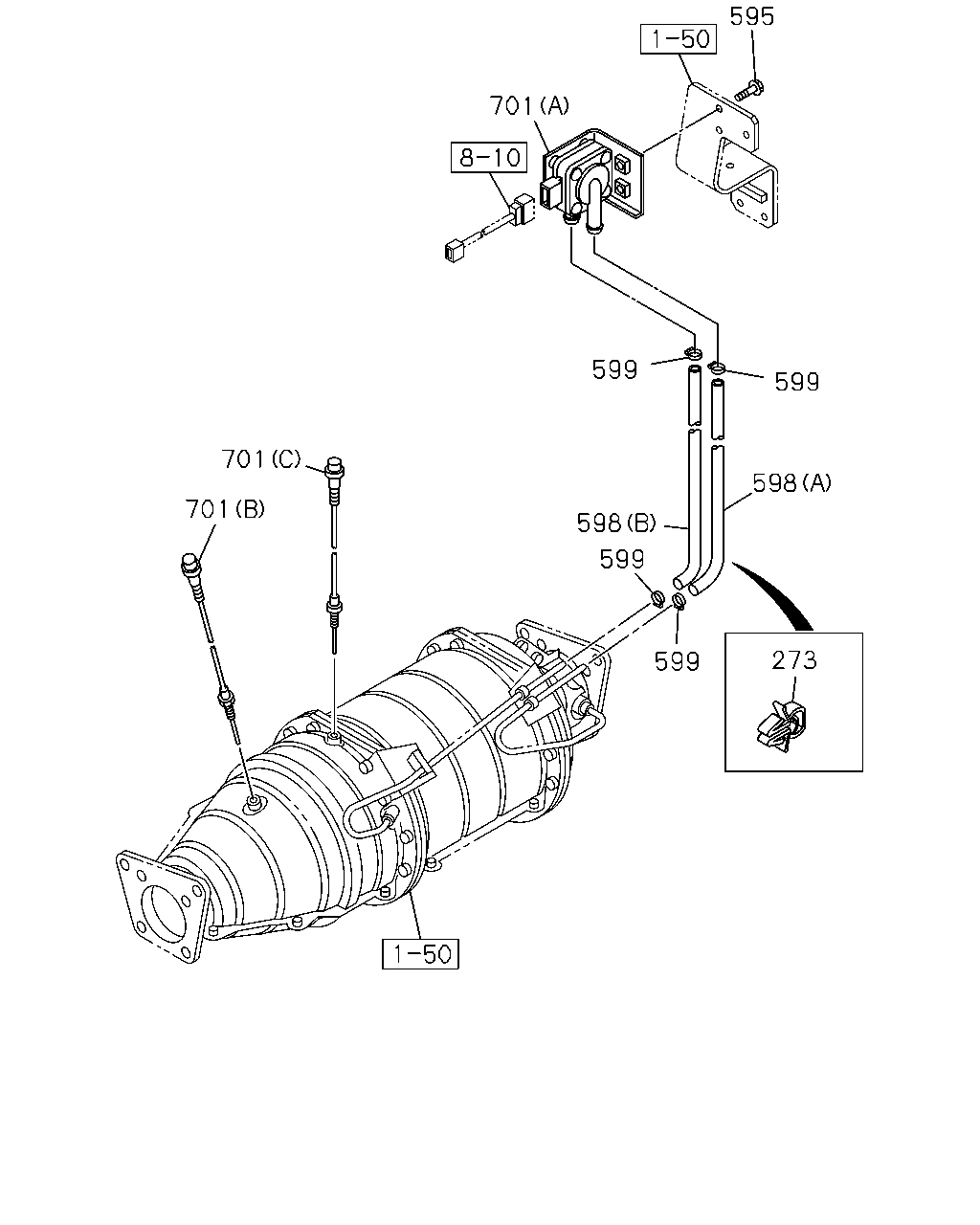

çizim 143918
595 701 599 599 701 598 701 598 599 273 599
BalonParca AdiParca NoAdetTipApplied Date A B
273 CLIP; HARNESS 8-94225-098-0 01 1 0710-0711 ●
273 CLIP; HARNESS 8-94225-098-0 01 1 0712-0802 ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0808 ● ●
595 BOLT; SENSOR
EURO4 SPECIFICATION<NT4> M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4200MM(42W) (B) 		8-98072-087-1 01 1 0710-0711 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (B) 		8-98072-087-1 01 1 0712-0808 ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98072-087-1 01 1 0712-0808 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (B) 		8-98072-087-1 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98072-087-1 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4200MM(42W) (A) 		8-98072-088-0 01 1 0710-0711 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) 		8-98072-088-0 01 1 0712-0808 ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98072-088-0 01 1 0712-0808 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) EURO4 SPECIFICATION<NT4> (A) 		8-98072-088-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98072-088-0 01 1 0809- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 6500MM(65W) (A) 		8-98069-927-0 01 1 0710-0710 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 6500MM(65W) (A) 		8-98075-388-0 01 1 0710-0711 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) 		8-98075-388-0 01 1 0712-0808 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (A) 		8-98075-388-0 01 1 0907- ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 6500MM(65W) (B) 		8-98069-928-0 01 1 0710-0710 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 6500MM(65W) (B) 		8-98075-389-0 01 1 0710-0711 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) 		8-98075-389-0 01 1 0712-0808 ●
598 HOSE; RUBBER,SENSOR
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0809-0906 ●
598 HOSE; RUBBER,SENSOR
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EURO4 SPECIFICATION<NT4> (B) 		8-98075-389-0 01 1 0907- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0710-0711 ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0712-0808 ● ●
599 CLIP; HOSE
EURO4 SPECIFICATION<NT4> ID=13 		8-97329-627-0 04 1 0809- ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0809- ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710-0711 ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0712-0808 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (B) 		8-97359-987-5 01 1 0809- ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0809- ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710-0711 ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0712-0808 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (C) 		8-97359-989-5 01 1 0809- ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0809- ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0710-0711 ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0712-0808 ● ●
701 SENSOR; DPD
CATALYSIS CONTROL WITH DPD<8JM> (A) 		8-97360-368-2 01 1 0809- ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0809- ●

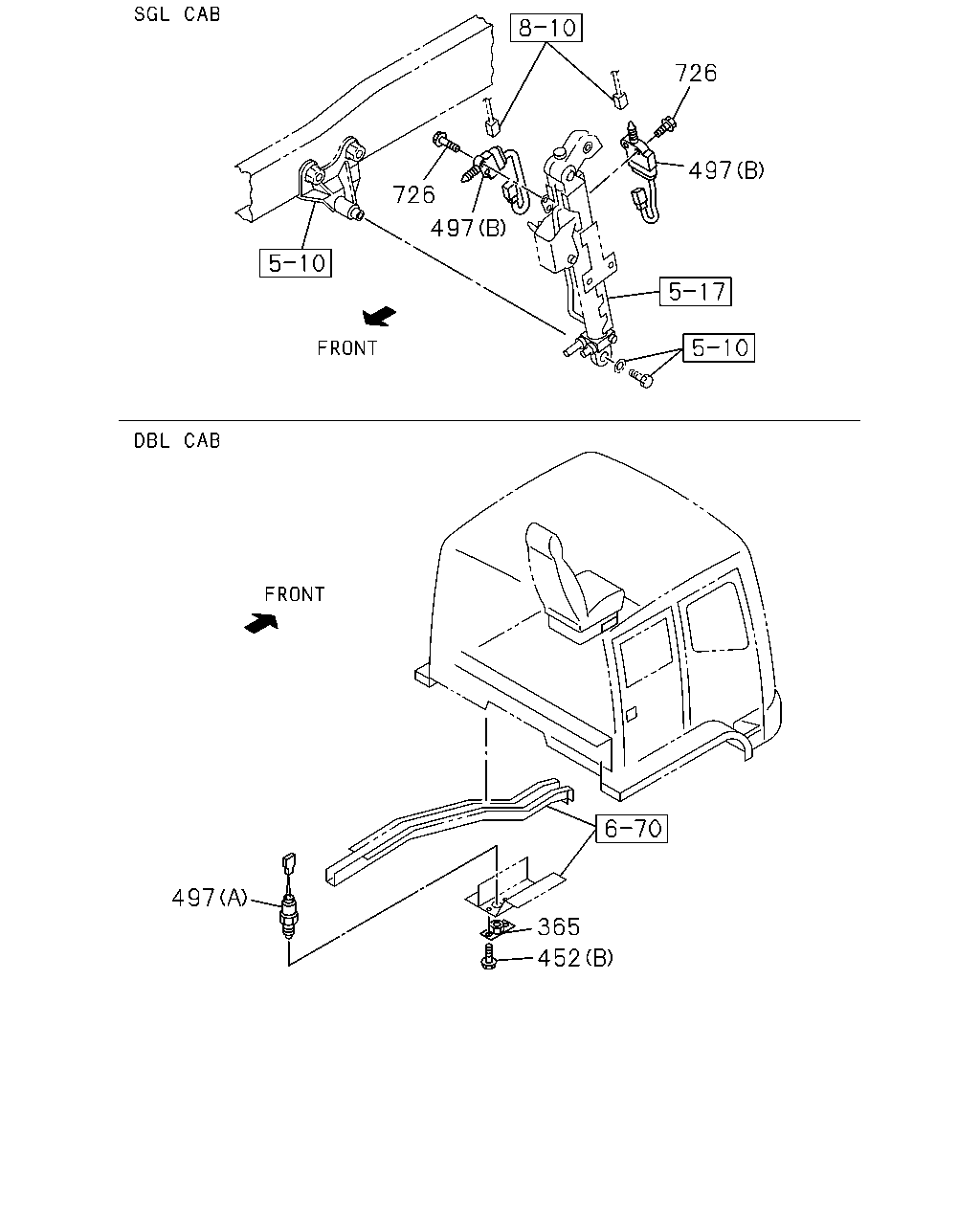

çizim 143990
726 497 726 497 497 365 452
BalonParca AdiParca NoAdetTipApplied Date A B
365 PLATE ASM; SW,CAB TILT 1-71998-393-1 01 1 0804- ●
452 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0804- ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0710-0710 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
MZX6P M/T(RSW) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0711-0711 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ● ●
452 BOLT; BRKT
MZX6P M/T(RSW) SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
MZX6P M/T(RSW) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0712-0805 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ● ●
452 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0806-0906 ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
452 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
452 BOLT; BRKT
SPEED LIMITER 100KM(NMU) (A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
452 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 02 1 0907- ●
497 SWITCH; CAB TILT
(B) STAMP NO 		1-82380-172-1 02 1 0711-0711 ●
497 SWITCH; CAB TILT
AUTO CAB TILT<WV2> (B) STAMP NO 		1-82380-172-1 02 1 0712- ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0712- ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0711-0711 ●
726 BOLT; SW,CAB TILT
AUTO CAB TILT<WV2> M6X25 FLANGE 		0-28050-625-0 04 1 0712- ●

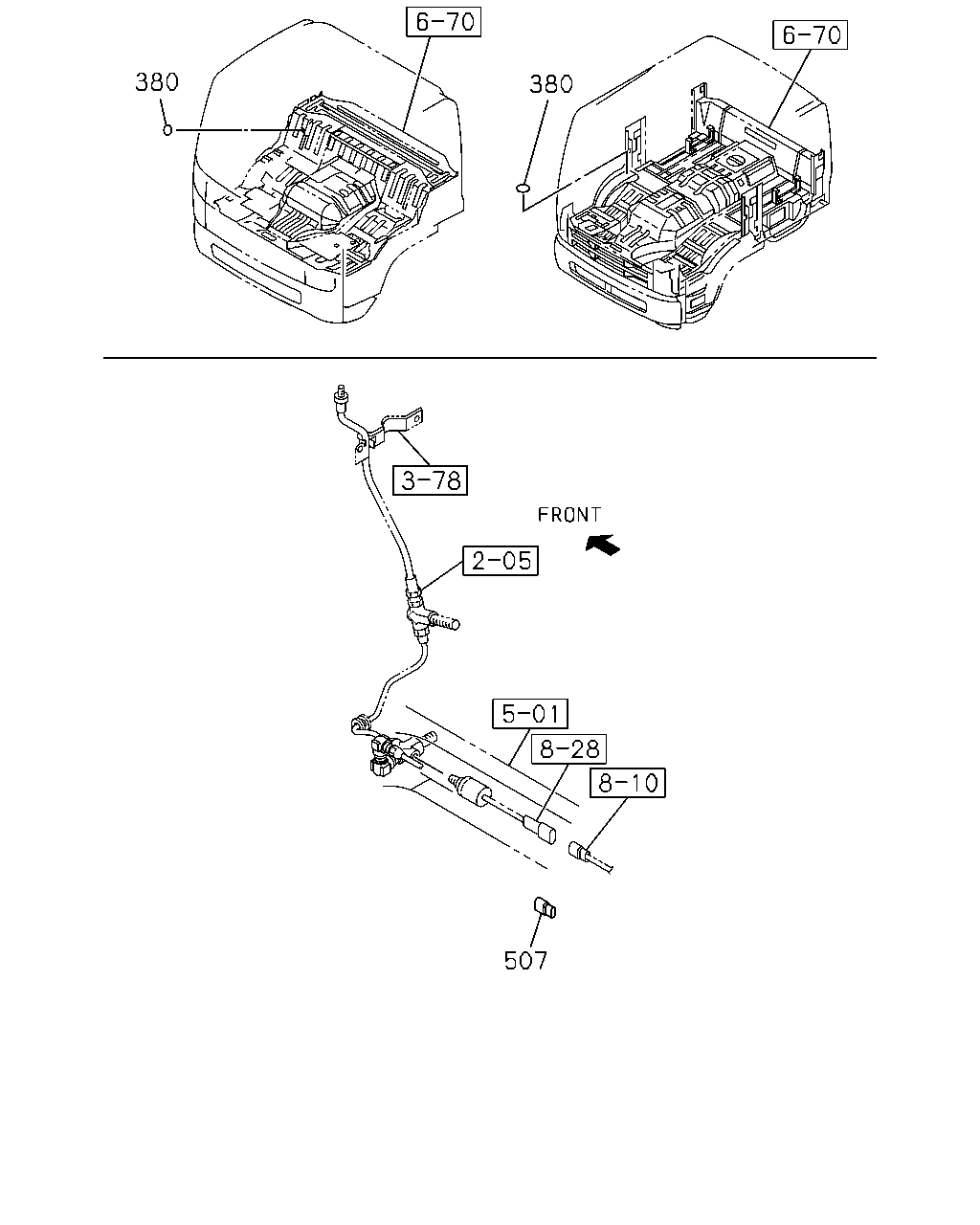

çizim 192248
380 380 507
BalonParca AdiParca NoAdetTipApplied Date A B
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710-0711 ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
507 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
