◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#65627) — 1601 parça

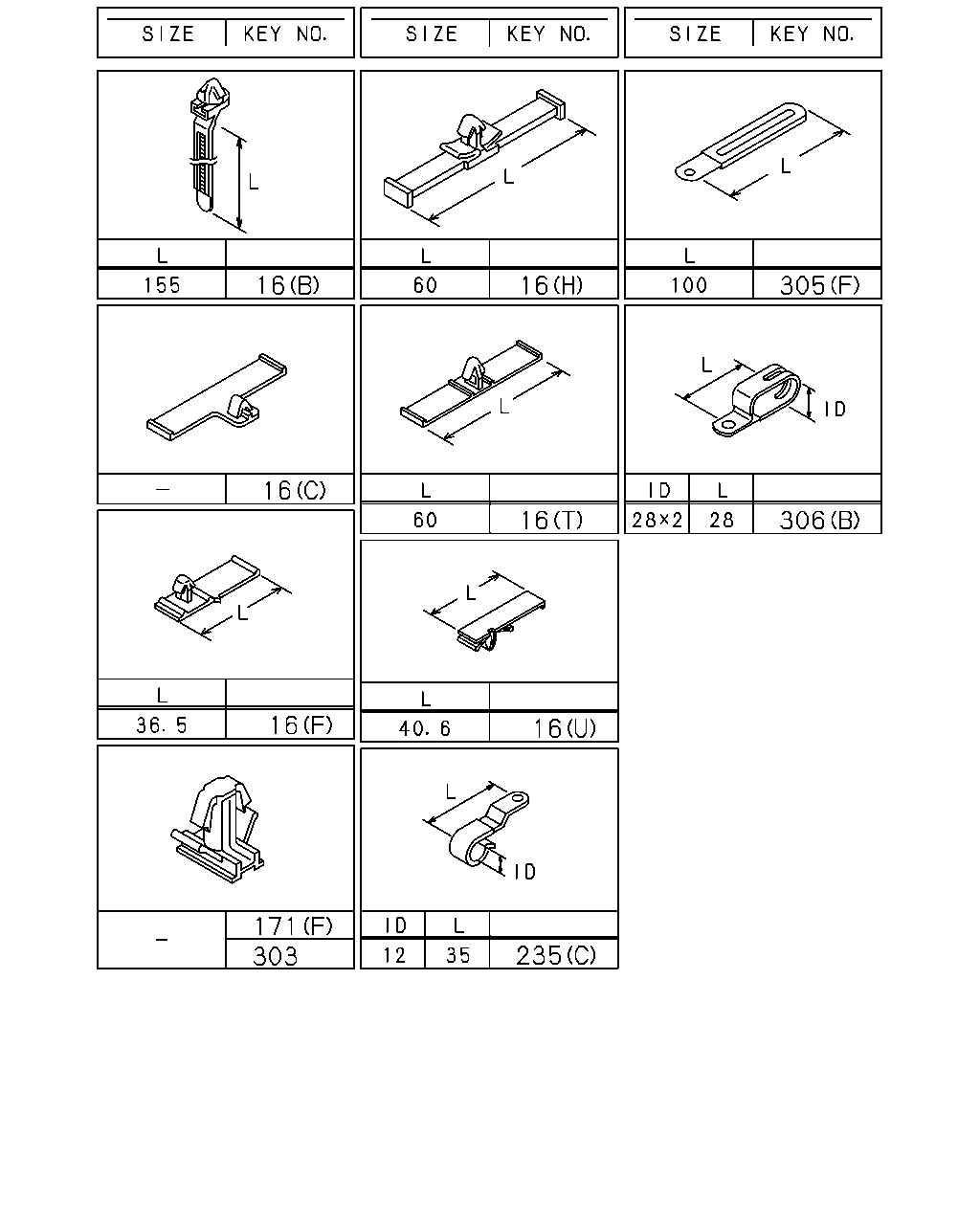

çizim 136667
16 16 305 16 16 306 16 16 171 303 235
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Y) L=350 		1-09707-183-0 01 1 0903-0907 ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (V) OD=9 H=6 		1-09709-178-0 01 1 0809-1011 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (V) OD=9 H=6 		1-09709-178-0 01 1 1012-1405 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(S) ID=11X2 L=20 		1-09700-871-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (S) ID=11X2 L=20 		1-09700-871-0 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (S) ID=11X2 L=20 		1-09700-871-0 01 1 0803- ●
16 CLIP; HARNESS
(S) ID=11X2 L=20 		1-09700-871-0 01 1 0803- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 02 1 0712- ●
16 CLIP; HARNESS
(T) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0803- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (D) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 03 1 0712-0808 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0712-0808 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 03 1 0809- ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=41 		1-09700-403-0 03 1 0809- ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(Q) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ●
16 CLIP; HARNESS
(W) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711-0711 ●
16 CLIP; HARNESS
(W) ID=14 H=50 L=20 		1-09700-843-0 02 1 0712- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0712- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0712-0807 ● ●
16 CLIP; HARNESS
(X) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 05 1 0710-0711 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 05 1 0712-0810 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0806-0809 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (C) ID=12 L=35 		5-09700-206-0 01 1 0806- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0910- ●
303 CLIP; HARNESS POWER TILT RELAY
OD=8.95 H=6.25 		8-97375-754-0 01 1 0712- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0712-1310 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710-0711 ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0712- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (E) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710-0711 ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0712- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710-0711 ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ● ●

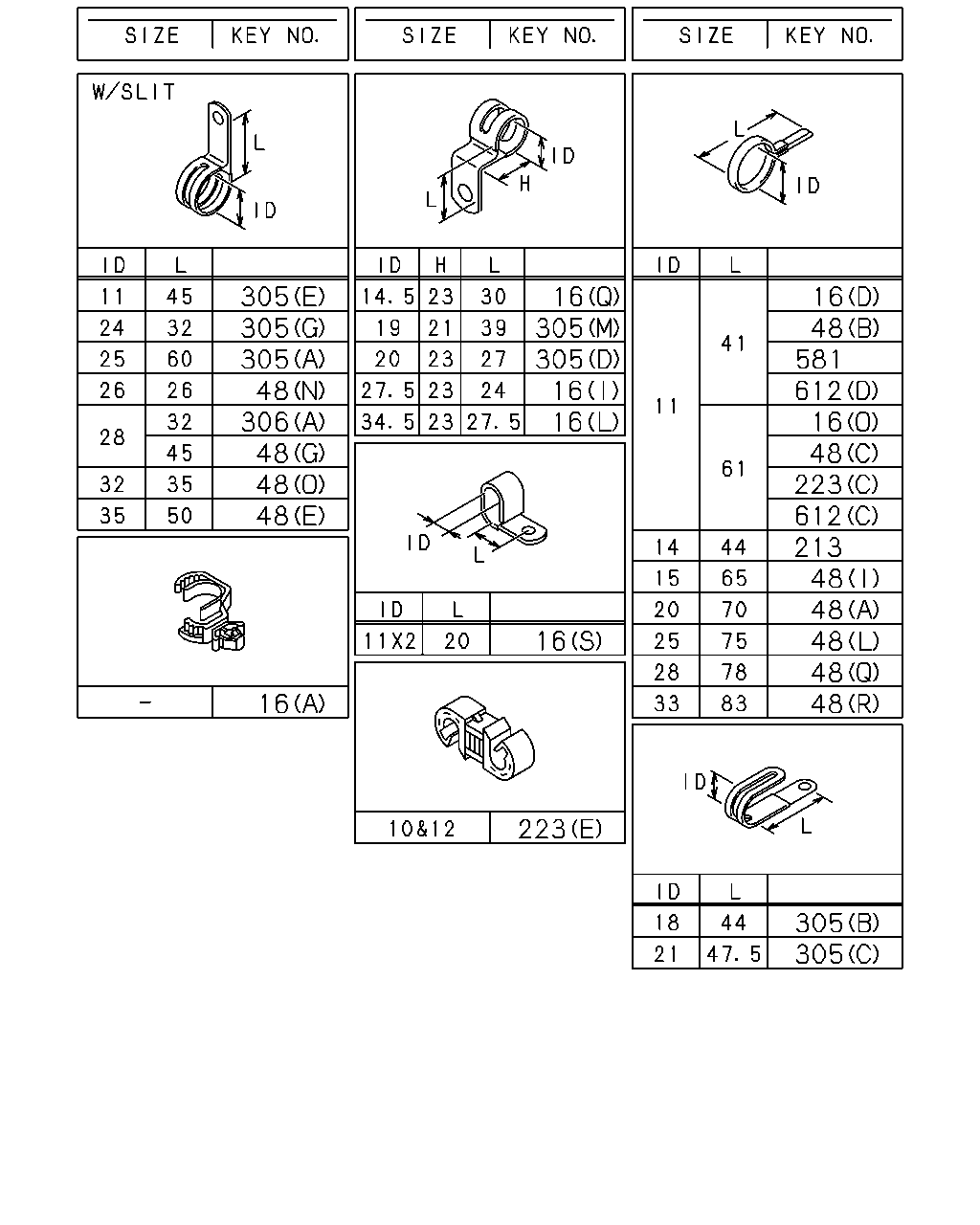

çizim 137227
305 305 305 48 306 48 48 48 16 305 305 16 16 16 48 581 612 16 48 223 612 213 48 48 48 48 48 16 16 223 305 305
BalonParca AdiParca NoAdetTipApplied Date A B

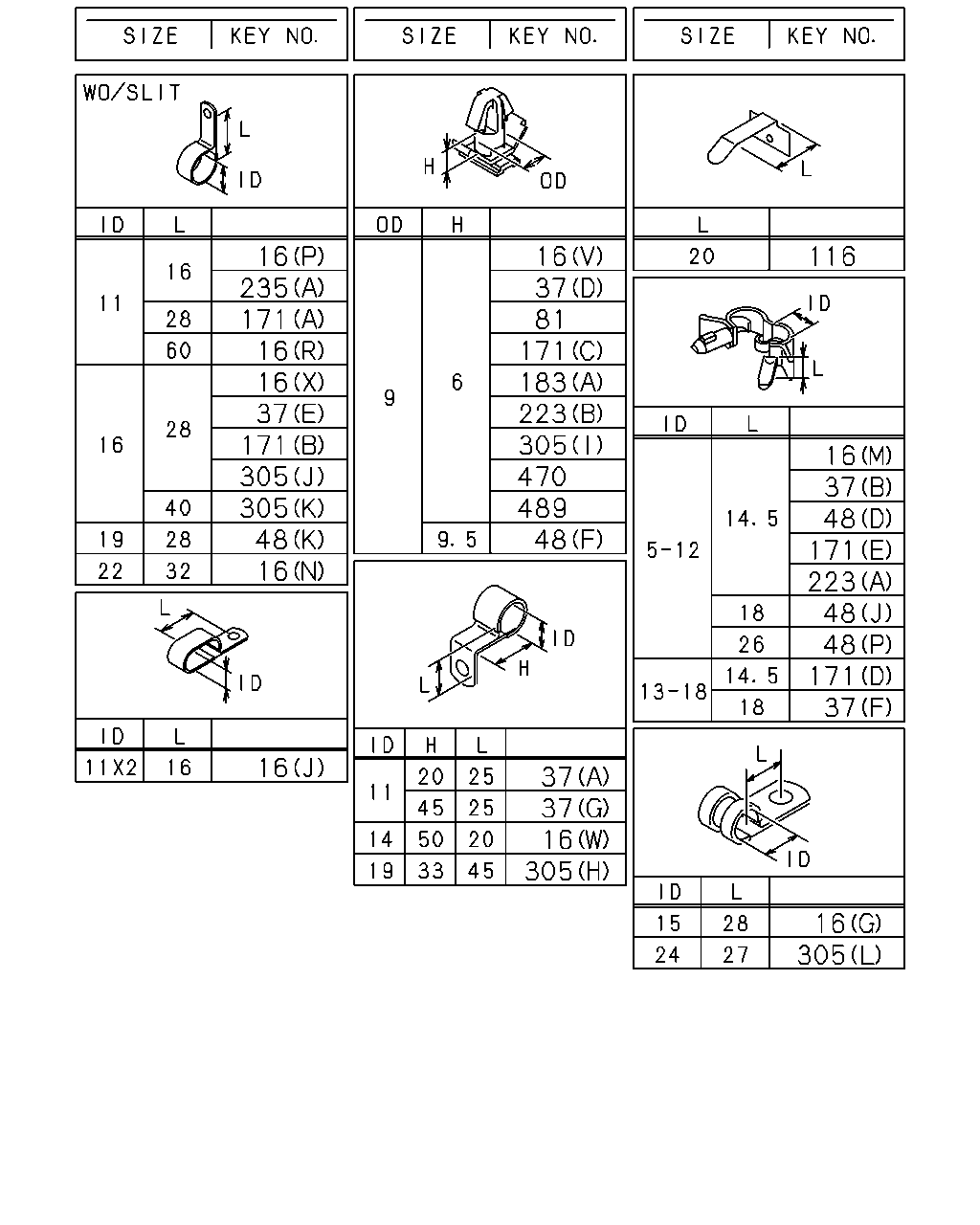

16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Y) L=350 		1-09707-183-0 01 1 0903-0907 ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (V) OD=9 H=6 		1-09709-178-0 01 1 0809-1011 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (V) OD=9 H=6 		1-09709-178-0 01 1 1012-1405 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(S) ID=11X2 L=20 		1-09700-871-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (S) ID=11X2 L=20 		1-09700-871-0 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (S) ID=11X2 L=20 		1-09700-871-0 01 1 0803- ●
16 CLIP; HARNESS
(S) ID=11X2 L=20 		1-09700-871-0 01 1 0803- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 02 1 0712- ●
16 CLIP; HARNESS
(T) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0803- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (D) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 03 1 0712-0808 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0712-0808 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 03 1 0809- ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=41 		1-09700-403-0 03 1 0809- ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(Q) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ●
16 CLIP; HARNESS
(W) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711-0711 ●
16 CLIP; HARNESS
(W) ID=14 H=50 L=20 		1-09700-843-0 02 1 0712- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0712- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0712-0807 ● ●
16 CLIP; HARNESS
(X) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 05 1 0710-0711 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 05 1 0712-0810 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
48 CLIP; FRAME HARNESS
(R) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 03 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 6500MM(65W) (I) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (I) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Q) ID=28 L=78 		1-09700-858-0 02 1 0806- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (R) ID=33 L=83 		1-09701-291-0 03 1 0806- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0903- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=20 L=70 		1-09700-485-0 12 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 15 1 0809-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 16 1 0811-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 22 1 0712-0801 ●
48 CLIP; FRAME HARNESS
(K) ID=19 L=28 		0-95235-856-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 16 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 18 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=70 		1-09700-485-0 19 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=70 		1-09700-485-0 20 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 16 1 1008- ●
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (J) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (P) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0905 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 05 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●

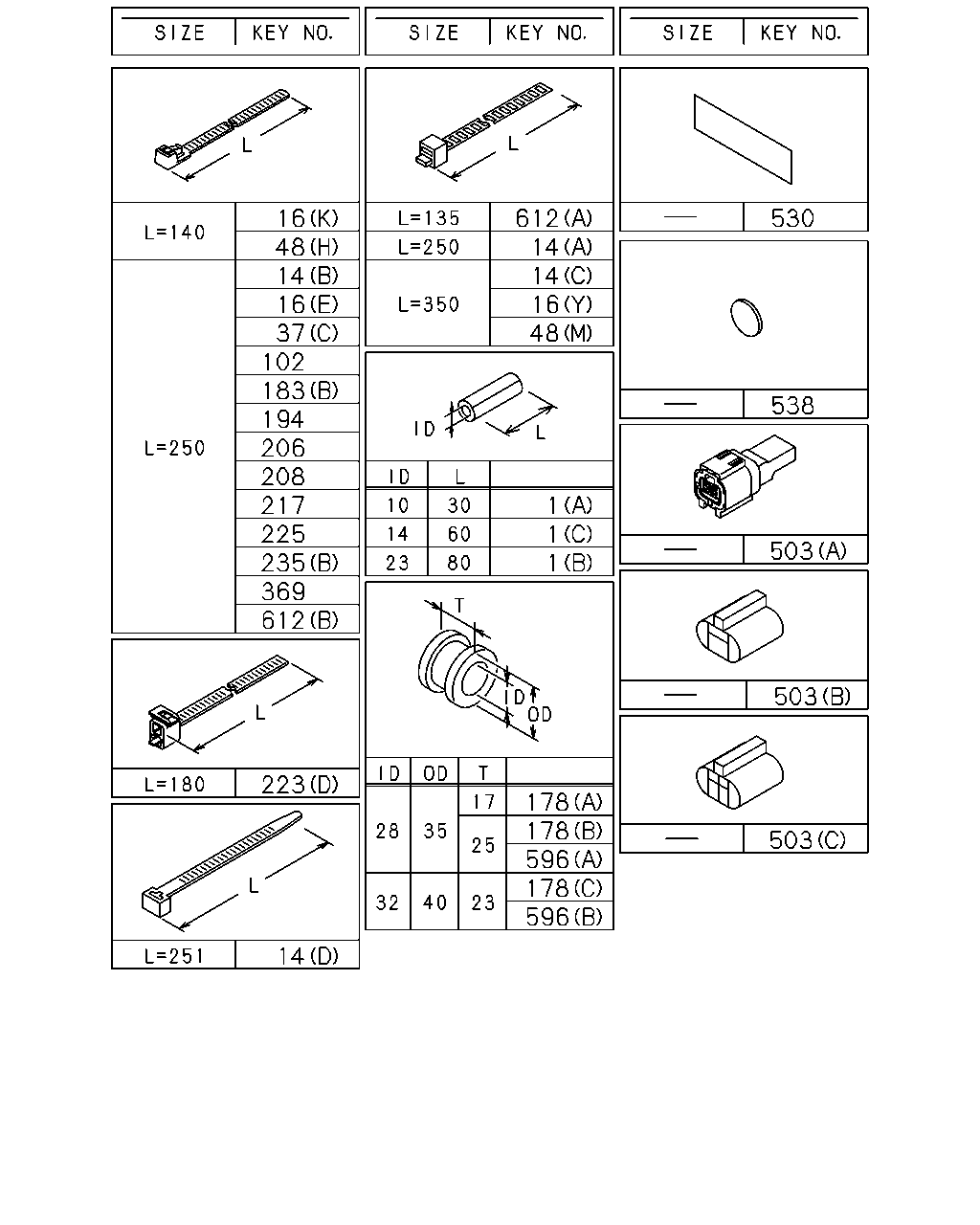

48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (L) ID=25 L=75 		1-09701-275-0 02 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 02 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (M) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(M) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (N) ID=26 L=26 		1-09701-236-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 22 1 0811-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) ID=32 L=35 		1-09701-244-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) ID=15 L=65 		1-09700-466-0 01 1 0806- ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 06 1 0712-0808 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 06 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 06 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 06 1 0809- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45 		1-09700-825-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45 		1-09700-825-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=70 		1-09700-485-0 13 1 0710-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=70 		1-09700-485-0 14 1 0811-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 23 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 24 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 19 1 1008- ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 0712- ● ●
48 CLIP; FRAME HARNESS
(F) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(F) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0710-0711 ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0712- ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=180 		1-09707-162-1 01 1 0805-0805 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0805- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0809-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0805 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0712-1310 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710-0711 ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0712- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (E) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710-0711 ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0712- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710-0711 ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0712- ● ●
581 CLIP; HARNESS,REAR SUSP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 02 1 0712-0712 ●
581 CLIP; HARNESS,REAR SUSP
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 01 1 0712- ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 03 1 0712-0801 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0712-0801 ●
581 CLIP; HARNESS,REAR SUSP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 04 1 0802-0808 ●
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 04 1 0802-0808 ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) ID=11 L=41 		1-09700-403-0 04 1 0809- ●
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 6000MM(60W) ID=11 L=41 		1-09700-403-0 04 1 0809- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (A) L=135 		1-09987-143-1 02 1 0711-0711 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=135 		1-09987-143-1 02 1 0712-0712 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 02 1 0907- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (B) L=250 		5-09707-030-1 05 1 0711-0711 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> IMMOBILIZER SYSTEM<7KC> (B) L=250 		5-09707-030-1 05 1 0712-0712 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) (D) ID=11 L=41 		1-09700-403-0 02 1 0803-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) (D) ID=11 L=41 		1-09700-403-0 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 02 1 0907-0907 ●
612 CLIP; HARNESS DPD
WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 02 1 0908- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=11 L=41 		1-09700-403-0 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 01 1 0809- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250 		5-09707-030-1 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (B) L=250 		5-09707-030-1 01 1 0809- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) (A) L=135 		1-09987-143-1 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) (A) L=135 		1-09987-143-1 01 1 0712-0712 ● ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) L=135 		1-09987-143-1 01 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) L=135 		1-09987-143-1 01 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 01 1 0809-0906 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 0809-0906 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 01 1 0907- ●
612 CLIP; HARNESS DPD
WHEEL BASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 0907- ●
çizim 137734
127 139 184 524 219 294 525 294 47
BalonParca AdiParca NoAdetTipApplied Date A B
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409- ● ●
127 SCREW; FACIA HARNESS CLIP
EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0712- ●

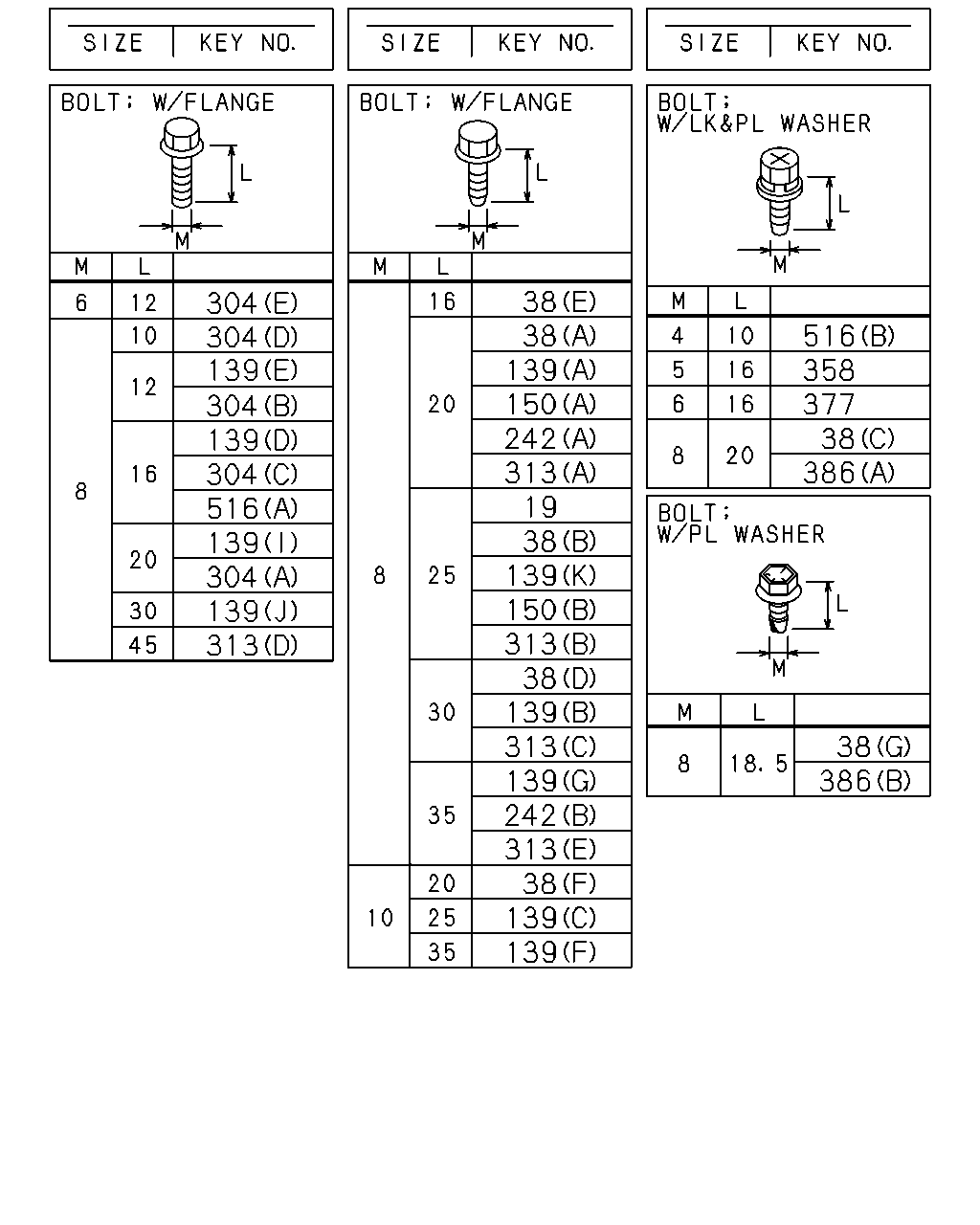

139 BOLT; BRKT
(I) M8X20 FLANGE 		0-28050-820-0 01 1 0807- ●
139 BOLT; BRKT
(J) M8X30 FLANGE 		0-28050-830-0 01 1 0807- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (H) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0710-0711 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0811-0906 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0811-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0907- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0907- ●
139 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (G) M8X35 FLANGE 		0-28650-835-0 01 1 0712- ●
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0810-0906 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0810-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
139 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (D) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0802 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0711 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0711 ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710-0711 ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710-0711 ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0712-0806 ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0712-0806 ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0807-0905 ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0807-0905 ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0906- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0906- ● ●
139 BOLT; BRKT
(K) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
139 BOLT; BRKT
(K) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
139 BOLT; BRKT
(K) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
139 BOLT; BRKT
(K) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
184 WASHER; PL,STARTER EARTH
EURO4 SPECIFICATION<NT4> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0810-1008 ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0810-1008 ●
184 WASHER; PL,STARTER EARTH
EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1009- ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1009- ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806-0809 ● ●
184 WASHER; PL,STARTER EARTH
EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0 		1-09503-265-0 02 1 0810- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0712-1509 ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 0712-0802 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 01 1 0803- ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803- ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0710-0711 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 05 1 0712-0802 ●
219 NUT
M8 FLANGE 		0-91180-108-0 05 1 0712-0802 ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 04 1 0803-1509 ●
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0803-1509 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1510- ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 02 1 1510- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1510- ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1510- ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0712 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0804-0806 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0807-0809 ●
294 NUT
MLD6W M/T(Y2C) (A) M8 FLANGE 		0-91180-108-0 02 1 0807-0809 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 04 1 0810- ●
294 NUT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 04 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0810- ●
294 NUT
WHEEL BASE 6000MM(60W) (A) M8 FLANGE 		0-91180-108-0 04 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-0711 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 04 1 0712-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0712-0808 ●
294 NUT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 04 1 0809-0809 ●
294 NUT
WHEEL BASE 6000MM(60W) (A) M8 FLANGE 		0-91180-108-0 04 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 06 1 0712-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0712-0809 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
MLD6W M/T(Y2C) (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
MLD6W M/T(Y2C) (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
MLD6W M/T(Y2C) (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ● ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0712-0712 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0801-0803 ● ●
294 NUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE 		0-91180-108-0 01 1 0801-0803 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0801-0803 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0801-0803 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ● ●
294 NUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0804-0804 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ● ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0805-0808 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
294 NUT
EURO2 SPECIFICATION<NT2> (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
AUTO CAB TILT<WV2> (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0710-0710 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0710-0711 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0712-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906- ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-0711 ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710-0711 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
525 NUT; CLIP
AUTO CAB TILT<WV2> T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0712- ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0712-0906 ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0907- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0710-0711 ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0712-0808 ● ●
525 NUT; CLIP
EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0809- ● ●
çizim 137834
53 53 53 53 53 53 53 53 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0710-0711 ●
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0712- ● ●
53 BRACKET; HARNESS
(D) 		8-98129-543-0 01 1 0809-0809 ● ●
53 BRACKET; HARNESS
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (H) 		8-97620-485-0 01 1 0711-0711 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) 		8-97620-485-0 01 1 0712-0712 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (H) 		8-97620-485-0 01 1 0712-0805 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (H) 		8-97620-485-0 01 1 0806-0808 ●
53 BRACKET; HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (H) 		8-97620-485-0 01 1 0809-0906 ●
53 BRACKET; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (H) 		8-97620-485-0 01 1 0907- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (G) 		8-98084-590-0 01 1 0801- ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (G) 		8-98084-590-0 01 1 0801- ●
53 BRACKET; HARNESS
EXC. IMMOBILIZER SYSTEM<7KC> (E) 		8-98074-502-0 01 1 0712-0807 ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 0710-0711 ●
53 BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (B) 		1-47479-674-0 01 1 0712- ●
53 BRACKET; HARNESS
(A) 		8-97616-959-0 01 1 0710-0711 ●
53 BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (A) 		8-97616-959-0 01 1 0712- ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 04 1 0710-0711 ●
53 BRACKET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) L=95 		1-82699-085-0 04 1 0712-0808 ●
53 BRACKET; HARNESS
(C) L=95 		1-82699-085-0 04 1 0712-0808 ●
53 BRACKET; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) L=95 		1-82699-085-0 04 1 0809- ●
53 BRACKET; HARNESS
WHEEL BASE 6000MM(60W) (C) L=95 		1-82699-085-0 04 1 0809- ●
53 BRACKET; HARNESS
(F) 		8-98052-458-0 01 1 0710-0711 ●
53 BRACKET; HARNESS
(F) 		8-98052-458-0 01 1 0712- ● ●
53 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=55 		1-47475-304-0 01 1 0710-0711 ●
53 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=55 		1-47475-304-0 01 1 0712-0712 ● ●
çizim 192246
38 386 386 38 377 358 516 38 38 139 150 242 313 19 38 139 150 313 38 139 313 139 242 313 38 139 139 304 304 139 304 139 304 516 139 304 139 313
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
19 BOLT; PROTECTOR
ANTI LOCK BRAKE<JE5> M8X25 FLANGE 		0-28650-825-0 02 1 0712-0801 ●
19 BOLT; PROTECTOR
M8X25 FLANGE 		0-28650-825-0 02 1 0712-0801 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0803- ●
38 BOLT; CLIP,HARNESS
MLD6W M/T(Y2C) (F) M10X20 FLANGE 		0-28751-020-0 01 1 0806- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X16 FLANGE 		8-98076-109-0 01 1 0710-0710 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0803- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
AUTO CAB TILT<WV2> (D) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0712 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ● ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0712- ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
(C) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0712-1201 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
139 BOLT; BRKT
(I) M8X20 FLANGE 		0-28050-820-0 01 1 0807- ●
139 BOLT; BRKT
(J) M8X30 FLANGE 		0-28050-830-0 01 1 0807- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (H) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0710-0711 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0811-0906 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0811-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0907- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0907- ●
139 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (G) M8X35 FLANGE 		0-28650-835-0 01 1 0712- ●
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
139 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0803- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0802 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 04 1 0810-0906 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0810-0906 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0907- ●
139 BOLT; BRKT
(D) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (D) M8X16 FLANGE 		0-28050-816-0 02 1 0712-0802 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710-0711 ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0712- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710-0711 ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0712- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710-0711 ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710-0711 ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0712-0806 ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0712-0806 ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0807-0905 ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0807-0905 ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0906- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0906- ● ●
139 BOLT; BRKT
(K) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
139 BOLT; BRKT
(K) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) M8X25 FLANGE 		0-28650-825-0 01 1 0712-0712 ● ●
139 BOLT; BRKT
(K) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (K) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
139 BOLT; BRKT
(K) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ●
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
150 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0711 ●
150 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ● ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0711-0711 ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0712 ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0805 ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0806-0808 ●
242 BOLT; BRKT,HARNESS
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) M8X35 FLANGE 		0-28650-835-0 01 1 0809-0906 ●
242 BOLT; BRKT,HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (B) M8X35 FLANGE 		0-28650-835-0 01 1 0907- ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
242 BOLT; BRKT,HARNESS
CAB SUSPENSION FULL FLOATING<W16> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE 		0-28050-812-0 06 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE 		0-28050-816-0 05 1 0809- ●
304 BOLT; ENG HARNESS CLIP
EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE 		0-28050-820-0 04 1 0809- ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0712-0808 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE 		0-28050-812-0 03 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0712-0808 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE 		0-28050-816-0 03 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0712-0808 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28050-820-0 01 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0712-0808 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE 		0-28050-612-0 01 1 0809- ● ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0710-0711 ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0712-0808 ● ●
304 BOLT; ENG HARNESS CLIP
EURO4 SPECIFICATION<NT4> (D) M8X10 FLANGE 		0-28050-810-0 01 1 0809-1010 ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
313 BOLT; BRKT
AUTO CAB TILT<WV2> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 0710-0711 ●
313 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) M8X30 FLANGE 		0-28650-830-0 04 1 0712-0808 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 04 1 0712-0808 ●
313 BOLT; BRKT
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) M8X30 FLANGE 		0-28650-830-0 04 1 0809- ●
313 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X30 FLANGE 		0-28650-830-0 04 1 0809- ●
313 BOLT; BRKT
(D) M8X45 FLANGE 		0-28050-845-0 01 1 0710-0711 ●
313 BOLT; BRKT
(D) M8X45 FLANGE 		0-28050-845-0 01 1 0712- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-0711 ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0712- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0711 ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0712- ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0710-0711 ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0712 ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0712 ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0712-0712 ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0801-0803 ● ●
313 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M8X35 FLANGE 		0-28650-835-0 01 1 0801-0803 ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0801-0803 ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0804-0804 ● ●
313 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) M8X35 FLANGE 		0-28650-835-0 01 1 0804-0804 ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0805-0808 ● ●
313 BOLT; BRKT
(E) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ● ●
313 BOLT; BRKT
EURO2 SPECIFICATION<NT2> (E) M8X35 FLANGE 		0-28650-835-0 01 1 0809- ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710-0711 ●
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0712- ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0710-0711 ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0712- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0711 ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0712-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
MLD6W M/T(Y2C) (A) M8X16 FLANGE 		0-28050-816-0 02 1 0806- ● ●
516 BOLT; HARNESS
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0710-0711 ●
516 BOLT; HARNESS
(B) M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0712- ● ●
çizim 192247
16 48 14 16 37 102 183 194 206 208 217 225 235 369 612 612 14 14 16 48 530 538 1 1 1 503 503 223 178 178 596 178 596 503 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0809- ● ●
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0710-0711 ●
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0712-0808 ● ●
1 SLEEVE; RUBBER
EURO4 SPECIFICATION<NT4> (B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0809- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710-0711 ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0712-0808 ● ●
1 SLEEVE; RUBBER
EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0809- ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (B) L=250 		8-98216-430-0 01 1 1312- ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (D) L=251 		8-97619-917-0 01 1 0910- ● ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (B) L=250 		5-09707-030-1 08 1 0809-1205 ●
14 CLIP; BAND,HARNESS
EURO2 SPECIFICATION<NT2> (B) L=250 		8-98216-430-0 08 1 1206- ●
14 CLIP; BAND,HARNESS
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) L=250 		5-09707-030-1 15 1 0801-0805 ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 13 1 0710-0711 ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 13 1 0712-0712 ● ●
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 14 1 0801-0808 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (B) L=250 		5-09707-030-1 14 1 0809-0909 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (B) L=250 		5-09707-030-1 13 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
EURO4 SPECIFICATION<NT4> (B) L=250 		8-98216-430-0 13 1 1206- ● ●
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 0710-0711 ●
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 0712- ● ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0710-0711 ●
14 CLIP; BAND,HARNESS
ANTI LOCK BRAKE<JE5> (A) L=250 		1-09707-126-0 02 1 0712- ●
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0712- ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Y) L=350 		1-09707-183-0 01 1 0903-0907 ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (V) OD=9 H=6 		1-09709-178-0 01 1 0809-1011 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (V) OD=9 H=6 		1-09709-178-0 01 1 1012-1405 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(S) ID=11X2 L=20 		1-09700-871-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (S) ID=11X2 L=20 		1-09700-871-0 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (S) ID=11X2 L=20 		1-09700-871-0 01 1 0803- ●
16 CLIP; HARNESS
(S) ID=11X2 L=20 		1-09700-871-0 01 1 0803- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 02 1 0712- ●
16 CLIP; HARNESS
(T) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0803- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (D) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 03 1 0712-0808 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0712-0808 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 03 1 0809- ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=41 		1-09700-403-0 03 1 0809- ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(Q) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ●
16 CLIP; HARNESS
(W) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711-0711 ●
16 CLIP; HARNESS
(W) ID=14 H=50 L=20 		1-09700-843-0 02 1 0712- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0712- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0712-0807 ● ●
16 CLIP; HARNESS
(X) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 05 1 0710-0711 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 05 1 0712-0810 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0805- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0711 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (G) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710-0711 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710-0711 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (D) OD=9 H=6 		8-97368-793-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
(R) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 03 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 6500MM(65W) (I) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (I) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Q) ID=28 L=78 		1-09700-858-0 02 1 0806- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (R) ID=33 L=83 		1-09701-291-0 03 1 0806- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0903- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=20 L=70 		1-09700-485-0 12 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 15 1 0809-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 16 1 0811-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 22 1 0712-0801 ●
48 CLIP; FRAME HARNESS
(K) ID=19 L=28 		0-95235-856-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 16 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 18 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=70 		1-09700-485-0 19 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=70 		1-09700-485-0 20 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 16 1 1008- ●
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (J) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (P) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0905 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 05 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (L) ID=25 L=75 		1-09701-275-0 02 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 02 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (M) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(M) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (N) ID=26 L=26 		1-09701-236-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 22 1 0811-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) ID=32 L=35 		1-09701-244-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) ID=15 L=65 		1-09700-466-0 01 1 0806- ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 06 1 0712-0808 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 06 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 06 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 06 1 0809- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45 		1-09700-825-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45 		1-09700-825-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=70 		1-09700-485-0 13 1 0710-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=70 		1-09700-485-0 14 1 0811-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 23 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 24 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 19 1 1008- ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 0712- ● ●
48 CLIP; FRAME HARNESS
(F) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(F) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
102 CLIP; BAND
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0710-0711 ●
102 CLIP; BAND
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0712-0901 ● ●
178 GROMMET; HARNESS
EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0712-1011 ●
178 GROMMET; HARNESS
6HK1-TCC ENG(81L) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1012-1102 ●
178 GROMMET; HARNESS
6HK1-TCN ENG(82L) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1012-1102 ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1103- ●
178 GROMMET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23 		1-09332-112-0 01 1 1103- ●
178 GROMMET; HARNESS
AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0712 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0712 ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0801-1102 ●
178 GROMMET; HARNESS
AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0801-1102 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0801-1102 ●
178 GROMMET; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1103- ●
178 GROMMET; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1103- ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1103- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710-0711 ●
178 GROMMET; HARNESS
ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0712- ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0710-0711 ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0712-0712 ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0712- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710-0711 ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
178 GROMMET; HARNESS
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0710-0711 ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0712-0712 ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0801- ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0801- ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6 		1-09709-178-0 01 1 0801-0810 ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6 		1-09709-178-0 01 1 0801-0810 ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0710-0711 ●
194 CLIP; BAND
AUTO CAB TILT<WV2> L=250 		5-09707-030-1 02 1 0712- ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0710-0711 ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0712- ● ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 02 1 0710-0711 ●
208 CLIP; HARNESS,MAG VLV
AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 02 1 0712-0802 ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 0710-0711 ●
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0712-0712 ●
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 0712-0712 ●
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250 		5-09707-030-1 01 1 0801-0808 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0801-0808 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 6000MM(60W) L=250 		5-09707-030-1 01 1 0801-0808 ●
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250 		5-09707-030-1 01 1 0809-0902 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0809-0902 ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 6000MM(60W) L=250 		5-09707-030-1 01 1 0809-0902 ●
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250 		5-09707-030-1 01 1 0903- ●
208 CLIP; HARNESS,MAG VLV
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0903- ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 01 1 0812-0812 ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0710-0711 ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0712- ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=180 		1-09707-162-1 01 1 0805-0805 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0805- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0809-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0805 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250 		5-09707-030-1 05 1 0801-0804 ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250 		5-09707-030-1 03 1 0805- ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 04 1 0712-1011 ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 04 1 1012- ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> L=250 		5-09707-030-1 04 1 1012- ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 01 1 0710-0711 ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0712-0804 ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 01 1 0712-0804 ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0805-0808 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0805-0808 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) L=250 		5-09707-030-1 01 1 0805-0808 ●
225 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0809-0907 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0809-0907 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) L=250 		5-09707-030-1 01 1 0809-0907 ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) L=250 		5-09707-030-1 01 1 0908- ●
225 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) L=250 		5-09707-030-1 01 1 0908- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (C) ID=12 L=35 		5-09700-206-0 01 1 0806- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0910- ●
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0710-0711 ●
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0712-0802 ● ●
503 CONNECTOR
EXC. AIR DRYER<PS7> (C) 		1-82690-666-0 01 1 0809-1011 ●
503 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C) 		1-82690-666-0 01 1 1012-1405 ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		1-82690-668-0 01 1 0710-0711 ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		1-82690-668-0 01 1 0712-0910 ● ●
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		1-82690-668-0 01 1 0911- ●
503 CONNECTOR
6HK1-TCC ENG(81L) EURO4 SPECIFICATION<NT4> GENERATOR 24V90A(K44),GENERATOR 24V50A(K89) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 0911- ●
503 CONNECTOR
6HK1-TCC ENG(81L) EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 0911- ●
503 CONNECTOR
6HK1-TCC ENG(81L) EURO4 SPECIFICATION<NT4> GENERATOR 24V60A(KG2) TRANSMISSION CONTROL-SMOOTHER(8GF) AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-82690-668-0 01 1 0911- ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0710-0711 ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0712-0712 ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0801-0804 ● ●
503 CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0801-0804 ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0805-0810 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-0 14 1 0710-0711 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0712-1305 ● ●
530 SEAL; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
O/SIDE MIRROR RR VIEW FLAT<YS1> 180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ●
530 SEAL; HARNESS
100X40 		1-72498-022-0 06 1 0710-0711 ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0712-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0710-0711 ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
596 GROMMET
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0711-0711 ●
596 GROMMET
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0712 ●
596 GROMMET
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712-0805 ●
596 GROMMET
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0806-0808 ●
596 GROMMET
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) CATALYSIS CONTROL WITH DPD<8JM> (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0809-0906 ●
596 GROMMET
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) CATALYSIS CONTROL WITH DPD<8JM> (A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0907- ●
596 GROMMET
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0712-0805 ●
596 GROMMET
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0806-0808 ●
596 GROMMET
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0809-0906 ●
596 GROMMET
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (B) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0907- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (A) L=135 		1-09987-143-1 02 1 0711-0711 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=135 		1-09987-143-1 02 1 0712-0712 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=135 		1-09987-143-1 02 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) (A) L=135 		1-09987-143-1 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 02 1 0907- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) (B) L=250 		5-09707-030-1 05 1 0711-0711 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6500MM(65W) ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CAB SUSPENSION FULL FLOATING<W16> IMMOBILIZER SYSTEM<7KC> (B) L=250 		5-09707-030-1 05 1 0712-0712 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 02 1 0712-0802 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 5500MM(55W) (D) ID=11 L=41 		1-09700-403-0 02 1 0803-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) (D) ID=11 L=41 		1-09700-403-0 02 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 02 1 0809-0906 ●
612 CLIP; HARNESS DPD
WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 02 1 0907-0907 ●
612 CLIP; HARNESS DPD
WHEEL BASE 5500MM(55W) CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 02 1 0908- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=11 L=41 		1-09700-403-0 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (D) ID=11 L=41 		1-09700-403-0 01 1 0809- ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=250 		5-09707-030-1 01 1 0805-0808 ●
612 CLIP; HARNESS DPD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CATALYSIS CONTROL WITH DPD<8JM> (B) L=250 		5-09707-030-1 01 1 0809- ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) (A) L=135 		1-09987-143-1 01 1 0710-0711 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) (A) L=135 		1-09987-143-1 01 1 0712-0712 ● ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) L=135 		1-09987-143-1 01 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW) WHEEL BASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 0712-0805 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 5000MM(50W) (A) L=135 		1-09987-143-1 01 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 0806-0808 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 01 1 0809-0906 ●
612 CLIP; HARNESS DPD
MZX6P M/T(RSW),MLD6W M/T(Y2C) WHEEL BASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 0809-0906 ●
612 CLIP; HARNESS DPD
WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6000MM(60W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=135 		1-09987-143-1 01 1 0907- ●
612 CLIP; HARNESS DPD
WHEEL BASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 0907- ●
çizim 192254
16 235 171 16 16 37 171 305 305 48 16 16 37 81 171 183 223 305 470 489 48 116 16 37 48 171 223 48 48 171 37 16 37 37 16 305 16 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (Y) L=350 		1-09707-183-0 01 1 0903-0907 ●
16 CLIP; HARNESS
EXC. AIR DRYER<PS7> (V) OD=9 H=6 		1-09709-178-0 01 1 0809-1011 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (V) OD=9 H=6 		1-09709-178-0 01 1 1012-1405 ●
16 CLIP; HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. H.S.A SYSTEM<6EP> (V) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(R) ID=11 L=60 		0-95235-096-0 01 1 0712-0807 ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(J) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(S) ID=11X2 L=20 		1-09700-871-0 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (S) ID=11X2 L=20 		1-09700-871-0 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (S) ID=11X2 L=20 		1-09700-871-0 01 1 0803- ●
16 CLIP; HARNESS
(S) ID=11X2 L=20 		1-09700-871-0 01 1 0803- ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (J) ID=11X2 L=16 		0-95325-025-0 02 1 0712- ●
16 CLIP; HARNESS
(T) L=60 		8-97063-335-0 02 1 0712- ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0803- ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (I) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0712- ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=11 L=61 		1-09700-484-0 01 1 0710-0711 ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=11 L=61 		1-09700-484-0 01 1 0712-0810 ● ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(P) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0710-0711 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0712-0802 ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (K) L=140 		5-09707-031-1 01 1 0803- ●
16 CLIP; HARNESS
(K) L=140 		5-09707-031-1 01 1 0803- ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(H) L=60 		8-94449-165-0 02 1 0712-0802 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 1203- ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(F) L=36.5 		8-97019-892-0 02 1 0712-0802 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0712-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0710-0711 ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),O/SIDE MIRROR RR VIEW, PILLAR MOUNTED<DNB> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0712-1202 ●
16 CLIP; HARNESS
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,CORNERING LAMP<T87>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1203- ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (D) ID=11 L=41 		1-09700-403-0 03 1 0710-0711 ●
16 CLIP; HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 03 1 0712-0808 ●
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0712-0808 ●
16 CLIP; HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=11 L=41 		1-09700-403-0 03 1 0809- ●
16 CLIP; HARNESS
WHEEL BASE 6000MM(60W) (D) ID=11 L=41 		1-09700-403-0 03 1 0809- ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0712-0712 ● ●
16 CLIP; HARNESS
(Q) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ●
16 CLIP; HARNESS
(W) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711-0711 ●
16 CLIP; HARNESS
(W) ID=14 H=50 L=20 		1-09700-843-0 02 1 0712- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710-0711 ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0712- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0711 ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0712-0807 ● ●
16 CLIP; HARNESS
(X) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 05 1 0710-0711 ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 05 1 0712-0810 ● ●
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 03 1 0811- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710-0711 ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0712- ● ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710-0711 ●
16 CLIP; HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0712- ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=16 L=28 		0-95235-556-0 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(F) ID=13-18 L=18 		1-09709-291-0 02 1 0712-0804 ●
37 CLIP; HARNESS,POWER TILT
(F) ID=13-18 L=18 		1-09709-291-0 01 1 0805- ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0711 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0712-0802 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (G) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710-0711 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0712- ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710-0711 ●
37 CLIP; HARNESS,POWER TILT
AUTO CAB TILT<WV2> (D) OD=9 H=6 		8-97368-793-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
(R) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (I) ID=15 L=65 		1-09700-466-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 03 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 6500MM(65W) (I) ID=15 L=65 		1-09700-466-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (I) ID=15 L=65 		1-09700-466-0 07 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 18 1 1008- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 03 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 06 1 1008- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (Q) ID=28 L=78 		1-09700-858-0 02 1 0806- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (R) ID=33 L=83 		1-09701-291-0 03 1 0806- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0806-0808 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0809-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0903- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 02 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=20 L=70 		1-09700-485-0 12 1 0809-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=20 L=70 		1-09700-485-0 05 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 15 1 0809-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 16 1 0811-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (A) ID=20 L=70 		1-09700-485-0 08 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 22 1 0712-0801 ●
48 CLIP; FRAME HARNESS
(K) ID=19 L=28 		0-95235-856-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 16 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 18 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (A) ID=20 L=70 		1-09700-485-0 09 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=70 		1-09700-485-0 19 1 0712-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=20 L=70 		1-09700-485-0 20 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 16 1 1008- ●
48 CLIP; FRAME HARNESS
(J) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (J) ID=5-12 L=18 		1-09709-287-0 01 1 0712-0712 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (P) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0803-0905 ●
48 CLIP; FRAME HARNESS
AUTO CAB TILT<WV2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (B) ID=11 L=41 		1-09700-403-0 01 1 0906- ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41 		1-09700-403-0 05 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 05 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(I) ID=15 L=65 		1-09700-466-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (L) ID=25 L=75 		1-09701-275-0 02 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(L) ID=25 L=75 		1-09701-275-0 02 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 04 1 0712-0802 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (M) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(M) L=350 		1-09707-183-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (N) ID=26 L=26 		1-09701-236-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 22 1 0811-1007 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 10 1 1008- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (O) ID=32 L=35 		1-09701-244-0 01 1 0712-0810 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (I) ID=15 L=65 		1-09700-466-0 01 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) ID=15 L=65 		1-09700-466-0 01 1 0806- ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 06 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 06 1 0712-0808 ●
48 CLIP; FRAME HARNESS
(C) ID=11 L=61 		1-09700-484-0 06 1 0712-0808 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 06 1 0809- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 06 1 0809- ●
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 04 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (A) ID=20 L=70 		1-09700-485-0 04 1 0712-0805 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0806 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 01 1 0806-0902 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 0903-1011 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (A) ID=20 L=70 		1-09700-485-0 04 1 1012- ●
48 CLIP; FRAME HARNESS
TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45 		1-09700-825-1 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (G) ID=28 L=45 		1-09700-825-1 01 1 0712- ●
48 CLIP; FRAME HARNESS
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=70 		1-09700-485-0 13 1 0710-0810 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) (A) ID=20 L=70 		1-09700-485-0 14 1 0811-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4200MM(42W) AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=20 L=70 		1-09700-485-0 12 1 1008- ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0712-0802 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 25 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 23 1 0802-0902 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 24 1 0903-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 6500MM(65W) (A) ID=20 L=70 		1-09700-485-0 19 1 1008- ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(H) L=140 		5-09707-031-1 02 1 0712- ● ●
48 CLIP; FRAME HARNESS
(F) OD=9 H=9.5 		1-09709-179-0 01 1 0710-0711 ●
48 CLIP; FRAME HARNESS
(F) OD=9 H=9.5 		1-09709-179-0 01 1 0712- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0712-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 02 1 1202- ●
116 CLIP; ROOF HARNESS
EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 03 1 0712- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0710-0711 ●
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 0712- ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (A) ID=11 L=28 		0-95235-055-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (B) ID=16 L=28 		0-95235-556-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (C) OD=9 H=6 		1-09709-178-0 02 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (D) ID=13-18 L=14.5 		1-09709-290-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (E) ID=5-12 L=14.5 		1-09987-221-0 01 1 0806- ● ●
171 CLIP; STARTER HARNESS
MLD6W M/T(Y2C) (F) OD=8.95 H=6.25 		8-97375-754-0 01 1 0806-0809 ● ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0710-0711 ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0712-0712 ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0801- ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (B) L=250 		5-09707-030-1 01 1 0801- ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
183 CLIP; CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6 		1-09709-178-0 01 1 0801-0810 ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) OD=9 H=6 		1-09709-178-0 01 1 0801-0810 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=180 		1-09707-162-1 01 1 0805-0805 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=10 & 12 		1-09709-278-1 01 1 0805- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0809-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 0903-1005 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1006-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=11 L=61 		1-09700-484-0 01 1 0805-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13),VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 01 1 1012- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0801-0804 ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0805 ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ● ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0805-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0809- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 6500MM(65W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710-0711 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0712-0808 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W), WHEEL BASE 6000MM(60W),WHEEL BASE 6500MM(65W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AUSTRALIA EQUIPMENT(B13) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
WHEEL BASE 6000MM(60W) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0809-0811 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0812-0902 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0903-1011 ●
223 CLIP; AIR TANK HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1012- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
MLD6W M/T(Y2C) (C) ID=12 L=35 		5-09700-206-0 01 1 0806- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0710-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0712- ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0710-0711 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ANTI LOCK BRAKE<JE5> (B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0712-0909 ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0910- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) L=100 		8-94443-021-1 02 1 1311- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (L) ID=24 L=27 		1-09700-809-0 03 1 0809- ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21 		1-09700-972-1 01 1 0809- ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0712-1310 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (F) L=100 		8-94443-021-1 01 1 1311- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710-0711 ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0712- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0712- ● ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (H) ID=19 H=33 L=45 		1-09701-045-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0712- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) EURO4 SPECIFICATION<NT4> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ● ●
305 CLIP; ENG HARNESS
EURO2 SPECIFICATION<NT2> (C) ID=21 L=47.5 		8-94178-108-0 01 1 0809- ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0712-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) ID=18 L=44 		8-97367-985-1 01 1 0809- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710-0711 ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0712-0808 ● ●
305 CLIP; ENG HARNESS
EURO4 SPECIFICATION<NT4> (E) ID=11 L=45 		8-94296-897-1 01 1 0809- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0712-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
470 CLIP; HARNESS,LICENSE LAMP
EXC. AUSTRALIA EQUIPMENT(B13) OD=9 H=6 		1-09709-178-0 01 1 1206- ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0712-0712 ● ●
çizim 460065
59 59 59 59 428 312 59 69 59 59 59 59 59
BalonParca AdiParca NoAdetTipApplied Date A B
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (G) L=112 		1-47475-694-1 01 1 0807- ●
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (H) 		8-97304-944-0 01 1 0807- ●
59 BRACKET; FRAME HARNESS
(F) L=75 		1-47478-323-0 01 1 0712- ●
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (A) 		8-97627-325-0 01 1 0806-0806 ● ●
59 BRACKET; FRAME HARNESS
MLD6W M/T(Y2C) (A) 		8-97627-325-0 01 1 0807- ●
59 BRACKET; FRAME HARNESS
(D) 		8-98047-730-0 02 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(D) 		8-98047-730-0 02 1 0712- ● ●
59 BRACKET; FRAME HARNESS
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AUSTRALIA EQUIPMENT(B13) (E) L=62 		1-21464-170-2 01 1 0712- ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0712-0803 ● ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0804-0806 ●
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 0807- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 0712-0906 ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97616-305-0 01 1 0907-1502 ● ●
59 BRACKET; FRAME HARNESS
(J) 		8-98254-592-0 01 1 1503- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97620-482-1 01 1 0710-0711 ●
59 BRACKET; FRAME HARNESS
(C) 		8-97620-482-1 01 1 0712-0905 ● ●
59 BRACKET; FRAME HARNESS
(I) 		8-98107-611-0 01 1 0906- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0710-0711 ●
312 BRACKET; CLIP HARNESS
AUTO CAB TILT<WV2> (A) 		8-97620-519-0 01 1 0712- ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710-0711 ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0710-0711 ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0712- ● ●
428 BRACKET
EURO2 SPECIFICATION<NT2> (C) 		1-47476-658-0 01 1 0809- ●
428 BRACKET
(A) L=65 		1-47479-064-0 01 1 0712-0803 ●
428 BRACKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0801-0804 ●
428 BRACKET
(B) 		8-97620-514-0 01 1 0710-0711 ●
428 BRACKET
(B) 		8-97620-514-0 01 1 0712- ● ●
çizim 467248
137 137 137 137 308 137 137 137 308 308 308 308 308 312 312 324 600 428 428 335
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(A) 		8-98097-528-0 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (A) 		8-98097-528-0 01 1 0712-0802 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (A) 		8-98097-528-0 01 1 0803- ●
137 BRACKET; HARNESS CLAMP
(A) 		8-98097-528-0 01 1 0803- ●
137 BRACKET; HARNESS CLAMP
(F) 		8-97622-657-0 01 1 0710-0710 ●
137 BRACKET; HARNESS CLAMP
(G) 		8-97624-013-0 01 1 0711-0711 ●
137 BRACKET; HARNESS CLAMP
(G) 		8-97624-013-0 01 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(D) L=110 		1-82699-589-0 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (D) L=110 		1-82699-589-0 01 1 0712-0802 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (D) L=110 		1-82699-589-0 01 1 0803- ●
137 BRACKET; HARNESS CLAMP
(D) L=110 		1-82699-589-0 01 1 0803- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (B) 		8-97609-797-1 02 1 0712- ●
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0712- ●
137 BRACKET; HARNESS CLAMP
(E) 		1-82698-140-0 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> AUSTRALIA EQUIPMENT(B13) (E) 		1-82698-140-0 01 1 0712-0802 ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0710-0711 ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0712- ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (A) 		8-97601-310-0 02 1 0809-1010 ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (E) 		8-98032-178-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
EURO2 SPECIFICATION<NT2> (F) 		8-98075-824-0 01 1 0809- ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0710-0711 ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0712-0808 ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (A) 		8-97601-310-0 03 1 0809-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0710-0711 ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0712-0808 ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (B) 		8-97614-078-0 01 1 0809- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0710-0711 ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0712-0808 ● ●
308 BRACKET; CLIP,ENG HARNESS
EURO4 SPECIFICATION<NT4> (C) 		8-98021-291-2 01 1 0809- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0710-0711 ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0710-0711 ●
312 BRACKET; CLIP HARNESS
AUTO CAB TILT<WV2> (A) 		8-97620-519-0 01 1 0712- ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710-0711 ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0712- ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0710-0711 ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0712- ● ●
324 BRACKET; CLIP 1-47479-430-0 02 1 0710-0711 ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		1-47479-430-0 02 1 0712-1211 ●
324 BRACKET; CLIP 1-47479-430-0 02 1 0712-1211 ●
324 BRACKET; CLIP 1-47479-430-0 02 1 1212-1212 ● ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> 		1-47479-430-0 02 1 1212- ●
324 BRACKET; CLIP 1-47479-430-0 02 1 1212- ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0710-0711 ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0712- ● ●
428 BRACKET
EURO2 SPECIFICATION<NT2> (C) 		1-47476-658-0 01 1 0809- ●
428 BRACKET
(A) L=65 		1-47479-064-0 01 1 0712-0803 ●
428 BRACKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=55 		1-47475-304-0 01 1 0801-0804 ●
428 BRACKET
(B) 		8-97620-514-0 01 1 0710-0711 ●
428 BRACKET
(B) 		8-97620-514-0 01 1 0712- ● ●
600 PROTECTOR; HEAT 8-98073-436-0 01 1 0710-0711 ●
600 PROTECTOR; HEAT
ANTI LOCK BRAKE<JE5> 		8-98073-436-0 01 1 0712-0801 ●
600 PROTECTOR; HEAT 8-98073-436-0 01 1 0712-0801 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
