Sayfa 7-70 - Isuzu EPC

7-70 — SEPARATER AND BED (#65622) — 259 parça

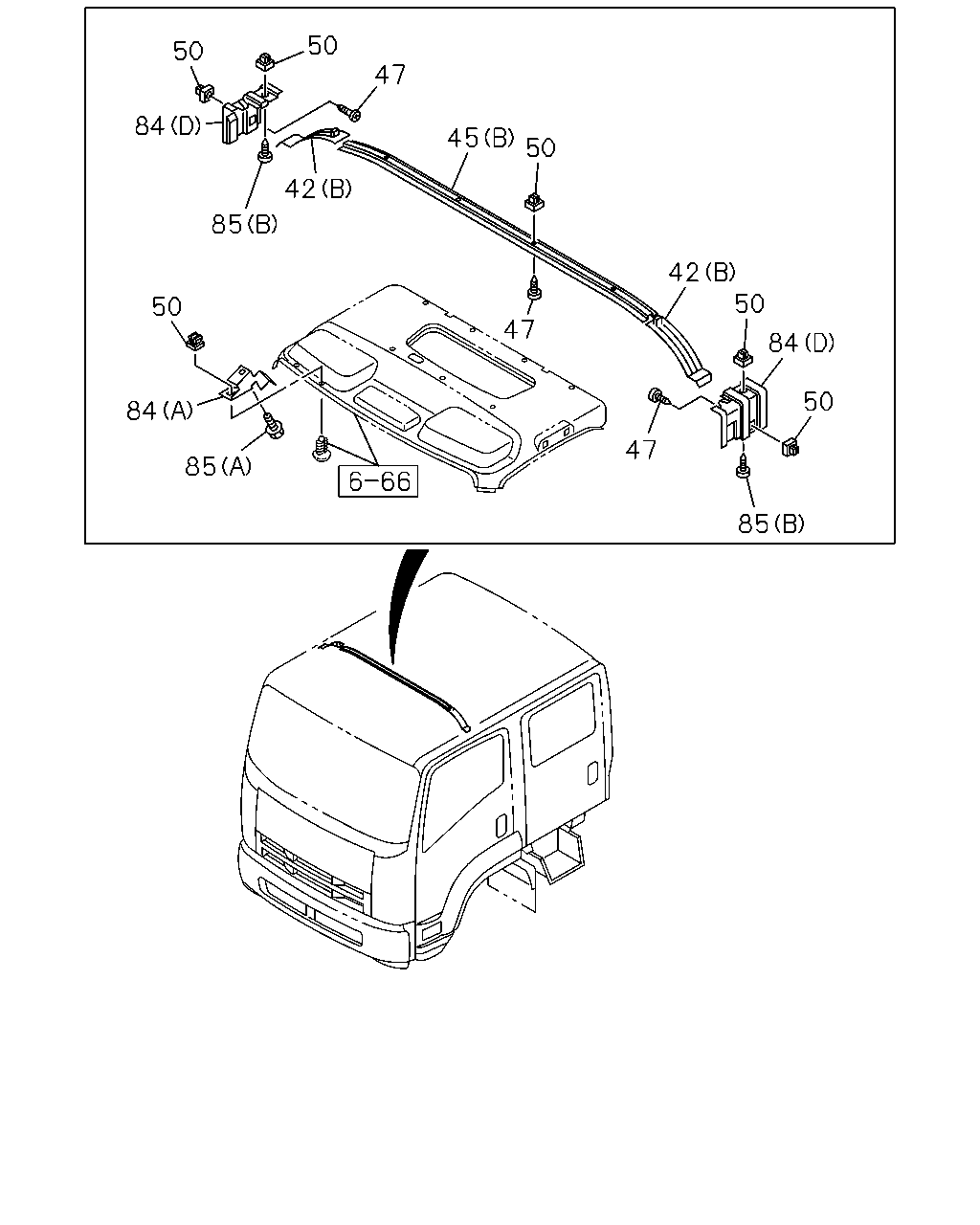

50 50 47 84 45 50 42 85 42 50 50 47 84 50 84 47 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0711-0711	●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0711-0711	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-	●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0710-0711	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0712-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0710-0711	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0712-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (D) DARK GRAY	8-97407-492-4	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) DARK GRAY	8-97407-492-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) LIGHT GRAY	8-97415-675-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (D) DARK GRAY	8-97407-494-4	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) DARK GRAY	8-97407-494-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) LIGHT GRAY	8-97415-676-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT EXC. HONG KONG EQUIPMENT(B14) (B) DARK GRAY	8-97407-486-0	01	1	0712-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	0712-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (A) DARK GRAY	8-97407-488-1	01	1	0712-	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-497-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-679-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-498-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-680-0	01	1	0805-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0805-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0805-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0710-0710	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0712-0804	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0712-0804	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	0805-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0710-0710	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0710-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0710-0711	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0711-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0710-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0710-0712	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0710-1405	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0710-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0710-0710	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0711-0711	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0711-0711	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●

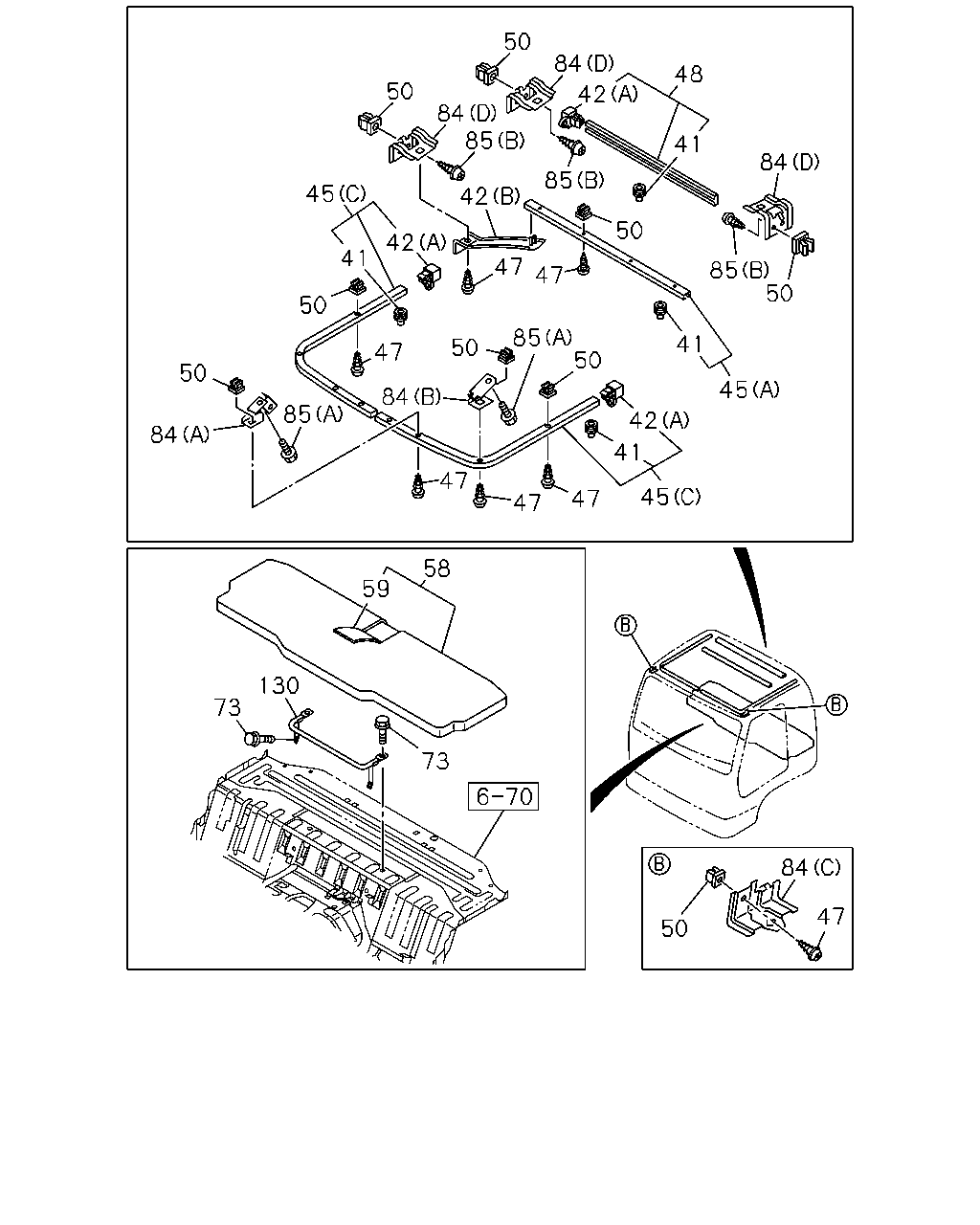

50 84 48 50 42 84 85 84 45 85 42 50 42 45 85 50 50 47 47 85 50 50 84 50 47 85 42 84 47 47 45 47 58 59 130 73 73 84 47 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0711-0711	●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0711-0711	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-	●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0710-0711	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0712-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0710-0711	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0712-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (D) DARK GRAY	8-97407-492-4	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) DARK GRAY	8-97407-492-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) LIGHT GRAY	8-97415-675-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (D) DARK GRAY	8-97407-494-4	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) DARK GRAY	8-97407-494-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) LIGHT GRAY	8-97415-676-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT EXC. HONG KONG EQUIPMENT(B14) (B) DARK GRAY	8-97407-486-0	01	1	0712-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	0712-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (A) DARK GRAY	8-97407-488-1	01	1	0712-	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-497-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-679-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-498-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-680-0	01	1	0805-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0805-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0805-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0710-0710	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0712-0804	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0712-0804	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	0805-	●
48	RAIL; CURTAIN,BACK HONG KONG EQUIPMENT(B14) DARK GRAY	8-97407-490-2	01	1	0712-	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-486-0	01	1	0710-0710	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	0711-0711	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97407-866-2	01	1	0712-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0710-0710	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0710-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1001-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	0710-0912	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1001-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1001-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	0710-0912	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1001-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0710-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0710-0711	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0711-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0710-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0710-0712	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0710-1405	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0710-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0710-0710	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0711-0711	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0711-0711	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0710-	●

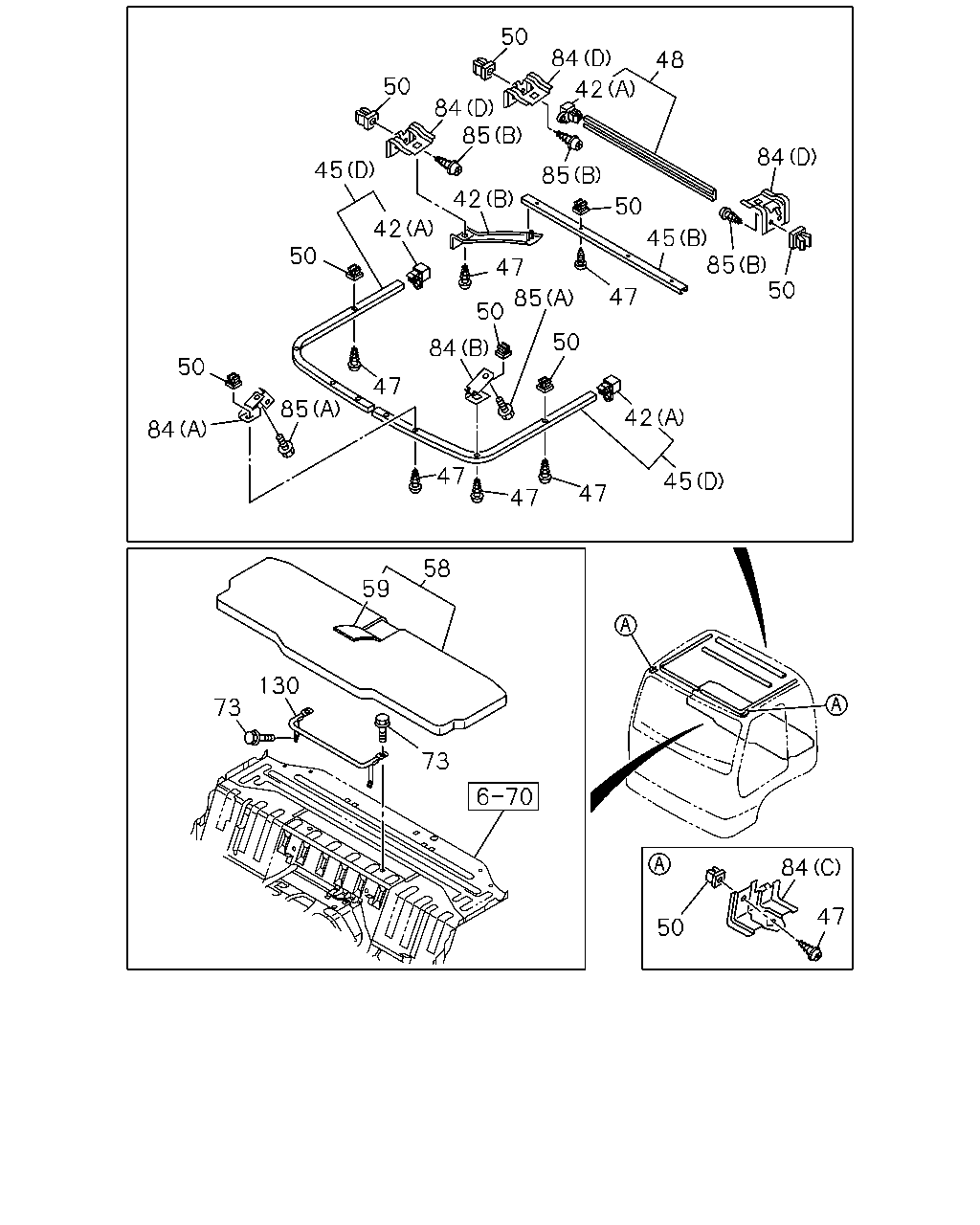

50 84 48 50 42 84 85 41 84 85 45 42 50 42 41 47 85 50 47 50 85 50 41 50 47 50 45 84 85 42 84 41 47 47 45 47 58 59 130 73 73 84 47 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	HOOK; CURTAIN RAIL HONG KONG EQUIPMENT(B14) H=14.5 WHITE	1-73996-398-0	24	1	0712-	●
41	HOOK; CURTAIN RAIL HONG KONG EQUIPMENT(B14) H=14.5 WHITE	1-73996-398-0	28	1	0712-0804	●
41	HOOK; CURTAIN RAIL HONG KONG EQUIPMENT(B14) H=14.5 WHITE	1-73996-398-0	32	1	0805-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0711-0711	●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	01	1	0712-	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0711-0711	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-	●
42	STOPPER; CURTAIN RAIL HONG KONG EQUIPMENT(B14) (A) LIGHT GRAY	8-97408-038-0	02	1	0712-	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0710-0711	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0712-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0710-0711	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0712-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (D) DARK GRAY	8-97407-492-4	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) DARK GRAY	8-97407-492-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) LIGHT GRAY	8-97415-675-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (D) DARK GRAY	8-97407-494-4	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) DARK GRAY	8-97407-494-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) (D) LIGHT GRAY	8-97415-676-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	0711-0711	●
45	RAIL; CURTAIN,FRT EXC. HONG KONG EQUIPMENT(B14) (B) DARK GRAY	8-97407-486-0	01	1	0712-	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	0712-		●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (A) DARK GRAY	8-97407-488-1	01	1	0712-	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-497-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-679-0	01	1	0805-	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) DARK GRAY	8-97407-498-4	01	1	0712-0804	●
45	RAIL; CURTAIN,FRT HONG KONG EQUIPMENT(B14) (C) LIGHT GRAY	8-97415-680-0	01	1	0805-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0805-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0805-	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0710-0710	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0711	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0712-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0712-0804	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0712-0804	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	0805-	●
48	RAIL; CURTAIN,BACK HONG KONG EQUIPMENT(B14) DARK GRAY	8-97407-490-2	01	1	0712-	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-486-0	01	1	0710-0710	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	0711-0711	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> EXC. HONG KONG EQUIPMENT(B14) DARK GRAY	8-97407-866-2	01	1	0712-	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	02	1	0712-		●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0710-0710	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0711	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0712-0804	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0710-0804	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1001-	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	0710-0912	●
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1001-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1001-	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	0710-0912	●
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1001-	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0710-	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0710-0711	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0712-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-740-0	01	1	0711-	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0805-		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0712-0712		●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-	●
84	BRACKET; CURTAIN RAIL (D)	8-98028-821-1	01	1	0710-0712	●
84	BRACKET; CURTAIN RAIL (D)	8-98049-761-1	01	1	0710-0712	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0710-1405	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1406-	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	02	1	0712-		●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0710-0804	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1406-	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0710-0710	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0711-0711	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0711-0711	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0712-0810	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0710-	●

64 51 51 44 92 44 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
44	CURTAIN ASM; CABIN CENTER HONG KONG EQUIPMENT(B14) (A) BLUE	8-97407-947-1	01	1	0712-	●
44	CURTAIN ASM; CABIN CENTER HONG KONG EQUIPMENT(B14) (B) BLUE	8-97407-948-1	01	1	0712-	●
51	CURTAIN; BACK HONG KONG EQUIPMENT(B14) (A) BLUE	8-97407-758-1	01	1	0712-	●
51	CURTAIN; BACK HONG KONG EQUIPMENT(B14) (B) BLUE	8-97407-759-1	01	1	0712-	●
64	CURTAIN KIT HONG KONG EQUIPMENT(B14)	8-97411-634-0	01	1	0712-0804	●
64	CURTAIN KIT HONG KONG EQUIPMENT(B14)	8-97415-695-0	01	1	0805-	●
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (A) BLUE	8-97407-761-1	01	1	0712-0804	●
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (A) BLUE	8-97415-698-0	01	1	0805-	●
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (B)	8-97412-916-0	01	1	0712-0804	●
92	CURTAIN ASM; ROUND HONG KONG EQUIPMENT(B14) (B) BLUE	8-97415-701-0	01	1	0805-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
