◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#65615) — 351 parça

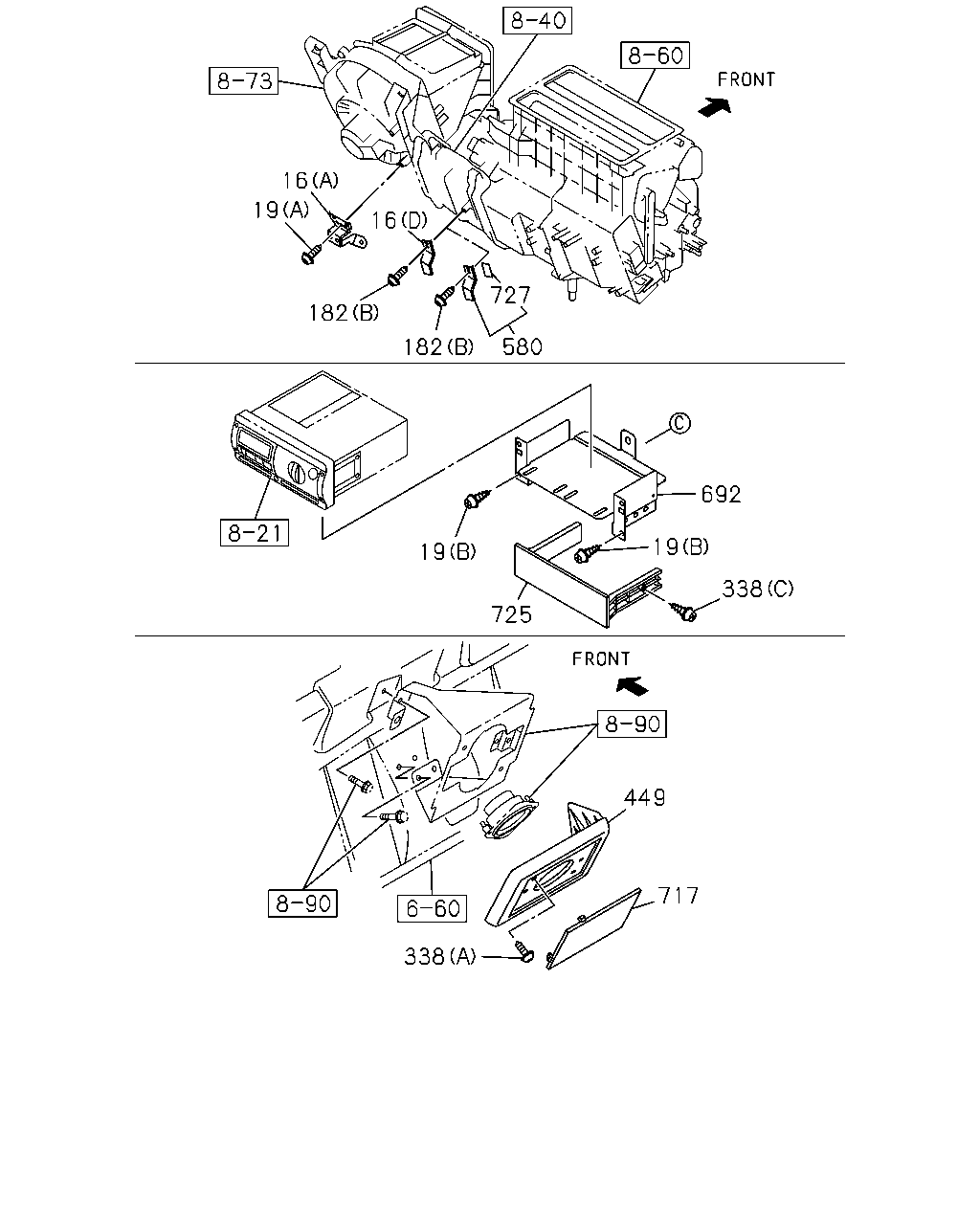

çizim 132643
16 19 16 727 182 182 580 692 19 19 338 725 449 717 338
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710-0711 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0712- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0712- ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0712-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-528-0 01 1 0801-1105 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-528-0 01 1 0801-1105 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0712- ● ●
19 SCREW; BRKT
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (B) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0801-0805 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0712-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0805 ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0710-0711 ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0712- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0710-0711 ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0712- ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0710-0711 ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0712- ● ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) 		8-98017-528-1 01 1 1106- ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98017-528-1 01 1 1106- ●
692 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> 		8-98094-271-0 01 1 0801-0805 ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0710-0711 ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0712- ● ●
725 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> BLACK 		8-97407-896-1 01 1 0801-0805 ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1106- ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) 		8-98186-934-0 01 1 1106- ●

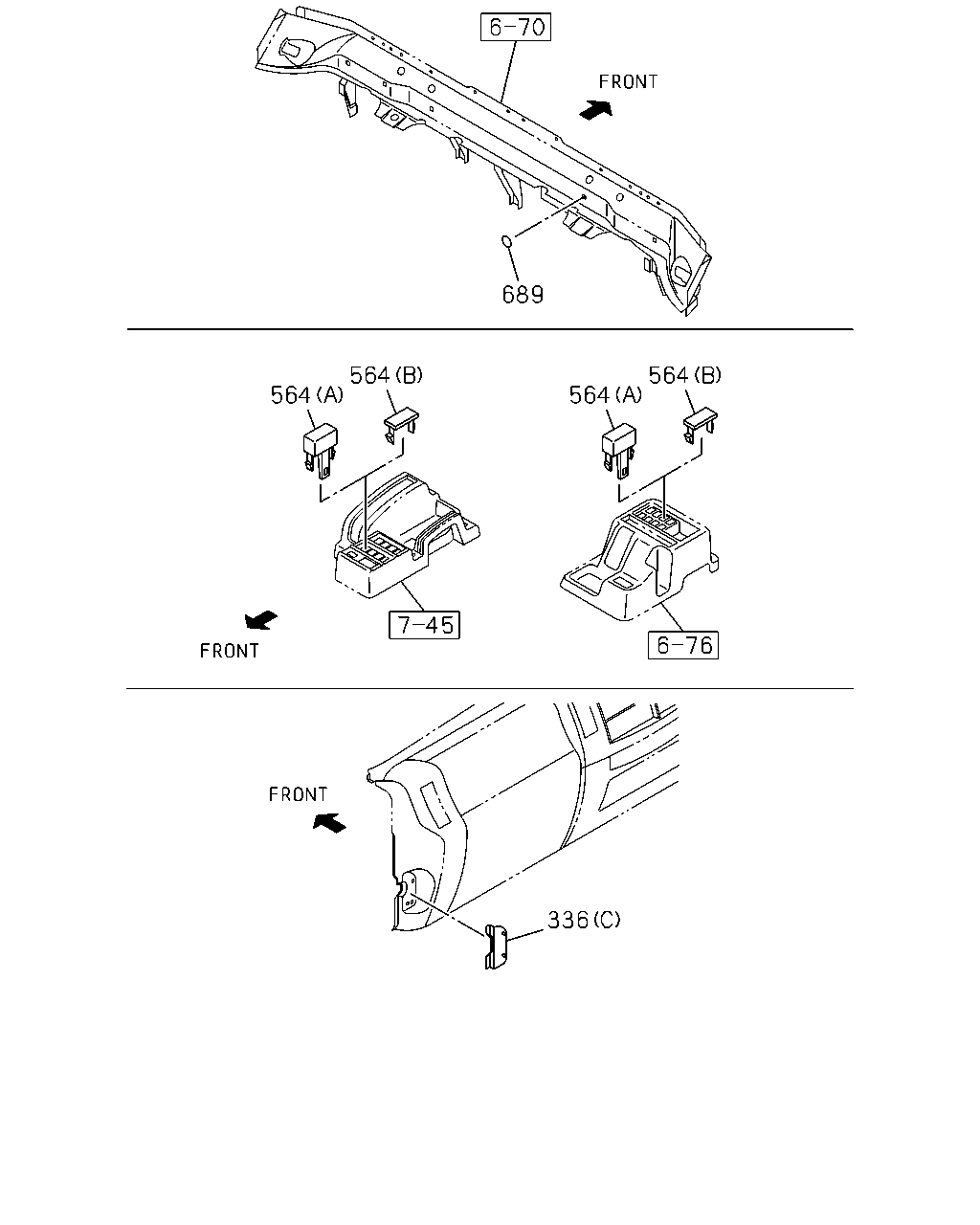

çizim 132850
689 564 564 564 564 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712- ● ●
564 COVER; SW
EXC. AUSTRALIA EQUIPMENT(B13) (B) 		8-97043-732-1 06 1 0712- ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0710-0711 ●
564 COVER; SW
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0712- ●
564 COVER; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 02 1 0712- ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (B) 		8-97043-732-1 06 1 0710-0710 ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0710-0711 ●
564 COVER; SW
AUSTRALIA EQUIPMENT(B13) EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0712- ●
564 COVER; SW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (A) 		1-82359-069-2 06 1 0712- ●
689 SEAL; INST
OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ●

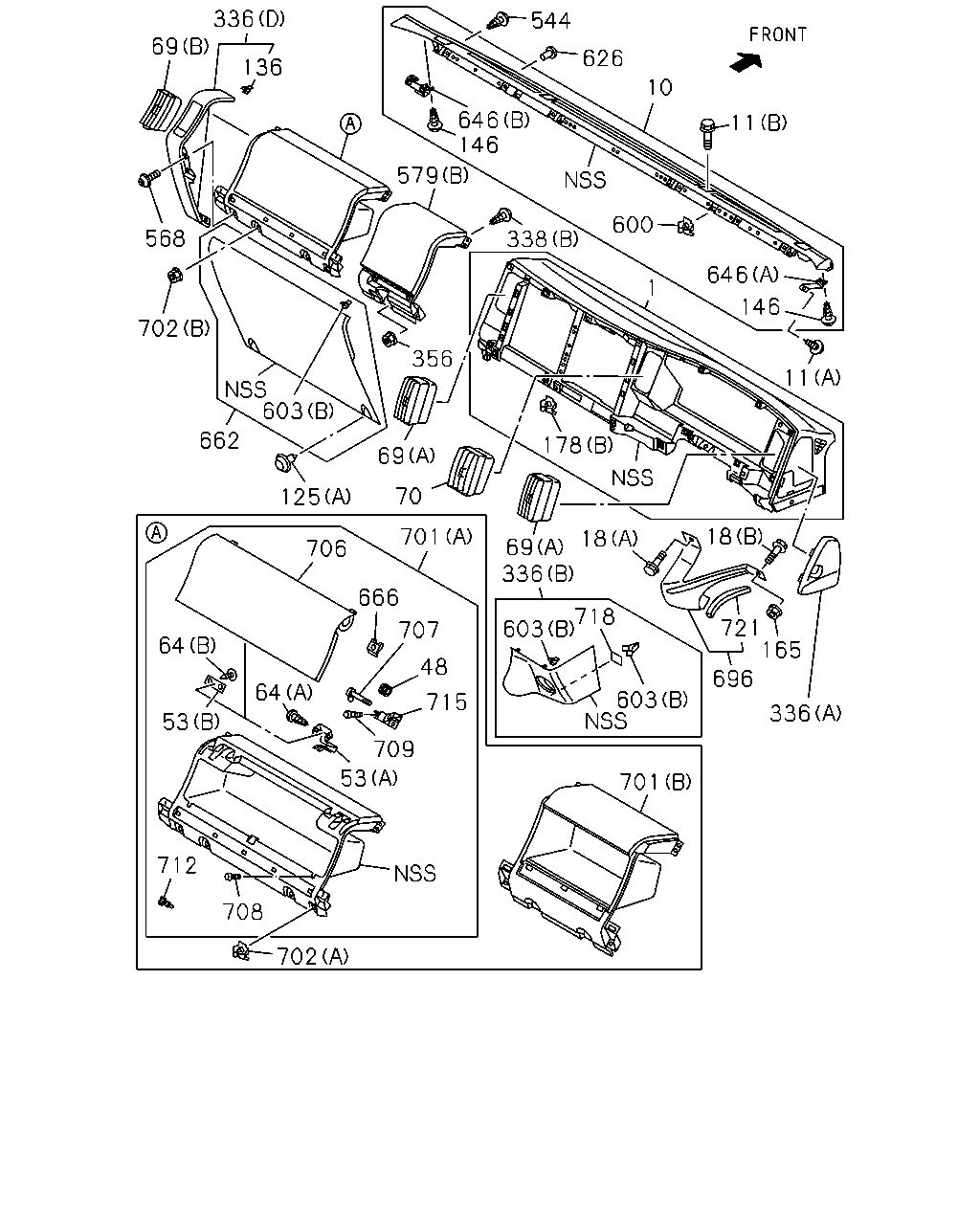

çizim 192372
336 69 136 568 702 603 662 64 53 712 708 702 53 64 706 666 707 48 715 709 701 603 718 603 336 696 721 165 18 18 69 336 701 70 125 69 356 579 646 146 338 544 626 11 600 646 146 11 1 178 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0710-0711 ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0712- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97407-423-9 01 1 0710-0710 ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0710-0711 ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0712-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1009- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0710-0711 ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0712- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0710-0711 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0712- ● ●
18 BOLT; BRKT
(B) M6X12 FLANGE 		0-28450-612-0 01 1 0710-0710 ●
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710-0711 ●
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0712- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0710-0711 ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0712-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0710-0711 ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0712-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0805-1005 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1006-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0805-1005 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1006-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) M4X85 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0710-0711 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0712- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-1 01 1 0710-0711 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0712- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0710-0711 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0712- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-0711 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710-0711 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0710-0711 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0712- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710-0711 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0712-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0712- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710-0711 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0712- ● ●
338 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0805 ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0710-0711 ●
338 SCREW; COVER
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0712- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0710-0711 ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0712- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712- ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) BLACK 		8-97408-909-0 01 1 0710-0711 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0710-0711 ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0712- ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0710-0711 ●
600 NUT; PANEL 8-98037-629-0 02 1 0712-1008 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710-0711 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0710-0711 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0712- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0710-0711 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0712- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0710-0711 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0712- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-2 01 1 0710-0711 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0712- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0710-0711 ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0712-1005 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1006-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0710-0711 ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0712- ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97421-976-1 01 1 1012- ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0710-0711 ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0712-0905 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1005 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1006-1011 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN>, COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97417-196-2 01 1 1012- ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-2 01 1 1012- ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0710-0711 ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0712-0804 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0805-1005 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1006-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-1 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0710-0711 ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0712- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0710-0711 ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0712- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0710-0711 ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0712-0804 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0805-1005 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1006-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-0 02 1 0710-0711 ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0712-1005 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1006-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0710-0711 ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0712-1005 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1006- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0710-0711 ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0712-1005 ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1006- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0710-0711 ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0712-1005 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1006- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0710-0711 ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0712-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0710-0711 ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0712-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0710-0711 ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0712- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0710-0711 ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0712- ● ●

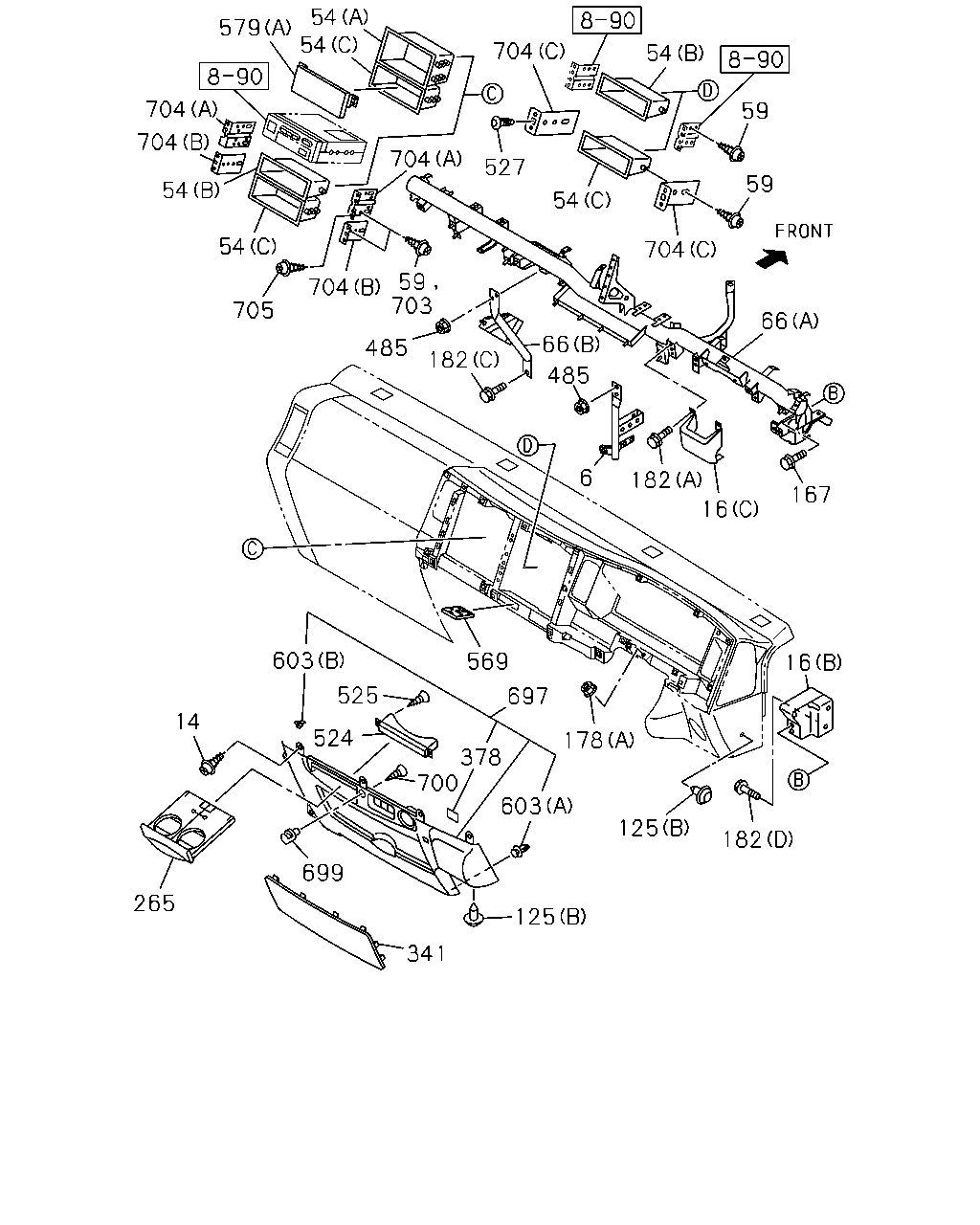

çizim 192374
579 704 704 54 705 54 704 527 704 54 54 54 59 54 59 704 66 704 59 703 485 182 66 485 182 16 167 603 525 700 697 378 569 178 125 182 16 524 699 341 125 265 14 603 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0710-0711 ●
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0712-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0710-0711 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0712- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710-0711 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 0712- ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0712- ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0712-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-528-0 01 1 0801-1105 ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-528-0 01 1 0801-1105 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710-0711 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0712- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710-0711 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0712- ● ●
54 POCKET; CENTER CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),TACHOGRAPH DIGITAL<EBB>,NEW ZEALAND EQUIPMENT(E13),TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-2 01 1 0712-0712 ●
54 POCKET; CENTER CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13),TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-2 01 1 0801-0907 ●
54 POCKET; CENTER CLUSTER
EXC. AUSTRALIA EQUIPMENT(B13),TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0908- ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0712-0712 ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0801- ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 0801- ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710-0711 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0712-0712 ● ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) H=58.4 BLACK 		8-97408-864-2 01 1 0712-0712 ●
54 POCKET; CENTER CLUSTER
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) H=58.4 BLACK 		8-97408-864-2 01 1 0712-0712 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0801-0907 ● ●
54 POCKET; CENTER CLUSTER
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) H=58.4 BLACK 		8-97408-864-2 01 1 0801-0907 ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (B) H=58.4 BLACK 		8-97408-864-2 01 1 0801-0907 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0908- ● ●
54 POCKET; CENTER CLUSTER
AUSTRALIA EQUIPMENT(B13) (B) H=58.4 BLACK 		8-97408-864-3 01 1 0908- ●
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> EXC. AUSTRALIA EQUIPMENT(B13) (B) H=58.4 BLACK 		8-97408-864-3 01 1 0908- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0710-0711 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0712-0712 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801-0801 ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0801- ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 0910- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0712-0909 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 0910- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-567-9 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-567-9 01 1 0712-0911 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98154-700-1 01 1 0912-1111 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98174-905-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-608-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-971-9 01 1 0710-0711 ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-971-9 01 1 0712-0911 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98154-701-1 01 1 0912-1111 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98174-904-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-609-0 01 1 1407- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-0711 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0712-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710-0711 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0712- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0710-0711 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0712- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710-0711 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0712-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0801- ●
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0710-0711 ●
265 HOLDER; CUP
GRAY 		8-97407-897-3 01 1 0712-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0710-0711 ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0712-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0710-0711 ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0712- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0710-0711 ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0712- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0710-0711 ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0712- ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 0712- ●
569 HOLDER; CARD 8-97410-276-0 01 1 0710-0711 ●
569 HOLDER; CARD 8-97410-276-1 01 1 0712- ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) BLACK 		8-97408-909-0 01 1 0710-0711 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) BLACK 		8-97408-909-0 01 1 0712-0712 ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0710-0711 ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0712- ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710-0711 ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0712- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710-0711 ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0712- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0710-0711 ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0712-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0710-0711 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0712- ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0710-0711 ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0712- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0710-0711 ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0712-0712 ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0801- ● ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR& DEFROSTER WO/HEATER(SAZ) (B) 		8-97585-616-2 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97585-616-2 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 01 1 0710-0711 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-97585-616-2 01 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-97585-616-2 01 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98073-822-0 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98073-822-0 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98073-822-0 02 1 0712-0712 ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 0801- ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) 		8-98107-549-0 02 1 0801- ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0710-0711 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0712- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0710-0711 ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0712- ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0712- ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0710-0711 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
