◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#65613) — 650 parça

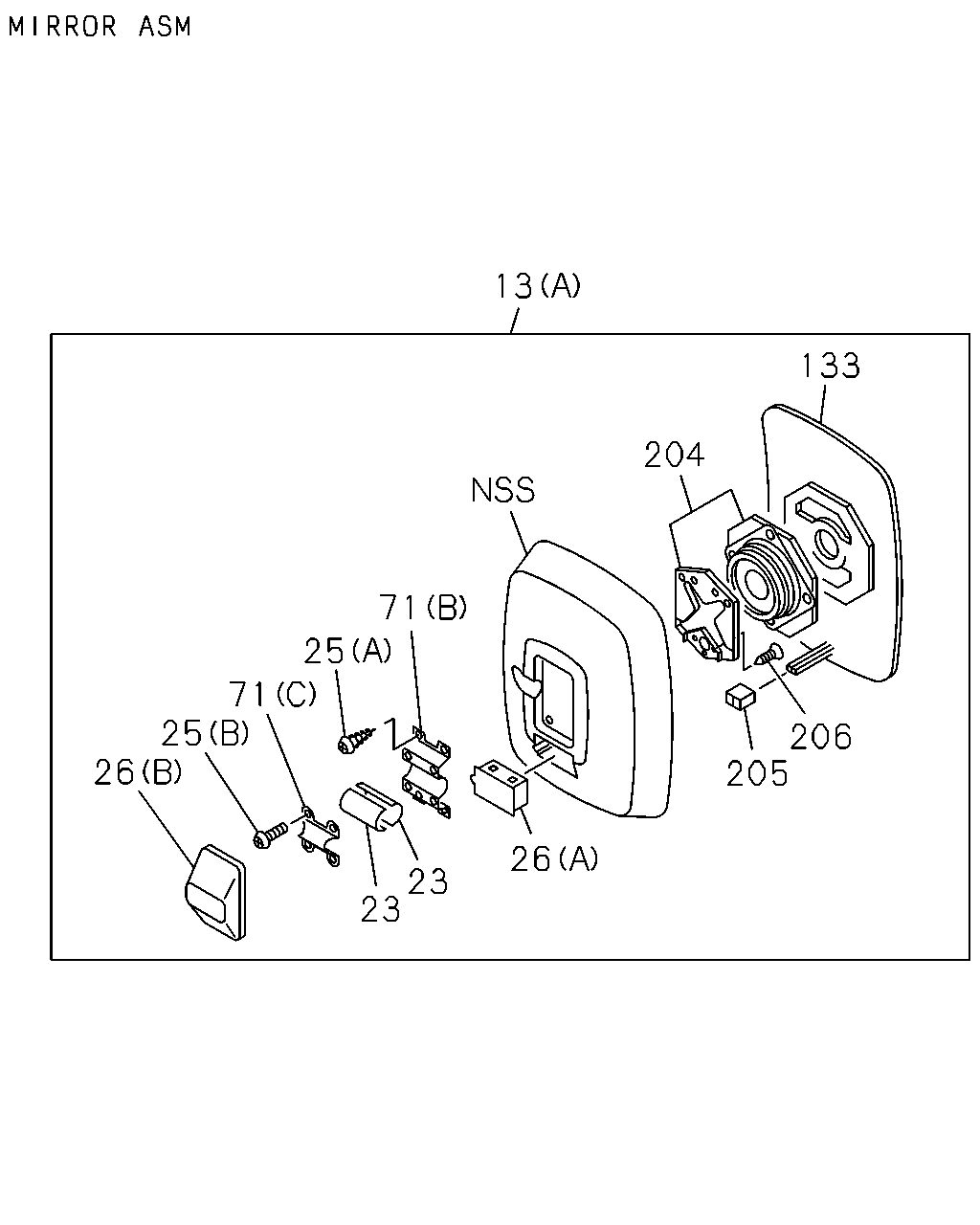

çizim 132588
13 133 204 71 25 71 25 26 206 205 26 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71707-100-2 01 1 0712- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71707-101-2 01 1 0712- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98055-991-0 01 1 0712-0712 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (B) 		8-98055-991-1 01 1 0801-1410 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW, HEATED<7SV> (B) 		8-98055-991-1 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-060-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98055-992-0 01 1 0712-0712 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (B) 		8-98055-992-1 01 1 0801-1410 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW, HEATED<7SV> (B) 		8-98055-992-1 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-176-1 01 1 1506- ●
23 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-71797-883-0 04 1 0712- ●
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5X14 		1-71797-881-0 08 1 0712- ●
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M6X10 		1-71797-882-0 08 1 0712- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71797-879-0 02 1 0712- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71797-880-0 02 1 0712- ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-806-0 01 1 0710-0711 ●
26 COVER; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98031-806-0 01 1 0712- ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-806-0 01 1 0712- ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-805-0 01 1 0710-0711 ●
26 COVER; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98031-805-0 01 1 0712- ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-805-0 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71797-877-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		1-71797-878-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-021-0 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-022-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98040-543-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-1 02 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
133 LENS; MIRROR,OUTSIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-71797-952-1 01 1 0712- ●
133 LENS; MIRROR,OUTSIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-71797-953-0 01 1 0712- ●
204 MOTOR KIT; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-71707-144-0 02 1 0712- ●
205 CONNECTOR KIT; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-71797-955-0 02 1 0712- ●
206 SCREW; MOTOR,MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98134-316-0 04 1 0712- ●

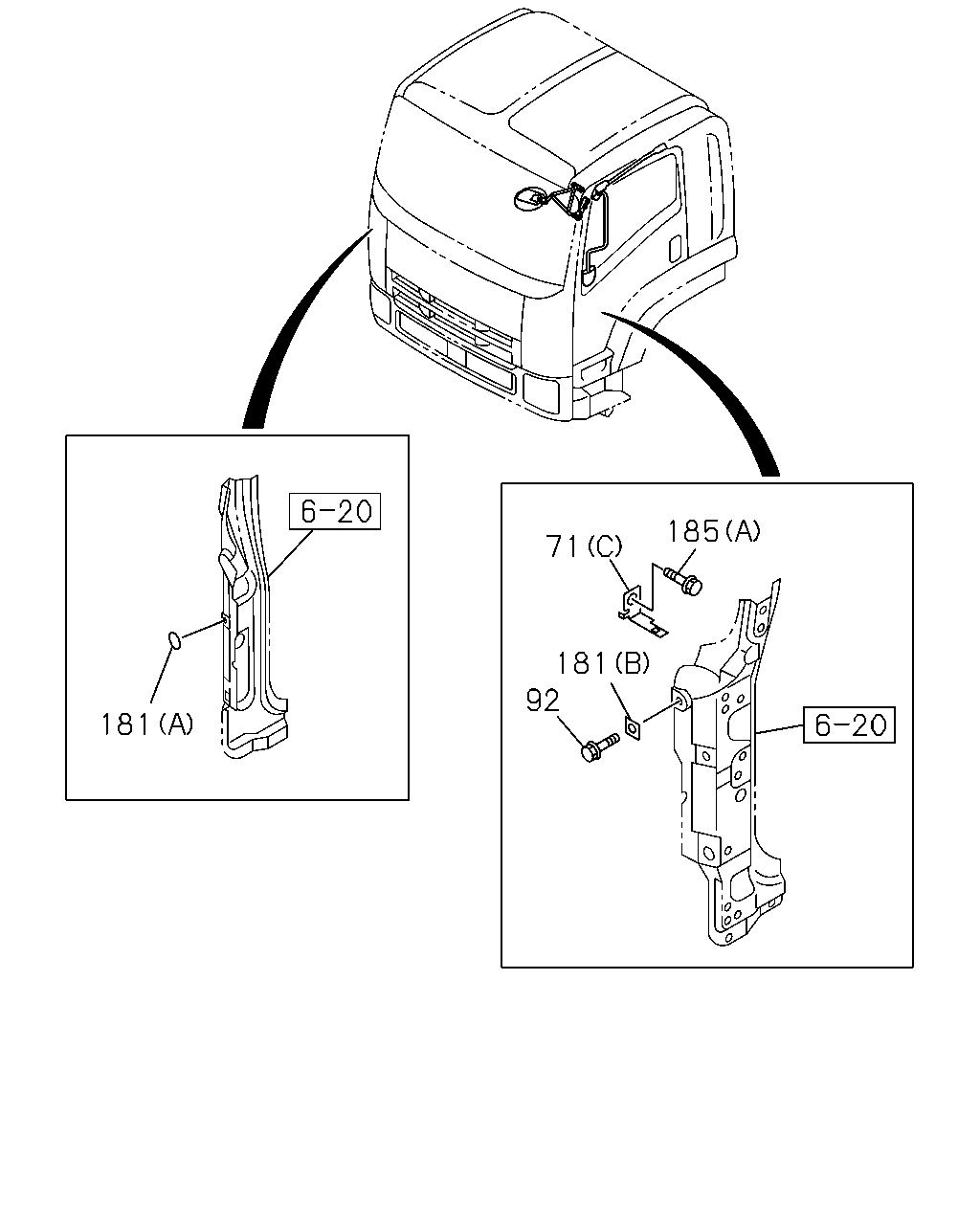

çizim 132623
185 71 181 92 181
BalonParca AdiParca NoAdetTipApplied Date A B
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71797-877-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		1-71797-878-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-021-0 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-022-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98040-543-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-1 02 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
92 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 04 1 0712- ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0710-0711 ●
92 BOLT; STAY BRKT,MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 01 1 0712- ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0712- ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0711 ●
181 SEAL; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0710-0711 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0712- ● ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
185 BOLT; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1202 ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1202 ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0710-0711 ●
185 BOLT; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) SCREW M8X23 		8-97310-216-1 08 1 0712-0807 ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0712-0807 ●

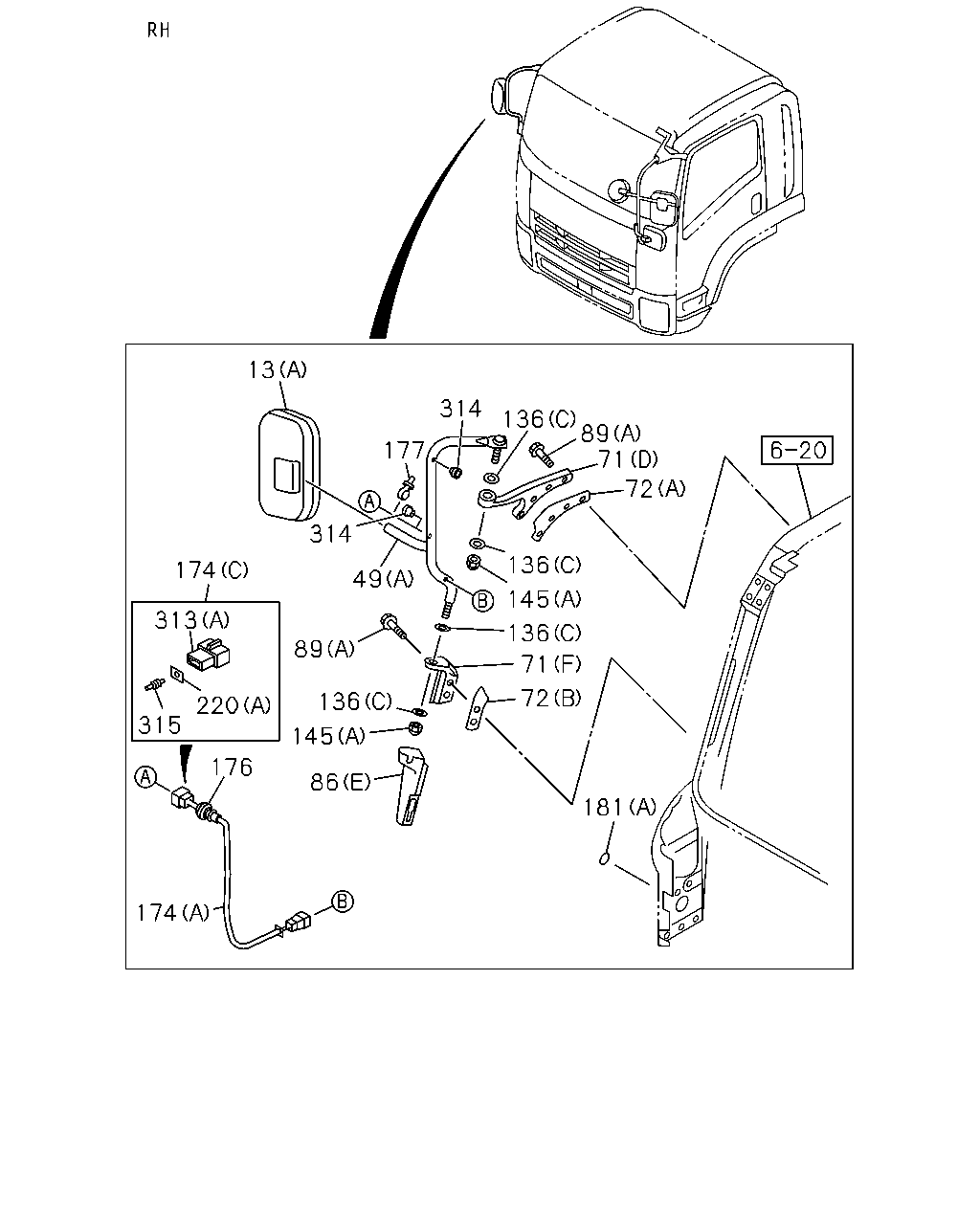

çizim 132700
13 314 136 89 71 177 72 314 136 174 49 145 313 136 89 71 72 136 220 315 145 176 86 181 174
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71707-100-2 01 1 0712- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71707-101-2 01 1 0712- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98055-991-0 01 1 0712-0712 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (B) 		8-98055-991-1 01 1 0801-1410 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW, HEATED<7SV> (B) 		8-98055-991-1 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-060-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98055-992-0 01 1 0712-0712 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (B) 		8-98055-992-1 01 1 0801-1410 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW, HEATED<7SV> (B) 		8-98055-992-1 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-176-1 01 1 1506- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98091-456-0 01 1 0712-1502 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98305-584-0 01 1 1503- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98083-831-1 01 1 0712-1402 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98257-753-0 01 1 1403- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-215-1 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-215-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98166-194-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-216-1 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-216-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0710-0711 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-779-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-779-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0710-0711 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-778-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-778-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-200-0 01 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71797-877-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		1-71797-878-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-021-0 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-022-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98040-543-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-1 02 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-604-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-605-0 01 1 1203- ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 0712- ●
72 SHEET
(H) 		8-98080-418-0 02 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
(H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(E) 		8-98031-797-0 01 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98031-797-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-797-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-796-0 01 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98031-796-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-796-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0710-0711 ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0712- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0710-0711 ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-542-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-545-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-546-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0710-0711 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0710-0711 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0712- ●
89 SCREW; BRKT,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X26 W/PL WASHER 		8-98067-249-2 10 1 0712- ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8X23 		8-97310-216-1 08 1 0808- ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 0808- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0710-0711 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ●
145 NUT; CAP,SUB STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M10 CAP NUT 		1-09984-134-0 03 1 0712- ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0710-0711 ●
145 NUT; CAP,SUB STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8 CAP NUT 		8-98059-914-0 10 1 0712- ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0712- ●
174 HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (E) 		8-98137-139-0 02 1 0902- ●
174 HARNESS; MIRROR
(E) 		8-98137-139-0 02 1 0902- ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98047-368-2 01 1 0712- ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98047-371-0 01 1 0712-0807 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98047-374-0 01 1 0712-0807 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98047-367-0 01 1 0712-1402 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98258-260-0 01 1 1403- ●
176 GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-82699-906-0 01 1 0712- ●
176 GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		1-82699-906-0 01 1 0712- ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> L=140 		5-09707-031-1 02 1 0712-0901 ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> L=140 		5-09707-031-1 02 1 0902- ●
177 CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> L=140 		5-09707-031-1 02 1 0902- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902- ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> L=140 		5-09707-031-1 01 1 0712- ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0711 ●
181 SEAL; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0710-0711 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0712- ● ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-375-0 02 1 0902- ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 0902- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-94447-536-0 01 1 0712- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-536-0 01 1 0712- ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-370-0 02 1 0902- ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 0902- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-94447-532-0 01 1 0712- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-532-0 01 1 0712- ●
314 BUFFER; STOPPER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-94314-317-0 01 1 0712- ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-82691-026-0 01 1 0712- ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		1-82691-026-0 01 1 0712- ●

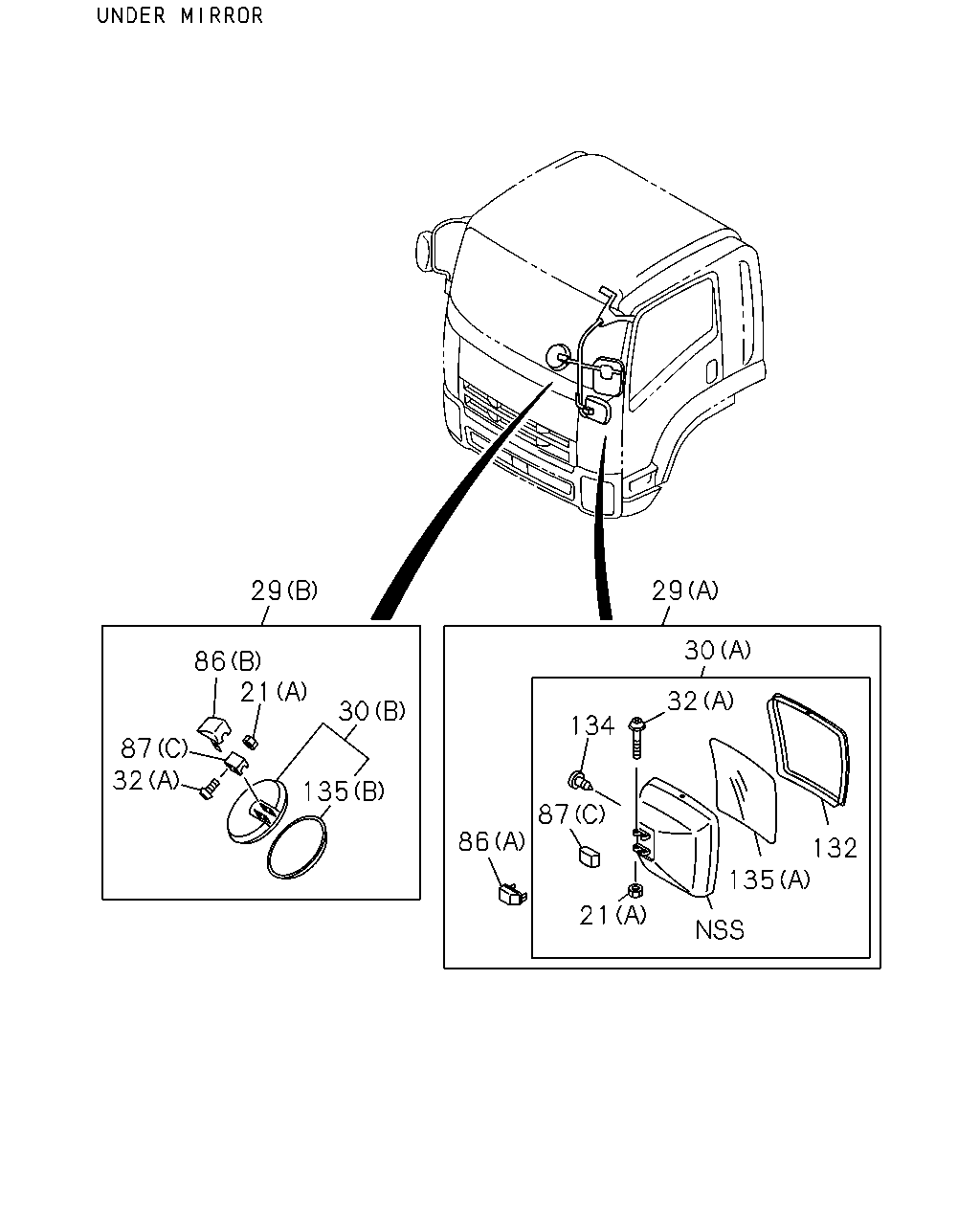

çizim 132976
29 29 30 86 21 32 30 134 87 32 135 87 86 132 135 21
BalonParca AdiParca NoAdetTipApplied Date A B
21 NUT; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5 		1-09984-124-0 02 1 0712- ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5 		1-09984-124-0 02 1 0712- ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) M10 CAP NUT 		1-09984-134-0 02 1 0710-0711 ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) M10 CAP NUT 		1-09984-134-0 02 1 0712- ● ●
29 MIRROR ASM; UNDER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-422-0 01 1 0712- ●
29 MIRROR ASM; UNDER
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-421-1 01 1 0712- ●
30 MIRROR; UNDER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-591-1 01 1 0712- ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-592-1 01 1 0712- ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98055-994-0 01 1 0710-0711 ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98055-994-0 01 1 0712-1504 ● ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) M8X26 W/PL WASHER 		8-98067-249-2 04 1 0710-0711 ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) M8X26 W/PL WASHER 		8-98067-249-2 04 1 0712- ● ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER 		1-71737-797-0 02 1 0712- ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER 		1-71737-797-0 02 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-542-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-545-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-546-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0710-0711 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0710-0711 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0712- ●
87 SPACER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		1-71737-646-2 01 1 0712- ●
87 SPACER
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (C) 		1-71737-646-2 01 1 0712- ●
87 SPACER
(A) 		8-98063-786-0 02 1 0710-0711 ●
87 SPACER
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98063-786-0 02 1 0712- ●
87 SPACER
(A) 		8-98063-786-0 02 1 0712- ●
87 SPACER
(B) 		8-98063-789-0 02 1 0710-0711 ●
87 SPACER
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98063-789-0 02 1 0712- ●
87 SPACER
(B) 		8-98063-789-0 02 1 0712- ●
132 RING; MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		1-71737-935-0 01 1 0712- ●
134 CLIP; MIRROR LENS
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		1-71737-936-0 01 1 0712- ●
135 LENS; MIRROR,SIDE UNDER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-838-0 01 1 0712- ●
135 LENS; MIRROR,SIDE UNDER
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71737-929-0 01 1 0712- ●

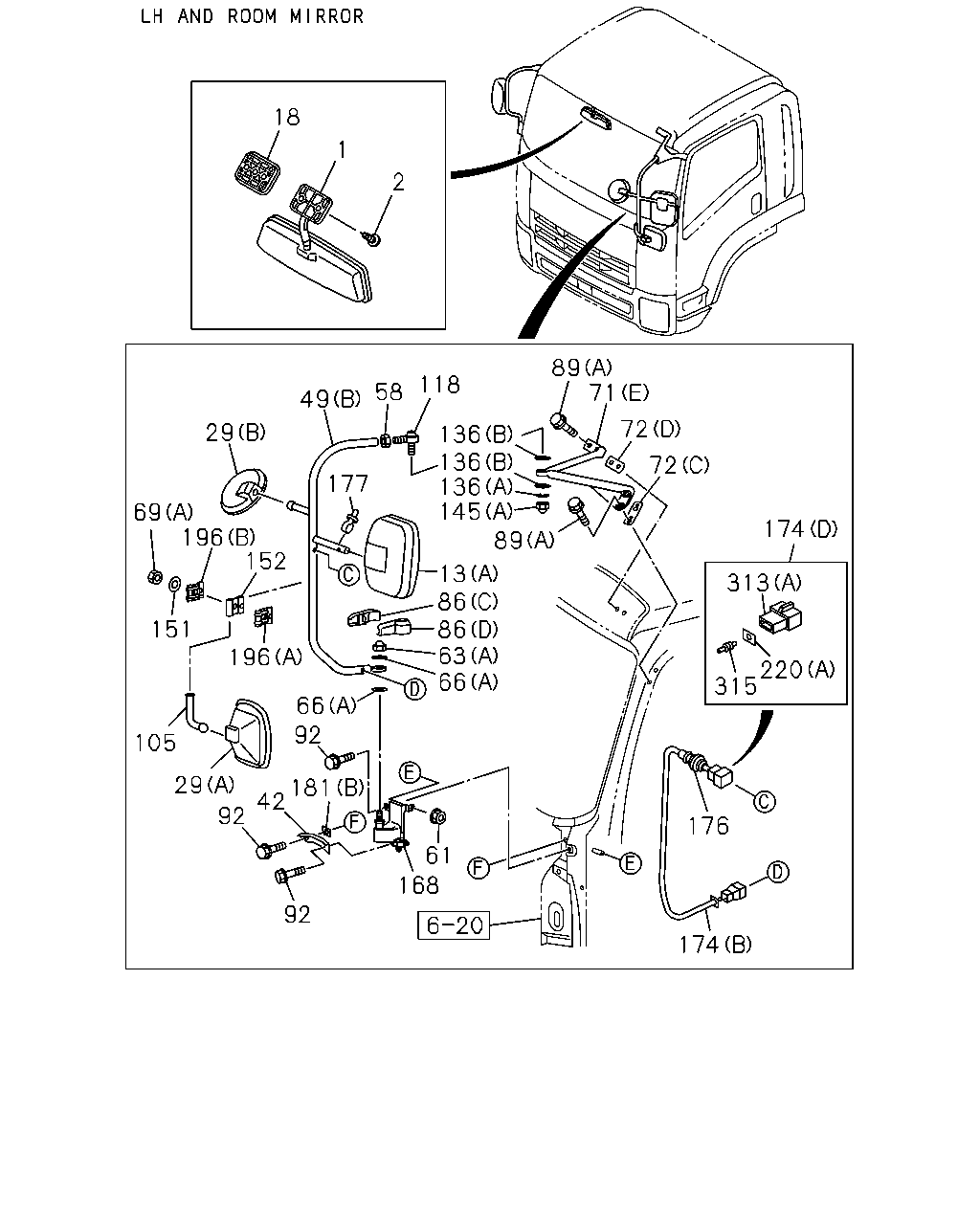

çizim 192285
18 1 2 89 71 118 58 49 72 29 136 136 136 145 89 72 177 69 196 152 174 13 86 86 63 66 313 151 196 220 315 66 92 105 29 181 42 92 176 61 168 92 174
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0710-0711 ●
1 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0712-0802 ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0710-0711 ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0712- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71707-100-2 01 1 0712- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71707-101-2 01 1 0712- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98055-991-0 01 1 0712-0712 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (B) 		8-98055-991-1 01 1 0801-1410 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW, HEATED<7SV> (B) 		8-98055-991-1 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-060-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98055-992-0 01 1 0712-0712 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (B) 		8-98055-992-1 01 1 0801-1410 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW, HEATED<7SV> (B) 		8-98055-992-1 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-176-1 01 1 1506- ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0710-0711 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0712- ● ●
29 MIRROR ASM; UNDER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-422-0 01 1 0712- ●
29 MIRROR ASM; UNDER
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-421-1 01 1 0712- ●
42 ATTACHMENT; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98070-643-0 01 1 0712- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98091-456-0 01 1 0712-1502 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98305-584-0 01 1 1503- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98083-831-1 01 1 0712-1402 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98257-753-0 01 1 1403- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-215-1 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-215-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98166-194-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-216-1 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-216-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0710-0711 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-779-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-779-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0710-0711 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-778-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-778-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-200-0 01 1 1203- ●
58 NUT; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> M12 		8-98061-883-0 01 1 0712- ●
61 NUT; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE 		0-91180-108-0 01 1 0712- ●
63 NUT; STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT 		1-09984-134-0 02 1 0808- ●
63 NUT; STAY
(B) M10 CAP NUT 		1-09984-134-0 02 1 0808- ●
63 NUT; STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M14 CAP NUT 		8-98041-311-1 01 1 0712- ●
66 WASHER; PL
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=14.5 OD=30 		9-09851-946-0 02 1 0712- ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0710-0711 ●
66 WASHER; PL
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712- ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712- ●
69 NUT; CAP
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT 		1-09984-134-0 01 1 0712- ●
69 NUT; CAP
(B) M10 CAP NUT 		1-09984-134-0 02 1 0710-0711 ●
69 NUT; CAP
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ●
69 NUT; CAP
(B) M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71797-877-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		1-71797-878-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-021-0 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-022-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98040-543-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-1 02 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-604-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-605-0 01 1 1203- ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 0712- ●
72 SHEET
(H) 		8-98080-418-0 02 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
(H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(E) 		8-98031-797-0 01 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98031-797-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-797-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-796-0 01 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98031-796-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-796-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0710-0711 ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0712- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0710-0711 ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-542-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-545-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-546-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0710-0711 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0710-0711 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0712- ●
89 SCREW; BRKT,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X26 W/PL WASHER 		8-98067-249-2 10 1 0712- ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8X23 		8-97310-216-1 08 1 0808- ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 0808- ●
92 BOLT; STAY BRKT,MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 04 1 0712- ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0710-0711 ●
92 BOLT; STAY BRKT,MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE 		8-98076-109-0 01 1 0712- ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0712- ●
105 STAY; SUB UNDER MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98041-571-2 01 1 0712-1402 ●
105 STAY; SUB UNDER MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		8-98257-761-0 01 1 1403- ●
118 JOINT ASM; BALL
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		1-71798-356-2 01 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0710-0711 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ●
145 NUT; CAP,SUB STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M10 CAP NUT 		1-09984-134-0 03 1 0712- ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0710-0711 ●
145 NUT; CAP,SUB STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8 CAP NUT 		8-98059-914-0 10 1 0712- ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0712- ●
151 WASHER; PL,MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> ID=10.5 T=2.0 		1-09985-183-0 01 1 0712- ●
152 SHEET; MIRROR STAY
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		1-71798-445-1 02 1 0712- ●
168 POWER UNIT; MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> O/SIDE MIRROR ASSIST SIDE AUTO SHORT STAY<6UH> 		8-97612-287-2 01 1 0712- ●
174 HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (E) 		8-98137-139-0 02 1 0902- ●
174 HARNESS; MIRROR
(E) 		8-98137-139-0 02 1 0902- ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98047-368-2 01 1 0712- ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98047-371-0 01 1 0712-0807 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98047-374-0 01 1 0712-0807 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98047-367-0 01 1 0712-1402 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98258-260-0 01 1 1403- ●
176 GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-82699-906-0 01 1 0712- ●
176 GROMMET; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		1-82699-906-0 01 1 0712- ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> L=140 		5-09707-031-1 02 1 0712-0901 ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> L=140 		5-09707-031-1 02 1 0902- ●
177 CLIP; HARNESS
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> L=140 		5-09707-031-1 02 1 0902- ●
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0902- ●
177 CLIP; HARNESS
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> L=140 		5-09707-031-1 01 1 0712- ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0711 ●
181 SEAL; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0712-0808 ●
181 SEAL; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ●
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 01 1 0809- ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0710-0711 ●
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0712- ● ●
196 HOLDER; STAY
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-442-2 01 1 0712- ●
196 HOLDER; STAY
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		1-71798-444-2 01 1 0712- ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-375-0 02 1 0902- ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 0902- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-94447-536-0 01 1 0712- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-536-0 01 1 0712- ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-370-0 02 1 0902- ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 0902- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-94447-532-0 01 1 0712- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-532-0 01 1 0712- ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		1-82691-026-0 01 1 0712- ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> 		1-82691-026-0 01 1 0712- ●

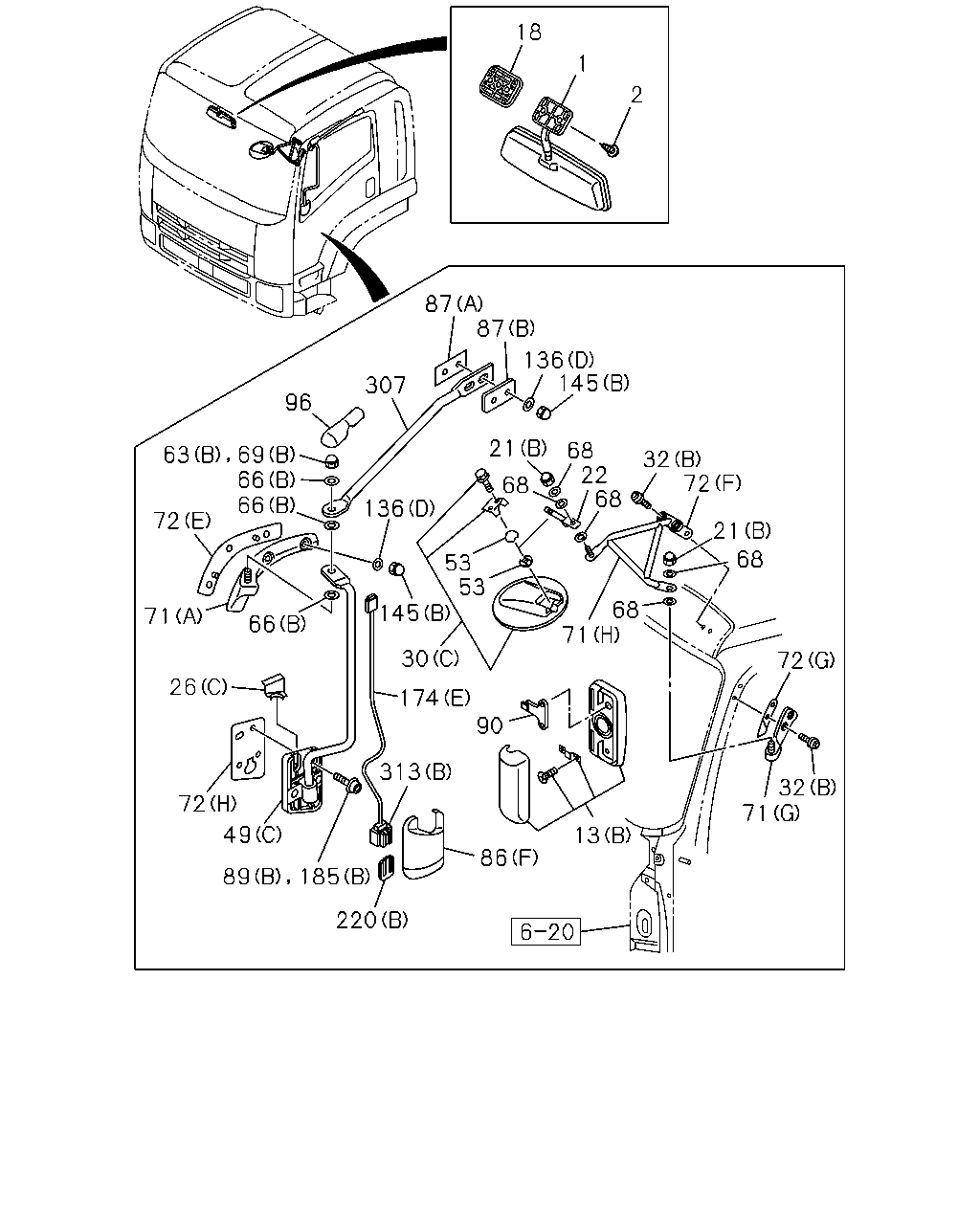

çizim 192377
18 1 2 87 87 136 145 307 96 63 69 66 66 72 71 66 26 72 49 89 185 220 313 174 30 145 136 21 68 53 53 90 86 71 68 22 68 32 21 72 68 68 72 32 71 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0710-0711 ●
1 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0712-0802 ● ●
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0710-0711 ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0712- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71707-100-2 01 1 0712- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71707-101-2 01 1 0712- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98055-991-0 01 1 0712-0712 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (B) 		8-98055-991-1 01 1 0801-1410 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW, HEATED<7SV> (B) 		8-98055-991-1 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-060-1 01 1 1506- ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98055-992-0 01 1 0712-0712 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (B) 		8-98055-992-1 01 1 0801-1410 ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1>,O/SIDE MIRROR RR VIEW, HEATED<7SV> (B) 		8-98055-992-1 01 1 1411- ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> (B) 		8-98043-176-1 01 1 1506- ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0710-0711 ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0712- ● ●
21 NUT; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5 		1-09984-124-0 02 1 0712- ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5 		1-09984-124-0 02 1 0712- ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) M10 CAP NUT 		1-09984-134-0 02 1 0710-0711 ●
21 NUT; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) M10 CAP NUT 		1-09984-134-0 02 1 0712- ● ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-493-0 01 1 0710-0711 ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> 		8-98092-493-0 01 1 0712- ● ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71797-879-0 02 1 0712- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		1-71797-880-0 02 1 0712- ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-806-0 01 1 0710-0711 ●
26 COVER; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98031-806-0 01 1 0712- ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-806-0 01 1 0712- ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-805-0 01 1 0710-0711 ●
26 COVER; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98031-805-0 01 1 0712- ●
26 COVER; OUTSIDE MIRROR
(C) 		8-98031-805-0 01 1 0712- ●
30 MIRROR; UNDER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71798-591-1 01 1 0712- ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		1-71798-592-1 01 1 0712- ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98055-994-0 01 1 0710-0711 ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98055-994-0 01 1 0712-1504 ● ●
30 MIRROR; UNDER
O/SIDE MIRROR UNDER VIEW<RR9> (C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) M8X26 W/PL WASHER 		8-98067-249-2 04 1 0710-0711 ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (B) M8X26 W/PL WASHER 		8-98067-249-2 04 1 0712- ● ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M5X40 W/PL WASHER 		1-71737-797-0 02 1 0712- ●
32 SCREW; UNDER MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M5X40 W/PL WASHER 		1-71737-797-0 02 1 0712- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98091-456-0 01 1 0712-1502 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98305-584-0 01 1 1503- ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98083-831-1 01 1 0712-1402 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98257-753-0 01 1 1403- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-215-1 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-215-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98166-194-0 01 1 1203- ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-216-1 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98060-216-1 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (C) 		8-98166-195-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0710-0711 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-779-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-779-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-779-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-201-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0710-0711 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) (C) 		8-98064-778-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0712-0712 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98064-778-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
(C) 		8-98064-778-0 01 1 0801-1202 ●
49 STAY; MIRROR SIDE
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (C) 		8-98166-200-0 01 1 1203- ●
49 STAY; MIRROR SIDE
(C) 		8-98166-200-0 01 1 1203- ●
53 PIVOT; SIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 0710-0711 ●
53 PIVOT; SIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 0712- ● ●
63 NUT; STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT 		1-09984-134-0 02 1 0808- ●
63 NUT; STAY
(B) M10 CAP NUT 		1-09984-134-0 02 1 0808- ●
63 NUT; STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M14 CAP NUT 		8-98041-311-1 01 1 0712- ●
66 WASHER; PL
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=14.5 OD=30 		9-09851-946-0 02 1 0712- ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0710-0711 ●
66 WASHER; PL
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712- ●
66 WASHER; PL
(B) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0712- ●
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 05 1 0710-0711 ●
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 05 1 0712-0805 ● ●
68 WASHER; STAY
O/SIDE MIRROR UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0806- ● ●
69 NUT; CAP
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) M10 CAP NUT 		1-09984-134-0 01 1 0712- ●
69 NUT; CAP
(B) M10 CAP NUT 		1-09984-134-0 02 1 0710-0711 ●
69 NUT; CAP
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ●
69 NUT; CAP
(B) M10 CAP NUT 		1-09984-134-0 02 1 0712-0807 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		1-71797-877-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		1-71797-878-0 02 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-021-0 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-022-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98040-543-1 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (H) 		8-98092-492-3 01 1 0712- ● ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-1 02 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0712-1202 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (C) 		8-98039-277-2 02 1 1203- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0712- ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0710-0711 ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98060-240-0 01 1 0712- ● ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-604-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-605-0 01 1 1203- ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
(H) 		8-98101-865-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-865-0 01 1 1203- ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-604-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98116-605-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98040-351-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98040-353-1 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-535-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-537-1 01 1 0712- ●
72 SHEET
(H) 		8-98080-418-0 02 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
(H) 		8-98080-418-0 02 1 0712-0804 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0805-0807 ●
72 SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,O/SIDE MIRRORRR VIEW FLAT<YS1> (H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
(H) 		8-98101-864-0 01 1 0808-1202 ●
72 SHEET
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(H) 		8-98101-864-0 01 1 1203- ●
72 SHEET
(E) 		8-98031-797-0 01 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98031-797-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-797-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-796-0 01 1 0710-0711 ●
72 SHEET
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98031-796-0 01 1 0712- ●
72 SHEET
(E) 		8-98031-796-0 01 1 0712- ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0710-0711 ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (F) 		8-98060-245-1 01 1 0712- ● ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0710-0711 ●
72 SHEET
O/SIDE MIRROR UNDER VIEW<RR9> (G) 		8-98064-776-0 01 1 0712- ● ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK 		1-71737-649-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (E) 		8-98040-542-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98040-545-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98040-546-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) BLACK 		1-71737-652-1 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0710-0711 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-803-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-803-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0710-0711 ●
86 COVER; STAY,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (F) 		8-98031-802-2 01 1 0712- ●
86 COVER; STAY,OUTSIDE MIRROR
(F) 		8-98031-802-2 01 1 0712- ●
87 SPACER
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		1-71737-646-2 01 1 0712- ●
87 SPACER
O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (C) 		1-71737-646-2 01 1 0712- ●
87 SPACER
(A) 		8-98063-786-0 02 1 0710-0711 ●
87 SPACER
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98063-786-0 02 1 0712- ●
87 SPACER
(A) 		8-98063-786-0 02 1 0712- ●
87 SPACER
(B) 		8-98063-789-0 02 1 0710-0711 ●
87 SPACER
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98063-789-0 02 1 0712- ●
87 SPACER
(B) 		8-98063-789-0 02 1 0712- ●
89 SCREW; BRKT,OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X26 W/PL WASHER 		8-98067-249-2 10 1 0712- ●
89 SCREW; BRKT,OUTSIDE MIRROR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8X23 		8-97310-216-1 08 1 0808- ●
89 SCREW; BRKT,OUTSIDE MIRROR
(B) M8X23 		8-97310-216-1 08 1 0808- ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR RR VIEW FLAT<YS1> 		8-98129-822-0 02 1 1506- ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0710-0711 ●
96 CAP; MIRROR STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98080-173-0 02 1 0712- ●
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10 		1-09985-180-0 01 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0710-0711 ●
136 WASHER; LK,BRKT,MIRROR STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ●
136 WASHER; LK,BRKT,MIRROR STAY
(D) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0712- ●
145 NUT; CAP,SUB STAY
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M10 CAP NUT 		1-09984-134-0 03 1 0712- ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0710-0711 ●
145 NUT; CAP,SUB STAY
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) M8 CAP NUT 		8-98059-914-0 10 1 0712- ●
145 NUT; CAP,SUB STAY
(B) M8 CAP NUT 		8-98059-914-0 10 1 0712- ●
174 HARNESS; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (E) 		8-98137-139-0 02 1 0902- ●
174 HARNESS; MIRROR
(E) 		8-98137-139-0 02 1 0902- ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-98047-368-2 01 1 0712- ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (C) 		8-98047-371-0 01 1 0712-0807 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (D) 		8-98047-374-0 01 1 0712-0807 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98047-367-0 01 1 0712-1402 ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (B) 		8-98258-260-0 01 1 1403- ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0711 ●
185 BOLT; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1202 ●
185 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 0712-1202 ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,O/SIDE MIRROR RR VIEW,HEATED<7SV> (A) M8X16 FLANGE 		0-28050-816-0 02 1 1203- ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0710-0711 ●
185 BOLT; BRKT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (B) SCREW M8X23 		8-97310-216-1 08 1 0712-0807 ●
185 BOLT; BRKT
(B) SCREW M8X23 		8-97310-216-1 08 1 0712-0807 ●
220 HOLDER; CONNECTOR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-375-0 02 1 0902- ●
220 HOLDER; CONNECTOR
(B) 		8-94479-375-0 02 1 0902- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-94447-536-0 01 1 0712- ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-536-0 01 1 0712- ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0710-0711 ●
307 STAY; MIRROR SUPPORT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-785-2 01 1 0712- ●
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0712- ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0710-0711 ●
307 STAY; MIRROR SUPPORT
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98063-784-2 01 1 0712- ●
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0712- ●
313 CONNECTOR; MIRROR
AUSTRALIA EQUIPMENT(B13) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> (B) 		8-94479-370-0 02 1 0902- ●
313 CONNECTOR; MIRROR
(B) 		8-94479-370-0 02 1 0902- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-94447-532-0 01 1 0712- ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR UNDER & SIDE UNDER VIEW<TAF> (A) 		8-94447-532-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
