◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-80 - BACK PANEL ▶
6-80 — BACK PANEL (#65607) — 16 parça

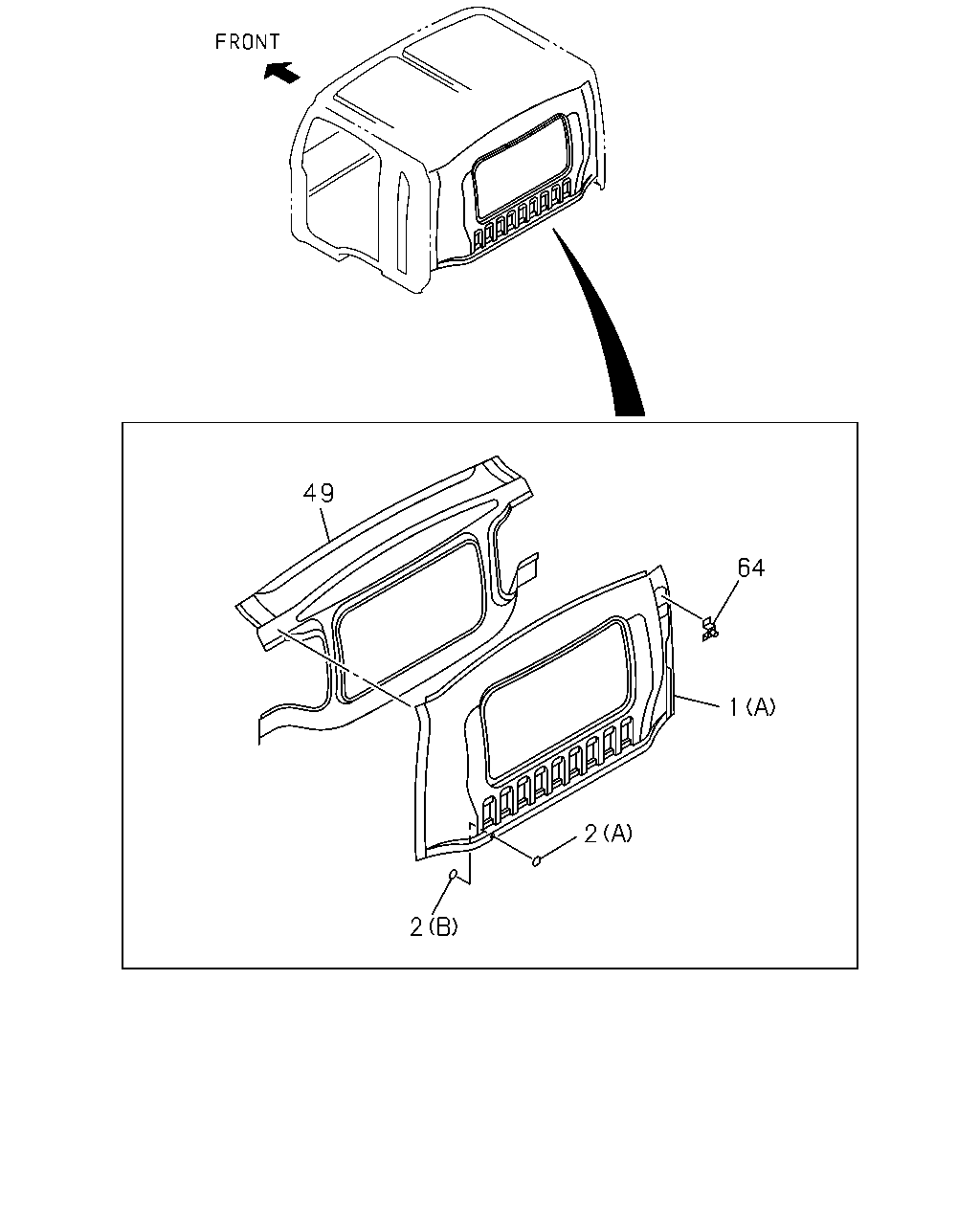

çizim 131857
49 64 1 2 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
(B) 		8-97410-669-3 01 1 0712- ●
1 PANEL; BACK OUTER
(A) 		8-97584-602-3 01 1 0710- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 16 1 0712-0802 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 06 1 0710-0802 ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(A) OD=25 BLACK 		1-76798-019-0 02 1 0803- ●
2 GROMMET; LOCATION HOLE,BACK PANEL
(B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710- ●
49 PANEL; BACK INNER 8-97584-610-3 01 1 0710- ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 0710-0711 ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 0712- ● ●
çizim 192288
64 16 63 1 63
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; BACK OUTER
(B) 		8-97410-669-3 01 1 0712- ●
1 PANEL; BACK OUTER
(A) 		8-97584-602-3 01 1 0710- ●
16 REINFORCEMENT; BACK OUTER PNL 8-97411-029-0 01 1 0712- ●
63 PANEL; BACK,SIDE 8-97411-026-1 01 1 0712- ●
63 PANEL; BACK,SIDE 8-97411-027-1 01 1 0712- ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 0710-0711 ●
64 BRACKET; AIR INTAKE DUCT 8-97584-611-1 01 1 0712- ● ●
