◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#65603) — 285 parça

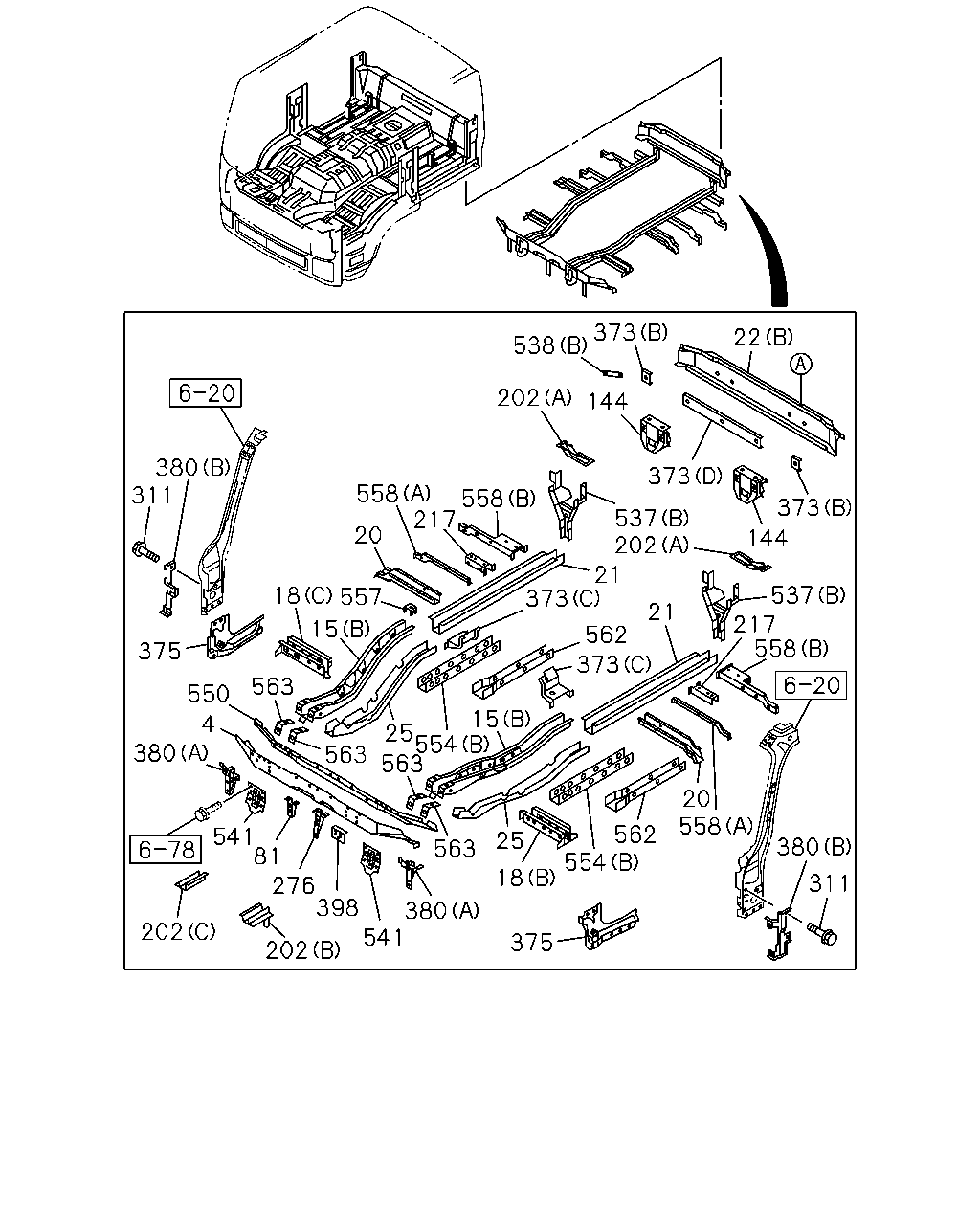

çizim 192287
373 538 22 202 144 380 311 373 558 558 217 373 537 202 20 144 21 373 537 217 558 21 15 562 375 373 563 550 15 25 554 563 4 380 563 20 558 541 81 25 562 554 18 380 563 311 276 398 380 541 202 375 202 18 557
BalonParca AdiParca NoAdetTipApplied Date A B
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 0710-0711 ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 0712- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0710- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0710- ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 0710-0711 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0712- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 0710-0711 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 0712- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 0710- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 0710-0711 ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 0712- ● ●
20 FRAME; FLOOR SIDE,REAR 8-97410-978-0 01 1 0712- ●
20 FRAME; FLOOR SIDE,REAR 8-97607-517-0 01 1 0712- ●
21 FRAME; FLOOR CENTER 8-97410-938-2 01 1 0712- ●
21 FRAME; FLOOR CENTER 8-97410-950-3 01 1 0712- ●
22 FRAME; FLOOR REAR
(B) 		8-97410-960-1 01 1 0712- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-431-5 01 1 0710- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-226-4 01 1 0712- ●
25 REINFORCEMENT; FRAME FLOOR,FRT 8-97610-225-4 01 1 0712- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0710-0711 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0710-0711 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0710-0711 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0712- ● ●
202 PANEL; CENTER MTG REINF
(A) 		8-97584-427-0 02 1 0712- ●
202 PANEL; CENTER MTG REINF
(C) 		8-97607-514-0 01 1 0712- ●
202 PANEL; CENTER MTG REINF
(B) 		8-97607-515-0 01 1 0712- ●
217 PANEL; SEAT STAND 8-97410-945-1 02 1 0712- ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0710-0711 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0712- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-97584-345-9 01 1 0712-0907 ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-97584-345-9 01 1 0908- ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-98081-349-3 01 1 0712-0907 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (E) 		8-98081-349-3 01 1 0908-1507 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (E) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0710- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0710- ●
375 CLOSING; PILLAR 8-98044-897-2 01 1 0710-0711 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0712- ● ●
375 CLOSING; PILLAR 8-98044-898-2 01 1 0710-0711 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0712- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0710-0711 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0712- ● ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 0710- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 0710- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 0710- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0710-0711 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0712- ● ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0710-0711 ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0710-0711 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
557 PATCH; SEAT 8-98074-333-0 01 1 0712- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-202-0 01 1 0712- ●
558 REINFORCEMENT; STEP RR
(A) 		8-98057-203-0 01 1 0712- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-207-1 01 1 0712- ●
558 REINFORCEMENT; STEP RR
(B) 		8-98057-210-1 01 1 0712- ●
562 REINFORCEMENT; FLOOR 8-97410-939-3 02 1 0712- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0710-0711 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0712- ● ●

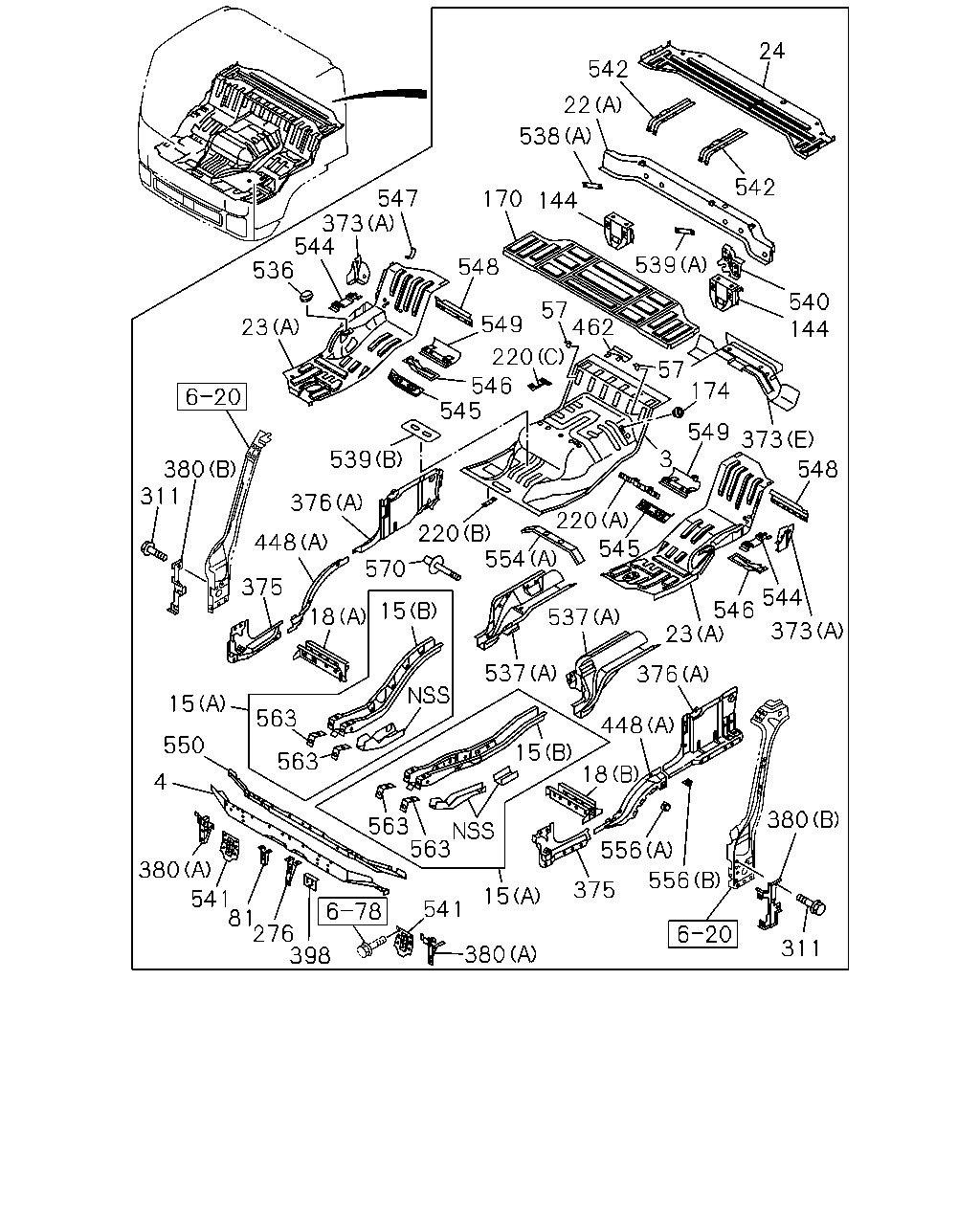

çizim 192376
24 542 22 538 542 547 373 544 536 170 144 539 548 540 144 57 462 549 23 220 57 174 549 546 545 373 3 539 380 311 548 376 220 545 220 554 448 570 375 544 546 15 18 537 373 23 537 376 15 563 448 550 563 15 18 4 563 563 380 556 556 380 375 15 541 81 276 398 541 311 380
BalonParca AdiParca NoAdetTipApplied Date A B
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-2 01 1 0710-0711 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-3 01 1 0712-0907 ●
3 HOOD ASM; ENG
AUSTRALIA EQUIPMENT(B13) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98081-357-4 01 1 0908- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98032-904-9 01 1 0712-0907 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98032-904-9 01 1 0908-1004 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13) 		8-98167-036-0 01 1 1005- ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-872-8 01 1 0710-1004 ●
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1005- ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 0710-0711 ●
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 0712- ● ●
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0710- ●
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0710- ●
15 FRAME; UNDER
(B) 		8-97584-388-8 01 1 0710-0711 ●
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0712- ● ●
15 FRAME; UNDER
(B) 		8-97584-412-6 01 1 0710-0711 ●
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0712- ● ●
18 FRAME; FLOOR,CENTER SIDE
(C) 		8-97610-540-1 01 1 0712- ●
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 0710- ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 0710-0711 ●
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 0712- ● ●
22 FRAME; FLOOR REAR
(B) 		8-97410-960-1 01 1 0712- ●
22 FRAME; FLOOR REAR
(A) 		8-97584-431-5 01 1 0710- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-752-0 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-883-2 01 1 0712-1007 ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-691-1 01 1 0710- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-372-6 01 1 0710- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-883-2 01 1 1008- ●
24 PANEL; BED PAN 8-97584-378-6 01 1 0710- ●
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0710- ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0710-0711 ●
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0710-0711 ●
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0712- ● ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0710-0711 ●
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0712- ● ●
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 0710- ●
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0710- ●
220 PATCH
(A) 		8-97588-840-3 01 1 0710-0711 ●
220 PATCH
(A) 		8-97588-840-4 01 1 0712- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0710-0711 ●
220 PATCH
(B) 		8-97589-603-3 01 1 0712- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0710-0711 ●
220 PATCH
(C) 		8-97589-627-2 01 1 0712- ● ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0710-0711 ●
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0712- ● ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710-0711 ●
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0712- ● ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-97584-345-9 01 1 0712-0907 ●
373 REINFORCEMENT; SEAT BELT
EXC. AUSTRALIA EQUIPMENT(B13) (E) 		8-97584-345-9 01 1 0908- ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) (E) 		8-98081-349-3 01 1 0712-0907 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (E) 		8-98081-349-3 01 1 0908-1507 ●
373 REINFORCEMENT; SEAT BELT
AUSTRALIA EQUIPMENT(B13) (E) 		8-98228-266-0 01 1 1508- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-943-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(C) 		8-97410-954-0 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(D) 		8-97410-963-1 01 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(B) 		8-97410-965-0 02 1 0712- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0710- ●
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0710- ●
375 CLOSING; PILLAR 8-98044-897-2 01 1 0710-0711 ●
375 CLOSING; PILLAR 8-98044-897-3 01 1 0712- ● ●
375 CLOSING; PILLAR 8-98044-898-2 01 1 0710-0711 ●
375 CLOSING; PILLAR 8-98044-898-3 01 1 0712- ● ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 0710-1403 ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 0710- ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0712- ● ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0710-0711 ●
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0712- ● ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0710-0711 ●
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0712- ● ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0712- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 0710- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 0710- ●
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0710-1002 ●
462 BRACKET; EXTINGUISHER
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97585-688-1 01 1 1003-1108 ●
462 BRACKET; EXTINGUISHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> 		8-97585-688-1 01 1 1109- ●
462 BRACKET; EXTINGUISHER
AUTO CAB TILT<WV2> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97585-688-1 01 1 1109- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0710-1008 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1009- ● ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-940-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(B) 		8-97410-951-1 01 1 0712- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-391-4 01 1 0710- ●
537 SUPPORT ASM; MTG RR
(A) 		8-97584-417-4 01 1 0710- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(B) 		8-97613-311-0 01 1 0712- ●
538 REINFORCEMENT ASM; AIR INT DUCT
(A) 		8-97610-207-2 01 1 0710- ●
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809- ●
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0710- ●
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0710- ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0710-0711 ●
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0712- ● ●
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0710- ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0710-0711 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0712- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0710-0711 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0712- ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97584-361-1 01 1 0712-0907 ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97584-361-1 01 1 0908- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0710-0711 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-186-0 01 1 0712-0907 ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712-0907 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13) 		8-98050-186-0 01 1 0908- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0908- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0710-0711 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0712- ● ●
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 0710- ●
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0710- ●
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 0710- ●
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 0710- ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97589-557-4 01 1 0712-0907 ●
549 BRACKET; SEAT RR
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97589-557-4 01 1 0908- ●
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0710- ●
549 BRACKET; SEAT RR 8-98050-187-1 01 1 0710-0711 ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-187-1 01 1 0712-0907 ●
549 BRACKET; SEAT RR
AUSTRALIA EQUIPMENT(B13) 		8-98050-187-1 01 1 0908- ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0710-0711 ●
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0710-0711 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
556 BRACKET; TILT HANDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98077-605-1 01 1 0812-1108 ●
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2> (A) 		8-98077-605-1 01 1 1109-1404 ●
556 BRACKET; TILT HANDLE
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> (A) 		8-98077-605-1 01 1 1405- ●
556 BRACKET; TILT HANDLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98077-606-1 01 1 0812-1108 ●
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2> (B) 		8-98077-606-1 01 1 1109-1404 ●
556 BRACKET; TILT HANDLE
EXC. AUSTRALIA EQUIPMENT(B13),AUTO CAB TILT<WV2> (B) 		8-98077-606-1 01 1 1405- ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0710-0711 ●
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0712- ● ●
570 FASTENER; POP RIVET 8-97319-308-0 02 1 0710-0711 ●

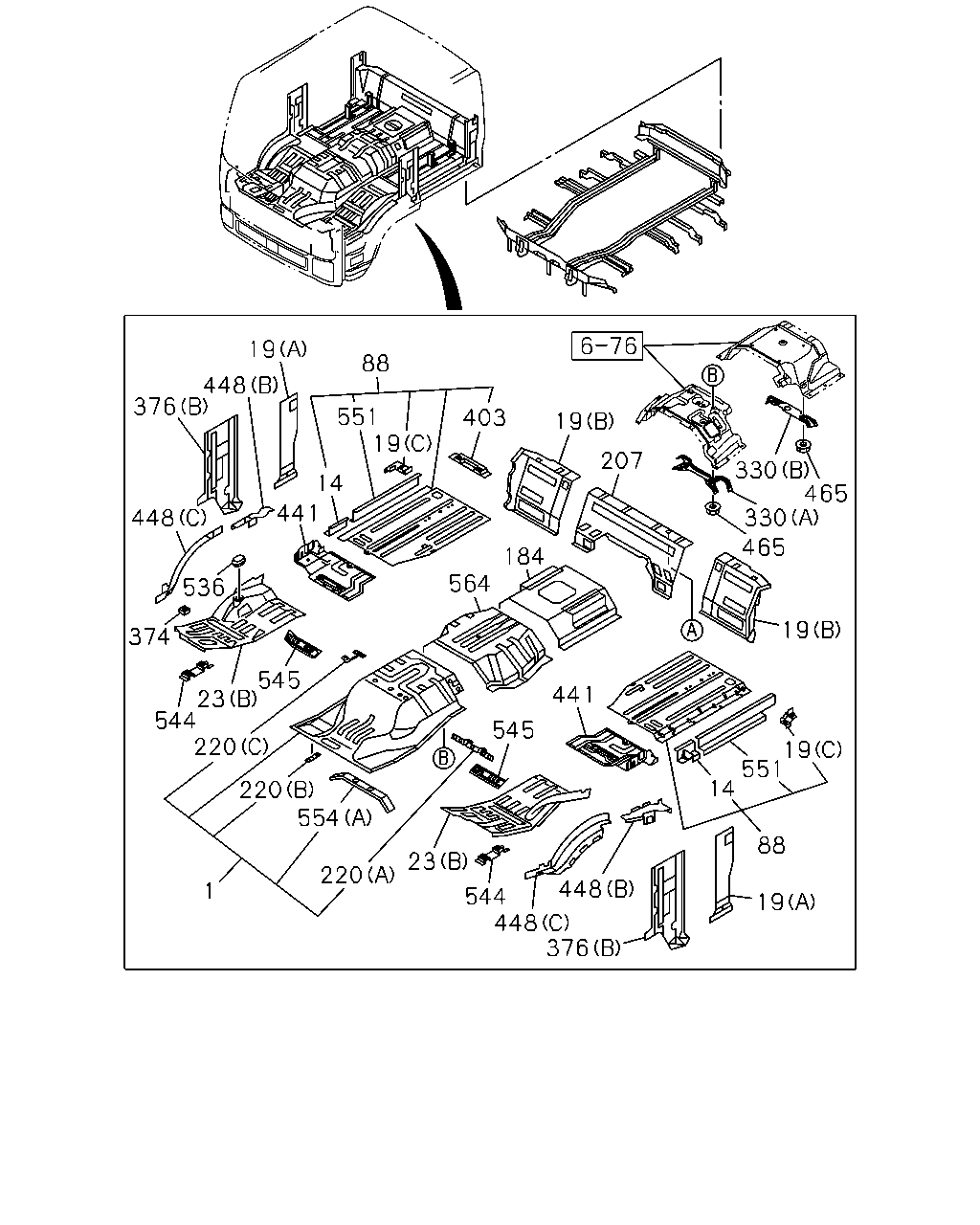

çizim 192380
19 19 551 14 88 19 465 330 465 330 207 19 184 441 545 23 544 448 376 448 220 1 554 220 220 544 545 23 374 448 536 441 14 551 88 19 448 376 19 403 564
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-815-5 01 1 0712- ●
1 PANEL; FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97410-865-7 01 1 0712- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-048-0 01 1 0712- ●
14 PANEL; FLOOR SIDE,FRT 8-98010-047-0 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-478-3 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-051-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(C) 		8-98010-052-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(B) 		8-98067-477-3 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-963-1 01 1 0712- ●
19 PANEL; FLOOR SIDE,REAR
(A) 		8-98079-964-1 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-98216-752-0 01 1 0712- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-883-2 01 1 0712-1007 ●
23 PANEL; FLOOR,SIDE
(A) 		8-98073-691-1 01 1 0710- ●
23 PANEL; FLOOR,SIDE
(A) 		8-97584-372-6 01 1 0710- ●
23 PANEL; FLOOR,SIDE
(B) 		8-97410-883-2 01 1 1008- ●
88 BOARD ASM; FLOOR 8-97410-918-2 01 1 0712- ●
88 BOARD ASM; FLOOR 8-97410-922-3 01 1 0712- ●
184 HOOD ASM; ENG RR 8-97410-869-1 01 1 0712- ●
207 PANEL; FLOOR,RR CTR 8-97410-927-3 01 1 0712- ●
220 PATCH
(A) 		8-97588-840-3 01 1 0710-0711 ●
220 PATCH
(A) 		8-97588-840-4 01 1 0712- ● ●
220 PATCH
(B) 		8-97589-603-3 01 1 0710-0711 ●
220 PATCH
(B) 		8-97589-603-3 01 1 0712- ● ●
220 PATCH
(C) 		8-97589-627-2 01 1 0710-0711 ●
220 PATCH
(C) 		8-97589-627-2 01 1 0712- ● ●
330 REINFORCEMENT; FLOOR
(A) 		8-98248-128-0 01 1 1306- ●
330 REINFORCEMENT; FLOOR
(B) 		8-98248-129-0 01 1 1306- ●
374 NUT; FLOOR
M6 		1-09984-110-0 04 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-015-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(B) 		8-97612-016-5 01 1 0712- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-554-4 01 1 0710-1403 ●
376 CLOSING; PILLAR,LWR
(A) 		8-98199-228-0 01 1 1404- ●
376 CLOSING; PILLAR,LWR
(A) 		8-97589-556-5 01 1 0710- ●
403 PATCH; FIRE EXTINGUSHER 1-62183-077-1 01 1 0712- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-906-2 01 1 0712- ●
441 PANEL; EXTENSION,FLOOR SIDE 8-97410-912-2 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-658-1 01 1 0712- ●
448 CLOSING; ROCKER
(C) 		8-97610-659-1 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-856-0 01 1 0712- ●
448 CLOSING; ROCKER
(B) 		8-97611-857-0 01 1 0712- ●
448 CLOSING; ROCKER
(A) 		8-97589-551-2 01 1 0710- ●
448 CLOSING; ROCKER
(A) 		8-97589-552-2 01 1 0710- ●
465 NUT; REINFORCEMENT
M6 FLANGE 		0-91180-106-0 04 1 1306- ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0710-1008 ●
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1009- ● ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0710-0711 ●
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0712- ● ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0710-0711 ●
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0712- ● ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-97584-361-1 01 1 0712-0907 ●
545 BRACKET; SEAT FRT
EXC. AUSTRALIA EQUIPMENT(B13) 		8-97584-361-1 01 1 0908- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0710-0711 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13),NEW ZEALAND EQUIPMENT(E13) 		8-98050-186-0 01 1 0712-0907 ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0712-0907 ●
545 BRACKET; SEAT FRT
AUSTRALIA EQUIPMENT(B13) 		8-98050-186-0 01 1 0908- ●
545 BRACKET; SEAT FRT 8-98050-186-0 01 1 0908- ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0710-0711 ●
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0712- ● ●
551 PANEL; FLOOR SIDE,CTR 8-98010-049-2 01 1 0712- ●
551 PANEL; FLOOR SIDE,CTR 8-98010-050-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0710-0711 ●
554 REINFORCEMENT; FLOOR CENTER
(A) 		8-97584-351-2 01 1 0712- ● ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-063-2 01 1 0712- ●
554 REINFORCEMENT; FLOOR CENTER
(B) 		8-97610-064-2 01 1 0712- ●
564 PANEL; ENG HOOD EXT FRT 8-97610-271-1 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
