Sayfa 2-01 - Isuzu EPC

2-01 — CLUTCH (#656) — 221 parça

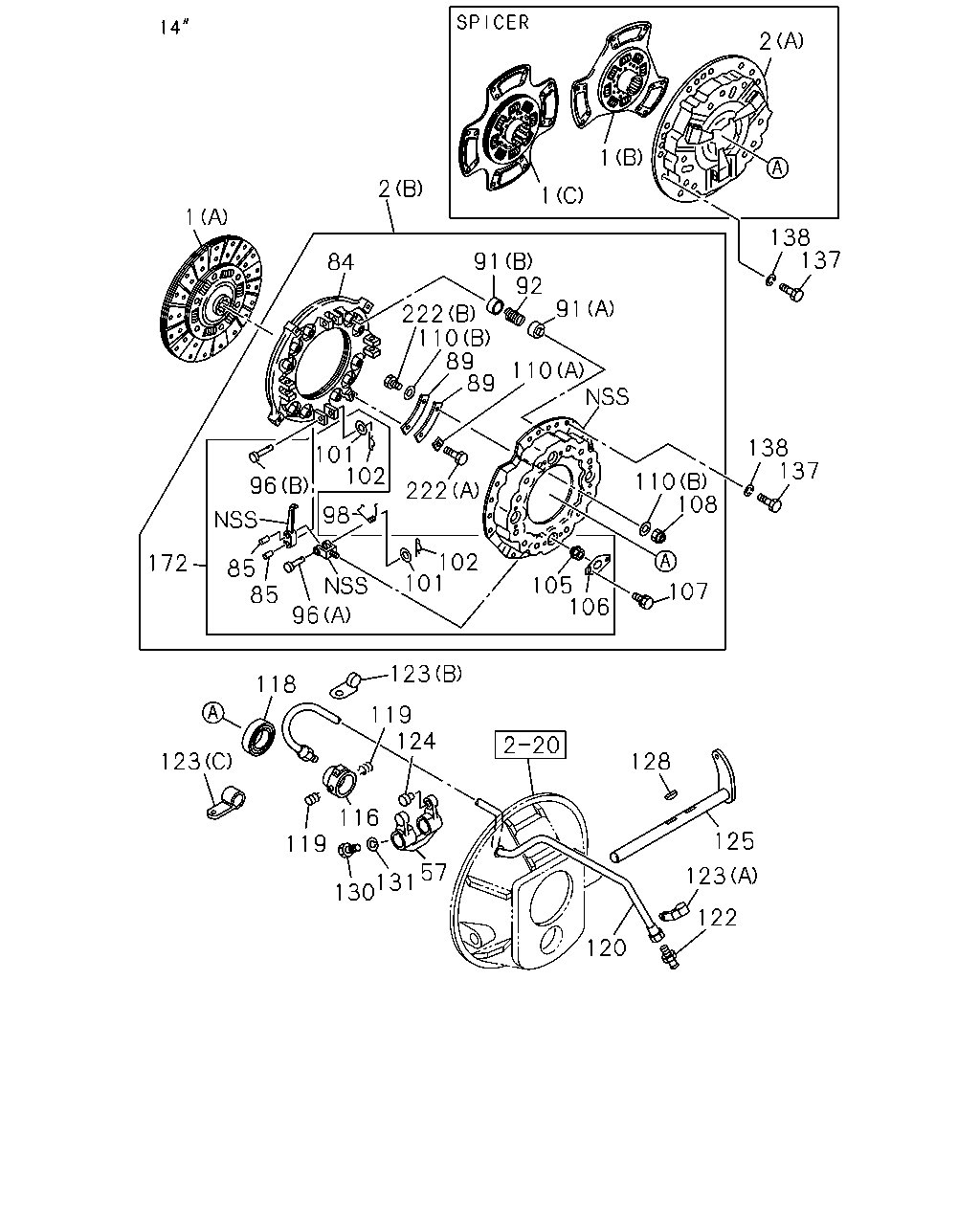

2 1 2 1 1 138 137 91 92 84 222 110 89 89 91 110 138 137 101 102 110 108 96 222 98 102 101 172 85 85 105 106 107 96 123 118 119 124 128 123 116 125 119 57 131 130 123 122 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"SPICER CLUTCH(SFF) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) 14"	1-31240-433-0	01	1	9202-	●	●	●	●	●
1	DISC; CLUTCH 14"SPICER CLUTCH(SFF) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 14"	1-31240-435-0	01	1	9202-	●	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 13"	1-31240-525-0	01	1	9202-9309	●	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 13"	1-31240-661-0	01	1	9310-	●	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) (A) 14"	1-31240-515-0	01	1	9202-9309	●	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) 14"	1-31240-515-0	01	1	9202-9309	●	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) (A) 14"	1-31240-671-0	01	1	9310-	●	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) 14"	1-31240-671-0	01	1	9310-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. 14"SPICER CLUTCH(SFF) (B) 14"	1-31220-168-1	01	1	9202-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,14"SPICER CLUTCH(SFF) (B) 14"	1-31220-182-1	01	1	9202-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 14"	1-31220-182-1	01	1	9202-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31220-274-0	01	1	9202-9304	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31220-284-0	01	1	9305-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31220-273-0	01	1	9202-9308	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31220-283-0	01	1	9309-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) 13"	1-31220-278-0	01	1	9202-	●	●	●	●	●
57	FORK; SHIFT,CLU 14"SPICER CLUTCH(SFF)	1-31341-035-1	01	1	9202-	●	●	●
57	FORK; SHIFT,CLU EXC. 14"SPICER CLUTCH(SFF)	1-31341-028-0	01	1	9202-	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9202-				●	●
84	PLATE; PRESSURE 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31221-044-0	01	1	9202-	●	●	●	●	●
84	PLATE; PRESSURE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) 14"	1-31221-044-0	01	1	9202-	●	●	●	●	●
85	BUSHING; RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-004-0	08	1	9202-	●	●	●	●	●
85	BUSHING; RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-116-0	08	1	9202-	●	●	●	●	●
85	BUSHING; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	9-31239-116-0	08	1	9202-	●	●	●	●	●
89	PLATE; STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31229-001-0	08	1	9202-	●	●	●	●	●
89	PLATE; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	1-31229-001-0	08	1	9202-	●	●	●	●	●
91	SEAT; SPR 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) H=25 ID=37 T=2.0	1-31219-012-0	12	1	9202-	●	●	●	●	●
91	SEAT; SPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) H=25 ID=37 T=2.0	1-31219-012-0	12	1	9202-	●	●	●	●	●
91	SEAT; SPR 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) H=15 ID=37 T=2.0	1-31219-013-0	12	1	9202-	●	●	●	●	●
91	SEAT; SPR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (B) H=15 ID=37 T=2.0	1-31219-013-0	12	1	9202-	●	●	●	●	●
92	SPRING; CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. 14"SPICER CLUTCH(SFF)	1-09580-234-0	12	1	9202-	●	●	●	●	●
92	SPRING; CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,14"SPICER CLUTCH(SFF)	1-09580-412-0	12	1	9202-	●	●	●	●	●
92	SPRING; CLU 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09580-412-0	12	1	9202-	●	●	●	●	●
92	SPRING; CLU 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31214-045-0	12	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=63.0	1-31232-002-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=29.0	1-31232-003-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=49.0	1-31232-005-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) L=49.0	1-31232-005-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=57.0	1-31232-008-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (B) L=57.0	1-31232-008-0	04	1	9202-	●	●	●	●	●
98	SPRING; RETURN 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-004-0	04	1	9202-	●	●	●	●	●
98	SPRING; RETURN 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-003-0	04	1	9202-	●	●	●	●	●
98	SPRING; RETURN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	1-31233-003-0	04	1	9202-	●	●	●	●	●
101	WASHER; RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-039-0	08	1	9202-	●	●	●	●	●
101	WASHER; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	9-31239-039-0	08	1	9202-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	04	1	9202-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	08	1	9202-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) OD=2.7 L=22	9-08113-022-0	08	1	9202-	●	●	●	●	●
105	NUT; SUPPORT 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-006-0	04	1	9202-	●	●	●	●	●
105	NUT; SUPPORT 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31235-061-0	04	1	9202-	●	●	●	●	●
105	NUT; SUPPORT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	9-31235-061-0	04	1	9202-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-017-0	04	1	9202-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-019-0	04	1	9202-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	1-31239-019-0	04	1	9202-	●	●	●	●	●
107	BOLT; LK PLATE 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-015-0	08	1	9202-	●	●	●	●	●
107	BOLT; LK PLATE 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9202-	●	●	●	●	●
107	BOLT; LK PLATE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9202-	●	●	●	●	●
108	NUT; STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09449-036-0	04	1	9202-	●	●	●	●	●
108	NUT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	1-09449-036-0	04	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) T=1.0	9-09854-128-0	04	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) T=3.2	1-09503-095-0	08	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (B) T=3.2	1-09503-095-0	08	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) T=1.2	1-31229-009-0	04	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) T=1.2	1-31229-009-0	04	1	9202-	●	●	●	●	●
116	BLOCK; SHIFT,CLU 14"SPICER CLUTCH(SFF)	1-31321-061-0	01	1	9202-	●	●	●
116	BLOCK; SHIFT,CLU EXC. 14"SPICER CLUTCH(SFF)	1-31321-054-0	01	1	9202-	●	●	●
116	BLOCK; SHIFT,CLU 14"SPICER CLUTCH(SFF)	1-31321-070-2	01	1	9202-				●	●
116	BLOCK; SHIFT,CLU EXC. 14"SPICER CLUTCH(SFF)	1-31321-052-2	01	1	9202-				●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9202-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9202-				●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9202-				●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=315	9-09919-042-0	01	1	9202-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9202-				●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615	1-09364-717-0	01	1	9202-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9202-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 L=20	1-09701-138-1	01	1	9202-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9202-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9202-				●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9202-				●	●
125	SHAFT; CLU 14"SPICER CLUTCH(SFF)	1-31342-256-0	01	1	9202-	●	●	●
125	SHAFT; CLU EXC. 14"SPICER CLUTCH(SFF)	1-31342-265-0	01	1	9202-	●	●	●
125	SHAFT; CLU 14"SPICER CLUTCH(SFF)	1-31342-248-0	01	1	9202-				●	●
125	SHAFT; CLU EXC. 14"SPICER CLUTCH(SFF)	1-31342-169-1	01	1	9202-				●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9202-	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9202-	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9202-	●	●	●	●	●
137	BOLT; CLU COVER 14"SPICER CLUTCH(SFF) M8X20	9-02060-820-0	12	1	9202-	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X22	0-23801-022-0	10	1	9202-9504	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X20 FLANGE	0-28181-020-0	10	1	9505-	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) M10X22	0-23801-022-0	12	1	9202-9504	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) M10X22	0-23801-022-0	12	1	9202-9504	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●	●
138	WASHER; LK,CLU COVER 14"SPICER CLUTCH(SFF) ID=8.2	9-09150-508-0	12	1	9202-	●	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-510-0	10	1	9202-9504	●	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) ID=10.2	9-09150-510-0	12	1	9202-9504	●	●	●	●	●
138	WASHER; LK,CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) ID=10.2	9-09150-510-0	12	1	9202-9504	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-87830-086-4	01	1	9202-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-87830-620-0	01	1	9202-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	1-87830-620-0	01	1	9202-	●	●	●	●	●
222	BOLT; STRAP 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M10X24	9-09802-708-0	04	1	9202-	●	●	●	●	●
222	BOLT; STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10X23.2	1-09040-042-0	04	1	9202-	●	●	●	●	●
222	BOLT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) M10X23.2	1-09040-042-0	04	1	9202-	●	●	●	●	●
222	BOLT; STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9202-	●	●	●	●	●
222	BOLT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9202-	●	●	●	●	●

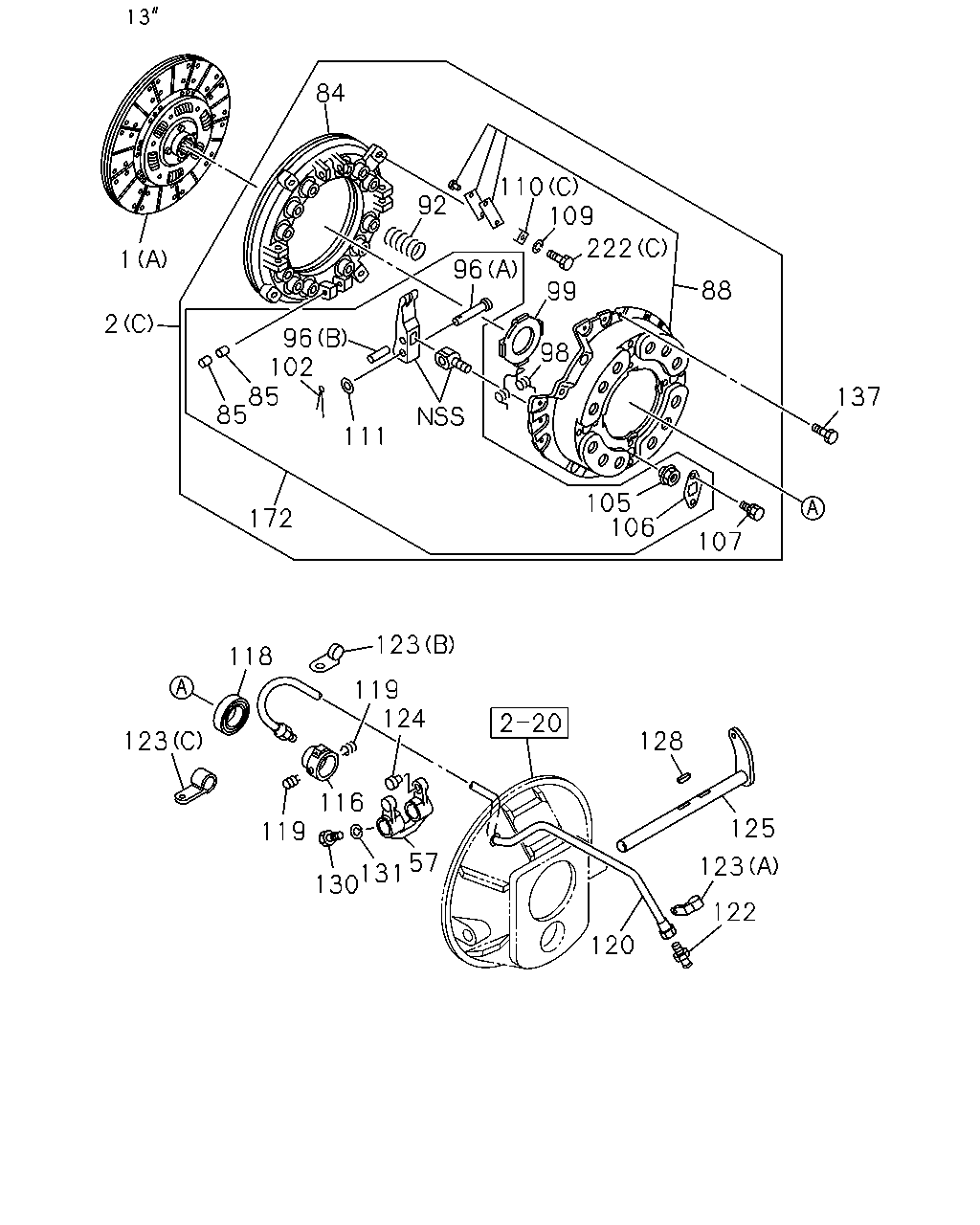

84 110 109 92 222 1 96 88 99 2 96 102 85 85 98 137 111 105 106 172 107 123 118 119 124 123 128 116 125 119 57 131 130 123 122 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	DISC; CLUTCH 14"SPICER CLUTCH(SFF) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) 14"	1-31240-433-0	01	1	9202-	●	●	●	●	●
1	DISC; CLUTCH 14"SPICER CLUTCH(SFF) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 14"	1-31240-435-0	01	1	9202-	●	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 13"	1-31240-525-0	01	1	9202-9309	●	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) 13"	1-31240-661-0	01	1	9310-	●	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) (A) 14"	1-31240-515-0	01	1	9202-9309	●	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) 14"	1-31240-515-0	01	1	9202-9309	●	●	●	●	●
1	DISC; CLUTCH 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) (A) 14"	1-31240-671-0	01	1	9310-	●	●	●	●	●
1	DISC; CLUTCH 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) 14"	1-31240-671-0	01	1	9310-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. 14"SPICER CLUTCH(SFF) (B) 14"	1-31220-168-1	01	1	9202-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,14"SPICER CLUTCH(SFF) (B) 14"	1-31220-182-1	01	1	9202-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) 14"	1-31220-182-1	01	1	9202-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31220-274-0	01	1	9202-9304	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31220-284-0	01	1	9305-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31220-273-0	01	1	9202-9308	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 14"SPICER CLUTCH(SFF) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A)	1-31220-283-0	01	1	9309-	●	●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) 13"	1-31220-278-0	01	1	9202-	●	●	●	●	●
57	FORK; SHIFT,CLU 14"SPICER CLUTCH(SFF)	1-31341-035-1	01	1	9202-	●	●	●
57	FORK; SHIFT,CLU EXC. 14"SPICER CLUTCH(SFF)	1-31341-028-0	01	1	9202-	●	●	●
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	9202-				●	●
84	PLATE; PRESSURE 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 14"	1-31221-044-0	01	1	9202-	●	●	●	●	●
84	PLATE; PRESSURE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) 14"	1-31221-044-0	01	1	9202-	●	●	●	●	●
85	BUSHING; RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-004-0	08	1	9202-	●	●	●	●	●
85	BUSHING; RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-116-0	08	1	9202-	●	●	●	●	●
85	BUSHING; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	9-31239-116-0	08	1	9202-	●	●	●	●	●
88	COVER SUB ASM; CLU 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31210-016-0	01	1	9202-	●	●	●	●	●
92	SPRING; CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) HEAVY DUTY PACKAGE TRUCK<RD2> EXC. 14"SPICER CLUTCH(SFF)	1-09580-234-0	12	1	9202-	●	●	●	●	●
92	SPRING; CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,14"SPICER CLUTCH(SFF)	1-09580-412-0	12	1	9202-	●	●	●	●	●
92	SPRING; CLU 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-09580-412-0	12	1	9202-	●	●	●	●	●
92	SPRING; CLU 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31214-045-0	12	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=63.0	1-31232-002-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=29.0	1-31232-003-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=49.0	1-31232-005-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) L=49.0	1-31232-005-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) L=57.0	1-31232-008-0	04	1	9202-	●	●	●	●	●
96	PIN; RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (B) L=57.0	1-31232-008-0	04	1	9202-	●	●	●	●	●
98	SPRING; RETURN 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-004-0	04	1	9202-	●	●	●	●	●
98	SPRING; RETURN 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31233-003-0	04	1	9202-	●	●	●	●	●
98	SPRING; RETURN BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	1-31233-003-0	04	1	9202-	●	●	●	●	●
99	PLATE; RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31321-006-0	01	1	9202-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	04	1	9202-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) OD=2.7 L=22	9-08113-022-0	08	1	9202-	●	●	●	●	●
102	PIN; SPLIT,RELEASE LEVER BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) OD=2.7 L=22	9-08113-022-0	08	1	9202-	●	●	●	●	●
105	NUT; SUPPORT 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-006-0	04	1	9202-	●	●	●	●	●
105	NUT; SUPPORT 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31235-061-0	04	1	9202-	●	●	●	●	●
105	NUT; SUPPORT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	9-31235-061-0	04	1	9202-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-017-0	04	1	9202-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-019-0	04	1	9202-	●	●	●	●	●
106	PLATE; LK,LEVER SUPPORT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	1-31239-019-0	04	1	9202-	●	●	●	●	●
107	BOLT; LK PLATE 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-31239-015-0	08	1	9202-	●	●	●	●	●
107	BOLT; LK PLATE 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9202-	●	●	●	●	●
107	BOLT; LK PLATE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9202-	●	●	●	●	●
109	WASHER; LK,STRAP 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=10.2	9-09150-010-0	04	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) T=1.0	9-09854-128-0	04	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) T=3.2	1-09503-095-0	08	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (B) T=3.2	1-09503-095-0	08	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) T=1.2	1-31229-009-0	04	1	9202-	●	●	●	●	●
110	WASHER; SPECIAL,STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) T=1.2	1-31229-009-0	04	1	9202-	●	●	●	●	●
111	WASHER; PL,STRAP 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	9-31239-039-0	04	1	9202-	●	●	●	●	●
116	BLOCK; SHIFT,CLU 14"SPICER CLUTCH(SFF)	1-31321-061-0	01	1	9202-	●	●	●
116	BLOCK; SHIFT,CLU EXC. 14"SPICER CLUTCH(SFF)	1-31321-054-0	01	1	9202-	●	●	●
116	BLOCK; SHIFT,CLU 14"SPICER CLUTCH(SFF)	1-31321-070-2	01	1	9202-				●	●
116	BLOCK; SHIFT,CLU EXC. 14"SPICER CLUTCH(SFF)	1-31321-052-2	01	1	9202-				●	●
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	9202-	●	●	●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	9202-	●	●	●
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	9202-				●	●
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	9202-				●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=315	9-09919-042-0	01	1	9202-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=315	9-09919-042-0	01	1	9202-				●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=615	1-09364-717-0	01	1	9202-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9202-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 L=20	1-09701-138-1	01	1	9202-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (A) ID=15.5	1-09700-814-1	01	1	9202-	●	●	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK (B) ID=22	1-09700-644-1	01	1	9202-				●	●
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	9202-				●	●
125	SHAFT; CLU 14"SPICER CLUTCH(SFF)	1-31342-256-0	01	1	9202-	●	●	●
125	SHAFT; CLU EXC. 14"SPICER CLUTCH(SFF)	1-31342-265-0	01	1	9202-	●	●	●
125	SHAFT; CLU 14"SPICER CLUTCH(SFF)	1-31342-248-0	01	1	9202-				●	●
125	SHAFT; CLU EXC. 14"SPICER CLUTCH(SFF)	1-31342-169-1	01	1	9202-				●	●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	9202-	●	●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9202-	●	●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9202-	●	●	●	●	●
137	BOLT; CLU COVER 14"SPICER CLUTCH(SFF) M8X20	9-02060-820-0	12	1	9202-	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X22	0-23801-022-0	10	1	9202-9504	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10X20 FLANGE	0-28181-020-0	10	1	9505-	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) M10X22	0-23801-022-0	12	1	9202-9504	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) M10X22	0-23801-022-0	12	1	9202-9504	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●	●
137	BOLT; CLU COVER 6HE1 N ENG(47L) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 13"	1-87830-086-4	01	1	9202-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-87830-620-0	01	1	9202-	●	●	●	●	●
172	LEVER KIT; RELEASE,CLU BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF)	1-87830-620-0	01	1	9202-	●	●	●	●	●
222	BOLT; STRAP 6HE1 N ENG(47L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M10X24	9-09802-708-0	04	1	9202-	●	●	●	●	●
222	BOLT; STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M10X23.2	1-09040-042-0	04	1	9202-	●	●	●	●	●
222	BOLT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (A) M10X23.2	1-09040-042-0	04	1	9202-	●	●	●	●	●
222	BOLT; STRAP 6HE1 STD ENG(46L) EXC. 14"SPICER CLUTCH(SFF),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9202-	●	●	●	●	●
222	BOLT; STRAP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. 14"SPICER CLUTCH(SFF) (B) M10X26 HEX SOCKET	1-09040-043-0	04	1	9202-	●	●	●	●	●

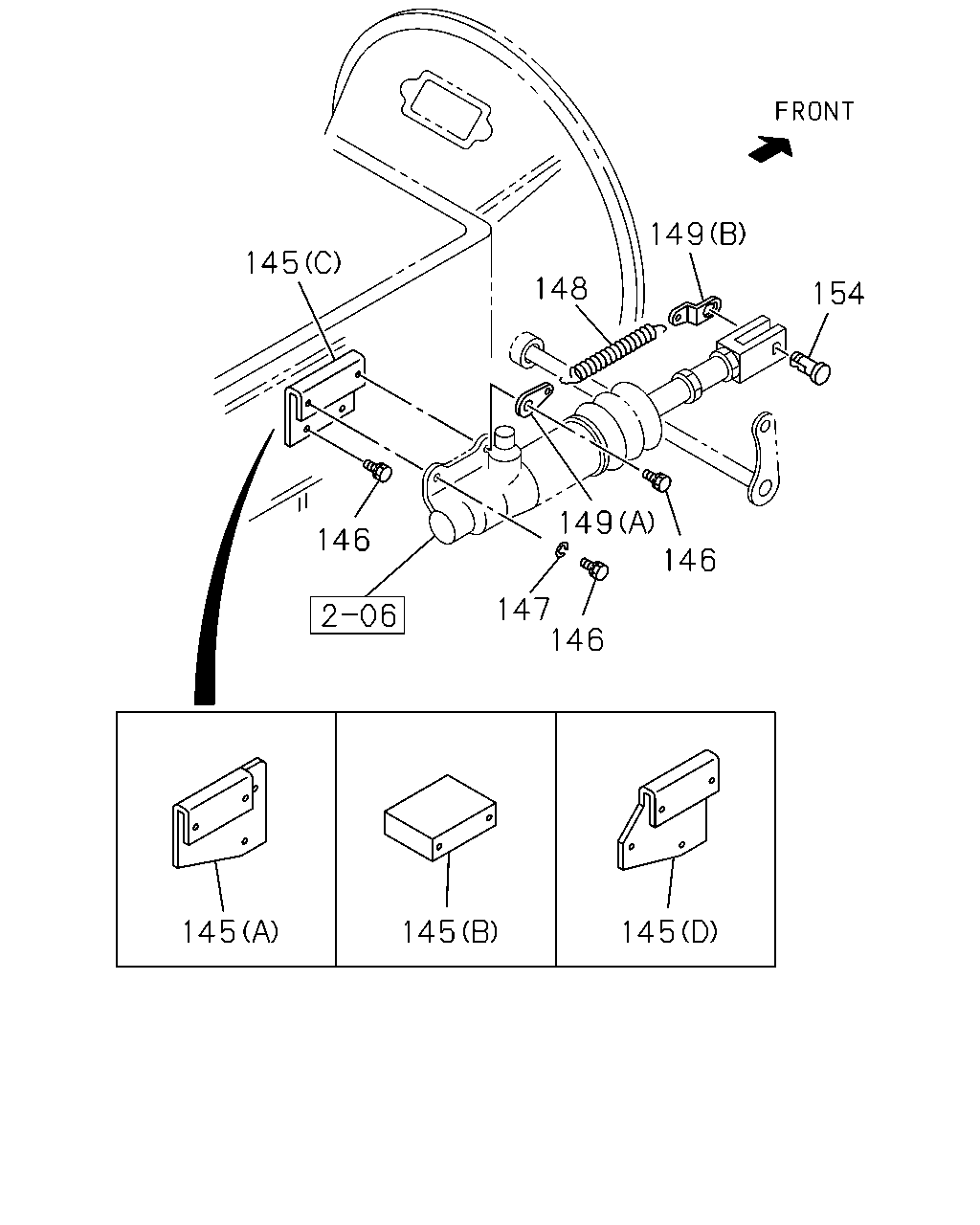

149 145 148 154 149 146 146 147 146 145 145 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
145	BRACKET; SLAVE CYL,OIL CLU 14"SPICER CLUTCH(SFF) (B)	1-47476-116-0	01	1	9202-	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. 14"SPICER CLUTCH(SFF) (C)	1-47579-007-0	01	1	9202-	●	●	●
145	BRACKET; SLAVE CYL,OIL CLU 14"SPICER CLUTCH(SFF) (A)	1-47579-038-0	01	1	9202-				●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. 14"SPICER CLUTCH(SFF) (D)	1-47579-044-0	01	1	9202-9206				●	●
145	BRACKET; SLAVE CYL,OIL CLU EXC. 14"SPICER CLUTCH(SFF) (D)	1-47579-051-0	01	1	9207-				●	●
146	BOLT; SLAVE CYL TO TRANS CASE 14"SPICER CLUTCH(SFF) M10X90	9-01661-090-0	02	1	9202-9205	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE 14"SPICER CLUTCH(SFF) M10X87	1-09040-099-0	02	1	9206-	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. 14"SPICER CLUTCH(SFF) M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 W/LK WASHER	0-50051-025-0	04	1	9202-9205				●	●
146	BOLT; SLAVE CYL TO TRANS CASE EXC. 14"SPICER CLUTCH(SFF) M10X25 FLANGE	0-28181-025-0	04	1	9206-	●	●	●
146	BOLT; SLAVE CYL TO TRANS CASE M10X25 FLANGE	0-28181-025-0	04	1	9206-				●	●
147	WASHER; LK,SLAVE CYL TO TRANS CASE 14"SPICER CLUTCH(SFF) ID=10.2	9-09150-510-0	02	1	9202-9205	●	●	●
148	SPRING; CLU RETURN	1-09583-249-0	01	1	9202-	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING (B)	1-31426-019-1	01	1	9202-	●	●	●	●	●
149	EYE; SPRING,RETURN SPRING (A) T=2.3	1-47324-005-1	01	1	9202-	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	9202-9312	●	●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
