◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#65587) — 6 parça

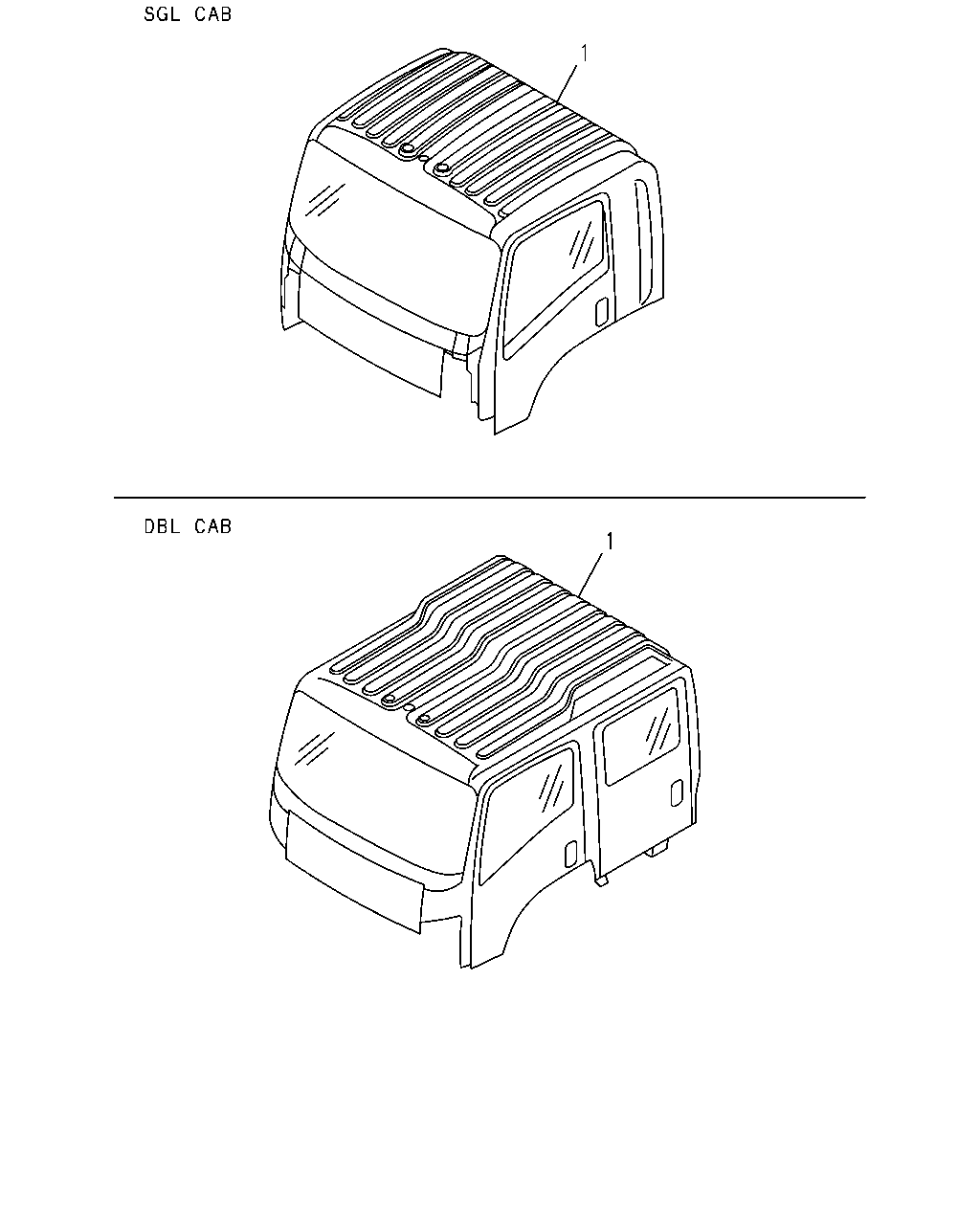

çizim 192367
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9>,CORNERING LAMP<T87>,OK WINDOW<6ND>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-61087-348-0 01 1 0710-0711 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) ASSISTOR SHIFT CONTROL<WX8> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC>,CORNERING LAMP<T87>,OK WINDOW<6ND>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-61087-351-0 01 1 0710-0711 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) INTERIOR FULL TRIM<WM3> 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT DOOR<A32> LAMPS TWO ROOF MARKER<TEC> MZX6P M/T(RSW) EXC. COUNTRY NEW ZEALAND(CX6),O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>,ROUND CURTAIN RAIL<EDH>,O/SI DE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-61087-348-0 01 1 0712- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) HONG KONG EQUIPMENT(B14) INTERIOR FULL TRIM<WM3> ROUND CURTAIN RAIL<EDH> FUEL TANK 200L FRAME SIDE<N20> POWER WINDOW FRT DOOR<A32> MZX6P M/T(RSW) O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, 3-SPEAKER SYSTEM FRT<NNR>,FUEL TANK CAP KEY LOCK<N05> ,LAMPS TWO ROOF MARKER<TEC>,2-SPEAKER SYSTEM BASE<U95>,IMMOBILIZER SYSTEM<7KC>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-61087-351-0 01 1 0712- ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) ASSISTOR SHIFT CONTROL<WX8> EXC. O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-61087-353-0 01 1 0710-0711 ●
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(B13) 2-SPEAKER SYSTEM BASE<U95> FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L FRAME SIDE<N20> IMMOBILIZER SYSTEM<7KC> POWER WINDOW FRT&REAR DOOR<A31> LAMPS TWO ROOF MARKER<TEC> MZX6P M/T(RSW) EXC. O/SIDE MIRROR UNDER VIEW<RR9>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-61087-353-0 01 1 0712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
