◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#65585) — 112 parça

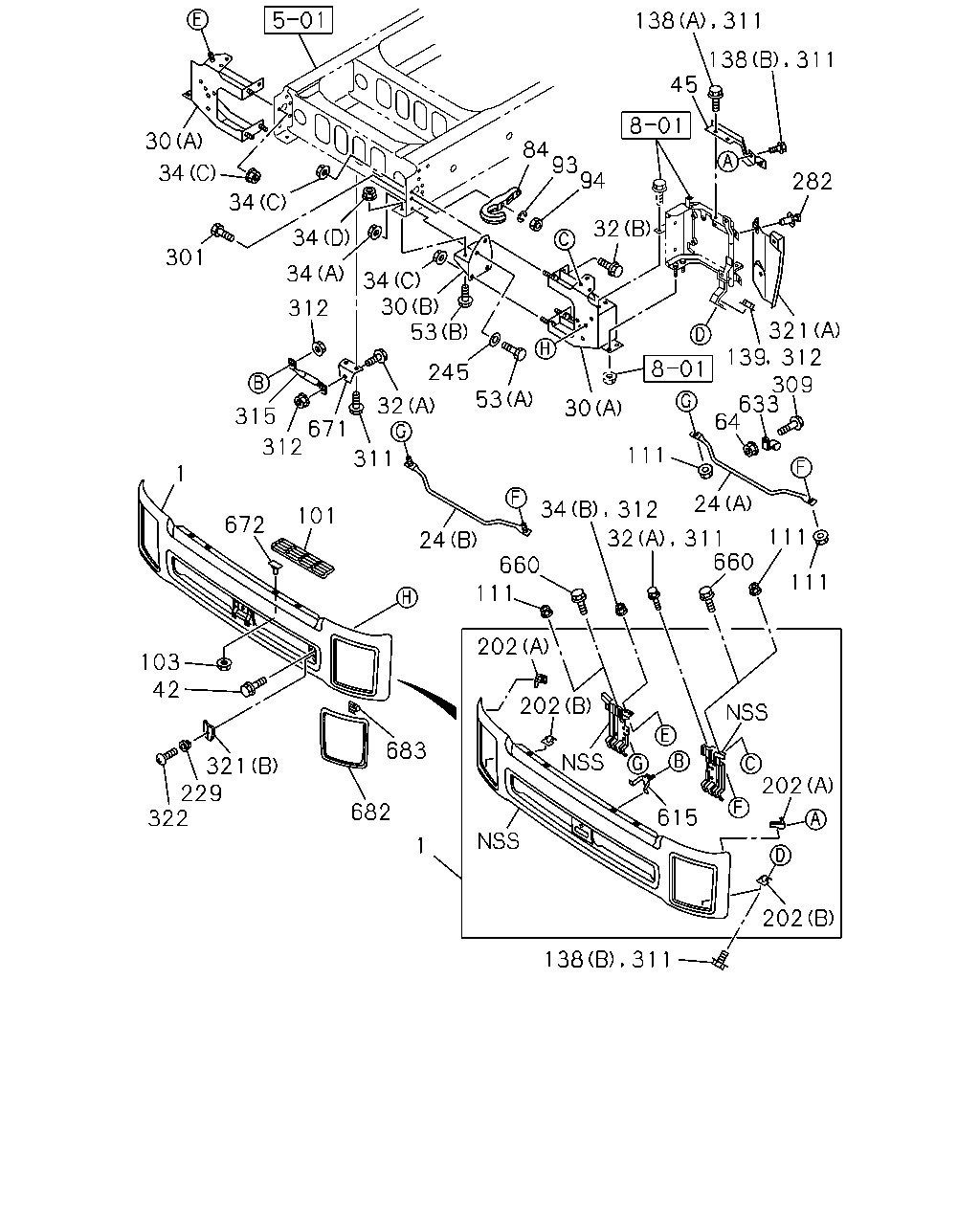

çizim 192364
138 311 45 84 93 94 30 34 282 34 32 34 301 34 34 30 53 312 321 139 309 633 64 245 53 32 30 315 671 312 111 311 1 24 101 111 672 32 311 660 24 660 111 111 202 103 42 202 683 202 321 229 322 682 615 1 202 311 138 312 34 312
BalonParca AdiParca NoAdetTipApplied Date A B
1 BUMPER ASM; FRT
WHITE 		8-97409-903-0 01 1 0710-0711 ●
1 BUMPER ASM; FRT
WHITE 		8-97409-903-0 01 1 0712- ● ●
24 BAR; FRT BUMPER
(A) 		8-97611-514-0 01 1 0710-0711 ●
24 BAR; FRT BUMPER
(A) 		8-97611-514-0 01 1 0712-0802 ● ●
24 BAR; FRT BUMPER
(B) 		8-97625-359-0 01 1 0803- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-1 01 1 0710-0711 ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-2 01 1 0712- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 0710-0711 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 0712- ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-1 01 1 0710-0711 ●
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-2 01 1 0712- ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 0710-0711 ●
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 0712- ● ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0710-0711 ●
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 0712- ● ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 04 1 0710-0710 ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0710-0711 ●
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 0712- ● ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 0710-0711 ●
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 0712- ● ●
34 NUT; BRKT,BUMPER
(B) M10 FLANGE 		0-91180-110-0 01 1 0710-0710 ●
34 NUT; BRKT,BUMPER
(C) M12 FLANGE 		0-91180-212-0 06 1 0710-0711 ●
34 NUT; BRKT,BUMPER
(C) M12 FLANGE 		0-91180-212-0 06 1 0712- ● ●
34 NUT; BRKT,BUMPER
(D) M14 FLANGE 		0-91180-214-0 04 1 0710-0711 ●
34 NUT; BRKT,BUMPER
(D) M14 FLANGE 		0-91180-214-0 04 1 0712- ● ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0710-0711 ●
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0712- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0710-0711 ●
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 0712- ● ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0710-0711 ●
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 0712- ● ●
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 0710-0711 ●
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 0712- ● ●
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE 		0-28851-445-0 04 1 0710-0711 ●
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE 		0-28851-445-0 04 1 0712- ● ●
64 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0710-0711 ●
64 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 0712- ● ●
84 HOOK 1-57181-027-1 01 1 0710-0711 ●
84 HOOK 1-57181-027-1 01 1 0712- ● ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0710-0711 ●
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 0712- ● ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0710-0711 ●
94 NUT; HOOK
M16 		0-91110-516-0 02 1 0712- ● ●
101 STEP; BUMPER 8-97611-543-0 01 1 0710-0711 ●
101 STEP; BUMPER 8-97611-543-0 01 1 0712- ● ●
101 STEP; BUMPER 8-97611-542-0 01 1 0710-0711 ●
101 STEP; BUMPER 8-97611-542-0 01 1 0712- ● ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0710-0711 ●
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0712- ● ●
111 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
111 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0712- ● ●
138 BOLT; BRKT FIX
(A) M10X25 FLANGE 		0-28651-025-0 04 1 0710-0710 ●
138 BOLT; BRKT FIX
(B) M10X30 		8-94324-205-0 04 1 0710-0710 ●
138 BOLT; BRKT FIX
(B) M10X30 		8-94324-205-0 02 1 0710-0711 ●
138 BOLT; BRKT FIX
(B) M10X30 		8-94324-205-0 02 1 0712-0712 ● ●
139 NUT; BRKT FIX
M10 FLANGE 		0-91180-110-0 02 1 0710-0710 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 0710-0711 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-636-0 01 1 0712- ● ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 0710-0711 ●
202 BRACKET; BUMPER SIDE
(A) 		8-97613-637-0 01 1 0712- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 0710-0711 ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-640-1 01 1 0712- ● ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 0710-0711 ●
202 BRACKET; BUMPER SIDE
(B) 		8-97613-641-1 01 1 0712- ● ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0710-0711 ●
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0712- ● ●
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 0710-0711 ●
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 0712- ● ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0710-0711 ●
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 0712- ● ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 0710-0711 ●
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 0712- ● ●
309 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 01 1 0710-0711 ●
309 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 01 1 0712- ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 05 1 0710-0711 ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 05 1 0712-0712 ● ●
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 0801- ● ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0710-0710 ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0710-0711 ●
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 0712- ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-110-0 02 1 0710-0710 ●
312 NUT; BRKT
M10 FLANGE 		0-91180-110-0 05 1 0710-0711 ●
312 NUT; BRKT
M10 FLANGE 		0-91180-110-0 05 1 0712-0802 ● ●
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 0803- ● ●
315 STAY; BUMPER 8-97613-645-1 01 1 0710-0711 ●
315 STAY; BUMPER 8-97613-645-1 01 1 0712- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0710-0711 ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 0712- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0710-0711 ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 0712- ● ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0710-0711 ●
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 0712- ● ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0710-0711 ●
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 0712- ● ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0710-0711 ●
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0712- ● ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 0710-0711 ●
615 BRACKET; BUMPER CENTER 8-97613-643-1 01 1 0712- ● ●
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 0710-0711 ●
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 0712- ● ●
660 BOLT; STAY
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ●
660 BOLT; STAY
M8X20 FLANGE 		0-28650-820-0 02 1 0712-0802 ● ●
671 BRACKET; STAY 8-97620-889-0 01 1 0710-0711 ●
671 BRACKET; STAY 8-97620-889-0 01 1 0712- ● ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0710-0711 ●
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0712- ● ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 0710-0711 ●
682 BEZEL; BUMPER 8-97611-531-2 01 1 0712- ● ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 0710-0711 ●
682 BEZEL; BUMPER 8-97611-530-2 01 1 0712- ● ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0710-0711 ●
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 0712- ● ●
