5-30 — SPARE TIRE CARRIER AND COVER (#65584) — 55 parça

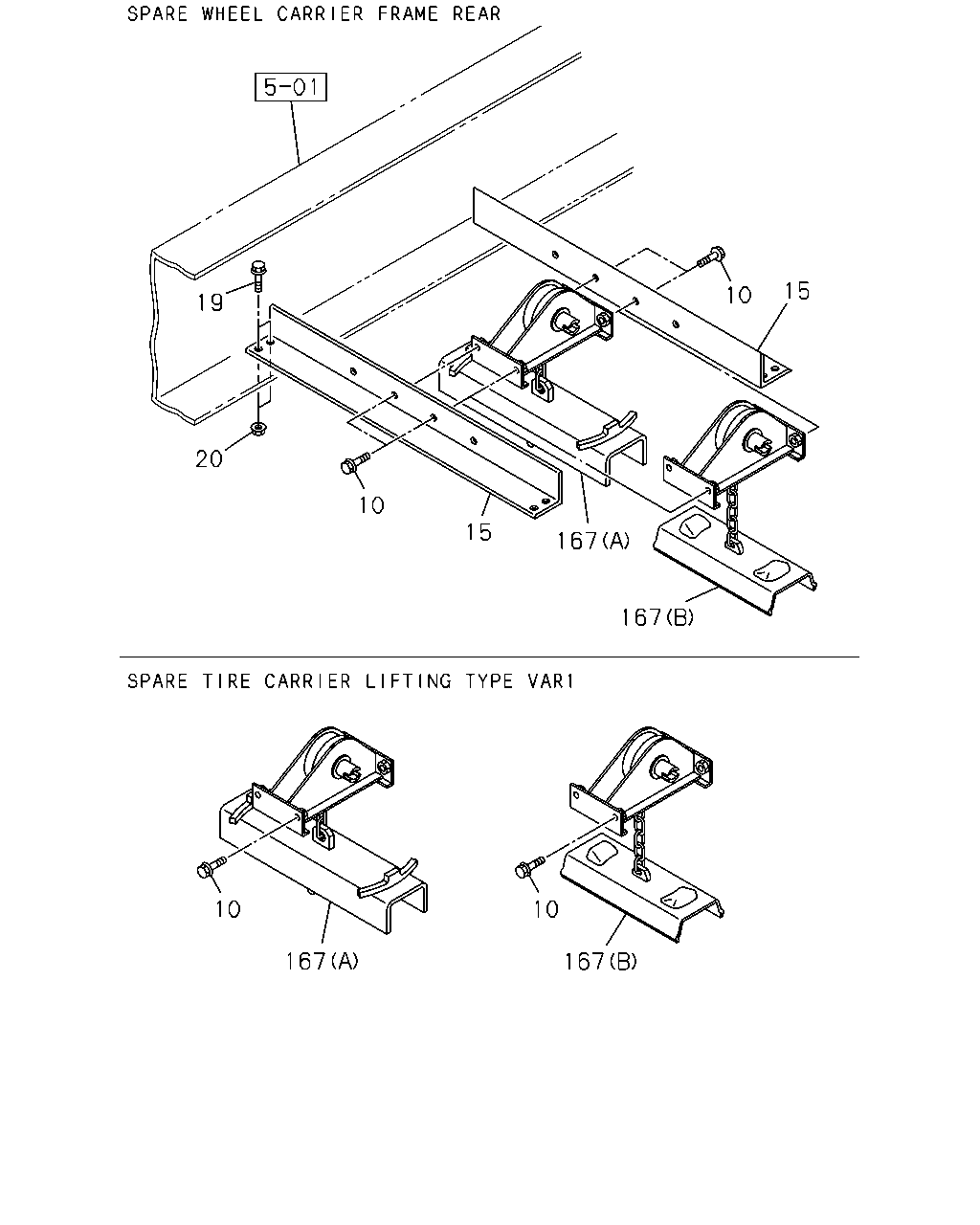

çizim 125799
15 10 19 20 10 15 167 167 10 10 167 167
BalonParca AdiParca NoAdetTipApplied Date A B
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0710-0711 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0712-0808 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28651-230-0 04 1 0712-0808 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 0710-0711 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-394-0 02 1 0712- ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0710-0711 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE 		0-28051-025-0 08 1 0712- ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0710-0711 ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91180-210-0 08 1 0712- ● ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-208-1 01 1 0712-0905 ●
167 HANGER; TIRE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 0906-0909 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-208-3 01 1 0910- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-1 01 1 0710-0711 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-53630-210-1 01 1 0712-0905 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-1 01 1 0712-0905 ●
167 HANGER; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-1 01 1 0906-0909 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-1 01 1 0906-0909 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-53630-210-4 01 1 0910- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-4 01 1 0910- ●

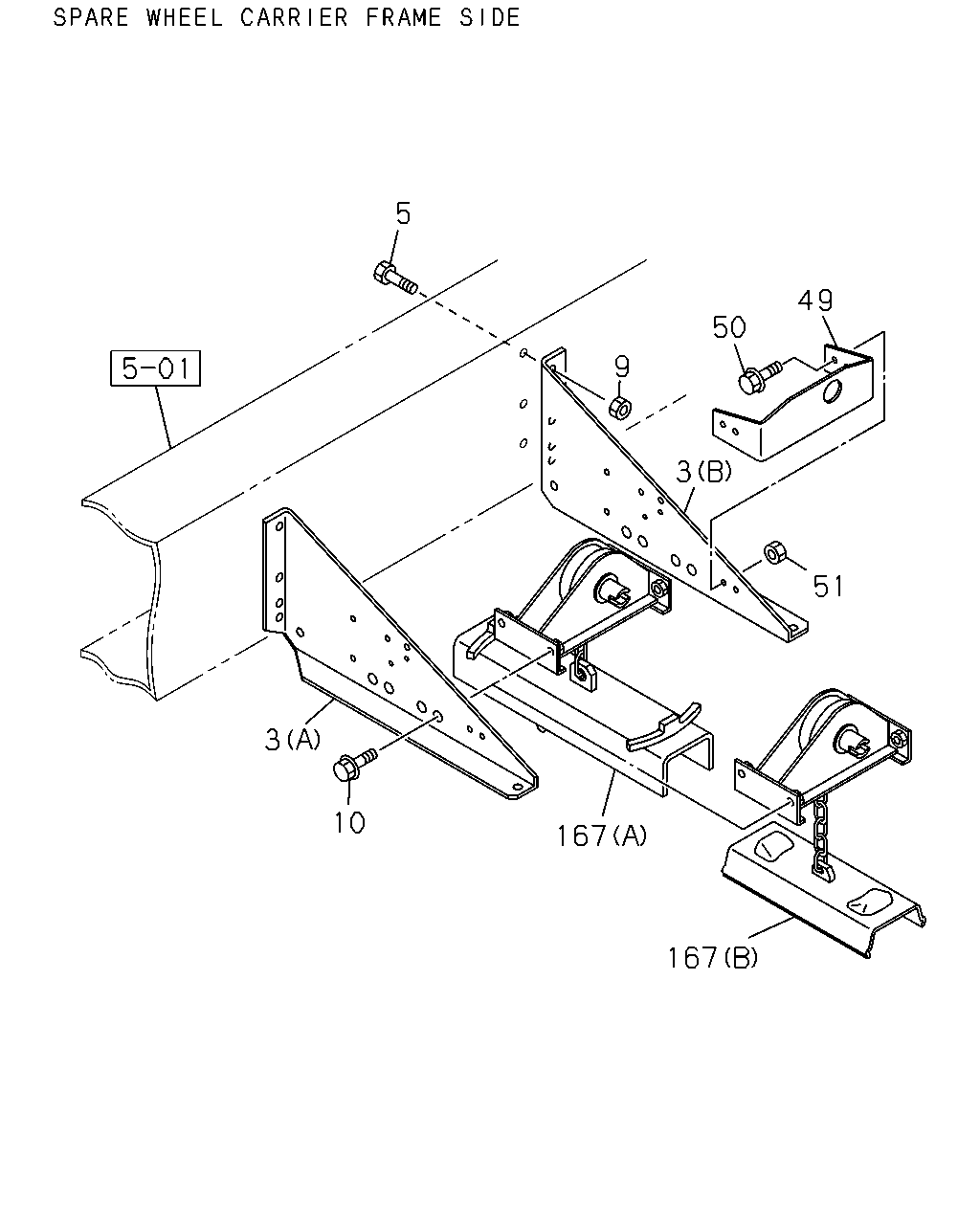

çizim 126179
5 49 50 9 3 51 3 10 167 167
BalonParca AdiParca NoAdetTipApplied Date A B
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		1-53631-391-0 01 1 0710-0712 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98106-690-0 01 1 0801- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53631-392-0 01 1 0710-0712 ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-98106-691-0 01 1 0801- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE 		0-28051-245-0 06 1 0710- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 03 1 0811-0907 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 01 1 0908- ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 03 1 0712-0808 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 03 1 0809-0810 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5500MM(55W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 01 1 0811-0907 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0710-0711 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0712-0808 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0809-0809 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0810-0907 ●
9 NUT; BRKT TO FRAME
WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEEL BASE 4600MM(46W),WHEEL BASE 5000MM(50W),WHEEL BASE 5500MM(55W),WHEEL BASE 6500MM(65W) SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		0-91110-512-0 06 1 0908- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0710-0711 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0712-0808 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE 		0-28651-230-0 04 1 0712-0808 ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> M12X30 FLANGE 		0-28651-230-0 04 1 0809- ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-466-1 01 1 0710- ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE 		0-28650-830-0 04 1 0710- ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 		0-91110-508-0 04 1 0710-1203 ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 1204- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-208-1 01 1 0712-0905 ●
167 HANGER; TIRE
DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 0906-0909 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 8STUD 6.50TX20 152-11(Q50),DISC WHEEL 8STUD 7.00TX20 162-12(Q54),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU),DISC WHEEL 8STUD 8.25X22.5 165-13TC(SKV) (B) 		1-53630-208-3 01 1 0910- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-1 01 1 0710-0711 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-53630-210-1 01 1 0712-0905 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-1 01 1 0712-0905 ●
167 HANGER; TIRE
DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-1 01 1 0906-0909 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-1 01 1 0906-0909 ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL10STUD 7.00TX20(Q58),DISC WHEEL 10STUD 7.50VX20(Q64),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) 		1-53630-210-4 01 1 0910- ●
167 HANGER; TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (A) 		1-53630-210-4 01 1 0910- ●
