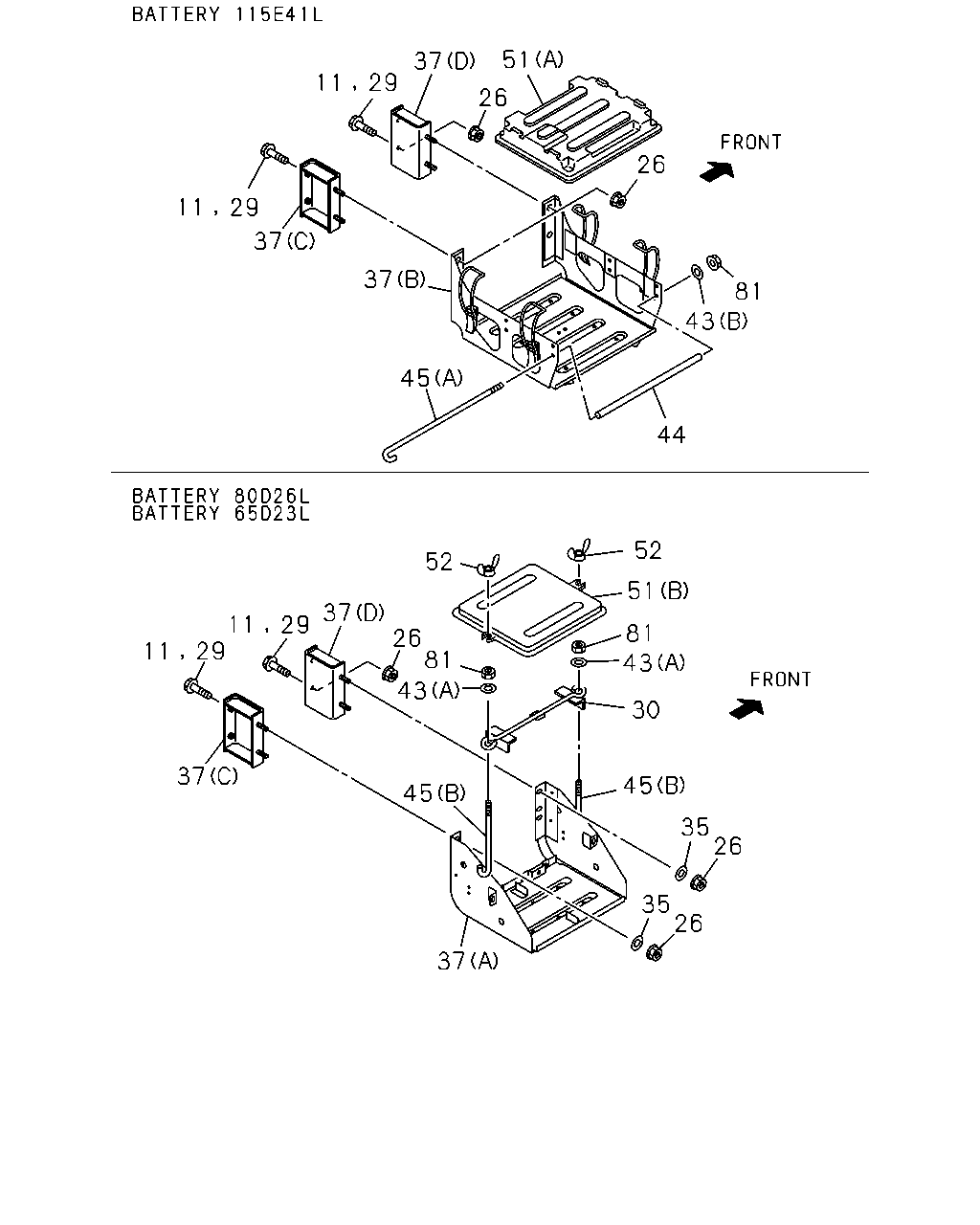

5-20 — BATTERY CARRIER (#65583) — 46 parça

11 29 11 29 37 51 26 37 37 45 26 81 43 44 52 37 29 11 11 29 37 26 81 43 45 37 52 51 81 43 30 45 35 26 35 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; BRKT FIX 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) M10X35 FLANGE	0-28651-035-0	04	1	1008-	●
11	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2> M10X35 FLANGE	0-28651-035-0	04	1	1008-	●
26	NUT; BRKT EXC. AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	04	1	0903-	●
26	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	02	1	0712-0808	●
26	NUT; BRKT 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) M10 FLANGE	0-91180-210-0	02	1	0809-	●
26	NUT; BRKT EURO2 SPECIFICATION<NT2> M10 FLANGE	0-91180-210-0	02	1	0809-	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0710-0711	●
26	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0712-0809	●	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0710-0711	●
29	BOLT; BRKT TO FRAME M10X35 FLANGE	0-28651-035-0	04	1	0712-1007	●	●
29	BOLT; BRKT TO FRAME 6HK1-TCC ENG(81L) AUSTRALIA EQUIPMENT(B13) EURO4 SPECIFICATION<NT4> M10X35 FLANGE	0-28651-035-0	04	1	1008-	●
29	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5000MM(50W) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) M10X35 FLANGE	0-28651-035-0	04	1	1008-	●
29	BOLT; BRKT TO FRAME 6HK1-TCC ENG(81L) M10X35 FLANGE	0-28651-035-0	04	1	1008-		●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0710-0711	●
30	PLATE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	5-53615-004-1	01	1	0712-	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0710-0711	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6	0-91610-610-0	04	1	0712-0712	●	●
35	WASHER; PL,BATTERY CARRIER BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22	0-91614-610-0	04	1	0712-	●	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98091-497-0	01	1	0710-1405	●
37	BRACKET; BATTERY BATTERY 115E41L<8MA> (B)	8-98261-636-0	01	1	1406-	●
37	BRACKET; BATTERY 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98070-047-0	01	1	0712-0808	●
37	BRACKET; BATTERY 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98070-047-0	01	1	0809-0905	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> (C)	8-98070-047-0	01	1	0809-0905	●
37	BRACKET; BATTERY 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (C)	8-98144-194-0	01	1	0906-	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> (C)	8-98144-194-0	01	1	0906-	●
37	BRACKET; BATTERY 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98088-828-0	01	1	0712-0808	●
37	BRACKET; BATTERY 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) EURO4 SPECIFICATION<NT4> EXC. AUSTRALIA EQUIPMENT(B13) (D)	8-98088-828-0	01	1	0809-	●
37	BRACKET; BATTERY EURO2 SPECIFICATION<NT2> (D)	8-98088-828-0	01	1	0809-	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0710-0711	●
37	BRACKET; BATTERY BATTERY 80D26L<TM1> (A)	8-97384-067-2	01	1	0712-	●	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0710-0711	●
37	BRACKET; BATTERY BATTERY 65D23L<8EJ> (A)	8-97384-068-2	01	1	0712-	●	●
43	WASHER; PL,CLAMP BATTERY 115E41L<8MA> (B) ID=8.4 OD=16	0-91610-508-0	02	1	0710-	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0710-0711	●
43	WASHER; PL,CLAMP BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22	0-91614-708-0	02	1	0712-	●	●
44	SPACER; BATTERY BATTERY 115E41L<8MA>	8-98261-682-0	02	1	1406-	●
45	ROD; TENSION,BATTERY BATTERY 115E41L<8MA> (A) L=430	8-97134-740-0	02	1	0710-	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	0710-0711	●
45	ROD; TENSION,BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120	9-53616-615-0	02	1	0712-	●	●
51	COVER; BATTERY BATTERY 115E41L<8MA> (A)	1-53612-037-2	01	1	0710-	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0710-0711	●
51	COVER; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-97120-747-0	01	1	0712-	●	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0710-0711	●
52	NUT; WING,COVER FIX BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT	0-91118-408-0	02	1	0712-	●	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
81	NUT; BATTERY M8 FLANGE	0-91180-108-0	02	1	0712-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
