◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11104 - FTR-RHD EURO2/4 ▶ 5 - Frame, Cab Mounting ▶ 5-17 - CYLINDER; CAB TILT ▶
5-17 — CYLINDER; CAB TILT (#65582) — 141 parça

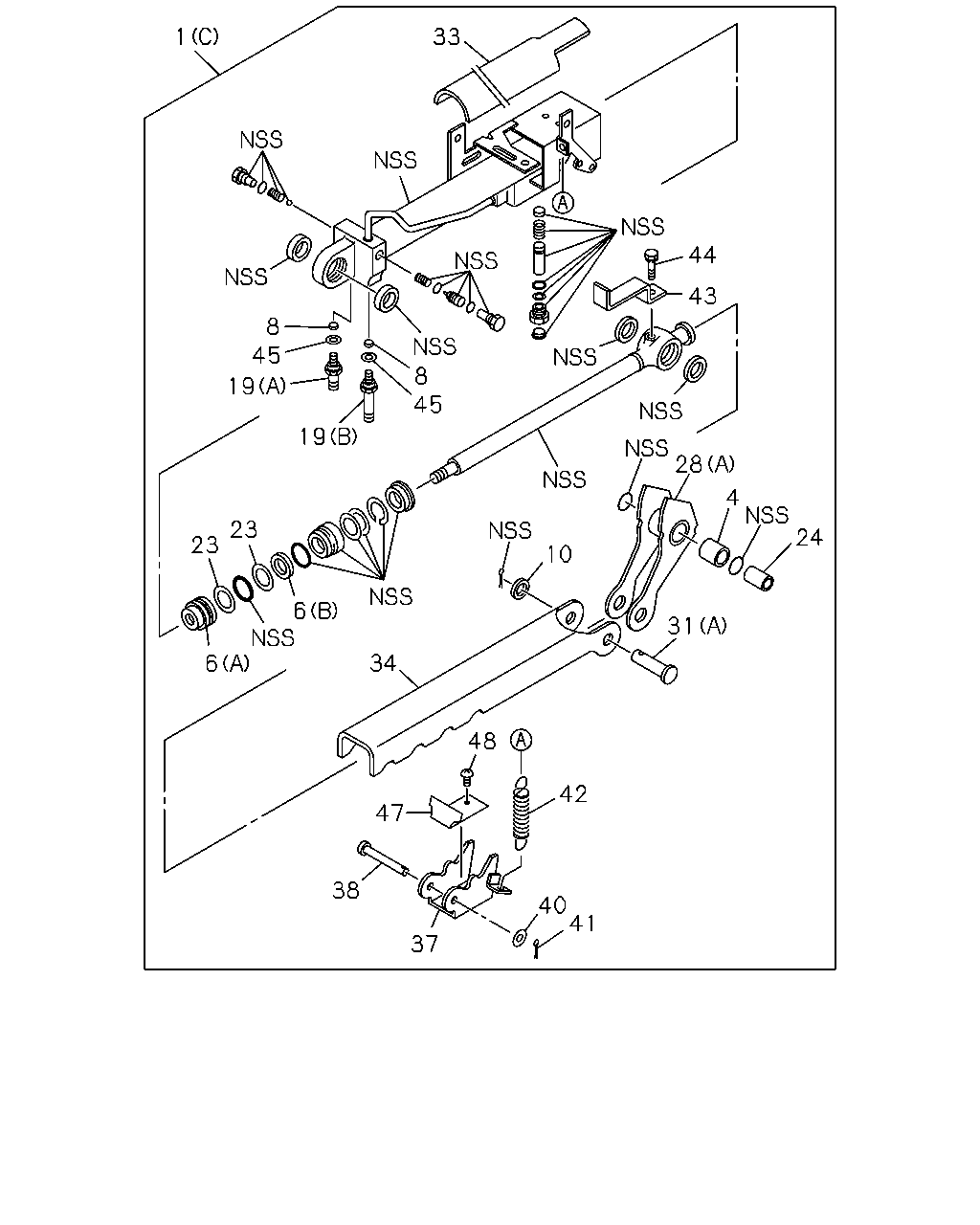

çizim 125892
1 33 44 43 8 45 8 45 19 19 28 4 24 23 23 10 6 31 34 6 48 42 47 38 40 41 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; OIL,CAB TILT
(A) 		8-98037-733-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(B) 		8-98037-734-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(C) 		8-98020-528-0 01 1 0710-0711 ●
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> (C) 		8-98020-528-0 01 1 0712- ●
4 BUSHING; OIL CYL 1-53458-405-0 02 1 0712- ●
4 BUSHING; OIL CYL 1-53458-405-0 01 1 0710-0711 ●
4 BUSHING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-405-0 01 1 0712- ●
6 PISTON; OIL CYL
(A) 		8-98134-365-0 01 1 0710-0711 ●
6 PISTON; OIL CYL
AUTO CAB TILT<WV2> (A) 		8-98134-365-0 01 1 0712- ●
6 PISTON; OIL CYL
(B) 		8-98134-367-0 01 1 0710-0711 ●
6 PISTON; OIL CYL
AUTO CAB TILT<WV2> (B) 		8-98134-367-0 01 1 0712- ●
8 FILTER; OIL CYL 1-53458-102-0 05 1 0712- ●
8 FILTER; OIL CYL 1-53458-102-0 02 1 0710-0711 ●
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-102-0 02 1 0712- ●
10 WASHER; OIL CYL 1-53458-401-0 02 1 0712- ●
10 WASHER; OIL CYL 1-53458-401-0 01 1 0710-0711 ●
10 WASHER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-401-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(D) 		1-53457-221-0 02 1 0712- ●
19 NIPPLE; OIL CYL
(E) 		1-53457-222-0 02 1 0712- ●
19 NIPPLE; OIL CYL
(C) 		1-53457-225-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(A) 		1-53457-044-0 01 1 0710-0711 ●
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53457-044-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(B) 		1-53457-045-0 01 1 0710-0711 ●
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53457-045-0 01 1 0712- ●
23 RING; SNAP 1-53457-048-0 02 1 0710-0711 ●
23 RING; SNAP
AUTO CAB TILT<WV2> 		1-53457-048-0 02 1 0712- ●
24 COLLAR; LEVER 1-53458-398-0 02 1 0712- ●
24 COLLAR; LEVER 1-53458-398-0 01 1 0710-0711 ●
24 COLLAR; LEVER
AUTO CAB TILT<WV2> 		1-53458-398-0 01 1 0712- ●
28 LEVER; OIL CYL
(B) 		1-53457-223-0 02 1 0712- ●
28 LEVER; OIL CYL
(A) 		1-53458-583-0 01 1 0710-0711 ●
28 LEVER; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-583-0 01 1 0712- ●
31 PIN; OIL CYL
(B) 		1-53457-224-0 02 1 0712- ●
31 PIN; OIL CYL
(A) 		1-53457-172-0 01 1 0710-0711 ●
31 PIN; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53457-172-0 01 1 0712- ●
33 COVER; CYL 1-53458-590-0 01 1 0710-0711 ●
33 COVER; CYL
AUTO CAB TILT<WV2> 		1-53458-590-0 01 1 0712- ●
34 STOPPER; OIL CYL 1-53458-582-0 01 1 0710-0711 ●
34 STOPPER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-582-0 01 1 0712- ●
37 LEVER; STOPPER 1-53457-170-0 01 1 0710-0711 ●
37 LEVER; STOPPER
AUTO CAB TILT<WV2> 		1-53457-170-0 01 1 0712- ●
38 PIN; STOPPER 1-53458-550-0 01 1 0710-0711 ●
38 PIN; STOPPER
AUTO CAB TILT<WV2> 		1-53458-550-0 01 1 0712- ●
40 WASHER; STOPPER PIN 1-53458-045-0 01 1 0710-0711 ●
40 WASHER; STOPPER PIN
AUTO CAB TILT<WV2> 		1-53458-045-0 01 1 0712- ●
41 PIN; SPLIT 1-53458-545-0 01 1 0710-0711 ●
41 PIN; SPLIT
AUTO CAB TILT<WV2> 		1-53458-545-0 01 1 0712- ●
42 SPRING; LOCK LEVER 1-53457-168-0 01 1 0710-0711 ●
42 SPRING; LOCK LEVER
AUTO CAB TILT<WV2> 		1-53457-168-0 01 1 0712- ●
43 PLATE; SW 1-53457-167-0 01 1 0710-0711 ●
43 PLATE; SW
AUTO CAB TILT<WV2> 		1-53457-167-0 01 1 0712- ●
44 BOLT; SW PLATE
M6X12 		1-53458-542-0 01 1 0710-0711 ●
44 BOLT; SW PLATE
AUTO CAB TILT<WV2> M6X12 		1-53458-542-0 01 1 0712- ●
45 GASKET; OIL CYL 1-53458-073-0 02 1 0710-0711 ●
45 GASKET; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-073-0 02 1 0712- ●
47 PLATE; THRUST,OIL CYL 1-53457-169-0 01 1 0710-0711 ●
47 PLATE; THRUST,OIL CYL
AUTO CAB TILT<WV2> 		1-53457-169-0 01 1 0712- ●
48 SCREW; OIL CYL
M5X8 		1-53458-005-0 02 1 0710-0711 ●
48 SCREW; OIL CYL
AUTO CAB TILT<WV2> M5X8 		1-53458-005-0 02 1 0712- ●
çizim 126240
1 19 19 8 8 49 28 4 24 31 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; OIL,CAB TILT
(A) 		8-98037-733-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(B) 		8-98037-734-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(C) 		8-98020-528-0 01 1 0710-0711 ●
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> (C) 		8-98020-528-0 01 1 0712- ●
4 BUSHING; OIL CYL 1-53458-405-0 02 1 0712- ●
4 BUSHING; OIL CYL 1-53458-405-0 01 1 0710-0711 ●
4 BUSHING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-405-0 01 1 0712- ●
8 FILTER; OIL CYL 1-53458-102-0 05 1 0712- ●
8 FILTER; OIL CYL 1-53458-102-0 02 1 0710-0711 ●
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-102-0 02 1 0712- ●
10 WASHER; OIL CYL 1-53458-401-0 02 1 0712- ●
10 WASHER; OIL CYL 1-53458-401-0 01 1 0710-0711 ●
10 WASHER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-401-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(D) 		1-53457-221-0 02 1 0712- ●
19 NIPPLE; OIL CYL
(E) 		1-53457-222-0 02 1 0712- ●
19 NIPPLE; OIL CYL
(C) 		1-53457-225-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(A) 		1-53457-044-0 01 1 0710-0711 ●
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53457-044-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(B) 		1-53457-045-0 01 1 0710-0711 ●
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53457-045-0 01 1 0712- ●
24 COLLAR; LEVER 1-53458-398-0 02 1 0712- ●
24 COLLAR; LEVER 1-53458-398-0 01 1 0710-0711 ●
24 COLLAR; LEVER
AUTO CAB TILT<WV2> 		1-53458-398-0 01 1 0712- ●
28 LEVER; OIL CYL
(B) 		1-53457-223-0 02 1 0712- ●
28 LEVER; OIL CYL
(A) 		1-53458-583-0 01 1 0710-0711 ●
28 LEVER; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-583-0 01 1 0712- ●
31 PIN; OIL CYL
(B) 		1-53457-224-0 02 1 0712- ●
31 PIN; OIL CYL
(A) 		1-53457-172-0 01 1 0710-0711 ●
31 PIN; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53457-172-0 01 1 0712- ●
49 VALVE; OIL CYL 1-53457-220-0 02 1 0712- ●

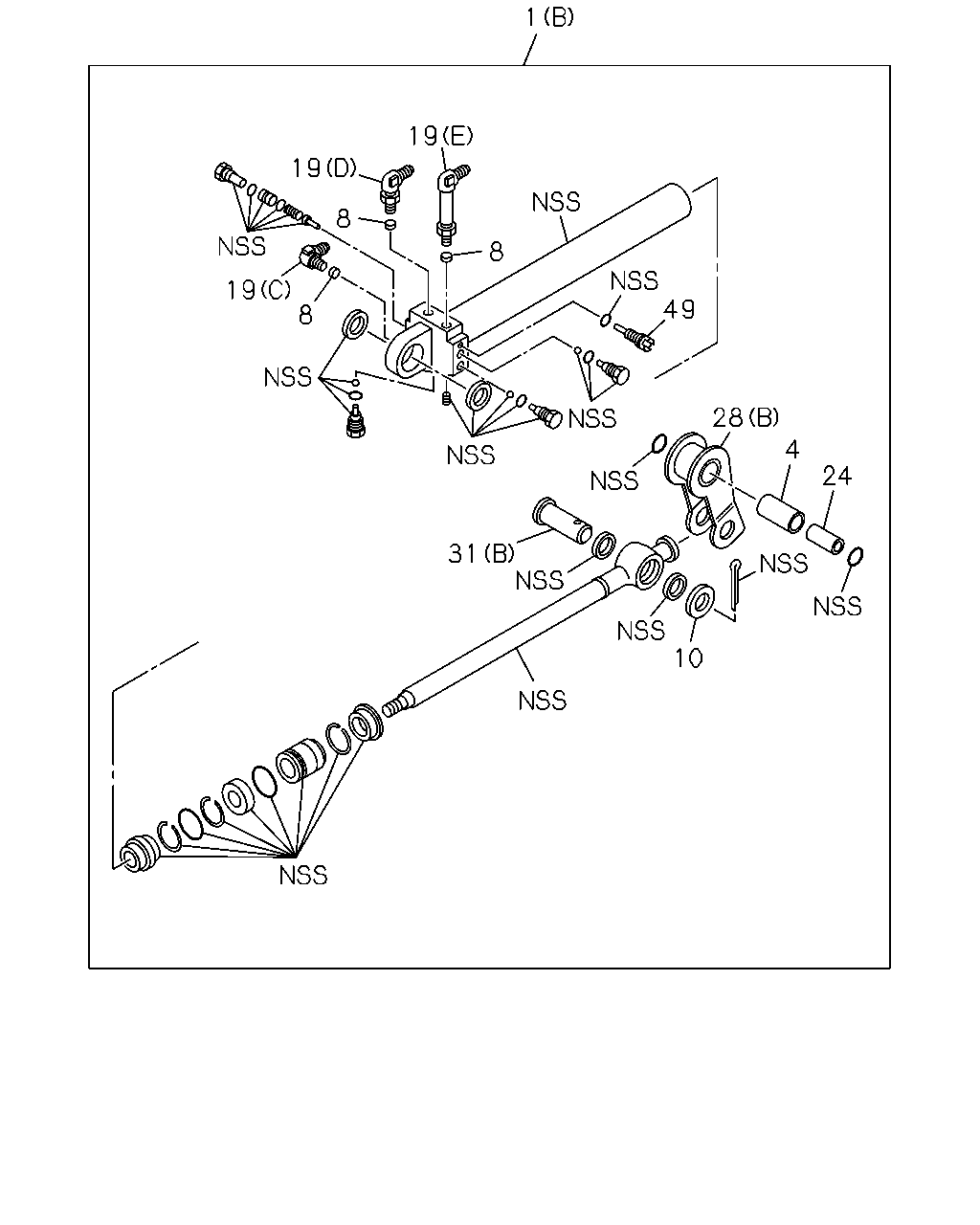

çizim 126275
1 19 19 8 8 49 19 8 28 4 24 31 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; OIL,CAB TILT
(A) 		8-98037-733-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(B) 		8-98037-734-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(C) 		8-98020-528-0 01 1 0710-0711 ●
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> (C) 		8-98020-528-0 01 1 0712- ●
4 BUSHING; OIL CYL 1-53458-405-0 02 1 0712- ●
4 BUSHING; OIL CYL 1-53458-405-0 01 1 0710-0711 ●
4 BUSHING; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-405-0 01 1 0712- ●
8 FILTER; OIL CYL 1-53458-102-0 05 1 0712- ●
8 FILTER; OIL CYL 1-53458-102-0 02 1 0710-0711 ●
8 FILTER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-102-0 02 1 0712- ●
10 WASHER; OIL CYL 1-53458-401-0 02 1 0712- ●
10 WASHER; OIL CYL 1-53458-401-0 01 1 0710-0711 ●
10 WASHER; OIL CYL
AUTO CAB TILT<WV2> 		1-53458-401-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(D) 		1-53457-221-0 02 1 0712- ●
19 NIPPLE; OIL CYL
(E) 		1-53457-222-0 02 1 0712- ●
19 NIPPLE; OIL CYL
(C) 		1-53457-225-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(A) 		1-53457-044-0 01 1 0710-0711 ●
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53457-044-0 01 1 0712- ●
19 NIPPLE; OIL CYL
(B) 		1-53457-045-0 01 1 0710-0711 ●
19 NIPPLE; OIL CYL
AUTO CAB TILT<WV2> (B) 		1-53457-045-0 01 1 0712- ●
24 COLLAR; LEVER 1-53458-398-0 02 1 0712- ●
24 COLLAR; LEVER 1-53458-398-0 01 1 0710-0711 ●
24 COLLAR; LEVER
AUTO CAB TILT<WV2> 		1-53458-398-0 01 1 0712- ●
28 LEVER; OIL CYL
(B) 		1-53457-223-0 02 1 0712- ●
28 LEVER; OIL CYL
(A) 		1-53458-583-0 01 1 0710-0711 ●
28 LEVER; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53458-583-0 01 1 0712- ●
31 PIN; OIL CYL
(B) 		1-53457-224-0 02 1 0712- ●
31 PIN; OIL CYL
(A) 		1-53457-172-0 01 1 0710-0711 ●
31 PIN; OIL CYL
AUTO CAB TILT<WV2> (A) 		1-53457-172-0 01 1 0712- ●
49 VALVE; OIL CYL 1-53457-220-0 02 1 0712- ●
çizim 192279
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL CYL
(B) 		1-85579-070-0 01 1 0712- ●
2 REPAIR KIT; OIL CYL
(A) 		1-85579-071-0 01 1 0712- ●
2 REPAIR KIT; OIL CYL
(C) 		1-85579-068-0 01 1 0710-0711 ●
2 REPAIR KIT; OIL CYL
AUTO CAB TILT<WV2> (C) 		1-85579-068-0 01 1 0712- ●

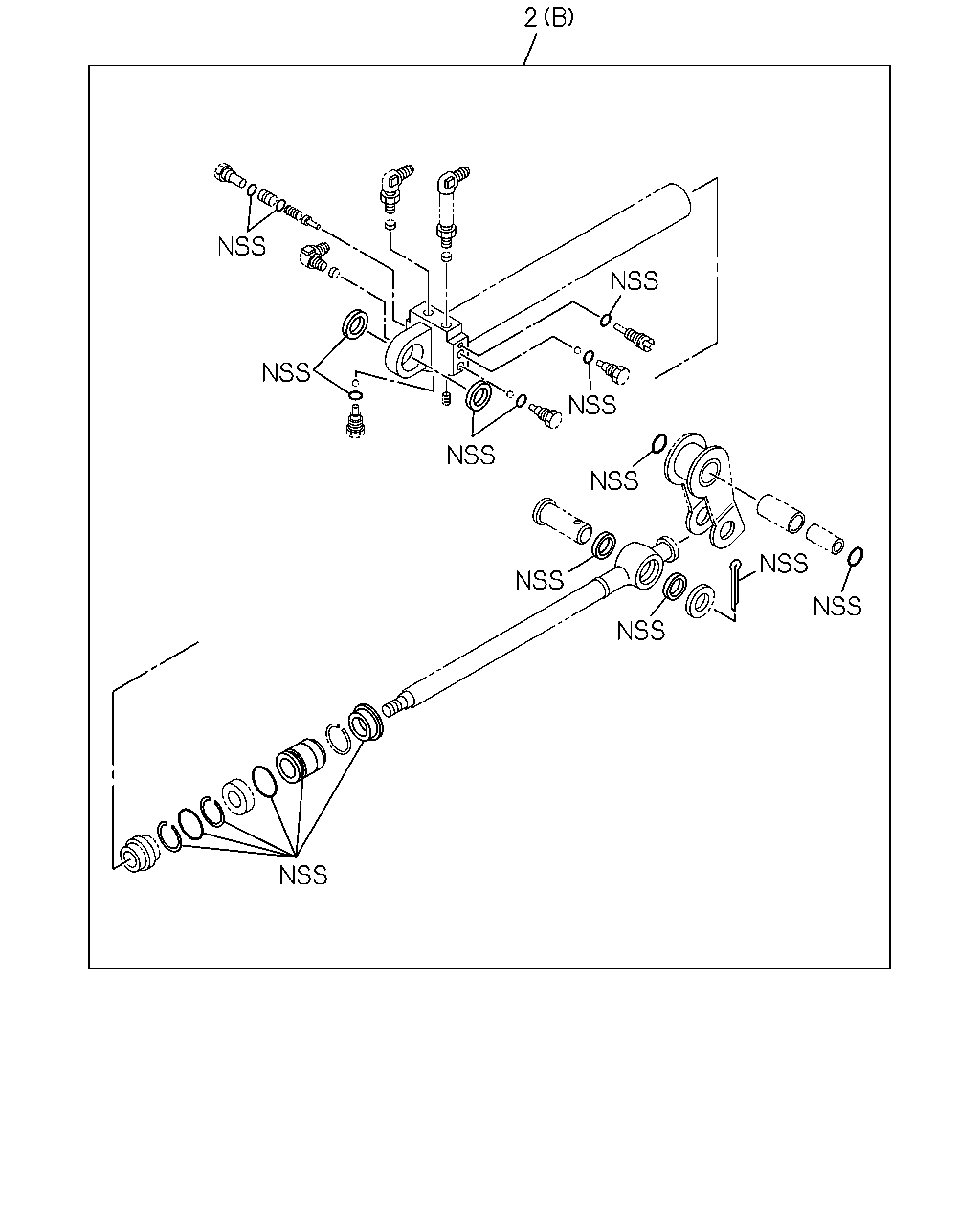

çizim 192286
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL CYL
(B) 		1-85579-070-0 01 1 0712- ●
2 REPAIR KIT; OIL CYL
(A) 		1-85579-071-0 01 1 0712- ●
2 REPAIR KIT; OIL CYL
(C) 		1-85579-068-0 01 1 0710-0711 ●
2 REPAIR KIT; OIL CYL
AUTO CAB TILT<WV2> (C) 		1-85579-068-0 01 1 0712- ●
çizim 192357
2 23 23
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; OIL CYL
(B) 		1-85579-070-0 01 1 0712- ●
2 REPAIR KIT; OIL CYL
(A) 		1-85579-071-0 01 1 0712- ●
2 REPAIR KIT; OIL CYL
(C) 		1-85579-068-0 01 1 0710-0711 ●
2 REPAIR KIT; OIL CYL
AUTO CAB TILT<WV2> (C) 		1-85579-068-0 01 1 0712- ●
23 RING; SNAP 1-53457-048-0 02 1 0710-0711 ●
23 RING; SNAP
AUTO CAB TILT<WV2> 		1-53457-048-0 02 1 0712- ●
çizim 192360
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; OIL,CAB TILT
(A) 		8-98037-733-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(B) 		8-98037-734-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(C) 		8-98020-528-0 01 1 0710-0711 ●
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> (C) 		8-98020-528-0 01 1 0712- ●

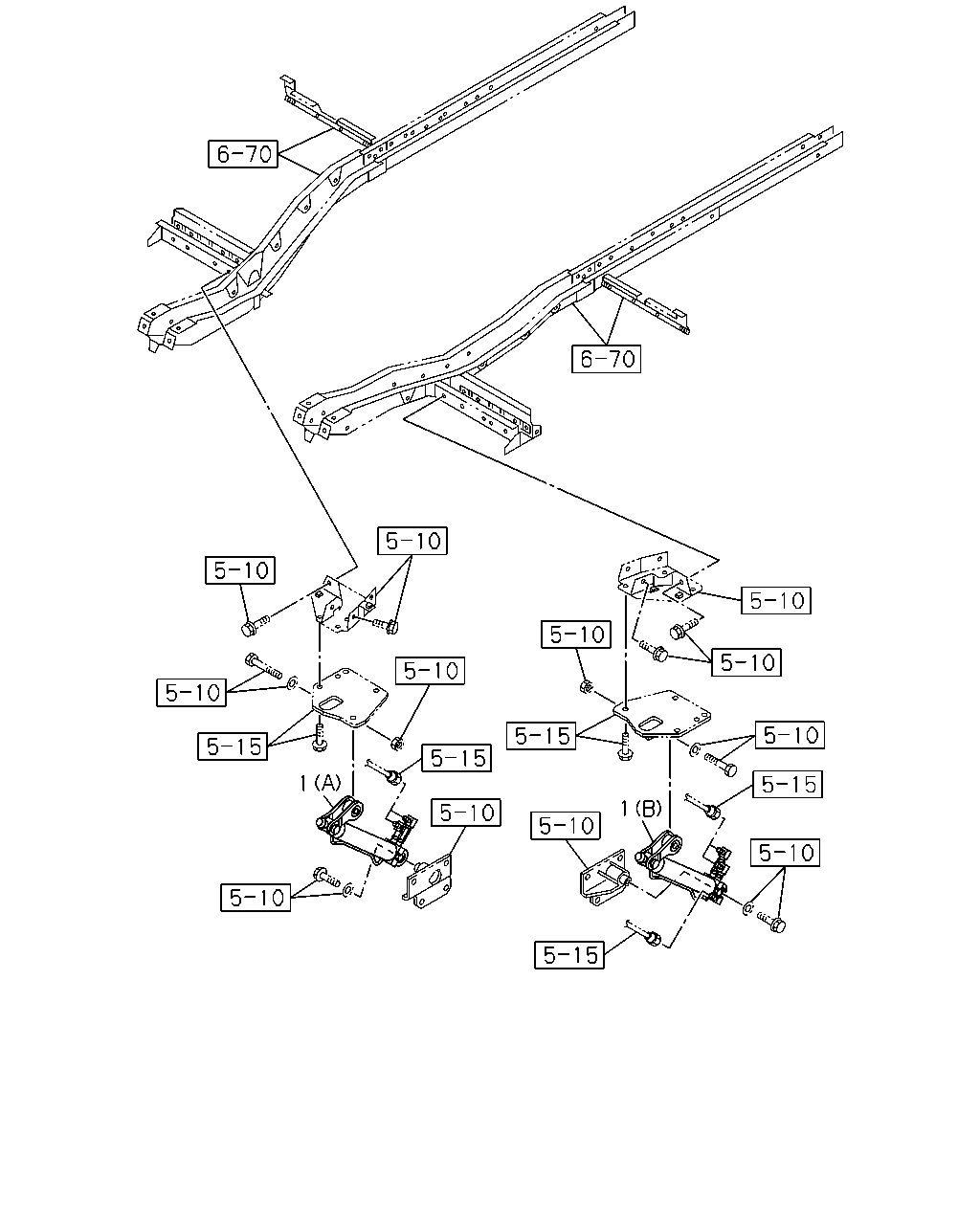

çizim 192379
1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER; OIL,CAB TILT
(A) 		8-98037-733-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(B) 		8-98037-734-0 01 1 0712- ●
1 CYLINDER; OIL,CAB TILT
(C) 		8-98020-528-0 01 1 0710-0711 ●
1 CYLINDER; OIL,CAB TILT
AUTO CAB TILT<WV2> (C) 		8-98020-528-0 01 1 0712- ●
