Sayfa 5-10 - Isuzu EPC

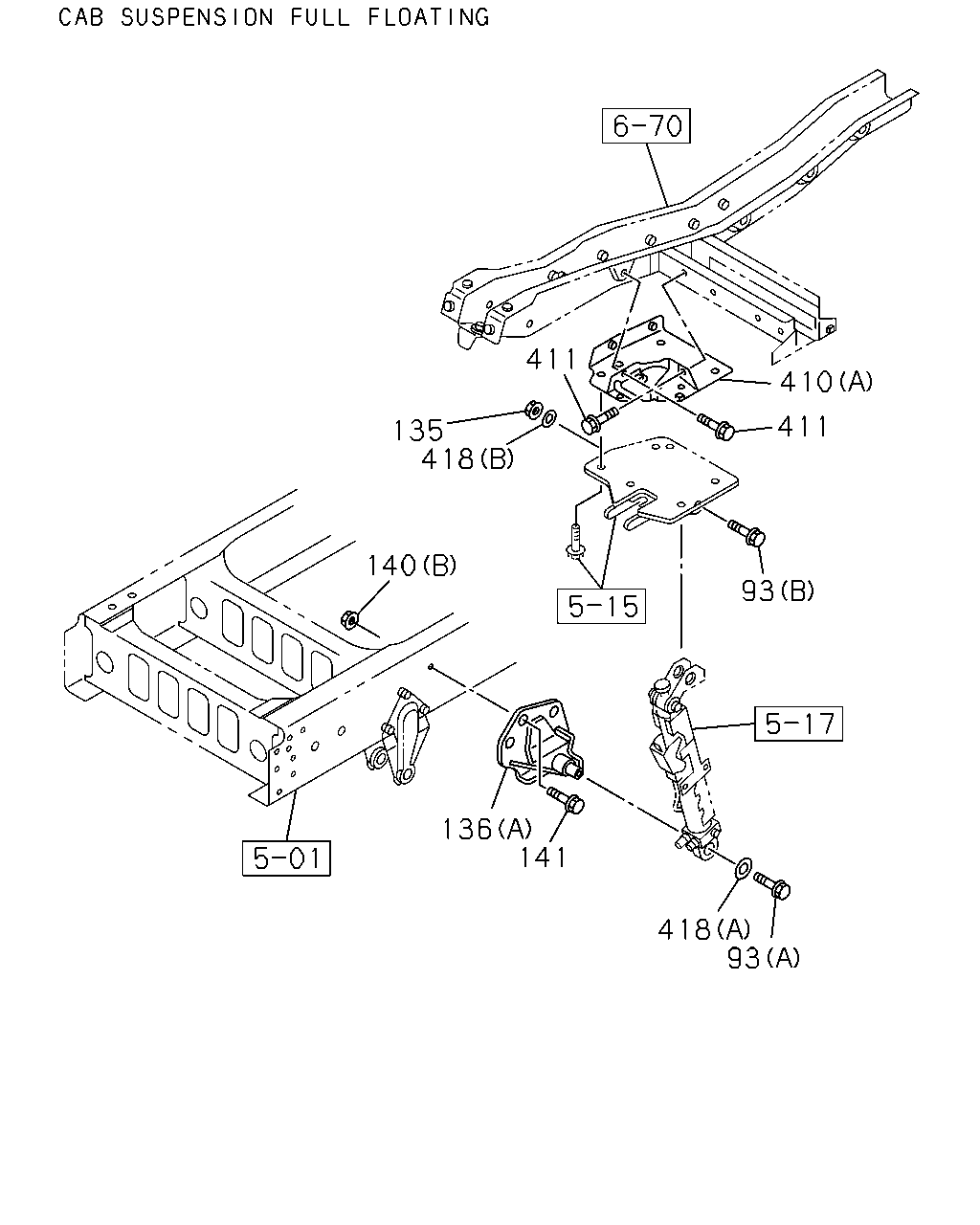

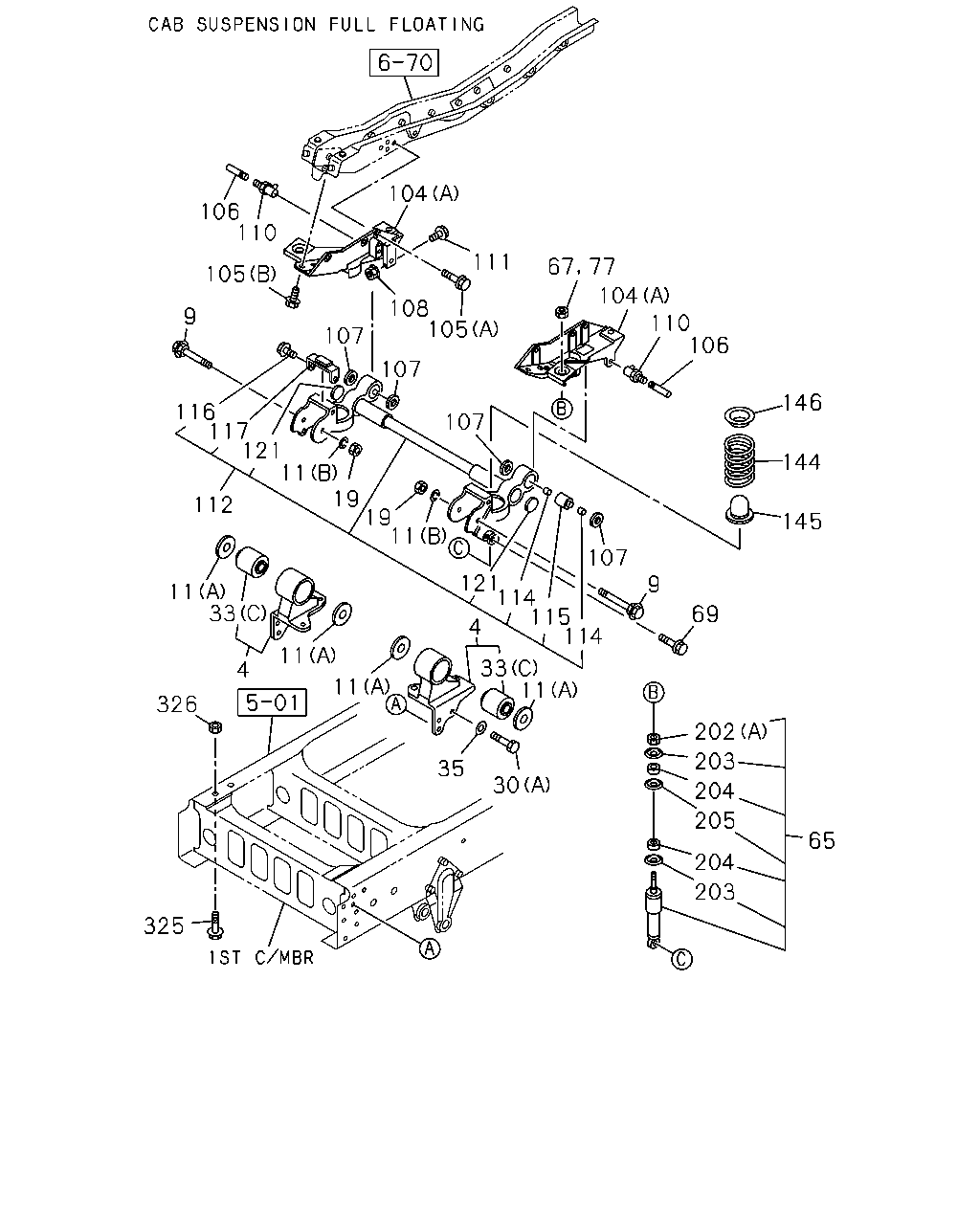

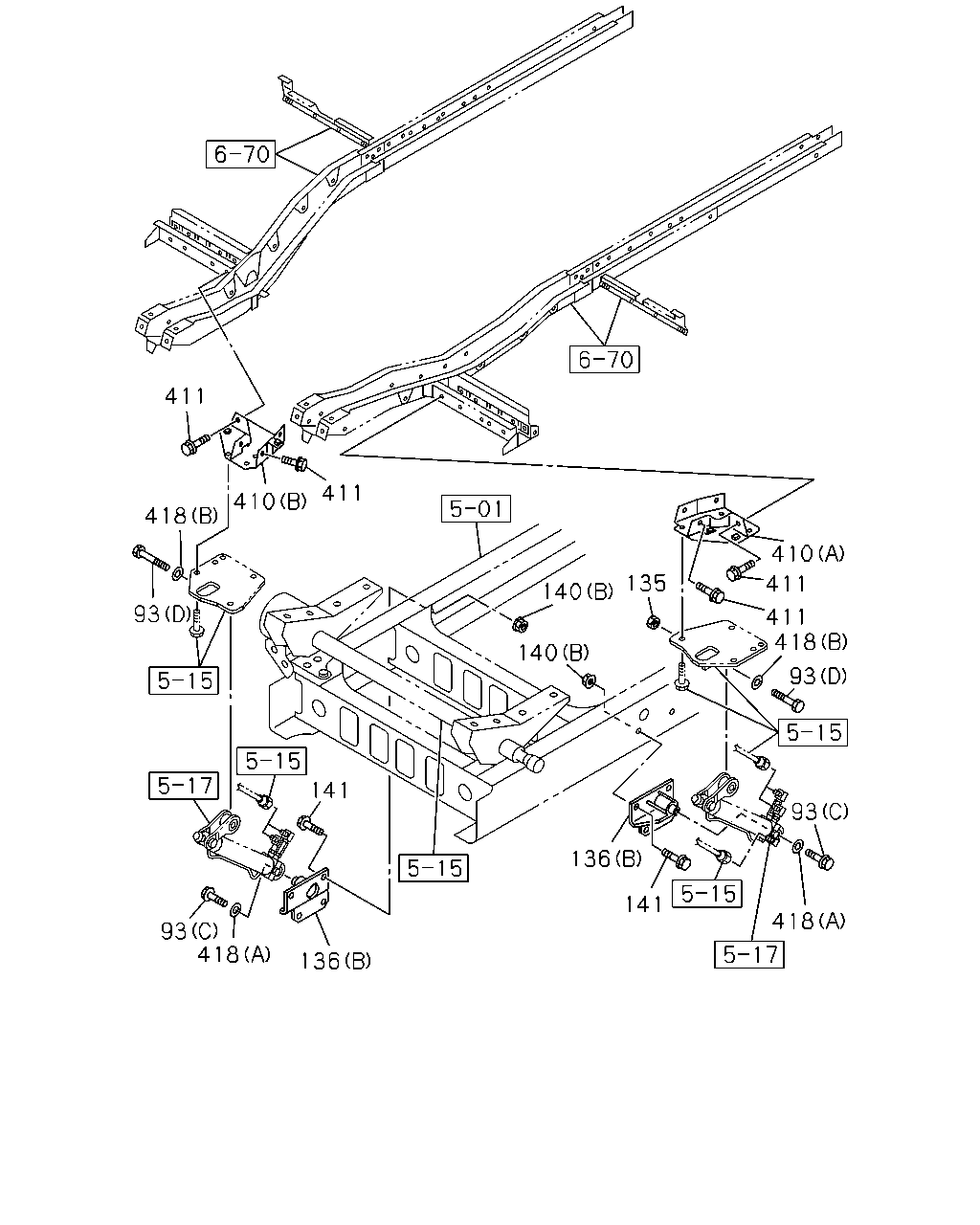

5-10 — CAB MOUNTING; FRAME SIDE (#65579) — 456 parça

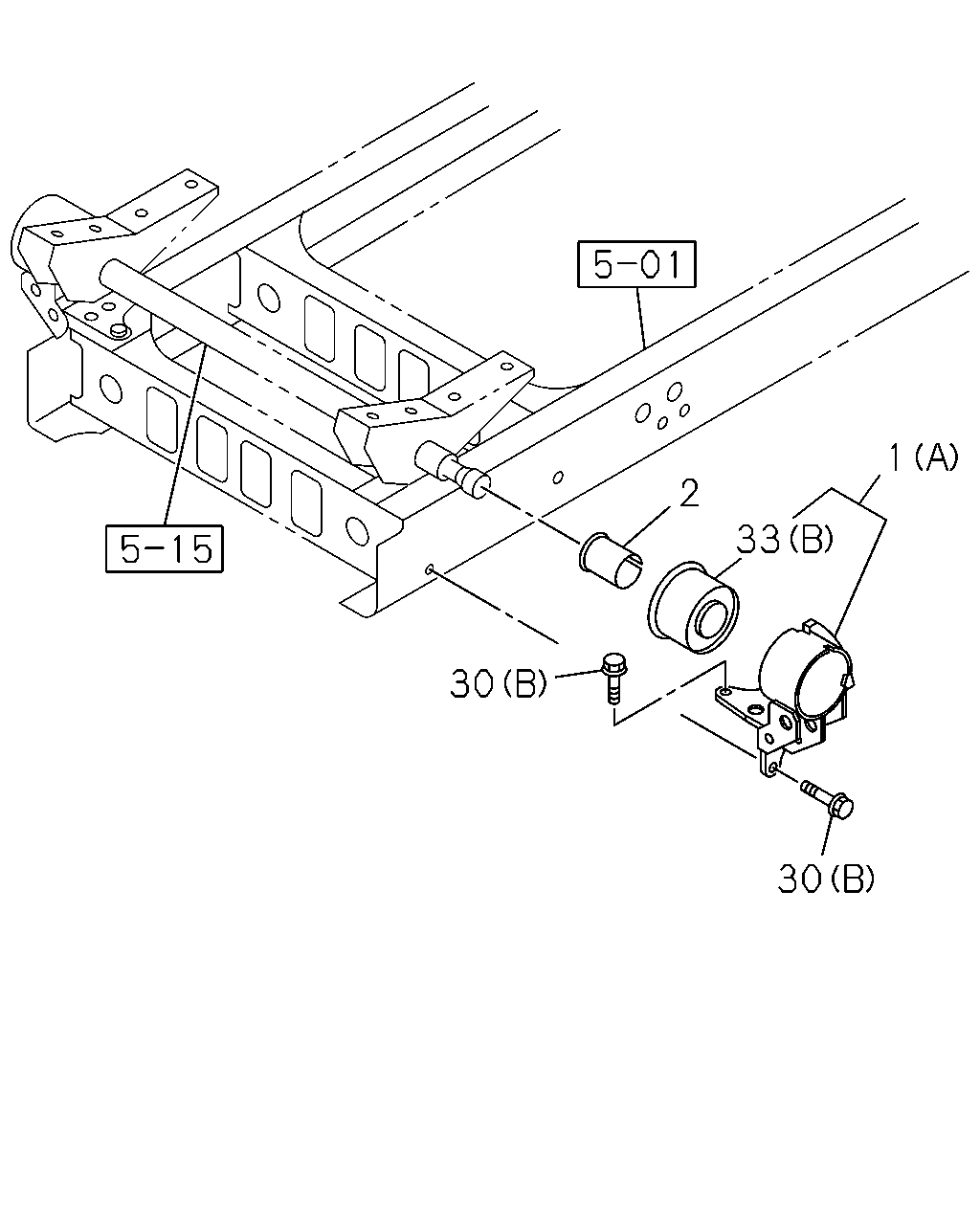

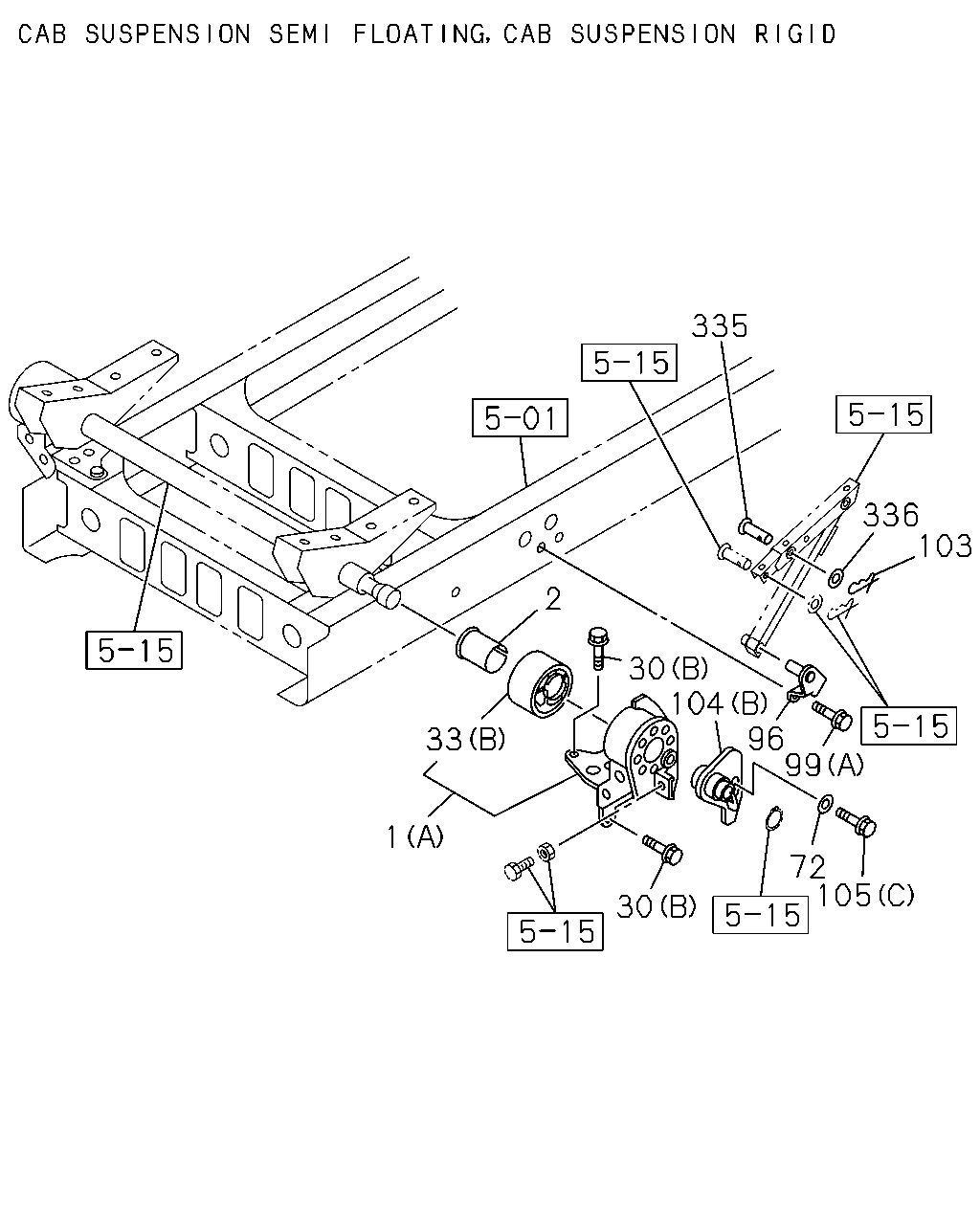

335 336 103 2 30 104 96 99 33 1 72 105 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-658-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-659-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (A)	8-98013-038-2	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (A)	8-98017-660-2	01	1	0712-	●
1	BRACKET; CAB MTG (A)	8-98017-660-2	01	1	0712-		●
1	BRACKET; CAB MTG (A)	8-98017-661-2	01	1	0712-		●
1	BRACKET; CAB MTG (B)	8-98050-976-0	02	1	0712-0807		●
1	BRACKET; CAB MTG (B)	8-98120-623-0	02	1	0808-		●
1	BRACKET; CAB MTG (C)	8-98094-593-0	02	1	0712-		●
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	0712-	●
2	BUSHING; TORSION BAR	8-98010-767-0	02	1	0712-		●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) M14X45 FLANGE	0-28861-445-0	10	1	0712-	●
30	BOLT; CAB FRT FOOT (B) M14X45 FLANGE	0-28861-445-0	10	1	0712-		●
30	BOLT; CAB FRT FOOT (A) M14X50	0-20951-450-0	10	1	0710-0711	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> (A) M14X50	0-20951-450-0	10	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	1-53458-636-1	02	1	0710-0711	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	0712-	●
72	WASHER; PL,BRKT TO FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=15 OD=36	0-91614-714-0	01	1	0712-	●
96	BRACKET; CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	1-62500-628-0	01	1	0712-	●
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) M10X30 FLANGE	0-28661-030-0	02	1	0712-	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	12	1	0712-		●
103	PIN; SPLIT,CAB STAY CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=32.6	8-98062-280-0	01	1	0712-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98010-753-3	01	1	0712-1510	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98330-224-0	01	1	1511-	●
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-98022-421-2	01	1	0710-0711	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-421-2	01	1	0712-	●
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-98022-420-2	01	1	0710-0711	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-420-2	01	1	0712-	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (C) M14X35 FLANGE	0-28661-435-0	01	1	0712-	●
105	BOLT; BRKT TO CAB FRAME (A) M10X30 FLANGE	0-28661-030-0	08	1	0710-0711	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (A) M10X30 FLANGE	0-28661-030-0	08	1	0712-	●
105	BOLT; BRKT TO CAB FRAME (B) M12X45 FLANGE	8-98076-283-0	04	1	0710-0711	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X45 FLANGE	8-98076-283-0	04	1	0712-0801	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	0802-	●
335	PIN; ADJ,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> OD=10 L=48	1-09744-107-0	01	1	0712-	●
336	WASHER; PL,STAY LOCK CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> ID=10.5 T=2.0	1-09985-183-0	01	1	0712-	●

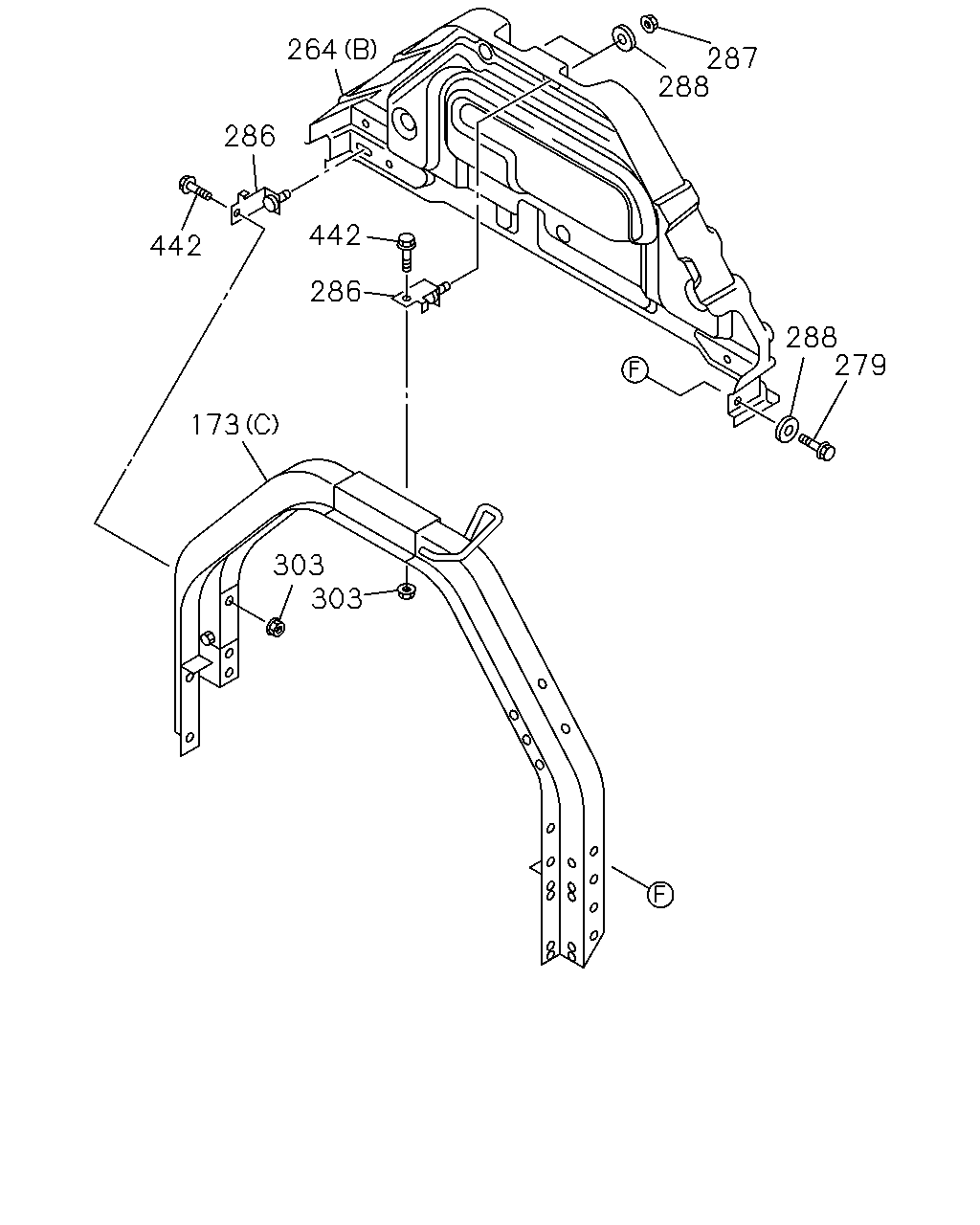

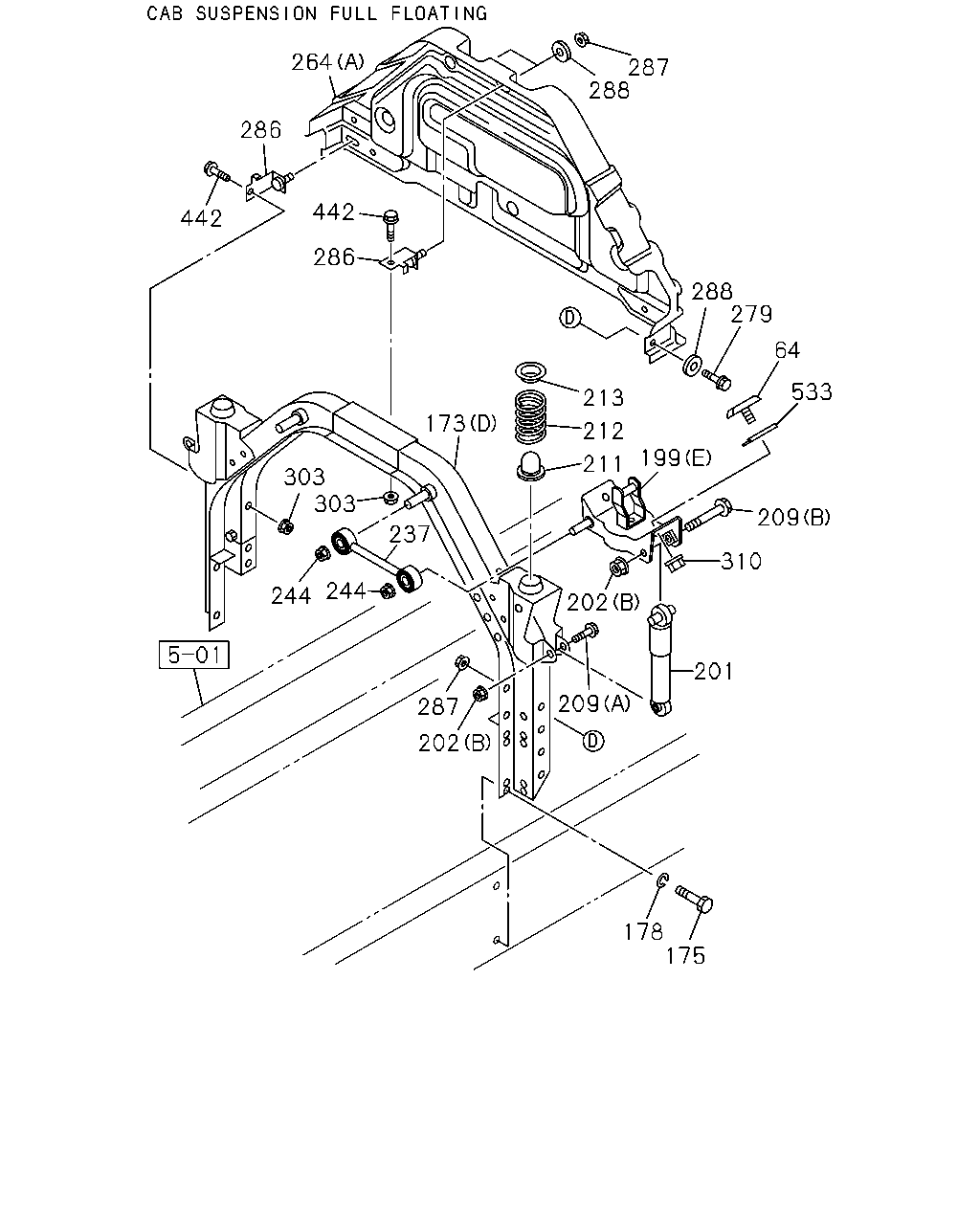

264 287 288 286 442 442 286 288 279 64 533 213 173 212 199 211 303 303 209 237 310 244 244 202 201 209 287 202 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	RUBBER; CUSHION	8-97113-340-0	04	1	0710-0711	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0712-	●	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98013-041-3	01	1	0712-0910	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
173	MEMBER; CAB MTG RR (C)	8-98084-158-3	01	1	0712-		●
173	MEMBER; CAB MTG RR (D)	8-98022-592-6	01	1	0710-0711	●
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (D)	8-98022-592-8	01	1	0712-	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0710-0711	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0712-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0710-0711	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0712-	●	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0712-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	0712-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0712-	●
199	BRACKET; CAB RR MTG (C)	8-98069-332-1	02	1	0712-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	0712-		●
199	BRACKET; CAB RR MTG (E)	8-98025-489-4	01	1	0710-0711	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (E)	8-98025-489-4	01	1	0712-	●
199	BRACKET; CAB RR MTG (E)	8-98025-488-4	01	1	0710-0711	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (E)	8-98025-488-4	01	1	0712-	●
201	ABSORBER ASM; SHOCK,RR MTG	8-98022-450-0	02	1	0710-0711	●
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98022-450-0	02	1	0712-1401	●
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98269-510-0	02	1	1402-	●
202	NUT; S/ABS (B) M12 FLANGE	0-91180-212-0	04	1	0710-0711	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	0712-	●
202	NUT; S/ABS (A) M10	9-09110-410-0	02	1	0710-0711	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	0712-	●
209	BOLT; S/ABS (A) M12X60 FLANGE	0-28051-260-0	02	1	0710-0711	●
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M12X60 FLANGE	0-28051-260-0	02	1	0712-	●
209	BOLT; S/ABS (B) M12X100 FLANGE	0-28061-200-0	02	1	0710-0711	●
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12X100 FLANGE	0-28061-200-0	02	1	0712-	●
211	RUBBER; CUSHION,S/ABS	1-53366-144-0	02	1	0710-0711	●
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	0712-	●
212	SPRING; COIL	1-09580-398-1	02	1	0710-0711	●
212	SPRING; COIL CAB SUSPENSION FULL FLOATING<W16>	1-09580-398-1	02	1	0712-	●
213	SEAT; SPR,S/ABS	1-53366-062-2	02	1	0710-0711	●
213	SEAT; SPR,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-062-2	02	1	0712-	●
237	ROD ASM; LATERAL	1-53459-585-2	02	1	0710-0711	●
237	ROD ASM; LATERAL CAB SUSPENSION FULL FLOATING<W16>	1-53459-585-2	02	1	0712-	●
244	NUT; LATERAL ROD M16 FLANGE	0-91180-216-0	04	1	0710-0711	●
244	NUT; LATERAL ROD CAB SUSPENSION FULL FLOATING<W16> M16 FLANGE	0-91180-216-0	04	1	0712-	●
264	PANEL; BACK (B)	8-98055-597-1	01	1	0712-		●
264	PANEL; BACK (A)	1-53194-609-2	01	1	0710-0711	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	1-53194-609-2	01	1	0712-	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
279	BOLT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
286	BRACKET; LOW	1-53457-187-0	02	1	0710-0711	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	0712-	●
286	BRACKET; LOW	1-53457-187-0	02	1	0712-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0810-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0712-0809	●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0712-0809		●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	0810-	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0710-0711	●
288	WASHER; PL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	0712-	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0712-		●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
303	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0712-	●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-		●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
442	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-		●
533	SPACER; MTG RUBBER	8-98077-323-0	04	1	0710-0711	●
533	SPACER; MTG RUBBER CAB SUSPENSION FULL FLOATING<W16>	8-98077-323-0	04	1	0712-	●
533	SPACER; MTG RUBBER	8-98077-323-0	04	1	0712-		●

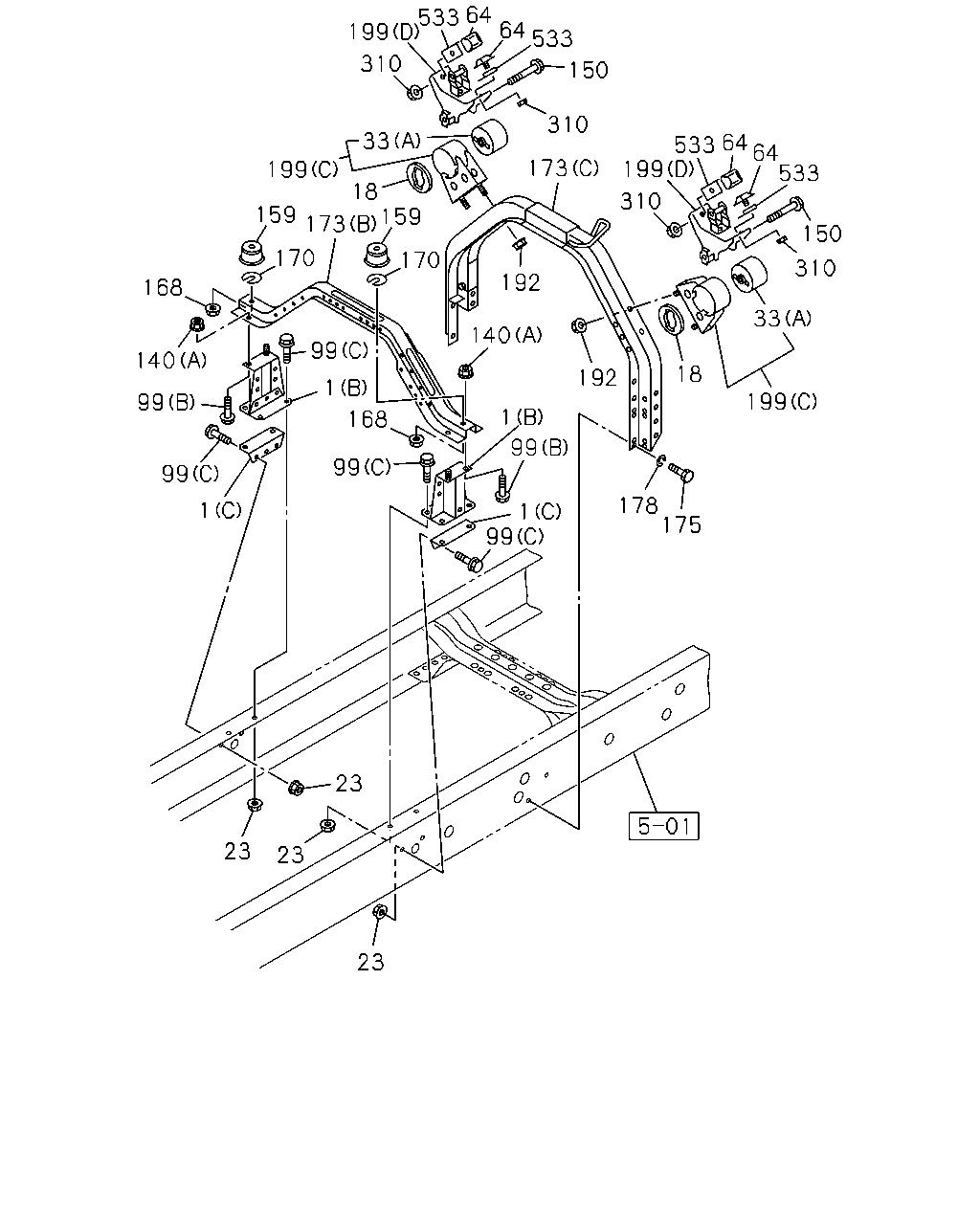

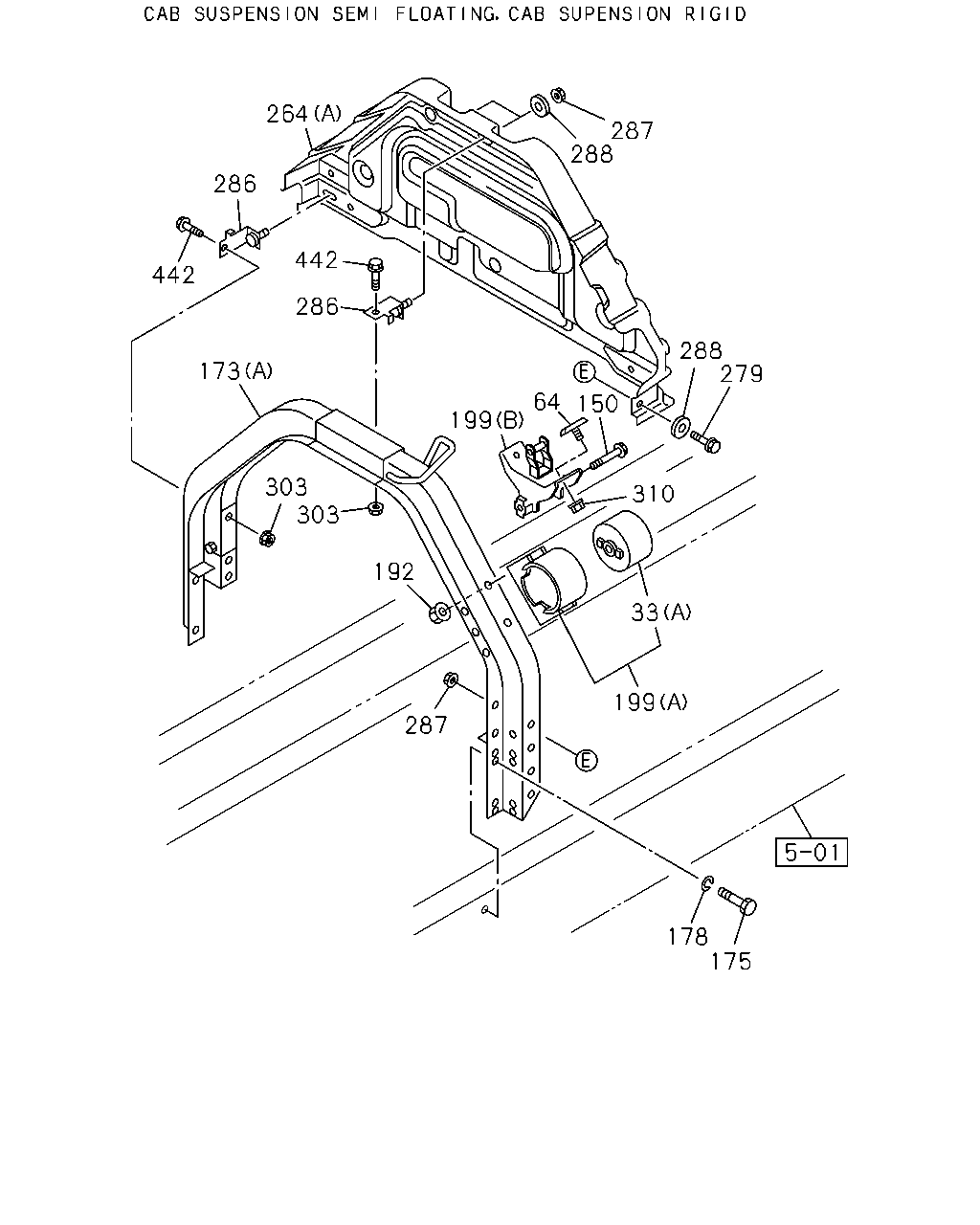

264 287 288 286 442 442 286 288 279 173 64 150 199 303 303 310 192 33 199 287 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	1-53458-636-1	02	1	0710-0711	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	0712-	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0710-0711	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0712-	●	●
150	BOLT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X100	0-10956-400-0	02	1	0712-	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0712-		●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98013-041-3	01	1	0712-0910	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
173	MEMBER; CAB MTG RR (C)	8-98084-158-3	01	1	0712-		●
173	MEMBER; CAB MTG RR (D)	8-98022-592-6	01	1	0710-0711	●
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (D)	8-98022-592-8	01	1	0712-	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0710-0711	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0712-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0710-0711	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0712-	●	●
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91180-212-0	04	1	0712-	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0712-		●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0712-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	0712-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0712-	●
199	BRACKET; CAB RR MTG (C)	8-98069-332-1	02	1	0712-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	0712-		●
199	BRACKET; CAB RR MTG (E)	8-98025-489-4	01	1	0710-0711	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (E)	8-98025-489-4	01	1	0712-	●
199	BRACKET; CAB RR MTG (E)	8-98025-488-4	01	1	0710-0711	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (E)	8-98025-488-4	01	1	0712-	●
264	PANEL; BACK (B)	8-98055-597-1	01	1	0712-		●
264	PANEL; BACK (A)	1-53194-609-2	01	1	0710-0711	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	1-53194-609-2	01	1	0712-	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
279	BOLT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
286	BRACKET; LOW	1-53457-187-0	02	1	0710-0711	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	0712-	●
286	BRACKET; LOW	1-53457-187-0	02	1	0712-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0810-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0712-0809	●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0712-0809		●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	0810-	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0710-0711	●
288	WASHER; PL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	0712-	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0712-		●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
303	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0712-	●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-		●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
442	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-		●

1 2 33 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-658-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-659-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (A)	8-98013-038-2	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (A)	8-98017-660-2	01	1	0712-	●
1	BRACKET; CAB MTG (A)	8-98017-660-2	01	1	0712-		●
1	BRACKET; CAB MTG (A)	8-98017-661-2	01	1	0712-		●
1	BRACKET; CAB MTG (B)	8-98050-976-0	02	1	0712-0807		●
1	BRACKET; CAB MTG (B)	8-98120-623-0	02	1	0808-		●
1	BRACKET; CAB MTG (C)	8-98094-593-0	02	1	0712-		●
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	0712-	●
2	BUSHING; TORSION BAR	8-98010-767-0	02	1	0712-		●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) M14X45 FLANGE	0-28861-445-0	10	1	0712-	●
30	BOLT; CAB FRT FOOT (B) M14X45 FLANGE	0-28861-445-0	10	1	0712-		●
30	BOLT; CAB FRT FOOT (A) M14X50	0-20951-450-0	10	1	0710-0711	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> (A) M14X50	0-20951-450-0	10	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	1-53458-636-1	02	1	0710-0711	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	0712-	●

411 411 410 418 410 135 411 140 93 411 418 140 93 141 93 136 141 418 93 418 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	BOLT; PIN (A) M10X20 FLANGE	0-28651-020-0	01	1	0710-0711	●
93	BOLT; PIN AUTO CAB TILT<WV2> (A) M10X20 FLANGE	0-28651-020-0	01	1	0712-	●
93	BOLT; PIN (C) M10X20 FLANGE	0-28651-020-0	02	1	0712-		●
93	BOLT; PIN (D) M14X70 FLANGE	0-29261-470-0	02	1	0712-		●
93	BOLT; PIN (B) M14X70 FLANGE	0-29261-470-0	01	1	0710-0711	●
93	BOLT; PIN AUTO CAB TILT<WV2> (B) M14X70 FLANGE	0-29261-470-0	01	1	0712-	●
135	NUT; PIN M14	0-91110-514-0	01	1	0710-0711	●
135	NUT; PIN AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	0712-	●
135	NUT; PIN M14	0-91110-514-0	01	1	0712-		●
136	BRACKET; OIL CYL (B)	8-98077-941-1	01	1	0712-		●
136	BRACKET; OIL CYL (B)	8-98077-942-1	01	1	0712-		●
136	BRACKET; OIL CYL (A)	8-98077-938-0	01	1	0710-0711	●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2> (A)	8-98077-938-0	01	1	0712-	●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	0712-		●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	08	1	0712-		●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	04	1	0710-0711	●
140	NUT; BRKT AUTO CAB TILT<WV2> (B) M14 FLANGE	0-91180-214-0	04	1	0712-	●
141	BOLT; BRKT M14X40 FLANGE	0-28661-440-0	08	1	0712-		●
141	BOLT; BRKT M14X40 FLANGE	0-28661-440-0	04	1	0710-0711	●
141	BOLT; BRKT AUTO CAB TILT<WV2> M14X40 FLANGE	0-28661-440-0	04	1	0712-	●
410	REINFORCEMENT; CAB TILT (B)	8-97614-237-4	01	1	0712-		●
410	REINFORCEMENT; CAB TILT (A)	8-97588-837-4	01	1	0710-0711	●
410	REINFORCEMENT; CAB TILT AUTO CAB TILT<WV2> (A)	8-97588-837-5	01	1	0712-	●
410	REINFORCEMENT; CAB TILT (A)	8-97588-837-5	01	1	0712-		●
411	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	08	1	0712-		●
411	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	04	1	0710-0711	●
411	BOLT; REINFORCEMENT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	0712-	●
418	WASHER; PL,PIN (B) ID=15	0-91610-514-0	02	1	0712-		●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	02	1	0712-		●
418	WASHER; PL,PIN (B) ID=15	0-91610-514-0	01	1	0710-0711	●
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (B) ID=15	0-91610-514-0	01	1	0712-	●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	01	1	0710-0711	●
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (A) ID=10.5 OD=32	0-91614-810-0	01	1	0712-	●

533 64 199 64 533 310 150 310 33 533 64 64 199 533 173 199 18 159 173 310 159 150 170 170 310 192 168 33 99 140 140 18 192 1 199 99 1 168 99 99 99 178 175 1 1 99 23 23 23 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-658-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-659-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (A)	8-98013-038-2	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (A)	8-98017-660-2	01	1	0712-	●
1	BRACKET; CAB MTG (A)	8-98017-660-2	01	1	0712-		●
1	BRACKET; CAB MTG (A)	8-98017-661-2	01	1	0712-		●
1	BRACKET; CAB MTG (B)	8-98050-976-0	02	1	0712-0807		●
1	BRACKET; CAB MTG (B)	8-98120-623-0	02	1	0808-		●
1	BRACKET; CAB MTG (C)	8-98094-593-0	02	1	0712-		●
18	PLATE; MTG BRKT FIX	8-98096-159-0	02	1	0712-		●
23	NUT; MTG BRKT M12 FLANGE	0-91180-212-0	12	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	1-53458-636-1	02	1	0710-0711	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	0712-	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0710-0711	●
64	RUBBER; CUSHION	8-97113-340-0	04	1	0712-	●	●
99	BOLT; BRKT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) M10X30 FLANGE	0-28661-030-0	02	1	0712-	●
99	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	0712-		●
99	BOLT; BRKT (C) M12X35 FLANGE	0-28061-235-0	12	1	0712-		●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	0712-		●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	08	1	0712-		●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	04	1	0710-0711	●
140	NUT; BRKT AUTO CAB TILT<WV2> (B) M14 FLANGE	0-91180-214-0	04	1	0712-	●
150	BOLT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X100	0-10956-400-0	02	1	0712-	●
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	0712-		●
159	RUBBER; CUSHION,CAB MTG	9-54347-160-1	02	1	0712-		●
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91180-212-0	02	1	0712-		●
170	SHIM; CUSHION RUBBER T=1.6	9-54347-136-1	AR	1	0712-		●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98013-041-3	01	1	0712-0910	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
173	MEMBER; CAB MTG RR (C)	8-98084-158-3	01	1	0712-		●
173	MEMBER; CAB MTG RR (D)	8-98022-592-6	01	1	0710-0711	●
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (D)	8-98022-592-8	01	1	0712-	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0710-0711	●
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	0712-	●	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0710-0711	●
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	0712-	●	●
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91180-212-0	04	1	0712-	●
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	0712-		●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	0712-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	0712-	●
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	0712-	●
199	BRACKET; CAB RR MTG (C)	8-98069-332-1	02	1	0712-		●
199	BRACKET; CAB RR MTG (D)	8-98095-166-0	02	1	0712-		●
199	BRACKET; CAB RR MTG (E)	8-98025-489-4	01	1	0710-0711	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (E)	8-98025-489-4	01	1	0712-	●
199	BRACKET; CAB RR MTG (E)	8-98025-488-4	01	1	0710-0711	●
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (E)	8-98025-488-4	01	1	0712-	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0710-0711	●
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	0712-	●	●
533	SPACER; MTG RUBBER	8-98077-323-0	04	1	0710-0711	●
533	SPACER; MTG RUBBER CAB SUSPENSION FULL FLOATING<W16>	8-98077-323-0	04	1	0712-	●
533	SPACER; MTG RUBBER	8-98077-323-0	04	1	0712-		●

264 287 288 286 442 442 286 288 279 173 303 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98013-041-3	01	1	0712-0910	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98151-943-0	01	1	0911-	●
173	MEMBER; CAB MTG RR (B)	1-53454-568-1	01	1	0712-		●
173	MEMBER; CAB MTG RR (C)	8-98084-158-3	01	1	0712-		●
173	MEMBER; CAB MTG RR (D)	8-98022-592-6	01	1	0710-0711	●
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (D)	8-98022-592-8	01	1	0712-	●
264	PANEL; BACK (B)	8-98055-597-1	01	1	0712-		●
264	PANEL; BACK (A)	1-53194-609-2	01	1	0710-0711	●
264	PANEL; BACK ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A)	1-53194-609-2	01	1	0712-	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0710-0711	●
279	BOLT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
279	BOLT M8X25 FLANGE	0-28650-825-0	01	1	0712-		●
286	BRACKET; LOW	1-53457-187-0	02	1	0710-0711	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT-ECE R51.02<JCA>	1-53457-187-0	02	1	0712-	●
286	BRACKET; LOW	1-53457-187-0	02	1	0712-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0810-		●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0712-0809	●
287	NUT M8 FLANGE	0-91180-108-0	02	1	0712-0809		●
287	NUT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	03	1	0810-	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0710-0711	●
288	WASHER; PL ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26	0-91614-808-0	03	1	0712-	●
288	WASHER; PL ID=8.4 OD=26	0-91614-808-0	03	1	0712-		●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
303	NUT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE	0-91180-108-0	02	1	0712-	●
303	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-		●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●
442	BOLT; BRKT ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE	0-28650-820-0	02	1	0712-	●
442	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0712-		●

410 411 411 135 418 140 93 136 141 418 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	BOLT; PIN (A) M10X20 FLANGE	0-28651-020-0	01	1	0710-0711	●
93	BOLT; PIN AUTO CAB TILT<WV2> (A) M10X20 FLANGE	0-28651-020-0	01	1	0712-	●
93	BOLT; PIN (C) M10X20 FLANGE	0-28651-020-0	02	1	0712-		●
93	BOLT; PIN (D) M14X70 FLANGE	0-29261-470-0	02	1	0712-		●
93	BOLT; PIN (B) M14X70 FLANGE	0-29261-470-0	01	1	0710-0711	●
93	BOLT; PIN AUTO CAB TILT<WV2> (B) M14X70 FLANGE	0-29261-470-0	01	1	0712-	●
135	NUT; PIN M14	0-91110-514-0	01	1	0710-0711	●
135	NUT; PIN AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	0712-	●
135	NUT; PIN M14	0-91110-514-0	01	1	0712-		●
136	BRACKET; OIL CYL (B)	8-98077-941-1	01	1	0712-		●
136	BRACKET; OIL CYL (B)	8-98077-942-1	01	1	0712-		●
136	BRACKET; OIL CYL (A)	8-98077-938-0	01	1	0710-0711	●
136	BRACKET; OIL CYL AUTO CAB TILT<WV2> (A)	8-98077-938-0	01	1	0712-	●
140	NUT; BRKT (A) M12 FLANGE	0-91180-212-0	04	1	0712-		●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	08	1	0712-		●
140	NUT; BRKT (B) M14 FLANGE	0-91180-214-0	04	1	0710-0711	●
140	NUT; BRKT AUTO CAB TILT<WV2> (B) M14 FLANGE	0-91180-214-0	04	1	0712-	●
141	BOLT; BRKT M14X40 FLANGE	0-28661-440-0	08	1	0712-		●
141	BOLT; BRKT M14X40 FLANGE	0-28661-440-0	04	1	0710-0711	●
141	BOLT; BRKT AUTO CAB TILT<WV2> M14X40 FLANGE	0-28661-440-0	04	1	0712-	●
410	REINFORCEMENT; CAB TILT (B)	8-97614-237-4	01	1	0712-		●
410	REINFORCEMENT; CAB TILT (A)	8-97588-837-4	01	1	0710-0711	●
410	REINFORCEMENT; CAB TILT AUTO CAB TILT<WV2> (A)	8-97588-837-5	01	1	0712-	●
410	REINFORCEMENT; CAB TILT (A)	8-97588-837-5	01	1	0712-		●
411	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	08	1	0712-		●
411	BOLT; REINFORCEMENT M8X20 FLANGE	0-28650-820-0	04	1	0710-0711	●
411	BOLT; REINFORCEMENT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	0712-	●
418	WASHER; PL,PIN (B) ID=15	0-91610-514-0	02	1	0712-		●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	02	1	0712-		●
418	WASHER; PL,PIN (B) ID=15	0-91610-514-0	01	1	0710-0711	●
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (B) ID=15	0-91610-514-0	01	1	0712-	●
418	WASHER; PL,PIN (A) ID=10.5 OD=32	0-91614-810-0	01	1	0710-0711	●
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (A) ID=10.5 OD=32	0-91614-810-0	01	1	0712-	●

104 106 110 111 67 105 104 110 106 108 105 9 107 107 146 116 117 121 11 19 19 11 107 144 112 145 107 121 114 115 114 9 11 33 69 4 11 33 11 4 1 326 202 203 35 30 204 205 65 204 203 325 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-658-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-659-1	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (A)	8-98013-038-2	01	1	0712-	●
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (A)	8-98017-660-2	01	1	0712-	●
1	BRACKET; CAB MTG (A)	8-98017-660-2	01	1	0712-		●
1	BRACKET; CAB MTG (A)	8-98017-661-2	01	1	0712-		●
1	BRACKET; CAB MTG (B)	8-98050-976-0	02	1	0712-0807		●
1	BRACKET; CAB MTG (B)	8-98120-623-0	02	1	0808-		●
1	BRACKET; CAB MTG (C)	8-98094-593-0	02	1	0712-		●
4	BRACKET; FRT MTG	1-53453-270-0	01	1	0710-0711	●
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-270-0	01	1	0712-	●
4	BRACKET; FRT MTG	1-53453-269-0	01	1	0710-0711	●
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-269-0	01	1	0712-	●
9	BOLT M16X125	1-51361-023-0	02	1	0710-0711	●
9	BOLT CAB SUSPENSION FULL FLOATING<W16> M16X125	1-51361-023-0	02	1	0712-	●
11	WASHER; LK (B) ID=16.2	0-91510-816-0	02	1	0710-0711	●
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (B) ID=16.2	0-91510-816-0	02	1	0712-	●
11	WASHER; LK (A) ID=34.5	1-53458-281-1	04	1	0710-0711	●
11	WASHER; LK CAB SUSPENSION FULL FLOATING<W16> (A) ID=34.5	1-53458-281-1	04	1	0712-	●
19	NUT M16	0-91110-516-0	02	1	0710-0711	●
19	NUT CAB SUSPENSION FULL FLOATING<W16> M16	0-91110-516-0	02	1	0712-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B) M14X45 FLANGE	0-28861-445-0	10	1	0712-	●
30	BOLT; CAB FRT FOOT (B) M14X45 FLANGE	0-28861-445-0	10	1	0712-		●
30	BOLT; CAB FRT FOOT (A) M14X50	0-20951-450-0	10	1	0710-0711	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> (A) M14X50	0-20951-450-0	10	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (B)	8-98013-933-1	01	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98013-933-1	01	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	0712-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98013-934-1	02	1	0712-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (C)	1-53458-636-1	02	1	0710-0711	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (C)	1-53458-636-1	02	1	0712-	●
35	WASHER; PL,CAB MTG BRKT ID=15	9-09651-069-0	10	1	0710-0711	●
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	9-09651-069-0	10	1	0712-1201	●
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	8-98010-627-1	10	1	1202-	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-345-0	02	1	0710-0711	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-51630-345-0	02	1	0712-	●
67	NUT; S/ABS,CAB FRT SUSPENSION	8-97359-039-0	02	1	0710-0711	●
67	NUT; S/ABS,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	8-97359-039-0	02	1	0712-0803	●
69	BOLT; S/ABS,CAB FRT SUSPENSION M12X60 FLANGE	0-28051-260-0	02	1	0710-0711	●
69	BOLT; S/ABS,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16> M12X60 FLANGE	0-28051-260-0	02	1	0712-	●
77	NUT CAB SUSPENSION FULL FLOATING<W16>	8-97359-039-0	02	1	0804-	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98010-753-3	01	1	0712-1510	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98330-224-0	01	1	1511-	●
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-98022-421-2	01	1	0710-0711	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-421-2	01	1	0712-	●
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-98022-420-2	01	1	0710-0711	●
104	BRACKET; CAB FRAME,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-420-2	01	1	0712-	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (C) M14X35 FLANGE	0-28661-435-0	01	1	0712-	●
105	BOLT; BRKT TO CAB FRAME (A) M10X30 FLANGE	0-28661-030-0	08	1	0710-0711	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (A) M10X30 FLANGE	0-28661-030-0	08	1	0712-	●
105	BOLT; BRKT TO CAB FRAME (B) M12X45 FLANGE	8-98076-283-0	04	1	0710-0711	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X45 FLANGE	8-98076-283-0	04	1	0712-0801	●
105	BOLT; BRKT TO CAB FRAME CAB SUSPENSION FULL FLOATING<W16> (B) M12X35 FLANGE	0-28651-235-0	04	1	0802-	●
106	PIN; BRKT TO LINK ARM	1-53459-642-1	02	1	0710-0711	●
106	PIN; BRKT TO LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-642-1	02	1	0712-	●
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO	1-53459-643-2	04	1	0710-0711	●
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO CAB SUSPENSION FULL FLOATING<W16>	1-53459-643-2	04	1	0712-	●
108	NUT; PIN LOCK BOLT M8 FLANGE	0-91180-108-0	02	1	0710-0711	●
108	NUT; PIN LOCK BOLT CAB SUSPENSION FULL FLOATING<W16> M8 FLANGE	0-91180-108-0	02	1	0712-	●
110	NIPPLE; GREASE,LINK ARM PIN PT1/8 ELBOW	0-90301-610-0	02	1	0710-0711	●
110	NIPPLE; GREASE,LINK ARM PIN CAB SUSPENSION FULL FLOATING<W16> PT1/8 ELBOW	0-90301-610-0	02	1	0712-	●
111	BOLT; PIN LOCK,LINK ARM M8X50 FLANGE	0-28050-850-0	02	1	0710-0711	●
111	BOLT; PIN LOCK,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X50 FLANGE	0-28050-850-0	02	1	0712-	●
112	ARM ASM; LINK,CAB FRT SUSP	8-98082-922-0	01	1	0710-0711	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION FULL FLOATING<W16>	8-98082-922-0	01	1	0712-0910	●
112	ARM ASM; LINK,CAB FRT SUSP CAB SUSPENSION FULL FLOATING<W16>	8-98148-517-0	01	1	0911-	●
114	BUSHING; FLOATING LINK PIN	1-09330-068-0	04	1	0710-0711	●
114	BUSHING; FLOATING LINK PIN CAB SUSPENSION FULL FLOATING<W16>	1-09330-068-0	04	1	0712-	●
115	BUSHING; RUBBER,FLOATING LINK ARM	1-53459-315-2	02	1	0710-0711	●
115	BUSHING; RUBBER,FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	1-53459-315-2	02	1	0712-	●
116	BOLT; STOPPER RUBBER,LINK ARM M8X20 FLANGE	0-28050-820-0	04	1	0710-0711	●
116	BOLT; STOPPER RUBBER,LINK ARM CAB SUSPENSION FULL FLOATING<W16> M8X20 FLANGE	0-28050-820-0	04	1	0712-	●
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG	1-53458-321-1	02	1	0710-0711	●
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53458-321-1	02	1	0712-	●
121	PLUG; FLOATING LINK ARM	9-09860-031-0	02	1	0710-0711	●
121	PLUG; FLOATING LINK ARM CAB SUSPENSION FULL FLOATING<W16>	9-09860-031-0	02	1	0712-	●
144	SPRING; COIL,CAB FRT SUSPENSION	1-09580-518-1	02	1	0710-0711	●
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-09580-518-1	02	1	0712-	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION	1-53366-144-0	02	1	0710-0711	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	0712-	●
146	SEAT; SPRING,CAB FRT SUSPENSION	1-53366-132-1	02	1	0710-0711	●
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-132-1	02	1	0712-	●
202	NUT; S/ABS (B) M12 FLANGE	0-91180-212-0	04	1	0710-0711	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	0712-	●
202	NUT; S/ABS (A) M10	9-09110-410-0	02	1	0710-0711	●
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	0712-	●
203	WASHER; RUBBER,SHOCK ID=10.5 OD=38	9-51631-062-0	04	1	0710-0711	●
203	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=10.5 OD=38	9-51631-062-0	04	1	0712-	●
204	RUBBER; CUSHION,SHOCK TOKICO	9-51631-603-0	04	1	0710-0711	●
204	RUBBER; CUSHION,SHOCK CAB SUSPENSION FULL FLOATING<W16> TOKICO	9-51631-603-0	04	1	0712-	●
205	WASHER; RUBBER,SHOCK ID=13 OD=38	9-51631-063-0	02	1	0710-0711	●
205	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=13 OD=38	9-51631-063-0	02	1	0712-	●
325	BOLT; GUIDE NUT M12X40 FLANGE	0-28651-240-0	02	1	0710-0711	●
325	BOLT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12X40 FLANGE	0-28651-240-0	02	1	0712-	●
326	NUT; GUIDE NUT M12	0-91110-512-0	02	1	0710-0711	●
326	NUT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12	0-91110-512-0	02	1	0712-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
